Description

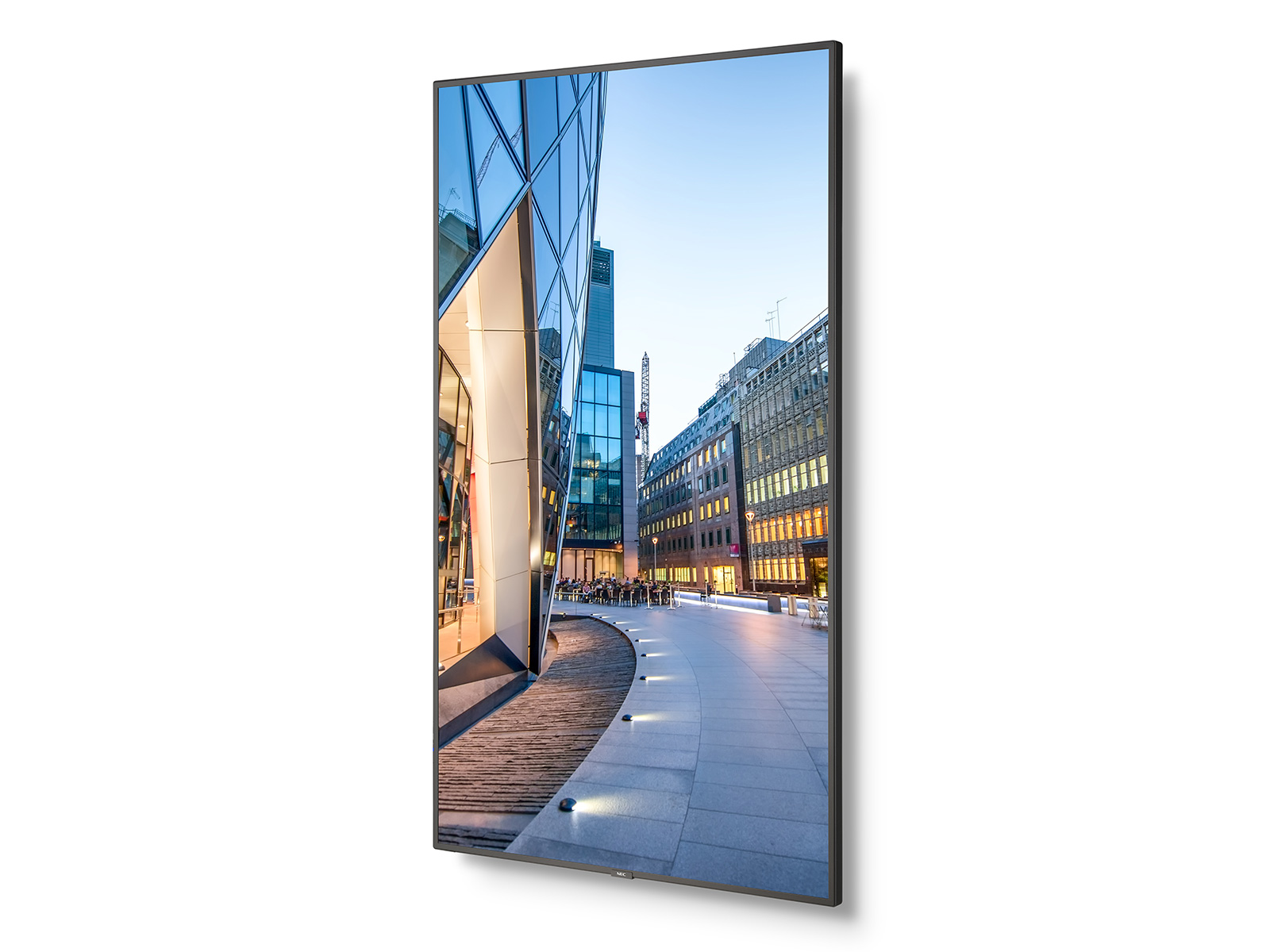

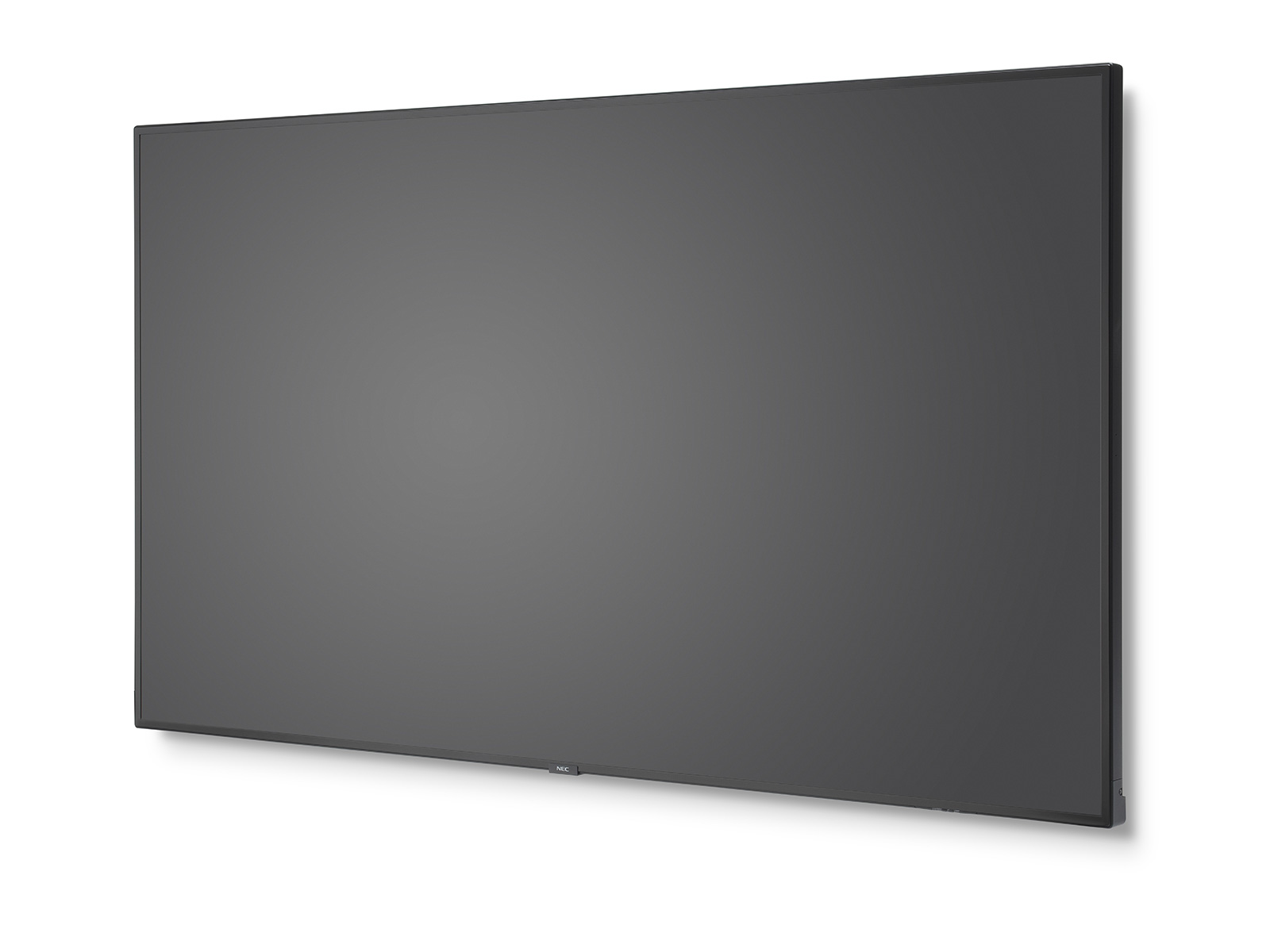

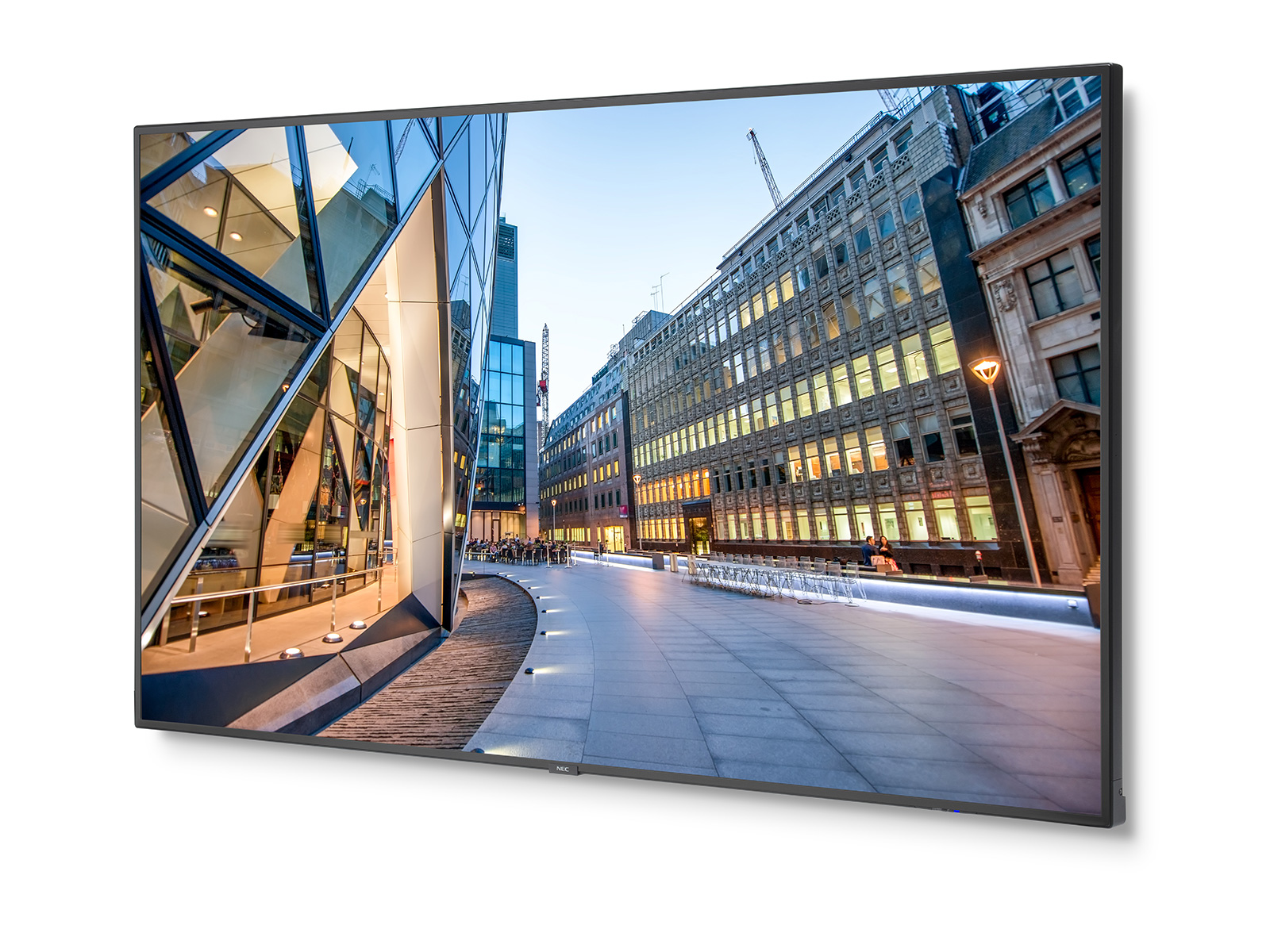

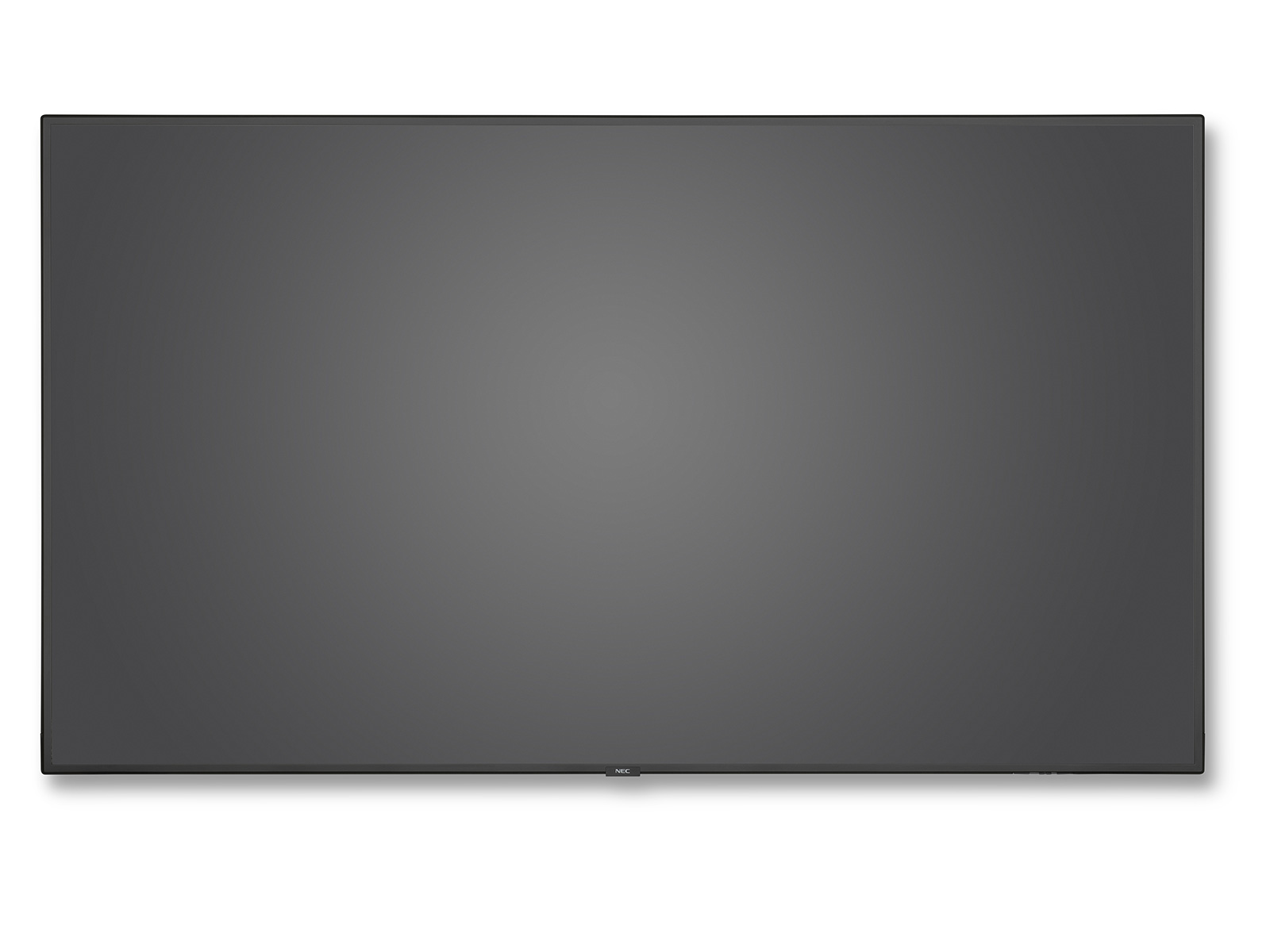

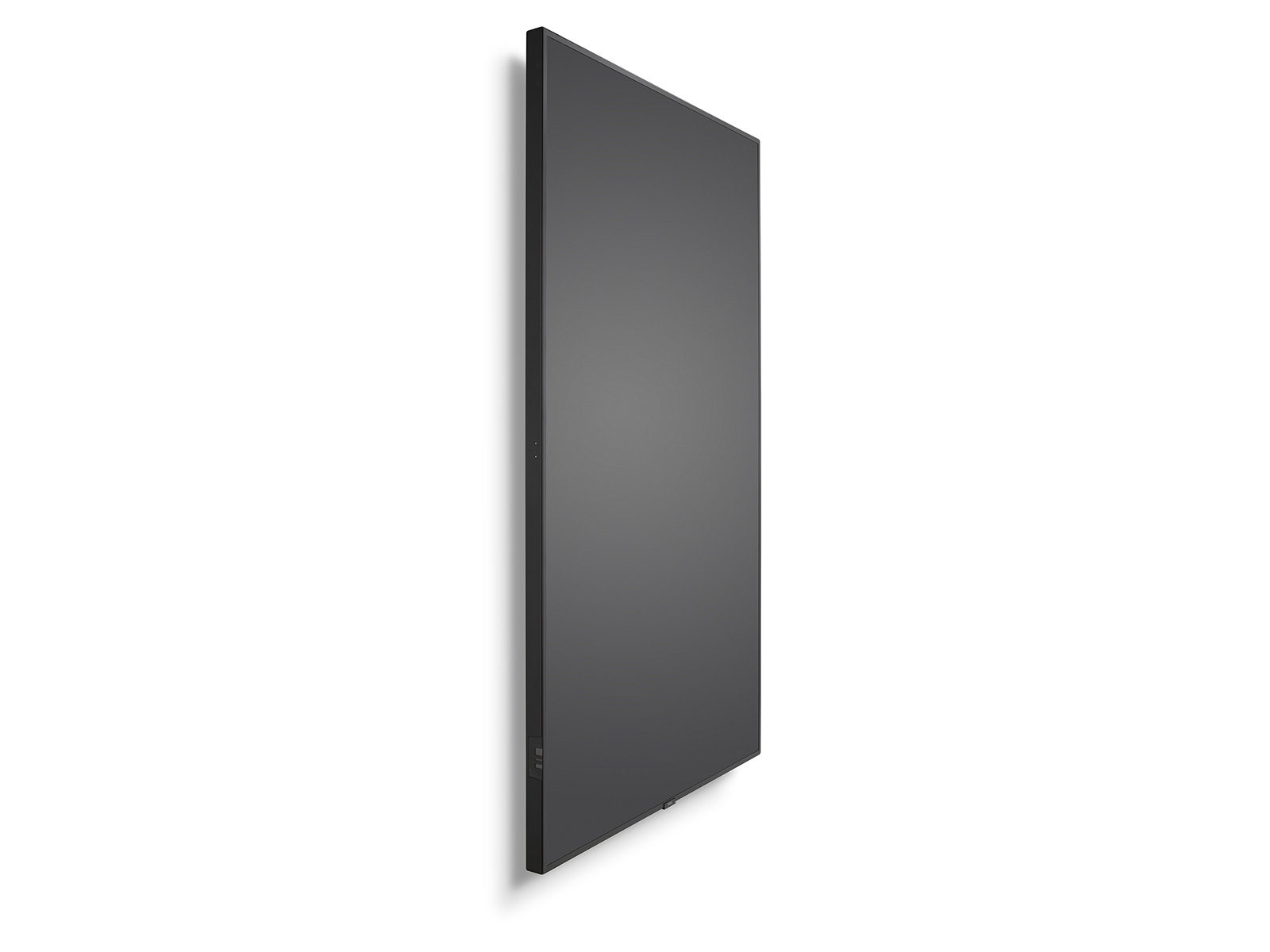

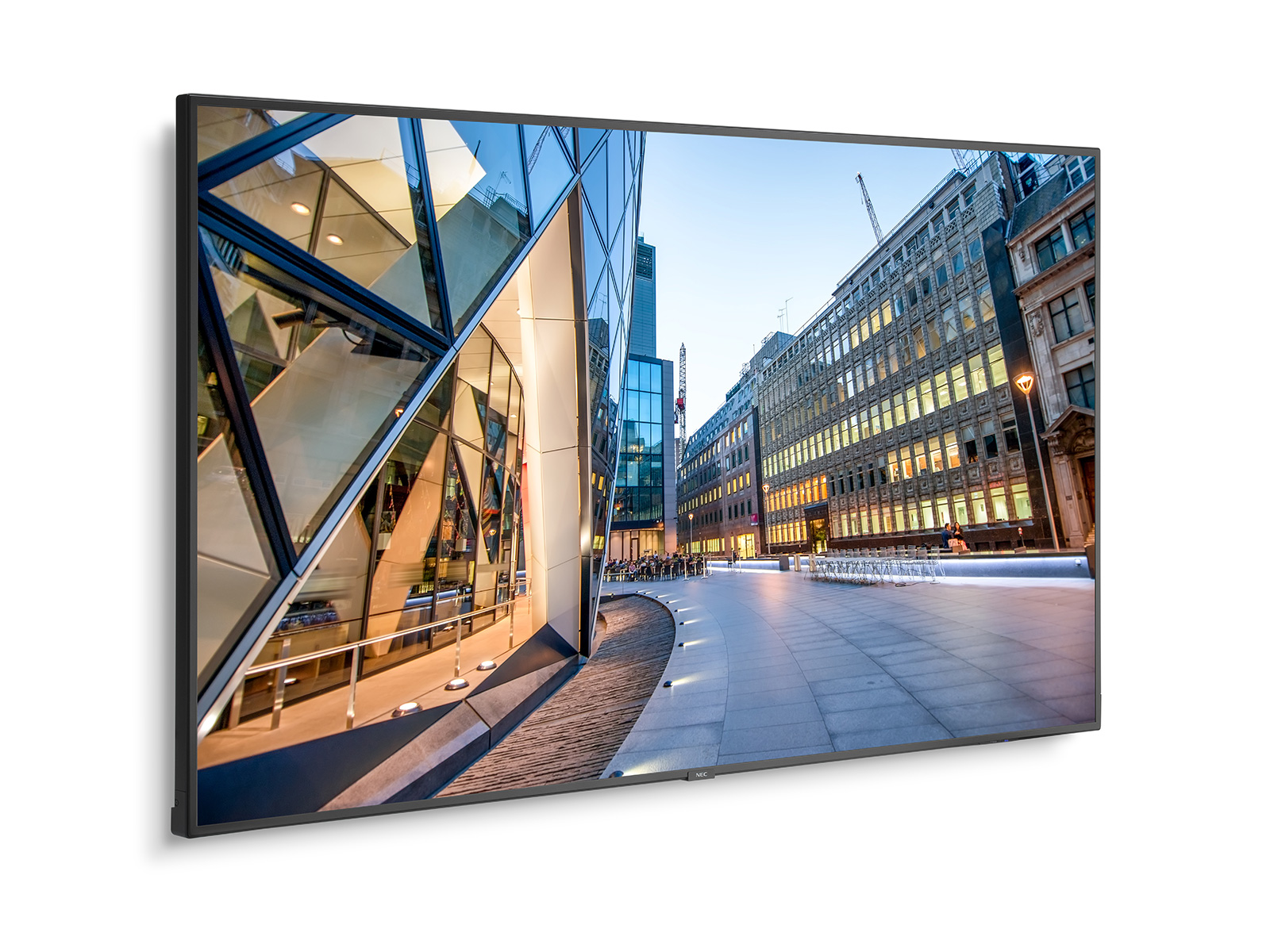

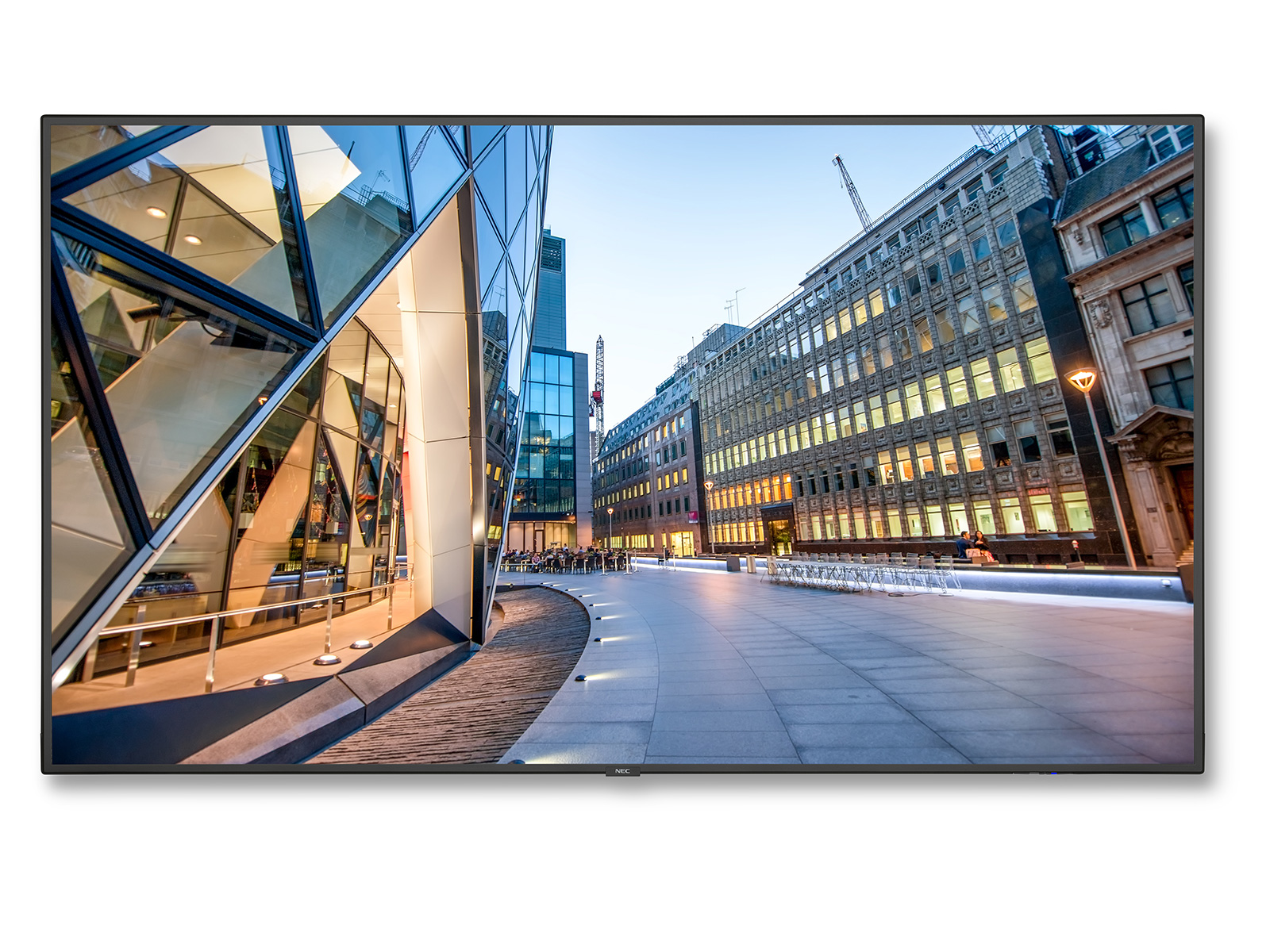

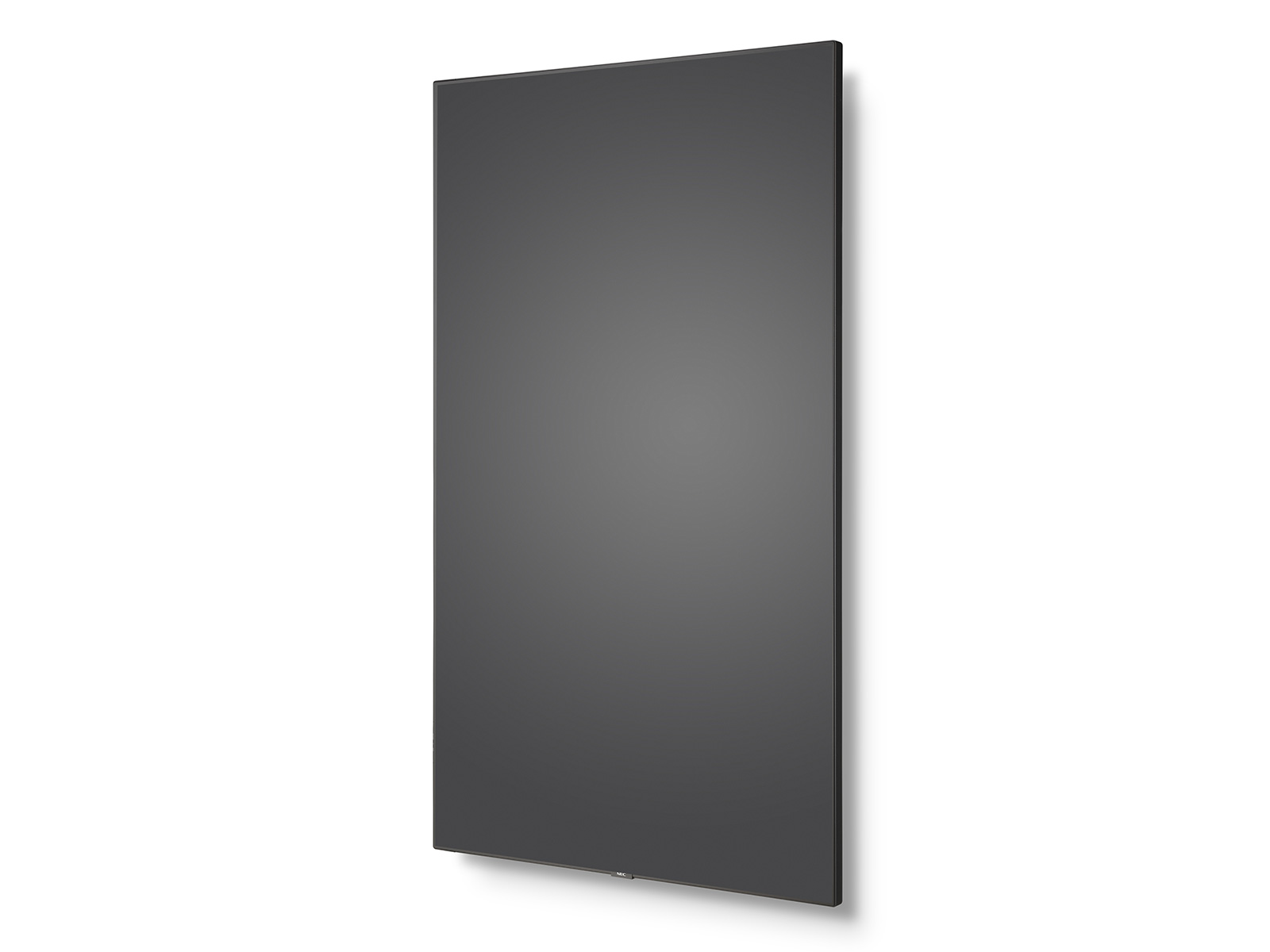

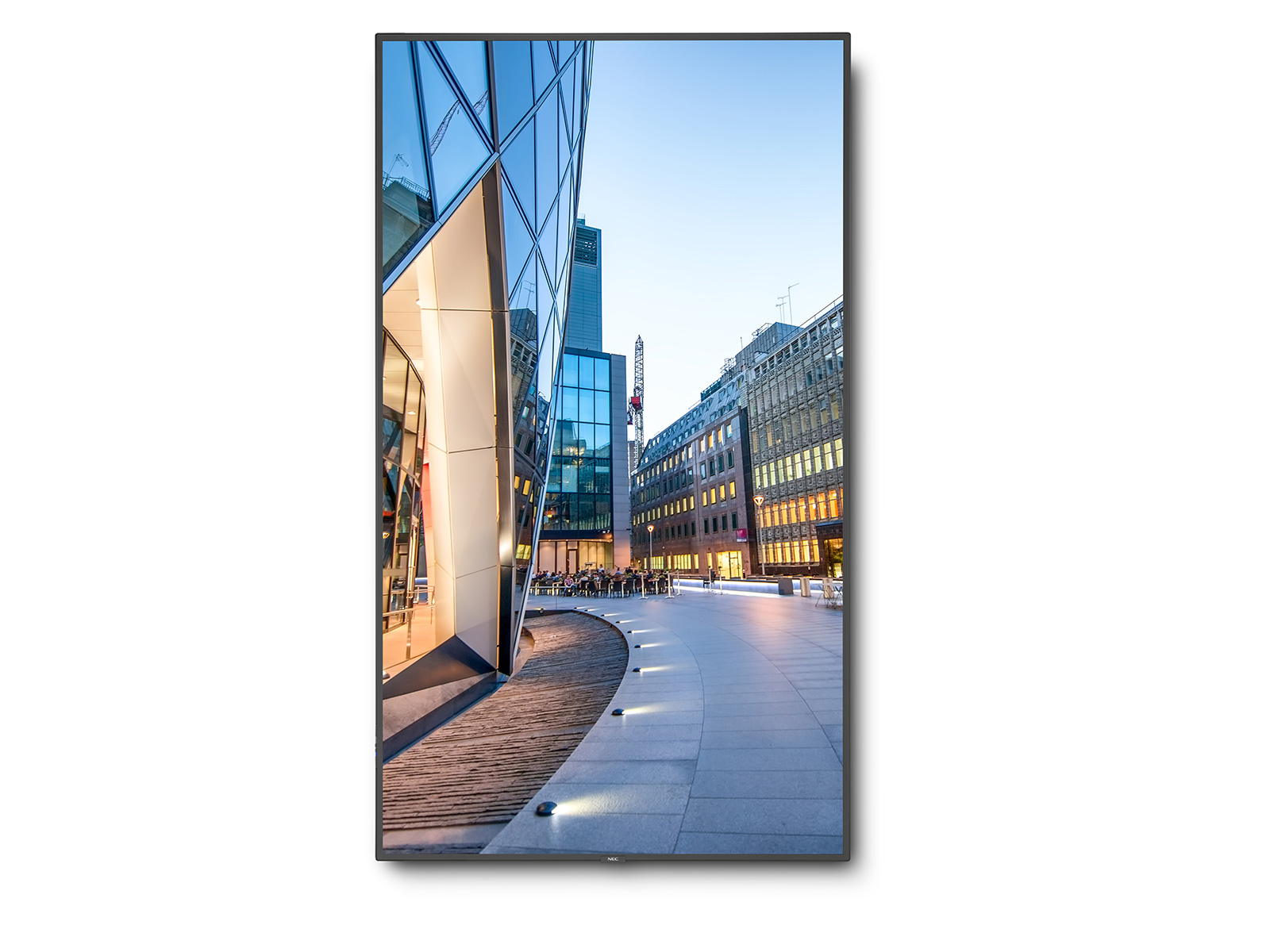

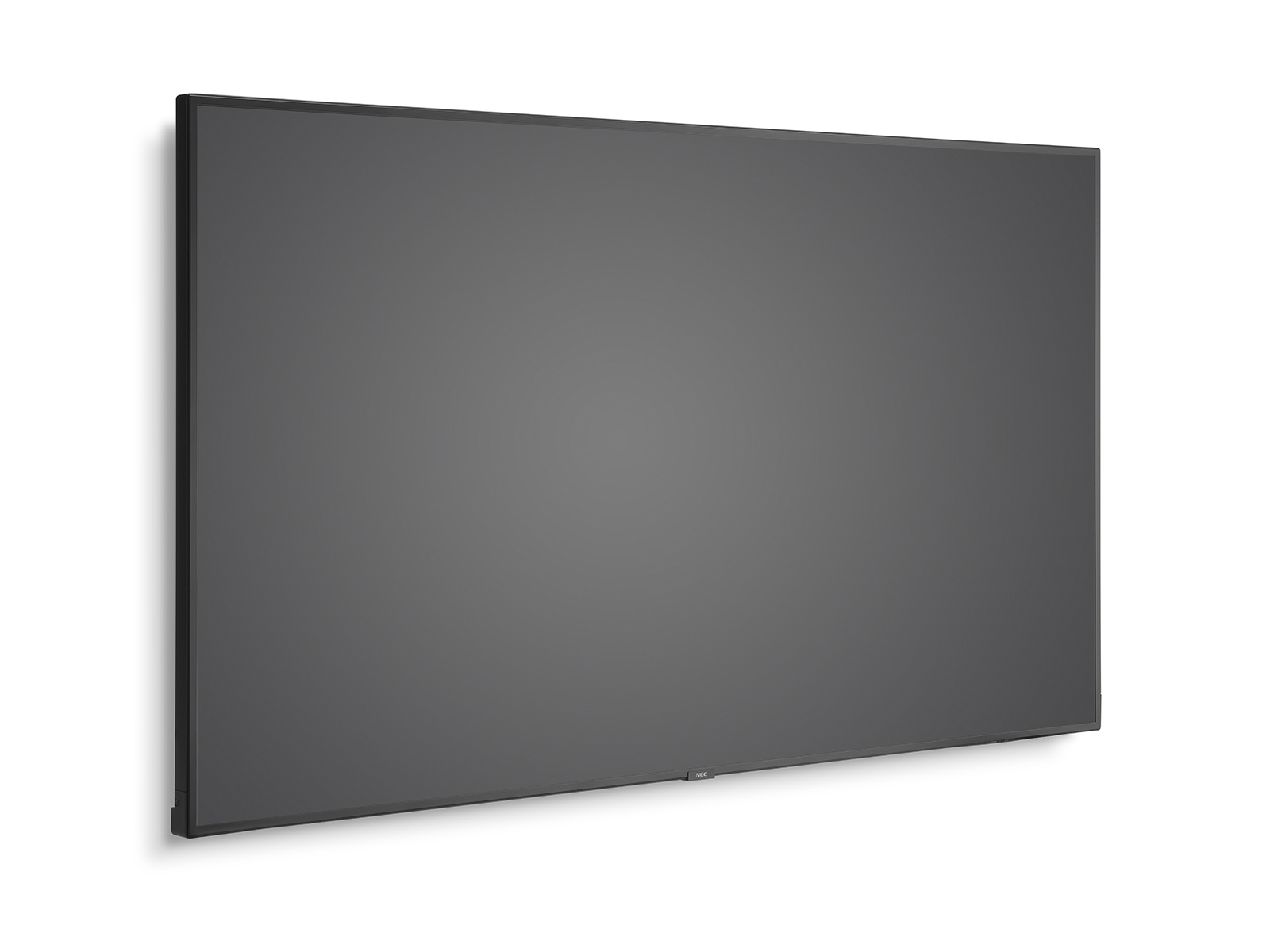

NEC MultiSync C860Q. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of Sharp/NEC’s options for OPS Slot-in PCs or signal interfaces for content feed and computing
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources
Future-proof signal connectivity and processing – numerous native UHD resolution inputs with 60Hz refresh rate including DisplayPort, HDMI and an option slot for OPS Slot-in PCs, plus automatic upscaling to UHD for other signals, provide “pixel-free viewing“ on a large scale
Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool

Product Properties

Manufacturer
NEC

Model
60005461

EAN
5028695123779

Audio

Built-in speaker(s)
Yes

Number of built-in speakers
2

RMS rated power
20 W

Design

Bezel width (bottom)
1.53 cm

Bezel width (side)
1.53 cm

Bezel width (top)
1.53 cm

Orientation
Horizontal/Vertical

Panel mounting interface
400 x 400,600 x 400 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Active display area (W x H)
1895 x 1065.9 mm

Contrast ratio (typical)
1200:1

Display brightness
350 cd/m²

Display number of colours
1.073 billion colours

Haze rate
28%

HD type
4K Ultra HD

Horizontal scan range
31.5 - 91.1 kHz

LED backlighting type
Edge-LED

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
2.18 m (86")

Screen Type
217 cm

Screen Type
IPS

Vertical scan range
24 - 85 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Logistics data

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Packaging content

Batteries included
Yes

Cables included
AC, HDMI

Remote control included
Yes

Packaging data

Package depth
320 mm

Package height
1290 mm

Package weight
73.4 kg

Package width
2157 mm

Performance

Ambient light sensor
Yes

HDCP
Yes

International Protection (IP) code
IP5X, IP2X

Operating hours (hours/days)
24/7

Purpose
Universal

Ports & interfaces

DisplayPorts in
1

DisplayPorts quantity
1

Ethernet LAN
Yes

Ethernet LAN data rates
100 Mbit/s

HDMI input ports quantity
2

HDMI ports
2

Number of speaker outputs
1

OPS module slot
Yes

Remote (IR) input
1

RS-232 interface
Yes

USB port
Yes

USB ports quantity
1

USB version
2.0

Power

Energy consumption (HDR) per 1000 hours
141 kWh

Energy consumption (SDR) per 1000 hours
153 kWh

Energy efficiency class (HDR)
G

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

Power consumption (standby)
0.5 W

Power consumption (typical)
230 W

Weight & dimensions

Display depth
74 mm

Display height
1099 mm

Display weight
57.8 kg

Display width
1928 mm

NEC MultiSync C860Q Digital signage flat panel 2.18 m (86") IPS 350 cd/m² 4K Ultra HD Black 24/7
