Description

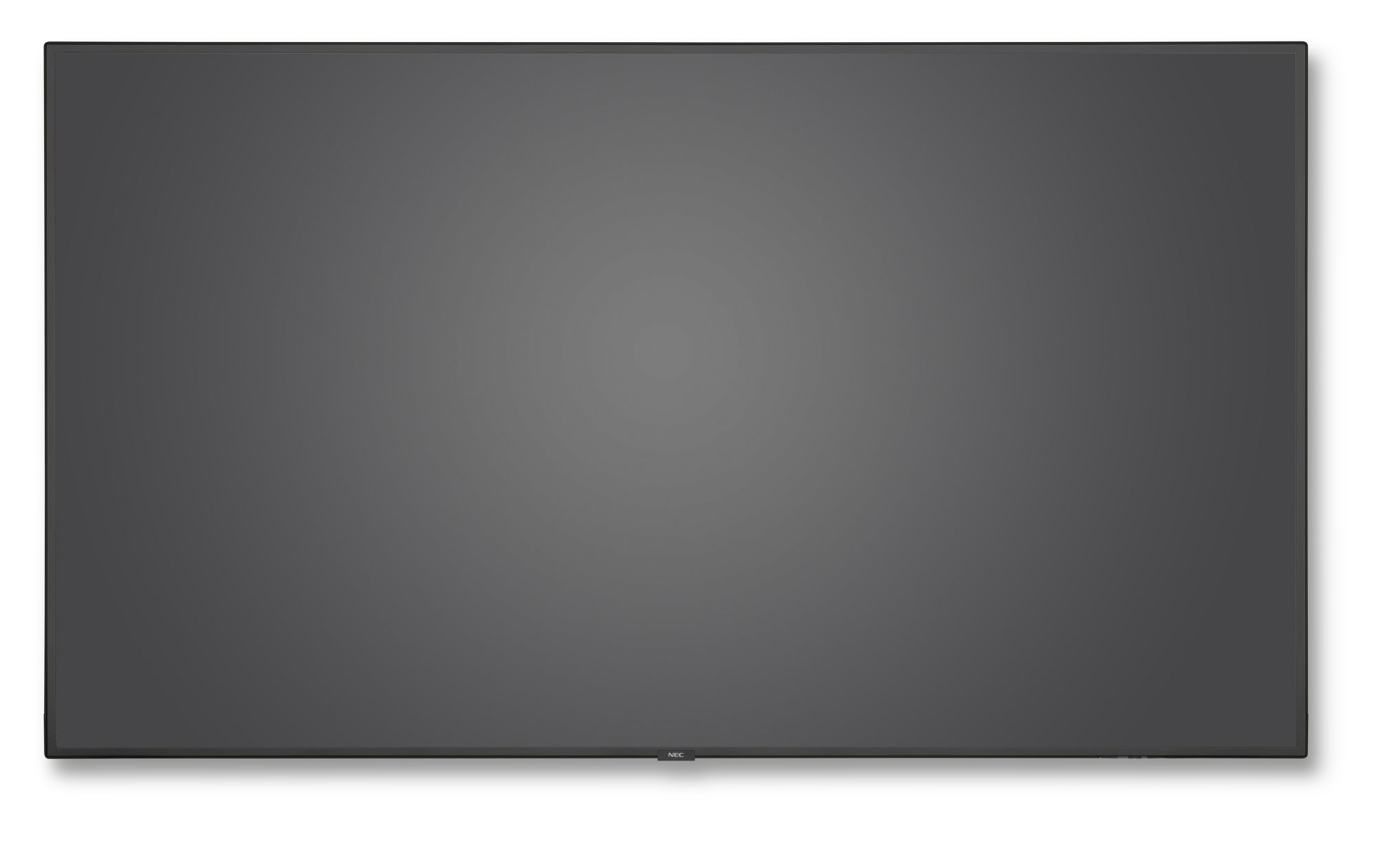

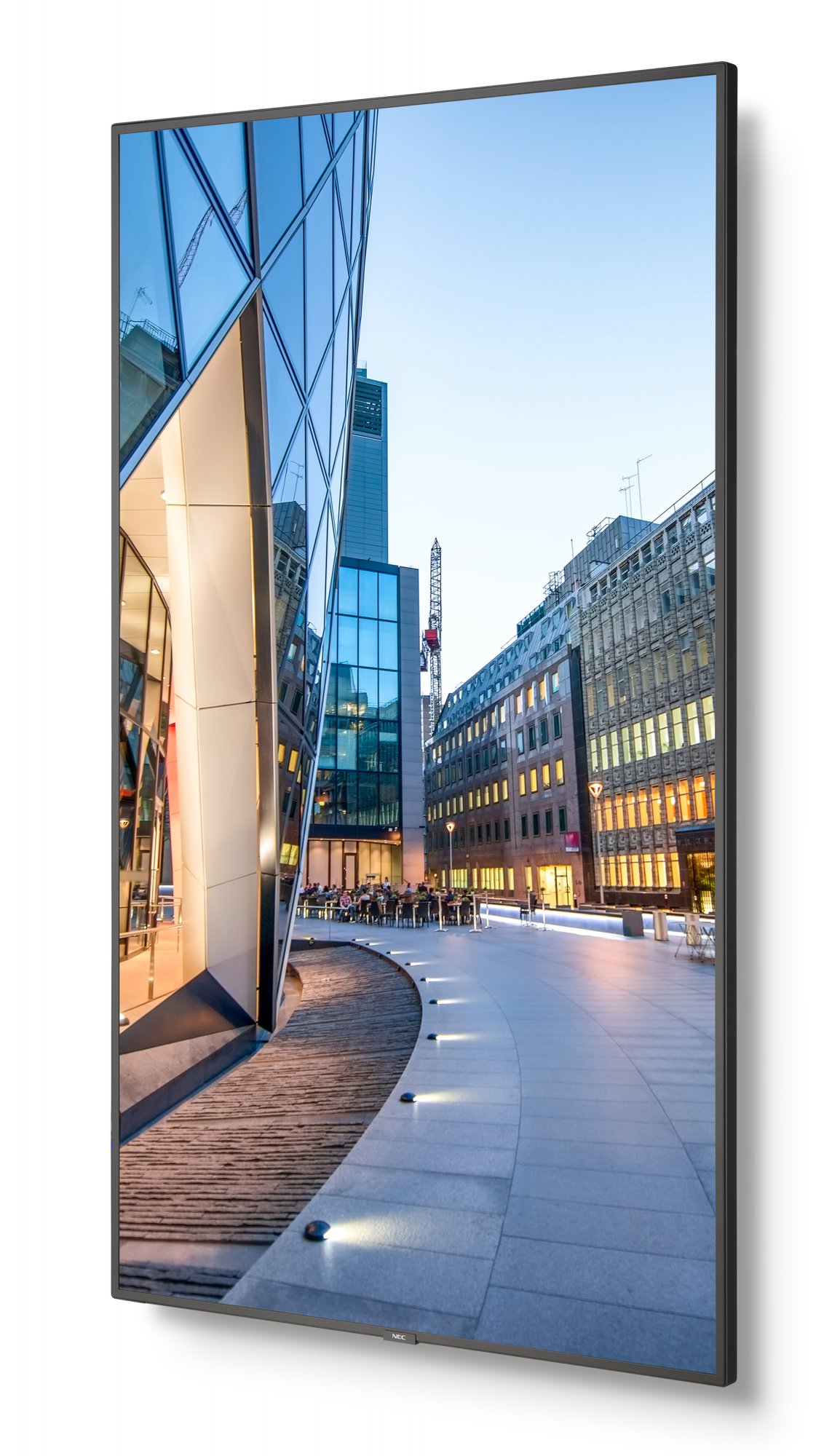

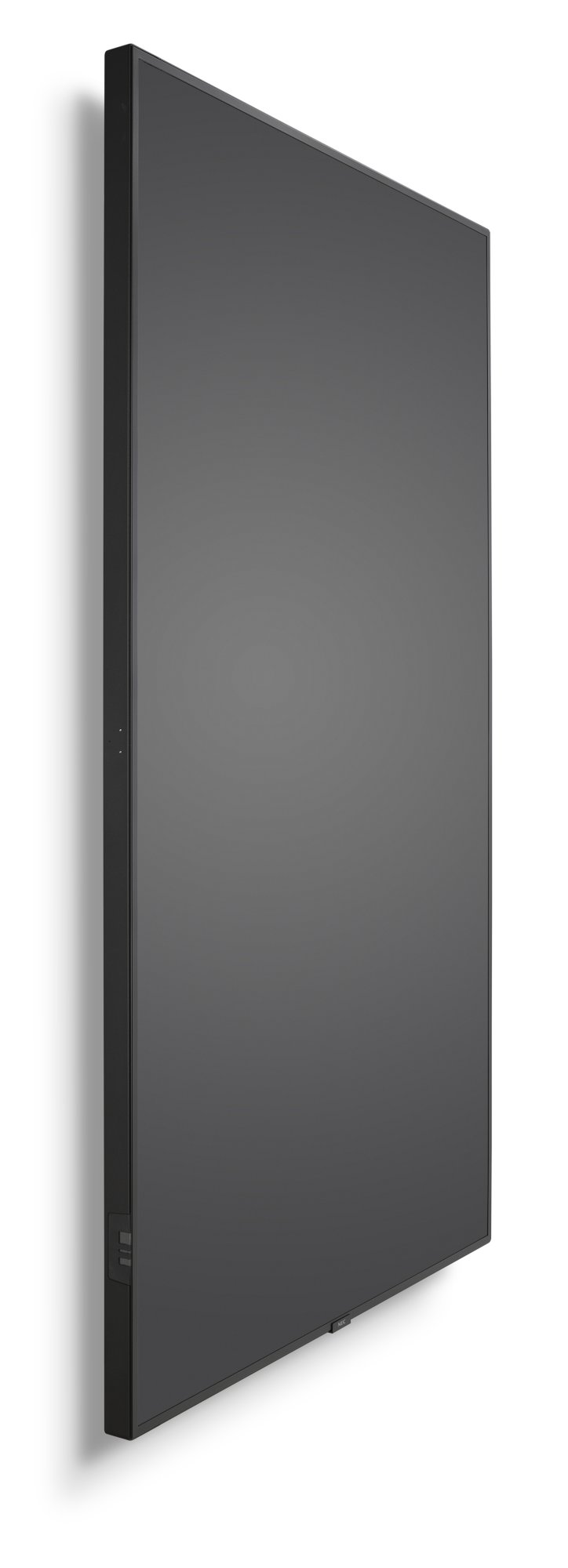

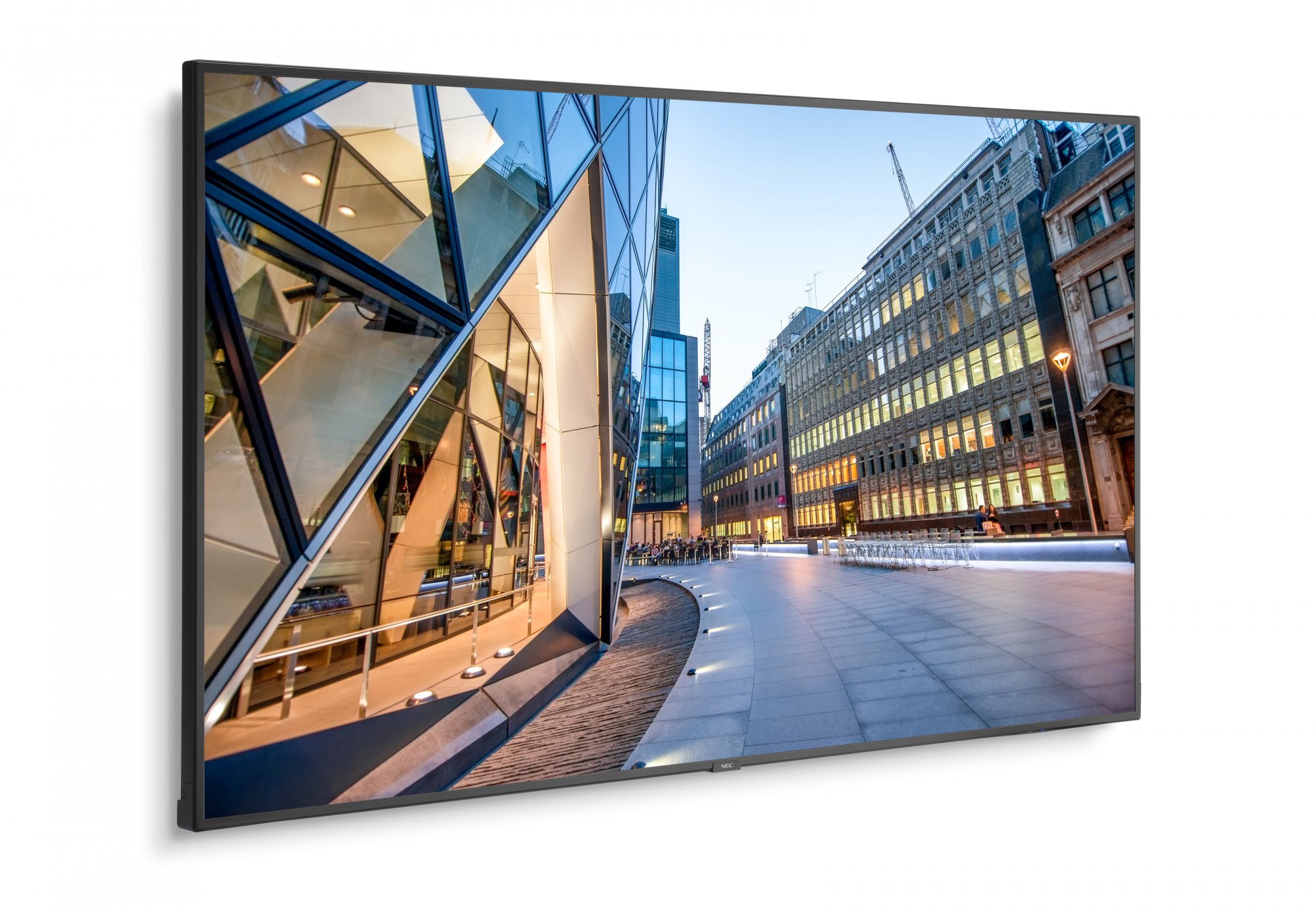

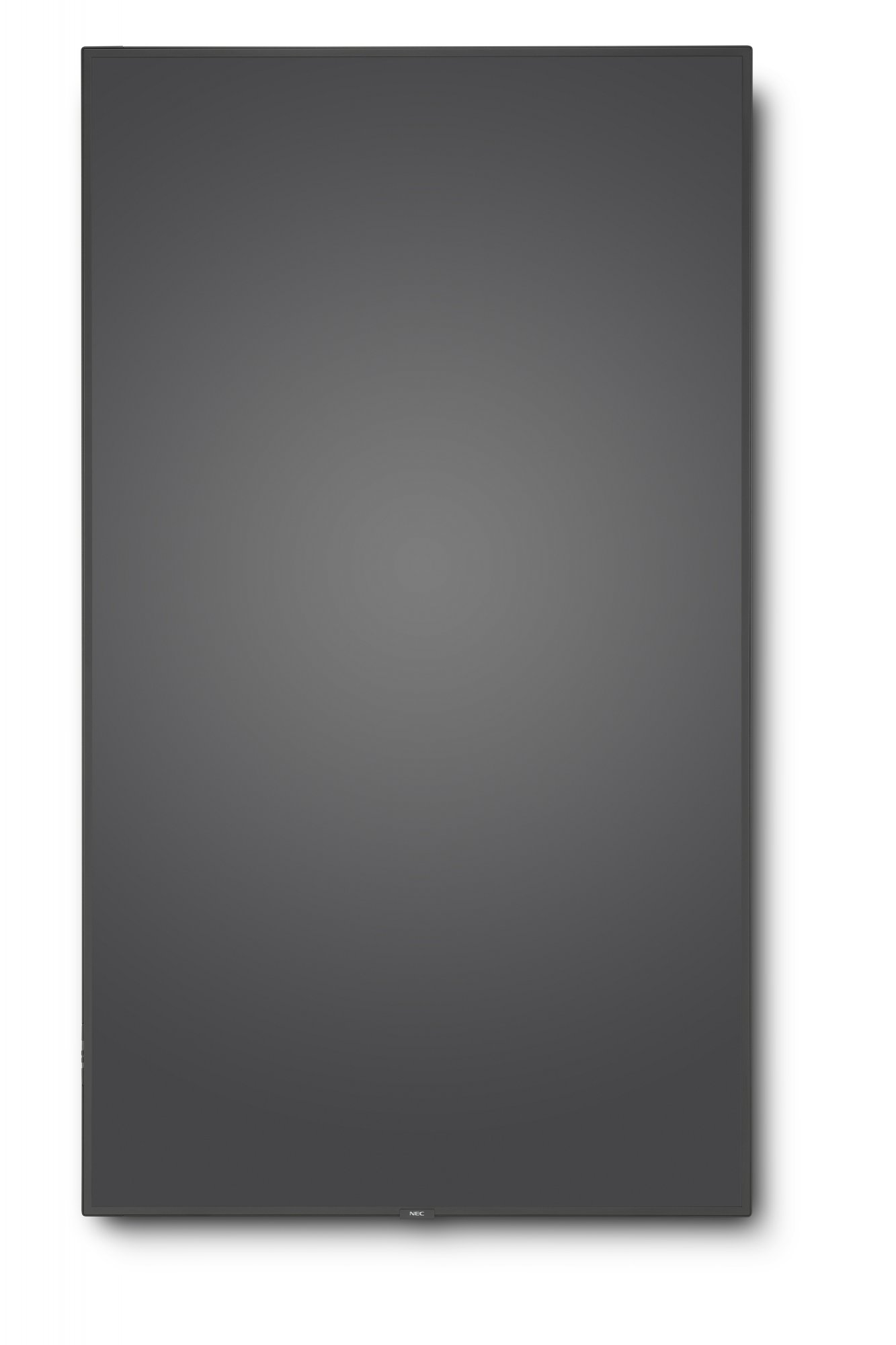

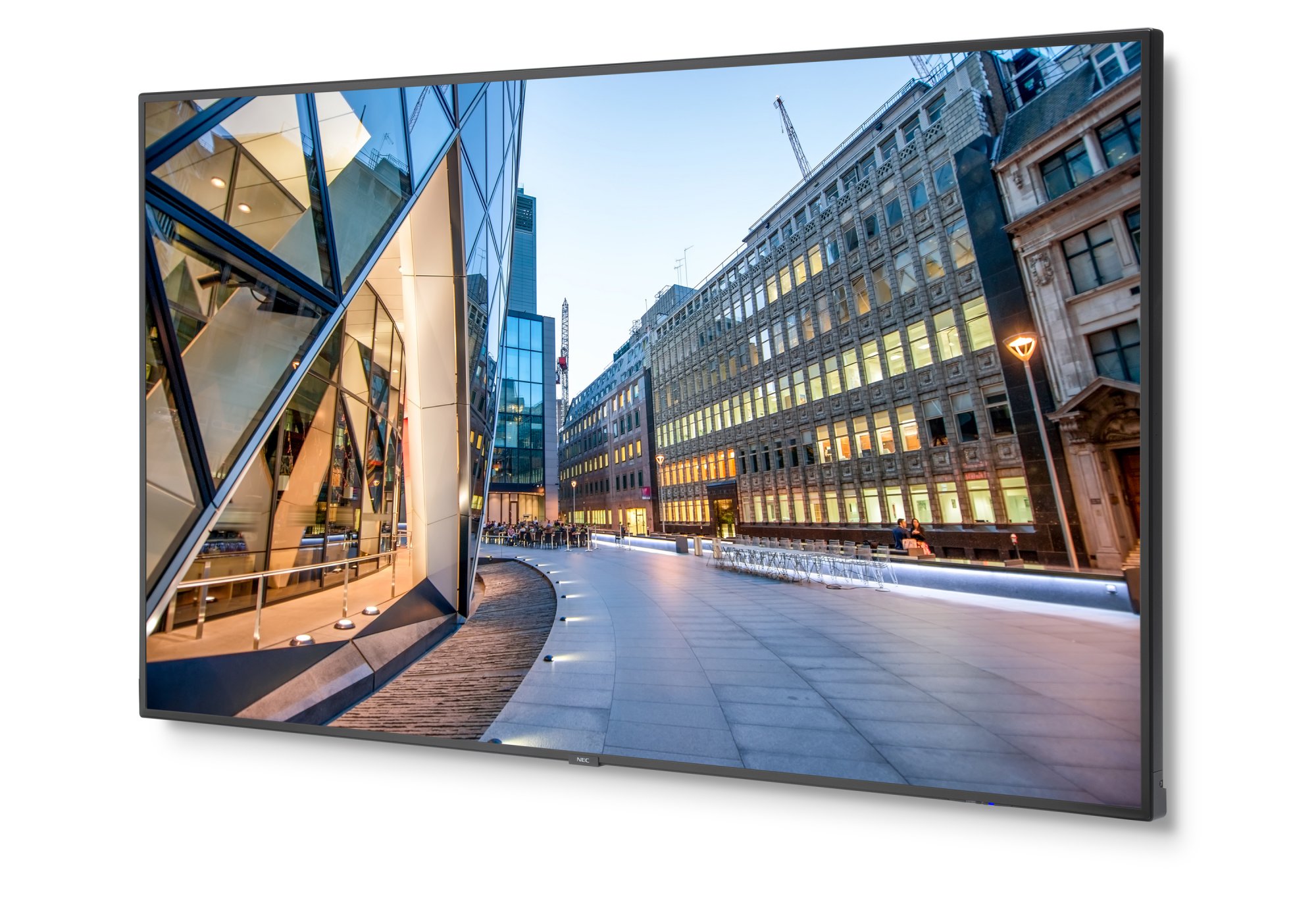

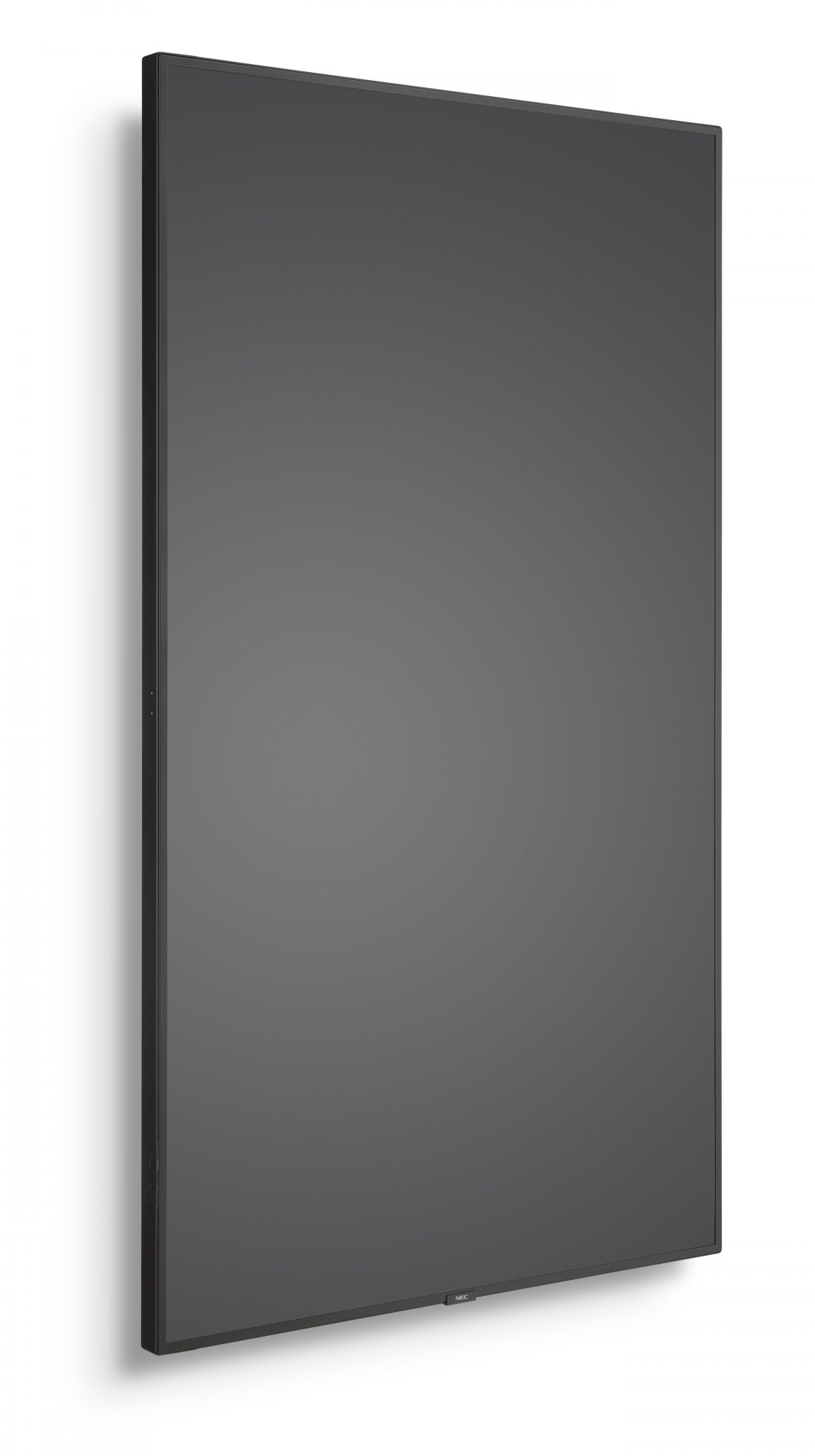

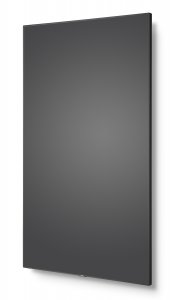

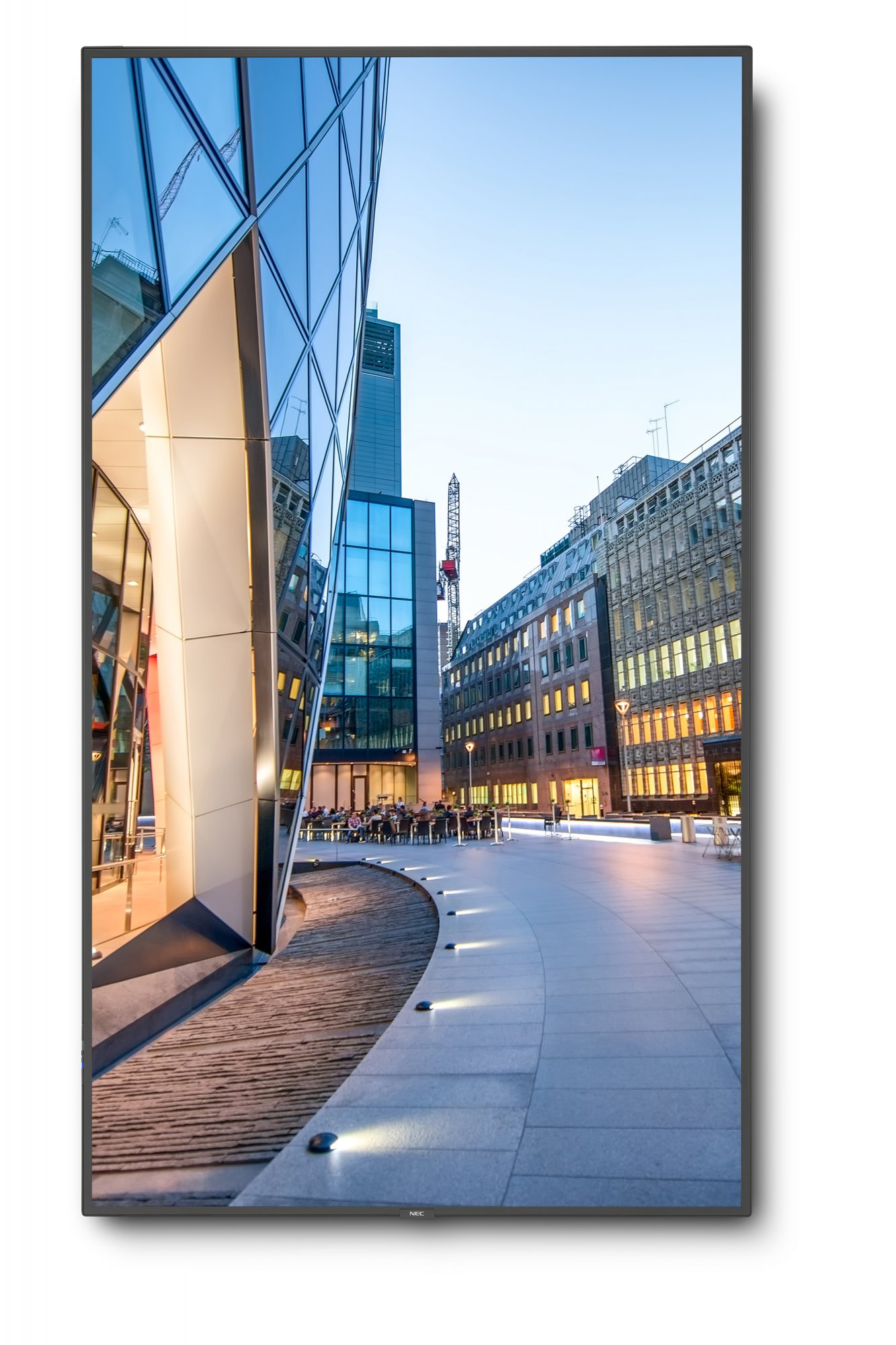

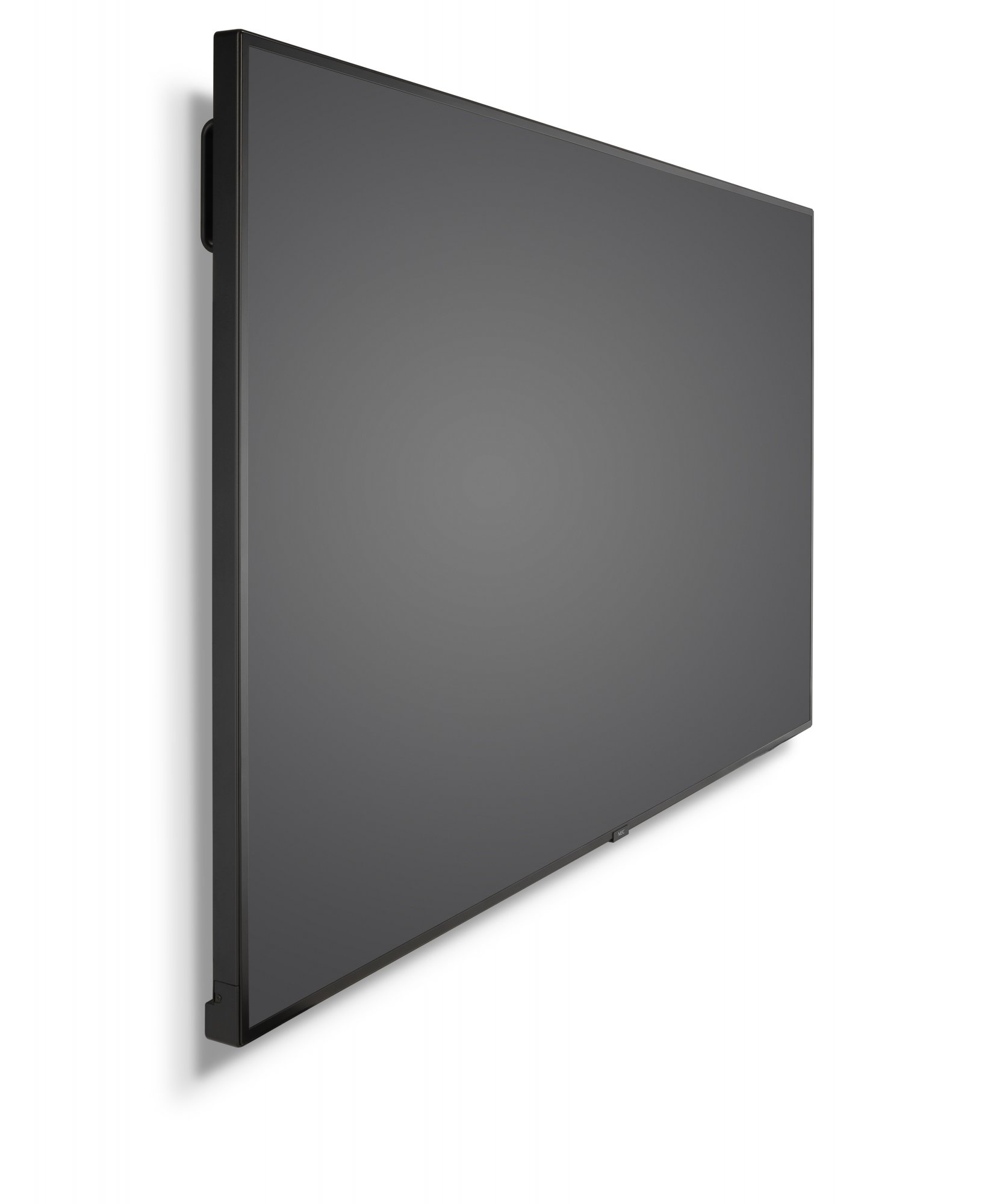

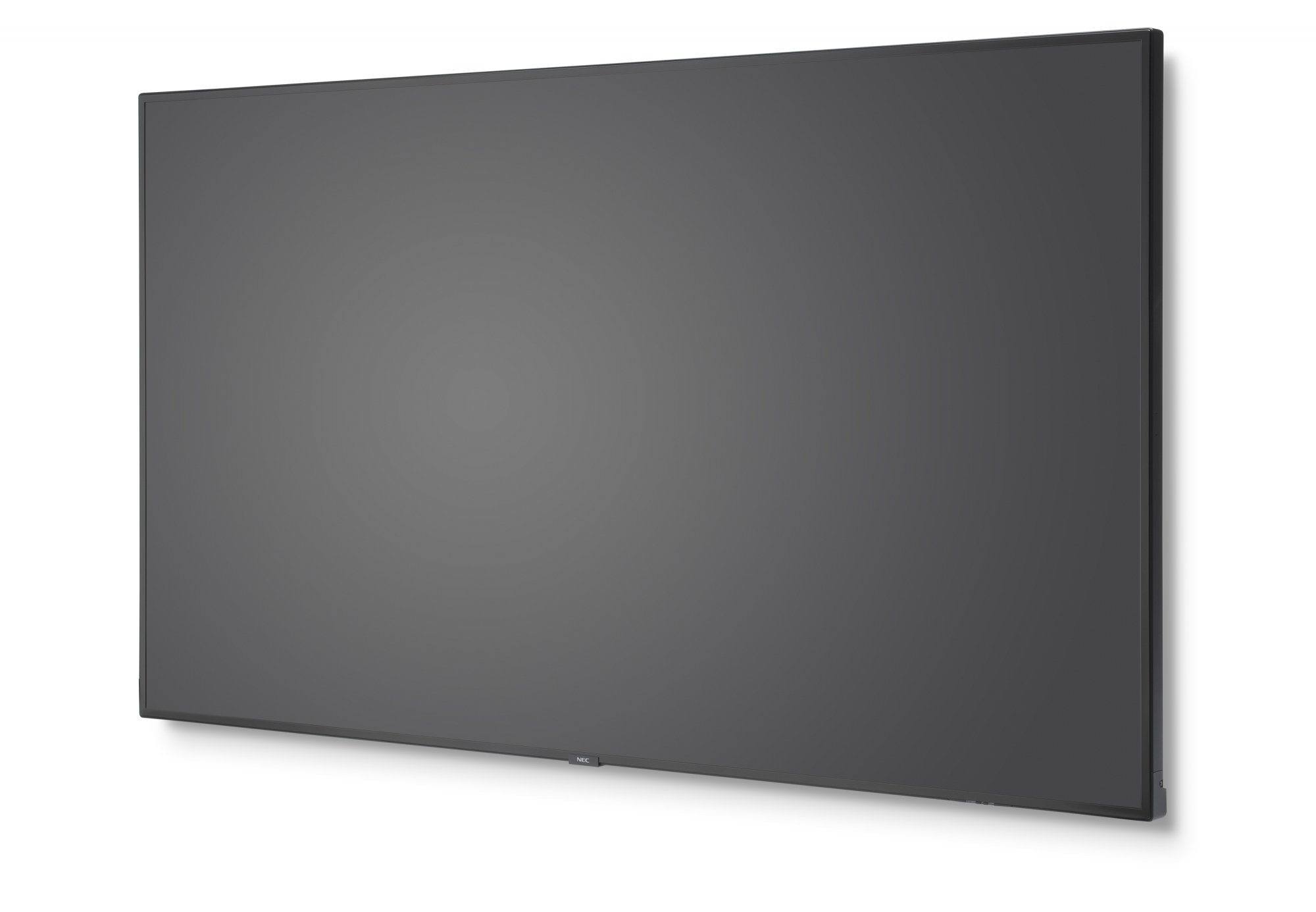

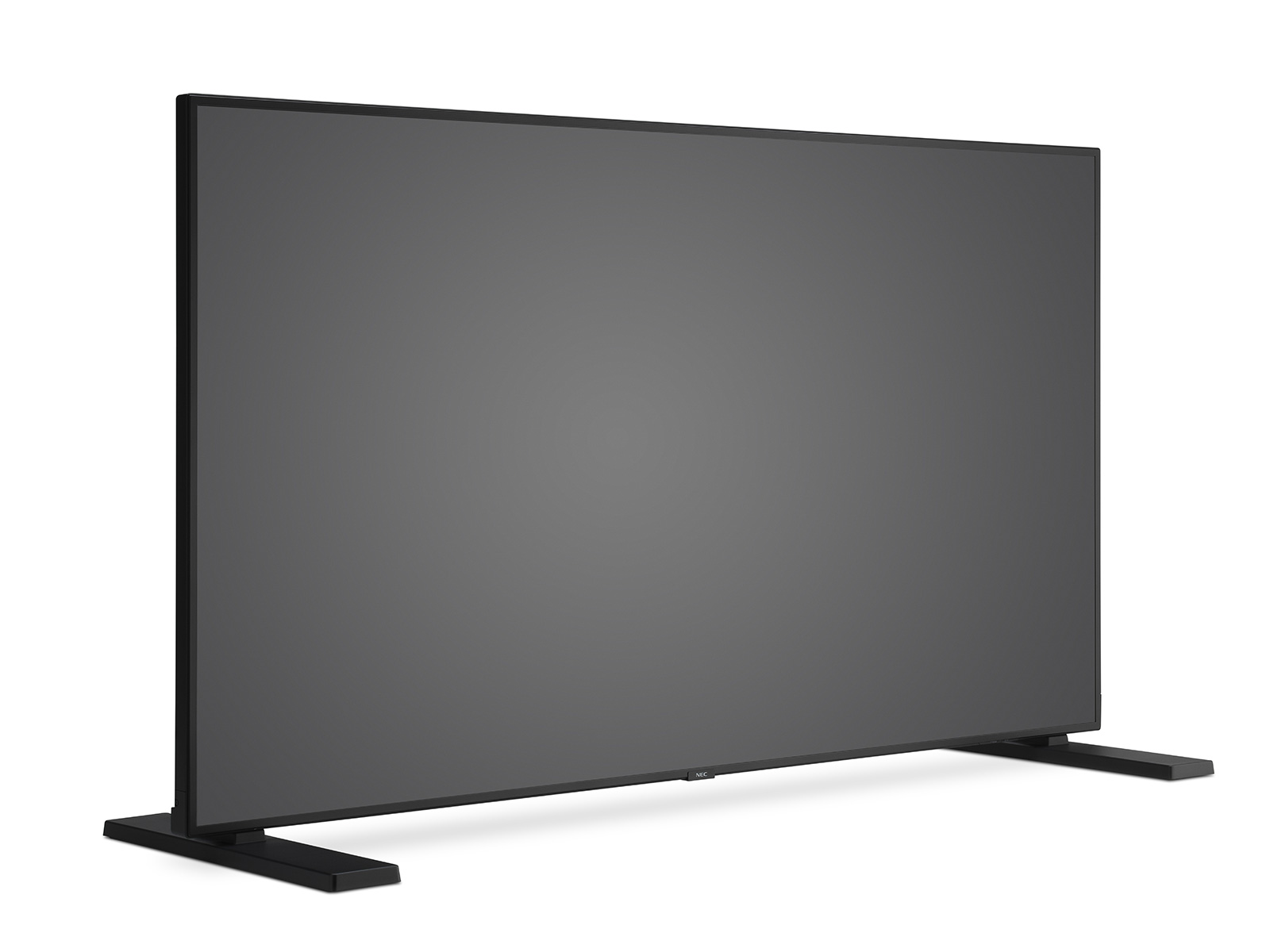

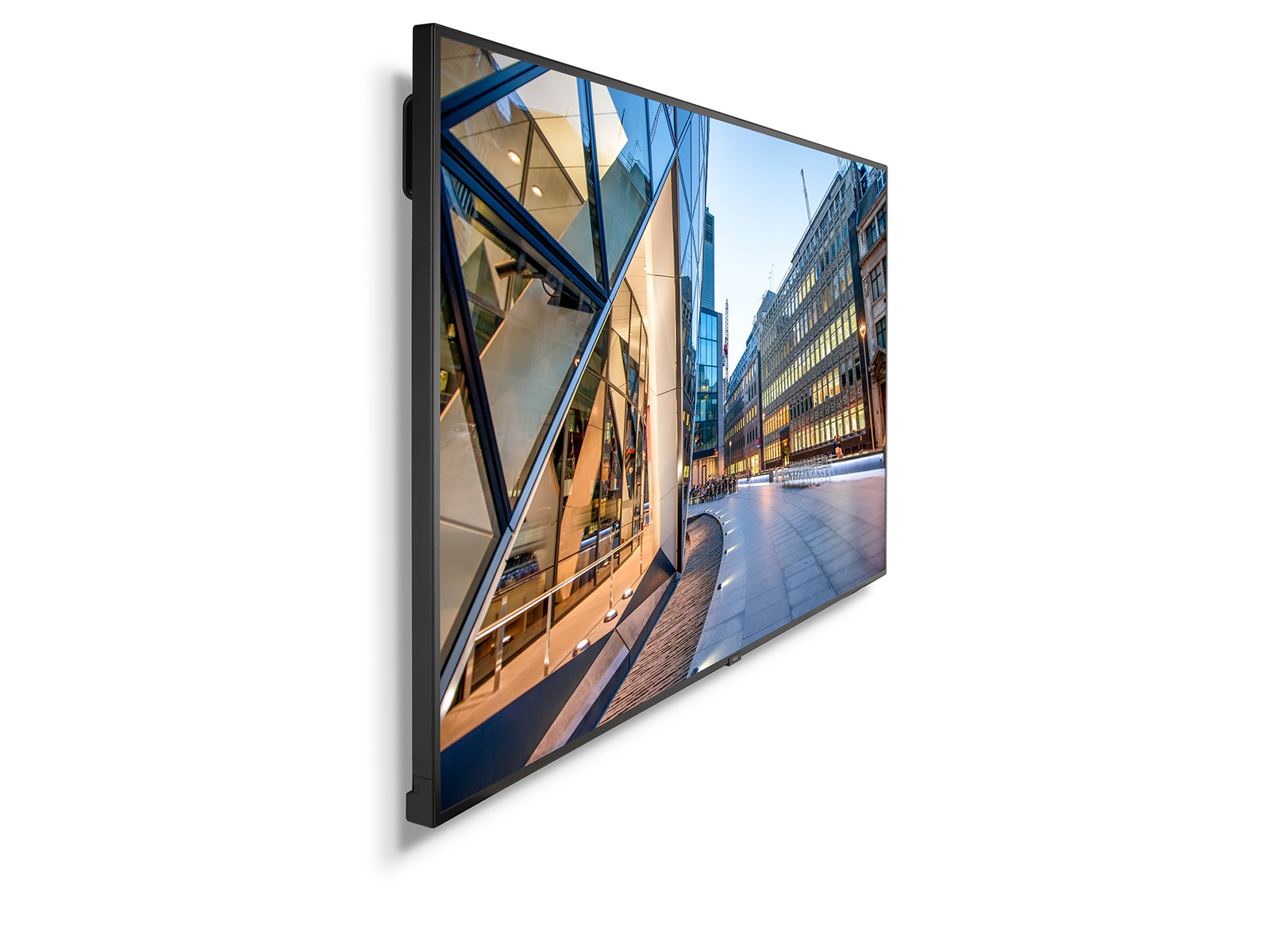

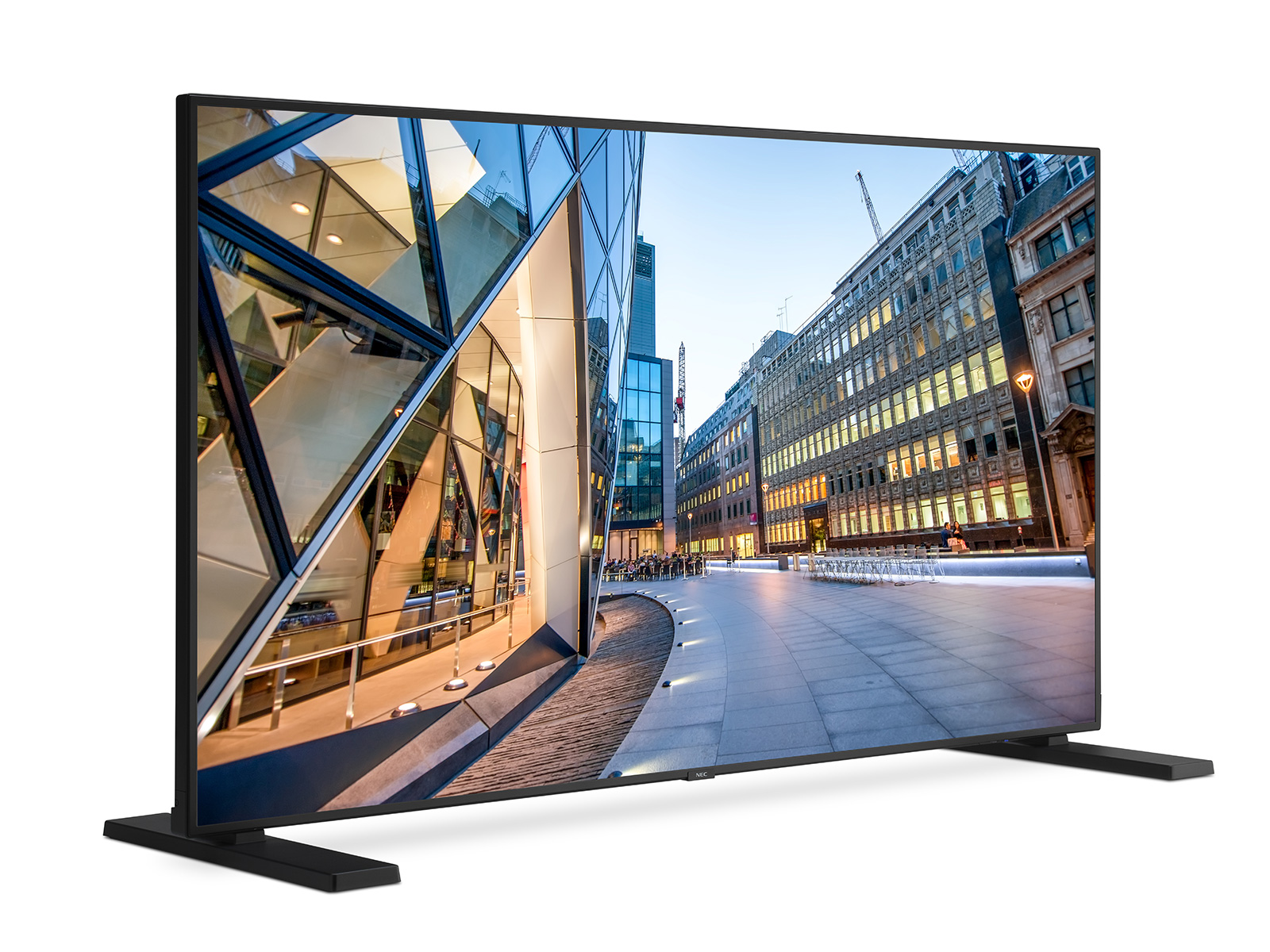

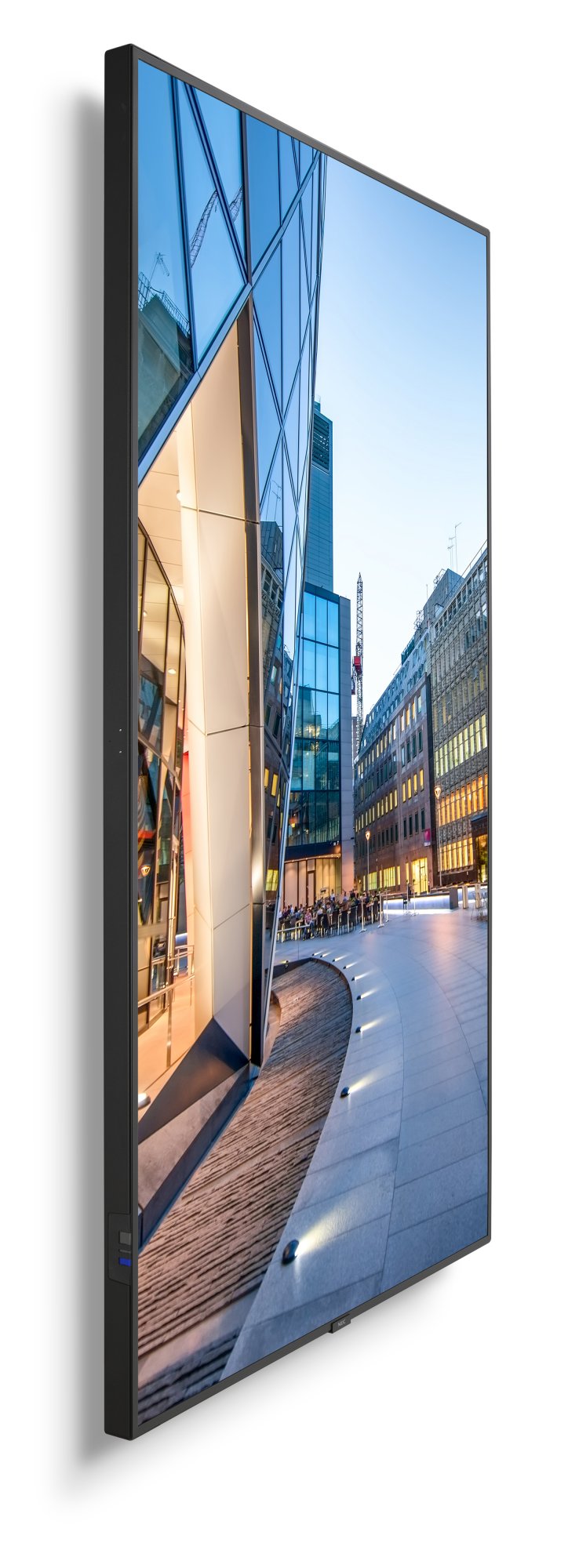

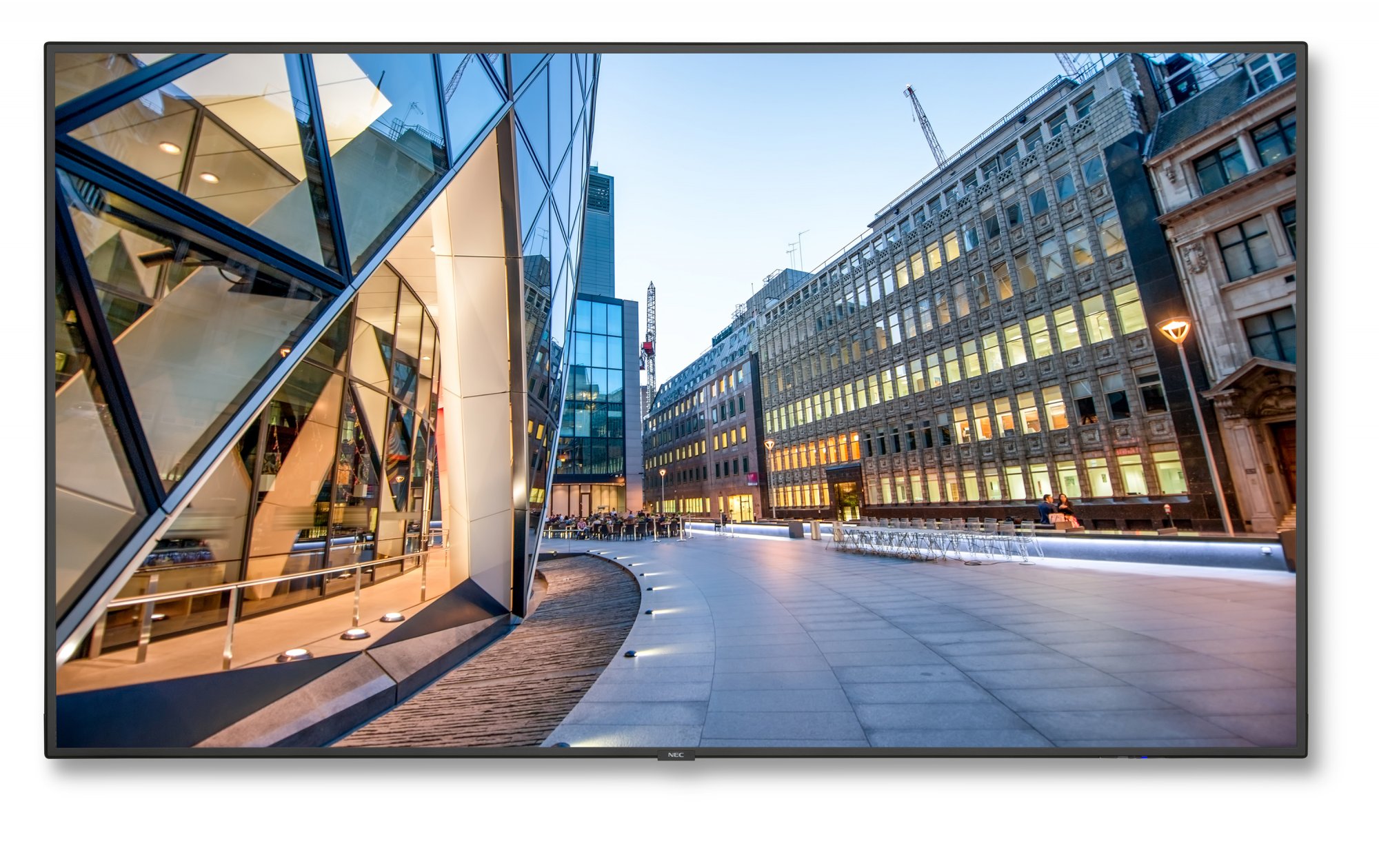

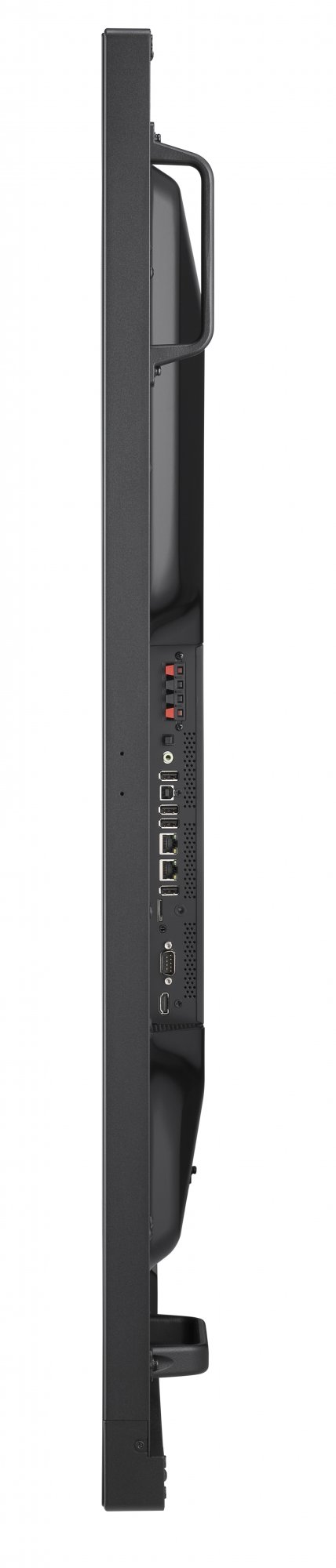

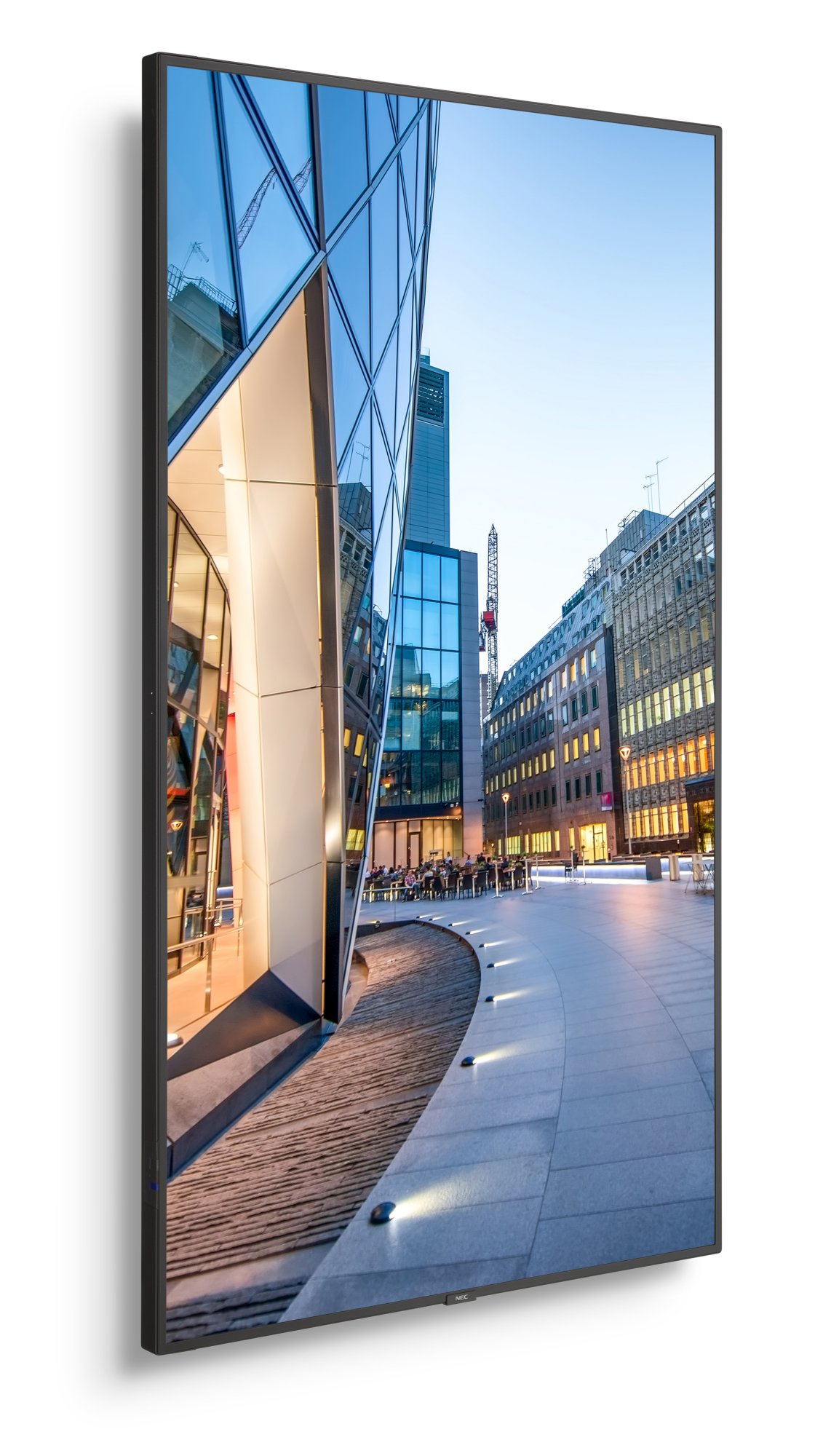

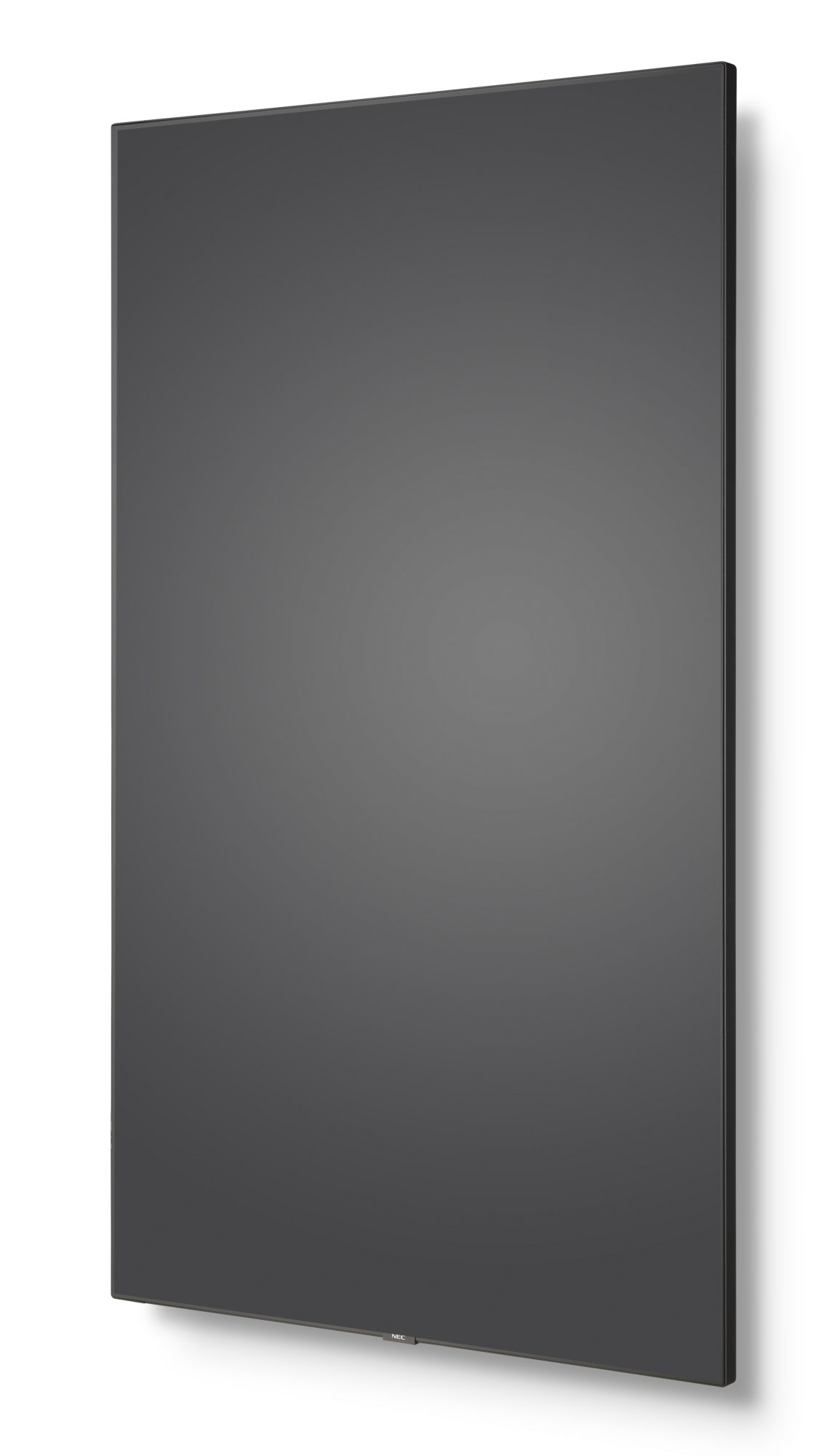

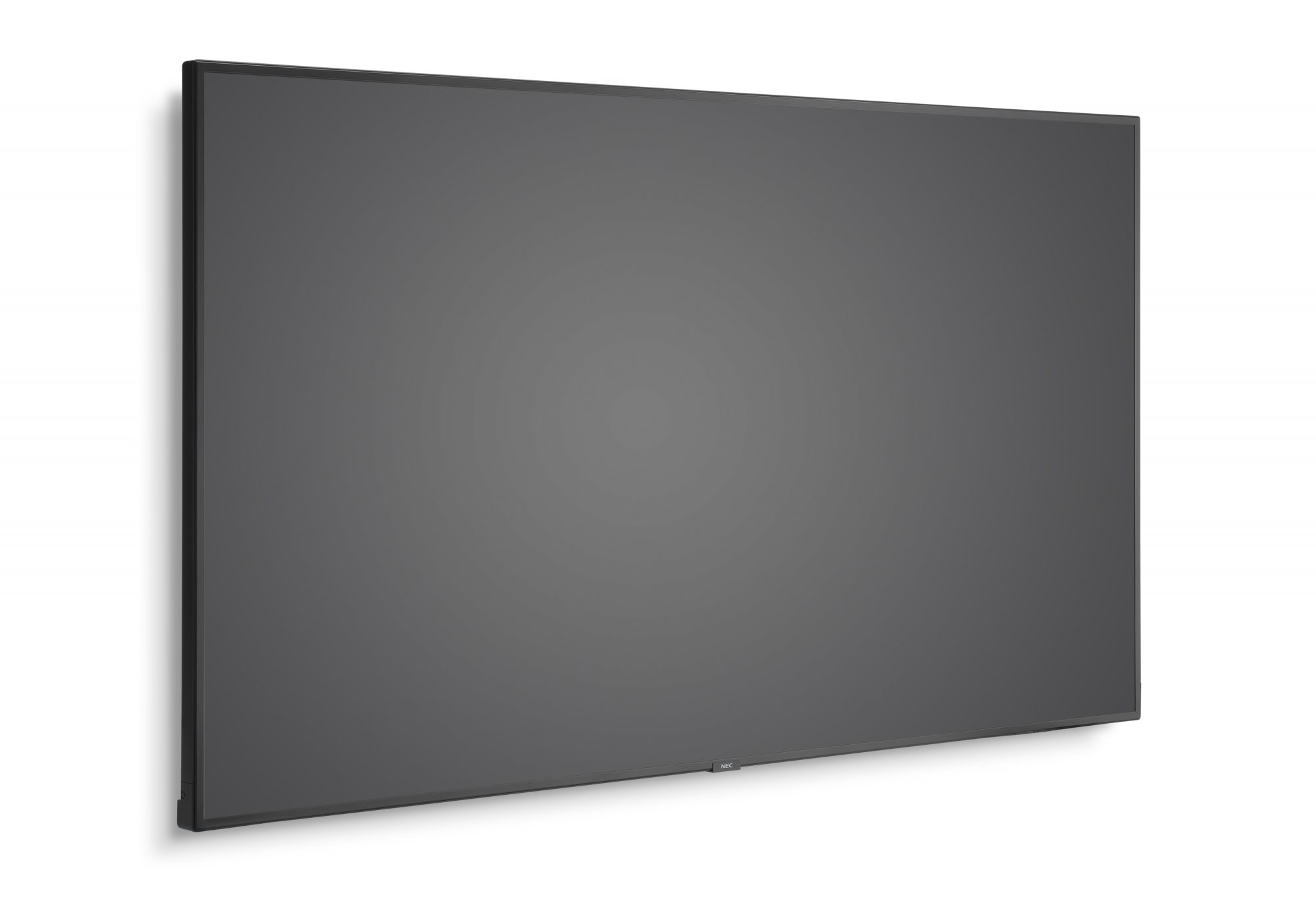

NEC MultiSync C981Q. Product design: Digital signage flat panel. Display diagonal: 2.49 m (98"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing
Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
Ease of use and operation – Smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources
Future-proof signal connectivity and processing – numerous native UHD resolution inputs with 60Hz refresh rate including DisplayPort, HDMI and an option slot for OPS Slot-in PCs, plus automatic upscaling to UHD for other signals, provide “pixel-free viewing“ on a large scale
Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool

Product Properties

Manufacturer
NEC

Model
60004516

EAN
5028695114913

Audio

Built-in speaker(s)
Yes

Number of built-in speakers
2

RMS rated power
20 W

Certificates

Certification
CE; EAC; EMC Class B; FCC; SASO; TÜV GS; UL/C-UL or CSA; VCCI

Computer system

Audio formats supported
AAC, LPCM, MP3, WAV

Image formats supported
JPG, PNG

Video formats supported
FLV, H.264, MOV, MP4, MPG, WMV

Design

Bezel width (bottom)
1.59 cm

Bezel width (side)
1.59 cm

Bezel width (top)
1.59 cm

Orientation
Horizontal/Vertical

Panel mounting interface
400 x 400,600 x 400 mm

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Active display area (W x H)
2158.9 x 1214.4 mm

Contrast ratio (typical)
1300:1

Display brightness
350 cd/m²

Display number of colours
1.073 billion colours

HD type
4K Ultra HD

Horizontal scan range
31.5 - 91.1 kHz

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
2.49 m (98")

Screen Type
247.82 cm

Screen Type
LED

Vertical scan range
24 - 85 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Logistics data

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Other features

Annual energy consumption
387 kWh

Energy efficiency class (old)
A

Performance

Ambient light sensor
Yes

HDCP
Yes

Operating hours (hours/days)
24/7

Ports & interfaces

Audio (L/R) in
1

Audio (L/R) out
1

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash), MicroSDHC

DisplayPorts quantity
3

DVI port
No

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100 Mbit/s

HDMI ports
3

RS-232 interface
Yes

USB port
Yes

USB ports quantity
5

USB version
2.0

Power

Power consumption (typical)
265 W

Weight & dimensions

Depth
93 mm

Height
1249 mm

Weight
90 kg

Width
2194 mm

NEC MultiSync C981Q Digital signage flat panel 2.49 m (98") LED 350 cd/m² 4K Ultra HD Black 24/7
