Description

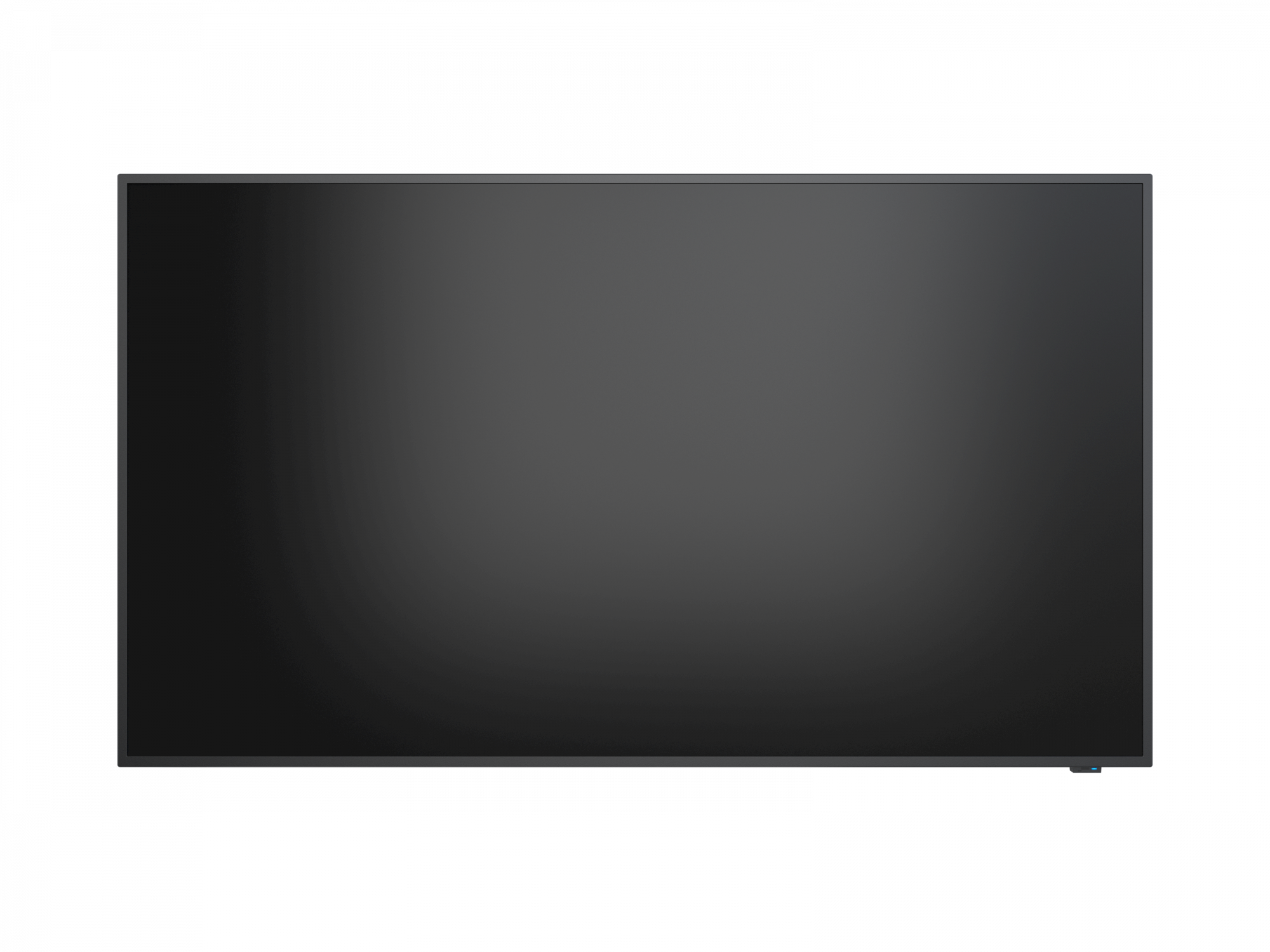

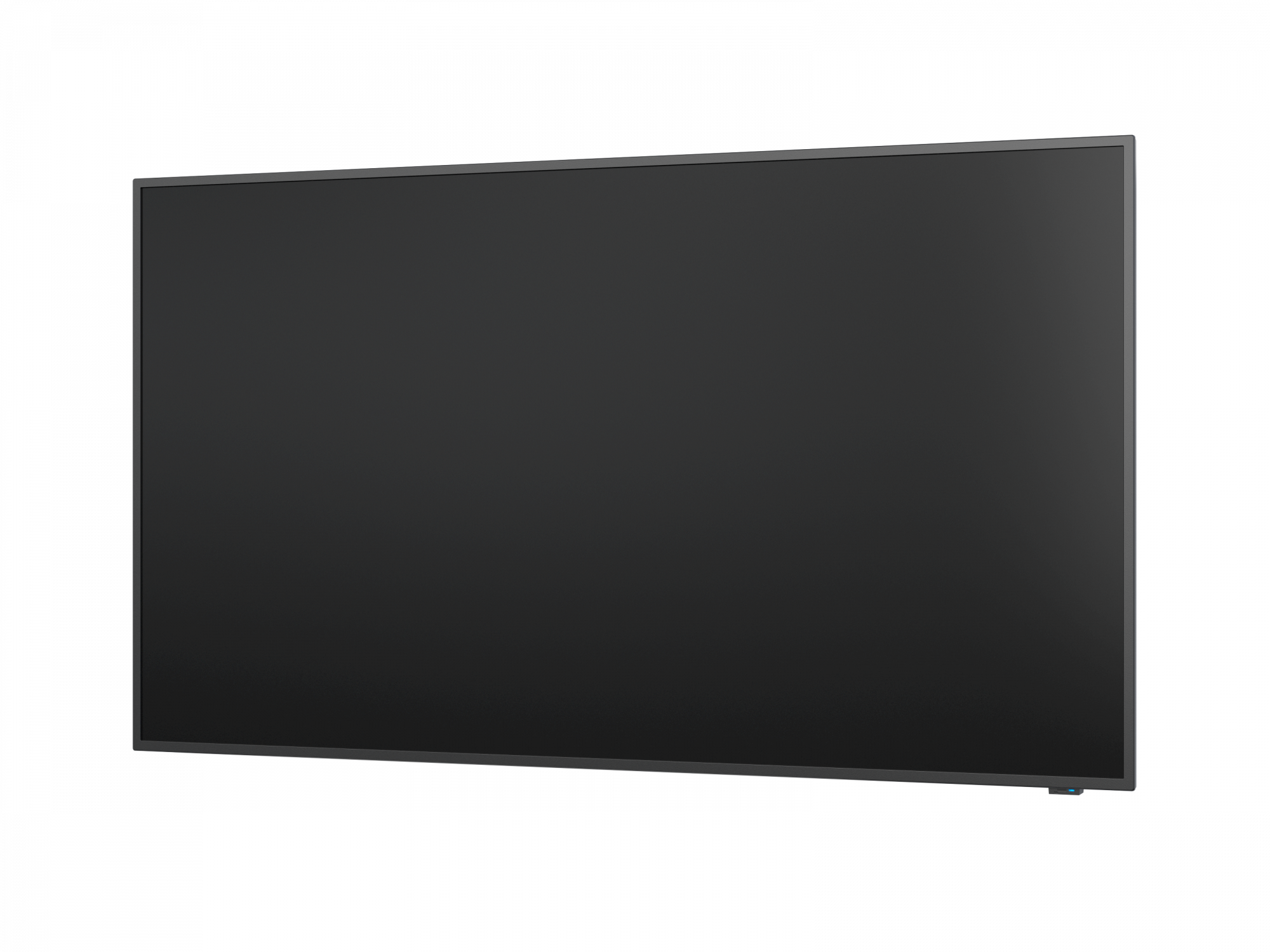

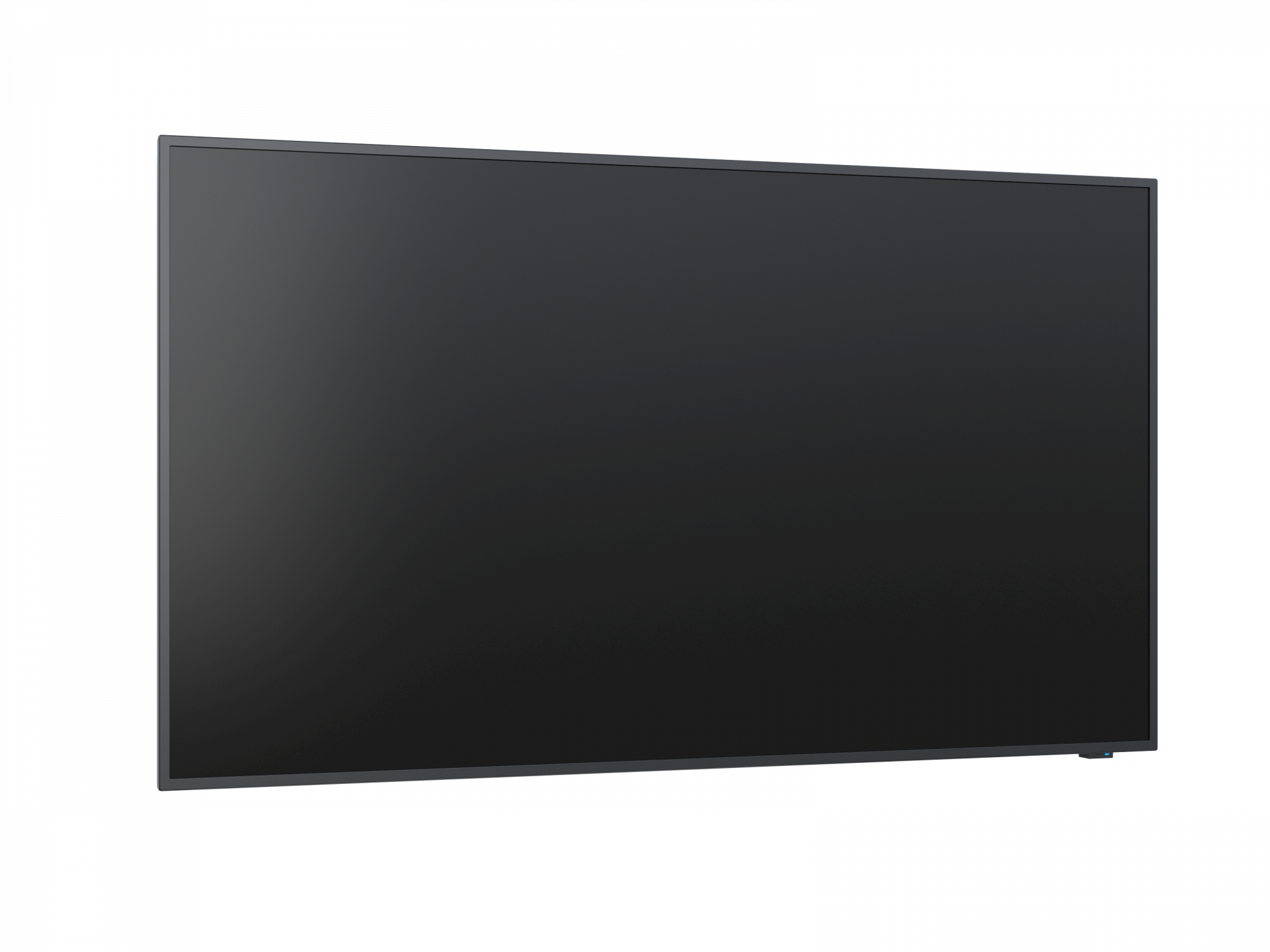

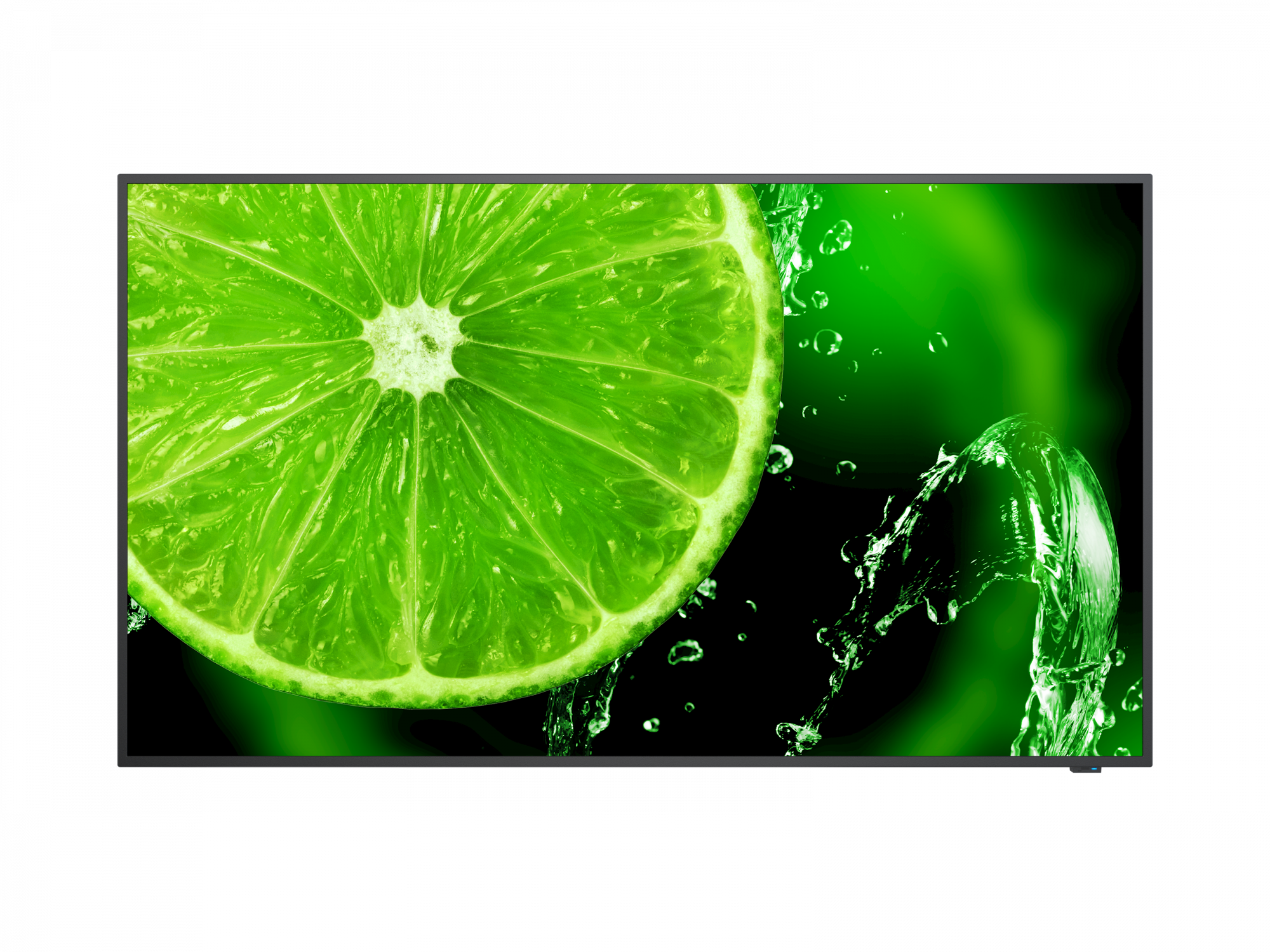

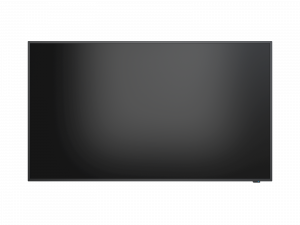

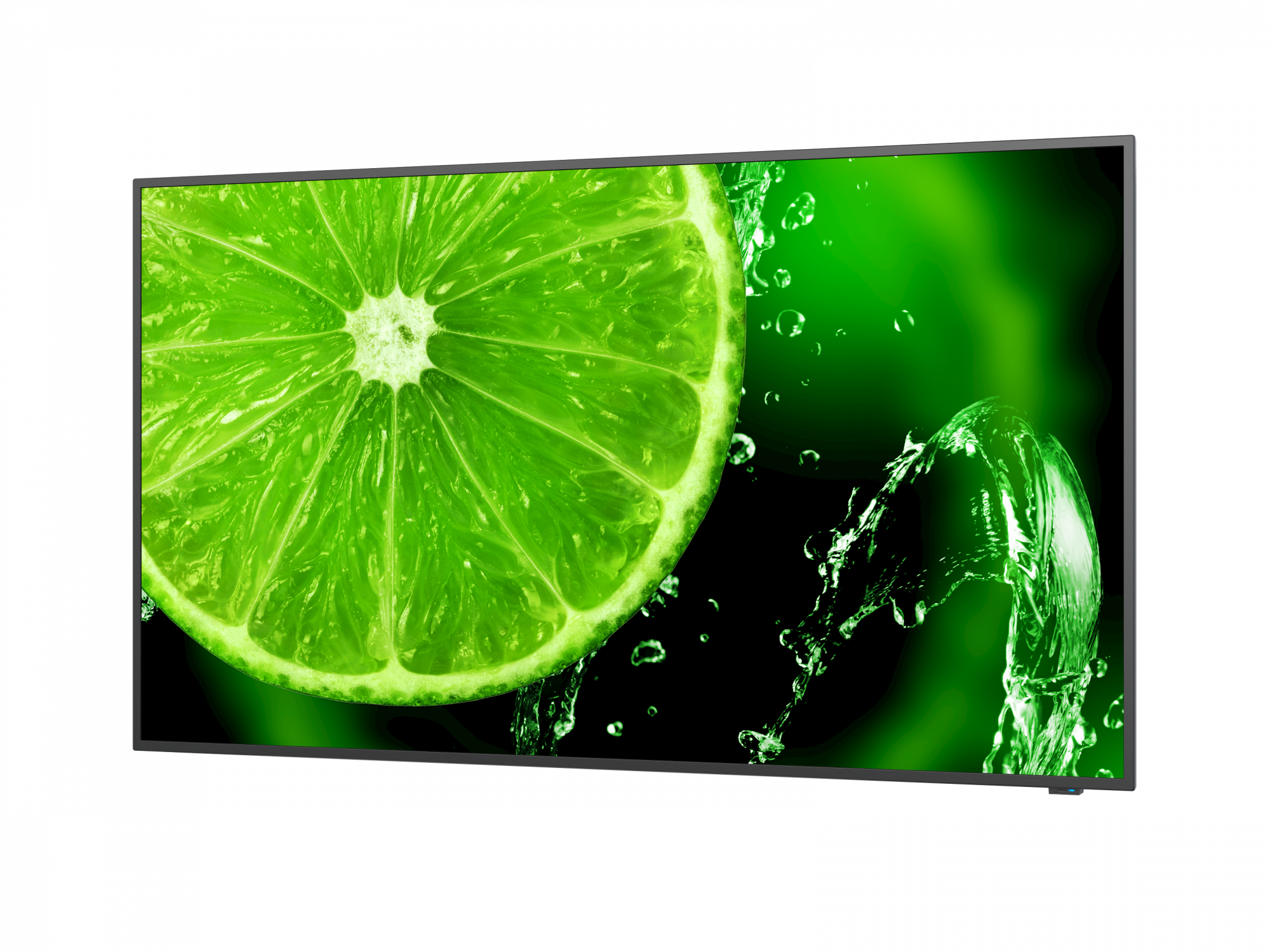

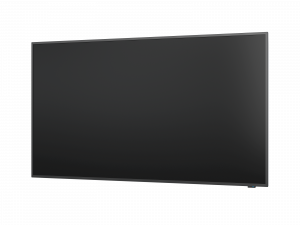

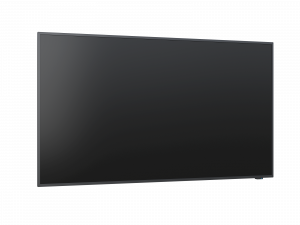

NEC MultiSync E438. Product design: Digital signage flat panel. Display diagonal: 108 cm (42.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 16/7. Product colour: Black

Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration
Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation
Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
Professional integration – enriched with essential RS232 functionality, IR and button lock out as well as digital audio output S/PDIF, the display can easily be integrated into professional applications in public environments
Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality

Product Properties

Manufacturer
NEC

Model
60005045

EAN
5028695120464

Audio

Built-in speaker(s)
Yes

Number of built-in speakers
2

RMS rated power
20 W

Computer system

Audio formats supported
AAC, LPCM, MP3

Built-in processor
No

Computer system
No

Image formats supported
JPG

Mac operating systems supported
Yes

Video formats supported
MP4, MPG, TS, WMV

Windows operating systems supported
Yes

Design

Bezel width (bottom)
1.39 cm

Bezel width (side)
1.25 cm

Bezel width (top)
1.25 cm

Mounting type
Wall

Orientation
Horizontal

Panel mounting interface
400 x 200 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Active display area (W x H)
941 x 529 mm

Contrast ratio (typical)
1200:1

Display brightness
350 cd/m²

Display number of colours
1.073 billion colours

Haze rate
1%

HD type
4K Ultra HD

High Dynamic Range (HDR) supported
Yes

High Dynamic Range (HDR) technology
Hybrid Log-Gamma (HLG)

Horizontal scan range
15 - 136 kHz

LED backlighting type
Direct-LED

Native aspect ratio
16:9

Native refresh rate
60 Hz

Number of displays
1

Panel type
IPS

Pixel pitch
0.245 x 0.245 mm

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
108 cm (42.5")

Screen Type
LCD

Screen Type
108 cm

Touchscreen
No

Vertical scan range
24 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Features

Base colour
Black

Suitable for indoor use
Yes

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 85%

Storage temperature (T-T)
-10 - 60 °C

Packaging content

Batteries included
Yes

Cables included
AC, HDMI

Remote control included
Yes

Performance

Ambient light sensor
Yes

Browsing
Yes

Hybrid Log-Gamma (HLG)
Yes

Operating hours (hours/days)
16/7

Purpose
Universal

Ports & interfaces

Audio (L/R) in
1

Audio (L/R) out
1

Component video (YPbPr/YCbCr) in
1

Composite video in
1

DisplayPorts quantity
0

DVI port
No

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
100 Mbit/s

HDMI input ports quantity
3

HDMI ports
3

Infrared data port
Yes

Remote (IR) input
1

RS-232 interface
Yes

RS-232C
Yes

USB port
Yes

USB ports quantity
2

USB version
2.0

VGA (D-Sub) input ports
1

Wi-Fi
No

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (HDR) per 1000 hours
66 kWh

Energy consumption (SDR) per 1000 hours
55 kWh

Energy efficiency class (HDR)
G

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

Power consumption (sleep)
0.5 W

Power consumption (standby)
2 W

Power consumption (typical)
72 W

Weight & dimensions

Depth
71 mm

Height
559.8 mm

Weight
8.9 kg

Width
970.2 mm

NEC MultiSync E438 Digital signage flat panel 108 cm (42.5") LCD 350 cd/m² 4K Ultra HD Black 16/7
