Description

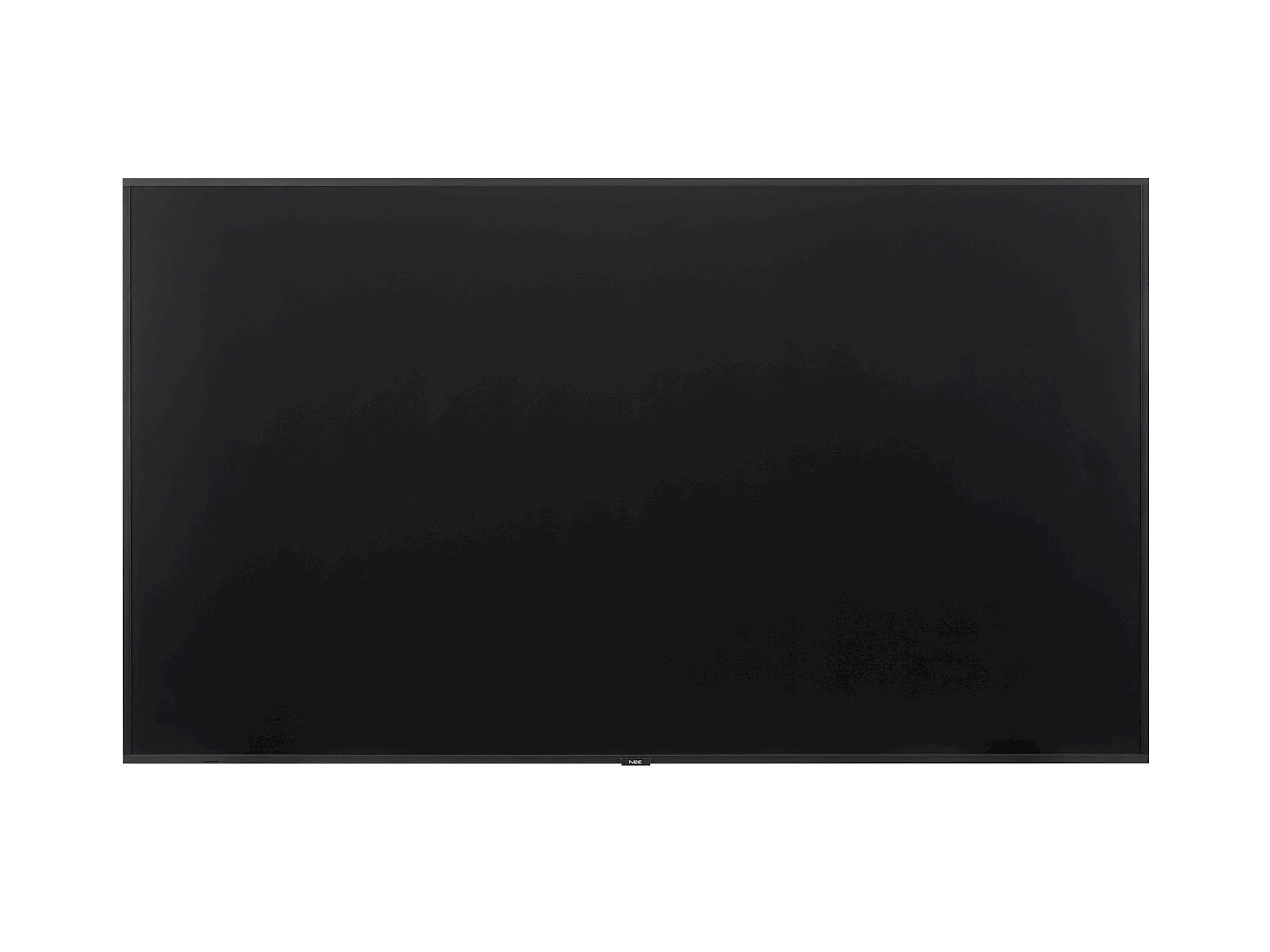

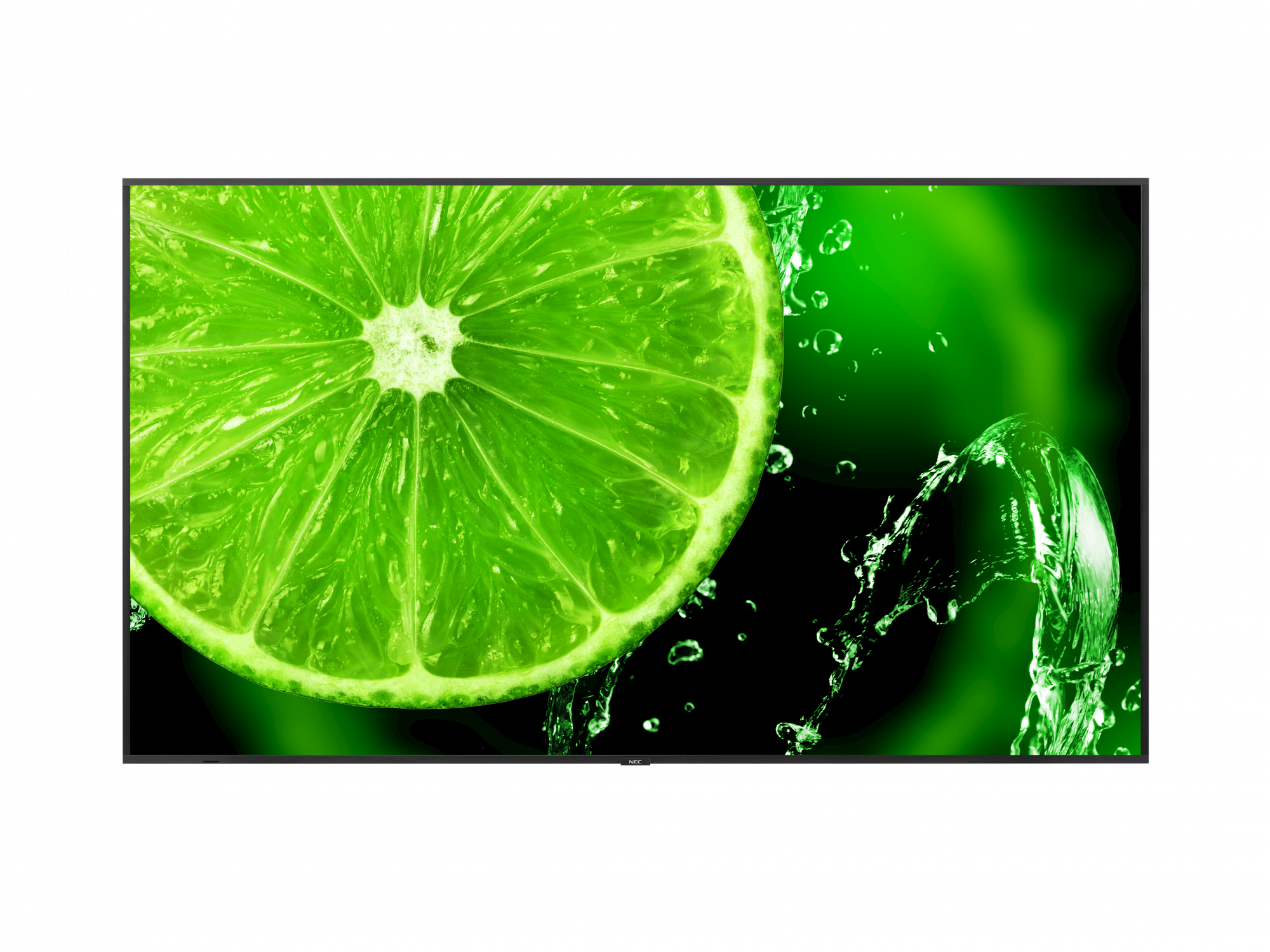

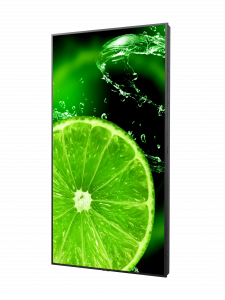

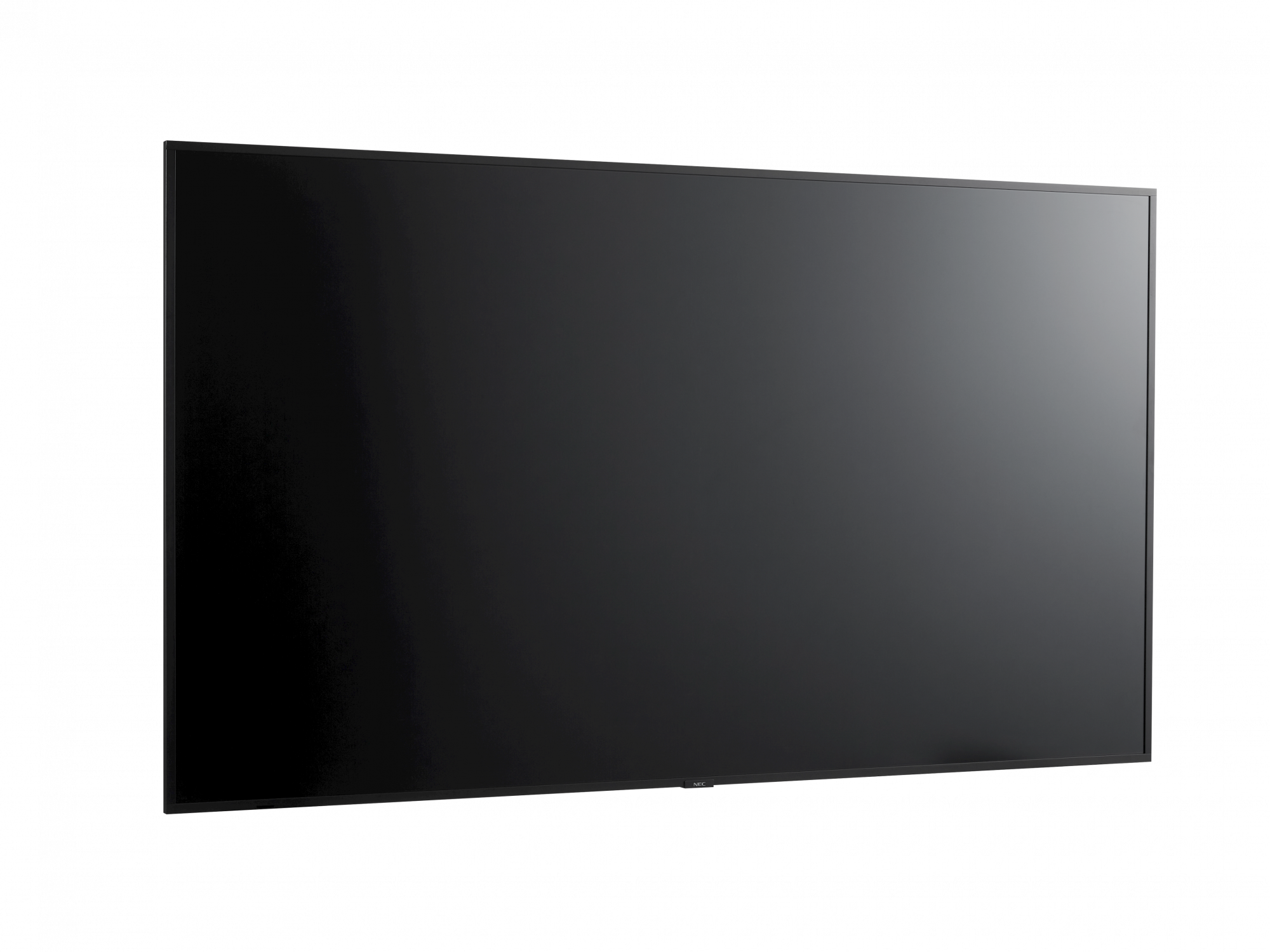

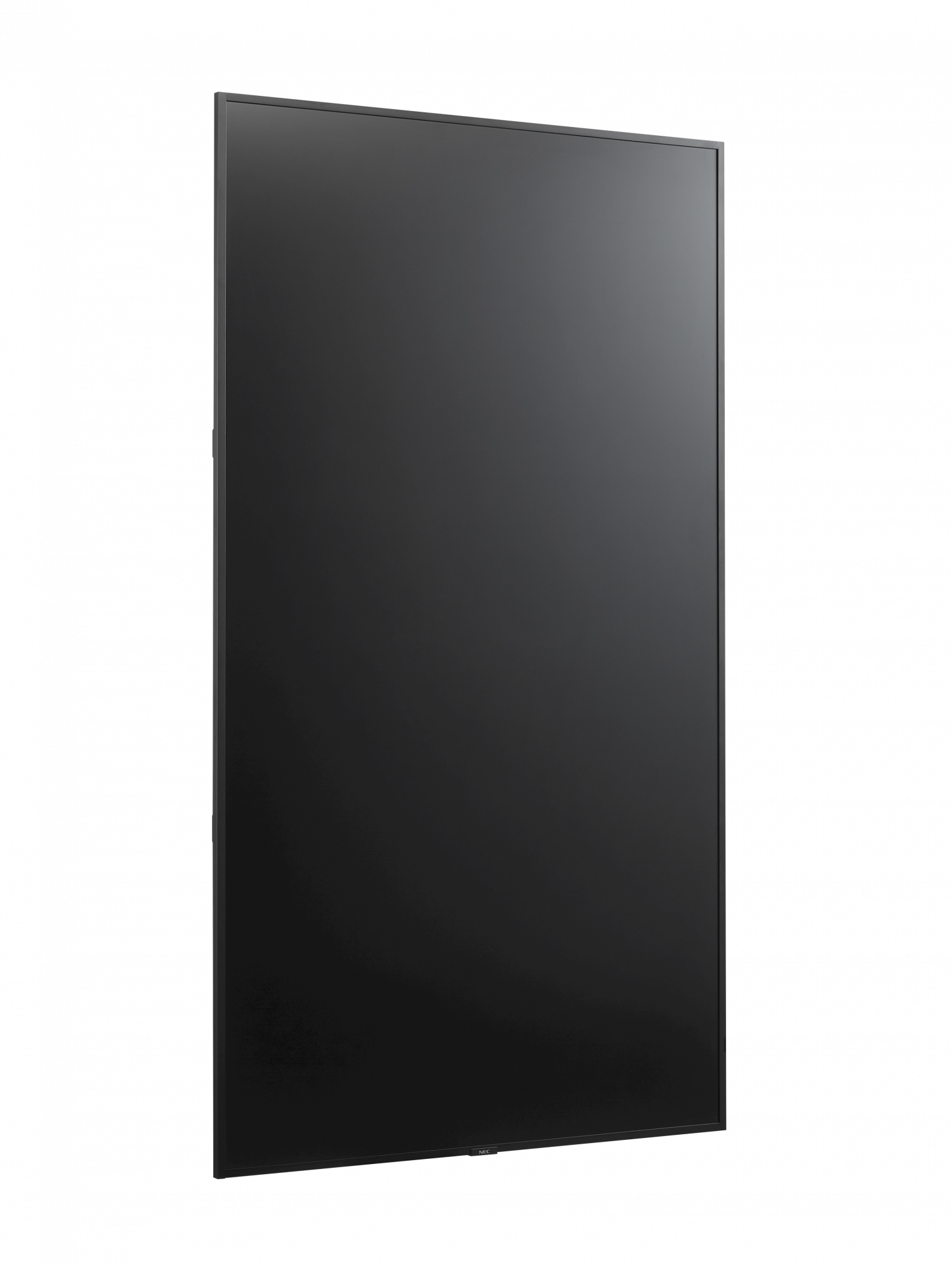

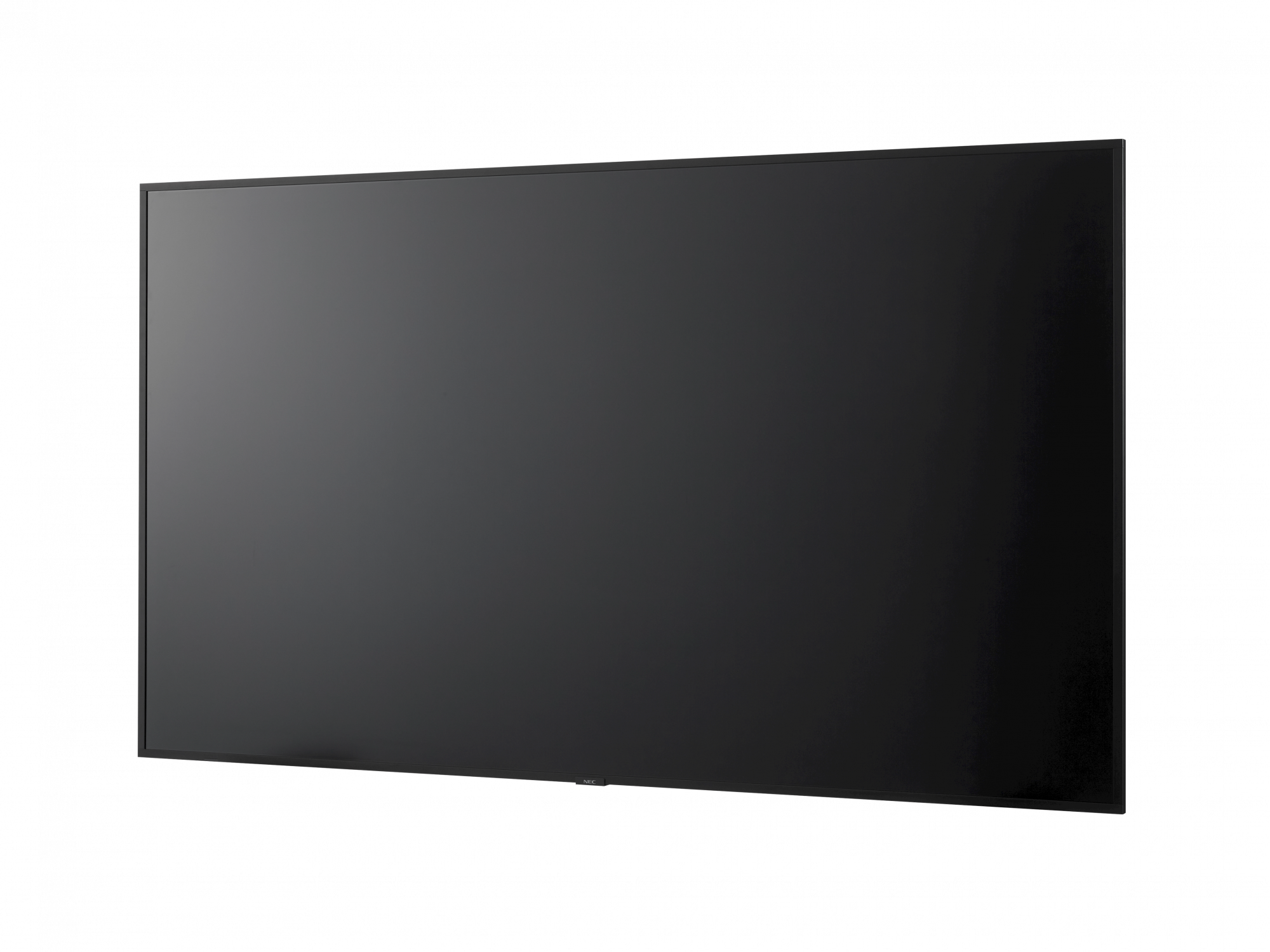

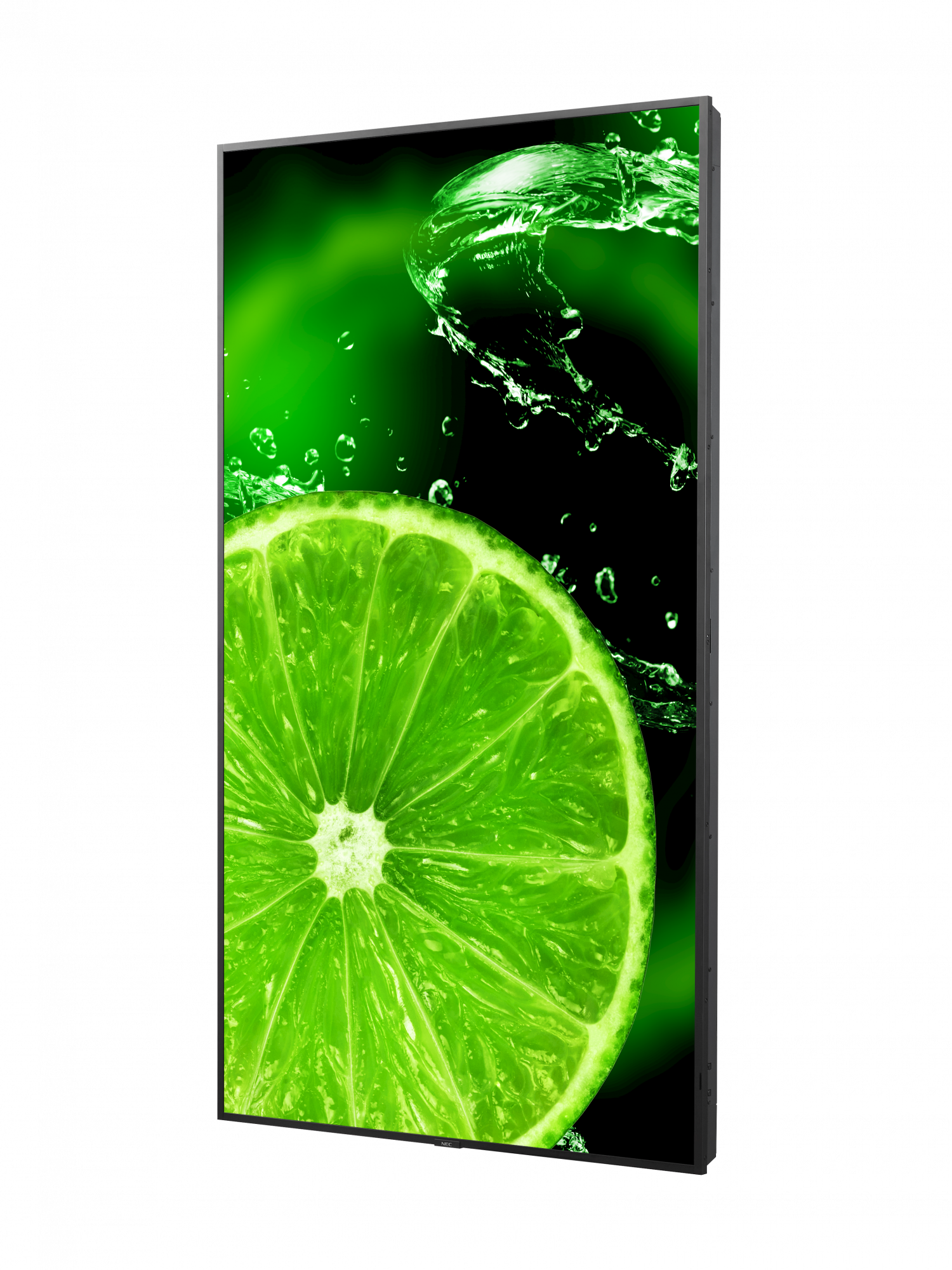

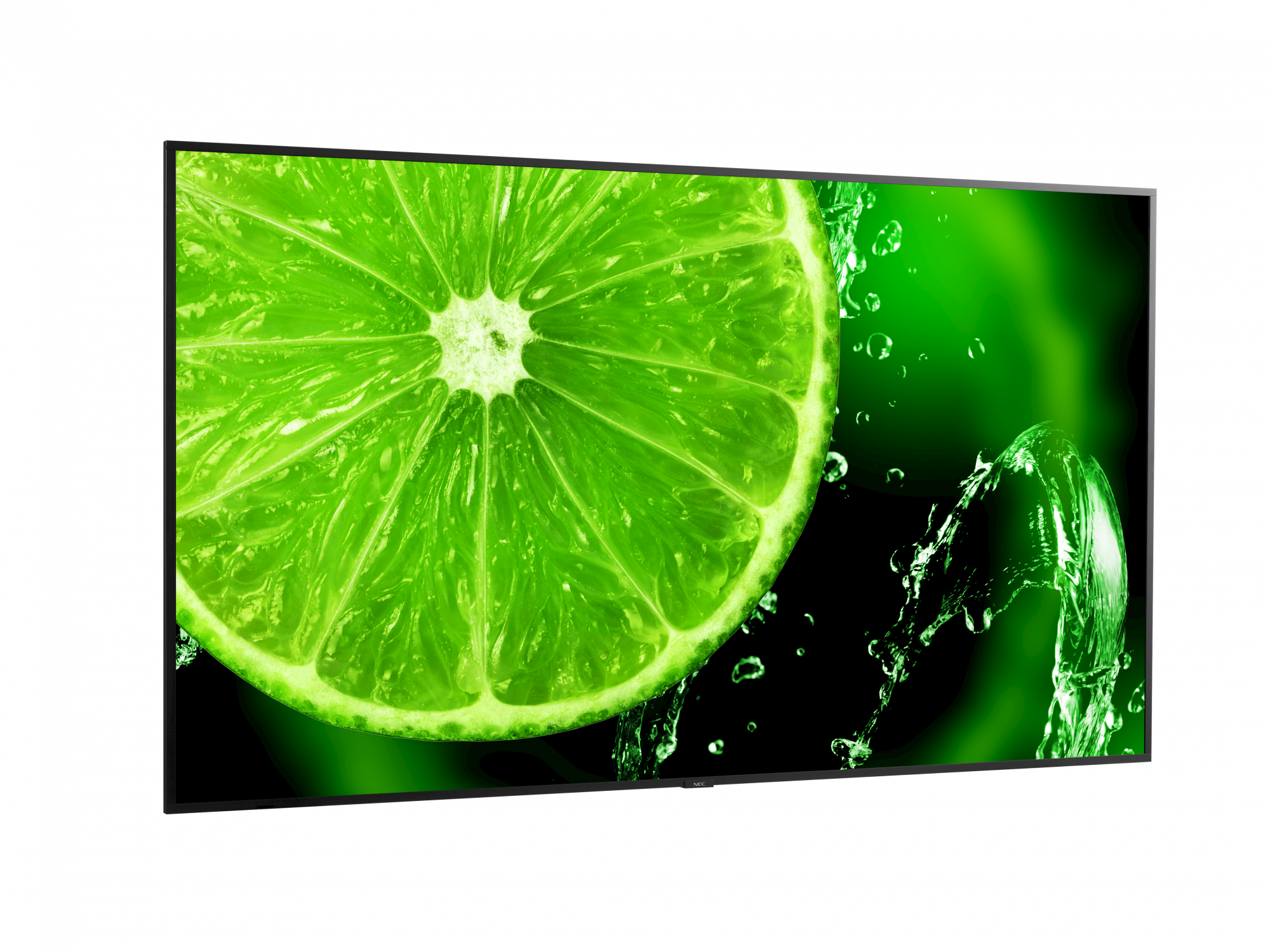

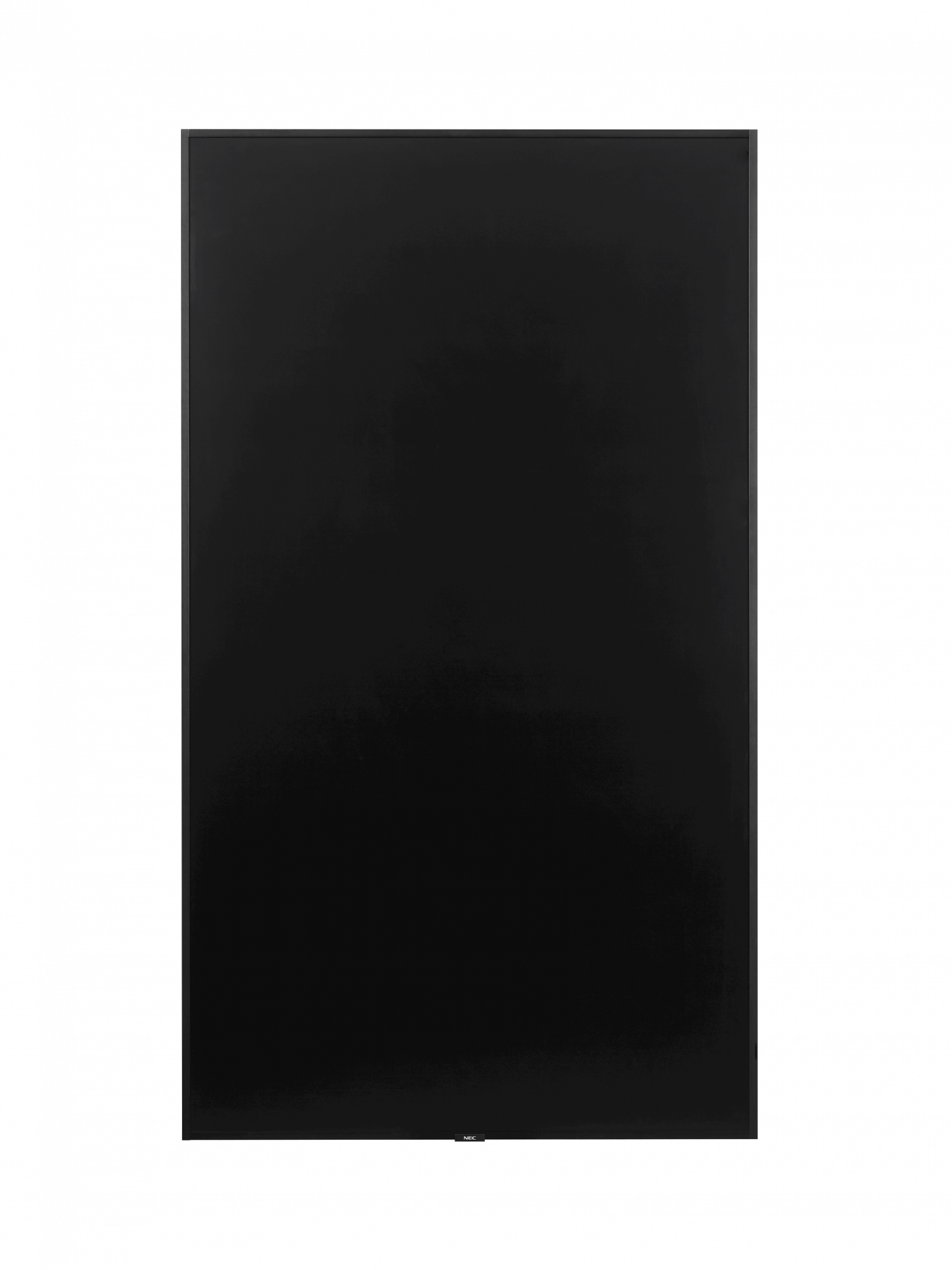

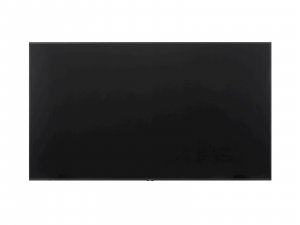

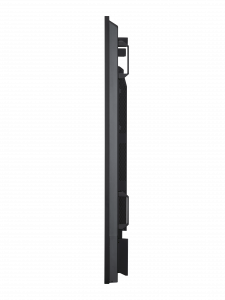

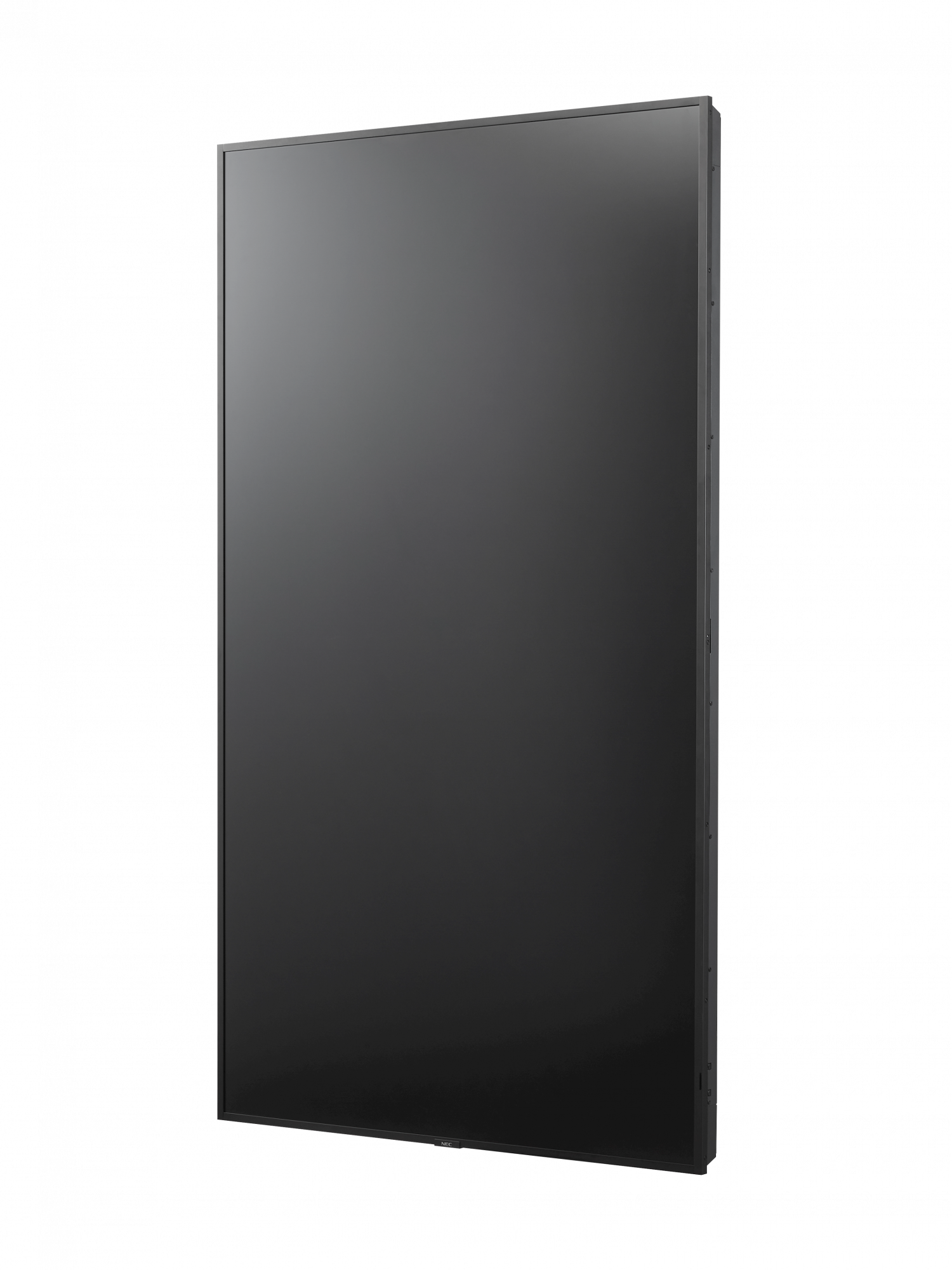

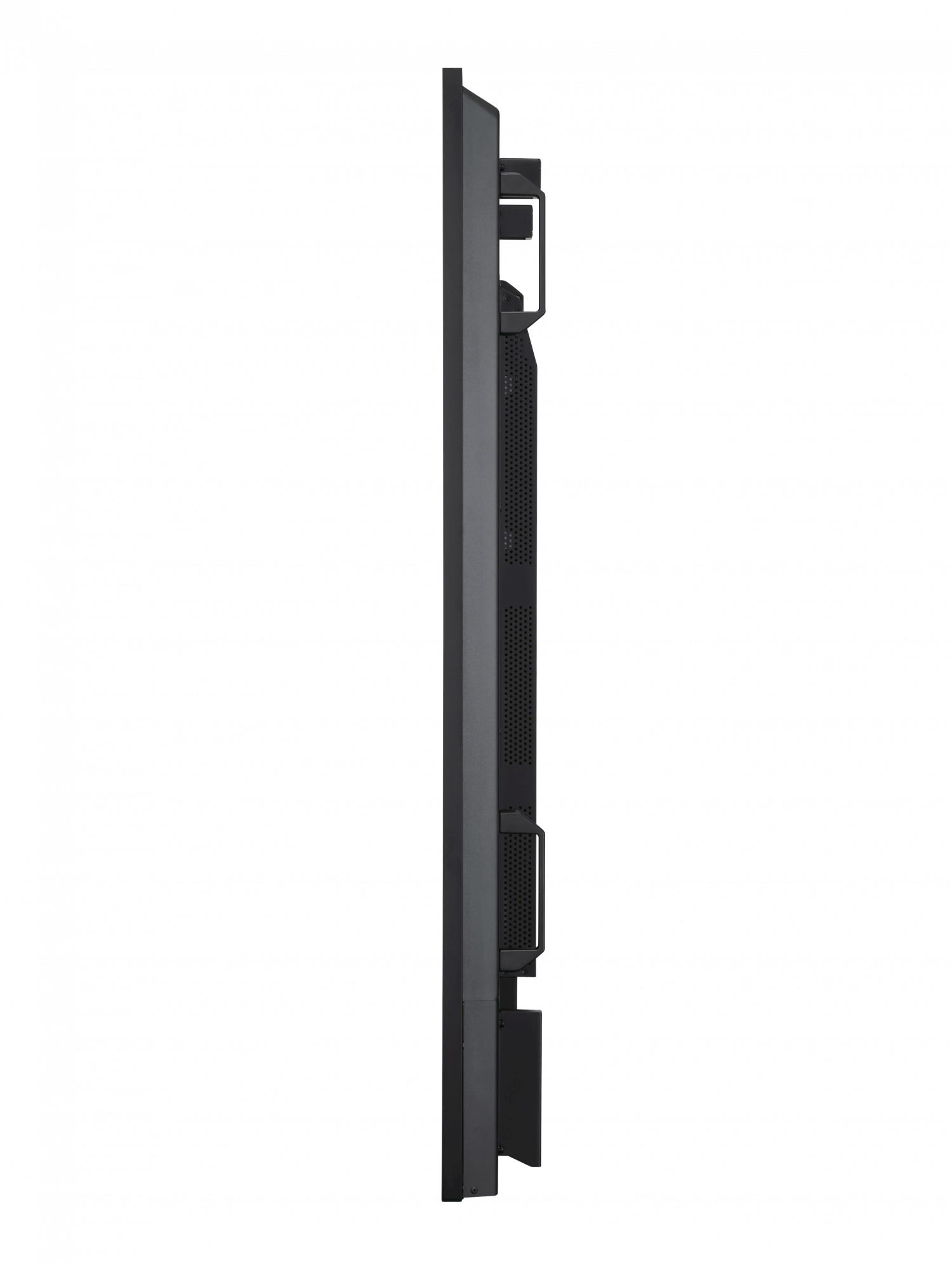

NEC MultiSync E988. Product design: Digital signage flat panel. Display diagonal: 2.48 m (97.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration
Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality
Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback

Enter the world of professional signage

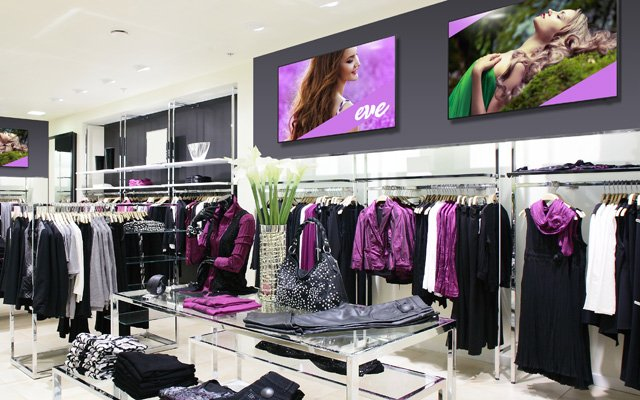

In a world of digitalisation, signage is following the trend. Digital posters and information boards are now the most common method of information transfer.

Where cost and reliability are key, NEC’s 8th generation of E Series essential displays is the perfect choice. Screen sizes range from 32’’ up to 98’’ to suit any indoor application scenario. With their eye pleasing slim bezel design, your content gets the attention it deserves, whether in small information installations or built-in solutions.

Plug and play

NEC’s E Series is designed for instant usage with an integrated media player for native UHD playback: the content can be run directly from a USB drive. Not only is this process easy to use, it also saves you time and money. Once installed, the embedded autostart time schedule function starts the screen and plays the content automatically at a certain time. For your security, the E Series supports infrared lock to disable the infrared remote control to block unauthorised persons from accessing the display. The screens can then be controlled via safe R232 command.

Sustainable investment

With its low cost of ownership and the Energy Star 8.0 certification, the E Series not only lowers your carbon footprint but also reduces running costs. A wide range of connectivity offers the possibility of multiple input sources and makes the displays a future-proof investment.

Product Properties

Manufacturer
NEC

Model
60005929

EAN
5028695125926

Audio

Built-in speaker(s)
Yes

Number of built-in speakers
2

RMS rated power
20 W

Computer system

Built-in processor
No

Computer system
No

Mac operating systems supported
Yes

Windows operating systems supported
Yes

Design

Bezel width (top)
1.59 cm

Mounting type
Desk/Wall

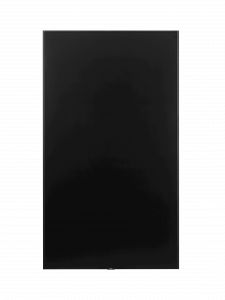

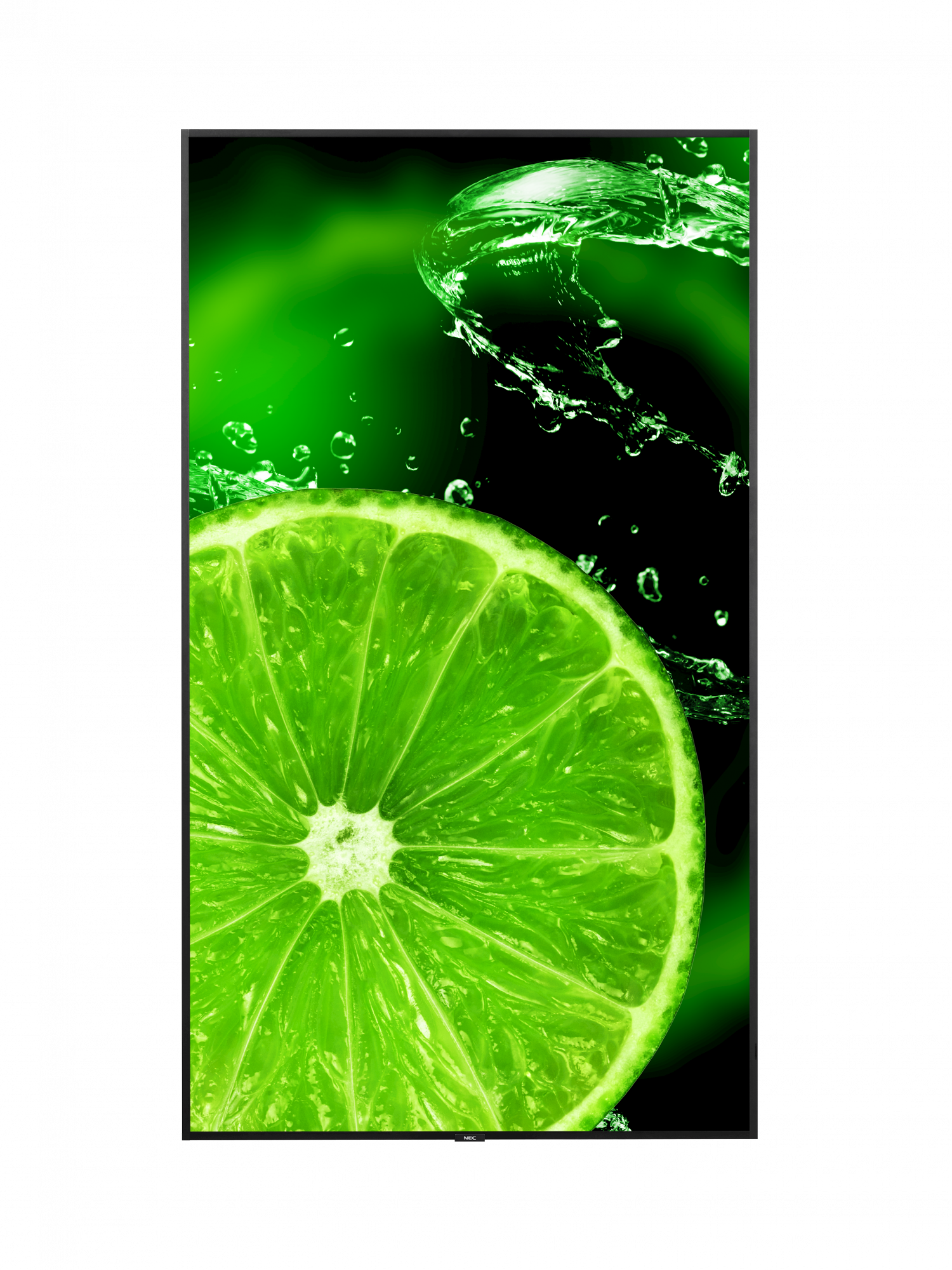

Orientation
Horizontal/Vertical

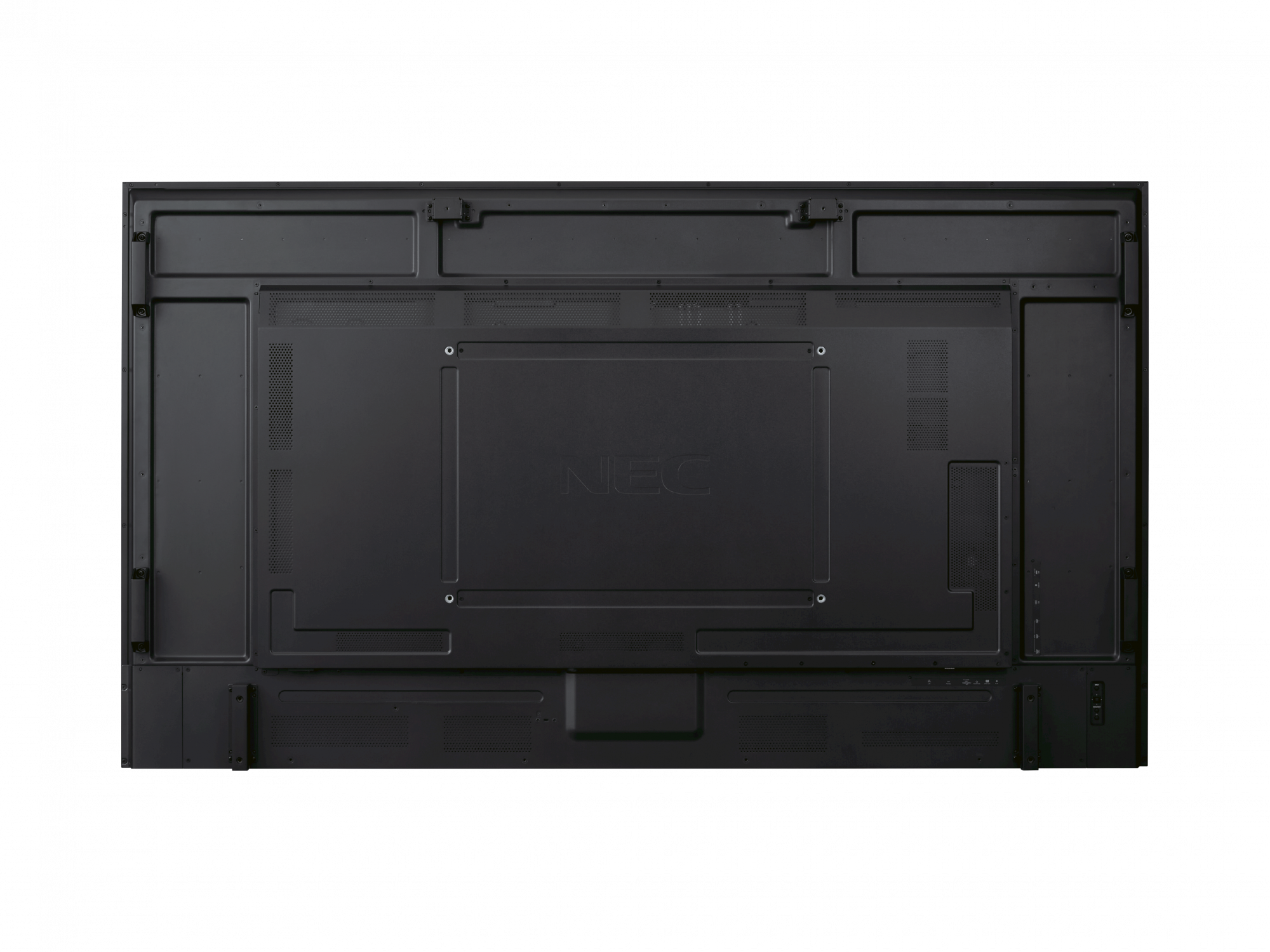

Panel mounting interface
600 x 400 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Active display area (W x H)
2158.85 x 1214.35 mm

Colour depth
10 bit

Contrast ratio (typical)
8000:1

Display brightness
350 cd/m²

Display number of colours
1.073 billion colours

Haze rate
28%

HD type
4K Ultra HD

High Dynamic Range (HDR) supported
Yes

High Dynamic Range (HDR) technology
Hybrid Log-Gamma (HLG)

Horizontal scan range
15 - 136 kHz

LED backlight
Yes

LED backlighting type
Direct-LED

Native aspect ratio
16:9

Native refresh rate
60 Hz

Panel type
IPS

Pixel pitch
0.5622 x 0.5622 mm

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
2.48 m (97.5")

Screen Type
247.7 cm

Screen Type
LCD

Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160

Touchscreen
No

Vertical scan range
24 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 60 °C

Other features

Audio input
1

Audio output
1

AV input
Yes

Cable lock slot type
Kensington

Manual
Yes

Packaging content

Batteries included
Yes

Cables included
AC, HDMI

Remote control included
Yes

Packaging data

Package depth
310 mm

Package height
1400 mm

Package weight
96.5 kg

Package width
2350 mm

Performance

Ambient light sensor
Yes

HDCP
Yes

International Protection (IP) code
IP5X, IP2X

Operating hours (hours/days)
24/7

Purpose
Universal

Ports & interfaces

Audio Return Channel (ARC)
Yes

DisplayPorts quantity
0

DVI port
No

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

HDMI input ports quantity
3

HDMI ports
3

RS-232C
Yes

USB connector type
USB Type-A, USB Type-C

USB port
Yes

USB ports quantity
2

USB version
2.0

VGA (D-Sub) input ports
1

Wi-Fi
No

Power

AC input frequency
50-60 Hz

AC input voltage
100-240 V

Energy consumption (HDR) per 1000 hours
160 kWh

Energy consumption (SDR) per 1000 hours
161 kWh

Energy efficiency class (HDR)
F

Energy efficiency class (SDR)
F

Energy efficiency scale
A to G

Power consumption (standby)
0.5 W

Power consumption (typical)
200 W

Technical details

Compliance certificates
Federal Communications Commission (FCC), VCCI, cUL

Digital audio out
1

Sustainability certificates
ENERGY STAR

Sustainability compliance
Yes

USB playback
Yes

Weight & dimensions

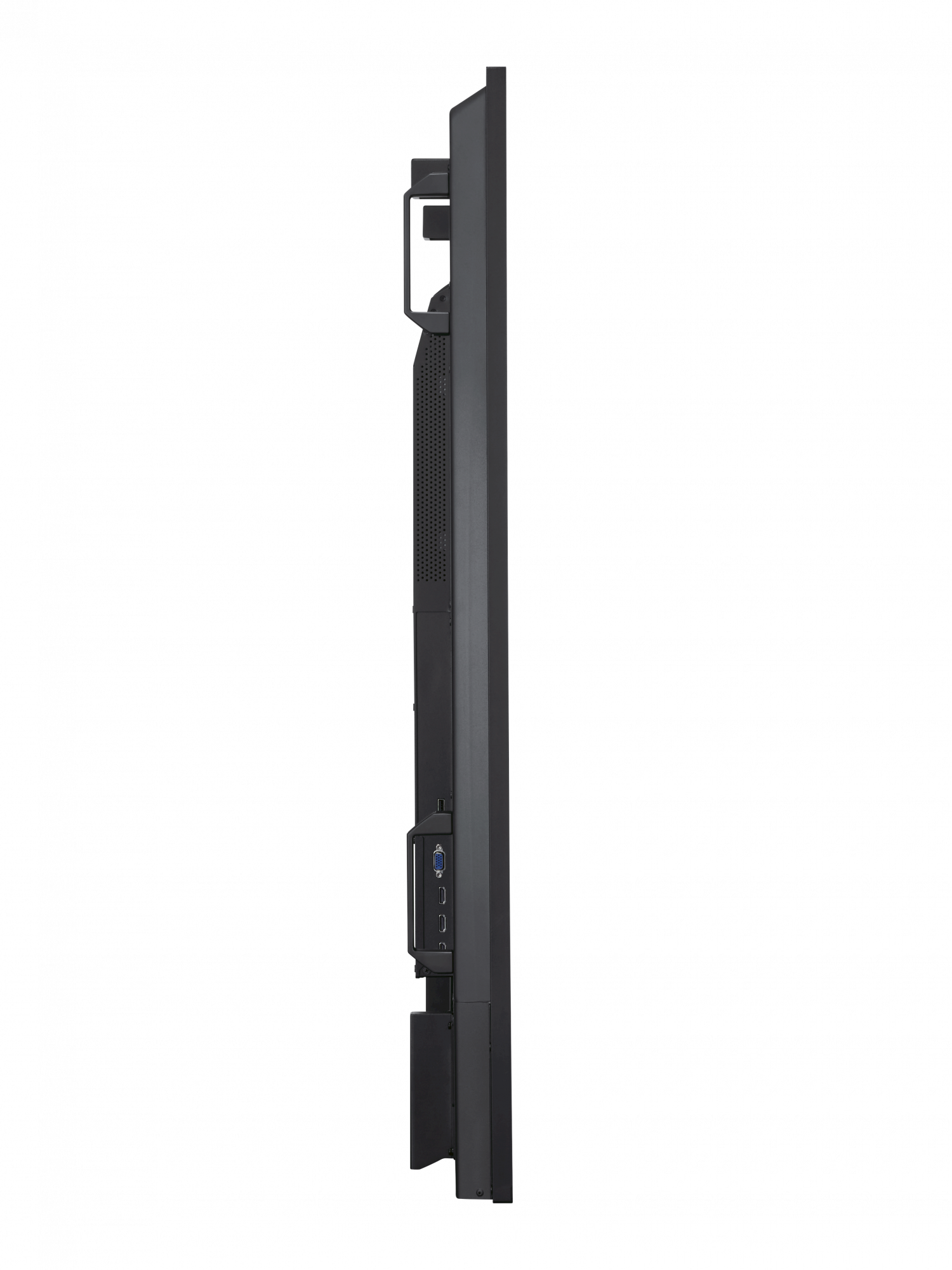

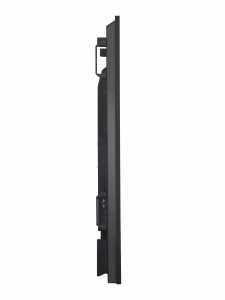

Display depth
84.3 mm

Display height
1250.2 mm

Display weight
65.4 kg

Display width
2194.7 mm

NEC MultiSync E988 Digital signage flat panel 2.48 m (97.5") LCD 350 cd/m² 4K Ultra HD Black 24/7
