Description

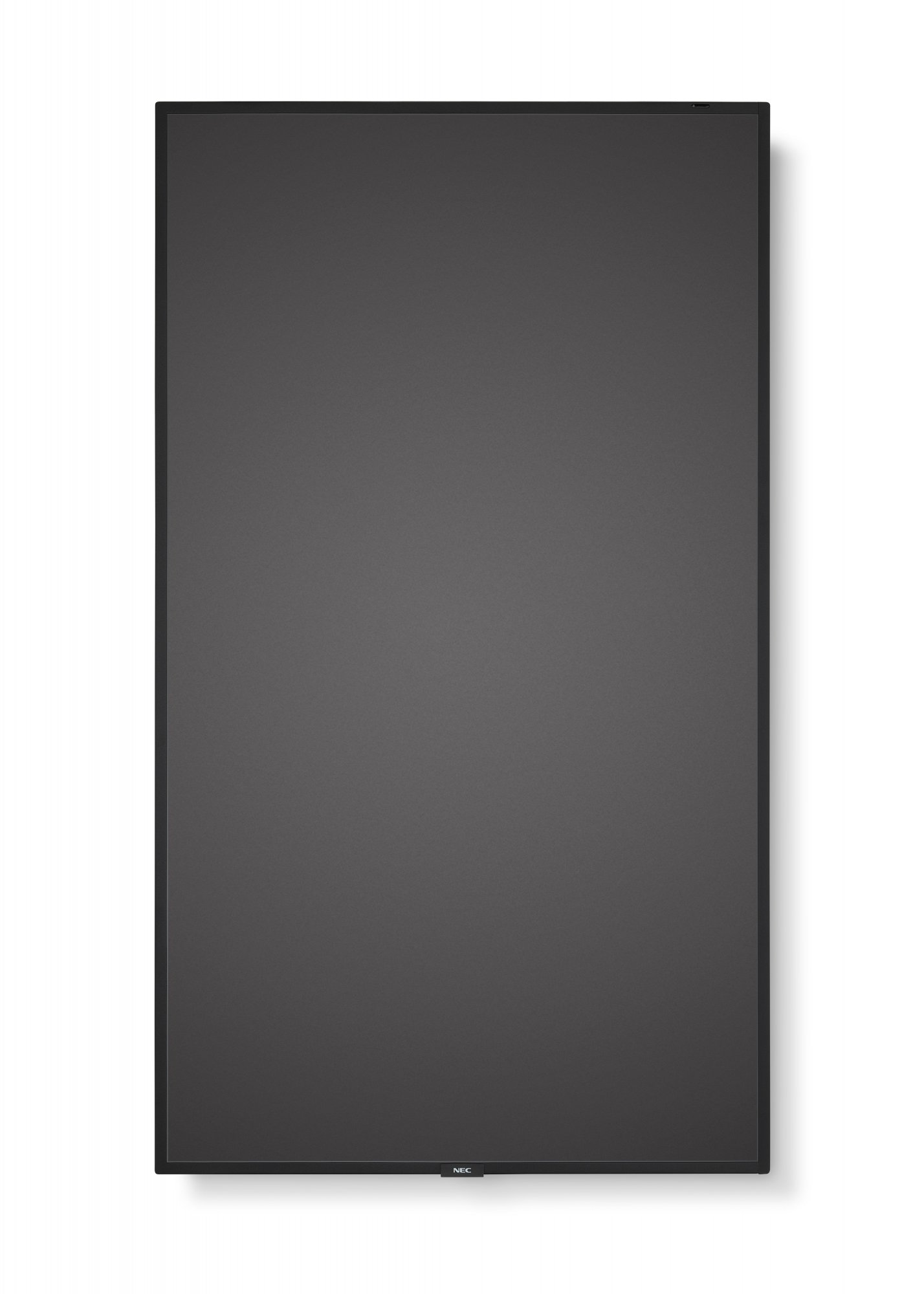

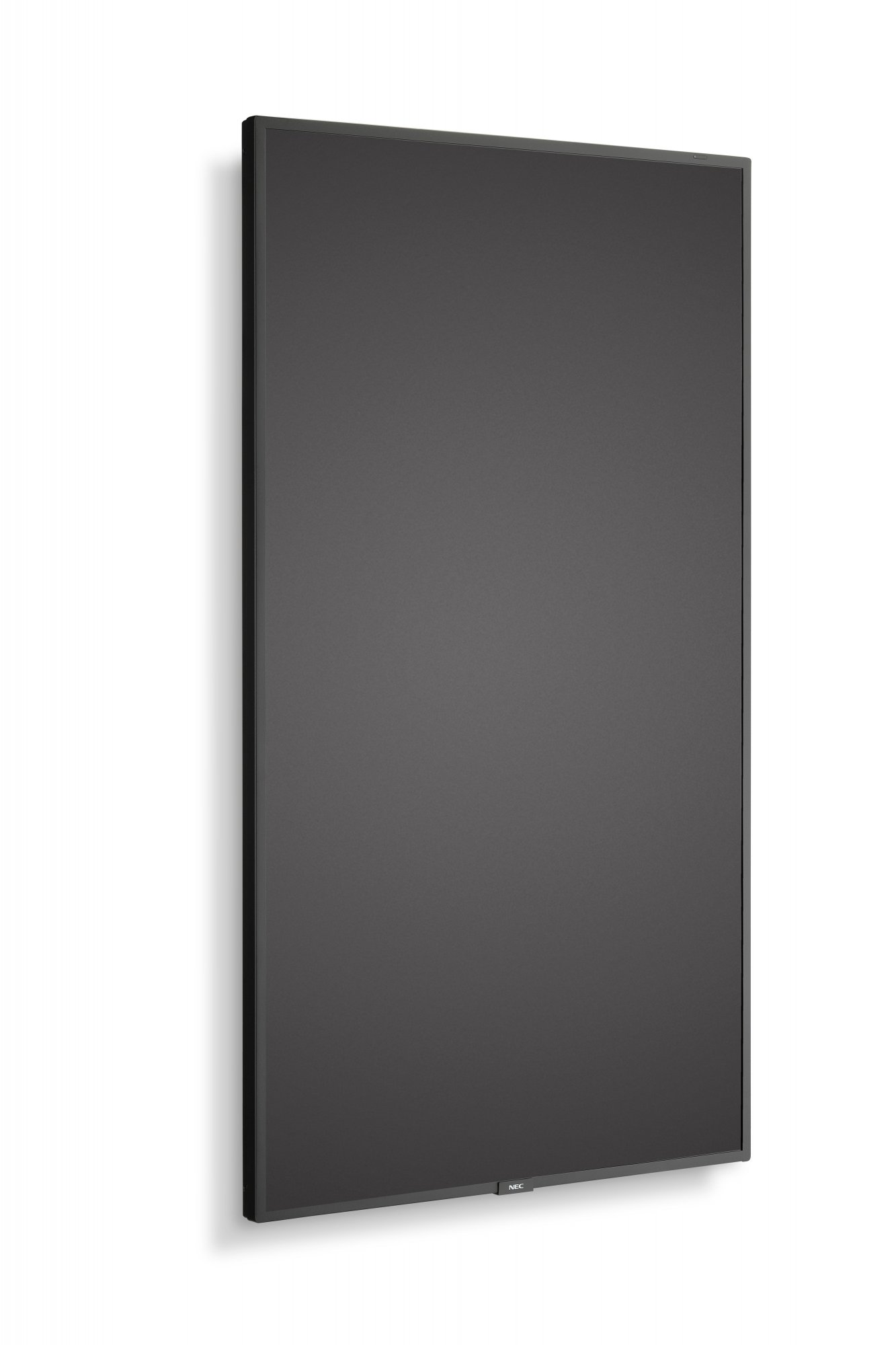

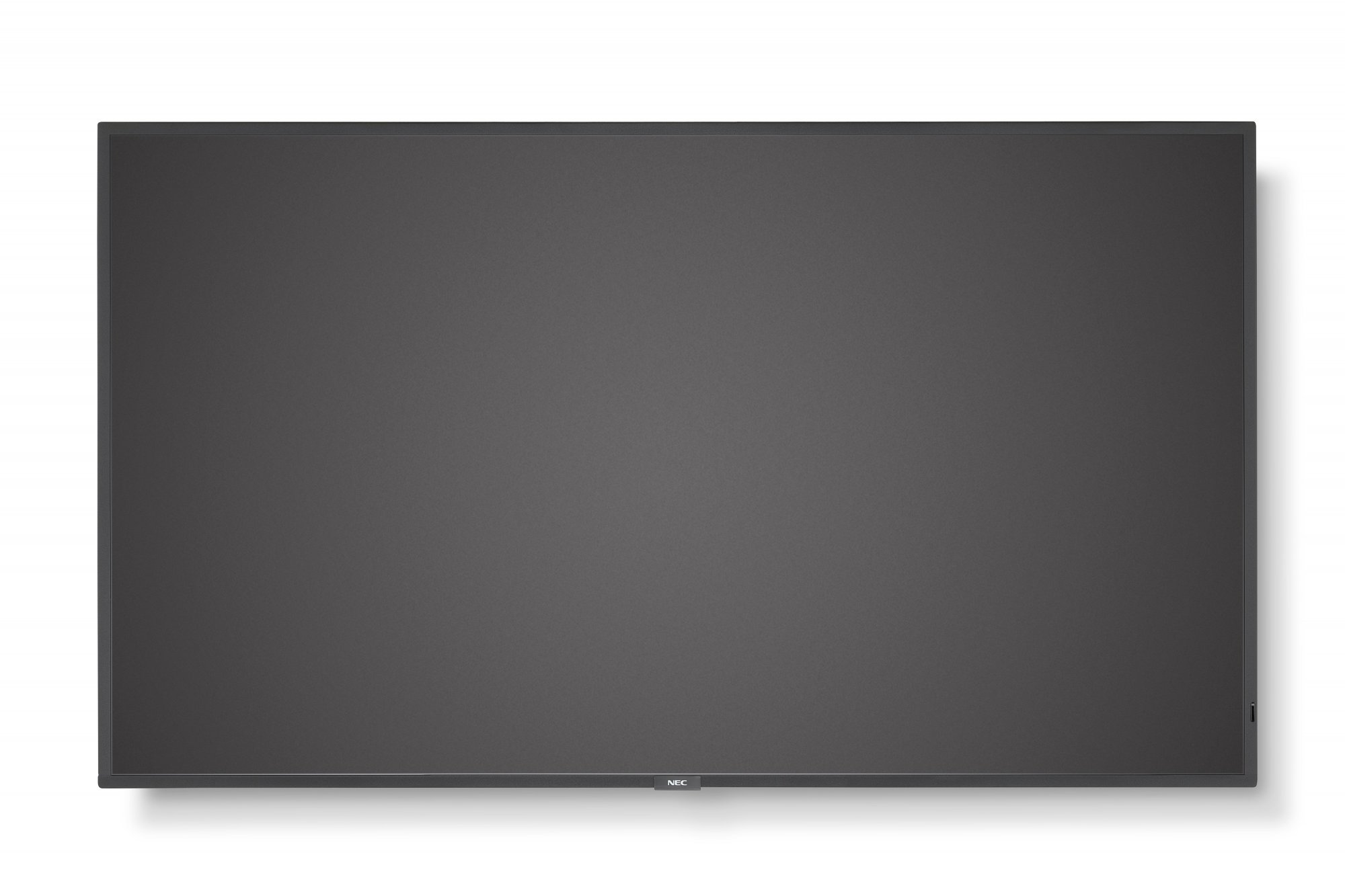

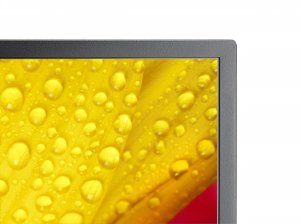

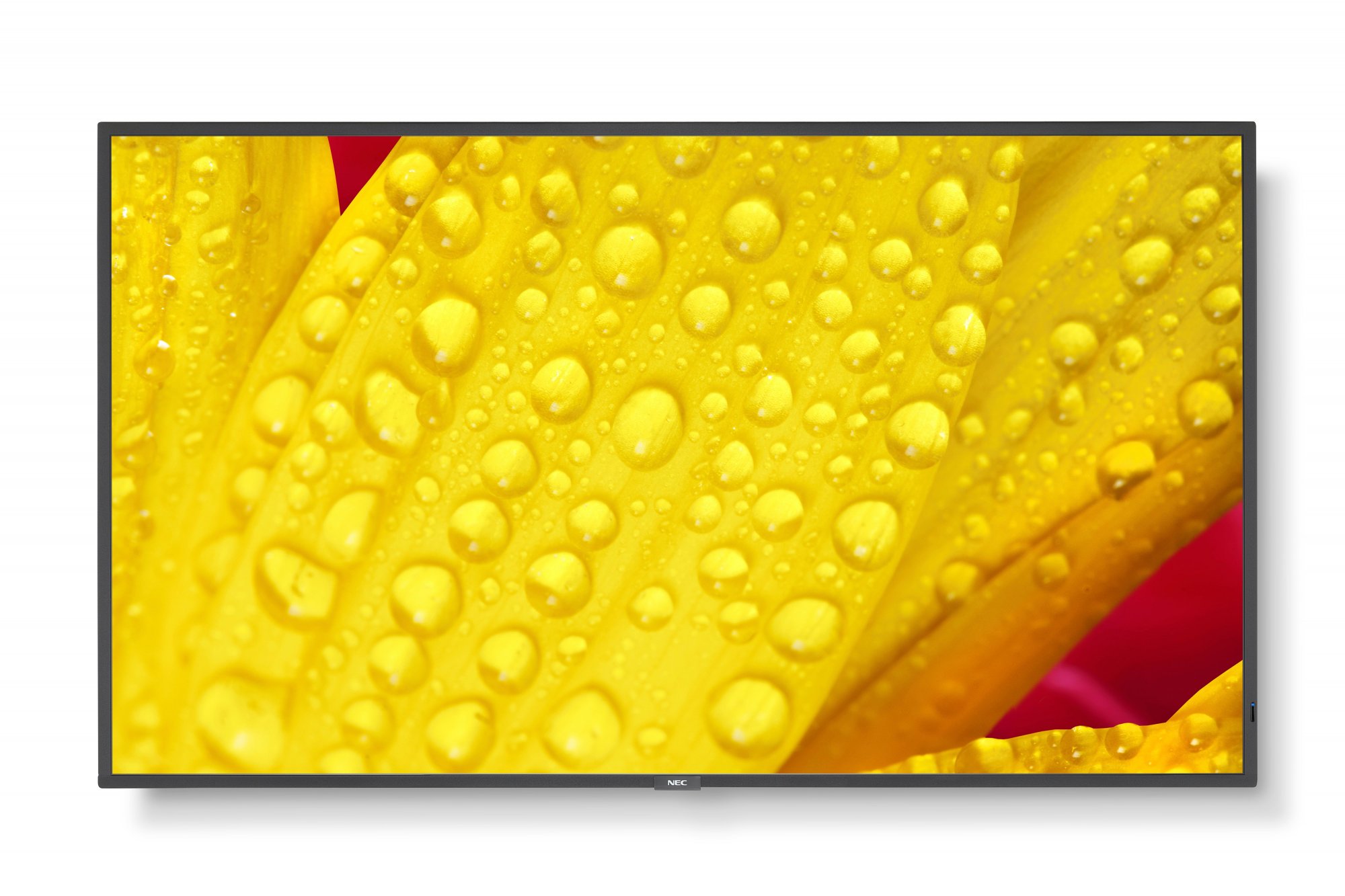

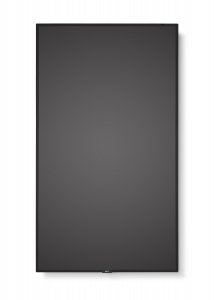

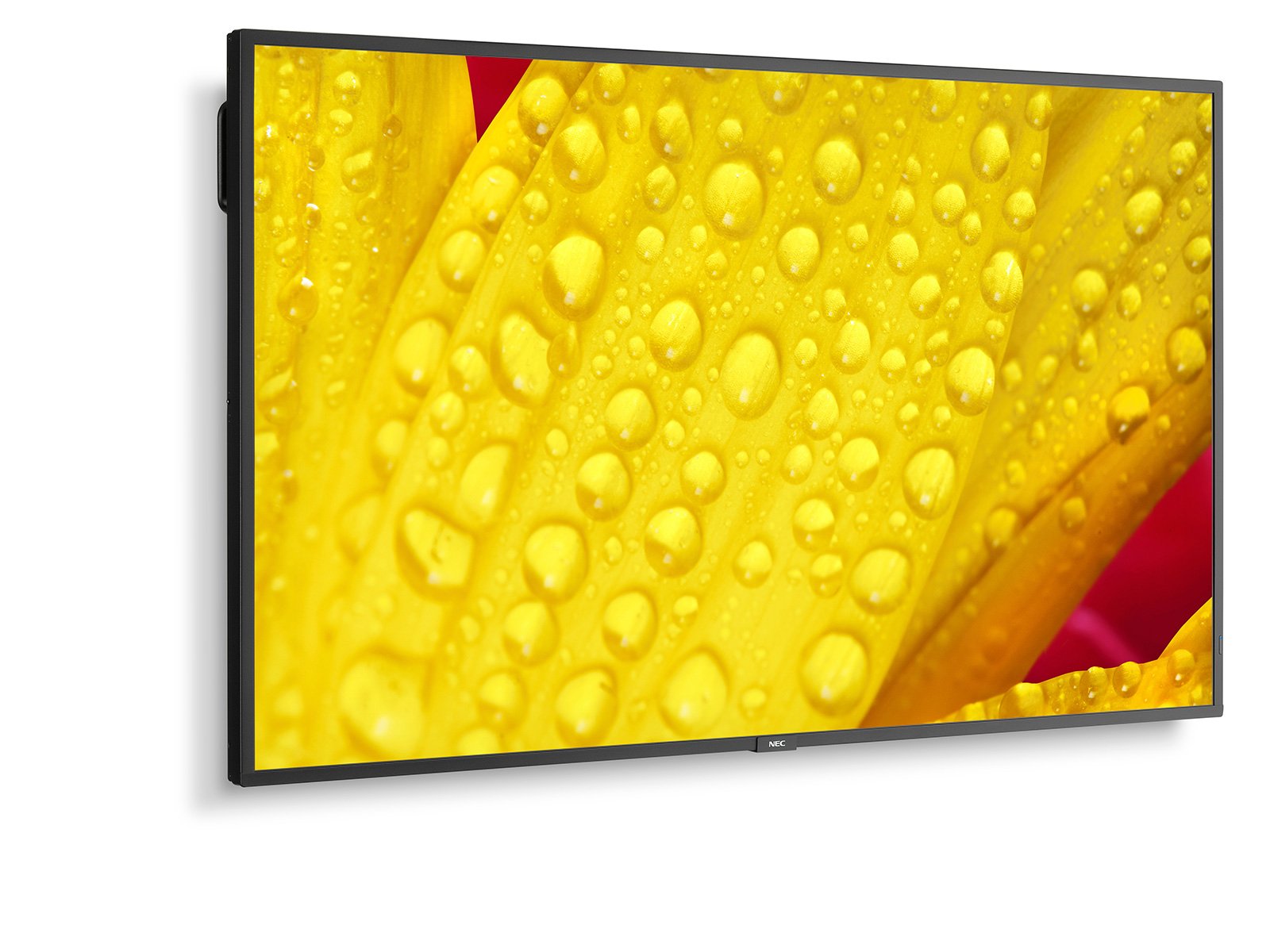

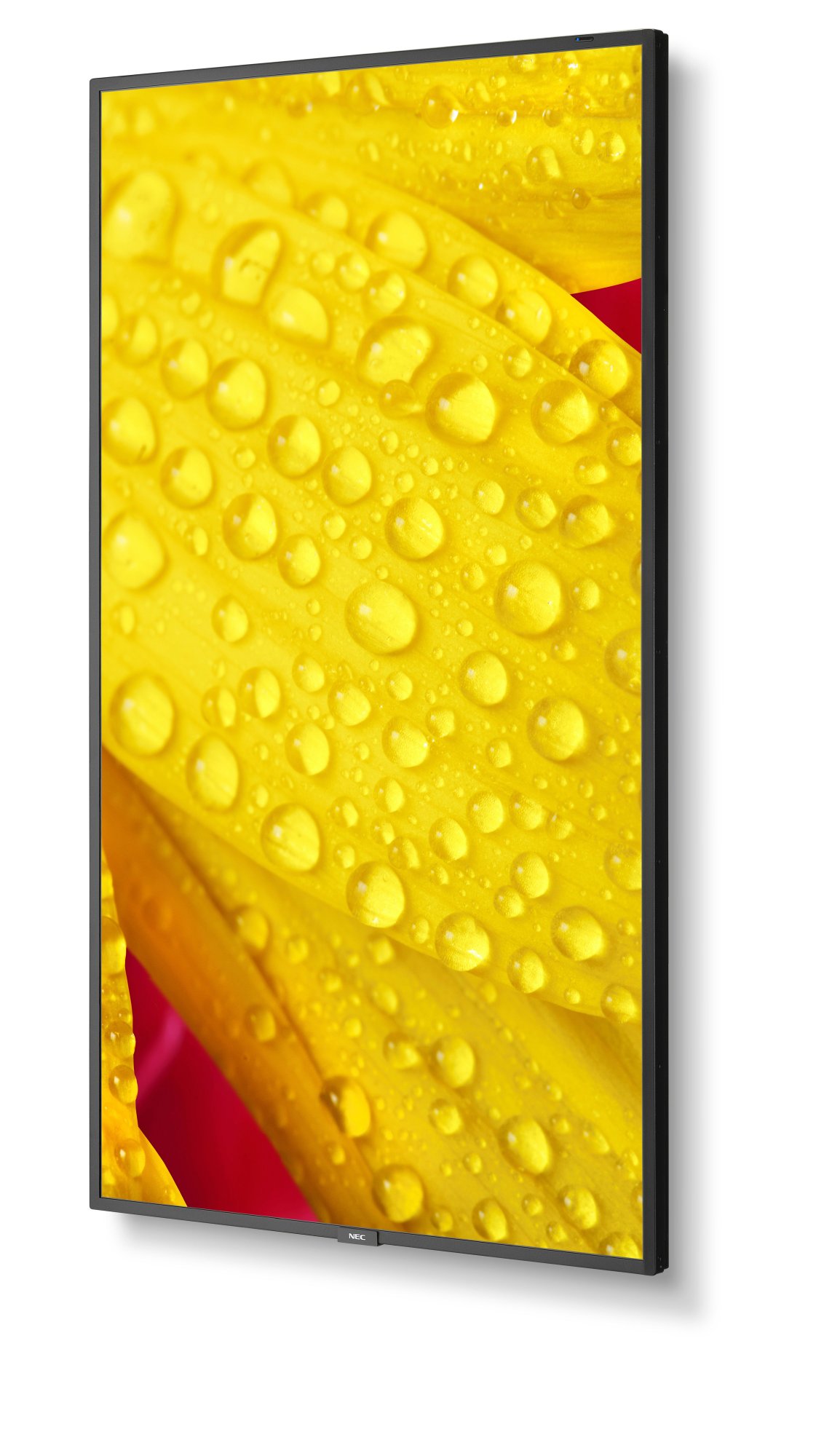

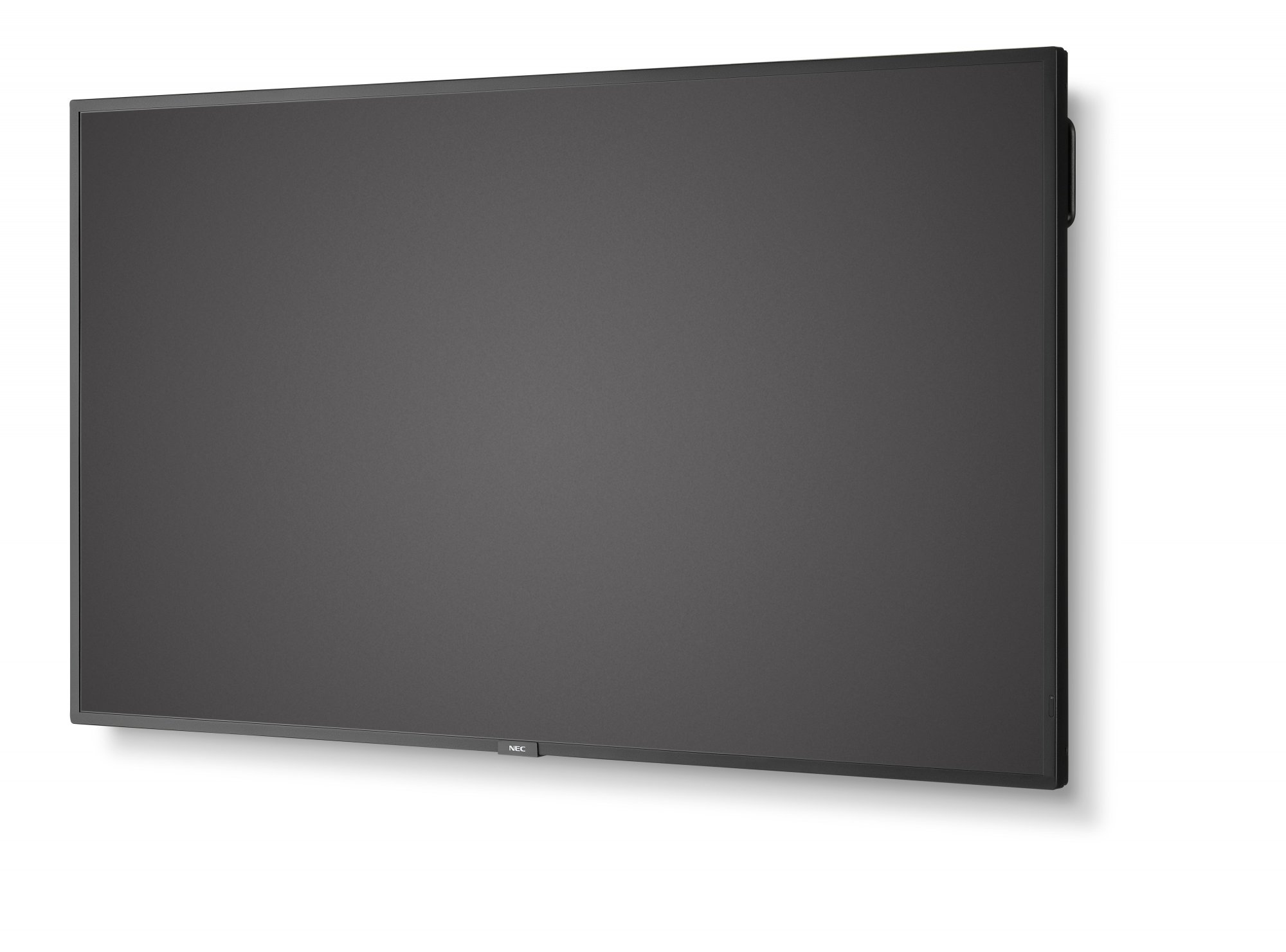

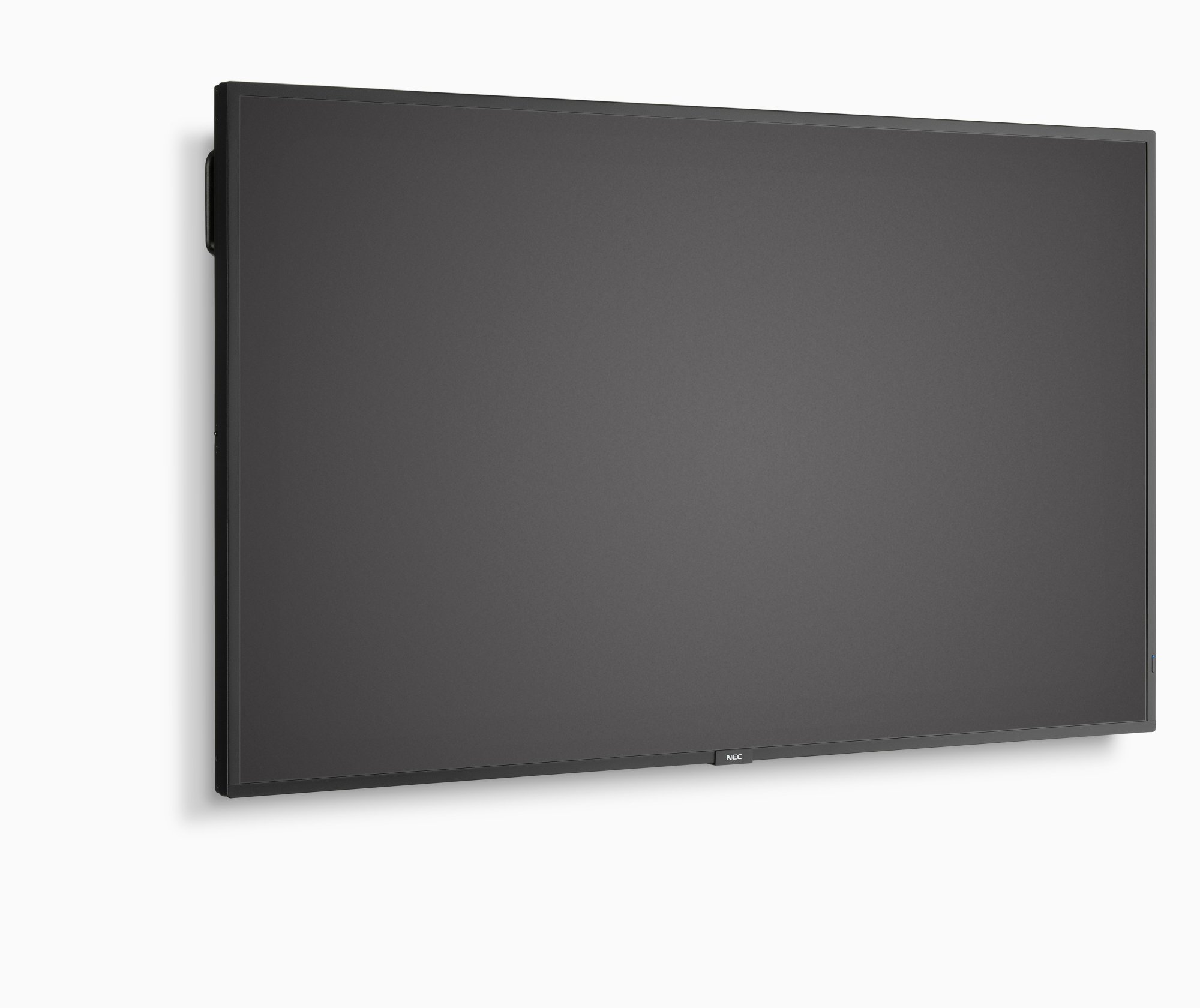

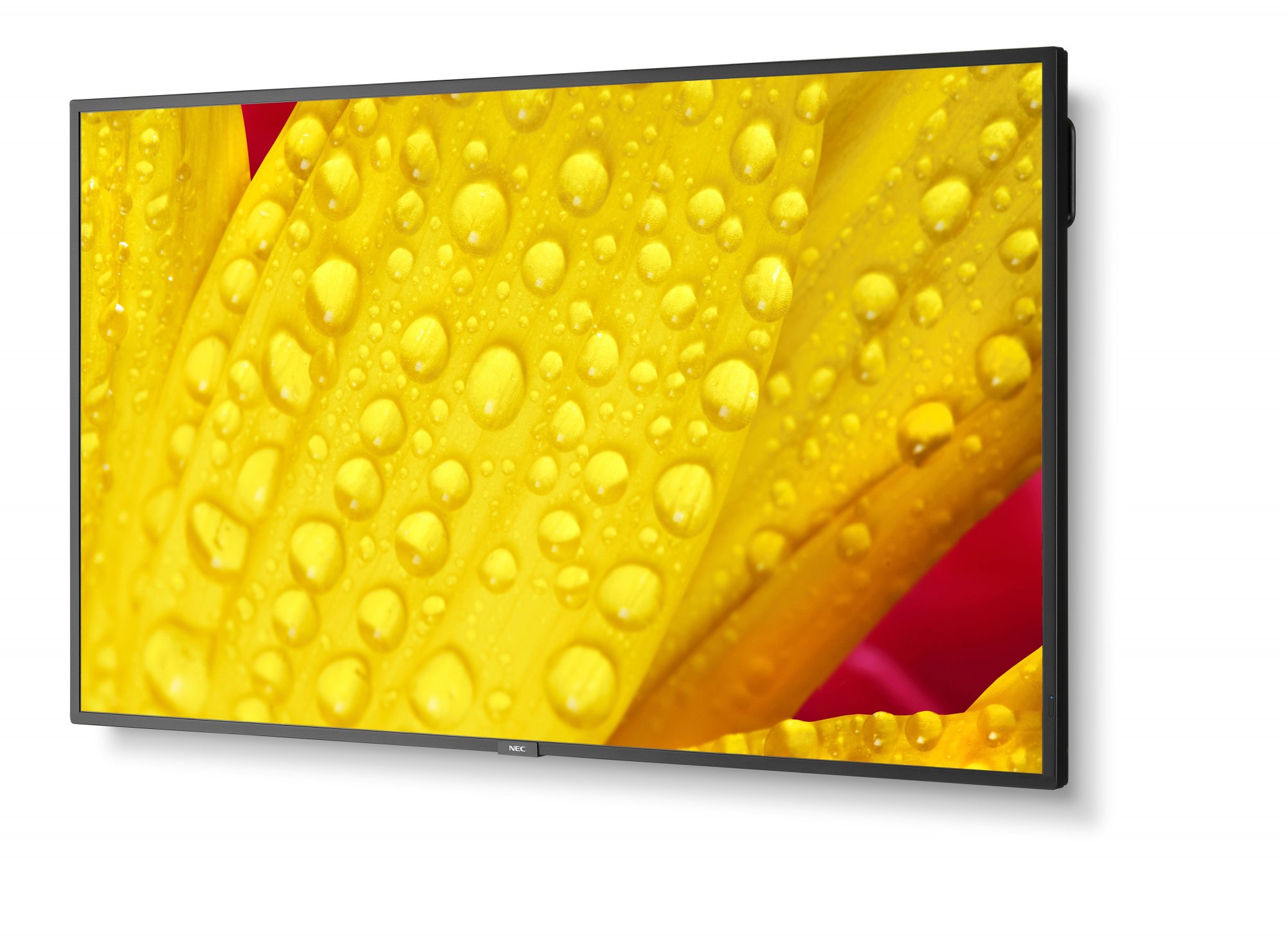

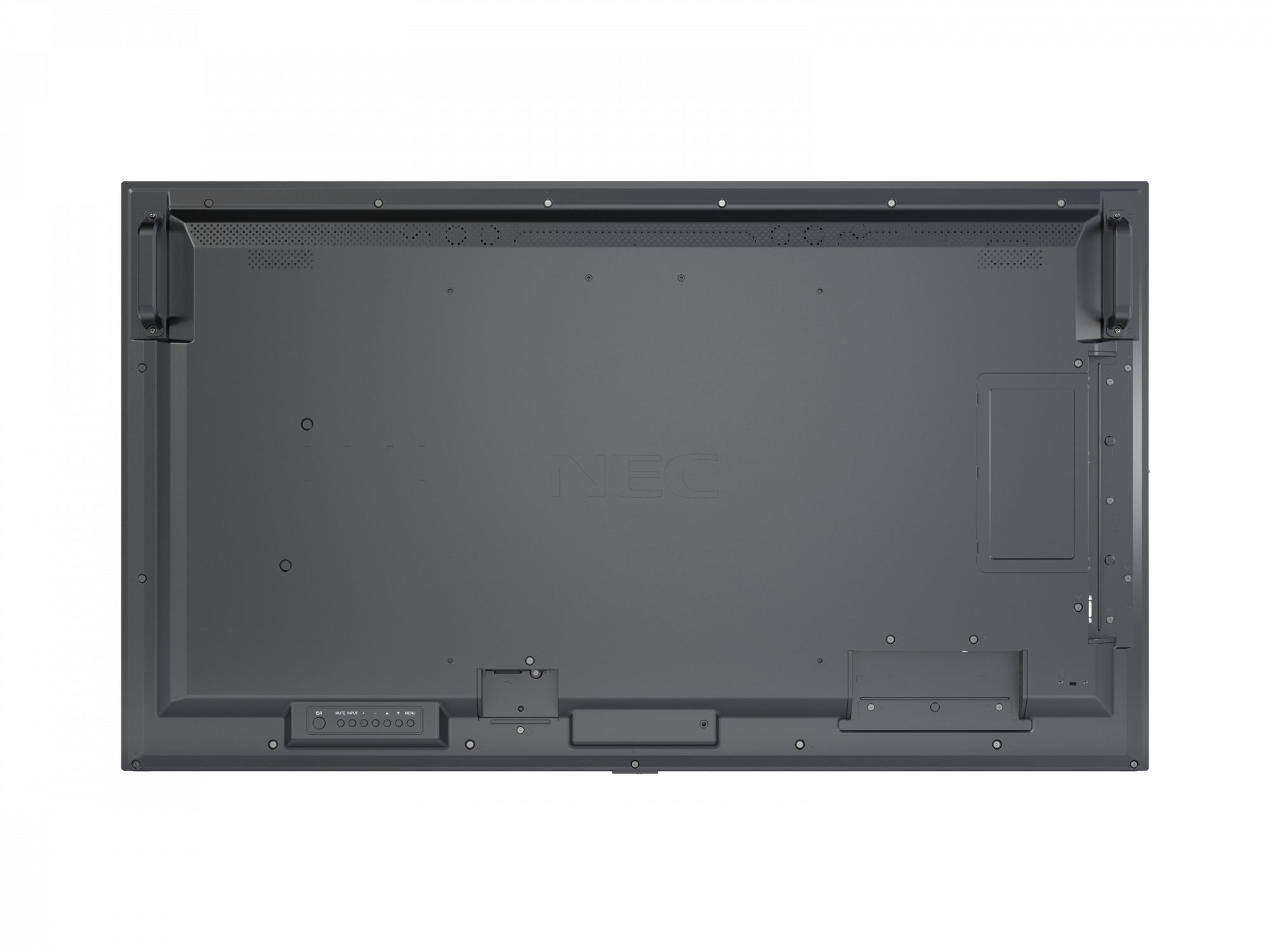

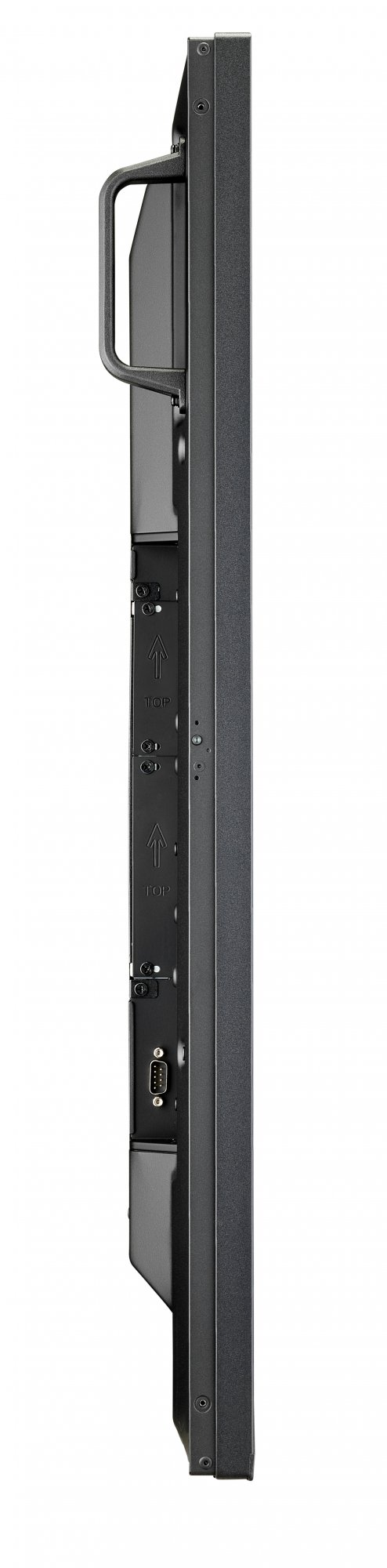

NEC MultiSync M501-2. Product design: Kiosk design. Display diagonal: 127 cm (50"), Display technology: LED, Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD. Product colour: Black

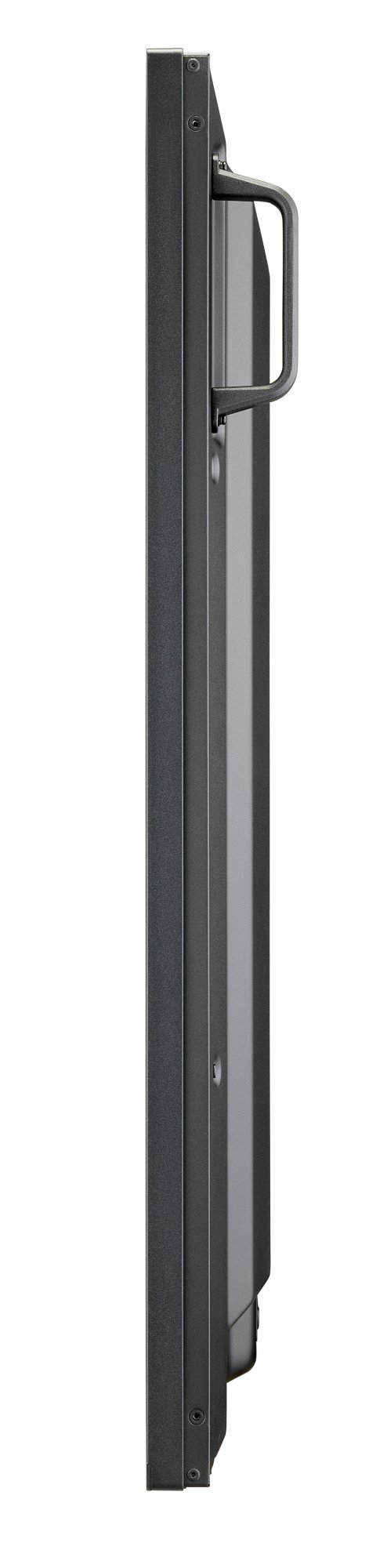

Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback

Product Properties

Manufacturer
NEC

Model
60006084

EAN
5028695127470

Audio

Built-in speaker(s)
Yes

RMS rated power
20 W

Certificates

Certification
ISO 9241-307

Computer system

Audio formats supported
AAC, LPCM, MP3, WMV

Built-in processor
Yes

Computer system
Yes

Image formats supported
JPG

Processor manufacturer
Intel

Video formats supported
HEVC, HEVC/H.265, MP4, MPG, TS

Design

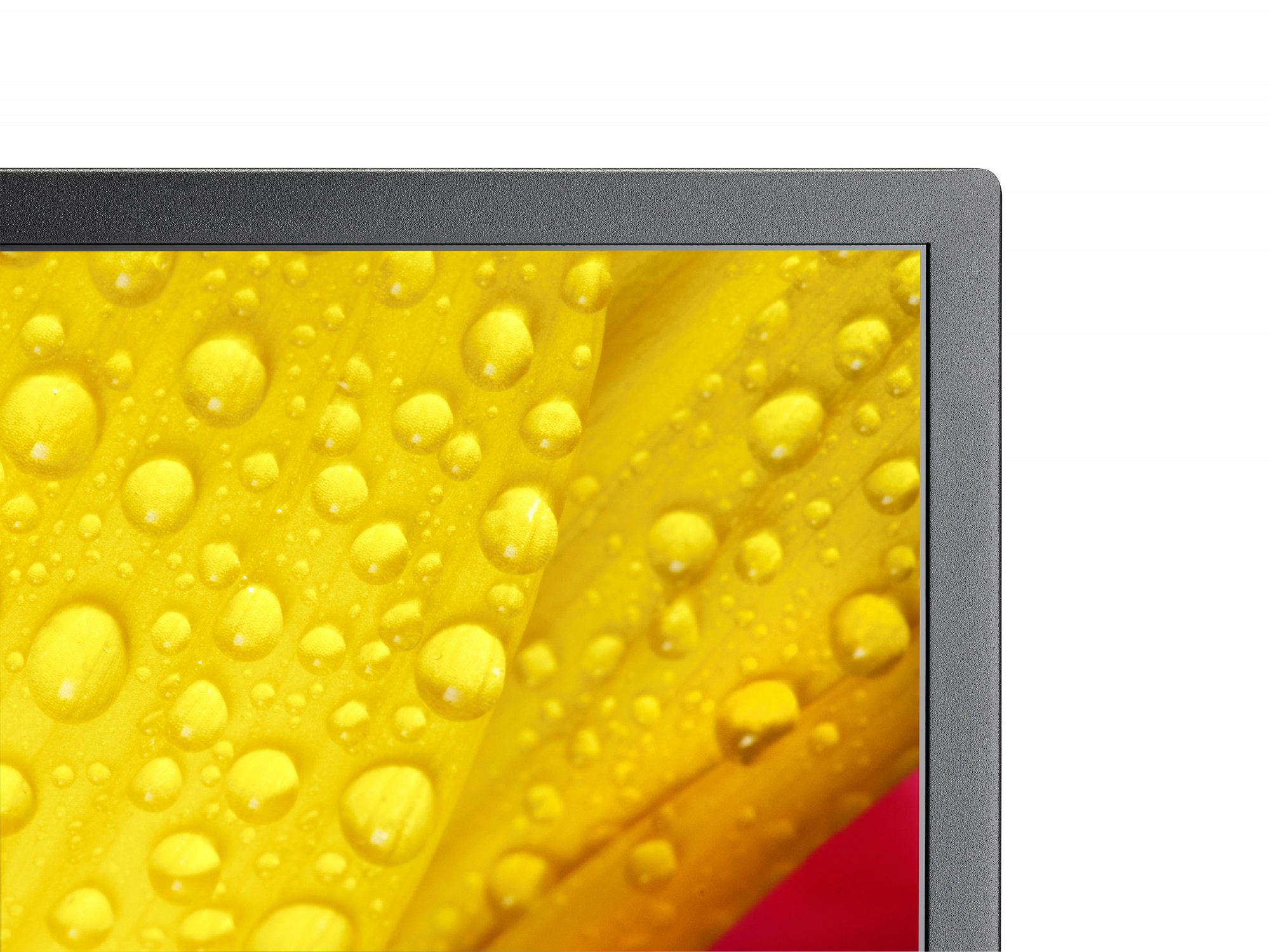

Bezel width (bottom)
1.49 cm

Bezel width (side)
1.49 cm

Bezel width (top)
1.49 cm

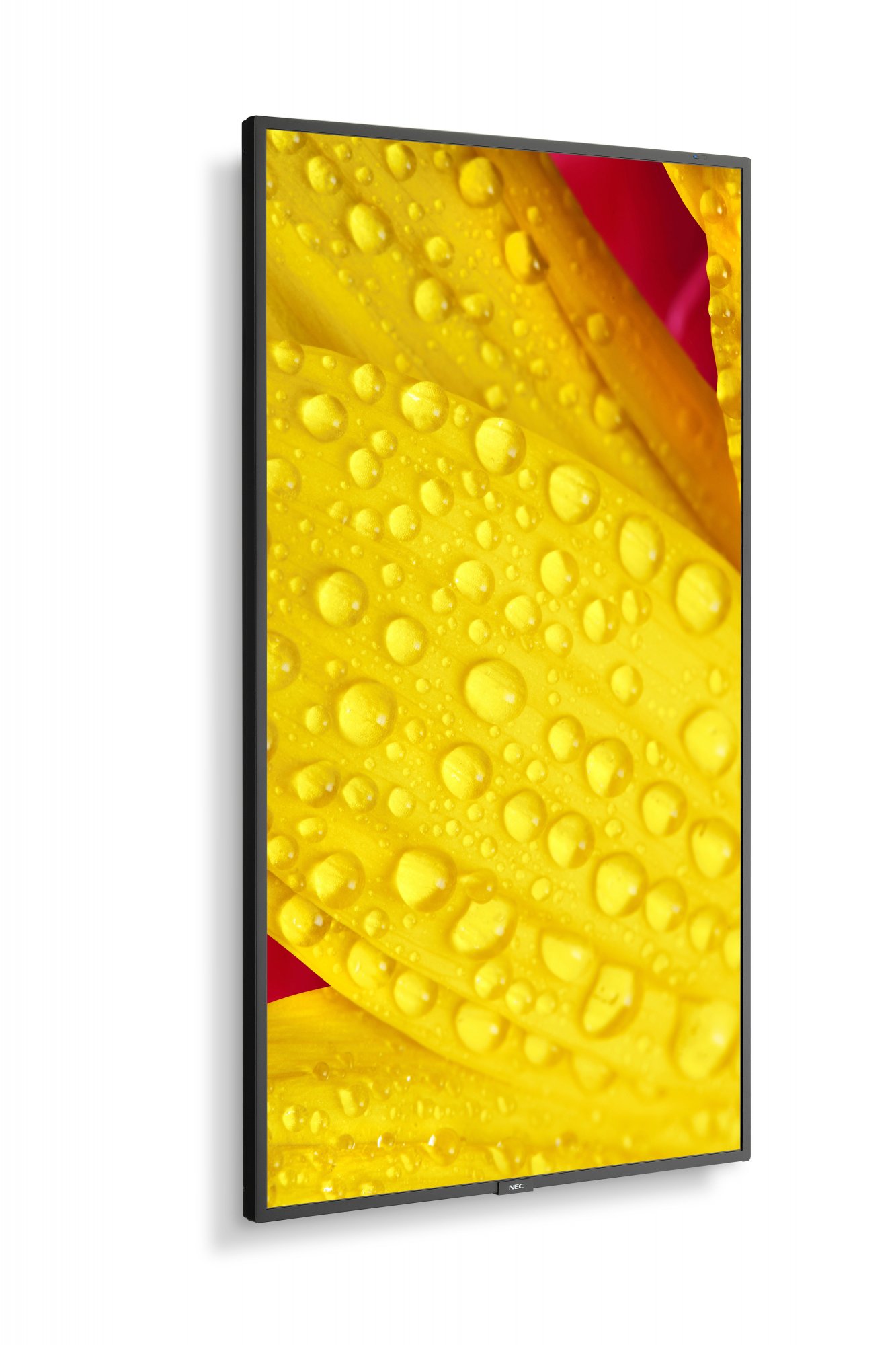

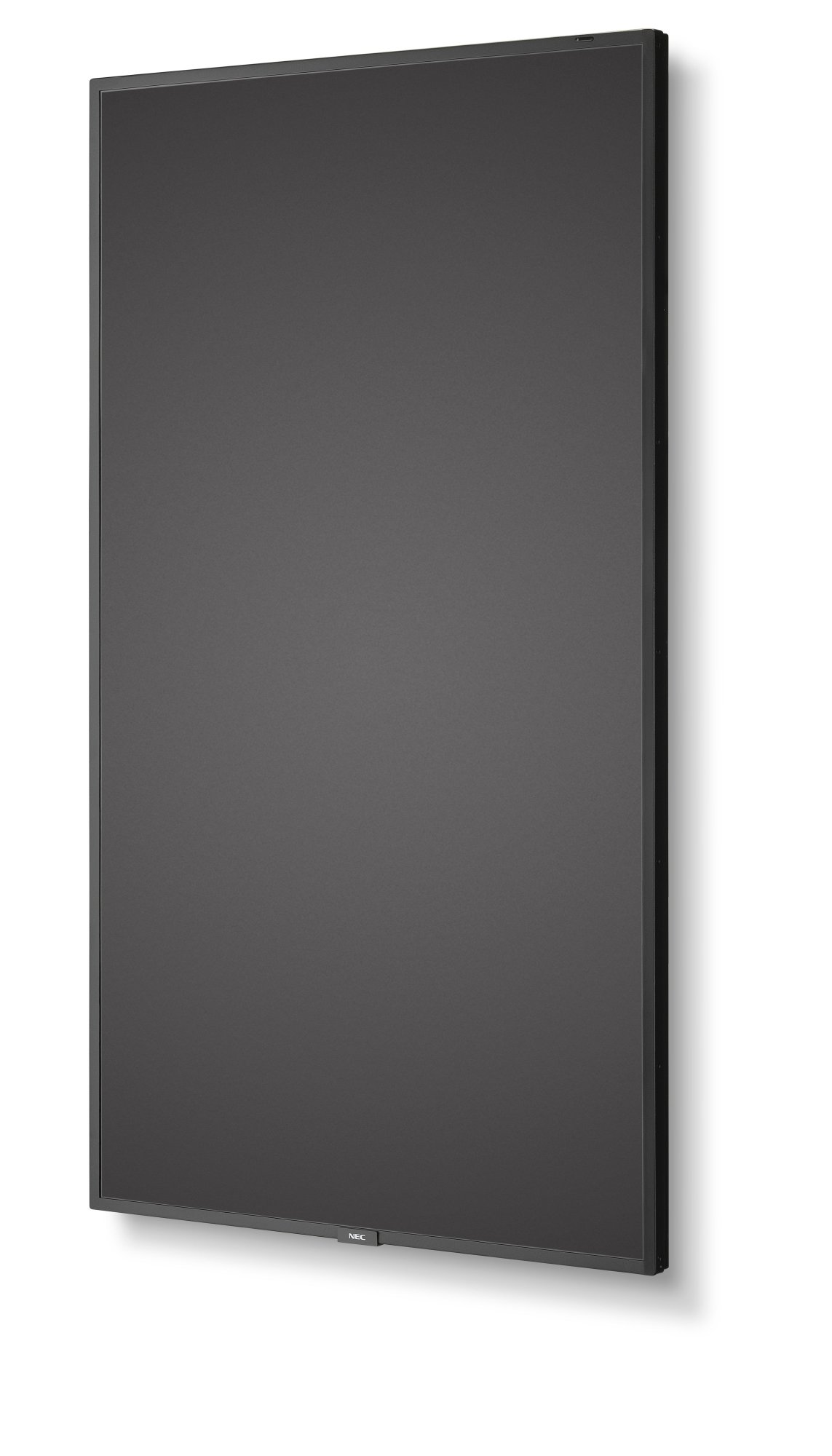

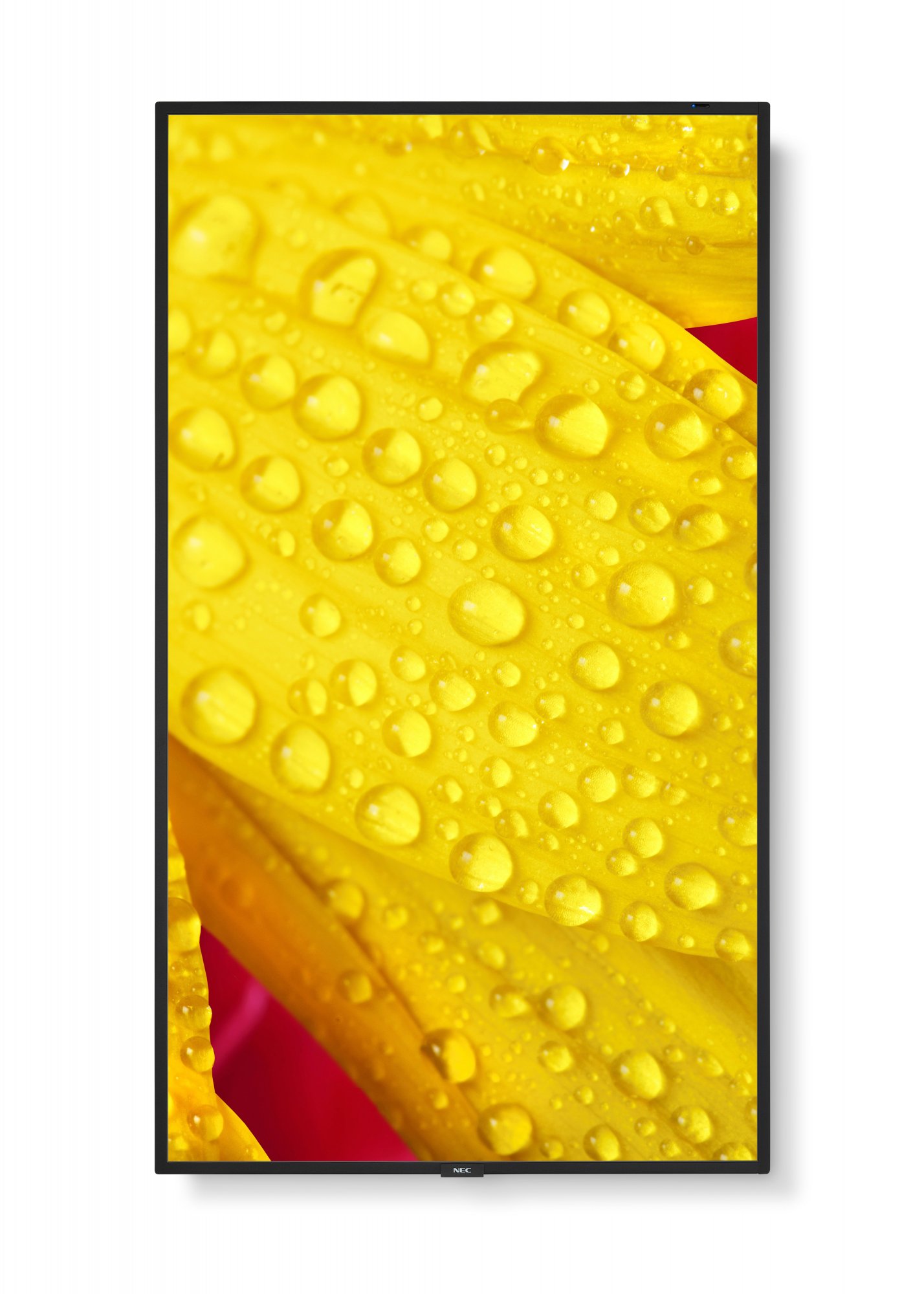

Orientation
Horizontal/Vertical

Panel mounting interface
400 x 400 mm

Placement supported
Indoor

Product colour
Black

Product design
Kiosk design

Screen shape
Flat

VESA mounting
Yes

Display

Colour depth
8 bit

Contrast ratio (typical)
8000:1

Display number of colours
1.073 billion colours

Haze rate
25%

HD type
4K Ultra HD

High Dynamic Range (HDR) supported
Yes

High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)

Horizontal scan range
26 - 135 kHz

LED backlight
Yes

Native aspect ratio
16:9

Native refresh rate
60 Hz

Panel type
VA

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
127 cm (50")

Screen Type
LED

Screen Type
125.7 cm

Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 1200, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160, 3840 x 2160, 4096 x 2160

Touchscreen
No

Vertical scan range
23 - 86 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Features

Base material
Metal

Suitable for indoor use
Yes

Wall mountable
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 60 °C

Other features

Backlight type
Direct LED

Built-in camera
No

Headphone connectivity
3.5 mm

Headphone outputs
1

Housing material
Metal, Plastic

Manual
Yes

Package type
Box

Power supply type
Internal

Remote control battery type
AAA

Packaging content

Batteries included
Yes

Cables included
AC, HDMI

Remote control included
Yes

Stand included
No

Packaging data

Package depth
224 mm

Package height
860 mm

Package weight
24.1 kg

Package width
1298 mm

Performance

HDCP
Yes

International Protection (IP) code
IP5X, IP2X

Purpose
Universal

Web browser
Yes

Ports & interfaces

Audio Return Channel (ARC)
Yes

DisplayPorts in
1

DisplayPorts quantity
1

DVI port
No

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
100 Mbit/s

HDMI input ports quantity
2

HDMI ports
2

RS-232 interface
Yes

USB port
Yes

USB ports quantity
1

USB version
2.0

Wi-Fi
No

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Energy consumption (HDR) per 1000 hours
62 kWh

Energy consumption (SDR) per 1000 hours
68 kWh

Energy efficiency class (HDR)
F

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

Power consumption (standby)
0.4 W

Power consumption (typical)
68 W

Technical details

Compliance certificates
BSMI, CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KC, KCC, PSB, RCM, RoHS, VCCI

DICOM
Yes

Sustainability certificates
ENERGY STAR

Weight & dimensions

Display depth
62.6 mm

Display height
649 mm

Display weight
17.3 kg

Display width
1128.4 mm
