Description

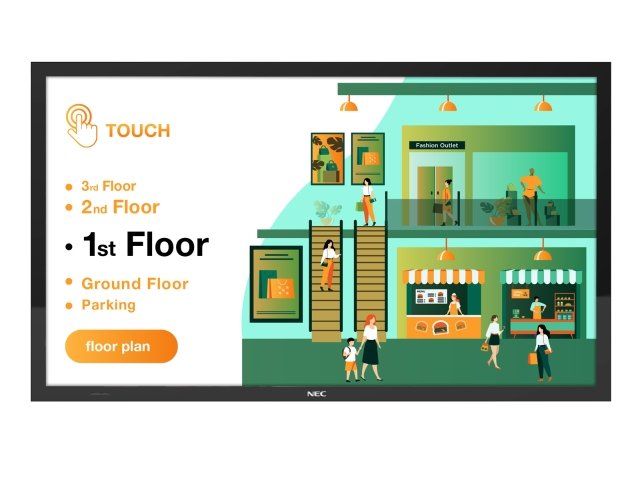

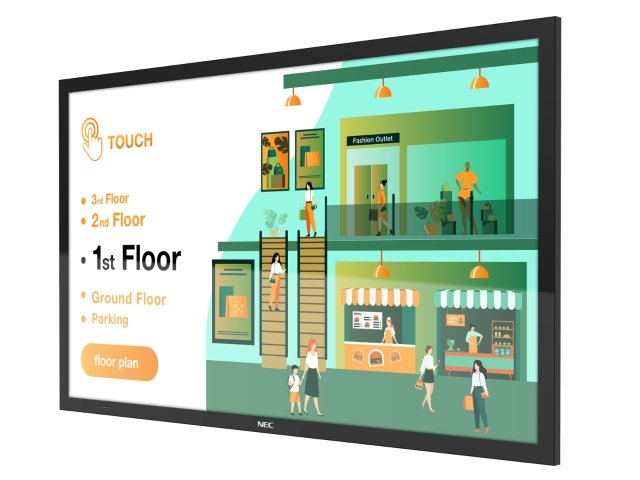

NEC MultiSync M651. Product design: Digital signage flat panel. Display diagonal: 165.1 cm (65"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black

Modern and easy to clean design – edge-to-edge allowing for unobtrusive integration into any application and environment
Exceptional touch performance – with up to 20 touch points the PCAP technology offers excellent touch responsiveness for both finger and pen usage
Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources

Product Properties

Manufacturer
NEC

Model
60005341

EAN
5028695121966

Audio

Built-in speaker(s)
Yes

Computer system

Audio formats supported
MP3

Image formats supported
JPG

Linux operating systems supported
Yes

Video formats supported
H.263, H.264, HEVC/H.265, MP4, MPG, TS

Windows operating systems supported
Yes

Design

Orientation
Horizontal/Vertical

Panel mounting interface
400 x 400 mm

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Contrast ratio (typical)
8000:1

Display brightness
500 cd/m²

Display number of colours
1.07 billion colours

HD type
4K Ultra HD

Horizontal scan range
26 - 91.1 kHz

LED backlighting type
Direct-LED

Native aspect ratio
16:9

Native refresh rate
60 Hz

Panel type
IPS

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
165.1 cm (65")

Screen Type
LCD

Touchscreen
Yes

Vertical scan range
23 - 86 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Logistics data

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 60 °C

Packaging data

Package depth
280 mm

Package height
1033 mm

Package weight
64 kg

Package width
1736 mm

Performance

HDCP
Yes

International Protection (IP) code
IP5X, IP2X

Purpose
Universal

Ports & interfaces

DisplayPorts quantity
2

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
100 Mbit/s

HDMI ports
4

USB port
Yes

USB ports quantity
1

USB version
2.0

Power

AC input frequency
50-60 Hz

AC input voltage
100-240 V

Energy consumption (HDR) per 1000 hours
105 kWh

Energy consumption (SDR) per 1000 hours
116 kWh

Energy efficiency class (HDR)
G

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

Power consumption (standby)
0.5 W

Power consumption (typical)
120 W

Weight & dimensions

Depth
69.4 mm

Height
870.8 mm

Weight
51.1 kg

Width
1493.3 mm

NEC MultiSync M651 Digital signage flat panel 165.1 cm (65") LCD 500 cd/m² 4K Ultra HD Black Touchscreen
