Description

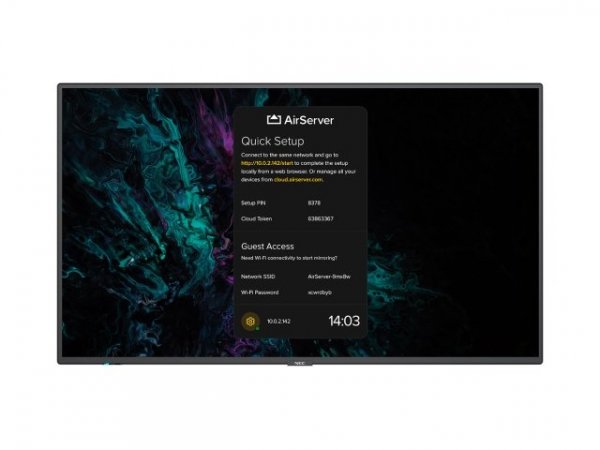

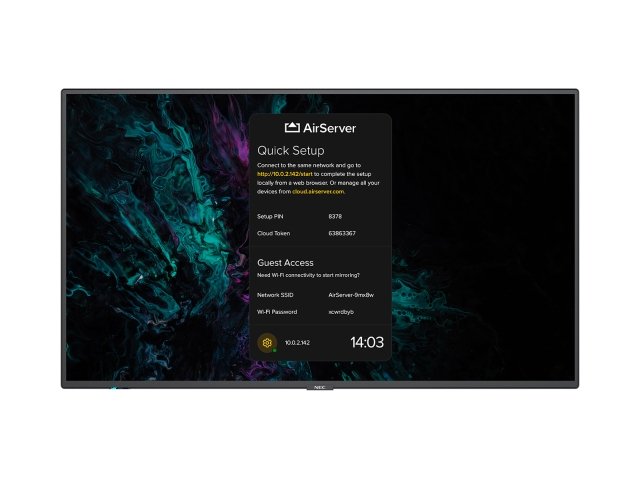

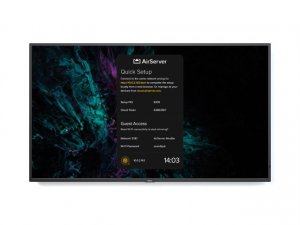

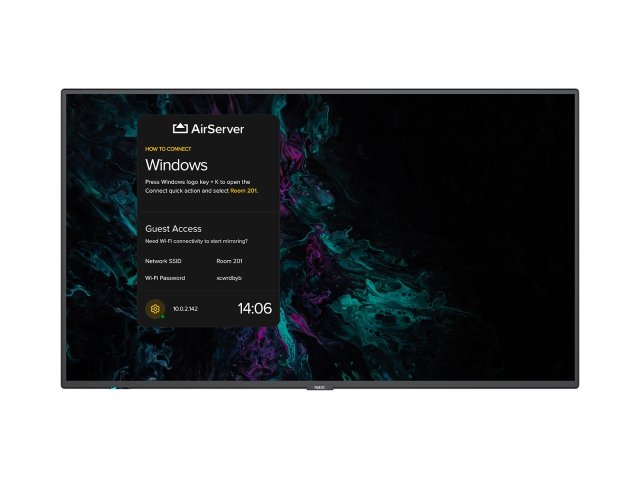

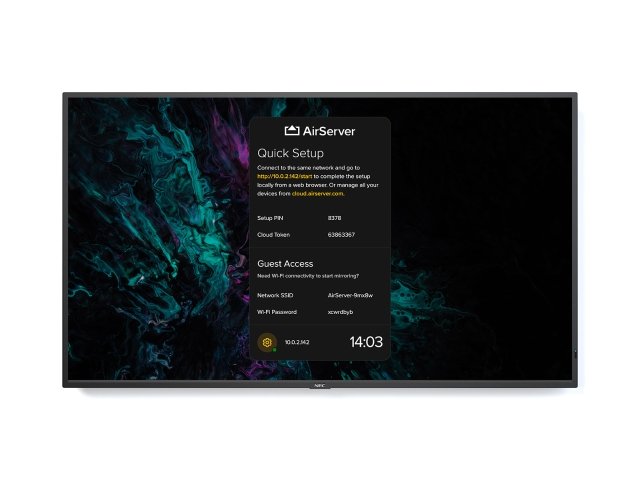

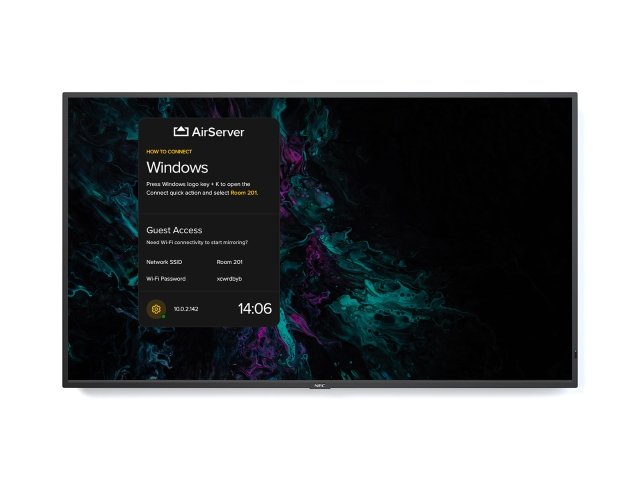

NEC MultiSync M861. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources

Product Properties

Manufacturer
NEC

Model
40001655

EAN
5028695126527

Audio

Built-in speaker(s)
Yes

Number of built-in speakers
2

RMS rated power
30 W

Certificates

Certification
BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI

Design

Bezel colour
Pantone 426M (black)

Bezel width (bottom)
1.48 cm

Bezel width (side)
1.43 cm

Bezel width (top)
1.43 cm

Orientation
Horizontal/Vertical

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Contrast ratio (typical)
8000:1

Display brightness
500 cd/m²

Display number of colours
1.073 billion colours

HD type
4K Ultra HD

Horizontal scan range
26 - 135 kHz

LED backlighting type
Direct-LED

Native aspect ratio
16:9

Native refresh rate
60 Hz

Panel type
IPS

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
2.18 m (86")

Screen Type
LED

Screen Type
217.4 cm

Vertical scan range
23 - 86 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
10 - 80%

Storage temperature (T-T)
-20 - 60 °C

Packaging data

Package depth
225 mm

Package height
1225 mm

Package weight
65.1 kg

Package width
2090 mm

Performance

Ambient light sensor
Yes

Apple AirPlay support
Yes

Miracast
Yes

Operating hours (hours/days)
24/7

Purpose
Universal

Ports & interfaces

DisplayPorts quantity
4

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
100 Mbit/s

HDMI ports
4

RS-232 interface
Yes

USB port
Yes

USB ports quantity
3

USB version
2.0

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Power

AC input frequency
50-60 Hz

AC input voltage
100-240 V

Energy consumption (HDR) per 1000 hours
178 kWh

Energy consumption (SDR) per 1000 hours
193 kWh

Energy efficiency class (HDR)
G

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

Power consumption (standby)
0.5 W

Power consumption (typical)
320 W

Weight & dimensions

Display depth
83.2 mm

Display height
1099.1 mm

Display weight
47 kg

Display width
1927 mm

NEC MultiSync M861 Digital signage flat panel 2.18 m (86") LED 500 cd/m² 4K Ultra HD Black 24/7
