Description

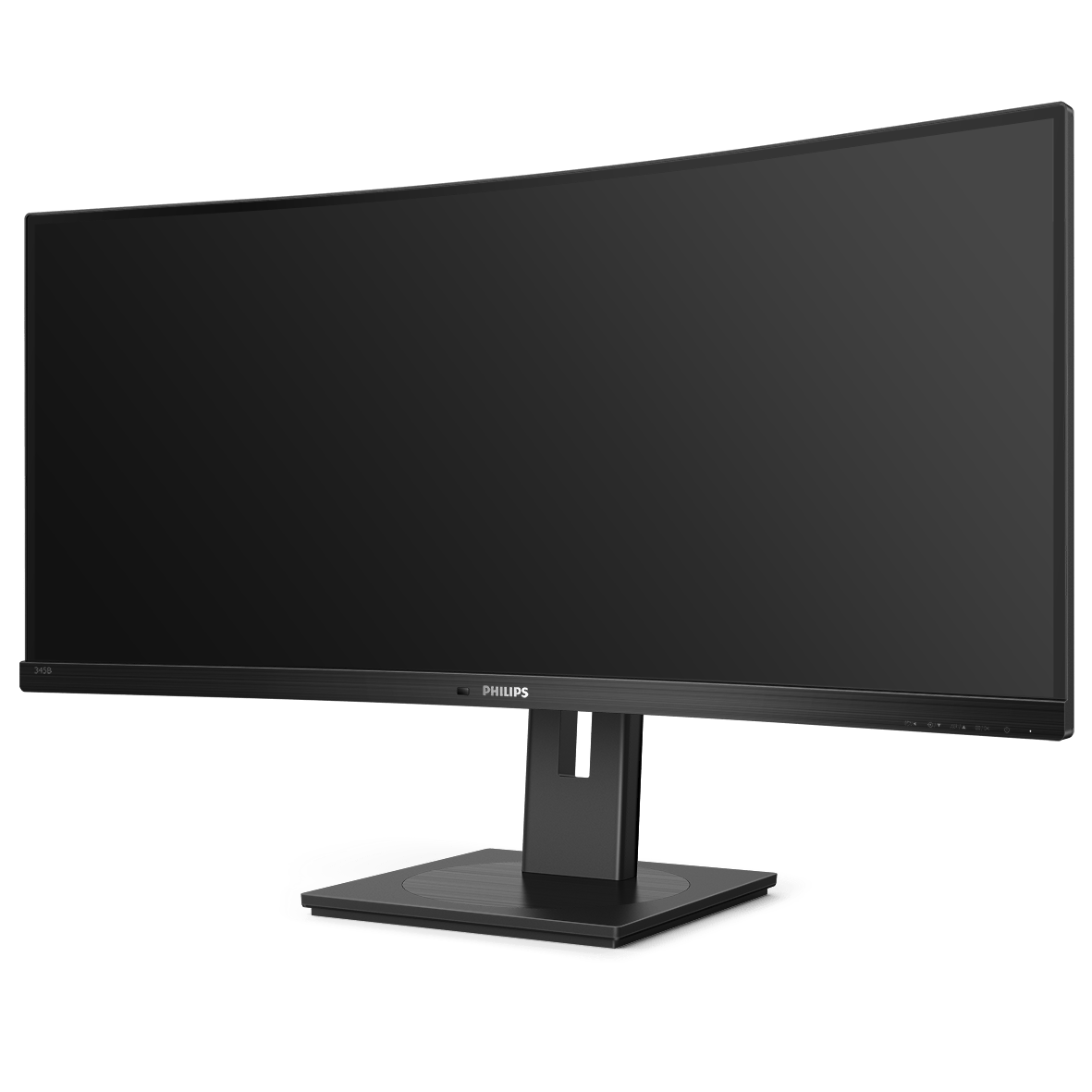

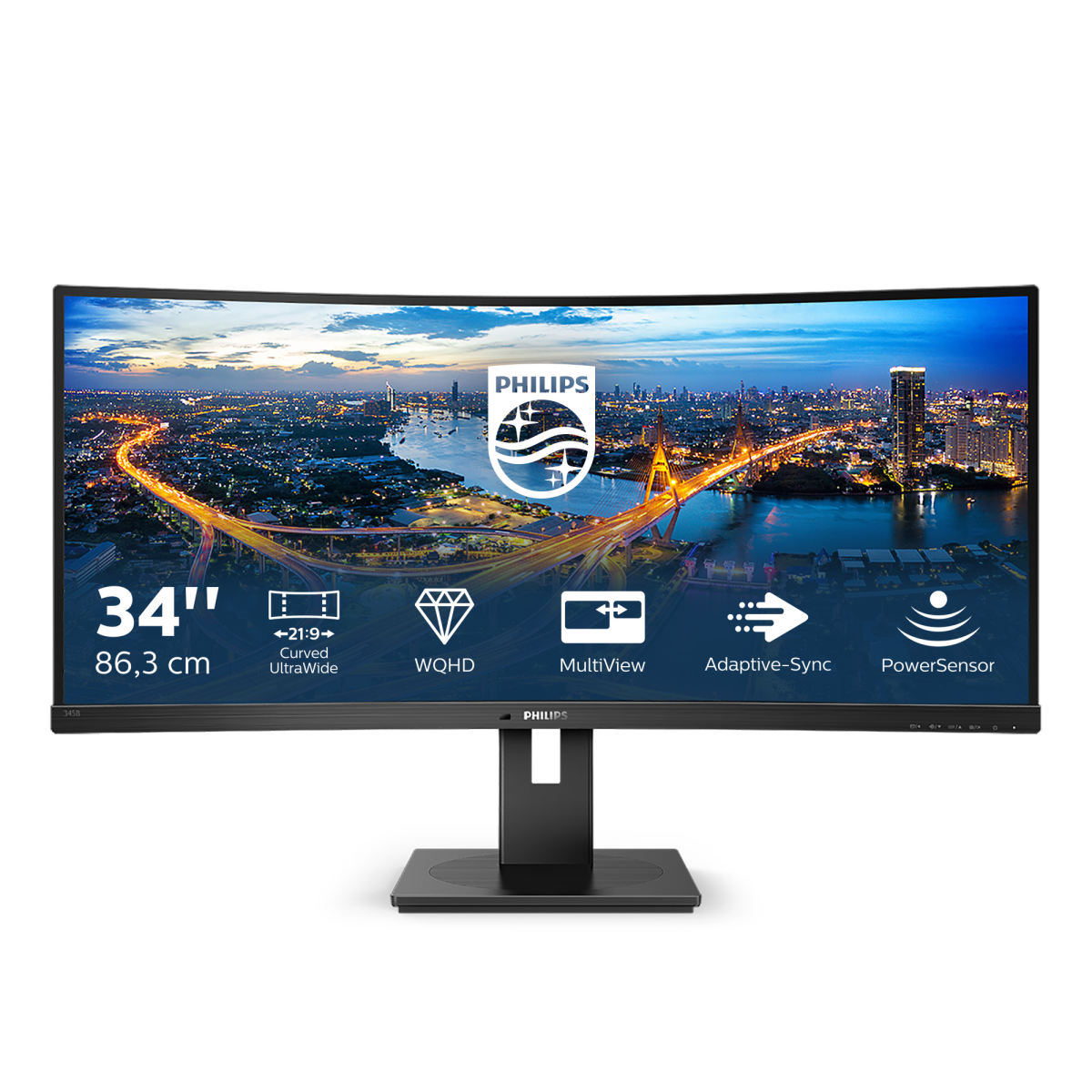

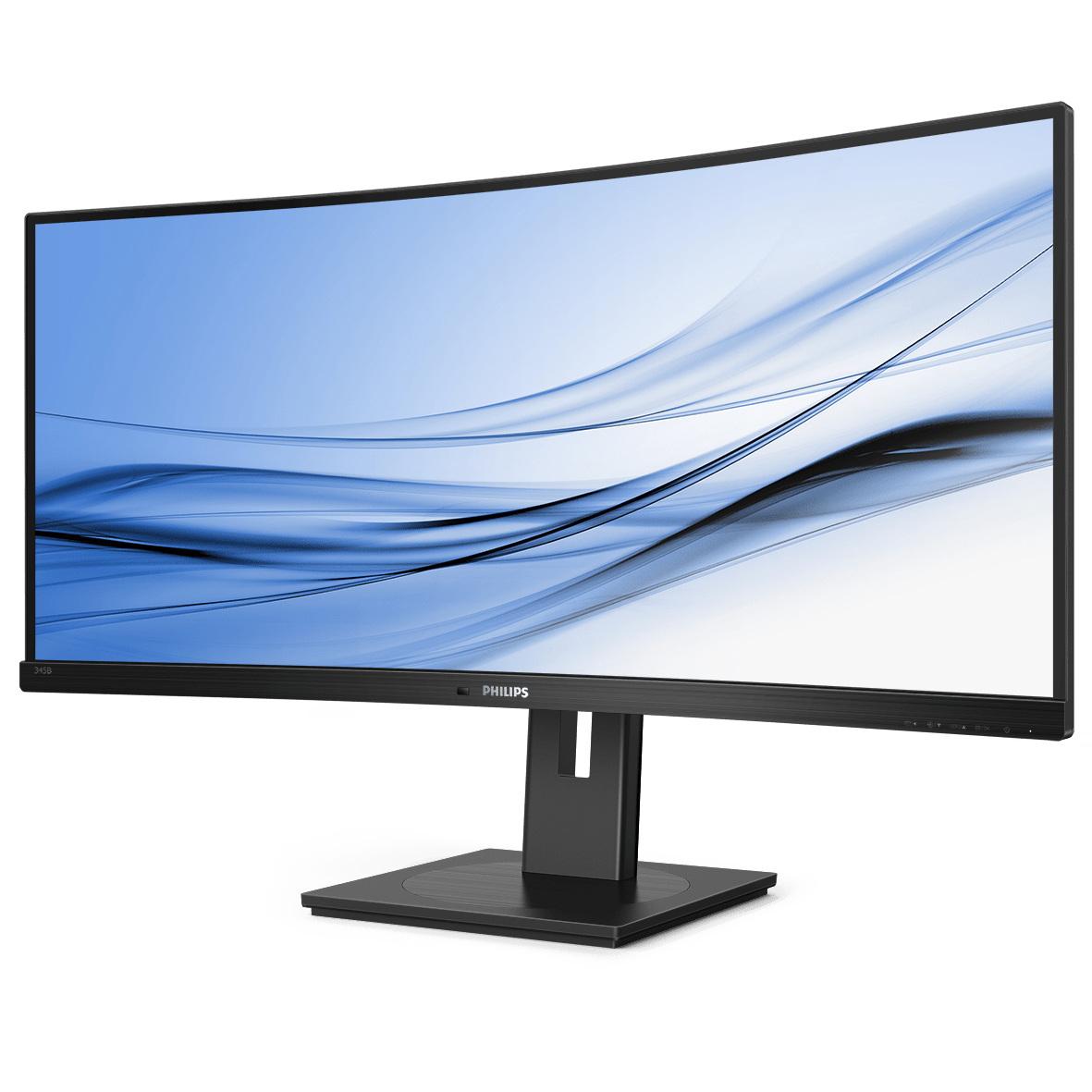

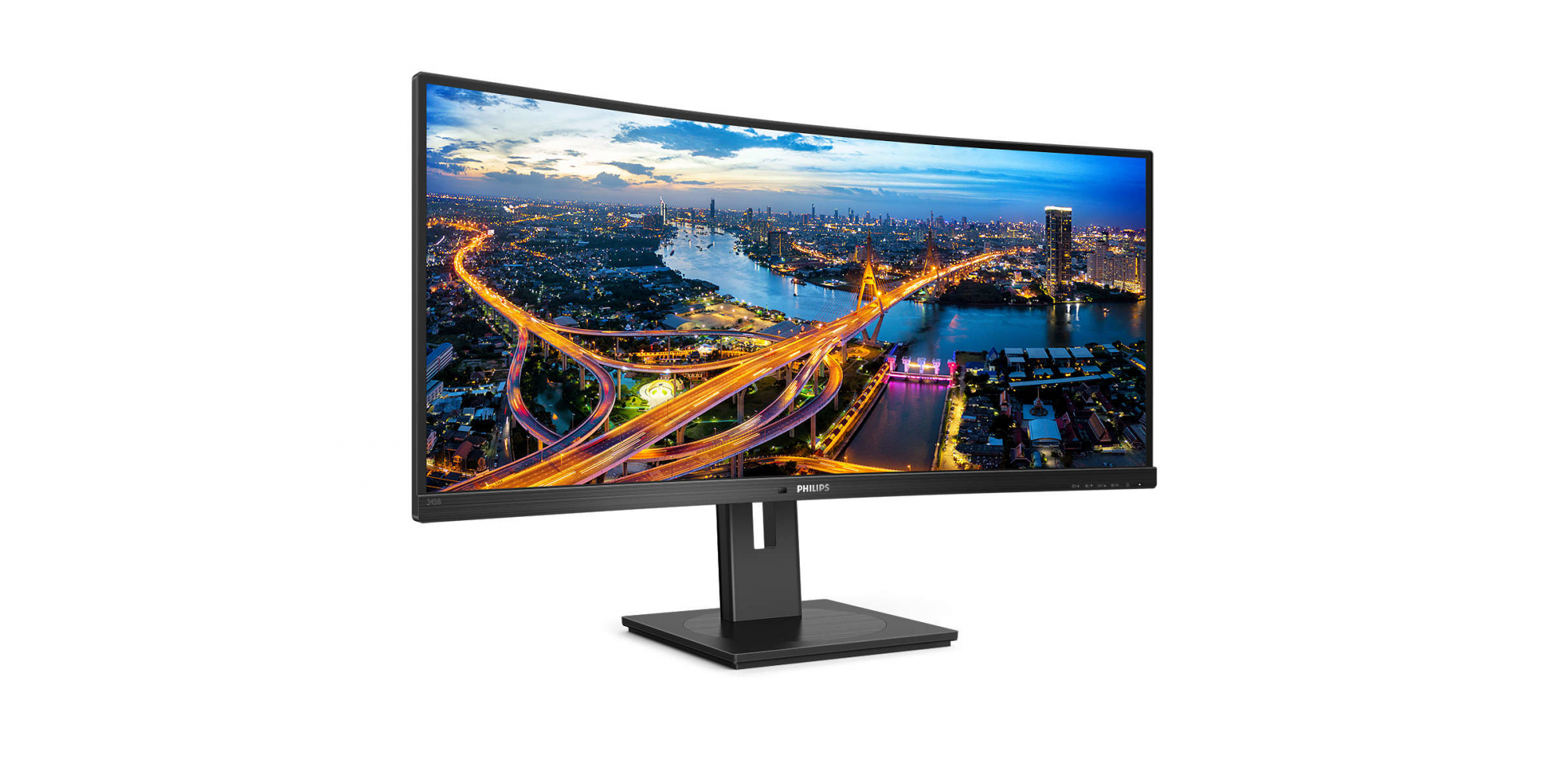

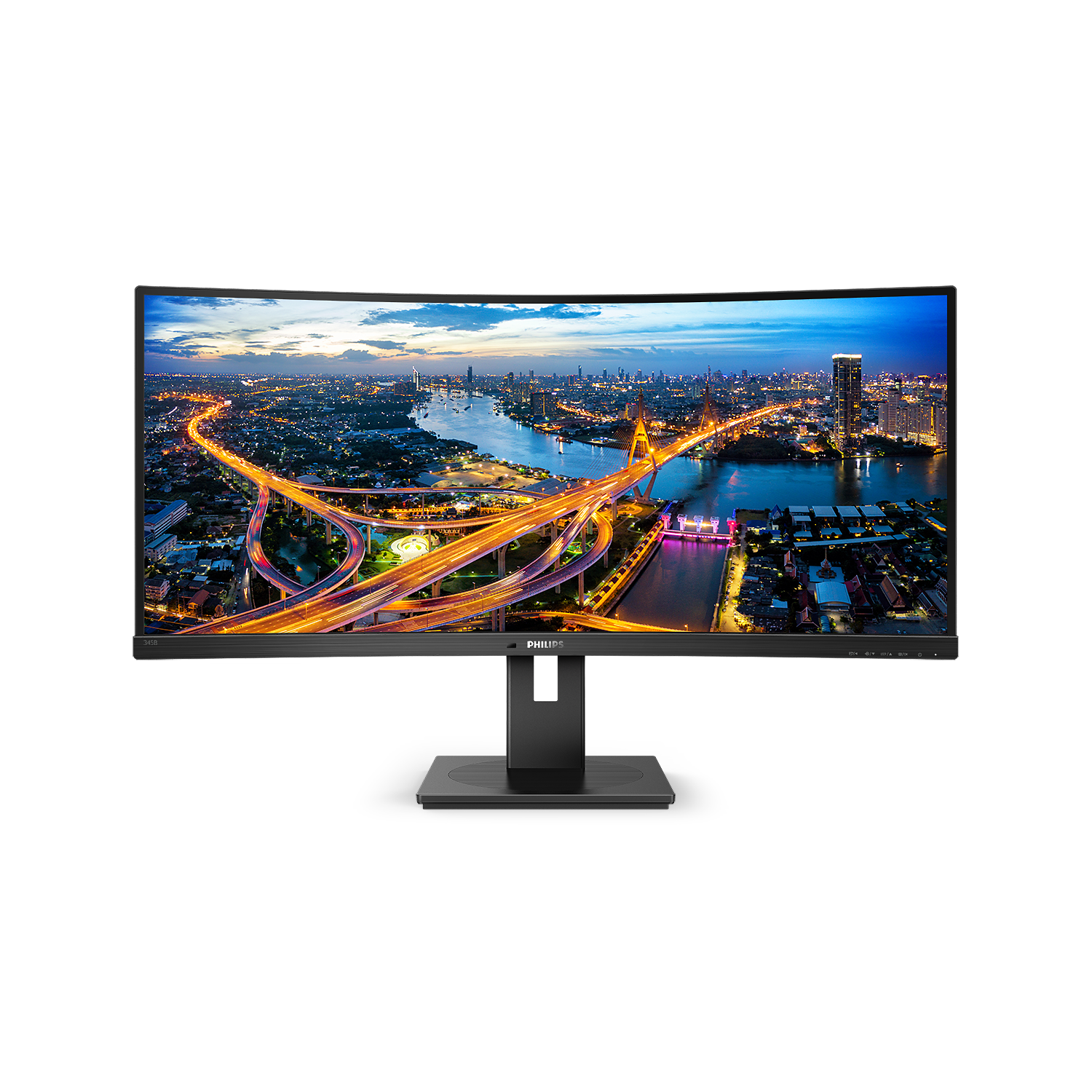

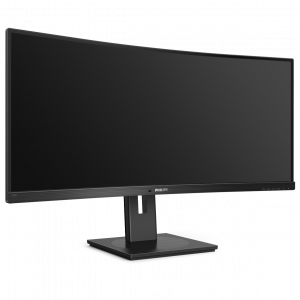

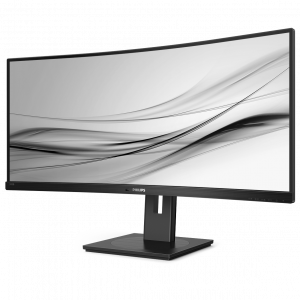

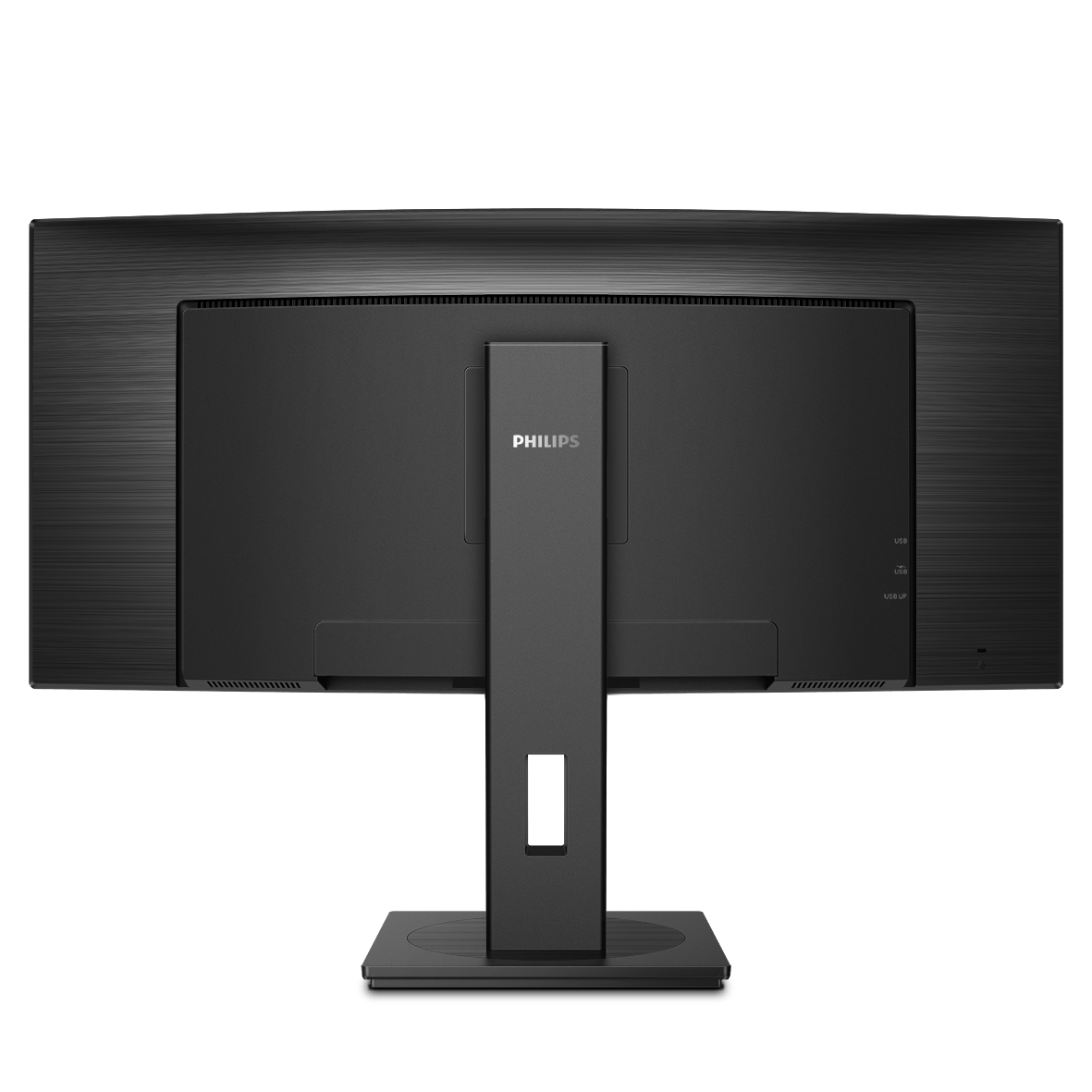

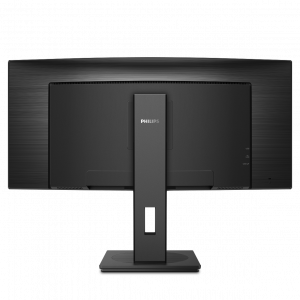

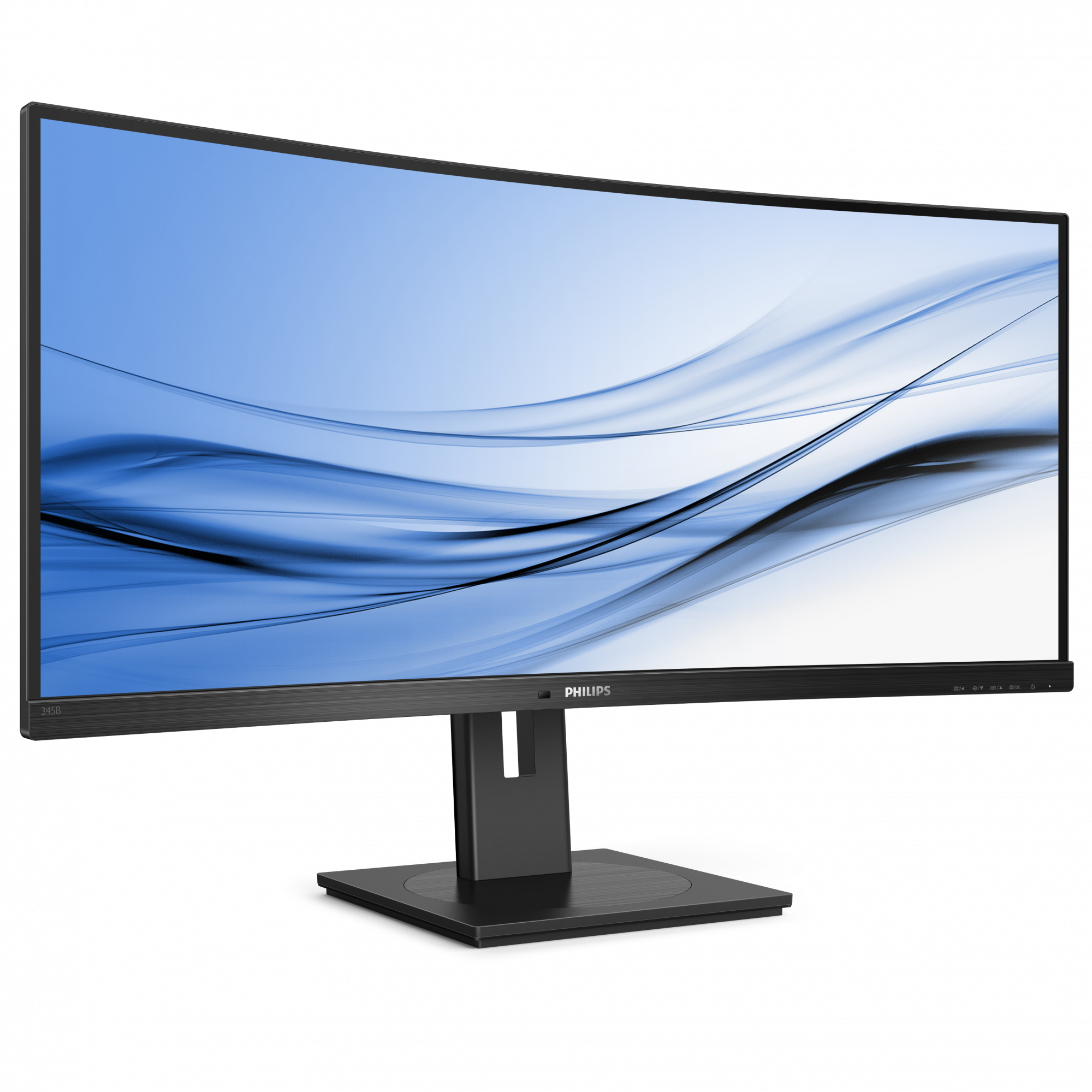

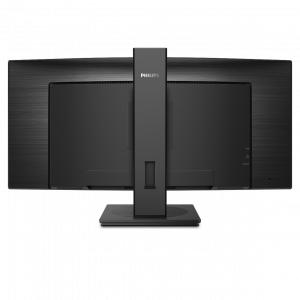

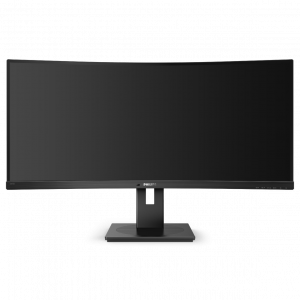

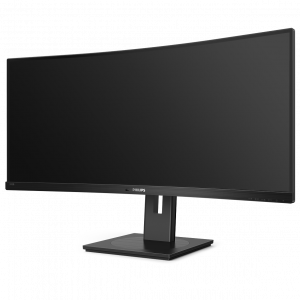

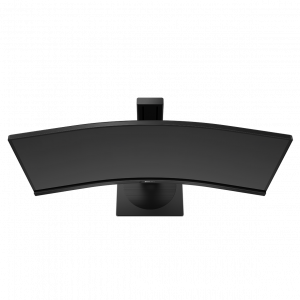

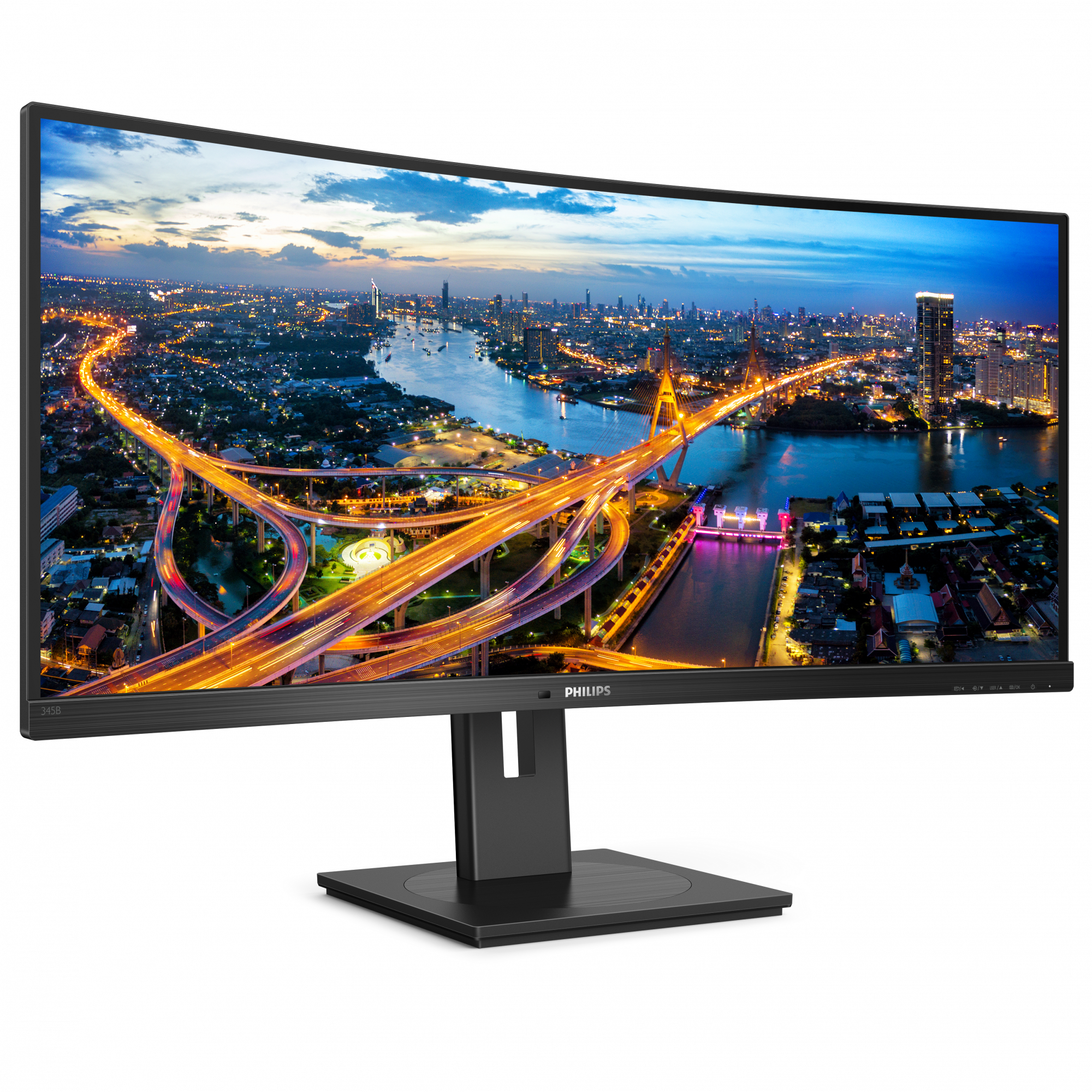

Philips B Line 345B1C/00. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: Quad HD, Display technology: LCD, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

CrystalClear images with UltraWide QHD 3440 x 1440 pixels

These Philips screens deliver Crystal Clear, UltraWide Quad HD 3440 x 1440 pixel images. Utilising high-performance panels with high-density pixel count and 178/178 wide viewing angles, these new displays will make your images and graphics come alive. The UltraWide 21:9 format enables more productivity with more room for side-by-side comparisons and more viewable spreadsheet columns. Whether you are a demanding professional requiring extremely detailed information for CAD-CAM solutions or a financial wizard working on huge spreadsheets, Philips displays deliver Crystal Clear images.

Effortlessly smooth action with Adaptive-Sync technology

Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artefact-free performance at virtually any frame rate with Adaptive-Sync technology, smooth quick refresh and ultra-fast response time.

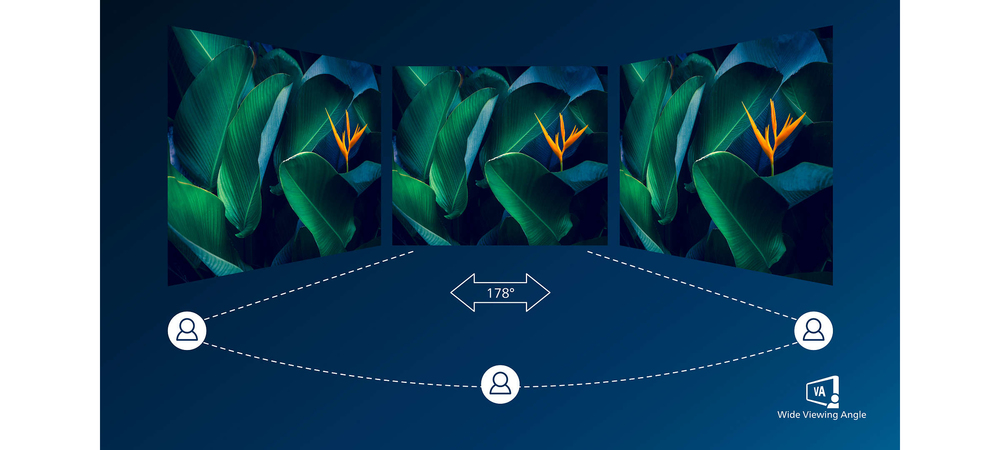

VA display delivers awesome images with wide viewing angles

The Philips VA LED display uses an advanced multi-domain vertical alignment technology that gives you super-high static contrast ratios for extra-vivid and bright images. While standard office applications are handled with ease, it is especially suitable for photos, web browsing, films, gaming and demanding graphical applications. Its optimised pixel management technology gives you a 178/178 degree extra-wide viewing angle, resulting in crisp images.

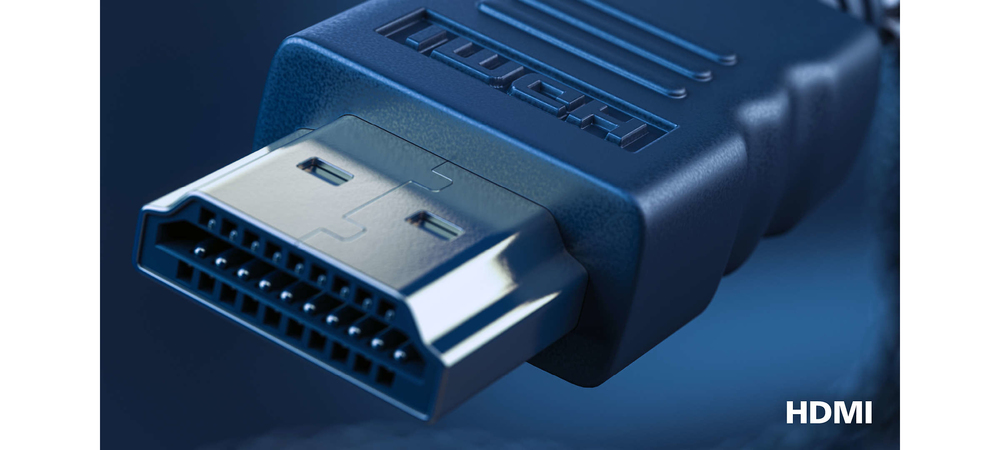

HDMI ensures universal digital connectivity

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).

Less eye fatigue with Flicker-Free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

LowBlue Mode for easy-on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

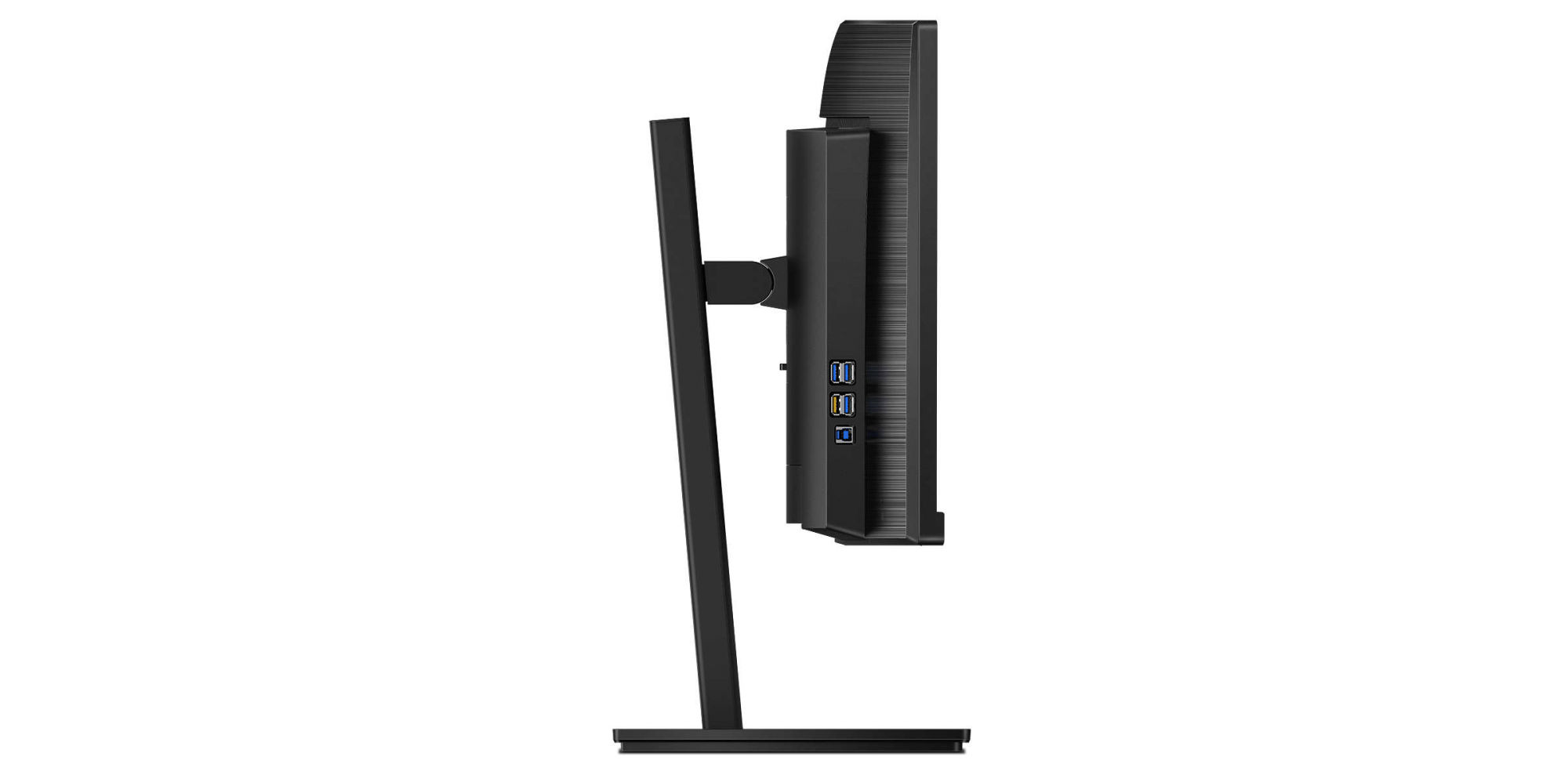

Tilt, swivel and height-adjust for an ideal viewing position

The Compact Ergo Base is a people-friendly Philips monitor base that tilts, swivels and height-adjusts so each user can position the monitor for maximum viewing comfort and efficiency.

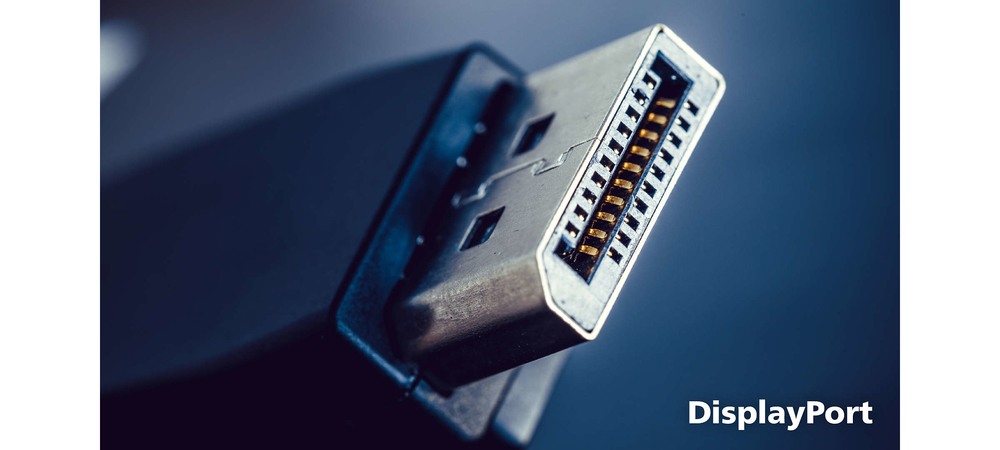

DisplayPort connection for maximum visuals

DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.

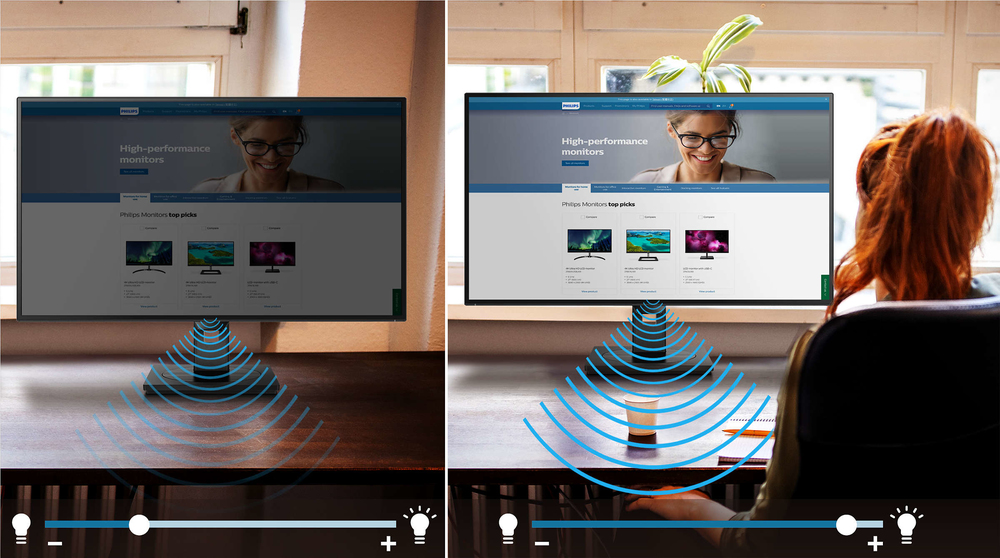

PowerSensor saves up to 70% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if the user is present and automatically reduces monitor brightness when the user steps away from the desk, cutting energy costs by up to 70 percent and prolonging monitor life.

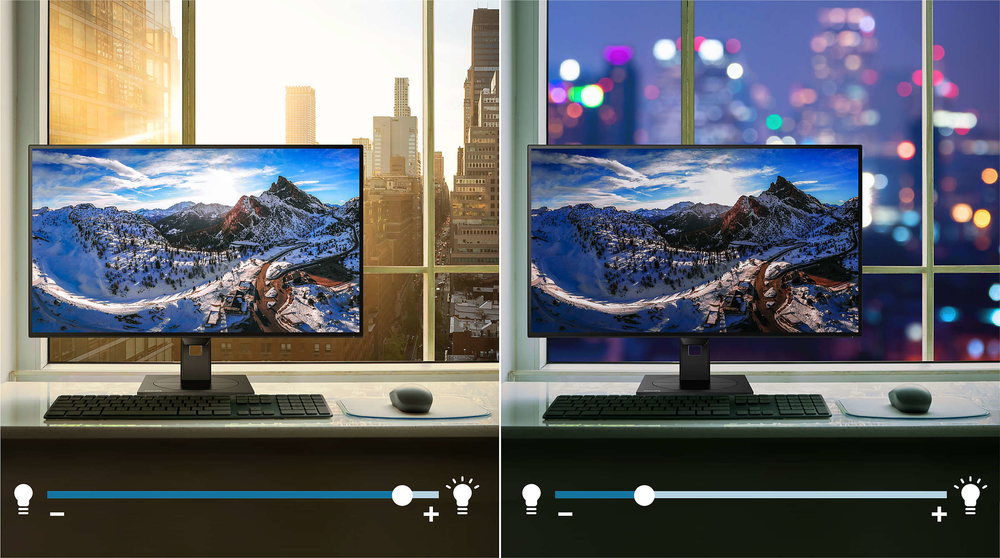

LightSensor for the perfect brightness with minimal power

LightSensor uses a smart sensor to adjust the picture brightness depending on the light conditions in the room for the perfect picture with minimal power usage.

Product Properties

Manufacturer
Philips

Model
345B1C/00

EAN
8712581760779

Design

Certification
CB, EPA, cETLus, FCC Class B, ICES-003, CE Mark, TUV/GS, TUV Ergo, SEMKO, CU-EAC, UKRAINIAN

Feet colour
Black

Front bezel colour
Black

Heavy metals free
Hg (mercury), Pb (lead)

Market positioning
Home

Product colour
Black

Display

Adobe RGB coverage
90%

Anti-glare screen
Y

Aspect ratio
21:9

Backlight type
W-LED

Colour gamut
100%

Contrast ratio (dynamic)
80000000:1

Contrast ratio (typical)
3000:1

DDC/CI
Y

Digital horizontal frequency
30 - 160 kHz

Digital vertical frequency
48 - 100 Hz

Display brightness (typical)
300 cd/m²

Display number of colours
16.7 million colours

Display sRGB
Y

Display surface
Matt

Dynamic contrast ratio marketing name
SmartContrast

Haze rate
25%

HD type
Quad HD

Horizontal scan range
30 - 160 kHz

Max Refresh Rate
100 Hz

Native aspect ratio
21:9

NTSC coverage (typical)
100%

Panel type
VA

Pixel density
110 ppi

Pixel pitch
0.23175 x 0.23175 mm

Response time
4 ms

RGB colour space
sRGB

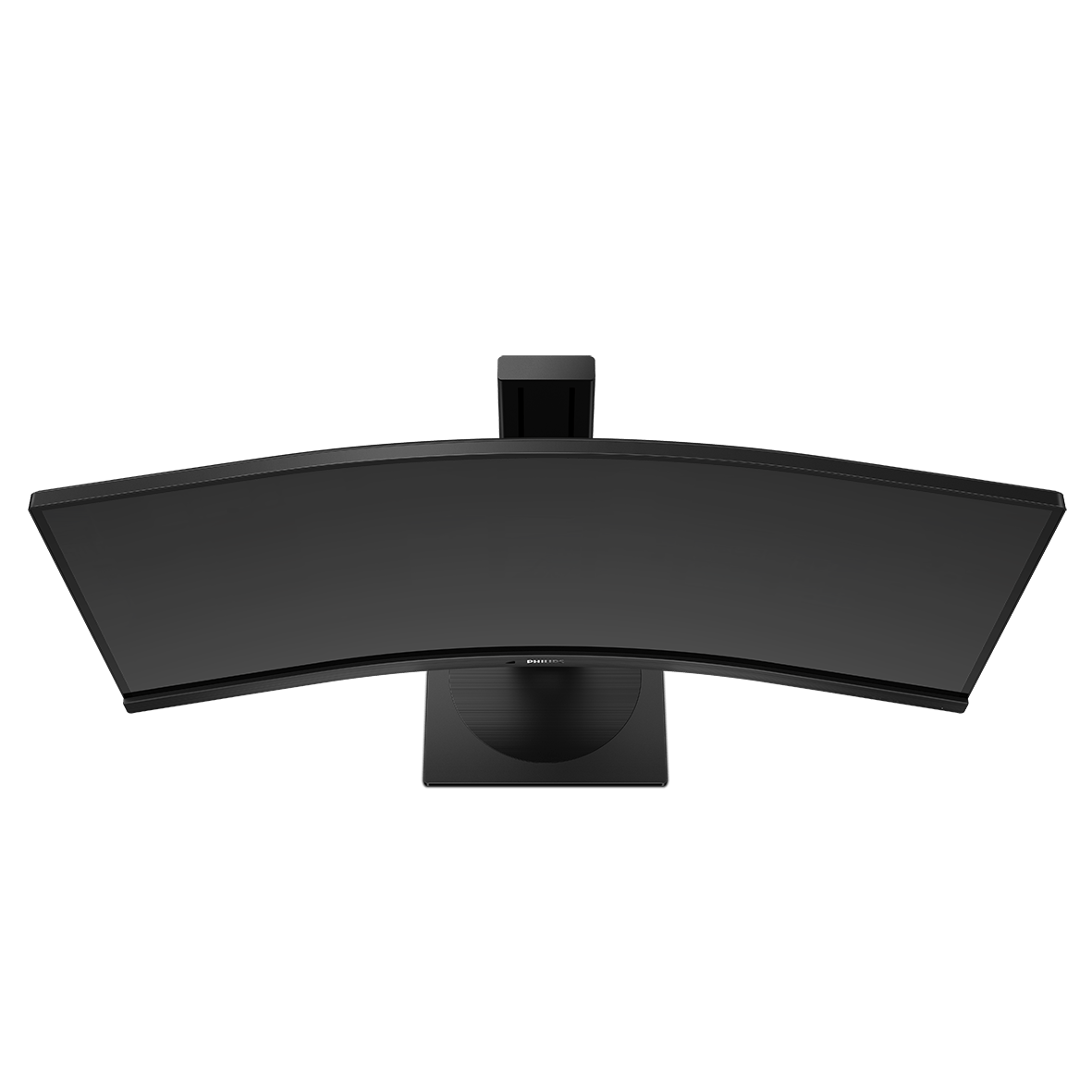

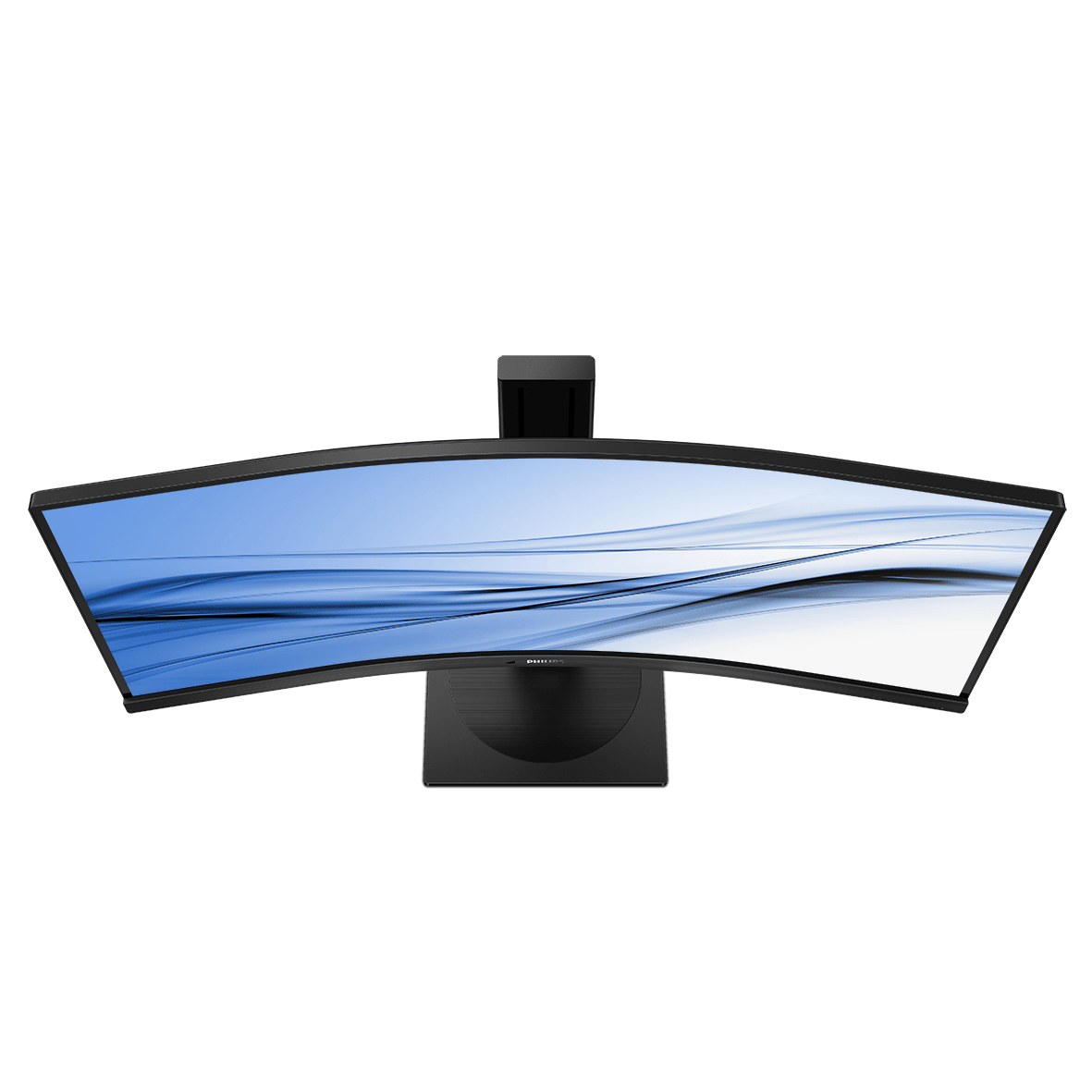

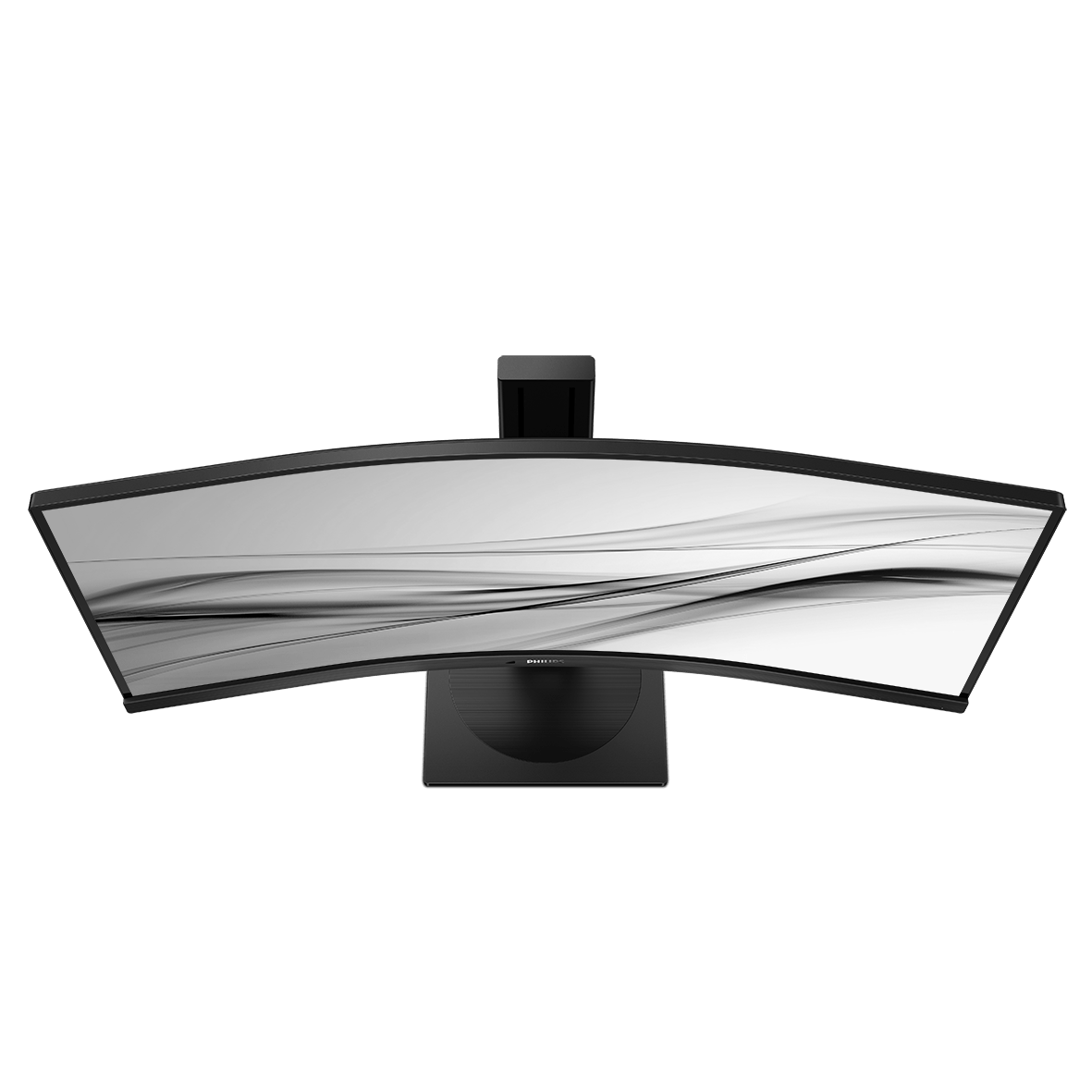

Screen curvature
150 cm

Screen curvature rating
1500R

Screen Resolution
3440 x 1440 pixels

Screen shape
Curved

Screen Size
86.4 cm (34")

Screen Type
86.36 cm

Screen Type
LCD

sRGB coverage (typical)
119%

Supported graphics resolutions
3440 x 1440

Surface hardness
2H

Touchscreen
N

Vertical scan range
48 - 100 Hz

Viewable size, horizontal
79.7 cm

Viewable size, vertical
33.4 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Cable lock slot
Y

Cable lock slot type
Kensington

Height adjustment
18 cm

Y

LED indicators
Operation, Stand-by

On Screen Display (OSD)
Y

On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Panel mounting interface
100 x 100 mm

Picture-in-Picture
Y

Plug and Play
Y

Swivel angle range
-180 - 180°

Swivelling
Y

Tilt angle range
-5 - 30°

Tiltable
Y

VESA mounting
Y

Logistics data

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
N

Built-in speaker(s)
Y

Number of speakers
2

RMS rated power
10 W

Operational conditions

Non-operating altitude
0 - 12192 m

Operating altitude
0 - 3658 m

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

Other features

Delta E
2

EasyRead mode
Y

Exterior finish type
Textured

Light sensor
Y

LowBlue mode
Y

Mean time between failures (MTBF)
70000 h

MultiView
PIP/PBP mode*, 2 x devices

On/off switch
Y

Philips SmartUniformity
93 - 105%

Picture enhancement
SmartImage

Picture-by-Picture (PbP)
Y

Recyclable packaging material
100%

Regulatory Approvals
CB; EPA; cETLus; FCC Class B; ICES-003; CE Mark; TUV/GS; TUV Ergo; SEMKO; CU-EAC; UKRAINIAN

TV tuner integrated
N

Packaging data

Bundled software
SmartControl

Cables included
AC, DisplayPort, HDMI

Manual
Y

Package depth
282 mm

Package height
525 mm

Package type
Box

Package weight
15.1 kg

Package width
930 mm

Stand included
Y

Performance

Component video sync
Separate sync, Sync-on-green (SOG)

Flicker-free technology
Y

Low Blue Light technology
Y

Mac operating systems supported
Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

VESA Adaptive Sync support
Y

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1

Ports & interfaces

Audio input
N

Built-in USB hub
Y

DisplayPort version
1.2

DisplayPorts quantity
1

DVI port
N

HDCP
Y

HDCP version
1.4/2.2

HDMI
Y

HDMI ports
2

HDMI version
2.0

Headphone connectivity
3.5 mm

Headphone out
Y

Headphone outputs
1

Number of upstream ports
1

USB hub version
3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity
4

USB upstream port type
USB Type-B

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
35 kWh

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

External power adapter
N

Power consumption (PowerSave)
34 W

Power consumption (standby)
0.3 W

Power consumption (typical)
28.36 W

Power supply type
Internal

Sustainability

Doesn't contain
Mercury, PVC/BFR

Sustainability certificates
ENERGY STAR, TCO, RoHS

Weight & dimensions

Depth (with stand)
250 mm

Depth (without stand)
11 cm

Height (with stand)
601 mm

Height (without stand)
36.7 cm

Weight (with stand)
11.3 kg

Weight (without stand)
7.62 kg

Width (with stand)
807 mm

Width (without stand)
80.7 cm

Philips B Line 345B1C/00 computer monitor Quad HD 86.4 cm (34") 3440 x 1440 pixels LCD Black
