Description

Samsung 13" Signage Display QB13R. Product design: Digital signage flat panel. Display diagonal: 33 cm (13"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², HD type: Full HD. Wi-Fi. Operating system installed: Tizen 4.0. Product colour: Black

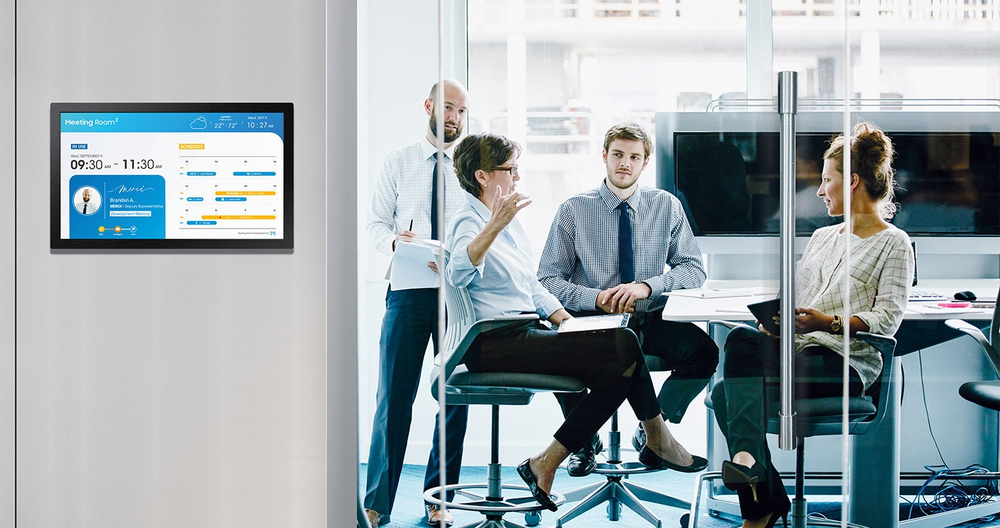

Enhanced communication in a compact display

Samsung's QB13R small display enables personalised and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB13R improves the operational efficiency of content, while also ensuring reliable performance for any business use.

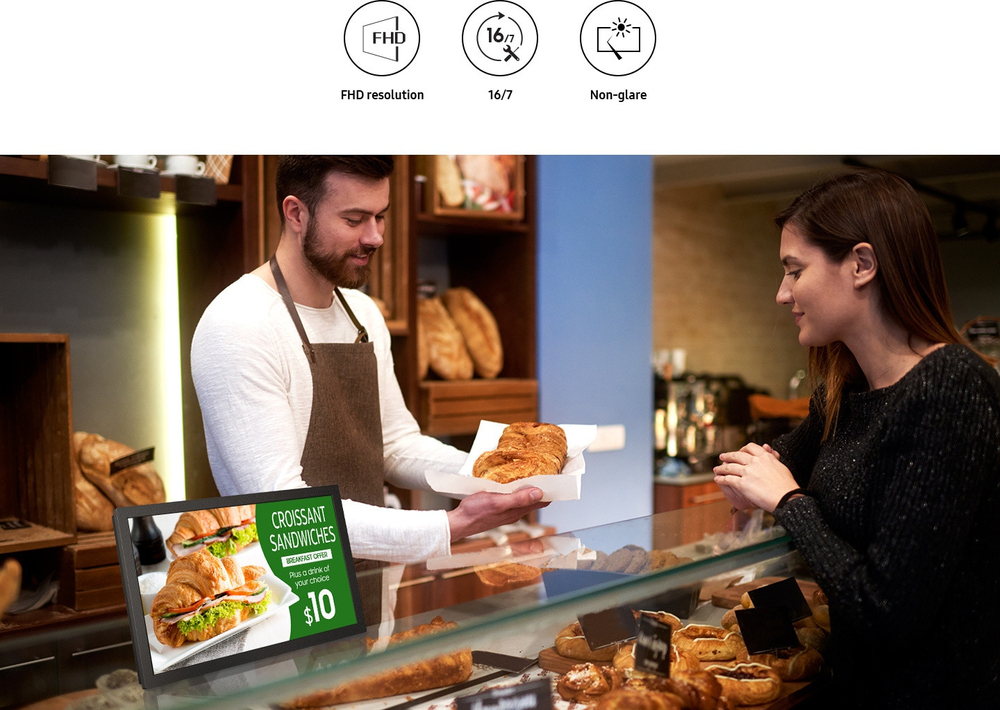

Crisp and visible content

The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

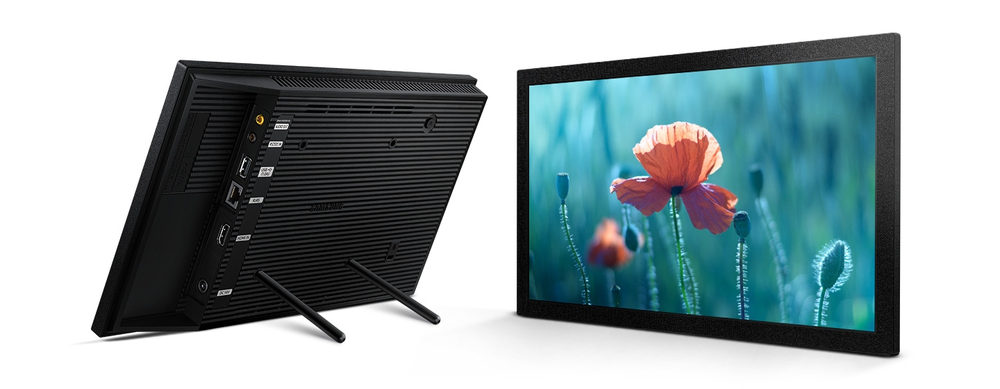

Slim, smart design

The compact and slim design of the QB13R allows for efficient space utilisation, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB13R allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

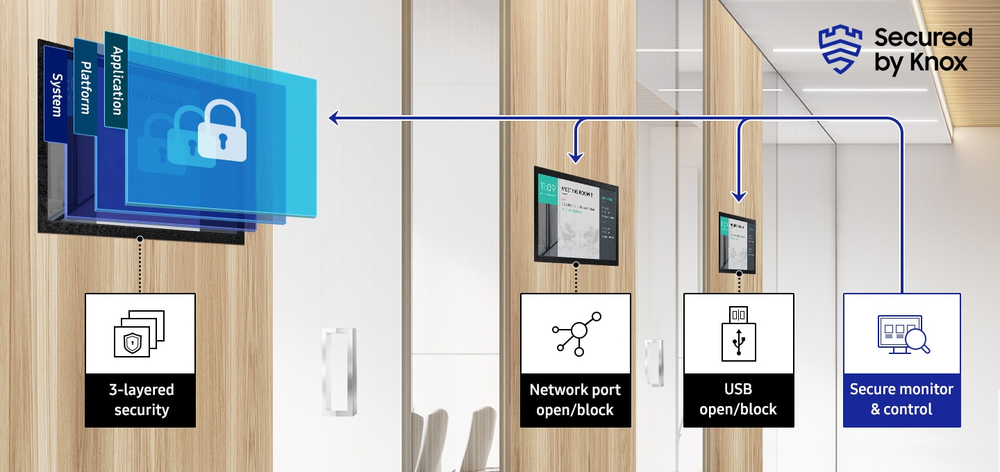

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorised access.

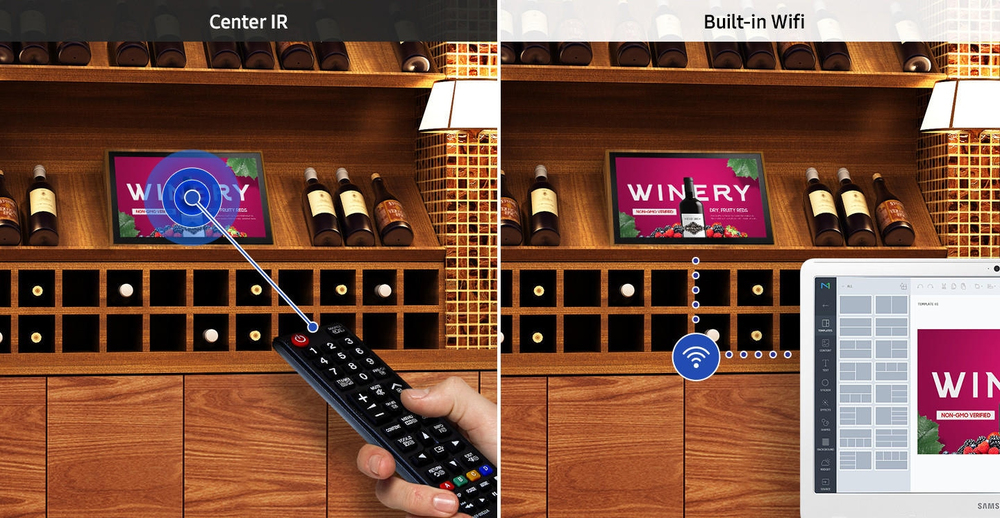

Convenient, clean display control

With centre IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, the display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

The QB13R is electromagnetic compatibility (EMC) Class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Product Properties

Manufacturer
Samsung

Model
LH13QBREBGCXEN

EAN
8806090110122

Computer system

Internal storage capacity
8 GB

Operating System
Tizen 4.0

Design

Bezel width (bottom)
1.22 cm

Bezel width (side)
1.22 cm

Bezel width (top)
1.22 cm

Panel mounting interface
100 x 100 mm

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Colour saturation
45%

Contrast ratio (dynamic)
10000:1

Contrast ratio (typical)
800:1

Display brightness
300 cd/m²

Haze rate
25%

HD type
Full HD

Horizontal scan range
30 - 81 kHz

Panel type
ADS

Pixel pitch
0.153 x 0.153 mm

Response time
8 ms

Screen Resolution
1920 x 1080 pixels

Screen Size
33 cm (13")

Screen Type
33 cm

Screen Type
LCD

Vertical scan range
48 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Logistics data

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Other features

Audio output
Stereo Mini Jack

Bluetooth
No

Video out
No

Packaging data

Package depth
248 mm

Package height
132 mm

Package weight
1.7 kg

Package width
376 mm

Performance

HDCP
Yes

HDCP version
2.2

TV tuner integrated
No

Ports & interfaces

DisplayPorts quantity
0

Ethernet LAN
Yes

HDMI input ports quantity
1

HDMI ports
1

HDMI version
2.0

Remote (IR) input
0

RS-232 interface
Yes

USB port
Yes

USB ports quantity
1

Wi-Fi
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy efficiency scale
A+++ to D

Power consumption (off)
0 W

Power consumption (sleep)
0.5 W

Power consumption (typical)
27.5 W

Technical details

Audio in (mini jack)
No

Weight & dimensions

Display depth
28.2 mm

Display height
193.5 mm

Display weight
900 g

Display width
322 mm
