Description

Samsung 980 Pro. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 5000 MB/s, Component for: PC

True PCIe® 4.0 NVMe™ speed (up to 7,000 MB/s for seq. reads, 5,100MB/s for seq. writes)
Ideal for heavy computing, high resolution graphics and PC gaming
For console gaming, compatible only with Playstation® 5

Next-level SSD performance

Unleash the power of the PCIe® 4.0 NVMe™ SSD 980 PRO for next-level computing. The PCIe® 4.0 delivers 2x the data transfer rate of PCIe® 3.0 while staying backward compatible for total versatility. The added heatsink elevates speed, power efficiency and thermal control to maximise gameplay.

Maximum speed

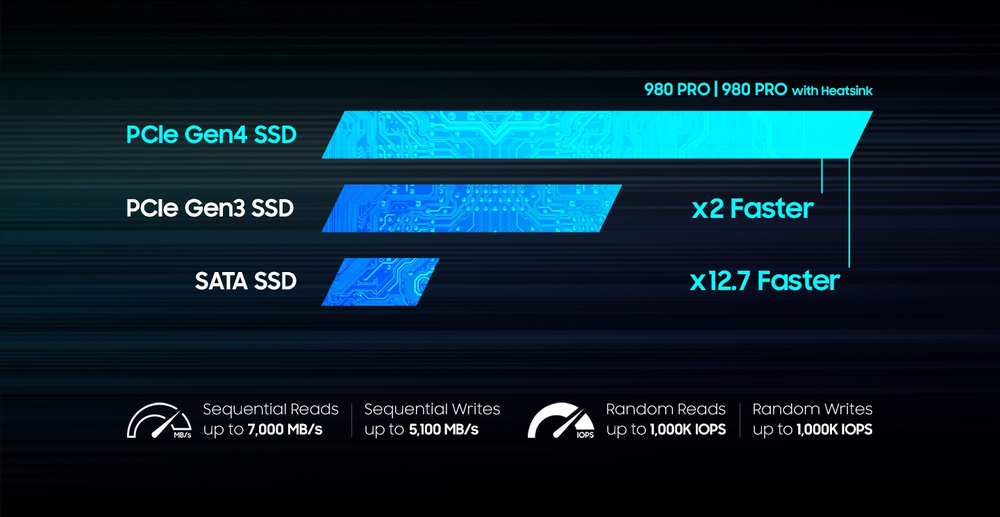

With Samsungs in-house controller for PCIe® 4.0 SSD, the 980 PRO Series is optimised for speed. It delivers read speeds up to 7,000 MB/s, 2x faster than PCIe® 3.0 SSDs and 12.7x faster than SATA SSDs. The 980 PRO series achieves max speeds on PCIe® 4.0 and may vary in other settings.

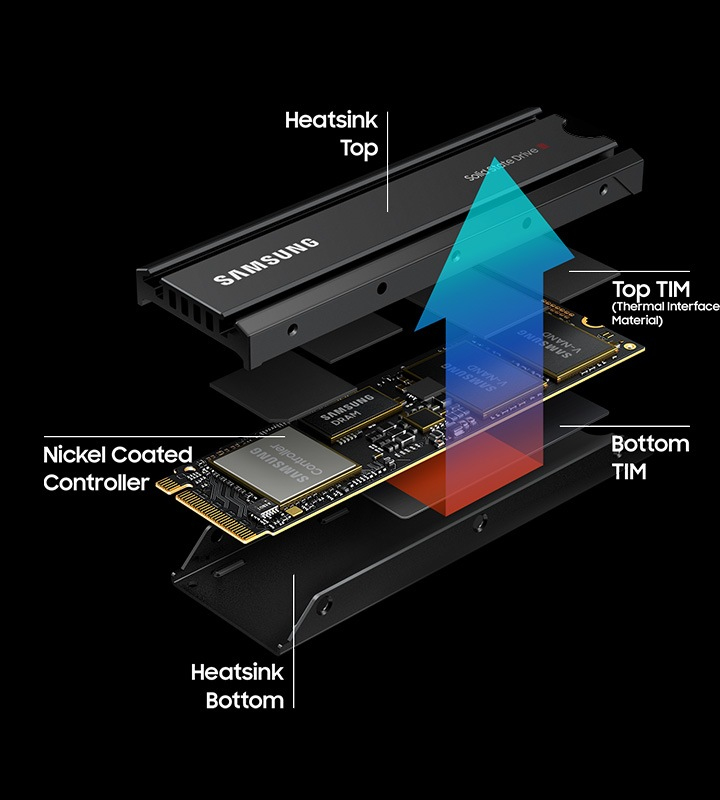

Smart thermal control

Samsungs nickel-coated controller reliably manages NAND chip heat levels. The 980 PRO's heat spreader label allows thermal control access. The 980 PRO Heatsink uses proven data centre SSD technology to dissipate heat, for continuous high-performance gaming on most consoles and PC systems.

A winning combination

Gamers, techies and designers benefit from thermal control, high-performance bandwidth and sustained performance for heavy-duty applications. Games load fast for more play, less wait. Smart heat management reduces distracting noise and cooling fans work for uninterrupted, fully immersive gaming.

Efficient M.2 SSD

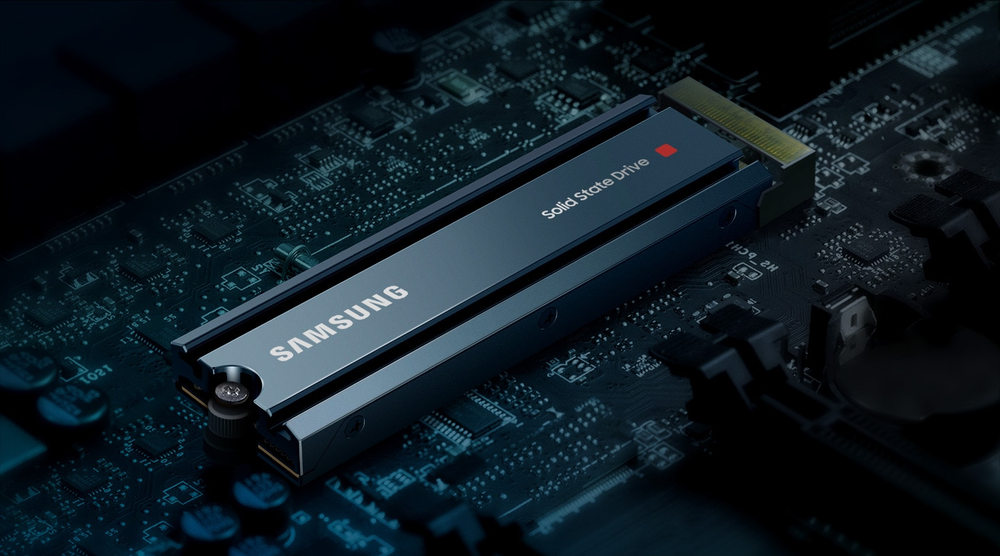

The 980 PRO with Heatsink minimises space limits with a thin 8.6mm body, compatible with PlayStation®5 plus desktops and laptops meeting PCI-SIG® D8 specs. The 980 PRO's compact, easy to plug-in M.2 form factor maximises board design flexibility for building efficient, high-performance systems.

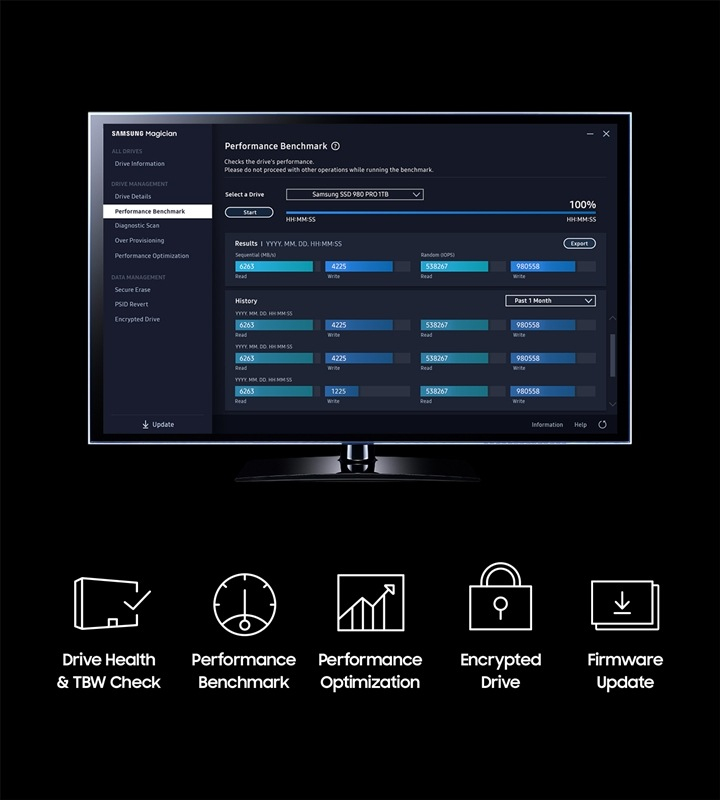

Samsung Magician software

Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

Worlds No.1 Flash Memory

Experience superior performance and reliability that you can only get from the worlds number one brand for flash memory since 2003. All firmware and components, including Samsungs world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

Product Properties

Manufacturer
Samsung

Model
MZ-V8P2T0CW

EAN
8806092837690

Bullet points

Point
For console gaming, compatible only with Playstation® 5

Ideal for heavy computing, high resolution graphics and PC gaming

True PCIe® 4.0 NVMe™ speed (up to 7,000 MB/s for seq. reads, 5,100MB/s for seq. writes)

Features

Component for
PC

Hardware encryption
Yes

Interface
PCI Express 4.0

M.2 SSD size
2280 (22 x 80 mm)

Mean time between failures (MTBF)
1500000 h

Memory type
V-NAND MLC

NVMe
Yes

NVMe version
1.3c

PCI Express interface data lanes
x4

Random read (4KB)
1000000 IOPS

Random write (4KB)
1000000 IOPS

Read speed
7000 MB/s

S.M.A.R.T. support
Yes

Security algorithms
256-bit AES

SSD capacity
2 TB

SSD form factor
M.2

TRIM support
Yes

Write speed
5000 MB/s

Logistics data

Harmonized System (HS) code
84717070

Operational conditions

Operating shock
1500 G

Operating temperature (T-T)
0 - 70 °C

Packaging data

Package type
Box

Power

Operating voltage
3.3 V

Power consumption (average)
6.1 W

Power consumption (idle)
0.035 W

Power consumption (max)
7.2 W

Weight & dimensions

Depth
8.6 mm

Height
24 mm

Weight
30.5 g

Width
80 mm

Samsung 980 Pro 2 TB M.2 PCI Express 4.0 NVMe V-NAND MLC
