Description

Samsung QB65R. Product design: Digital signage flat panel. Display diagonal: 163.8 cm (64.5"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black

Engage customers with lifelike images through ultra high-definition resolution
Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades

Product Properties

Manufacturer
Samsung

Model
LH65QBREBGCXEN

EAN
8801643794903

Audio

Built-in speaker(s)
Y

Number of built-in speakers
2

RMS rated power
20 W

Bullet points

Point
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades

Engage customers with lifelike images through ultra high-definition resolution

Certificates

Certification
60950-1, EMC B

Computer system

Audio formats supported
AC3

Built-in processor
Y

Computer system
Y

Image formats supported
JPEG, PNG

Internal memory
2.5 GB

Internal storage capacity
8 GB

Operating System
Tizen 4.0

Processor cores
4

Processor family
ARM Cortex

Processor frequency
1.7 GHz

Processor model
A72

Video formats supported
AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9

Design

Bezel width (bottom)
1.12 cm

Bezel width (side)
9.2 mm

Bezel width (top)
9.2 mm

Panel mounting interface
400 x 400 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Y

Display

Active display area (W x H)
1428.48 x 803.52 mm

Contrast ratio (typical)
4000:1

Display brightness
350 cd/m²

Dynamic contrast ratio marketing name
Mega Contrast

HD type
4K Ultra HD

Horizontal scan range
30 - 81 kHz

LED backlighting type
Edge-LED BLU

Native aspect ratio
16:9

Native refresh rate
60 Hz

Pixel pitch
0.372 x 0.372 mm

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
163.8 cm (64.5")

Screen Type
163 cm

Screen Type
LED

Touchscreen
N

Vertical scan range
48 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Features

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Other features

Annual energy consumption
187 kWh

Energy efficiency class (old)
A

Packaging content

Batteries included
Y

Cables included
AC

Remote control included
Y

Packaging data

Package depth
185 mm

Package height
973 mm

Package weight
33.3 kg

Package width
1611 mm

Performance

HDCP
Y

Operating hours (hours/days)
16/7

Purpose
Universal

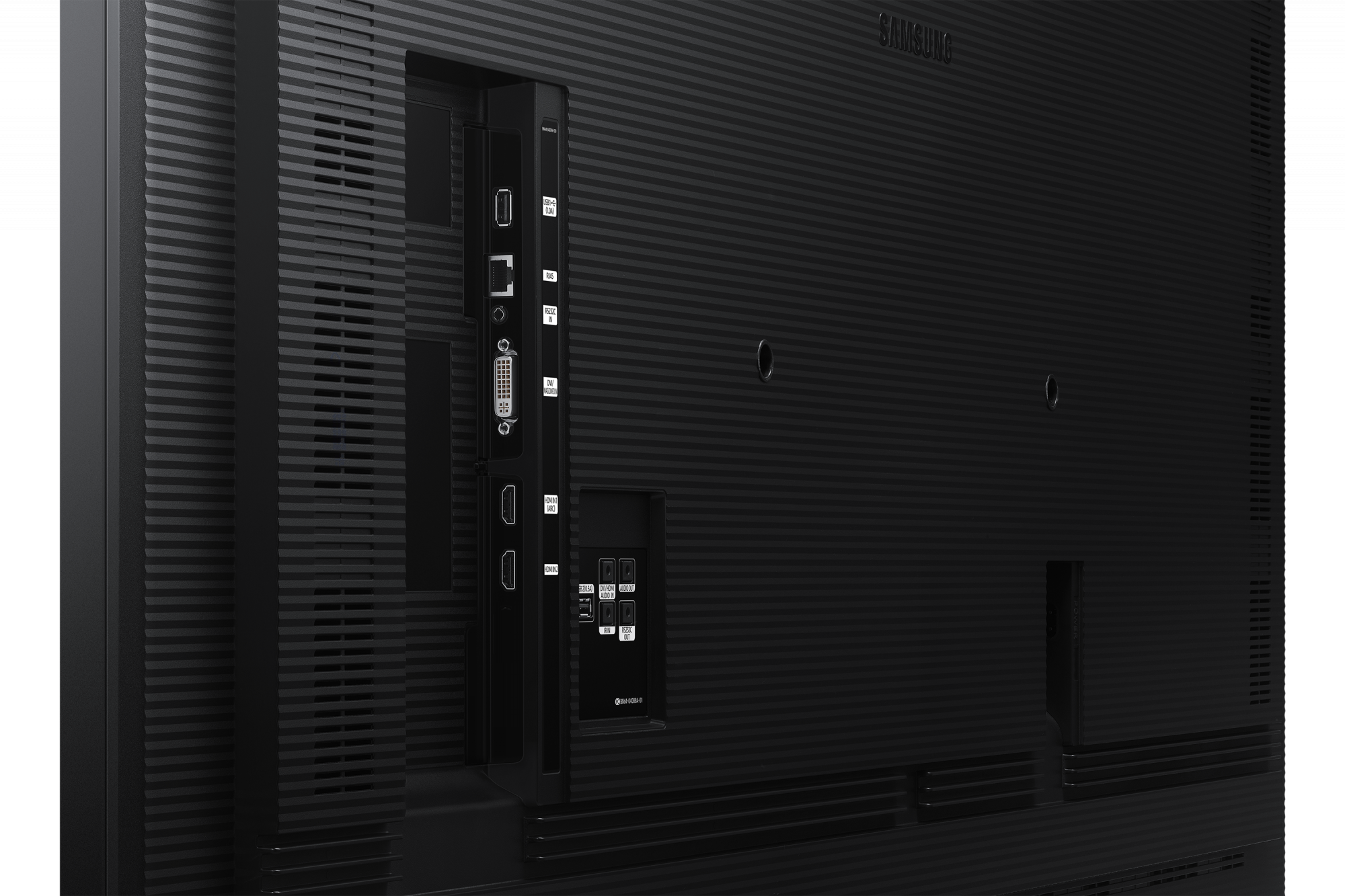

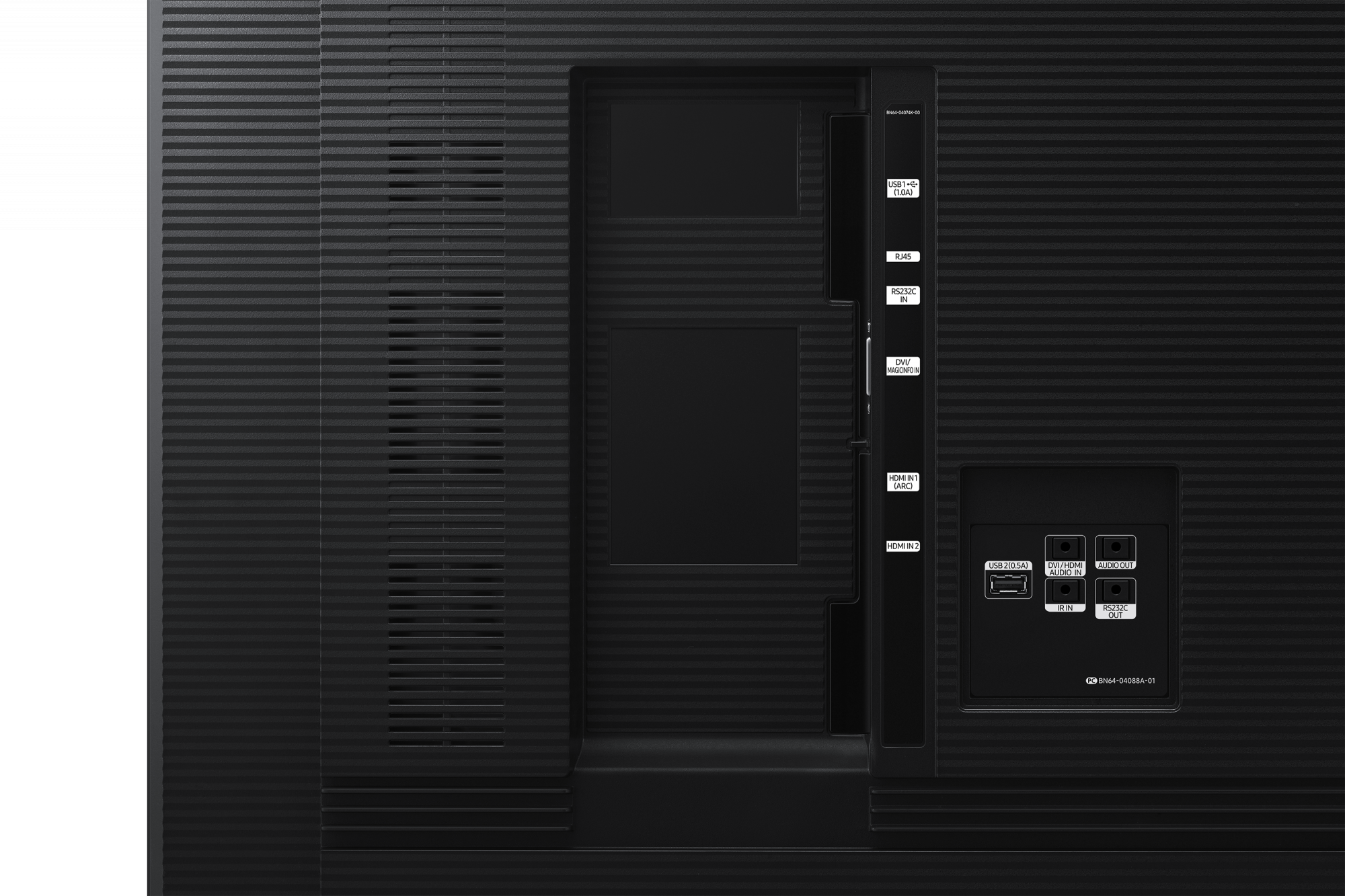

Ports & interfaces

DVI port
Y

DVI-D ports quantity
1

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

HDMI ports
2

HDMI version
2.0

PC Audio in
Y

Remote (IR) input
1

RS-232C
Y

USB port
Y

USB ports quantity
2

USB version
2.0

Wi-Fi
Y

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Energy efficiency scale
A+++ to D

Heat dissipation
618.9 BTU/h

Power consumption (sleep)
0.5 W

Power consumption (typical)
128 W

Technical details

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth
46.3 mm

Height
831 mm

Weight
24.9 kg

Width
1453.9 mm

Samsung QB65R Digital signage flat panel 163.8 cm (64.5") LED Wi-Fi 350 cd/m² 4K Ultra HD Black Built-in processor Tizen 4.0 16/7
