Description

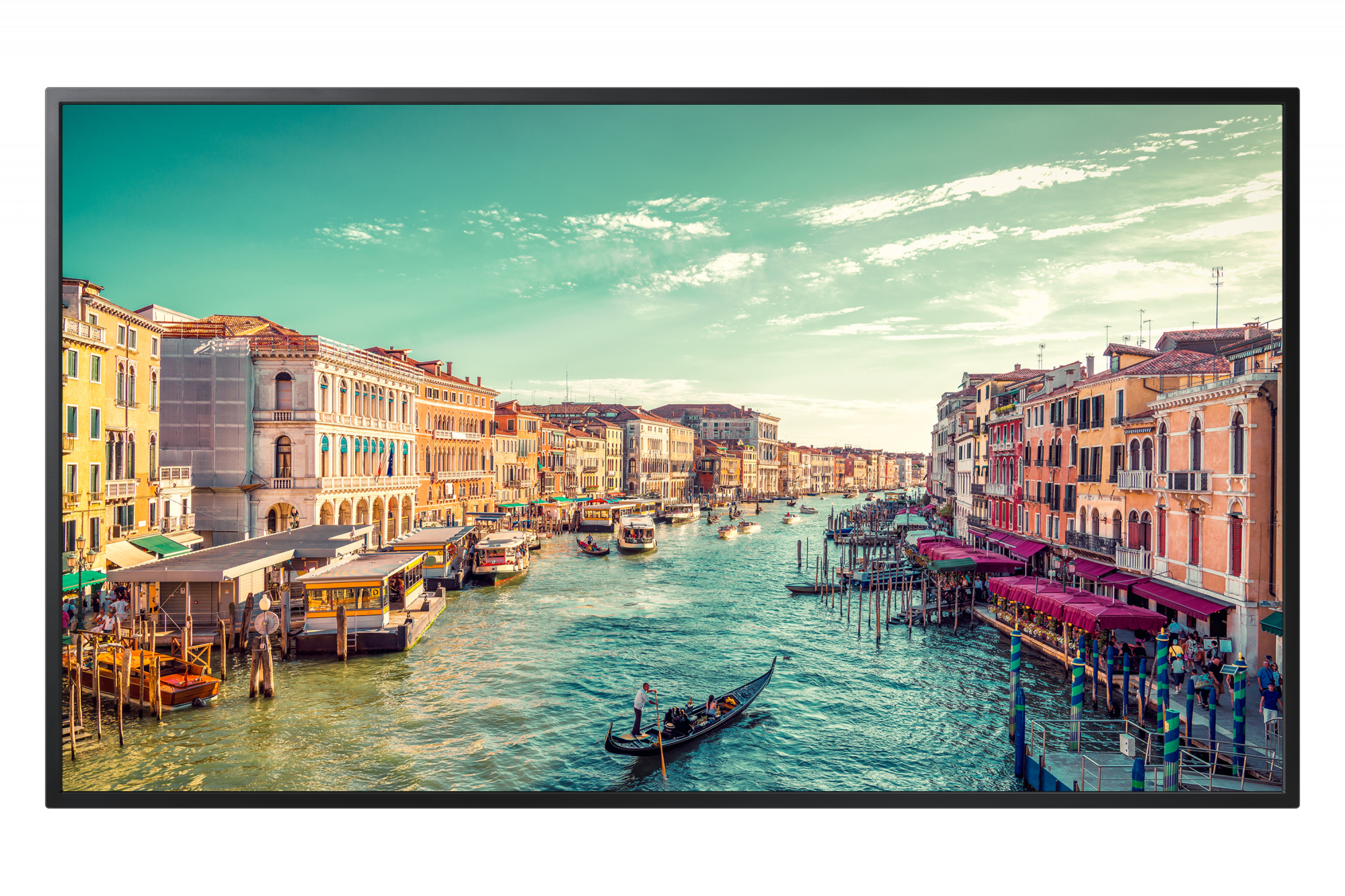

Samsung QM32R-B. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD. Wi-Fi. Operating system installed: Tizen 4.0. Product colour: Black

New symmetrical, slim design simplifies installation and complements any environment
Affordable digital signage that supports 24/7 operation and 400nit brightness
All-in-one display solution with embedded MagicINFO Player S6 powered by TIZEN™

Product Properties

Manufacturer
Samsung

Model
LH32QMRBBGCXEN

EAN
8806092994584

Bullet points

Point
Affordable digital signage that supports 24/7 operation and 400nit brightness

All-in-one display solution with embedded MagicINFO Player S6 powered by TIZEN™

New symmetrical, slim design simplifies installation and complements any environment

Certificates

Certification
Class B 60950-1, 62368-1

Computer system

Operating System
Tizen 4.0

Design

Bezel colour
Charcoal Black

Bezel width (bottom)
8.8 mm

Bezel width (side)
8.8 mm

Bezel width (top)
8.8 mm

Panel mounting interface
200 x 200 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

Screen shape
Flat

VESA mounting
Yes

Display

Colour gamut
72%

Contrast ratio (typical)
5000:1

Display brightness
400 cd/m²

Dynamic contrast ratio marketing name
Mega Contrast

Haze rate
2%

HD type
Full HD

Horizontal scan range
30 - 81 kHz

LED backlight
Yes

Native aspect ratio
16:9

Panel type
VA

Pixel frequency (max)
594 MHz

Pixel pitch
0.36375 x 0.36375 mm

Response time
8 ms

Screen Resolution
1920 x 1080 pixels

Screen Size
81.3 cm (32")

Screen Type
LCD

Screen Type
81 cm

Touchscreen
No

Vertical scan range
48 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Other features

Flash memory
8000 MB

Optional features
WMN4070SG, WMN750ME STN-L3240F

Packaging data

Package depth
120 mm

Package height
513 mm

Package weight
7.6 kg

Package width
812 mm

Performance

HDCP
Yes

HDCP version
2.2

Purpose
Universal

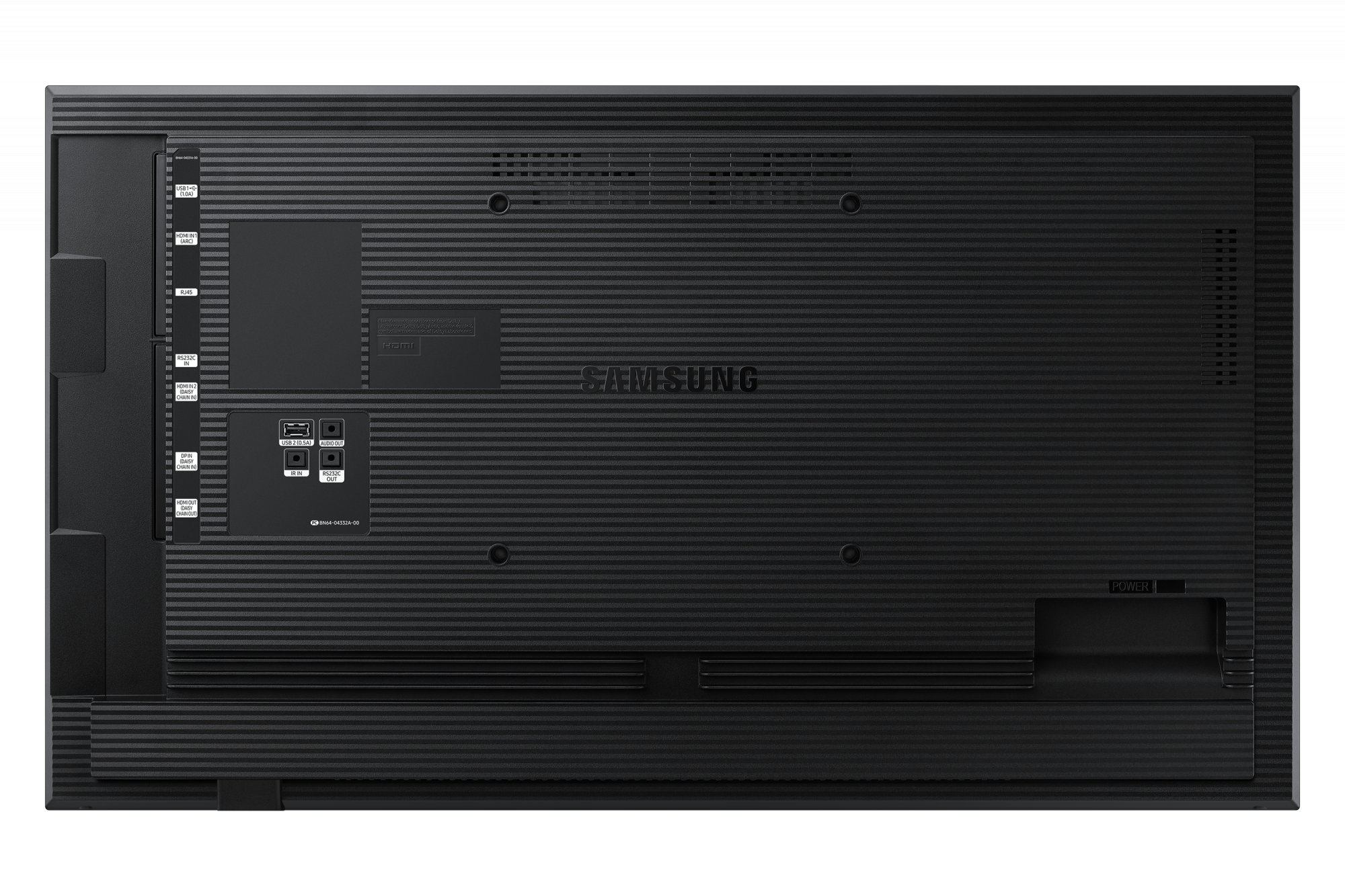

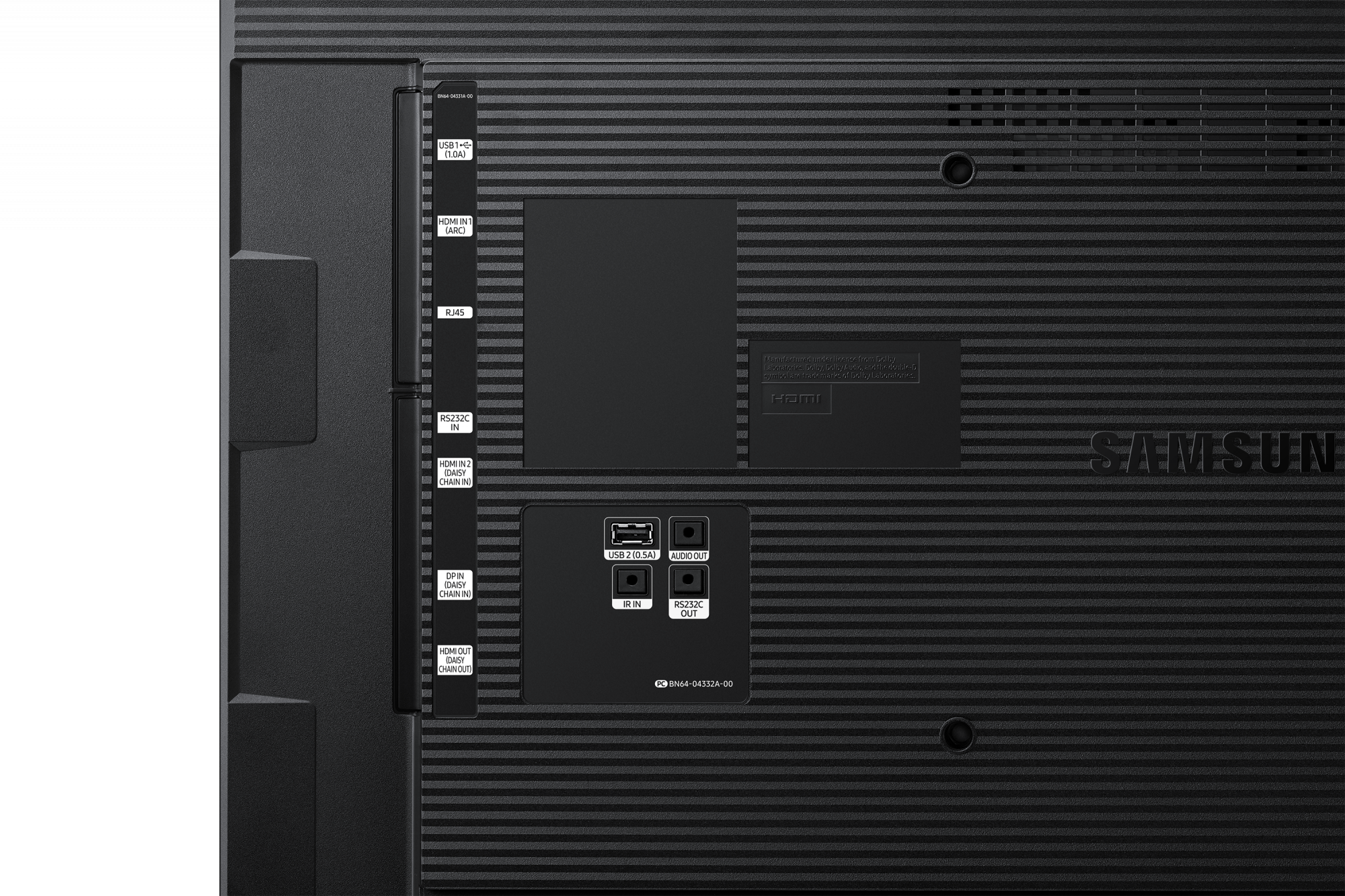

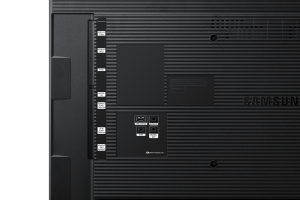

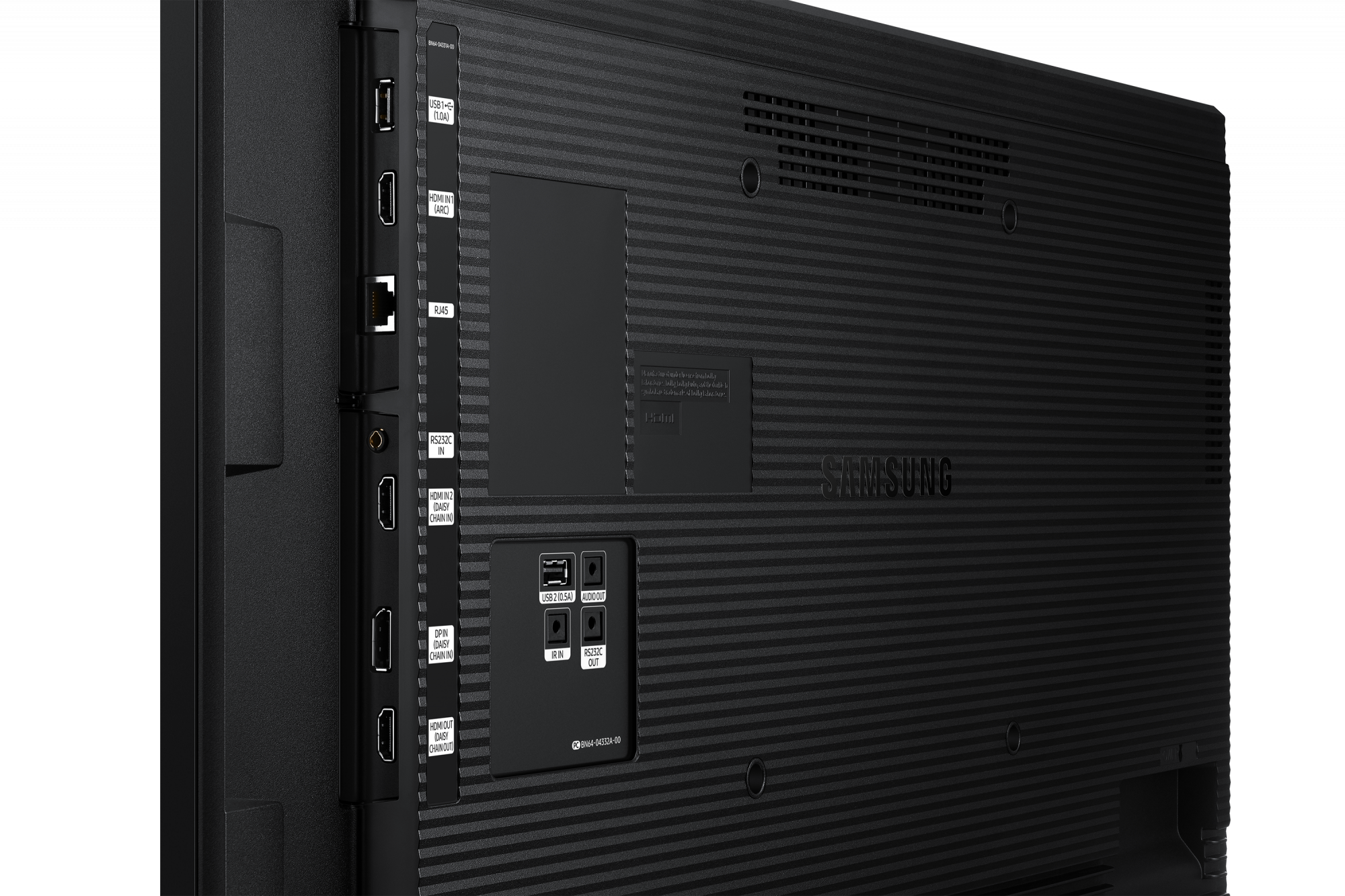

Ports & interfaces

Audio (L/R) out
1

DisplayPort version
1.2

DisplayPorts in
1

DisplayPorts quantity
1

DVI port
No

Ethernet LAN
Yes

HDMI input ports quantity
2

HDMI ports
2

HDMI version
2.0

Infrared data port
Yes

RS-232 interface
Yes

USB port
Yes

USB ports quantity
2

Wi-Fi
Yes

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (sleep)
0.5 W

Power consumption (typical)
72 W

Weight & dimensions

Display depth
34.6 mm

Display height
419.6 mm

Display weight
5.7 kg

Display width
725.1 mm

Samsung QM32R-B Digital signage flat panel 81.3 cm (32") LCD Wi-Fi 400 cd/m² Full HD Black Tizen 4.0
