Model: LH46VMBUBGBXEN
EAN: 8806094366082

Samsung VM46B-U LCD Indoor

Manufacturer:
Samsung
Samsung VM46B-U, 116.8 cm (46"), LCD, 1920 x 1080 pixels, 24/7
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Clearance
Commercial Displays
Interactive Displays

Description

Samsung VM46B-U. Display diagonal: 116.8 cm (46"), Display resolution: 1920 x 1080 pixels, Display technology: LCD, Display brightness: 500 cd/m², HD type: Full HD, Operating hours (hours/days): 24/7. Product colour: Black

Product Properties

  • Model
  • LH46VMBUBGBXEN
  • EAN
  • 8806094366082
  • Design
  • Bezel width (bottom)
  • 2.25 mm
  • Bezel width (side)
  • 1.25 mm
  • Bezel width (top)
  • 2.25 mm

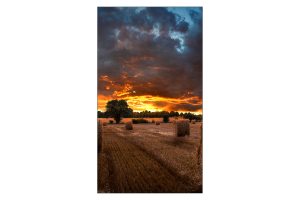

  • Orientation
  • Horizontal/Vertical
  • Panel colour
  • Black
  • Panel mounting interface
  • 600 x 400 mm
  • Placement supported
  • Indoor
  • Product colour
  • Black
  • VESA mounting
  • Yes
  • Display
  • Aspect ratio
  • 16:9
  • Contrast ratio (dynamic)
  • 45000:1
  • Contrast ratio (typical)
  • 1200:1
  • Display brightness
  • 500 cd/m²
  • HD type
  • Full HD
  • Horizontal scan range
  • 62.7 - 72.3 kHz
  • Operating hours (hours/days)
  • 24/7
  • Panel type
  • IPS
  • Pixel frequency
  • 82 MHz
  • Pixel pitch
  • 0.53 x 0.53 mm
  • Response time
  • 0.008 s
  • Screen Resolution
  • 1920 x 1080 pixels
  • Screen Size
  • 116.8 cm (46")
  • Screen Type
  • LCD
  • Vertical scan range
  • 57 - 63 Hz
  • Viewing angle, horizontal
  • 178°
  • Viewing angle, vertical
  • 178°
  • Logistics data
  • Harmonized System (HS) code
  • 85285210
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging data
  • Package depth
  • 257 mm
  • Package height
  • 719 mm
  • Package weight
  • 22.2 kg
  • Package width
  • 1193 mm

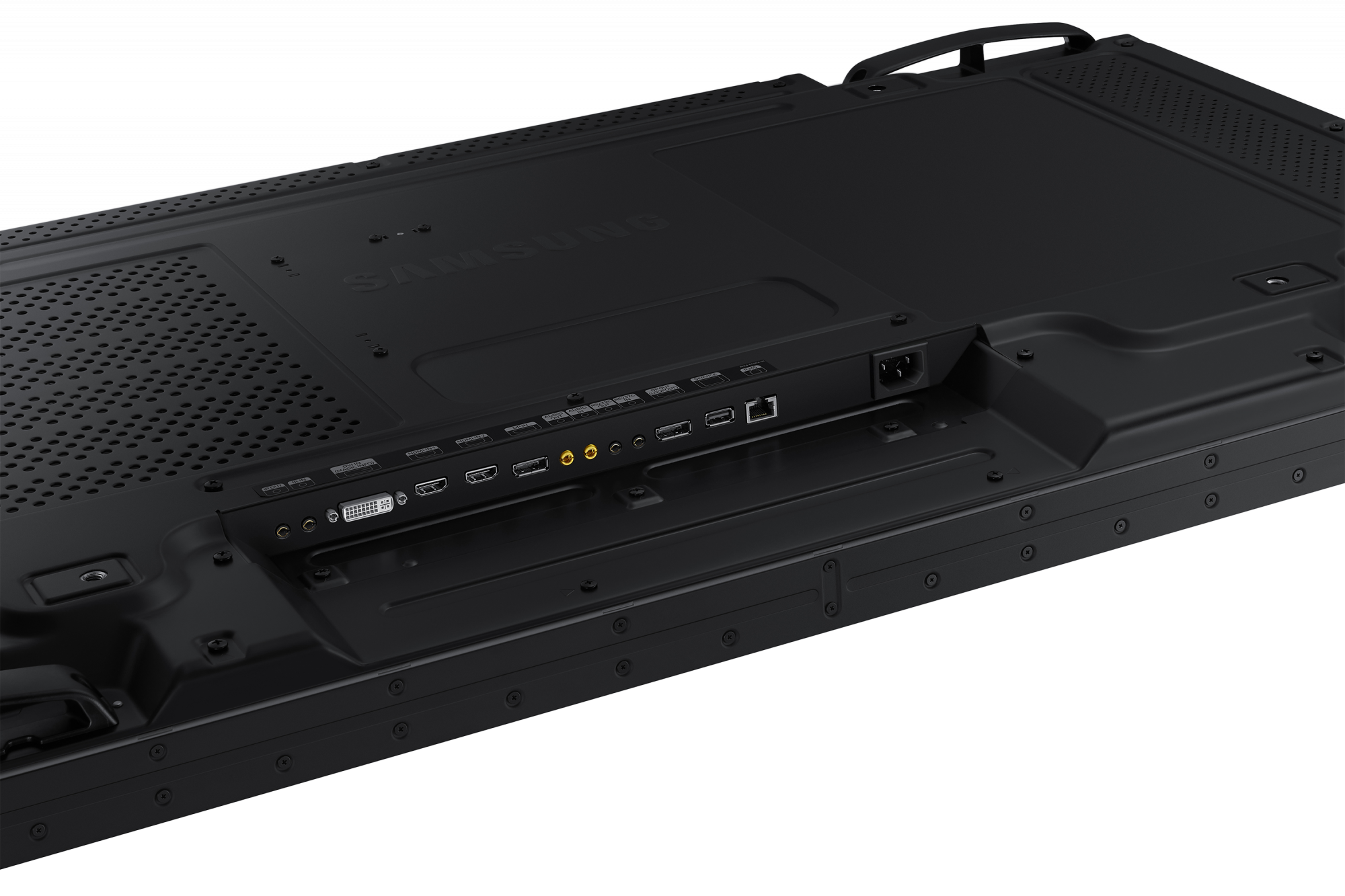

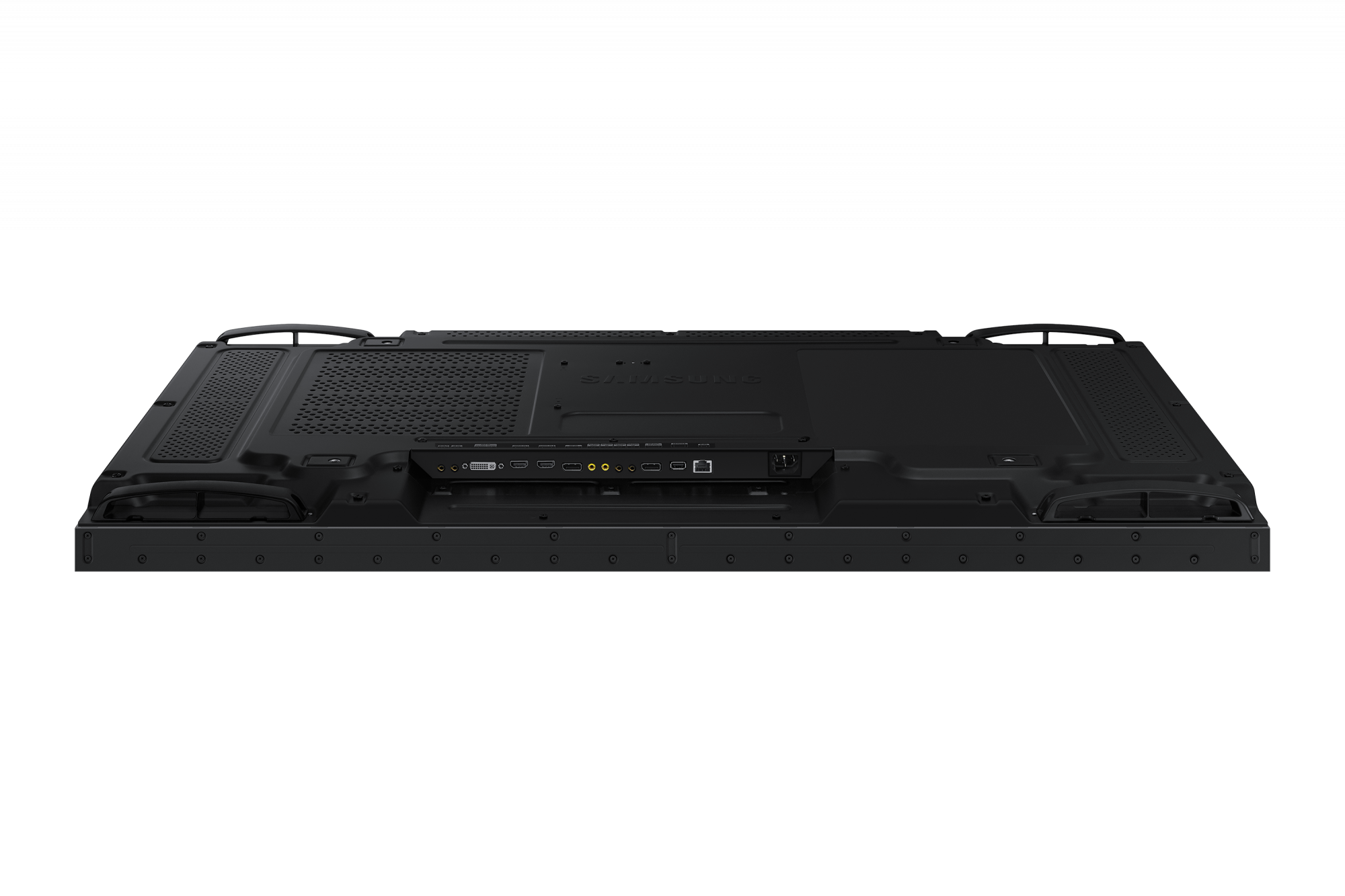

  • Ports & interfaces
  • Audio input
  • Yes
  • Audio output
  • Yes
  • DisplayPort version
  • 1.2
  • DisplayPorts quantity
  • 1
  • DVI port
  • Yes
  • Ethernet LAN
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDCP
  • Yes
  • HDCP version
  • 2.2
  • HDMI ports
  • 2
  • HDMI version
  • 2.0
  • IR input ports quantity
  • 1
  • RS-232 input ports
  • 1
  • RS-232 output ports
  • 1
  • RS-232C
  • Yes
  • USB port
  • Yes
  • USB ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Energy consumption (SDR) per 1000 hours
  • 128 kWh
  • Energy efficiency class (SDR)
  • G
  • Energy efficiency scale
  • A to G
  • Power consumption (typical)
  • 160 W
  • Sustainability
  • Certification
  • FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14336-1 ( ITE Safety ) / CNS15663 (RoHS)C-Tick (Australia) : AS/NZS CISPR32:2015CCC(China) :GB/T9254-2008, GB17625.1-2012GOST(Russia/CIS) : ROCT CISPR 24-2013/ROCT CISPR 22:2005
  • Weight & dimensions
  • Depth
  • 69.9 mm
  • Height
  • 577 mm
  • Weight
  • 15.7 kg
  • Width
  • 1022 mm
