Description

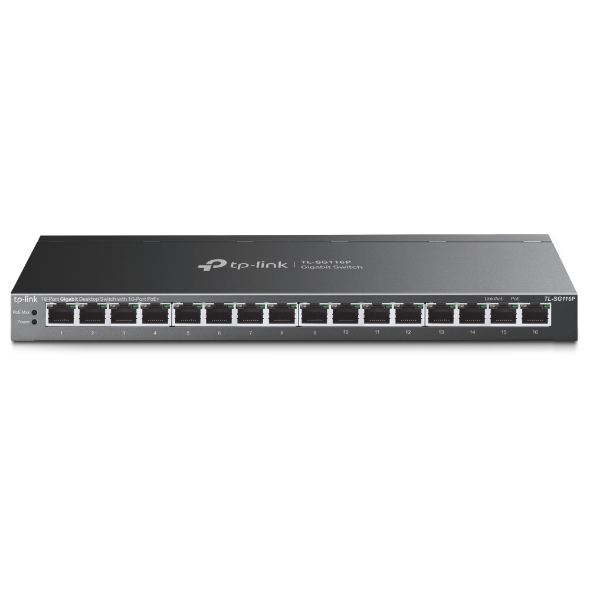

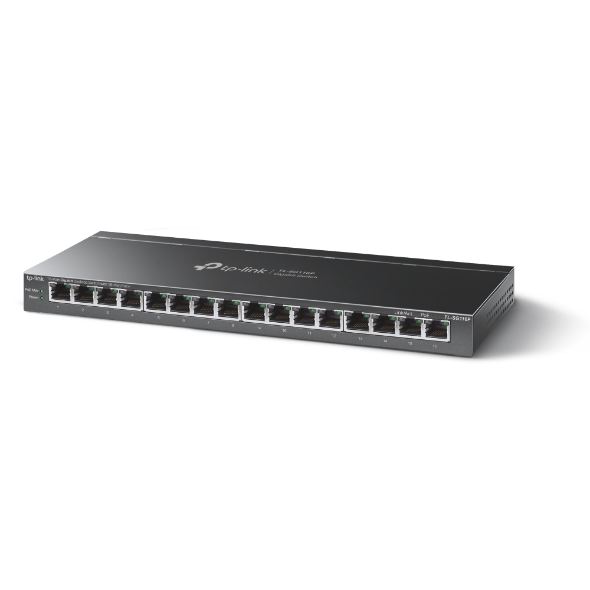

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Wall mountable

With 16 PoE+ ports, transfers data and power on one single cable
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 120 W for all PoE ports*
Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
Plug and play with no configuration required

Product Properties

Manufacturer
TP-LINK

Model
TL-SG116P

EAN
4895252500318

Bullet points

Point
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery

Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

Isolation Mode allows one-click client traffic separation for higher security and performance

Plug and play with no configuration required

Supports PoE Power up to 120 W for all PoE ports*

Up to 250 m data and power transmission range under Extend Mode**

With 16 PoE+ ports, transfers data and power on one single cable

Data transmission

Forwarding rate
23.81 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
8000 entries

Number of queues
4

Packet buffer memory
4.1 MB

Store-and-forward
Yes

Switching capacity
32 Gbit/s

Design

Housing material
Metal

LED indicators
Yes

Product colour
Black

Stackable
Yes

Wall mountable
Yes

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Broadcast storm control
Yes

Cable length detection
Yes

Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Number of VLANs
32

Port mirroring
Yes

Rate limiting
Yes

Virtual LAN features
Protocol-based VLAN, Tagged VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
490.55 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Package depth
434 mm

Package height
70 mm

Package weight
2 kg

Package width
227 mm

Quick start guide
Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
16

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 Hz

AC input voltage
220 V

DC input voltage
9 V

Input current
0.6 A

Power consumption (max)
144.28 W

Power consumption (typical)
11.72 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Security

IGMP snooping
Yes

Loop protection
Yes

Weight & dimensions

Depth
111.7 mm

Height
25.4 mm

Width
286 mm
