Description

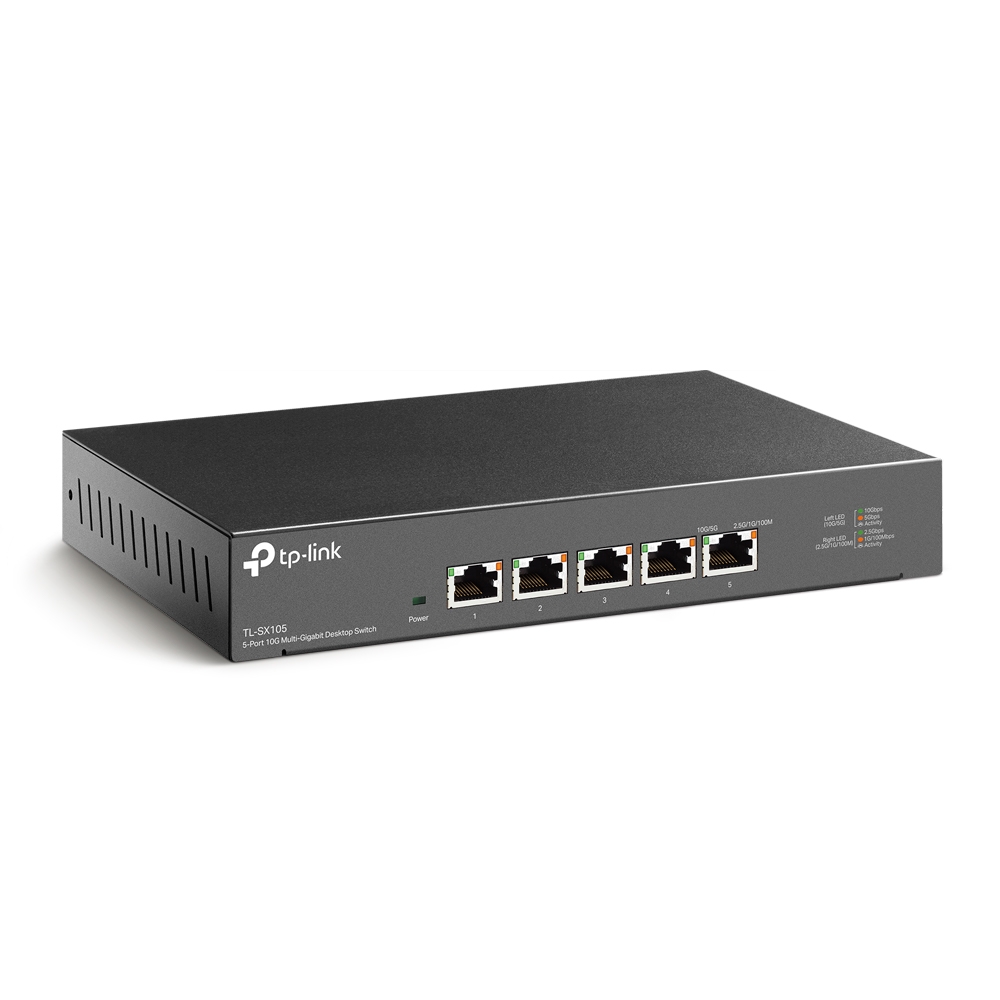

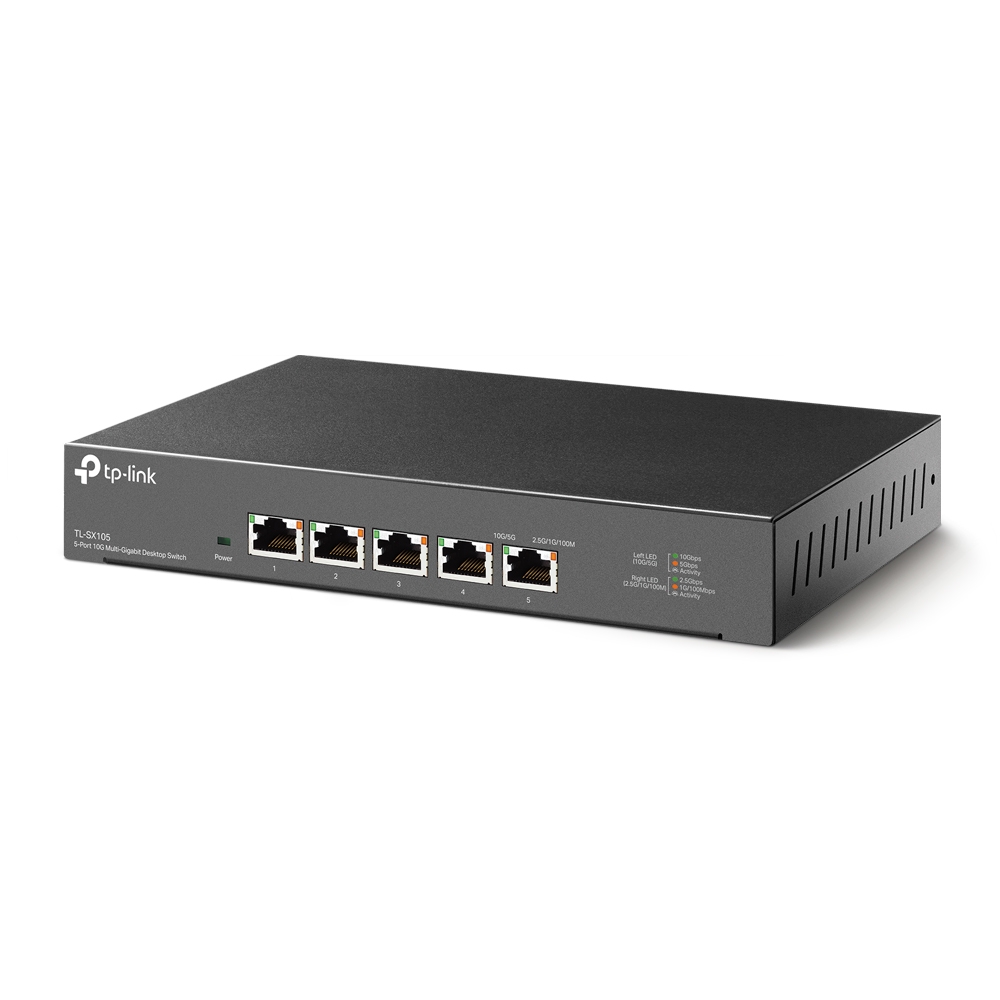

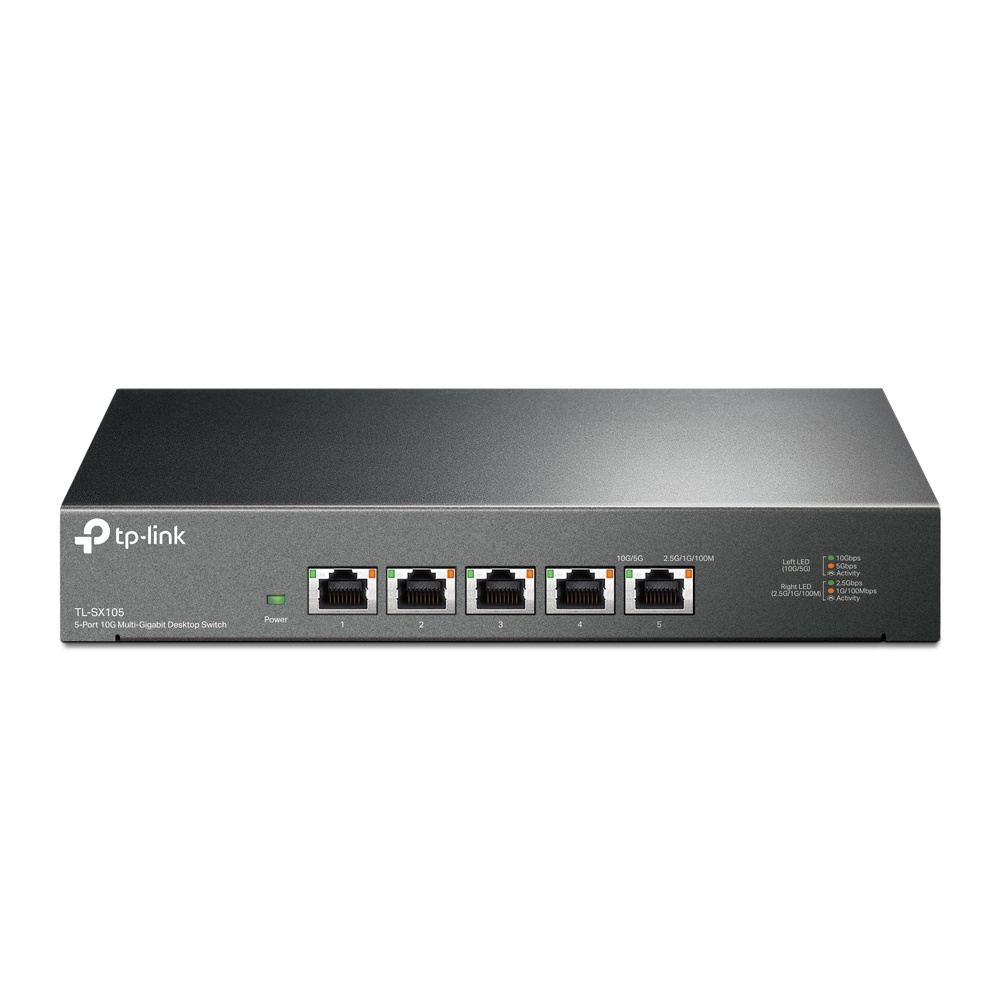

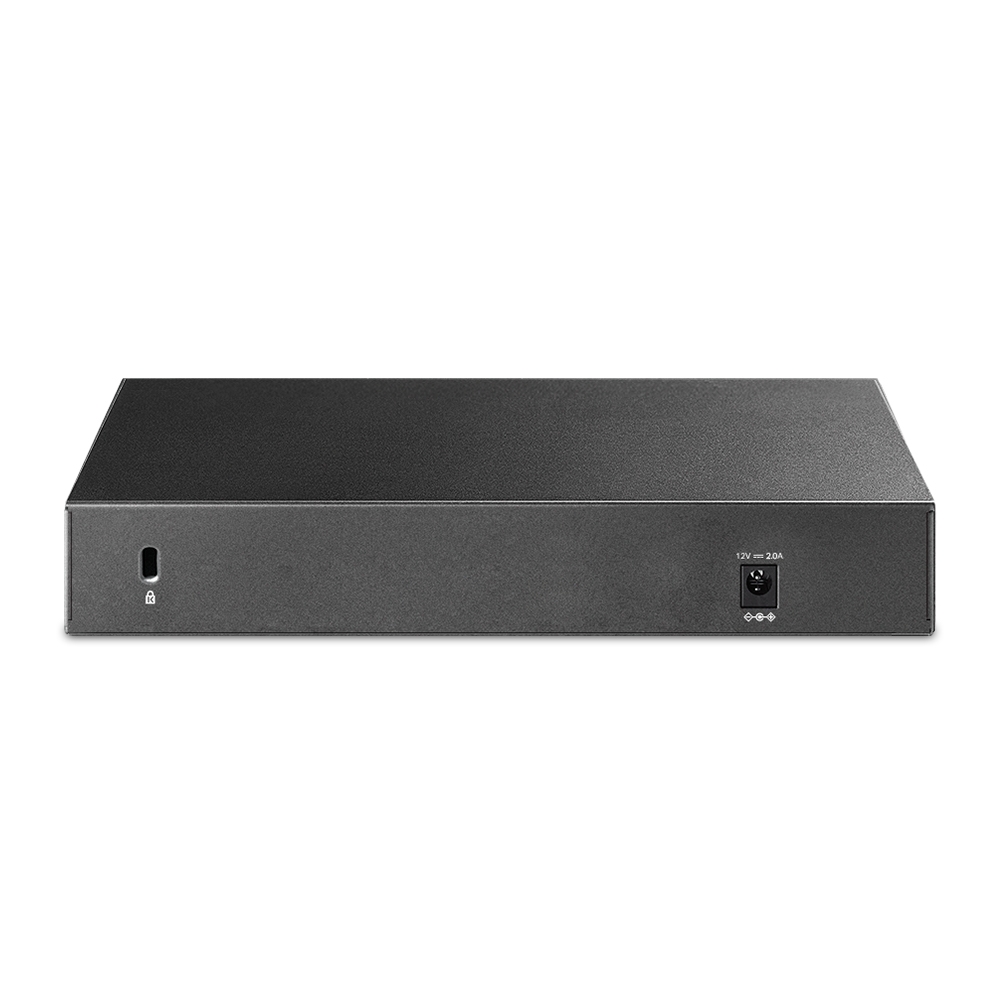

TP-Link 5-Port 10G Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 32000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Wall mountable

Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity

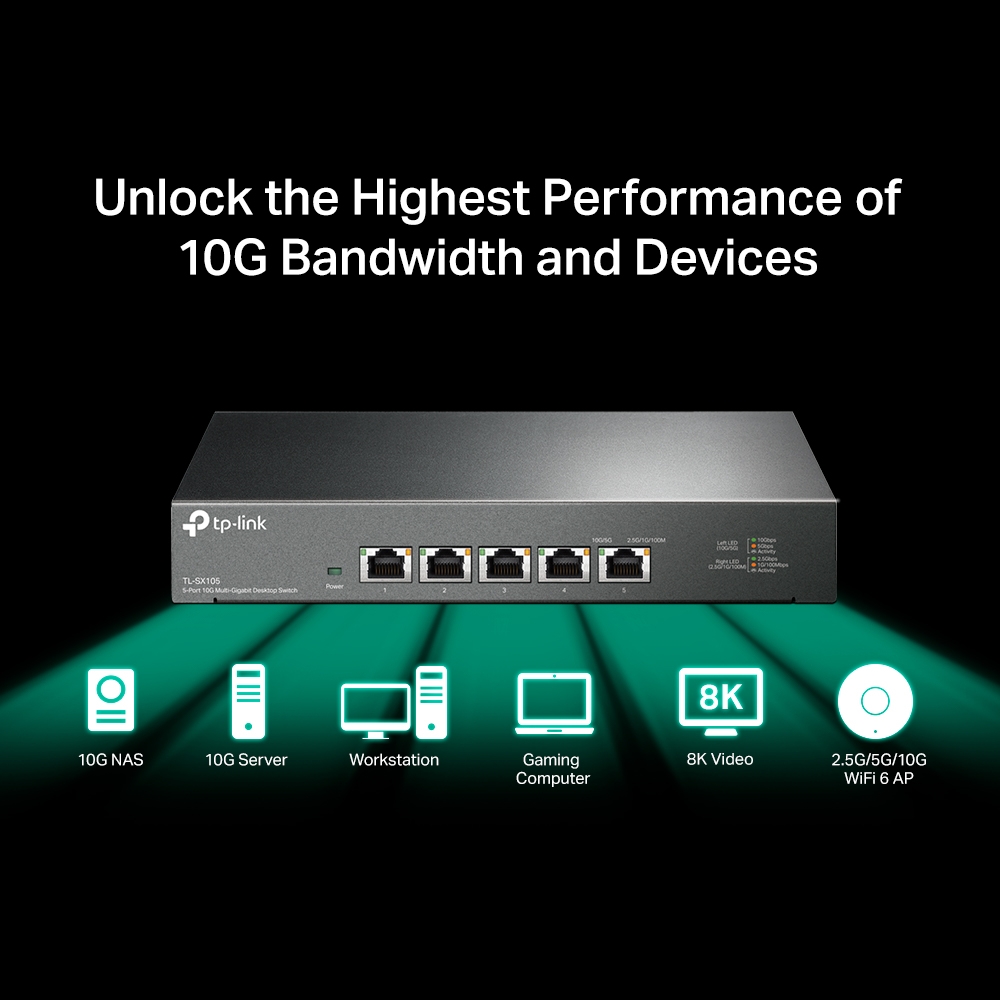

Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations
Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance

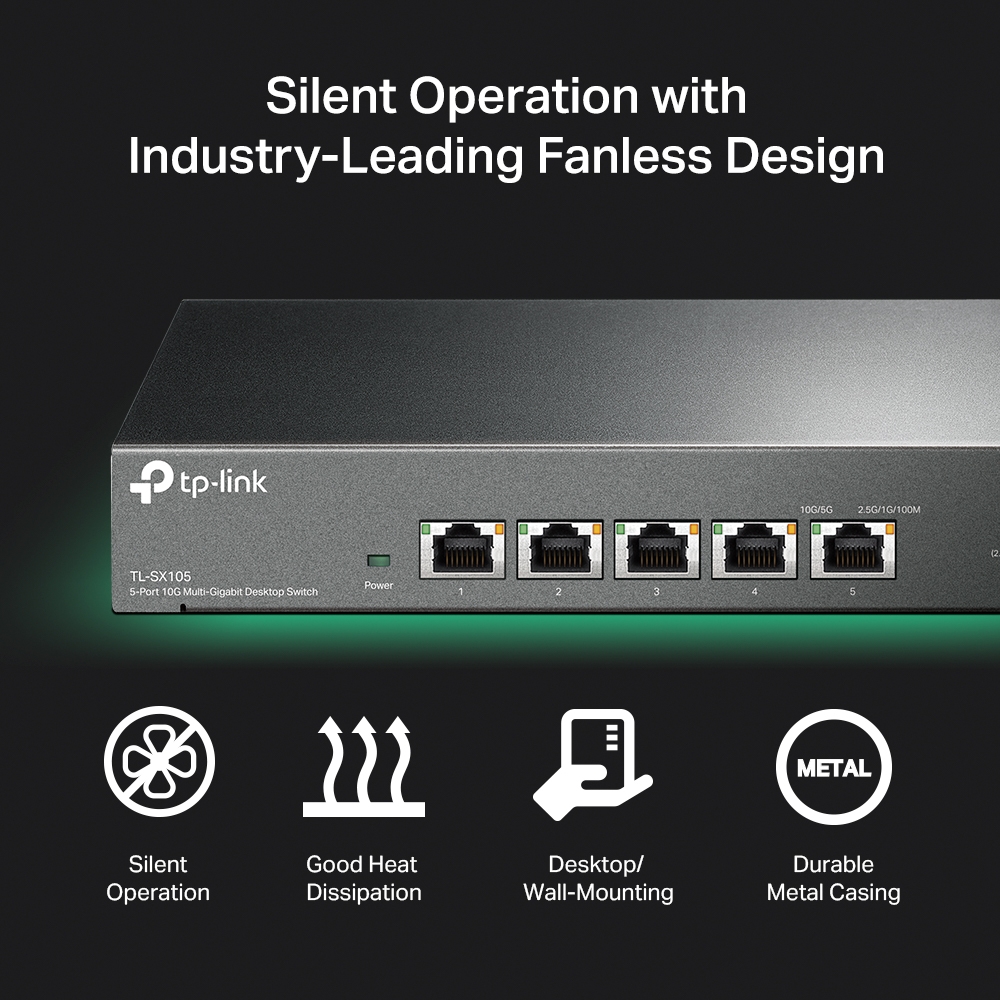

Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business
Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments

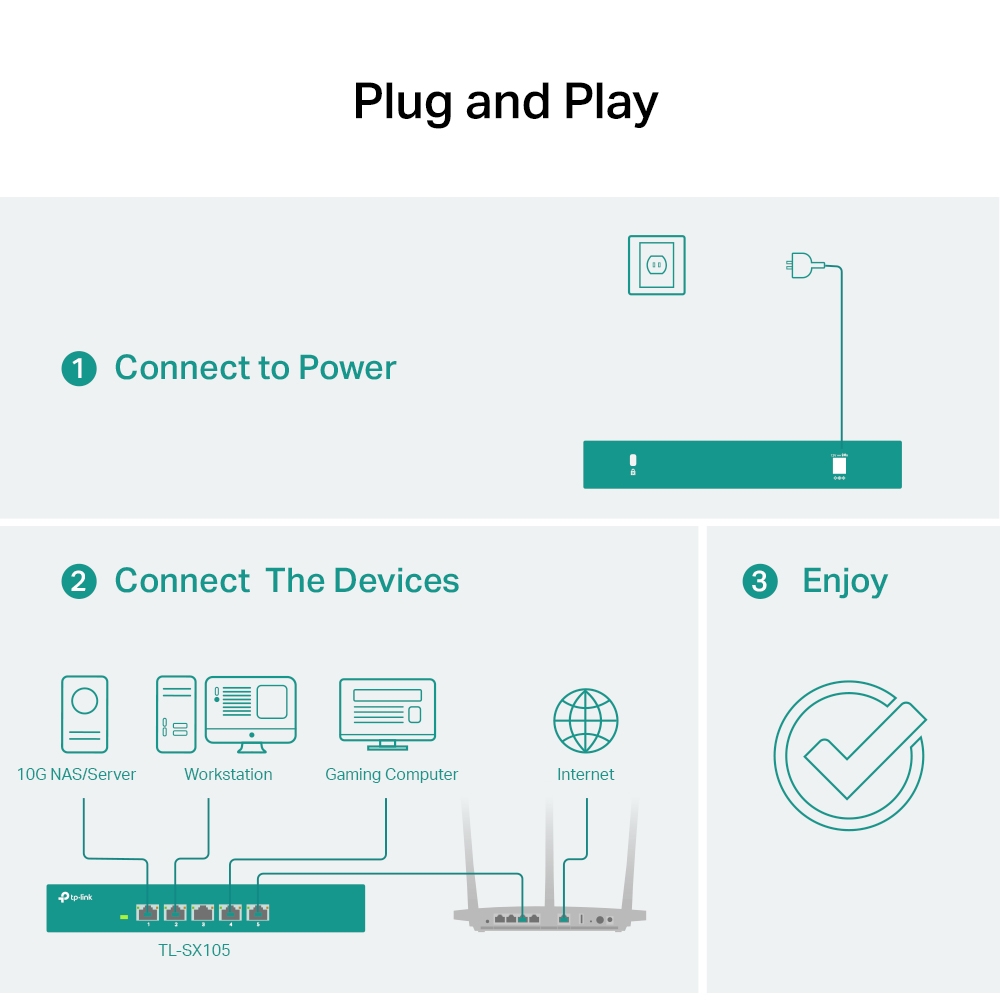

Plug and Play. Allows for easy deployment without the need for a technician

Product Properties

Manufacturer
TP-LINK

Model
TL-SX105

EAN
6935364030902

Bullet points

Point
Plug and Play. Allows for easy deployment without the need for a technician

Data transmission

Forwarding rate
74.4 Mpps

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
32000 entries

Packet buffer memory
16 MB

Store-and-forward
Yes

Switching capacity
100 Gbit/s

Design

Certification
CE, FCC ,RoHS

LED indicators
Yes

Product colour
Black

Rack mounting
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Manual
Yes

Package type
Box

Performance

Fanless
Yes

Ports & interfaces

10G Ethernet (copper) ports quantity
5

Switch Number of Ports
5

Switch Port Speed
10G Ethernet (100/1000/10000)

Power

Input current
2 A

Input voltage
12 V

Power consumption (max)
21.4 W

Power source
DC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
131 mm

Height
35 mm

Width
226 mm
