Description

TP-Link 8-Port 2.5G Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x. Wall mountable

Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity
Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more
Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations

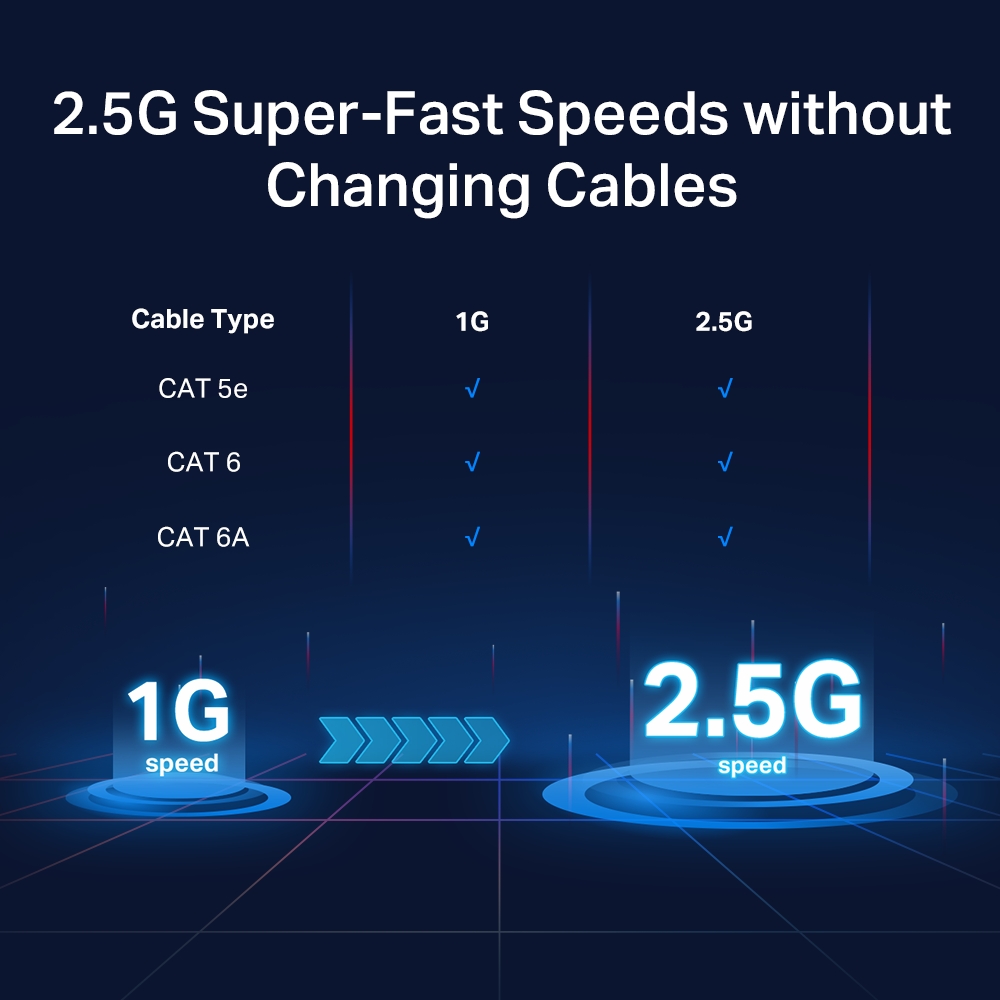

Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**
Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business
Plug and Play. Allows for easy deployment without the need for a technician
Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments

Product Properties

Manufacturer
TP-LINK

Model
TL-SG108-M2

EAN
6935364052911

Bullet points

Point
Plug and Play. Allows for easy deployment without the need for a technician

Data transmission

Forwarding rate
29.8 Mpps

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
16000 entries

Packet buffer memory
1.5 MB

Store-and-forward
Yes

Switching capacity
40 Gbit/s

Design

LED indicators
Yes

Product colour
Black

Rack mounting
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Flow control support
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
53.4 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
AC, LAN (RJ-45)

Packaging data

Package depth
315 mm

Package height
70 mm

Package weight
1.35 kg

Package width
240 mm

Performance

Fanless
Yes

Ports & interfaces

2.5G Ethernet (copper) ports quantity
8

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
8

Switch Port Speed
2.5G Ethernet (100/1000/2500)

Power

Input current
1.5 A

Input voltage
12 V

Power source
DC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
131 mm

Height
35 mm

Width
226 mm
