Description

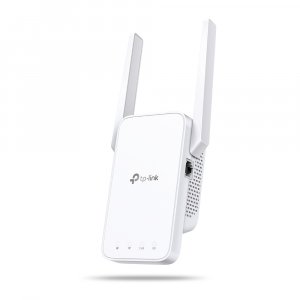

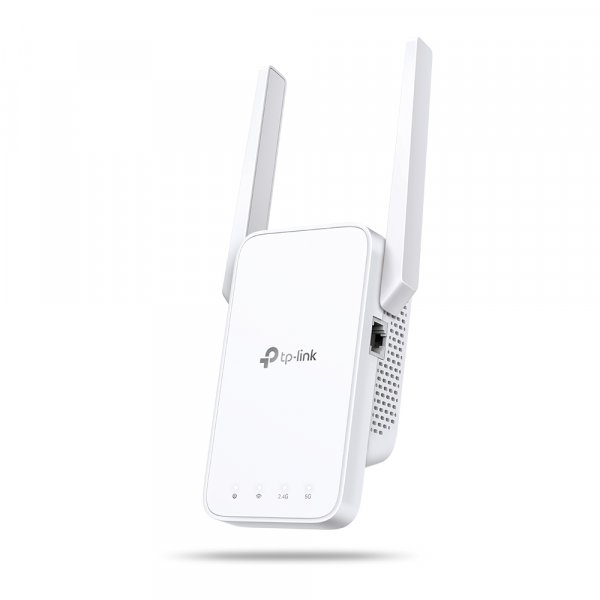

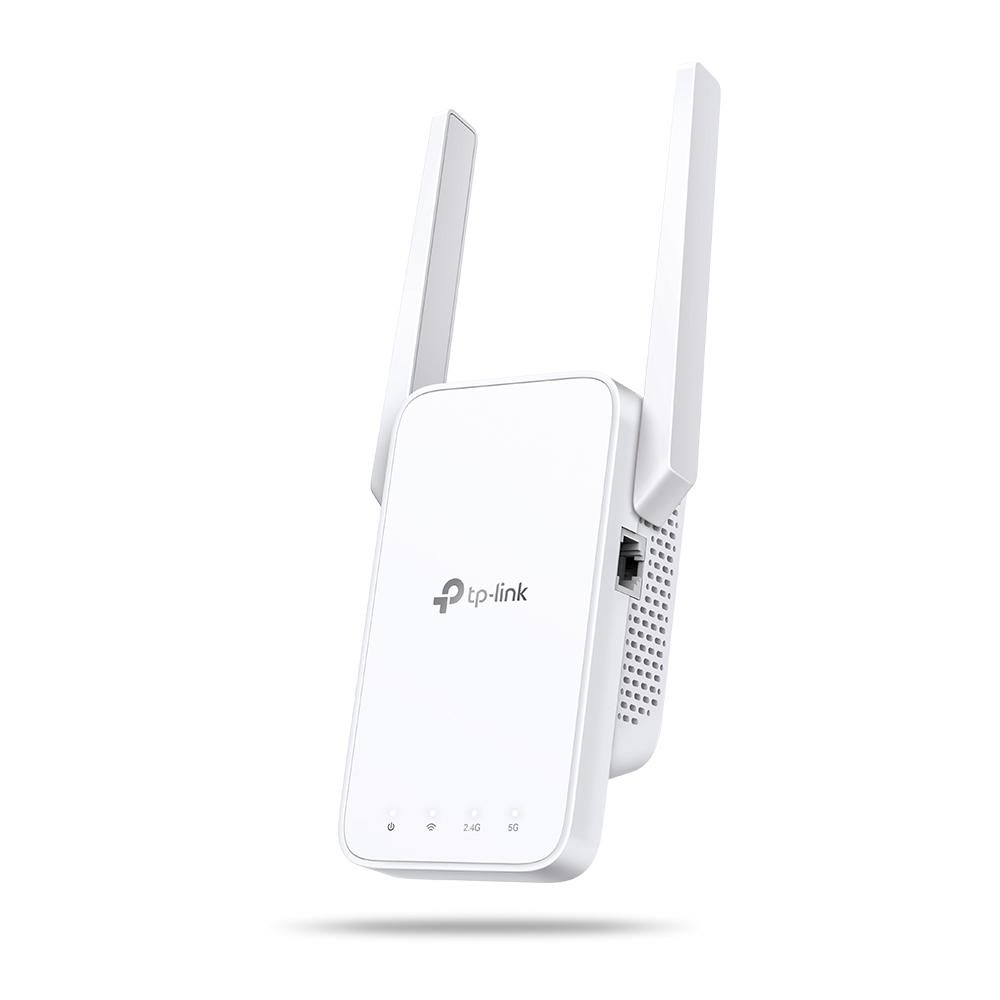

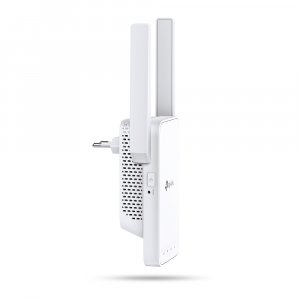

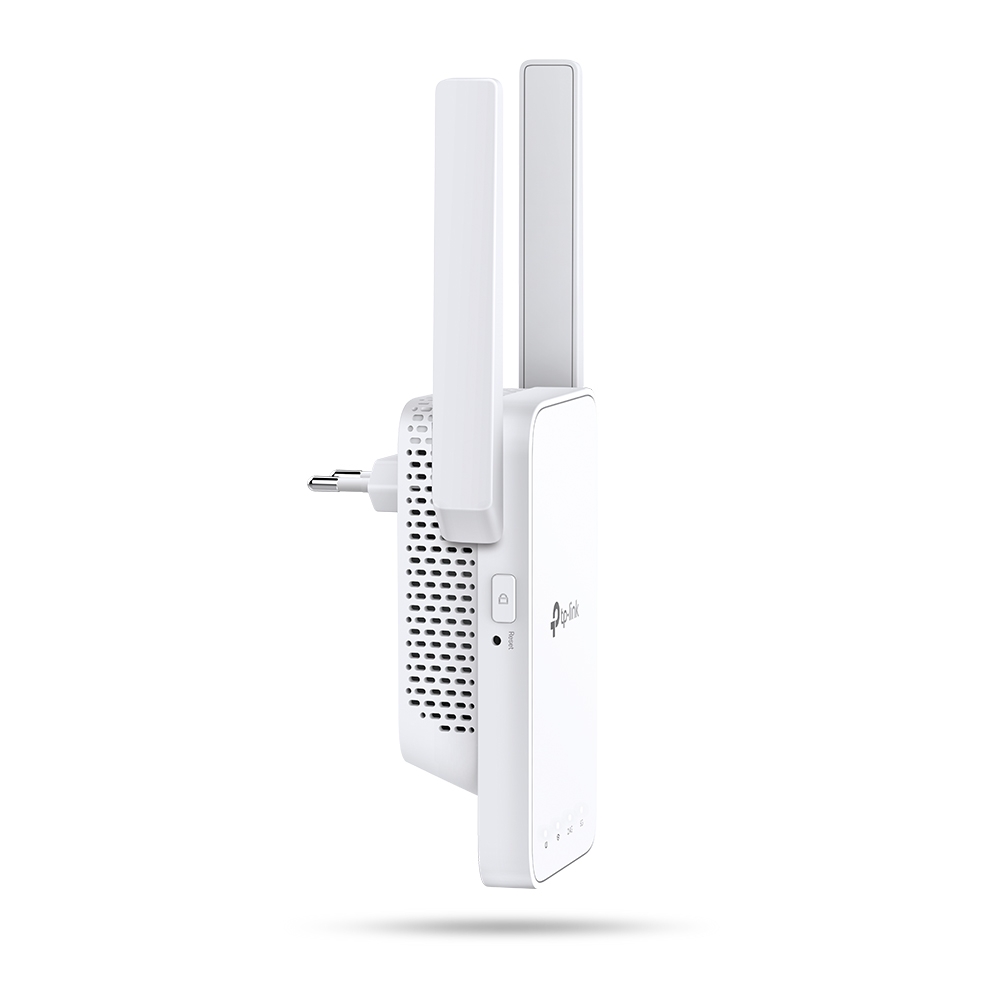

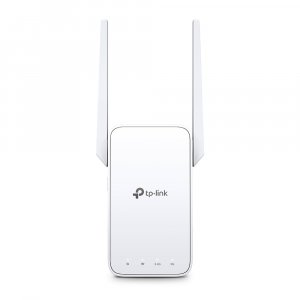

TP-Link AC1200 Mesh Wi-Fi Range Extender. Type: Network repeater, Data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Antenna type: External, Transmitting power (CE): 2.4 GHz ≤20dBm, 5 GHz ≤30dBm. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Product colour: White, Quantity per pack: 1 pc(s), Certification: CE, RoHS. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (max): 9.5 W

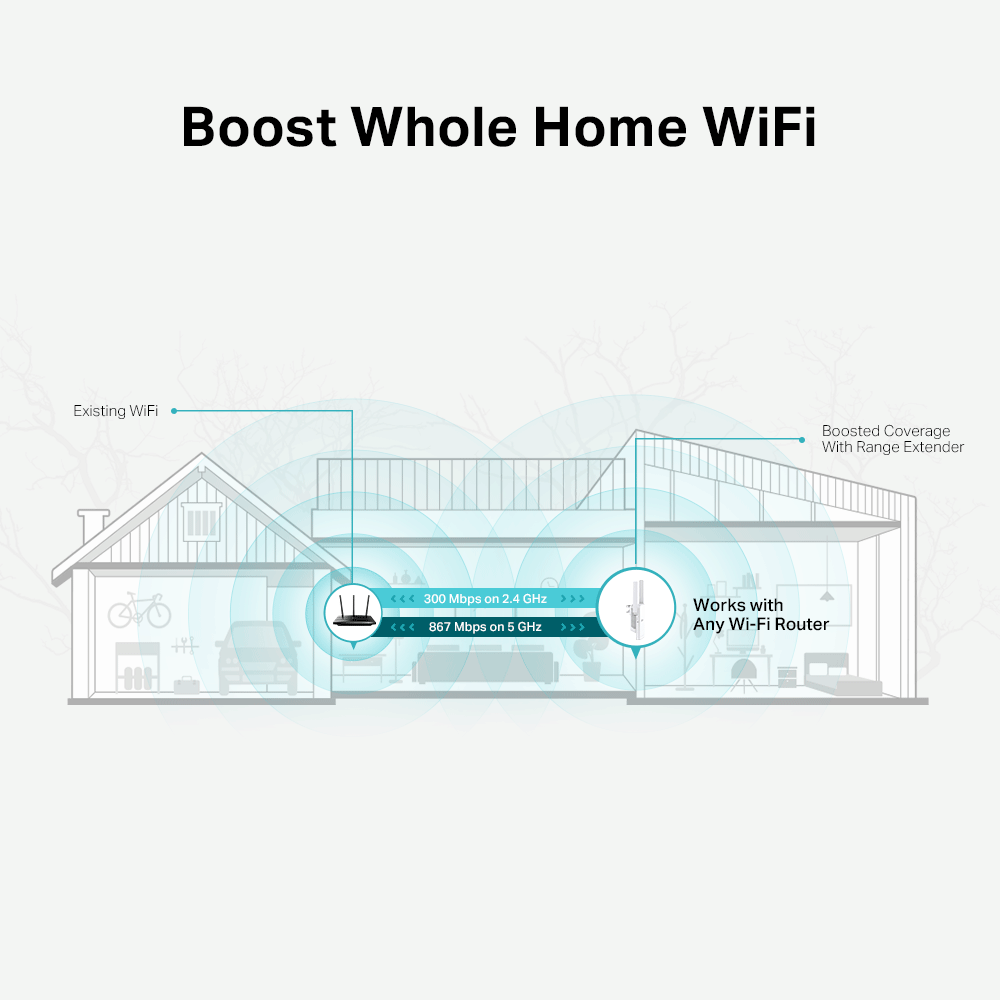

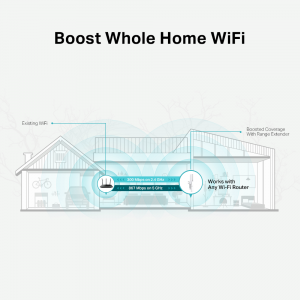

Eliminate weak signal areas with whole home WiFi coverage
2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience

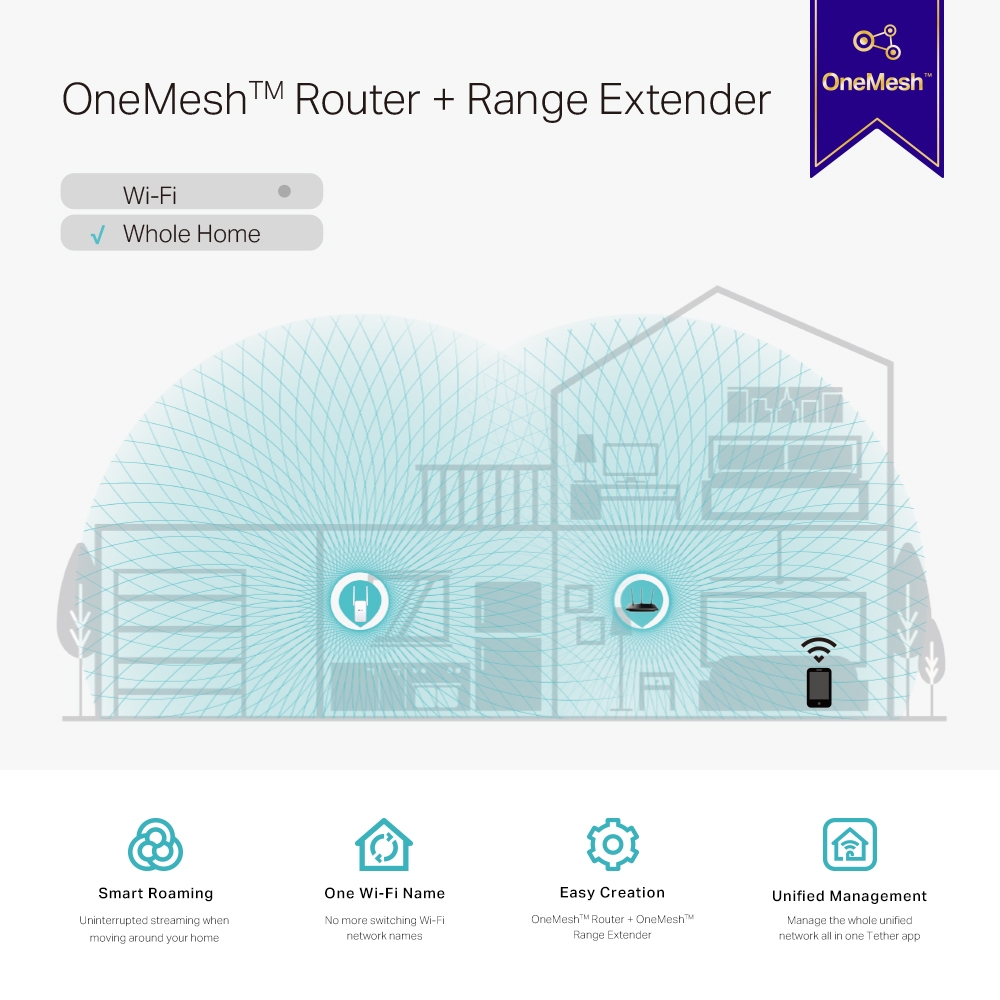

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage
Adaptive Path Sel0ction – connects to the fastest connection path to the router automatically and runs at top-speed
High Speed Mode – maximizes speed by using one WiFi band as dedicated backhaul, ideal for HD streaming and gaming
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

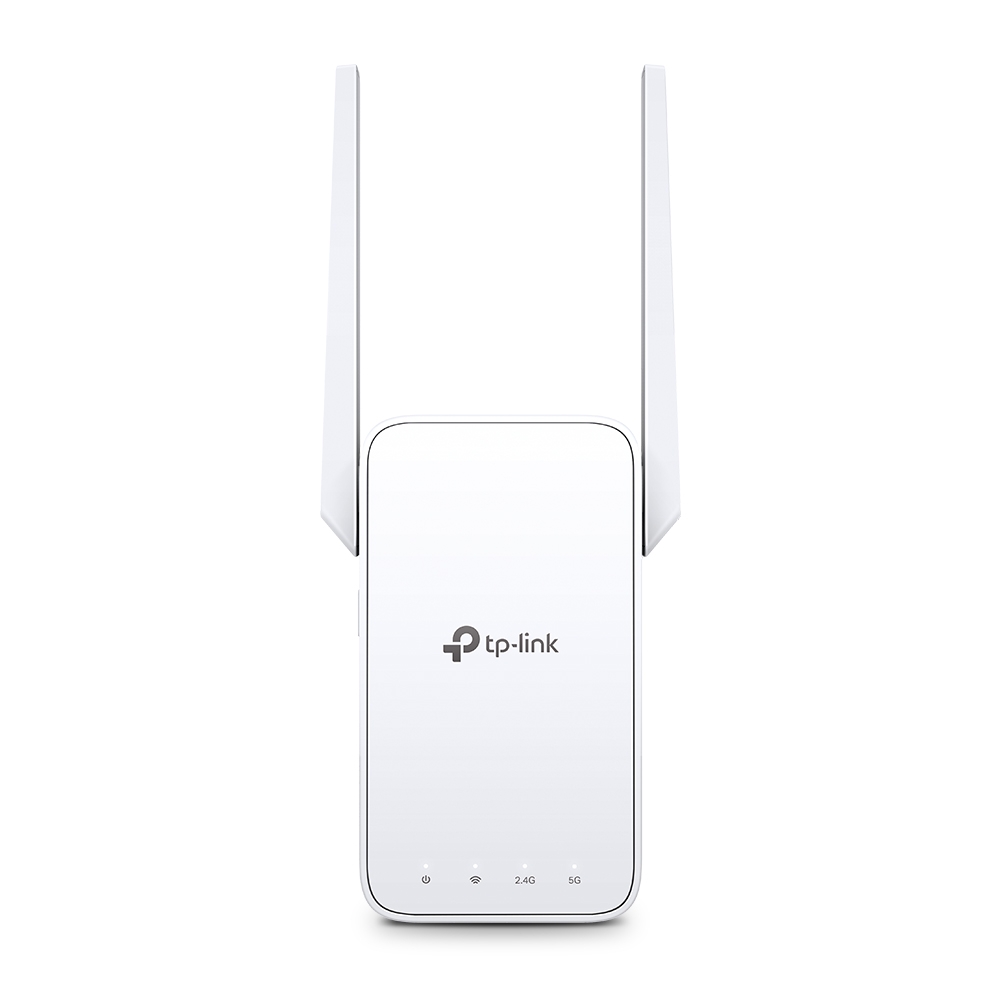

Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI
Works with any Wi-Fi router or wireless access point

Product Properties

Manufacturer
TP-LINK

Model
RE315

EAN
6935364072452

Antenna

Antenna type
External

Antennas quantity
2

Transmitting power (CE)
2.4 GHz ≤20dBm, 5 GHz ≤30dBm

Bullet points

Point
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage

Eliminate weak signal areas with whole home WiFi coverage

Works with any Wi-Fi router or wireless access point

Design

Certification
CE, RoHS

LED indicators
Y

Product colour
White

Quantity per pack
1 pc(s)

Reset button
Y

Logistics data

Harmonized System (HS) code
85176990

Network

Cabling technology
10/100Base-T(X)

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Security algorithms
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK

Wi-Fi
Y

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi data rate (max)
867 Mbit/s

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Quick start guide
Y

Packaging data

Package depth
89 mm

Package height
156.5 mm

Package type
Box

Package weight
260 g

Package width
121.5 mm

Performance

Browser supported
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

Data transfer rate
867 Mbit/s

Ethernet LAN data rates
10,100 Mbit/s

Linux operating systems supported
Y

Mac compatibility
Y

Mac operating systems supported
Y

Type
Network repeater

Windows operating systems supported
Y

WPS push button
Y

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
9.5 W

Technical details

Sustainability certificates
CE, RoHS

Weight & dimensions

Depth
35 mm

Height
124.1 mm

Width
89 mm
