Description

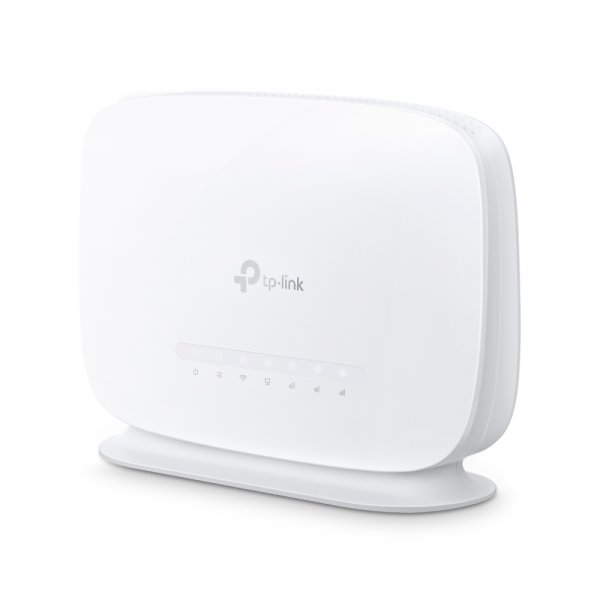

TP-Link Archer AC1200. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, VPN server: PPTP VPN, OpenVPN. Mobile network generation: 4G, 3G standards: DC-HSPA+, HSPA, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA3, WPA3-Enterprise

Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency
EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device
Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can't get a 4G connection

Product Properties

Manufacturer
TP-LINK

Model
ARCHER MR515

EAN
8885020623277

Antenna

Antenna design
Internal

Antennas quantity
6

Bullet points

Point
Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps

Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device

EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi

MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency

Certificates

Compliance certificates
CE, RoHS

Design

Product colour
White

Product type
Portable router

Features

Built-in processor
Yes

Firmware upgradeable
Yes

Number of simultaneously connected devices (max)
64

Management features

MU-MIMO technology
Yes

Reset button
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

WPS push button
Yes

Mobile network

3G standards
DC-HSPA+, HSPA, UMTS

4G bands supported
700,800,850,900,1800,2100,2300,2500,2600 MHz

4G standard
LTE-TDD & LTE-FDD

Mobile network generation
4G

SIM card type
NanoSIM

UMTS bands supported
850,900,2100 MHz

Network

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Maximum Tx power (2.4 GHz)
20 dBmW

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Port forwarding
Yes

Port triggering
Yes

Receiver sensitivity
5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm

VPN server
PPTP VPN, OpenVPN

VPN support
PPTP VPN, OpenVPN

Packaging content

AC adapter included
Yes

Cables included
LAN (RJ-45)

Quick installation guide
Yes

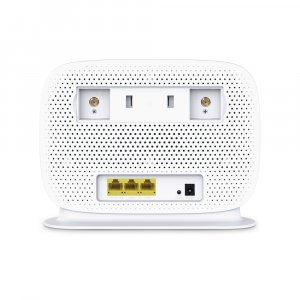

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

USB port
Yes

Power

Output current
1.5 A

Output voltage
12 V

Power source type
AC

Protocols

DHCP server
Yes

Universal Plug and Play (UPnP)
Yes

Security

Access Control List (ACL)
Yes

DMZ support
Yes

DoS attack prevention
Yes

Filtering
Yes

Firewall
Yes

Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA3, WPA3-Enterprise

System event log
Yes

URL filtering
Yes

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
Yes

WAN connection type
RJ-45

Weight & dimensions

Depth
157.5 mm

Height
57 mm

Width
212 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

WLAN data transfer rate (first band)
300 Mbit/s

WLAN data transfer rate (max)
867 Mbit/s

WLAN data transfer rate (second band)
867 Mbit/s

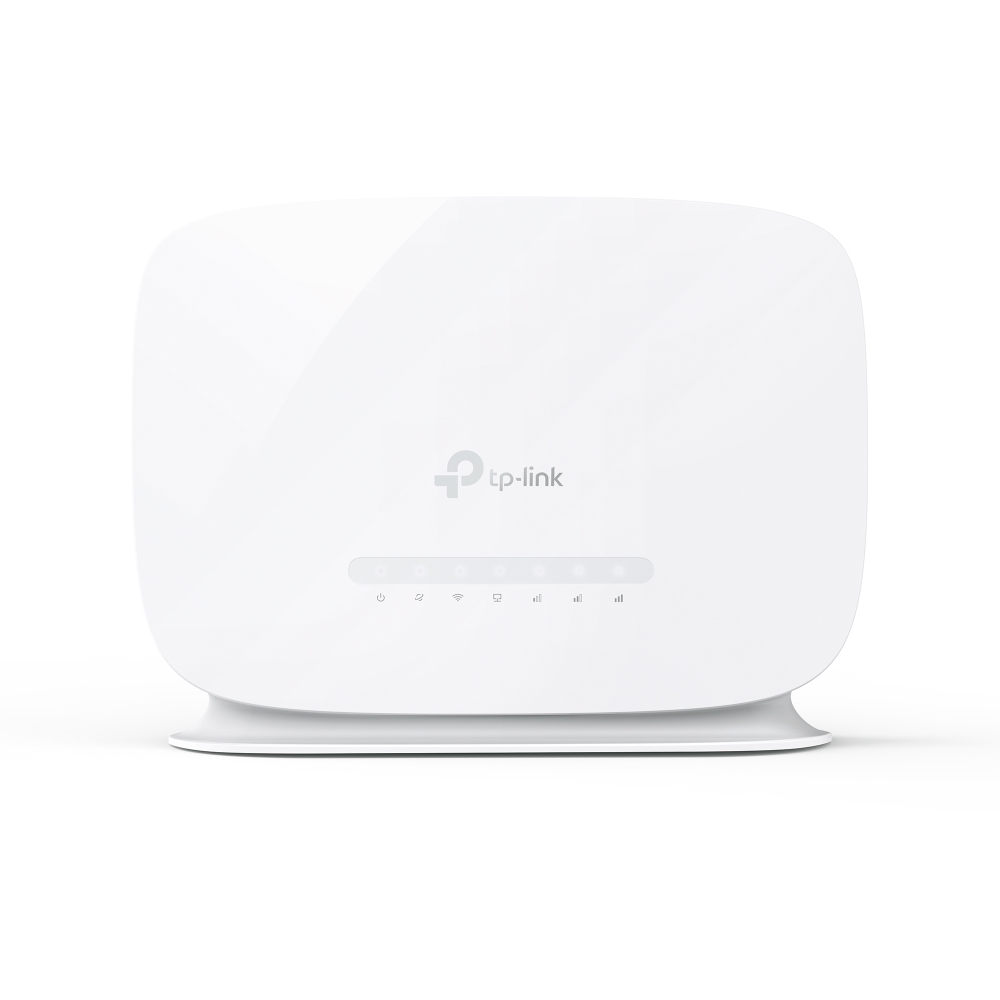

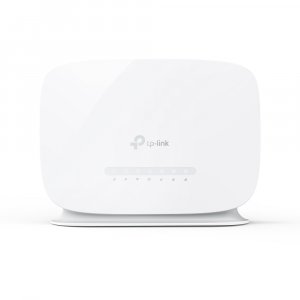

TP-Link Archer AC1200 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White
