Description

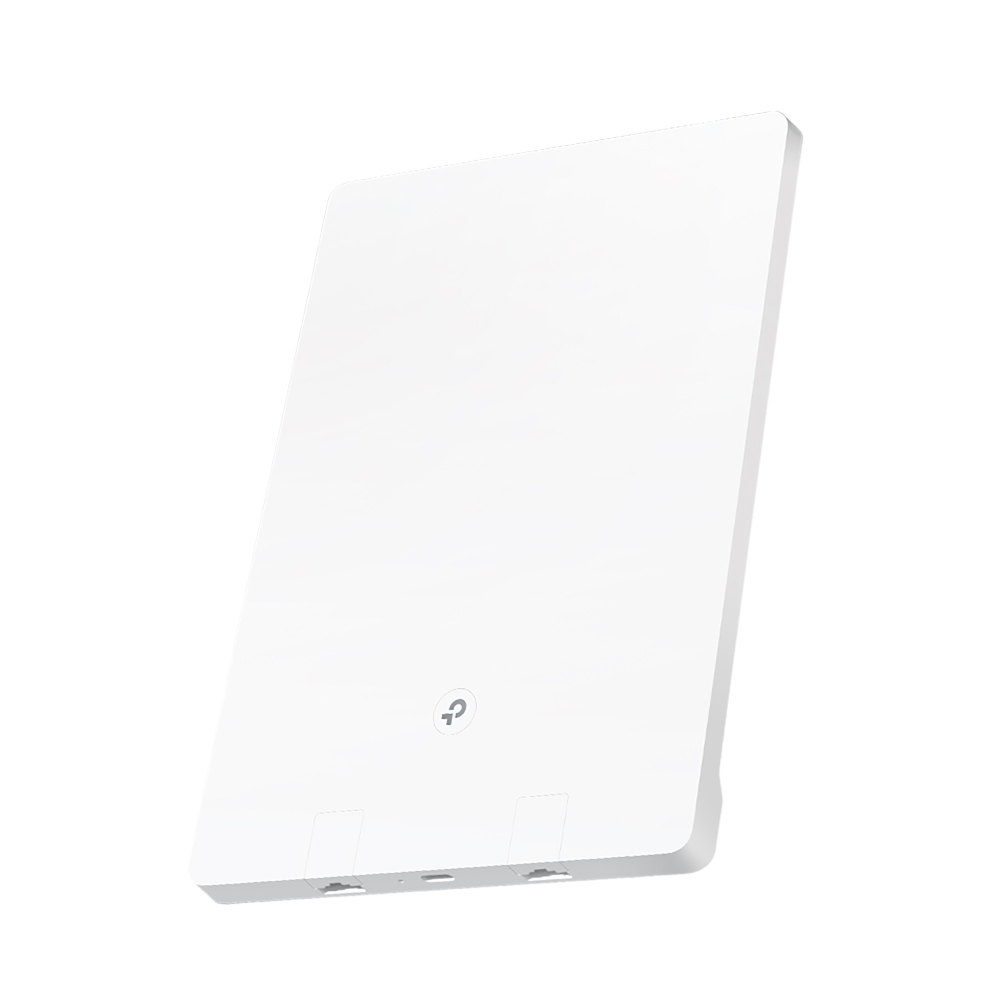

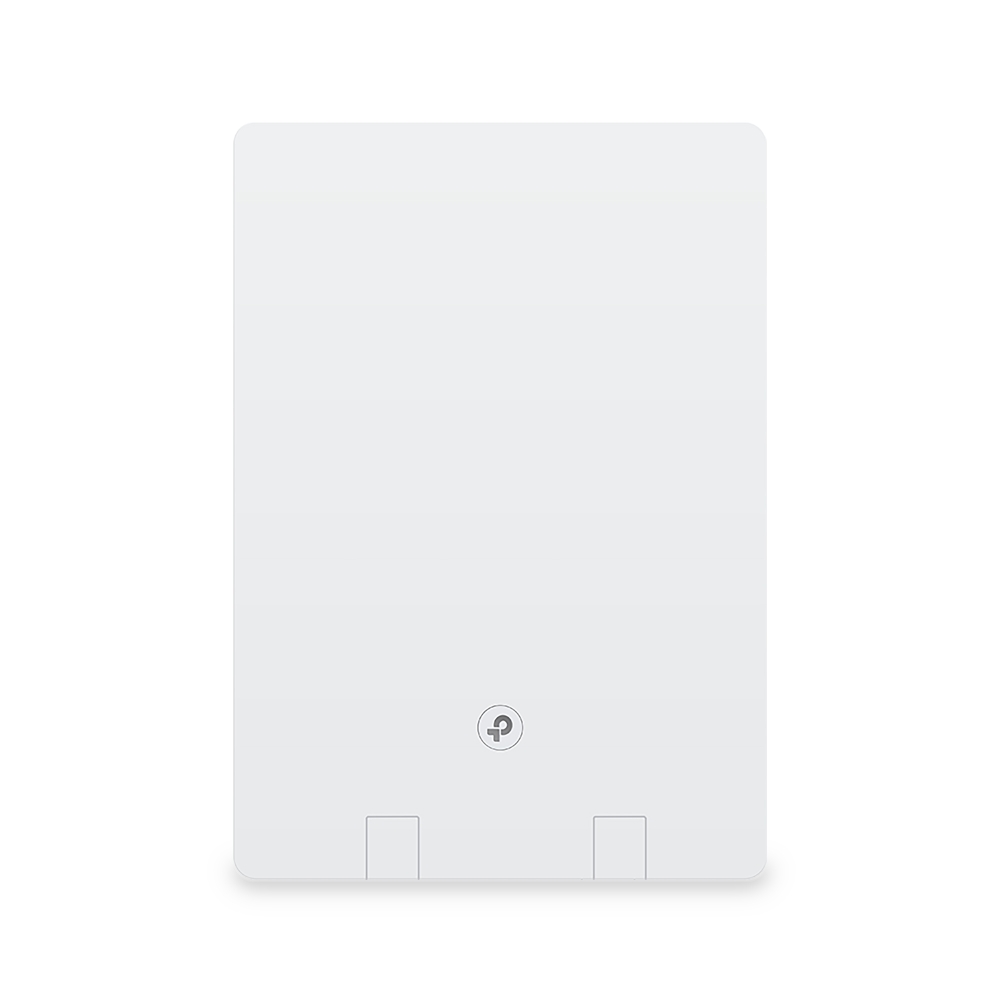

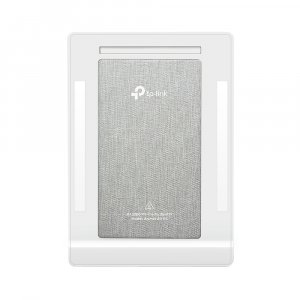

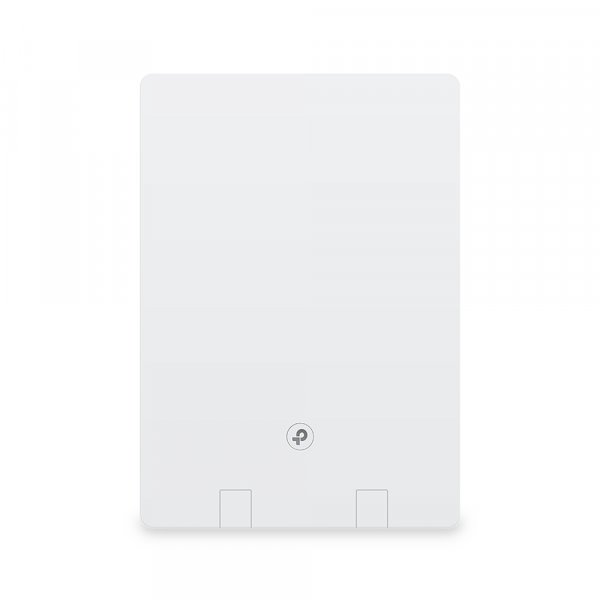

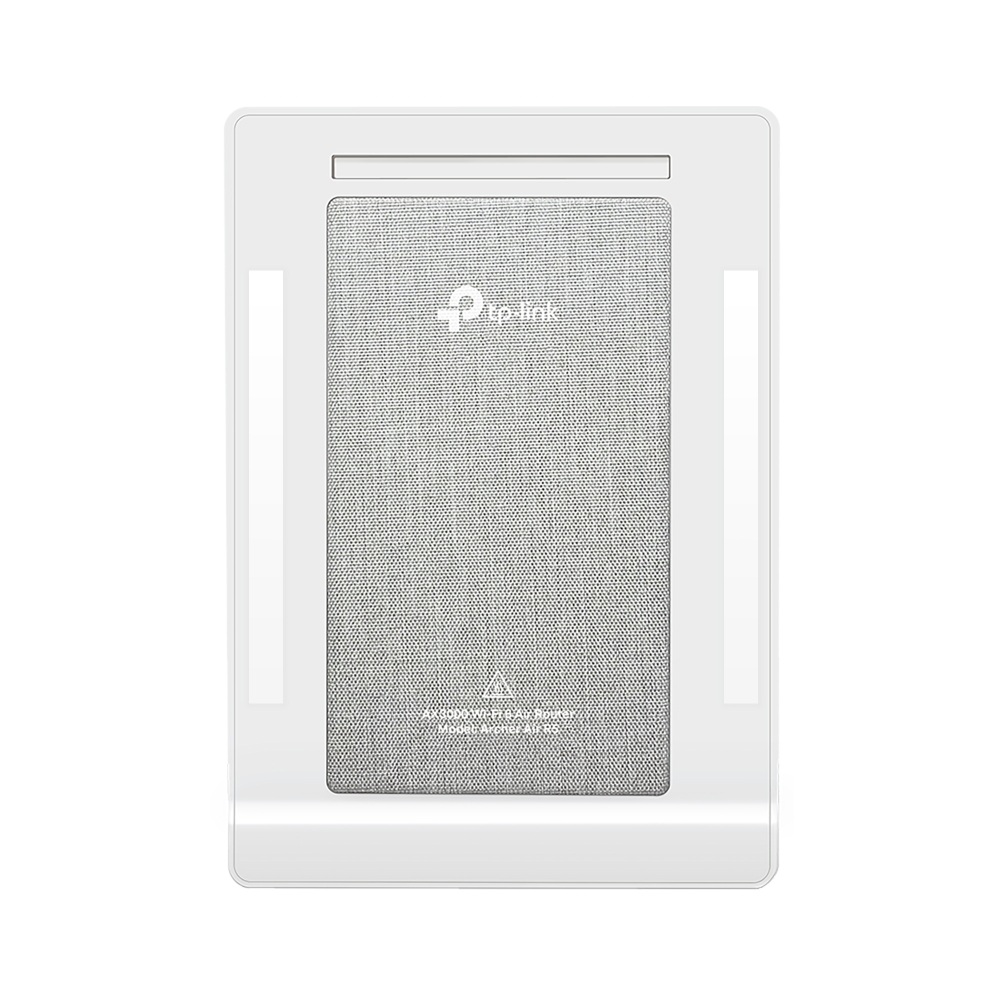

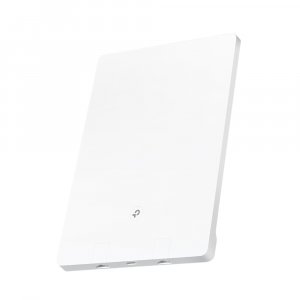

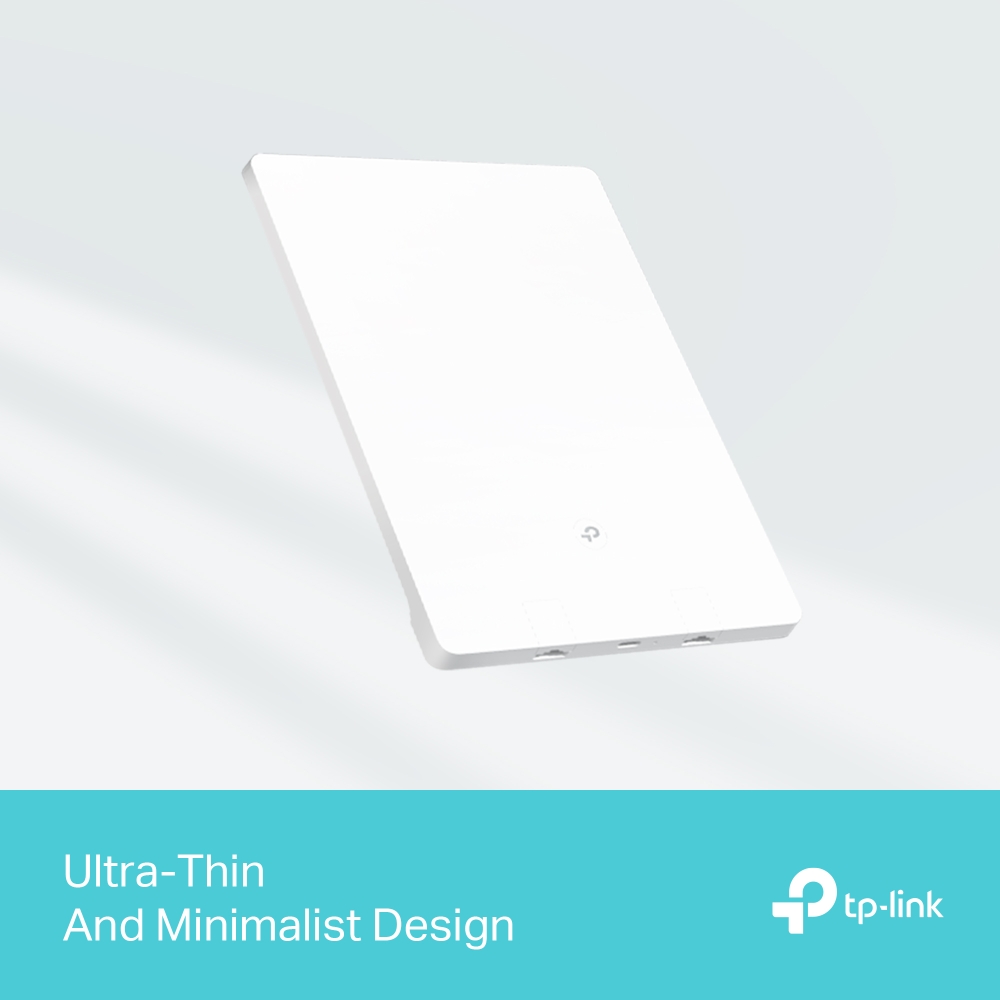

TP-Link Archer AX3000 Dual-Band Wi-Fi 6 Air Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2976 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3. Supported network protocols: IPv4, IPv6

Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads

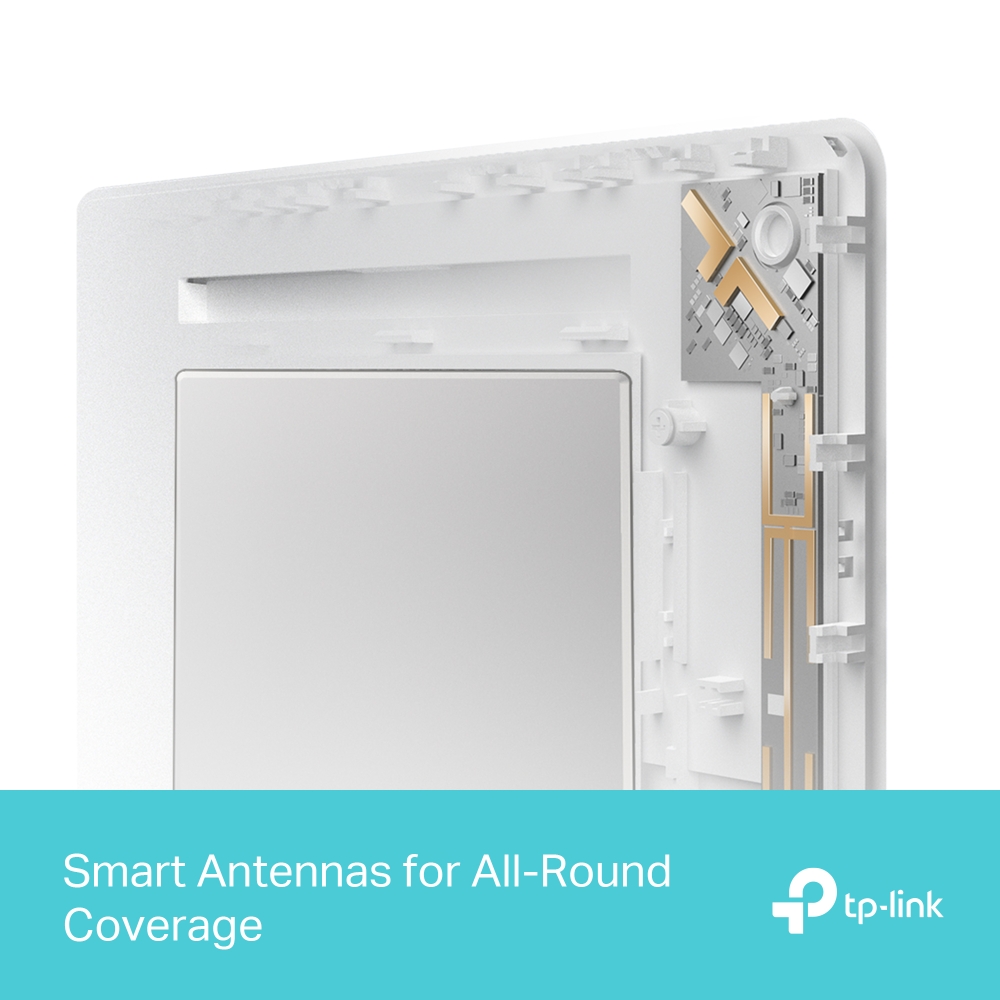

Smart Antennas – Uses intelligent algorithms to auto-detect your devices’ locations and adjust antennas’ direction for all-round stable signals
Ultra-Low Latency—Enables more responsive gaming and video chatting
TP-Link HomeShield - Enhanced security defends against the latest cyber threats
EasyMesh-Compatible - Works with EasyMesh-compatible routers to create a whole home seamless mesh network

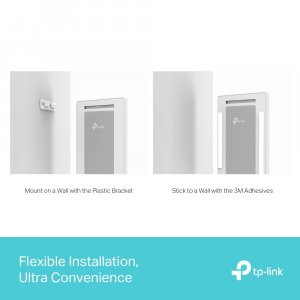

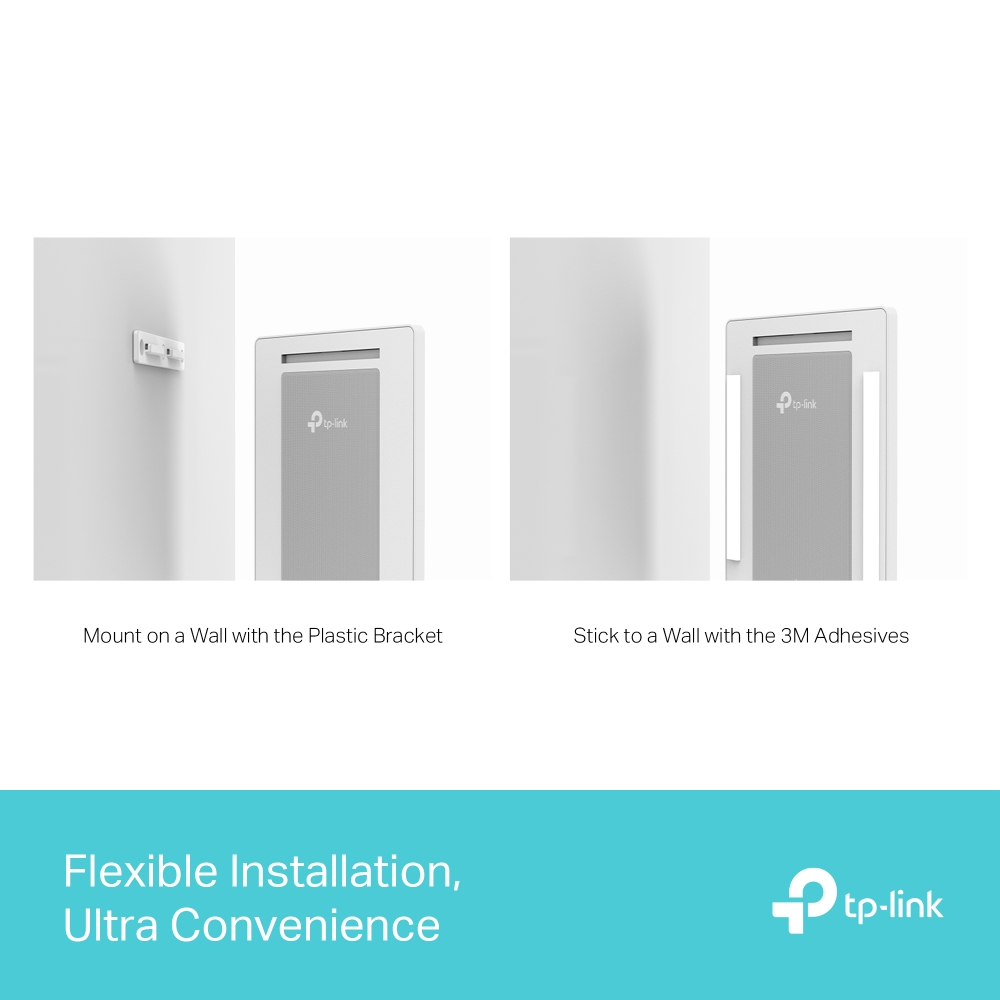

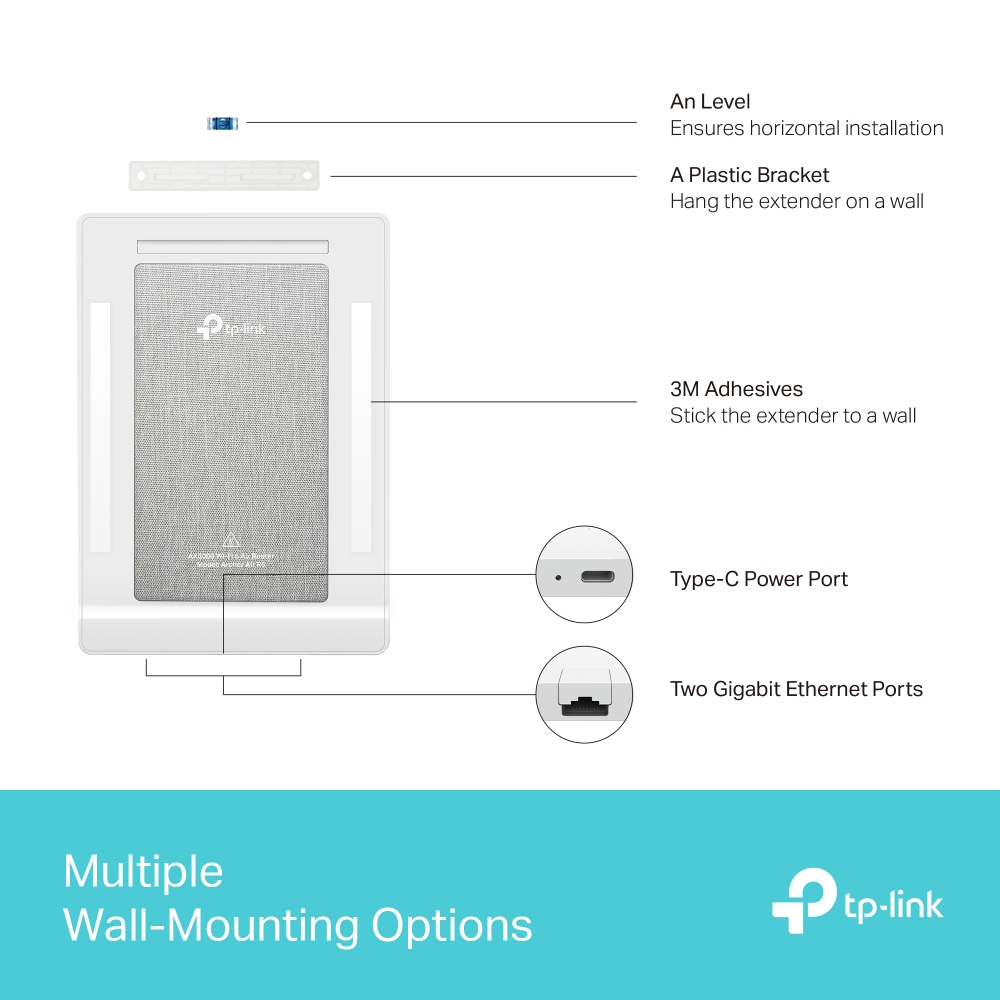

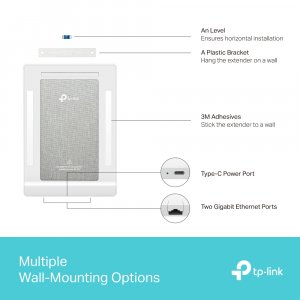

Flexible Installation – Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket

Product Properties

Manufacturer
TP-LINK

Model
ARCHER AIR R5

EAN
4895252500660

Antenna

Antenna design
Internal

Bullet points

Point
TP-Link HomeShield - Enhanced security defends against the latest cyber threats

Ultra-Low Latency—Enables more responsive gaming and video chatting

Design

Product colour
White

Product type
Tabletop router

Wall mountable
Yes

Features

Certification
FCC, CE, RoHS

Management features

Quality of Service (QoS) support
Yes

Reset button
Yes

WPS push button
Yes

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 60 °C

Packaging content

Manual
Yes

Packaging data

Package type
Box

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

USB charging port
Yes

USB port
Yes

Power

Power source type
USB

Protocols

DHCP server
Yes

Supported network protocols
IPv4, IPv6

Security

Guest access
Yes

Security algorithms
WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
No

WAN connection type
RJ-45

Weight & dimensions

Depth
10.8 mm

Height
210 mm

Width
148 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)
574 Mbit/s

WLAN data transfer rate (max)
2976 Mbit/s

WLAN data transfer rate (second band)
2402 Mbit/s
