Description

TP-Link Archer AX6000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 4804 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA, WPA2, WPA3, Firewall security: DoS, SPI Firewall, IP and MAC Address Binding. Supported network protocols: IPv4, IPv6

Blazing Speed - AX6000 Dual-Band Wi-Fi speed boosted by 1024QAM deliver astonishing wireless speed up to 5952 Mbps: 4804 Mbps (5 GHz) and 1148 Mbps (2.4 GHz)

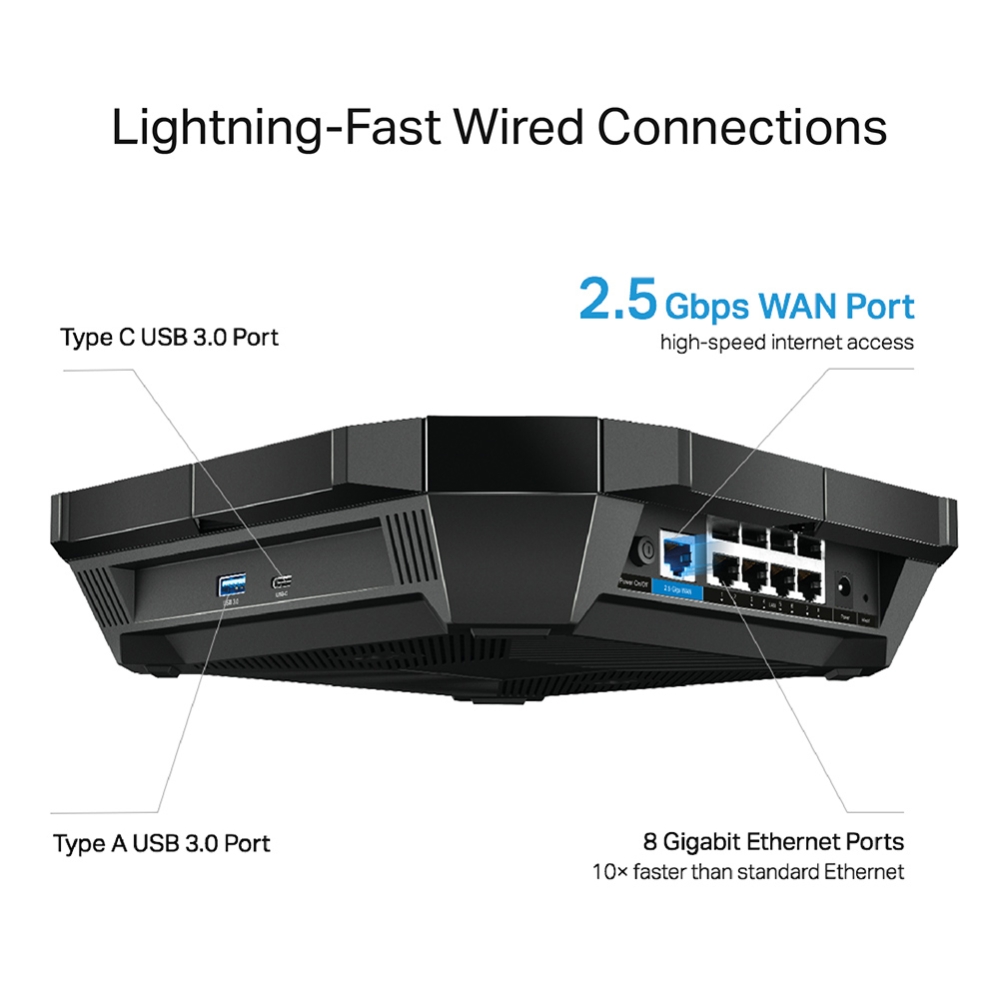

Ultra Connectivity - 1 × 2.5Gbps WAN port6, 8 × Gigabit LAN ports, and 2 × USB 3.0 in Type A and Type C
Highly Efficient - OFDMA increases average throughput by 4× in high-density scenarios, compared with an 802.11ac standard router. Downlink and uplink MU-MIMO5 are both supported
Powerful Processing - 1.8 GHz Quad-Core CPU and 2 co-processors eradicate latency and deliver stable performance
Intelligent Connection - Band Steering directs clients to less congested band and Airtime Fairness optimizes the time usage
Security System Built In - A free lifetime subscription of TP-Link HomeCareTM provides your whole network with advanced antimalware service, delivering Antivirus, Parental Controls and QoS7
Easy Setup - Link to your router via Bluetooth and set it up in minutes with the powerful Tether app

Product Properties

Manufacturer
TP-LINK

Model
ARCHER AX6000

EAN
6935364089177

Antenna

Antenna design
External

Antennas quantity
8

Detachable antenna(s)
Yes

Transmit power
CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz), FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)

Bullet points

Point
Blazing Speed - AX6000 Dual-Band Wi-Fi speed boosted by 1024QAM deliver astonishing wireless speed up to 5952 Mbps

Easy Setup - Link to your router via Bluetooth and set it up in minutes with the powerful Tether app

Design

Indication light
Yes

LED indicators
LAN, Power, Status, USB, WAN, WLAN

On/off switch
Yes

Product colour
Black

Product type
Tabletop router

Wall mountable
Yes

Features

Built-in processor
Yes

Firmware upgradeable
Yes

Flash memory
128 MB

Internal memory
1 MB

Processor cores
4

Processor frequency
1800 MHz

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Reset button
Yes

Web-based management
Yes

WPS push button
Yes

Network

Built-in FTP server
Yes

Cabling technology
10/100/1000Base-T(X)

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Media server
Yes

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Port forwarding
Yes

Port triggering
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Yes

Cables included
LAN (RJ-45)

Quick installation guide
Yes

Packaging data

Number of products included
1 pc(s)

Package depth
290 mm

Package height
120 mm

Package weight
1.82 kg

Package width
365 mm

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
8

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB port
Yes

Power

Output current
4 A

Output voltage
12 V

Power source type
DC

Protocols

DHCP client
Yes

DHCP server
Yes

Supported network protocols
IPv4, IPv6

Universal Plug and Play (UPnP)
Yes

Security

Access Control List (ACL)
Yes

DMZ support
Yes

DoS attack prevention
Yes

Filtering
Yes

Firewall
Yes

Firewall security
DoS, SPI Firewall, IP and MAC Address Binding

Guest access
Yes

Schedule access
Yes

Security algorithms
WPA, WPA2, WPA3

URL filtering
Yes

Sustainability

Sustainability certificates
RoHS, Federal Communications Commission (FCC), CE

Sustainability compliance
Yes

System requirements

Linux operating systems supported
Yes

Mac compatibility
Yes

Mac operating systems supported
macOS

Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows XP

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
No

WAN connection type
RJ-45

Weight & dimensions

Depth
261.2 mm

Height
60.2 mm

Width
261.2 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)
1148 Mbit/s

WLAN data transfer rate (max)
4804 Mbit/s

WLAN data transfer rate (second band)
4804 Mbit/s

TP-Link Archer AX6000 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
