Description

TP-Link Archer BE3600. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 2882 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 1000,2500 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Number of data streams: 4x4. Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3

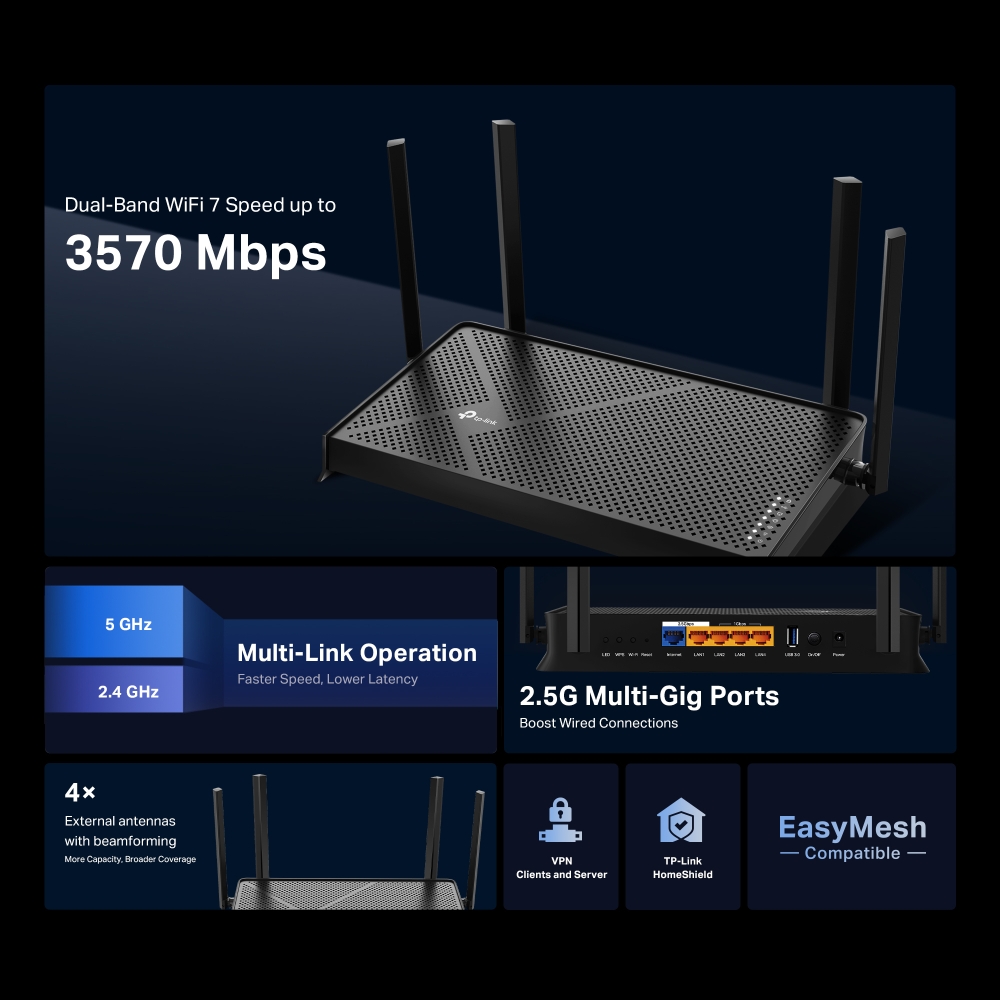

3.6 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†

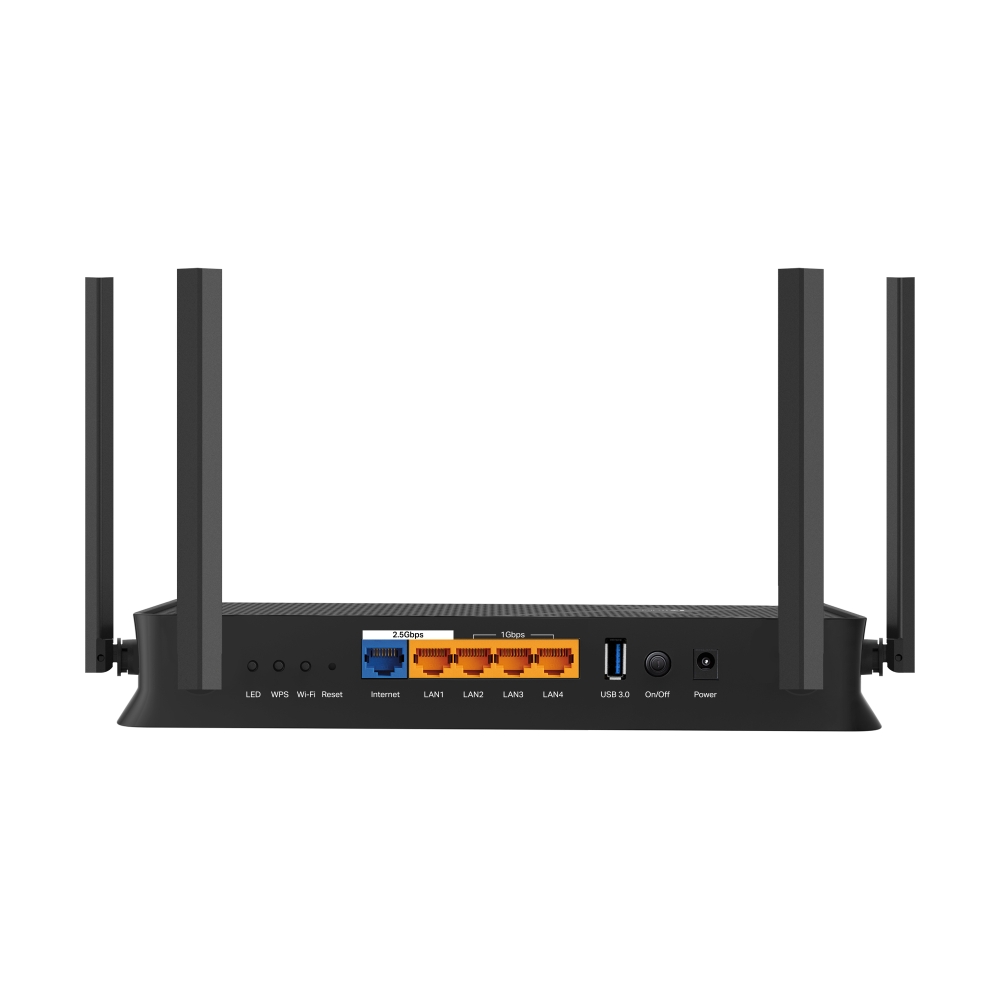

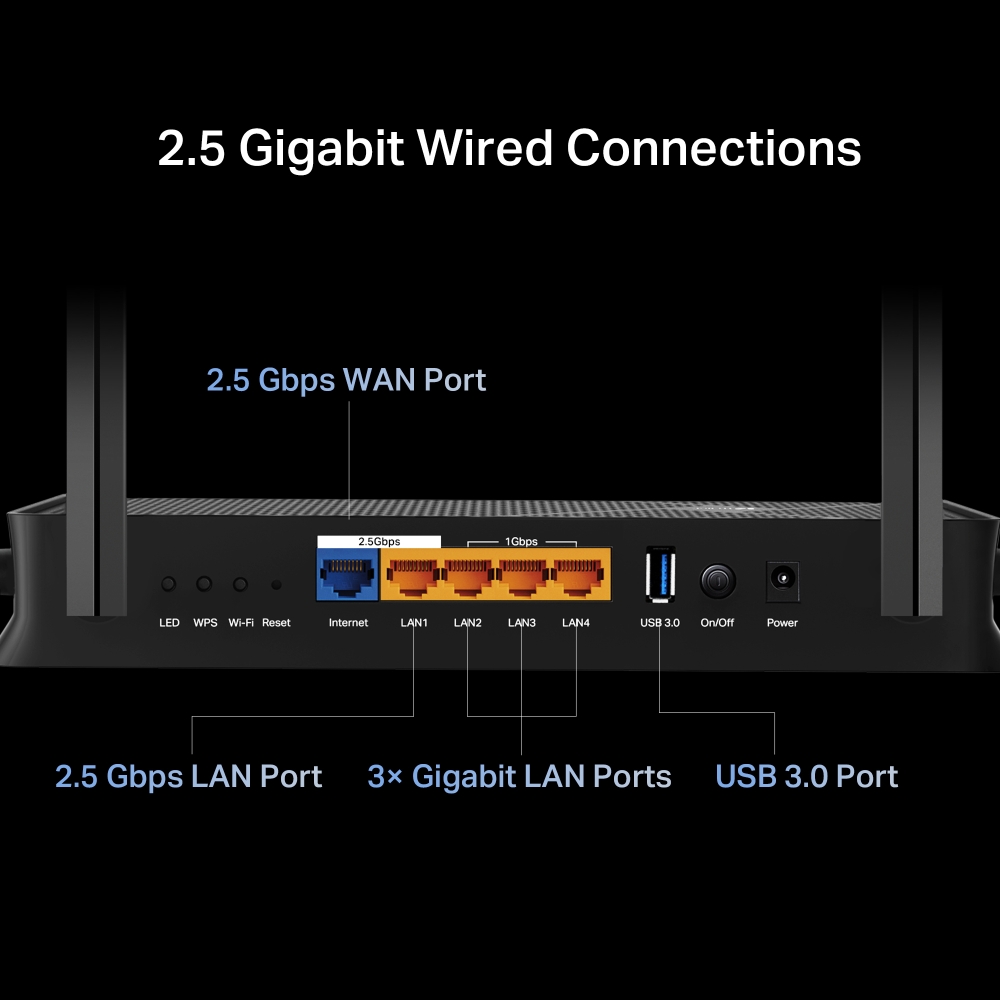

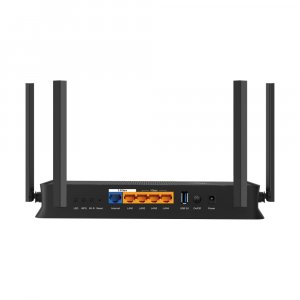

2× 2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.‡
Maximized Coverage: 4× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals
Easy Setup and Use: Network management has never been easier with the Tether app
TP-Link HomeShield: Enhanced security defends against the latest cyber threats
Great Compatibility: Supports all Wi-Fi generations and devices**and all internet providers

Product Properties

Manufacturer
TP-LINK

Model
ARCHER BE230

EAN
4895252507997

Antenna

Antenna design
External

Antennas quantity
4

Bullet points

Point
2× 2.5G Ports

3.6 Gbps Dual-Band WiFi 7

Easy Setup and Use: Network management has never been easier with the Tether app

EasyMesh-Compatible

Great Compatibility: Supports all Wi-Fi generations and devices**and all internet providers

Maximized Coverage

TP-Link HomeShield: Enhanced security defends against the latest cyber threats

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Design

On/off switch
Yes

Product colour
Black

Product type
Tabletop router

Features

Firmware upgradeable
Yes

Works with Amazon Alexa
Yes

Works with the Google Assistant
Yes

Management features

MU-MIMO technology
Yes

Number of data streams
4x4

Quality of Service (QoS) support
Yes

Reset button
Yes

Web-based management
Yes

WPS push button
Yes

Network

Built-in FTP server
Yes

Cabling technology
10/100/1000Base-T(X)

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
1000,2500 Mbit/s

Ethernet LAN interface type
2.5 Gigabit Ethernet

Media server
Yes

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Port forwarding
Yes

Port triggering
Yes

Support Samba (storage)
Yes

VPN support
• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB port
Yes

Power

Output current
1.5 A

Output voltage
12 V

Power source type
AC

Protocols

DHCP server
Yes

Universal Plug and Play (UPnP)
Yes

Security

Access Control List (ACL)
Yes

DDoS protection
Yes

DMZ support
Yes

Firewall
Yes

Guest access
Yes

IP address filtering
Yes

Parental control
Yes

Security algorithms
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3

WAN connection

3G/4G USB modem compatibility
No

Ethernet WAN
Yes

SIM card slot
No

WAN connection type
RJ-45

Wireless LAN features

Modulation
4096-QAM, OFDMA

Top Wi-Fi standard
Wi-Fi 7 (802.11be)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
Wi-Fi 7 (802.11be)

WLAN data transfer rate (first band)
2882 Mbit/s

WLAN data transfer rate (max)
2882 Mbit/s

WLAN data transfer rate (second band)
688 Mbit/s

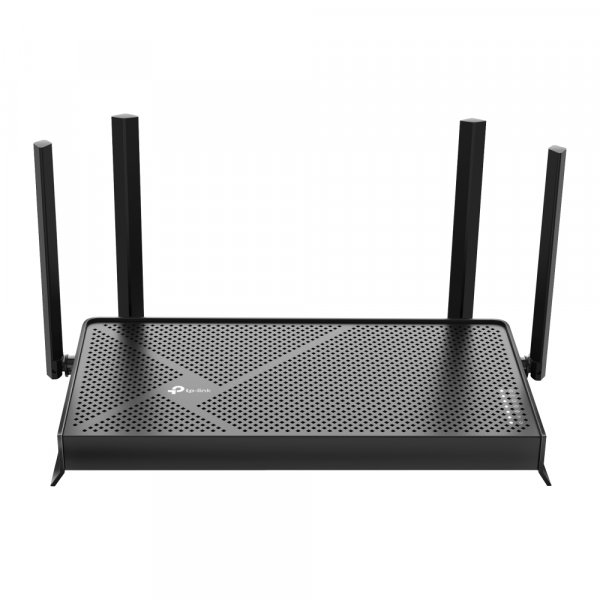

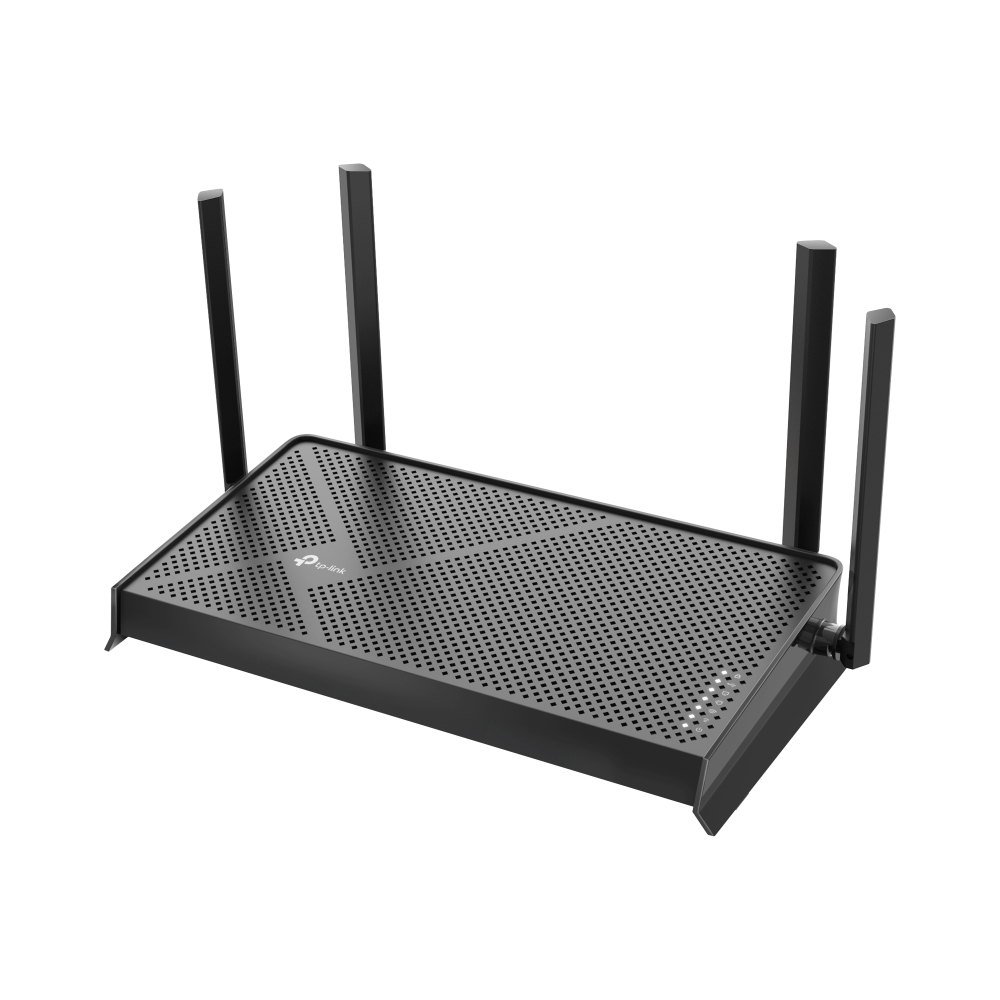

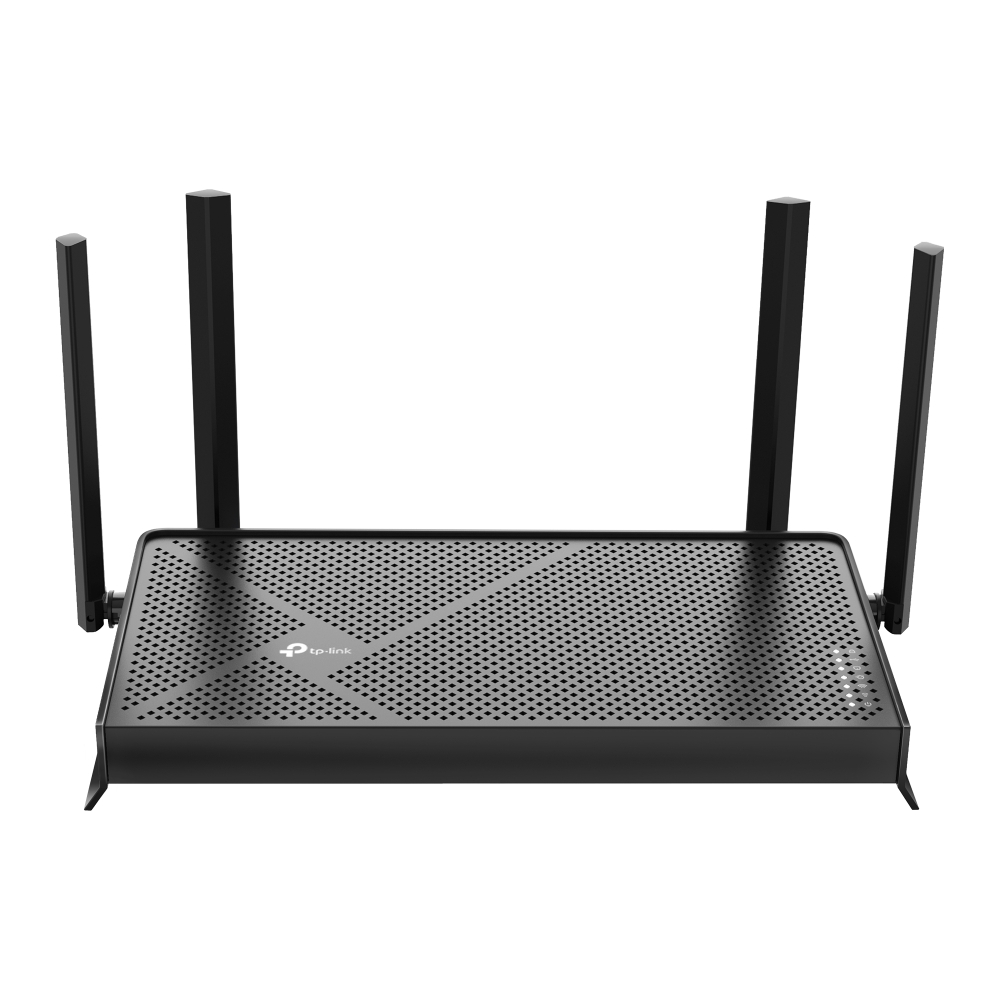

TP-Link Archer BE3600 wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
