Description

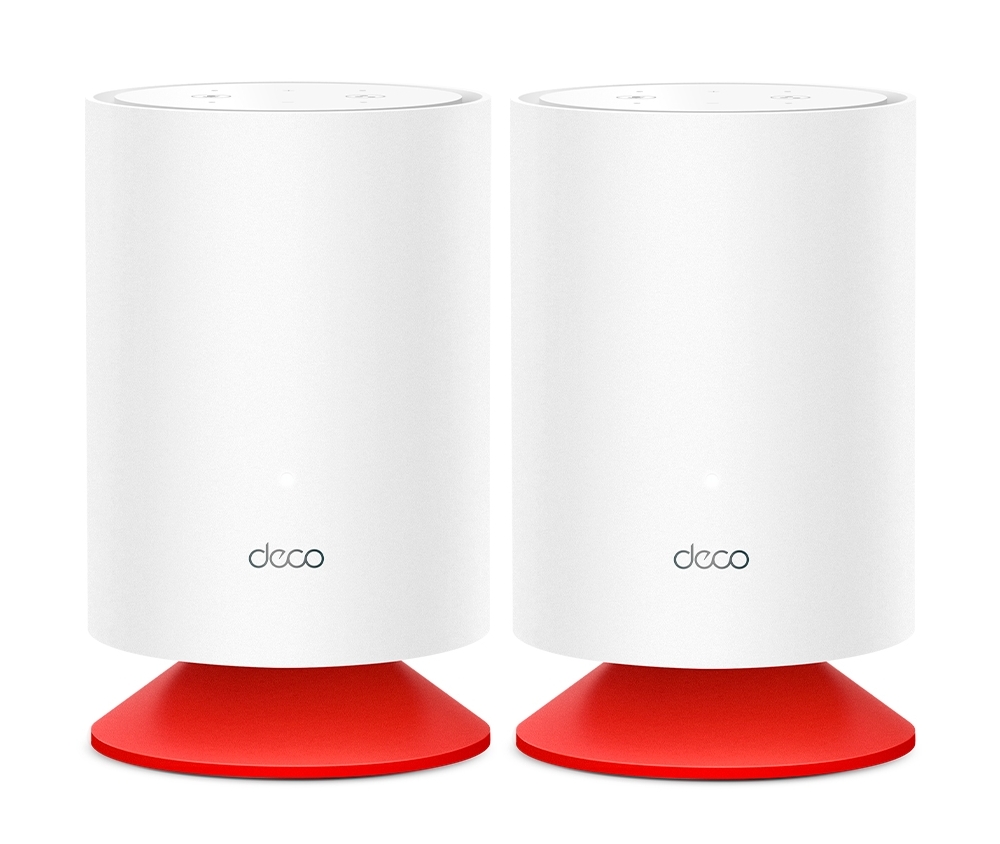

TP-Link AX1800 Mesh Wi-Fi 6 System with Alexa Built-In. Product colour: White, Antenna type: Internal, LED indicators: Power. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Processor frequency: 1.5 GHz, Speaker power: 5 W, Virtual assistant: Amazon Alexa. AC input voltage: 100 - 240 V, AC adapter input current: 0.6 A, AC input frequency: 50/60 Hz. Certification: CE, EAC, FCC, IC, RoHS, RCM

Super-fast WiFi 6 speeds: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
TP-Link Mesh Technology: Walk throughout your home and stay connected with the fastest possible speeds
Alexa Built-in: Embrace a smarter home with whole-home voice control via Amazon Alexa
Integrated Smart Speaker: Supports popular audio providers throughout your home with premium sound
TP-Link HomeShield: Provides reliable IoT protection, robust parental controls, and comprehensive security reports
Full Gigabit Ethernet: 2× Gigabit WAN/LAN Ethernet ports per Deco Voice unit provide warp-speed wired connections
Setup Made Easier Than Ever: The Deco app walks you through the setup step-by-step
Works with All Deco Models: Compatible with all Deco models to form a unified whole-home mesh network

Product Properties

Manufacturer
TP-LINK

Model
DECO VOICE X20(2-P

EAN
4897098681473

Bullet points

Point
Alexa Built-in: Embrace a smarter home with whole-home voice control via Amazon Alexa

Full Gigabit Ethernet

Integrated Smart Speaker: Supports popular audio providers throughout your home with premium sound

Setup Made Easier Than Ever: The Deco app walks you through the setup step-by-step

Super-fast WiFi 6 speeds: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

TP-Link HomeShield

TP-Link Mesh Technology

Works with All Deco Models

Certificates

Certification
CE, EAC, FCC, IC, RoHS, RCM

Design

Antenna type
Internal

Antennas quantity
2

LED indicators
Power

Product colour
White

Reset button
Yes

Features

BeamForming
Yes

Built-in microphone
Yes

Built-in processor
Yes

Built-in speaker(s)
Yes

DHCP server
Yes

Firmware upgradeable via
Network

MIMO
Yes

MU-MIMO technology
Yes

NAT functionality
Port Forwarding UPnP

Operating modes
Router, Access Point

Parental control
Yes

Port forwarding
Yes

Processor cores
4

Processor frequency
1.5 GHz

Speaker power
5 W

Supported WAN type
Dynamic IP Static IP PPPoE PPTP L2TP

Transmitting power (CE)
<20 dBm (2.4 GHz) <23 dBm (5 GHz)

Transmitting power (FCC)
<30 dBm(2.4 GHz) <30 dBm(5 GHz)

Virtual assistant
Amazon Alexa

Logistics data

Harmonized System (HS) code
85171800

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 60 °C

Packaging content

AC adapter included
Yes

Ethernet cable
Yes

Number of products included
2 pc(s)

Number of units included
2 pc(s)

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
2

Power

AC adapter input current
0.6 A

AC adapter output current
1.5 A

AC adapter output voltage
12 V

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Weight & dimensions

Depth
105 mm

Height
170 mm

Width
105 mm

Wireless LAN features

Apps supported
TP-Link Deco

Dynamic DNS (DDNS)
Yes

Dynamic IP
Yes

Guest access
Yes

IGMP proxy
Yes

IGMP snooping
Yes

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Point-to-point protocol over Ethernet (PPPoE)
Yes

Security algorithms
WPA, WPA2-PSK, WPA3

Static IP
Yes

Tagged VLAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)
574 Mbit/s

WLAN data transfer rate (second band)
1201 Mbit/s
