Model: EAP610
EAN: 4897098680322

TP-Link AX1800 Wireless Dual Band Ceiling Mount Access Point

Manufacturer:
TP-LINK
TP-Link AX1800 Wireless Dual Band Ceiling Mount Access Point, 1775 Mbit/s, 574 Mbit/s, 1201 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

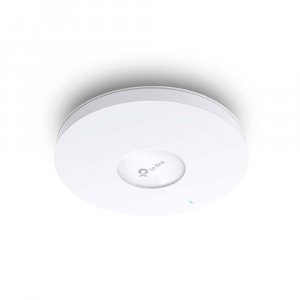

TP-Link AX1800 Wireless Dual Band Ceiling Mount Access Point. Maximum data transfer rate: 1775 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise. Power over Ethernet (PoE) type supported: Passive PoE, DC voltage range: 12 V. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal
  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds

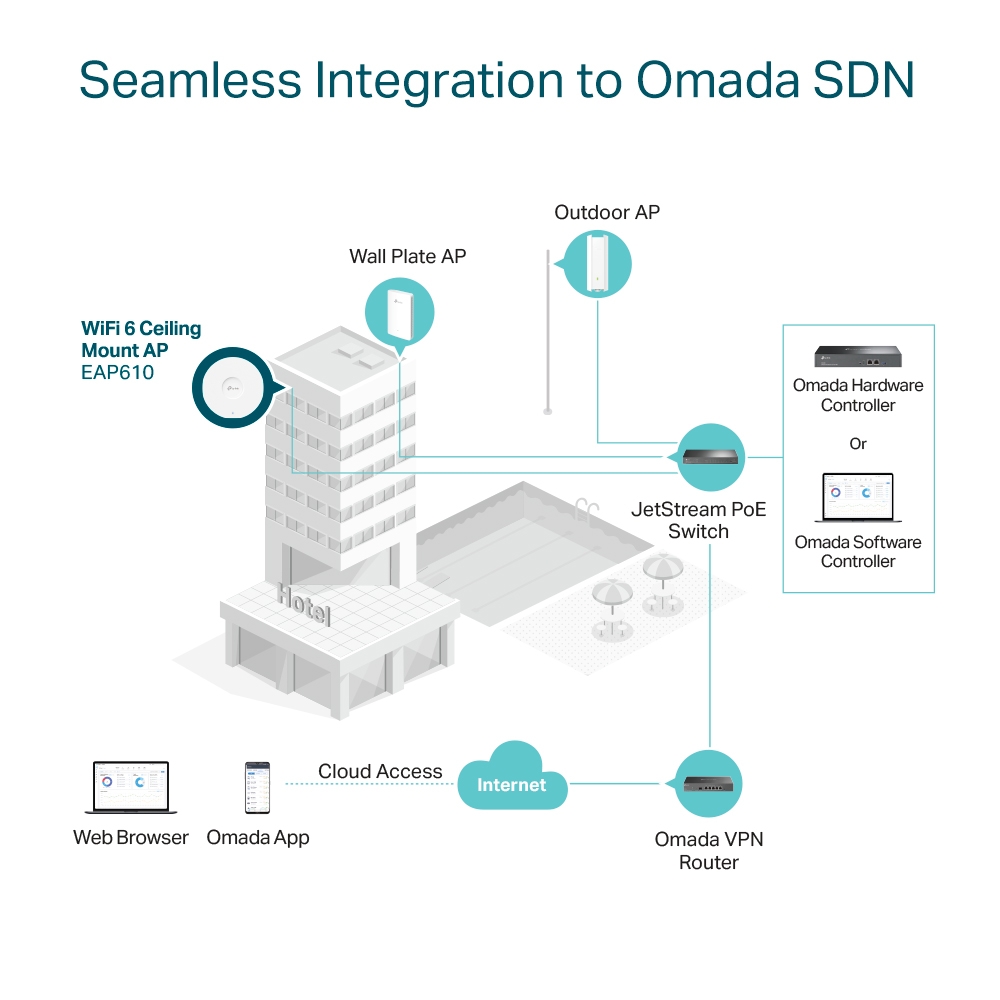

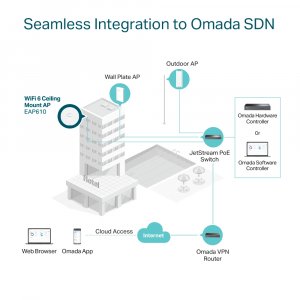

  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
  • PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Product Properties

  • Model
  • EAP610
  • EAN
  • 4897098680322
  • Antenna
  • Antenna type
  • Internal
  • Bullet points
  • Point
  • Centralized Cloud Management
    High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
    Omada Mesh
    PoE+ Powered
    Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
    Secure Guest Network
    Ultra-Fast WiFi 6 Speeds
  • Design
  • Certification
  • CE, FCC, RoHS
  • LED indicators
  • Yes

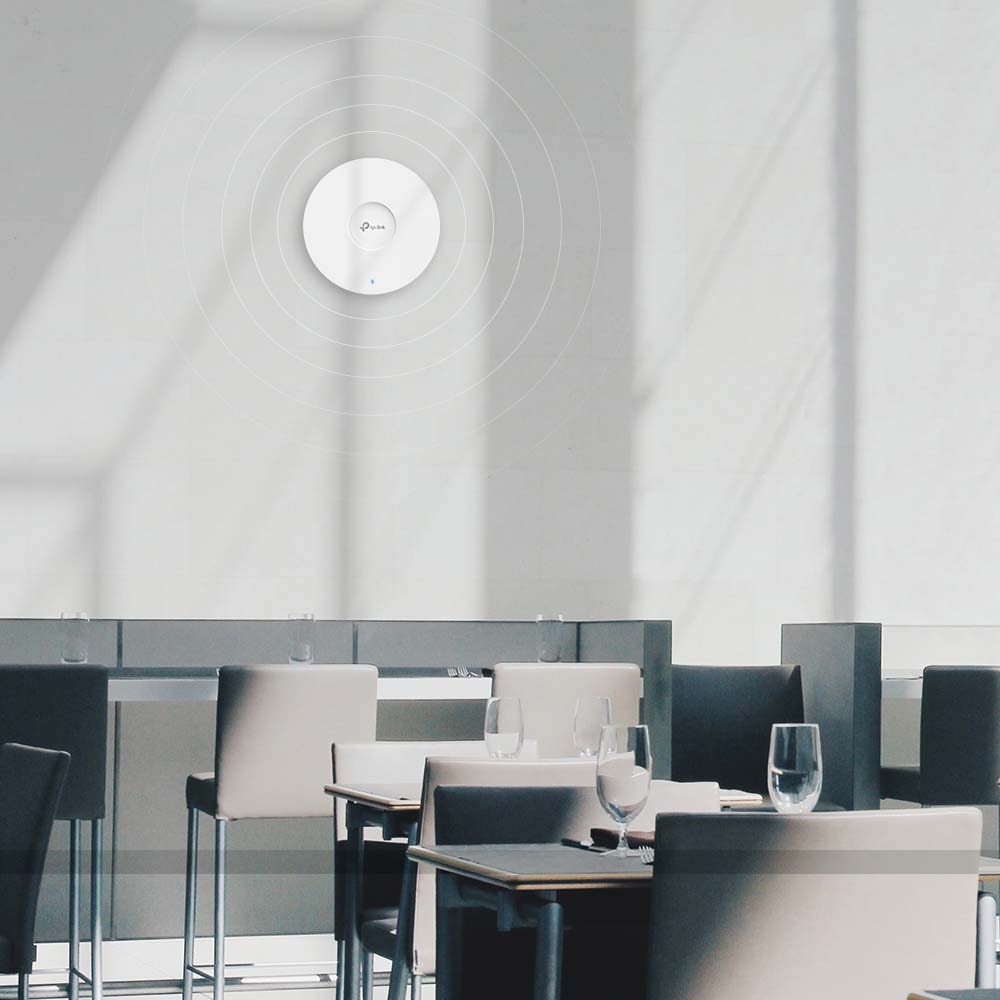

  • Placement
  • Ceiling, Wall
  • Product colour
  • White
  • Reset button
  • Yes
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • 6 GHz
  • No
  • Airtime Fairness (ATF)
  • Yes
  • Automatic channel scanning
  • Yes
  • Automatic channel selection
  • Yes
  • Band steering
  • Yes
  • Cabling technology
  • 10/100/1000Base-T(X)
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Fit AP mode features
  • Mesh networking
  • Flow control support
  • Yes
  • Frequency band
  • 2.4 - 5 GHz
  • Maximum data transfer rate
  • 1775 Mbit/s
  • Maximum data transfer rate (2.4 GHz)
  • 574 Mbit/s
  • Maximum data transfer rate (5 GHz)
  • 1201 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Quality of Service (QoS) support
  • Yes
  • Rate limiting
  • Yes
  • Spread spectrum method
  • OFDMA
  • Transmitting power (CE)
  • <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, EIRP)
  • Transmitting power (FCC)
  • <25 dBm (2.4 GHz); <25 dBm (5 GHz)
  • VLAN support
  • Yes
  • Management features
  • Firmware upgradeable
  • Yes
  • Syslog
  • Yes
  • Web-based management
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Mounting kit
  • Yes
  • Number of products included
  • 1 pc(s)
  • Quick start guide
  • Yes
  • Packaging data
  • Package type
  • Box
  • Ports & interfaces

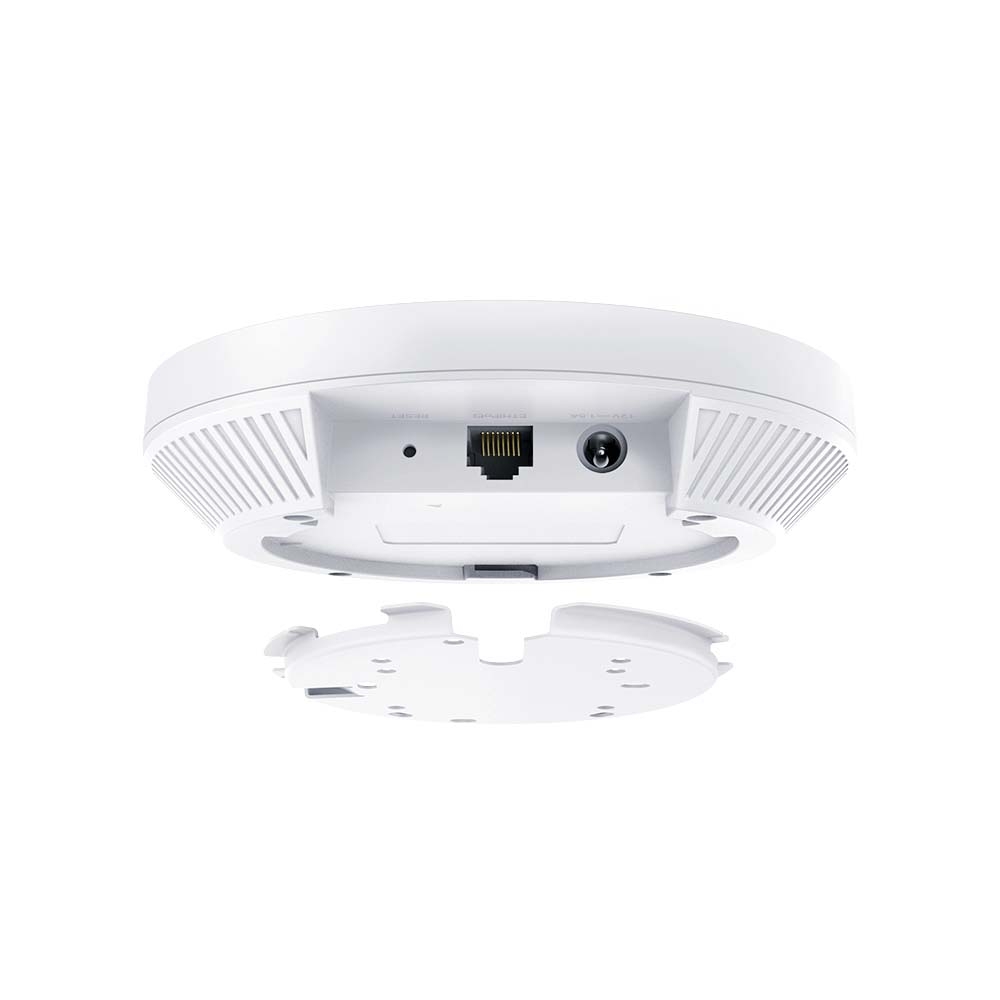

  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • Power
  • DC voltage range
  • 12 V
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) type supported
  • Passive PoE
  • Security
  • Access Control List (ACL)
  • Yes
  • MAC address filtering
  • Yes
  • Security algorithms
  • WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
  • Weight & dimensions
  • Depth
  • 160 mm
  • Height
  • 33.6 mm
  • Width
  • 160 mm
