Description

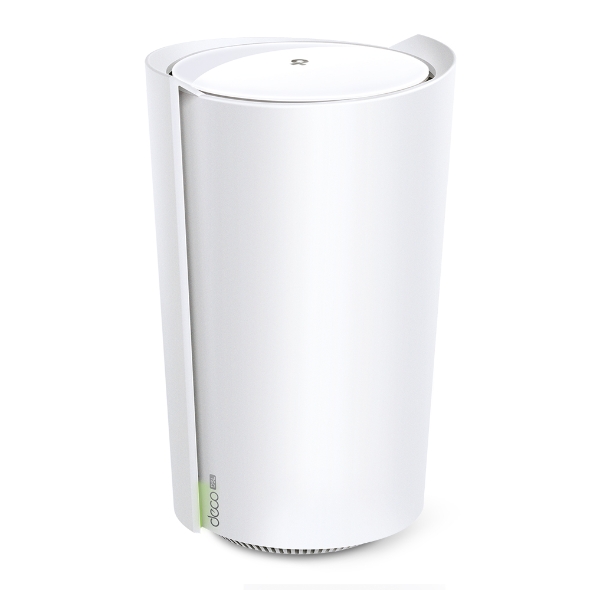

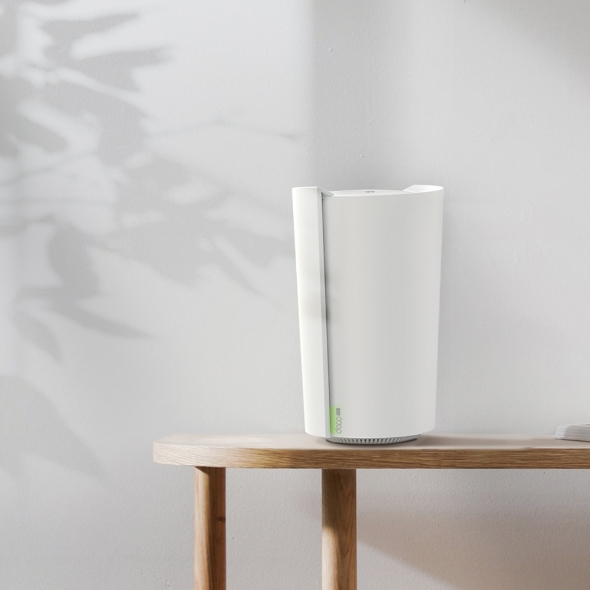

TP-Link AX5400 VDSL Whole Home Mesh Wi-Fi 6 System. Product colour: White, Antenna type: Internal, Maximum coverage: 270 m². Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Processor frequency: 1 GHz, Firewall security: SPI. Width: 130 mm, Depth: 123 mm, Height: 210.5 mm. Number of products included: 1 pc(s), Number of units included: 1 pc(s)

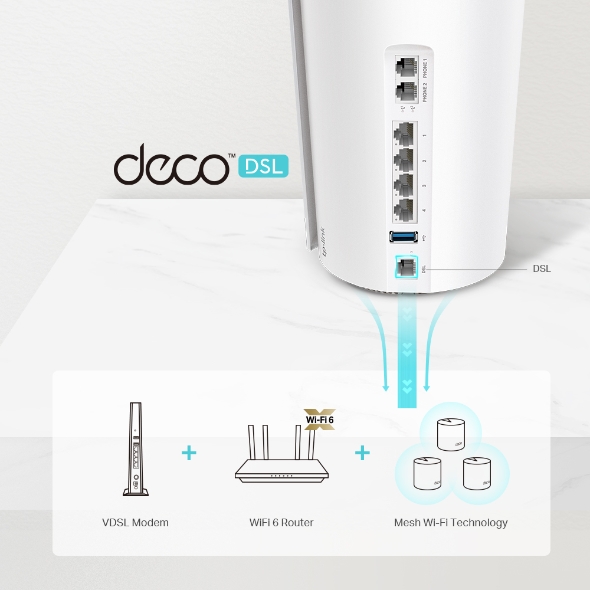

VDSL Modem Router + Mesh WiFi - Save a modem, and gaina better WiFi experience
Super VDSL2 Speed - Supports Profile 35b tech to deliver downstream up to 350 Mbps*
Superior WiFi 6 speeds up to 5.4 Gbps - 4804 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual-band WiFi with WiFi 6 technology
Fully Gigabit Ethernet - 4x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed**
3 RJ11 Ports - 1 DSL + 2 FXS
TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports§

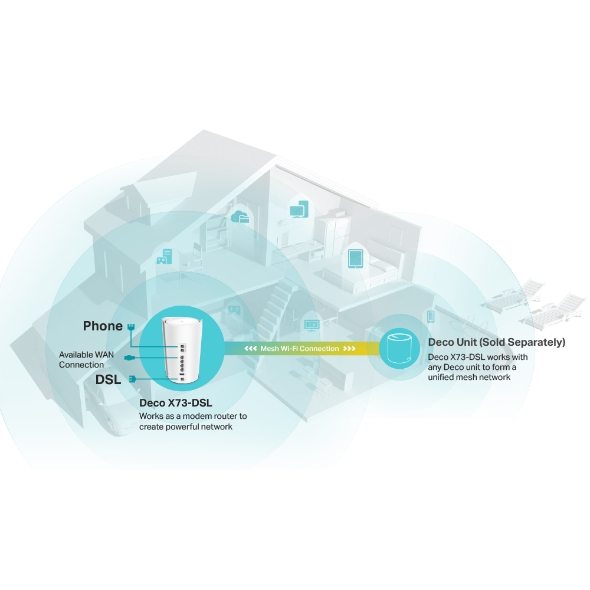

True Seamless Roaming Mesh WiFi - Walk through your home and stay connected with the fastest possible speeds‡

Product Properties

Manufacturer
TP-LINK

Model
DECO X73-DSL(1-PAC

EAN
6935364072889

Bullet points

Point
3 RJ11 Ports - 1 DSL + 2 FXS

Super VDSL2 Speed - Supports Profile 35b tech to deliver downstream up to 350 Mbps*

VDSL Modem Router + Mesh WiFi - Save a modem, and gaina better WiFi experience

Design

Antenna type
Internal

Antennas quantity
4

Maximum coverage
270 m²

Number of devices supported
200

Product colour
White

Reset button
Yes

Transmit power
23 dBmW

DSL features

ADSL
Yes

ADSL2
Yes

ADSL2+
Yes

VDSL2
Yes

Features

BeamForming
Yes

Built-in processor
Yes

DHCP client
Yes

DHCP server
Yes

Firewall security
SPI

Port forwarding
Yes

Processor cores
2

Processor frequency
1 GHz

Quality of Service (QoS) support
Yes

Universal Plug and Play (UPnP)
Yes

Logistics data

Harmonized System (HS) code
85171800

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 60 °C

Packaging content

AC adapter included
Yes

Number of products included
1 pc(s)

Number of units included
1 pc(s)

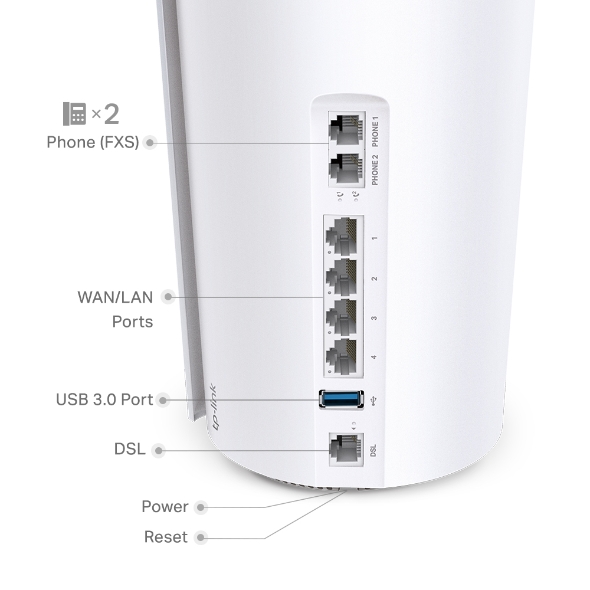

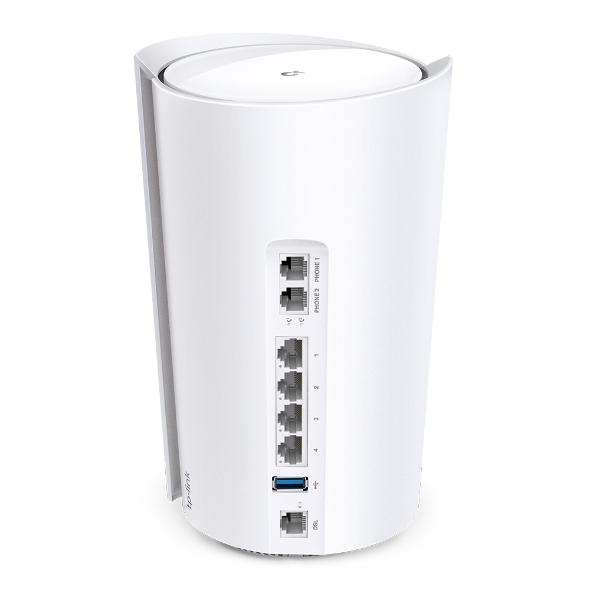

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

Ethernet WAN
Yes

Weight & dimensions

Depth
123 mm

Height
210.5 mm

Width
130 mm

Wireless LAN features

Dynamic DNS (DDNS)
Yes

Dynamic IP
Yes

Guest access
Yes

IGMP proxy
Yes

IGMP snooping
Yes

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of guest networks (2.4 GHz)
1

Number of guest networks (5 GHz)
1

Point-to-point protocol over Ethernet (PPPoE)
Yes

Security algorithms
WPA, WPA2, WPA3

Static IP
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)
4804 Mbit/s

WLAN data transfer rate (second band)
574 Mbit/s
