Description

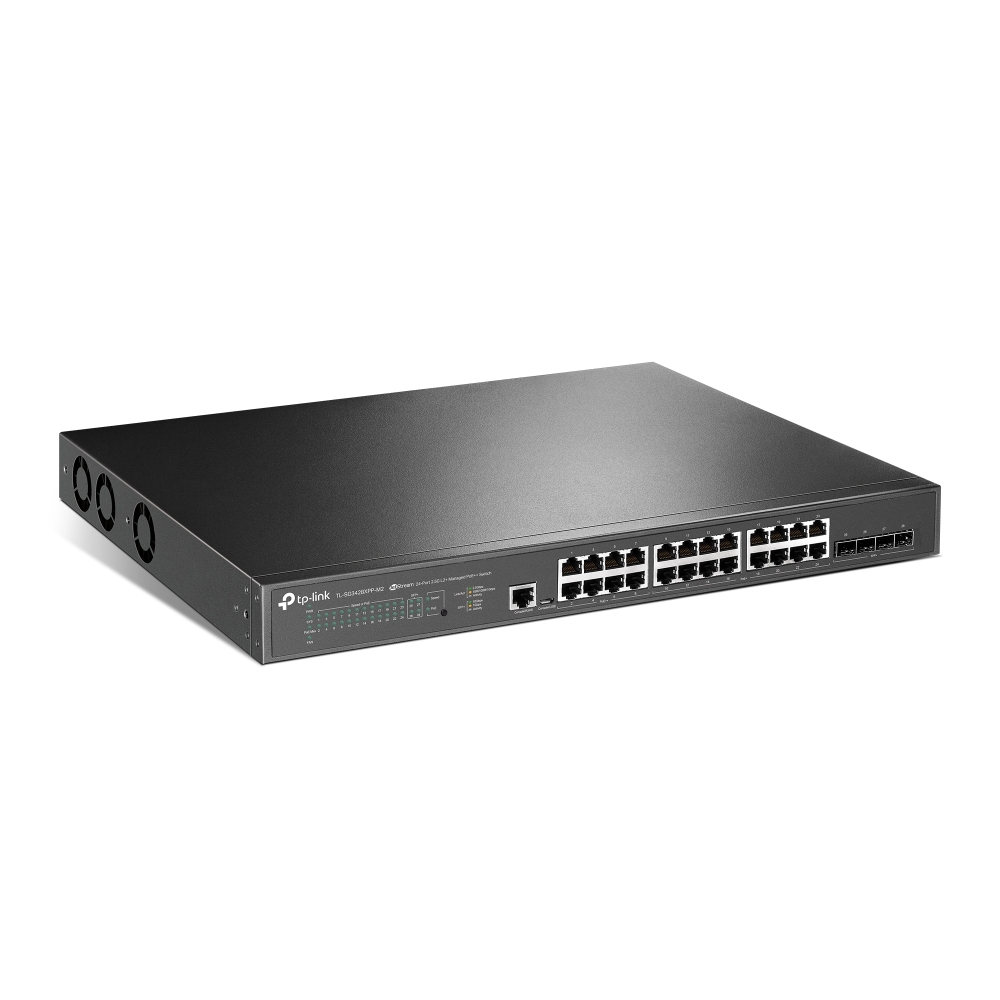

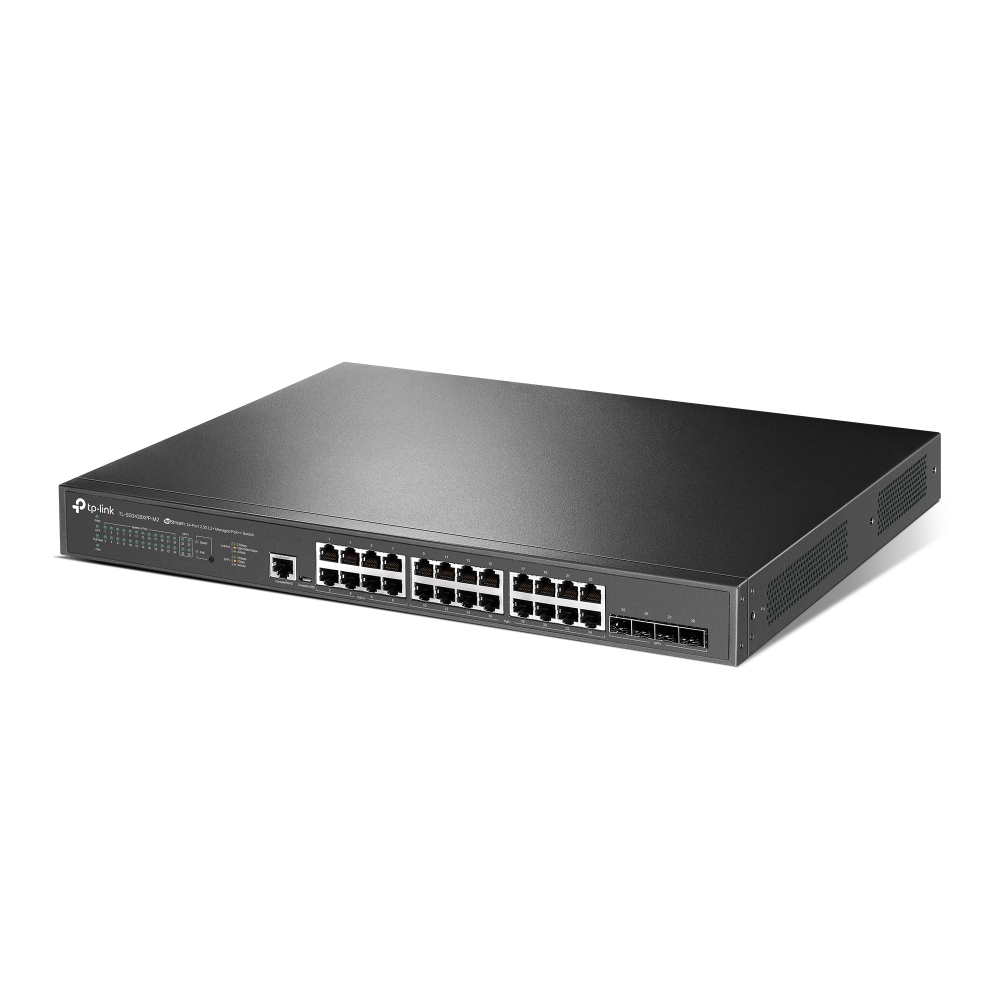

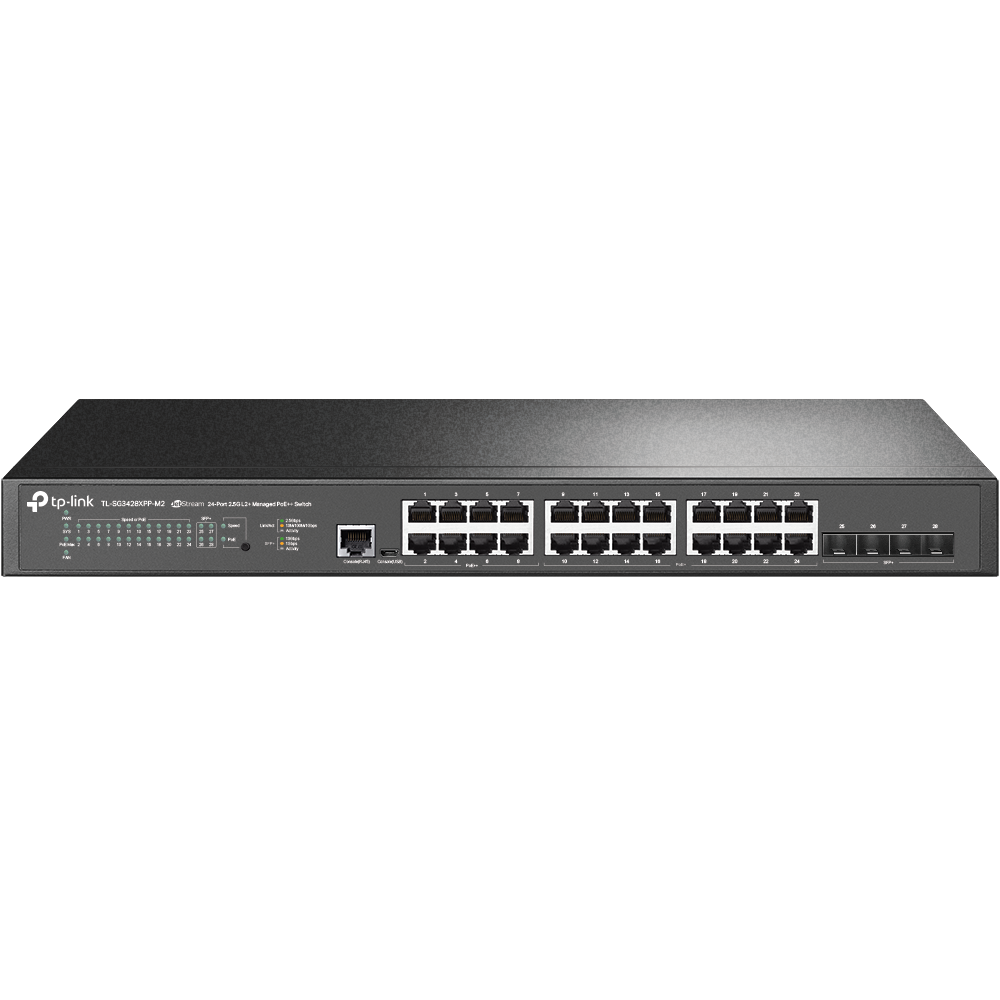

TP-Link JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. Full duplex. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

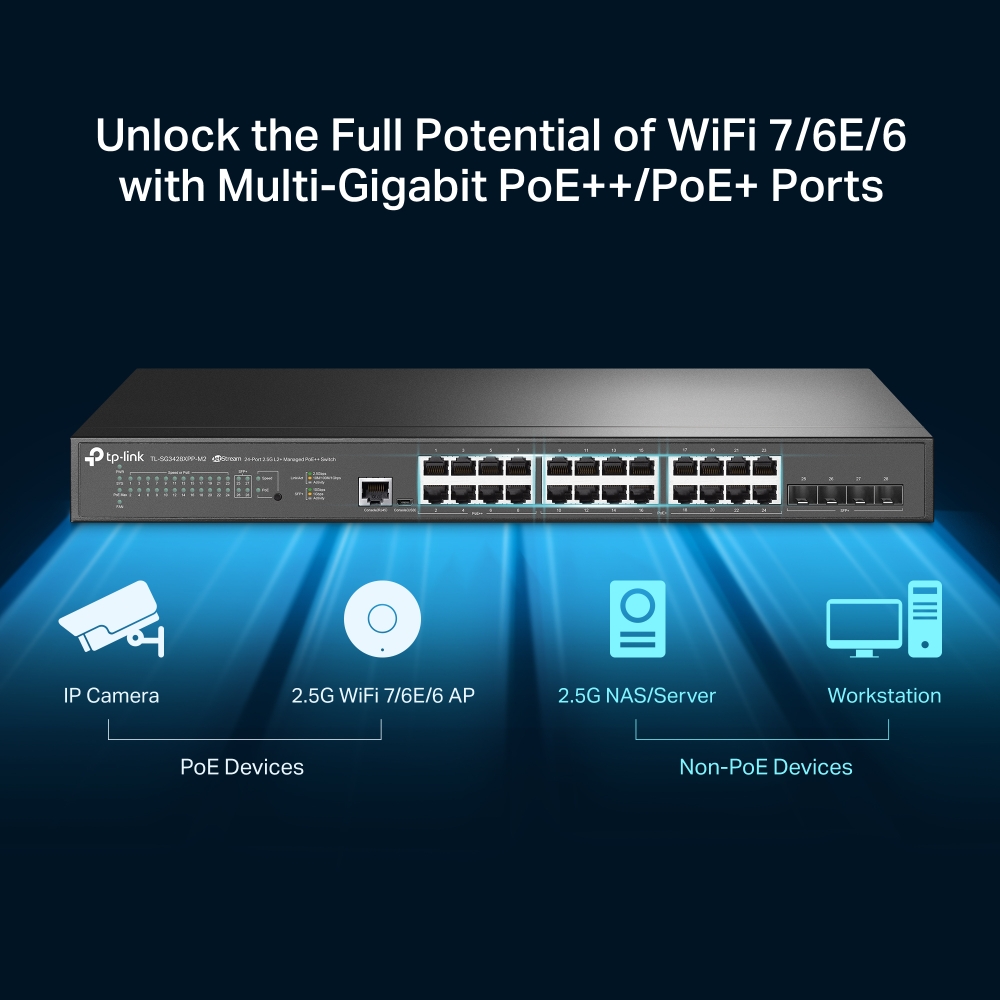

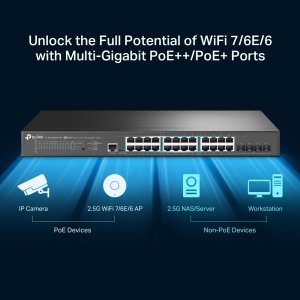

2.5G PoE++/PoE+ Ports for WiFi 7/6E/6: 24× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs

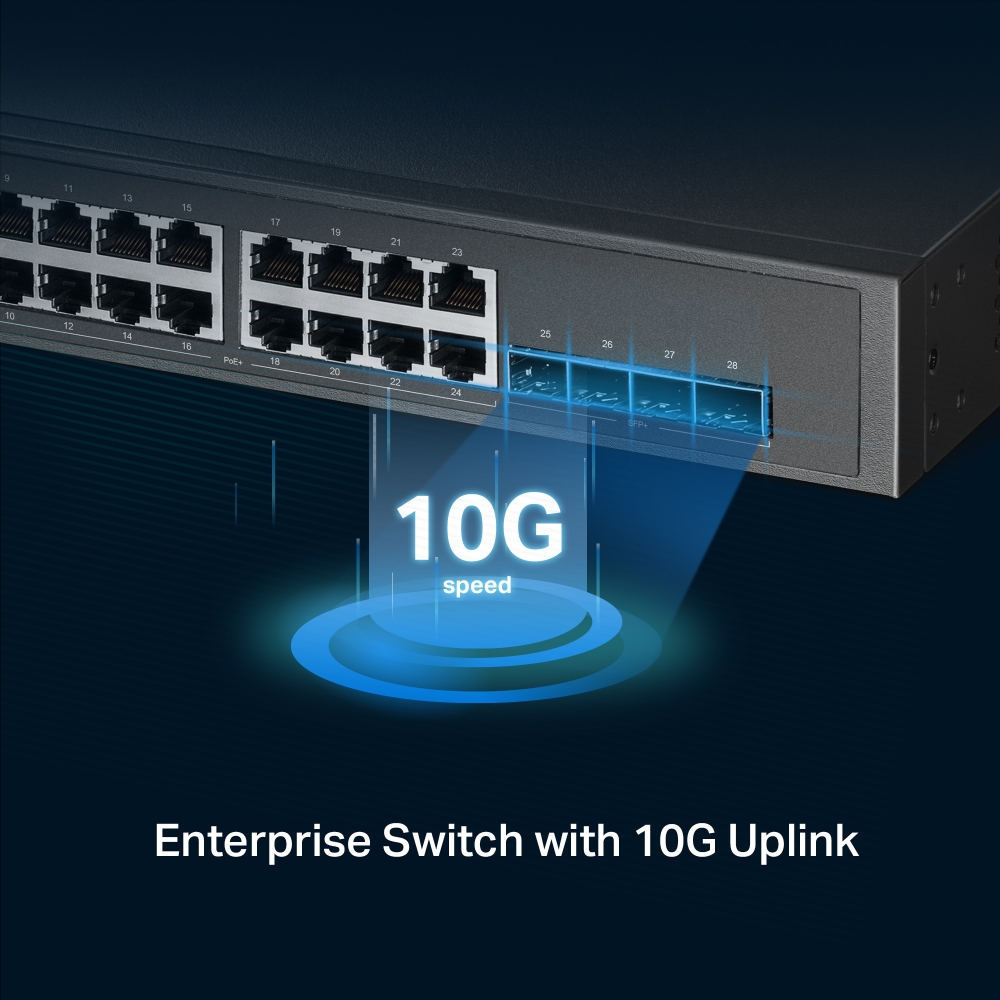

10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
500 W PoE Budget: 8× 802.3bt/at/af/-compliant PoE++ and 16× 802.3at/af-compliant PoE+ ports with a total power supply of 500 W
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Static Routing: Helps route internal traffic for more efficient use of network resources
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Product Properties

Manufacturer
TP-LINK

Model
TL-SG3428XPP-M2

EAN
4897098689769

Bullet points

Point
10G Lightning-Fast Uplink

2.5G PoE++/PoE+ Ports for WiFi 7/6E/6

500 W PoE Budget

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Integrated into Omada SDN

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Robust Security Strategies

Static Routing: Helps route internal traffic for more efficient use of network resources

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Data transmission

Forwarding rate
148.8 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
32000 entries

Number of IP interfaces
32

Number of queues
8

Number of static routes
48

Packet buffer memory
16 MB

Static route
Yes

Store-and-forward
Yes

Switching capacity
200 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Number of fans
3 fan(s)

Product colour
Black

Rack mounting
Yes

Redundant fans support
Yes

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Quality of Service (QoS) support
Yes

Switch layer
L2+

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
MLD v1/v2

Multicast support
Yes

Network

10G support
Yes

Broadcast storm control
Yes

Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Head-of-line (HOL) blocking
Yes

IPv4 routes
48

IPv6 routes
48

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
2153.45 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
AC

Quick start guide
Yes

Rack mount kit
Yes

Packaging data

Package depth
440 mm

Package height
100 mm

Package weight
6.1 kg

Package width
528 mm

Performance

Flash memory
32 MB

Internal memory
256 MB

Memory type
DRAM

Ports & interfaces

2.5G Ethernet (copper) ports quantity
24

Console port
RJ-45/Micro-USB

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP+ module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
2.5G Ethernet (100/1000/2500)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
629.1 W

Power source
AC/PoE

Power supply included
Yes

Redundant power supply (RPS) support
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet 4PPoE (PoE++) ports quantity
8

Power over Ethernet plus (PoE+) ports quantity
16

Total Power over Ethernet (PoE) budget
500 W

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert

Management protocols
SNMP v1/v2c/v3

Security

Access Control List (ACL)
Yes

Authentication
Guest VLAN, MAC-based authentication, Port-based authentication

Authentication type
AAA, IEEE 802.1x, RADIUS, TACACS+

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

IGMP snooping
Yes

IP-MAC-Port binding
Yes

Loop protection
Yes

Password protection
Yes

Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)

Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS

SSH/SSL support
Yes

Static port security
Yes

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
330 mm

Height
44 mm

Width
440 mm
