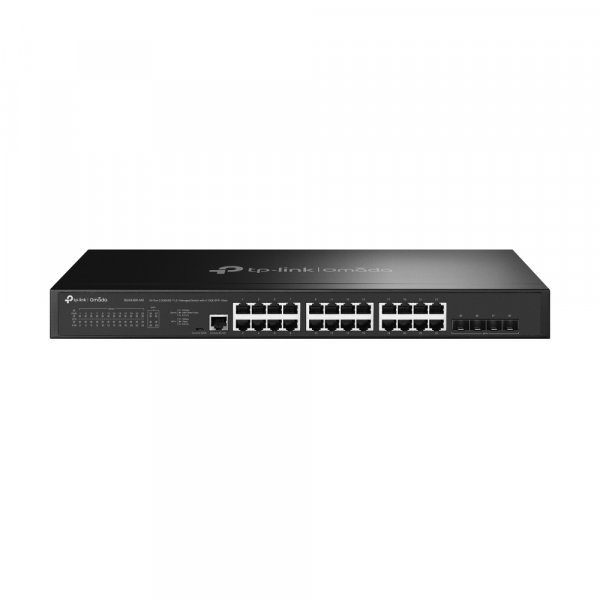

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
Roll over image to zoom inClick to Open expanded view
Print
Model: SG3428X-M2
EAN: 4897098689776

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots

Manufacturer:
TP-LINK
TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots, Managed, L2+, 2.5G Ethernet (100/1000/2500), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U
  • 24× 2.5 Gbps RJ45 ports
  • 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
  • 200 Gbps switching capacity
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

Product Properties

  • Model
  • SG3428X-M2
  • EAN
  • 4897098689776
  • Bullet points
  • Point
  • 200 Gbps switching capacity
    24× 2.5 Gbps RJ45 ports
    4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
    Centralized cloud management via the web or the Omada app†
    Durable metal casing and rack-mountable design
    ERPS supports rapid protection and recovery in a ring topology
    Standalone management via web, CLI, SNMP, and RMON
    Static Routing helps route internal traffic for higher efficiency
    VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • Certificates
  • Certification
  • CE, FCC, RoHS
  • Compliance certificates
  • CE, Federal Communications Commission (FCC), RoHS
  • Data transmission
  • Forwarding rate
  • 148.8 Mpps
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Number of static routes
  • 48
  • Packet buffer memory
  • 16 MB
  • Static route
  • Yes
  • Store-and-forward
  • Yes
  • Switching capacity
  • 200 Gbit/s
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Number of fans
  • 1 fan(s)
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Management features
  • ARP inspection
  • Yes
  • Cloud-managed
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2+
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast Listener Discovery (MLD) snooping
  • Y
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Active link detection
  • Yes
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • Head-of-line (HOL) blocking
  • Yes
  • IPv4 routes
  • 48
  • IPv6 routes
  • 48
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
  • Policy-based routing
  • Yes
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 154.38 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Cables included
  • LAN (RJ-45)
  • Quick start guide
  • Yes
  • Ports & interfaces
  • 2.5G Ethernet (copper) ports quantity
  • 24
  • Console port
  • RJ-45/Micro-USB
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Power connector
  • AC-in jack
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • 2.5G Ethernet (100/1000/2500)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 45.1 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • IPv4 & IPv6 features
  • IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
  • IPv4 FIB entries
  • 100
  • IPv6 FIB entries
  • 100
  • Management protocols
  • SNMP v1/v2c/v3, SNTP
  • Security
  • Access Control List (ACL)
  • Yes
  • Authentication
  • Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
  • Authentication type
  • AAA, RADIUS, TACACS+
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
  • IGMP snooping
  • Yes
  • IP-MAC-Port binding
  • Yes
  • Loop protection
  • Yes
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 180 mm
  • Height
  • 44 mm
  • Width
  • 440 mm
