Description

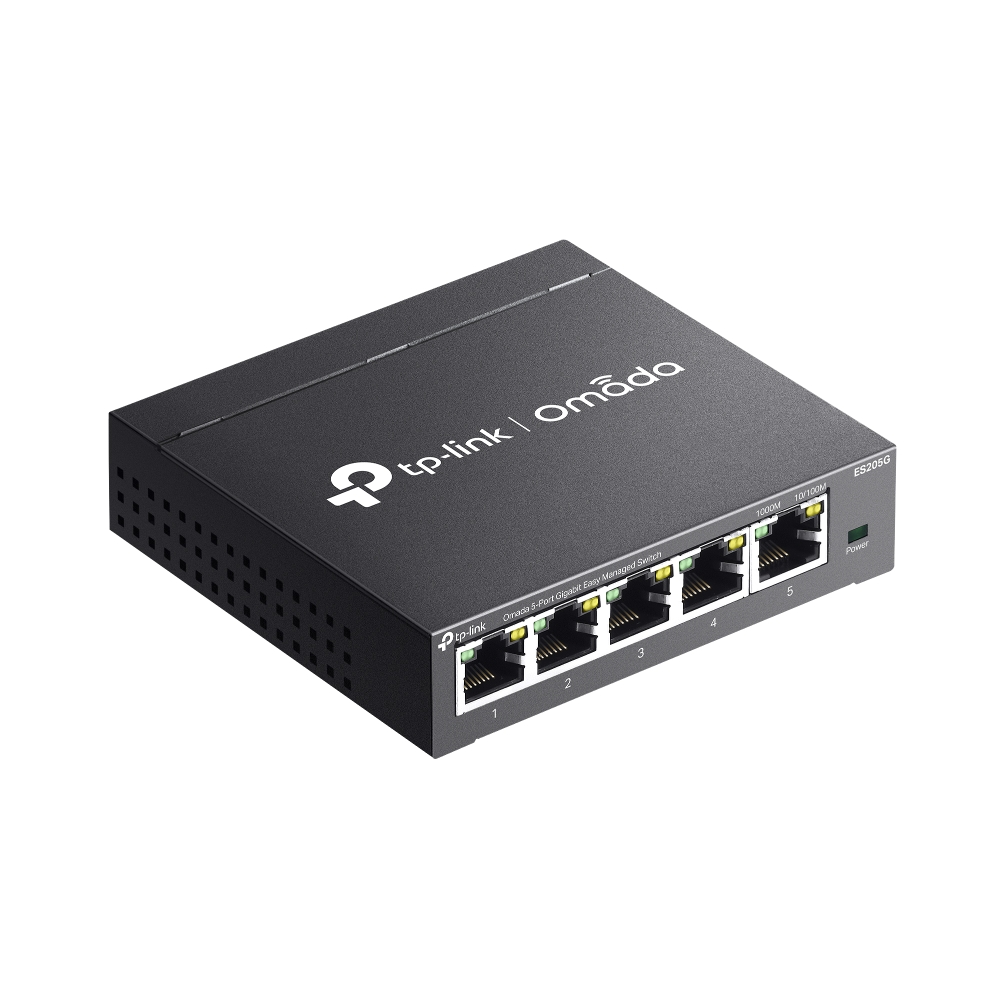

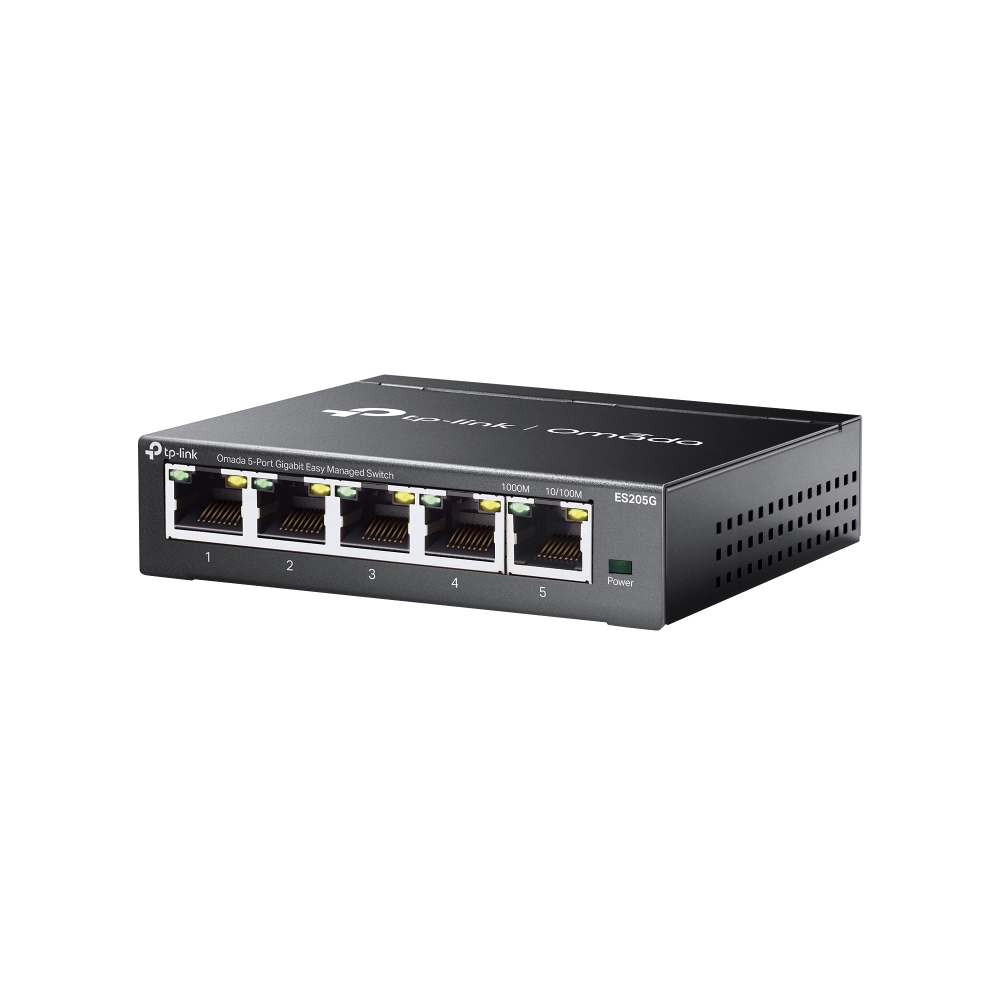

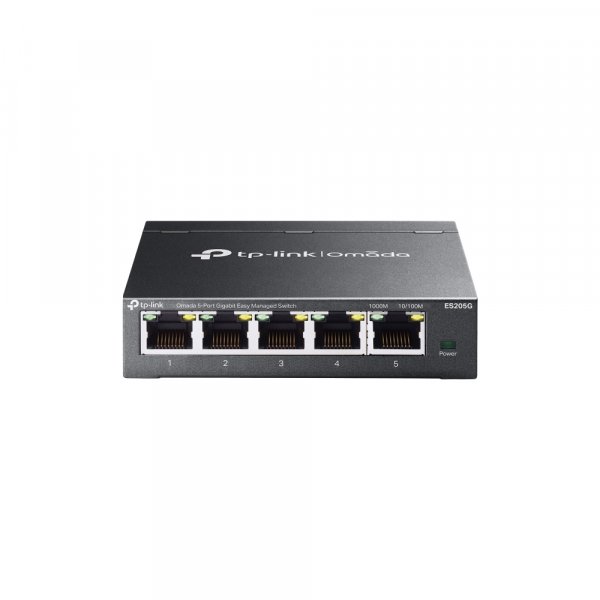

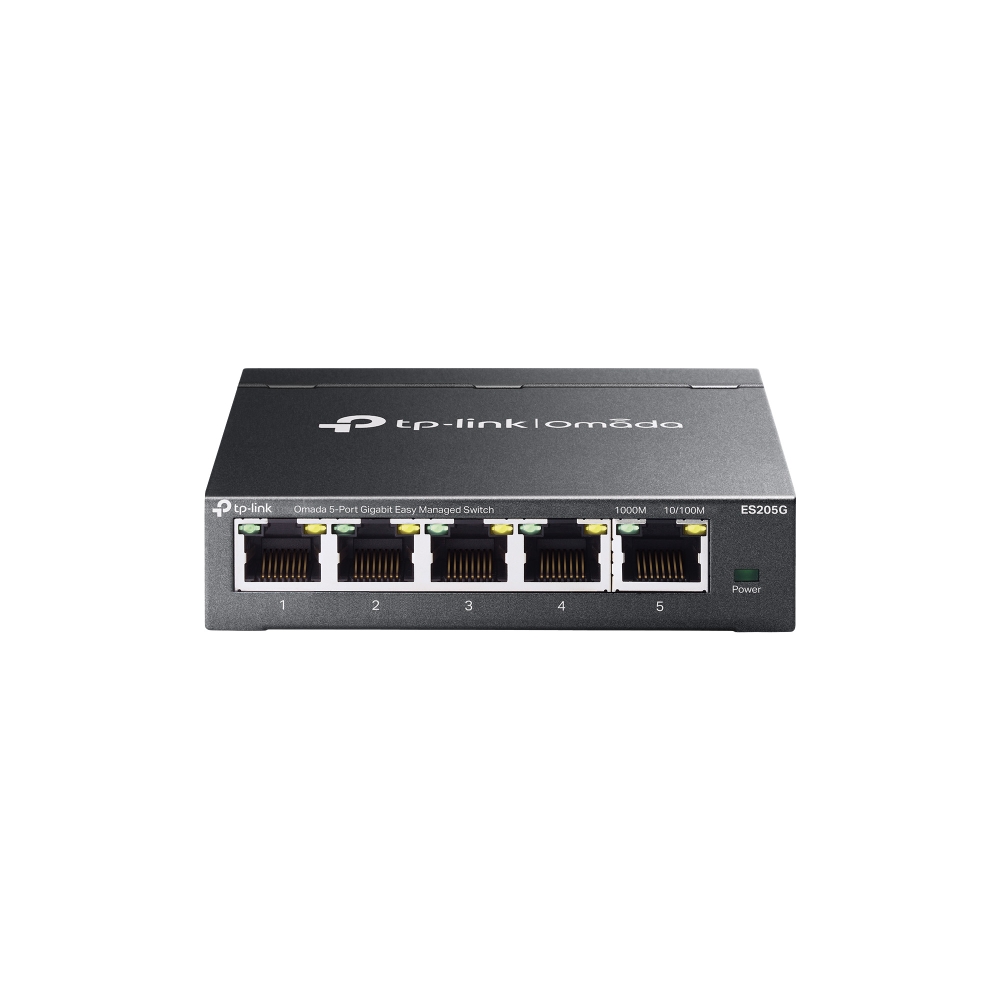

TP-Link Omada 5-Port Gigabit Easy Managed Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x. DC input voltage: 5 V. Wall mountable

5× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app†
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Product Properties

Manufacturer
TP-LINK

Model
ES205G

EAN
8885020620924

Bullet points

Point
5× 10/100/1000Mbps RJ45 ports

Automatic Loop Prevention, VLAN, and IGMP Snooping

Centralised Cloud Management via the web or the Omada app†

Durable metal casing and desktop/wall mounting design

EASY TO USE

Fanless design for silent operation

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Data transmission

Forwarding rate
7.4 Mpps

Jumbo frames
15

Jumbo frames support
Yes

MAC address table
8000 entries

Packet buffer memory
4 MB

Store-and-forward
Yes

Switching capacity
10 Gbit/s

Design

LED indicators
Yes

Product colour
Black

Reset button
Yes

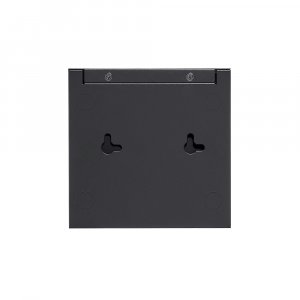

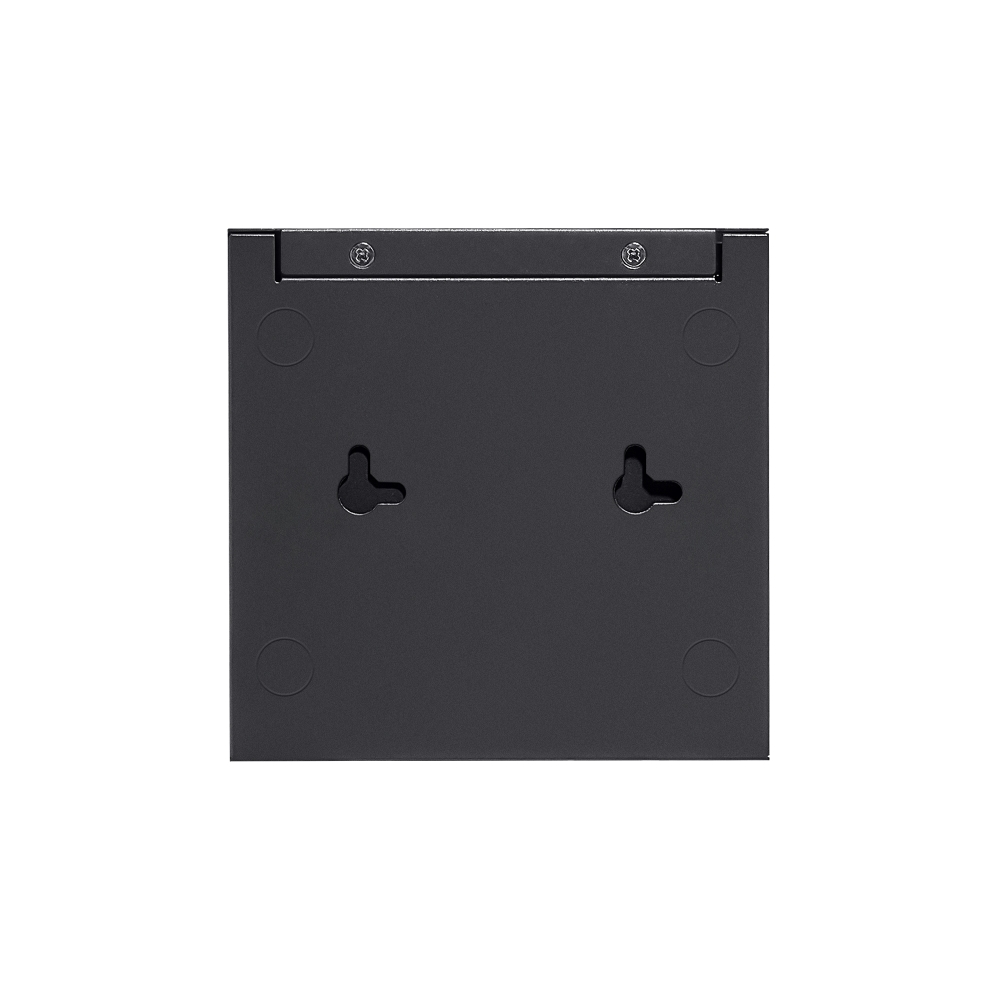

Wall mountable
Yes

Management features

Cloud-managed
Yes

Quality of Service (QoS) support
Yes

Switch type
Managed

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Flow control support
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x

Port mirroring
Yes

Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

User guide
Yes

Packaging data

Package type
Box

Performance

Fanless
Yes

Ports & interfaces

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
5 V

Power source
AC/DC

Power supply included
Yes

Security

DHCP features
DHCP client

IGMP snooping
Yes

Loop protection
Yes

Weight & dimensions

Depth
98 mm

Height
25 mm

Width
100 mm
