Description

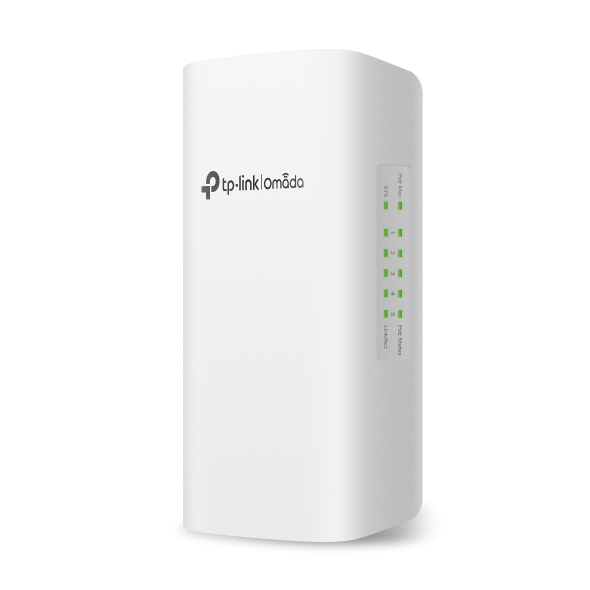

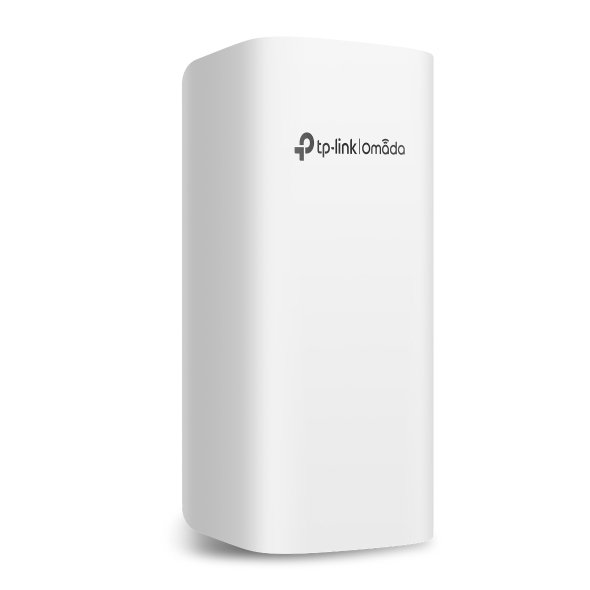

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Form factor: Desktop

Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*

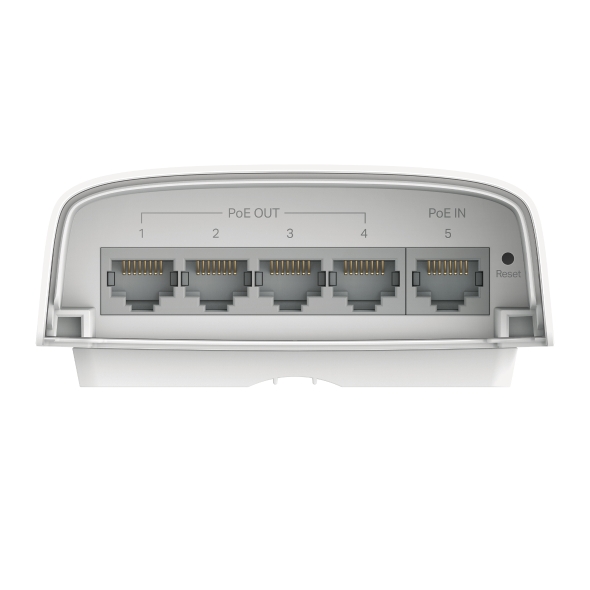

1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions

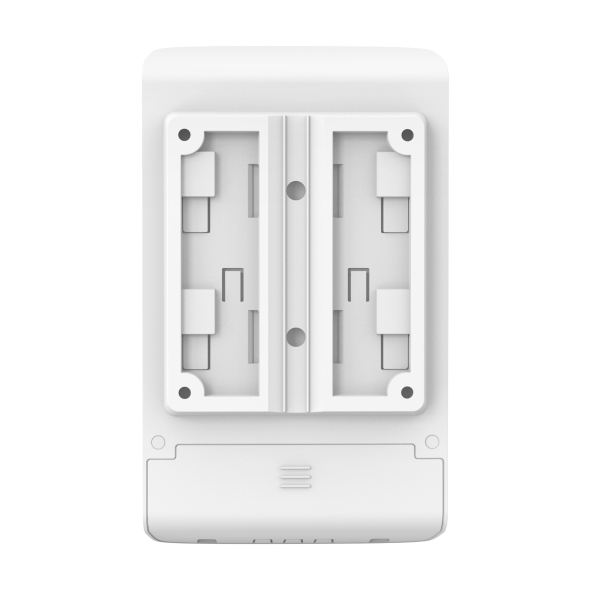

Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs
Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management
Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN

Product Properties

Manufacturer
TP-LINK

Model
SG2005P-PD

EAN
4897098689332

Bullet points

Point
1-Port Gigabit PoE++ In and 4-Port PoE+ Out

Centralized Cloud Management

EASY INSTALLATION

Outdoor Weatherproof

Up to 200 m PoE Distance

Value-Added Features Foster Touchpoint Experiences

Certificates

Compliance certificates
CE, RoHS

Data transmission

Jumbo frames
9

Jumbo frames support
Yes

MAC address table
8000 entries

Packet buffer memory
4.1 MB

Packet forwarding rate (1 Gbps)
7440 pps

Switching capacity
10 Gbit/s

Design

Form factor
Desktop

LED indicators
Yes

Product colour
White

Rack mounting
No

Stackable
No

Management features

ARP inspection
Yes

Cloud-managed
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2/L2+

Switch type
Managed

Web-based management
Yes

Multicast features

IPv4 multicast entries
511

IPv6 multicast entries
511

Multicast MAC address table
8000 entries

Multicast support
Yes

Network

10G support
Yes

Cable types supported
Cat5, Cat5e

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T

Flow control support
Yes

IPv4 routes
32

IPv6 routes
32

Link aggregation
Yes

Networking standards
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Number of VLANs
4000

Port mirroring
Yes

Spanning tree protocol
Yes

Virtual LAN features
Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
243.99 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-40 - 60 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Ports & interfaces

10G Ethernet (copper) ports quantity
4

Switch Number of Ports
4

Switch Port Speed
10G Ethernet (100/1000/10000)

Power

Power consumption (typical)
71.5 W

Power source
DC/PoE

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
64 W

Protocols

IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert

Security

Access Control List (ACL)
Yes

Access Control List (ACL) IPv4 entries
32

Authentication
MAC-based authentication, Port-based authentication

DHCP features
DHCP relay, DHCP server

IGMP snooping
Yes

IP-MAC-Port binding
Yes

MAC address filtering
Yes

Password protection
Yes

Security algorithms
802.1x RADIUS

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
100 mm

Height
38.5 mm

Width
170 mm
