Description

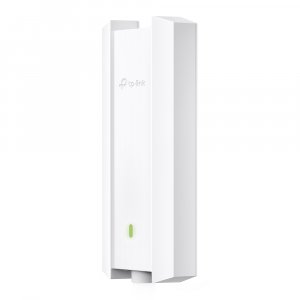

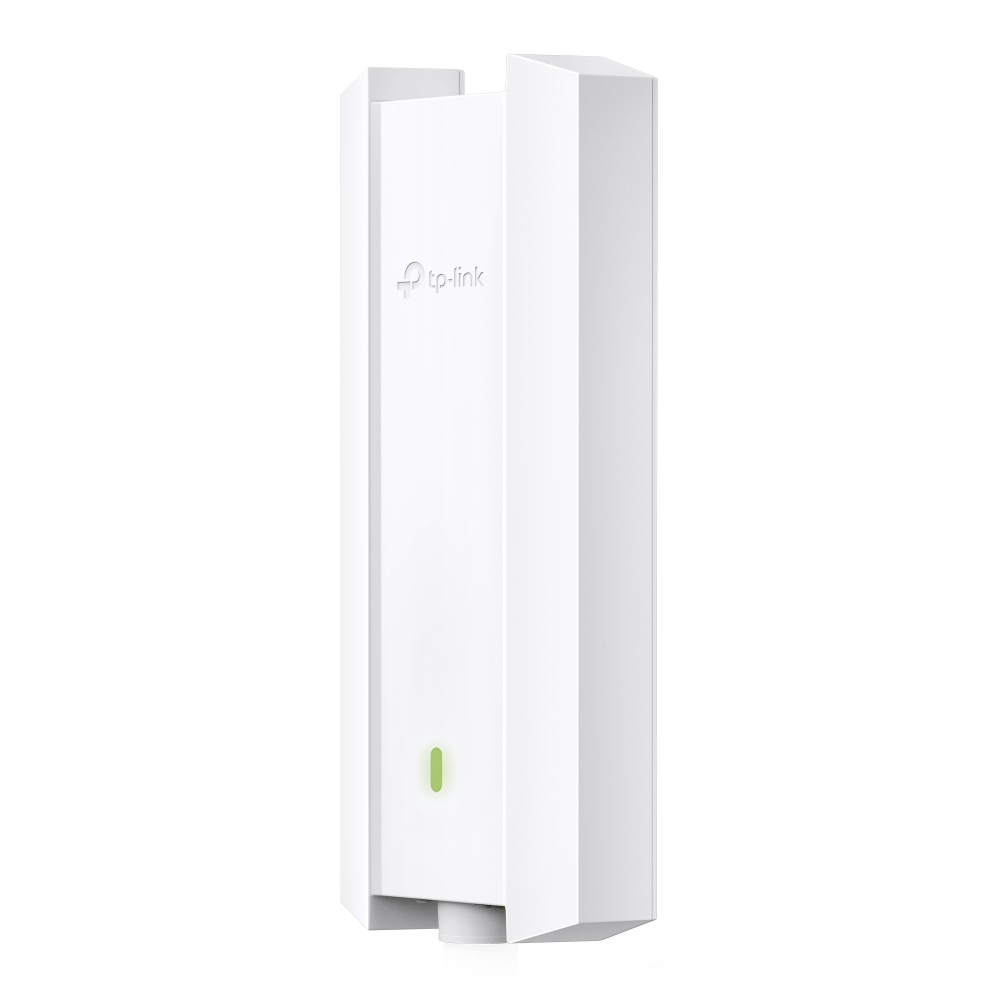

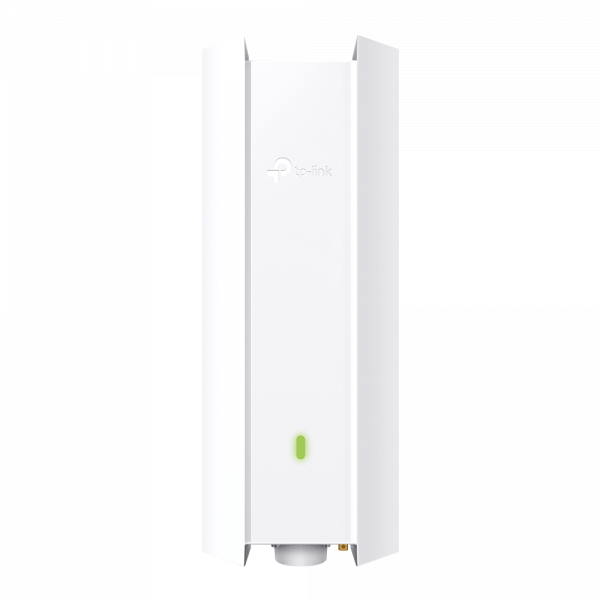

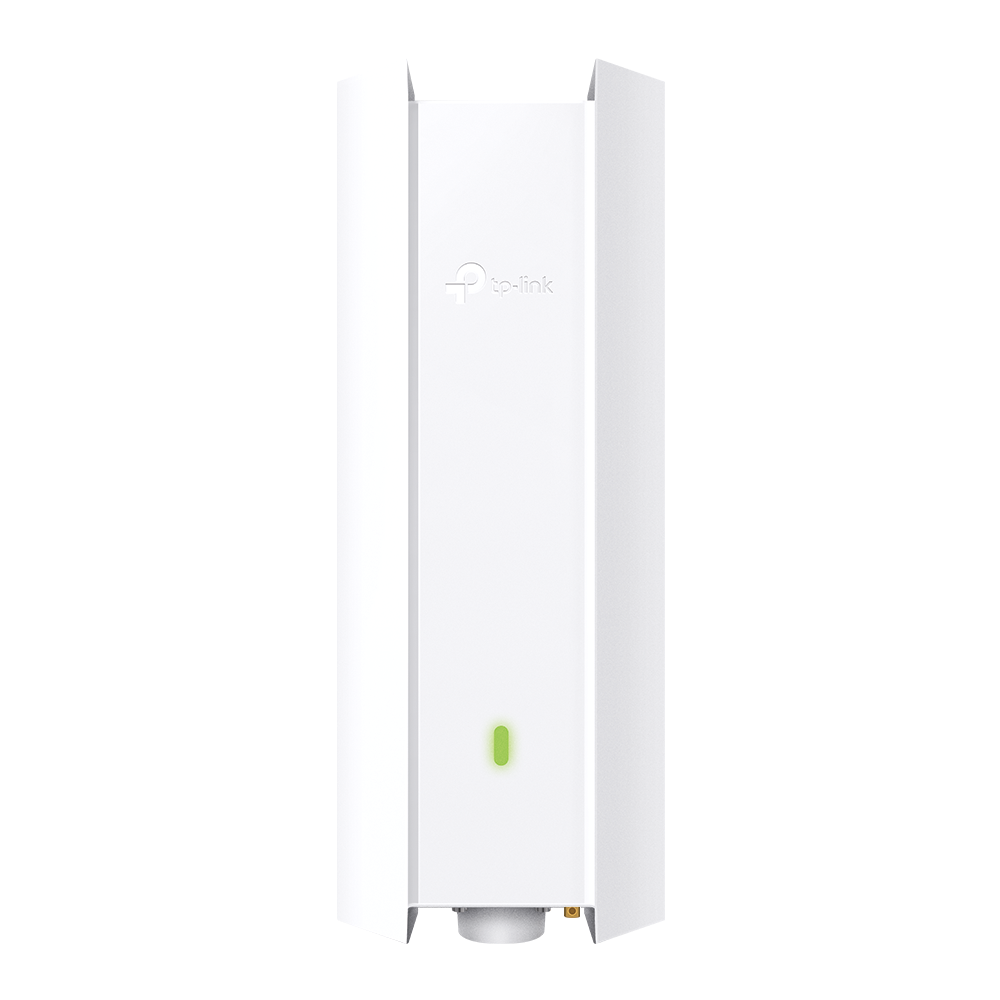

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
High-density connectivity up to 1,000+ clients
Long-range coverage with the high-power amplifier and smart antennas
Advanced Functions: Centralized management, Omada mesh, and seamless roaming
PoE+ Powered: Supports both 802.3at PoE (adapter not included)

Product Properties

Manufacturer
TP-LINK

Model
EAP623-OUTDOOR HD

EAN
4895252506310

Antenna

Antenna direction type
Omni-directional

Antenna features
Integrated antenna

Antenna type
Internal

Antennas quantity
2

Bullet points

Point
Advanced Functions: Centralized management, Omada mesh, and seamless roaming

High-density connectivity up to 1,000+ clients

Long-range coverage with the high-power amplifier and smart antennas

PoE+ Powered: Supports both 802.3at PoE (adapter not included)

Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc

Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz

Certificates

Certification
CE, FCC, RoHS

Design

LED indicators
Yes

Placement
Pole

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Airtime Fairness (ATF)
Yes

Automatic channel scanning
Yes

Automatic channel selection
Yes

Band steering
Yes

BeamForming
Yes

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.4 - 5 GHz

Maximum data transfer rate
1800 Mbit/s

Maximum data transfer rate (2.4 GHz)
574 Mbit/s

Maximum data transfer rate (5 GHz)
1201 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of users
1020 user(s)

Quality of Service (QoS) support
Yes

Rate limiting
Yes

Transmitting power (CE)
< 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);

Transmitting power (FCC)
< 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

VLAN support
Yes

Management features

Syslog
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-30 - 70 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

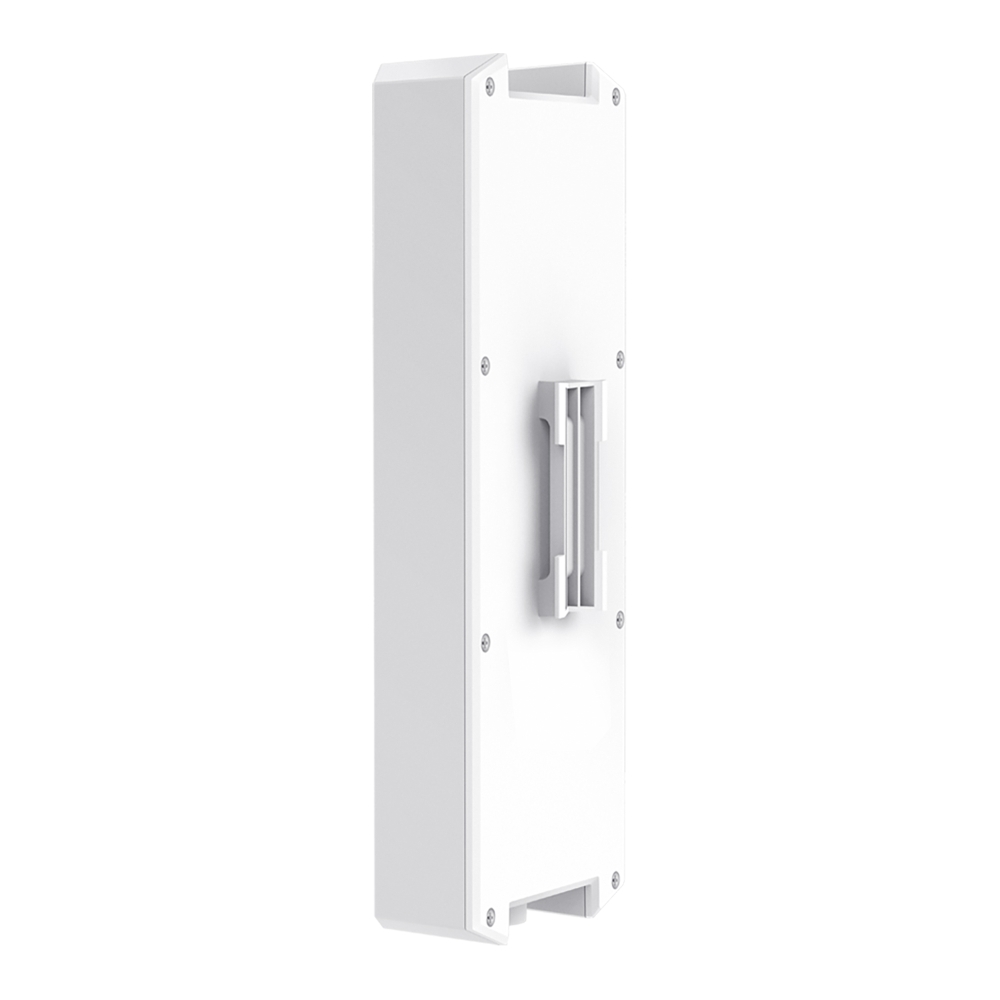

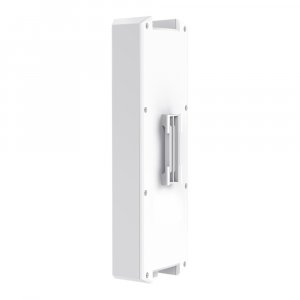

Mounting kit
Yes

Quantity per pack
1 pc(s)

Quick start guide
Yes

Ports & interfaces

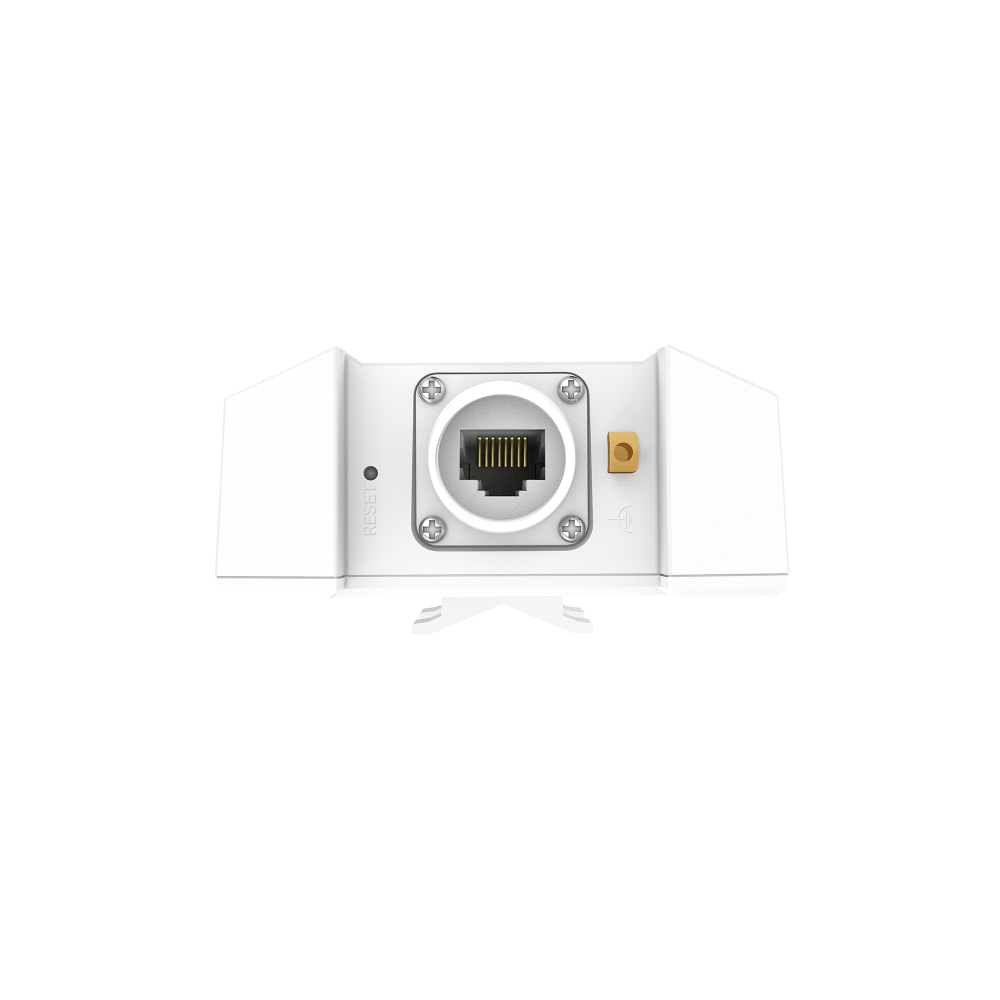

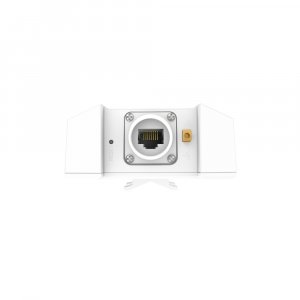

Ethernet LAN (RJ-45) ports
1

USB 2.0 ports quantity
0

Power

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) type supported
Passive PoE

Security

Access Control List (ACL)
Yes

MAC address filtering
Yes

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
SNMP, SNMPv2, SNMPv3, SSH

Weight & dimensions

Depth
106.5 mm

Height
56.8 mm

Width
280.4 mm
