Description

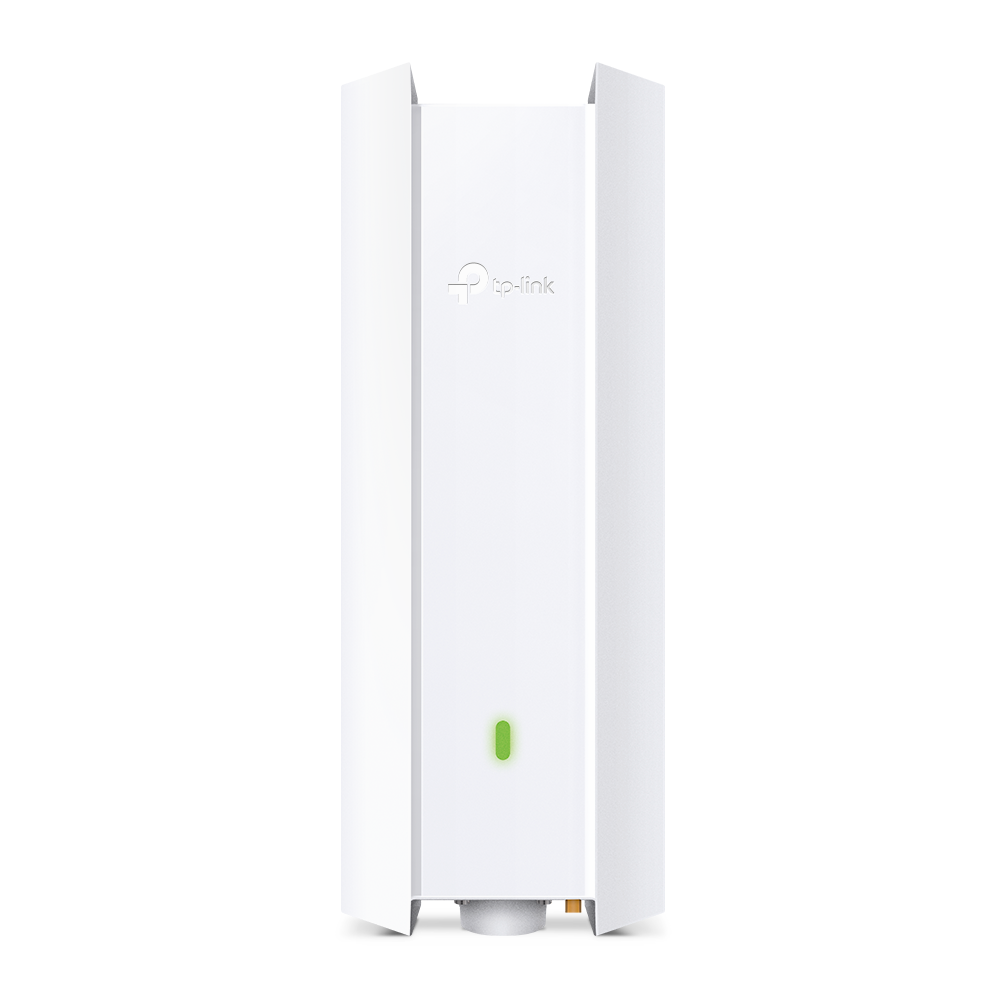

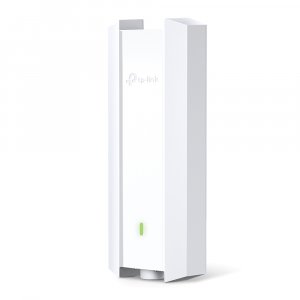

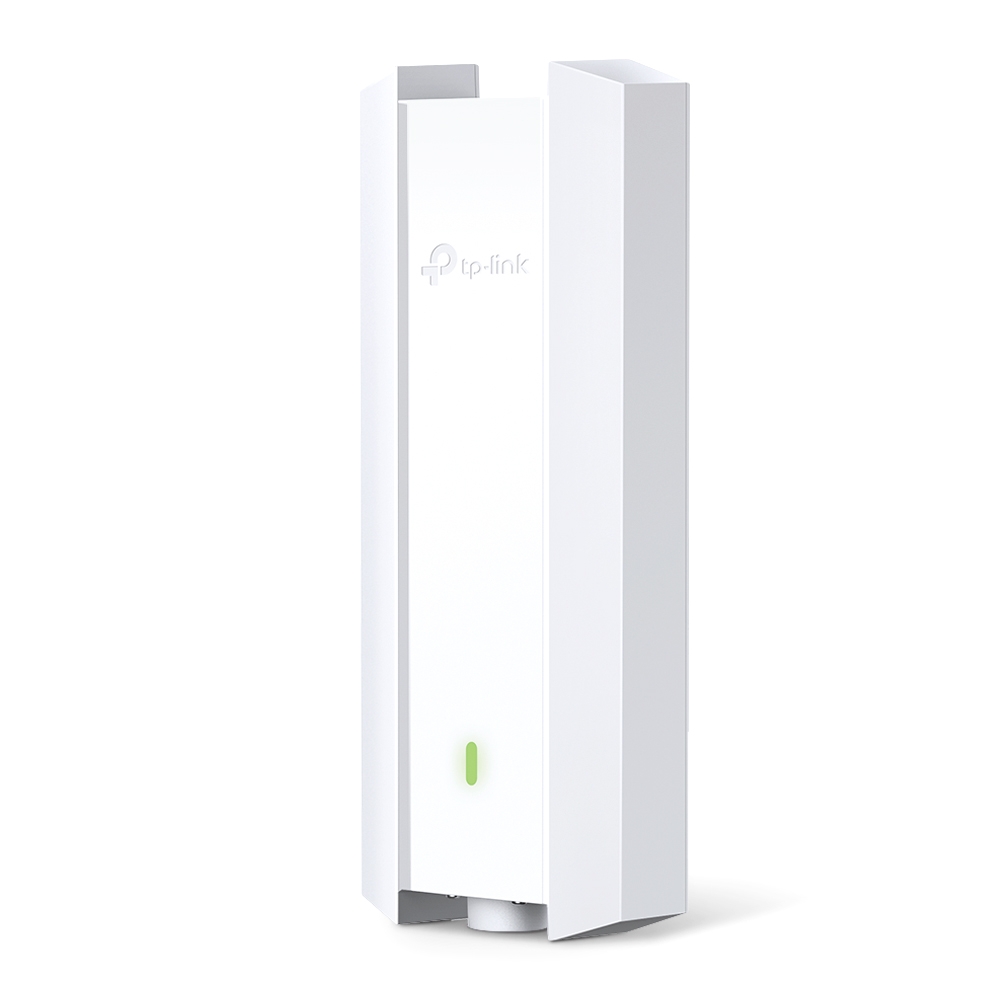

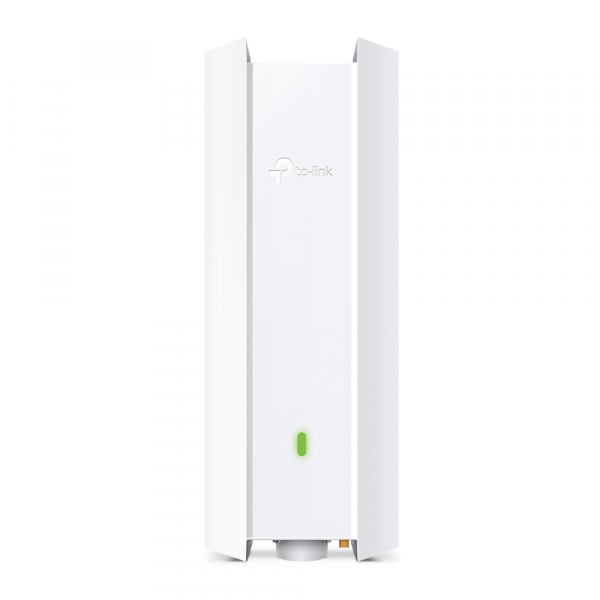

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology
Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO
160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160

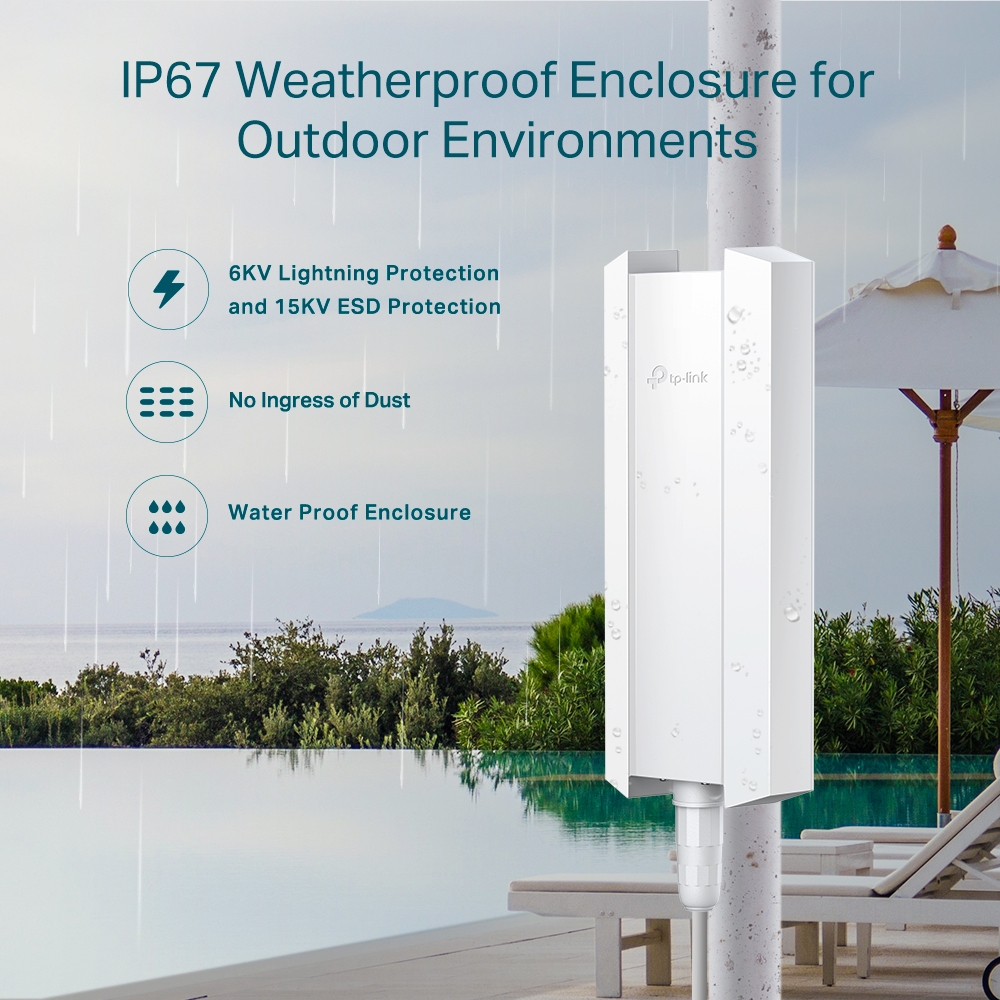

Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure
Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points

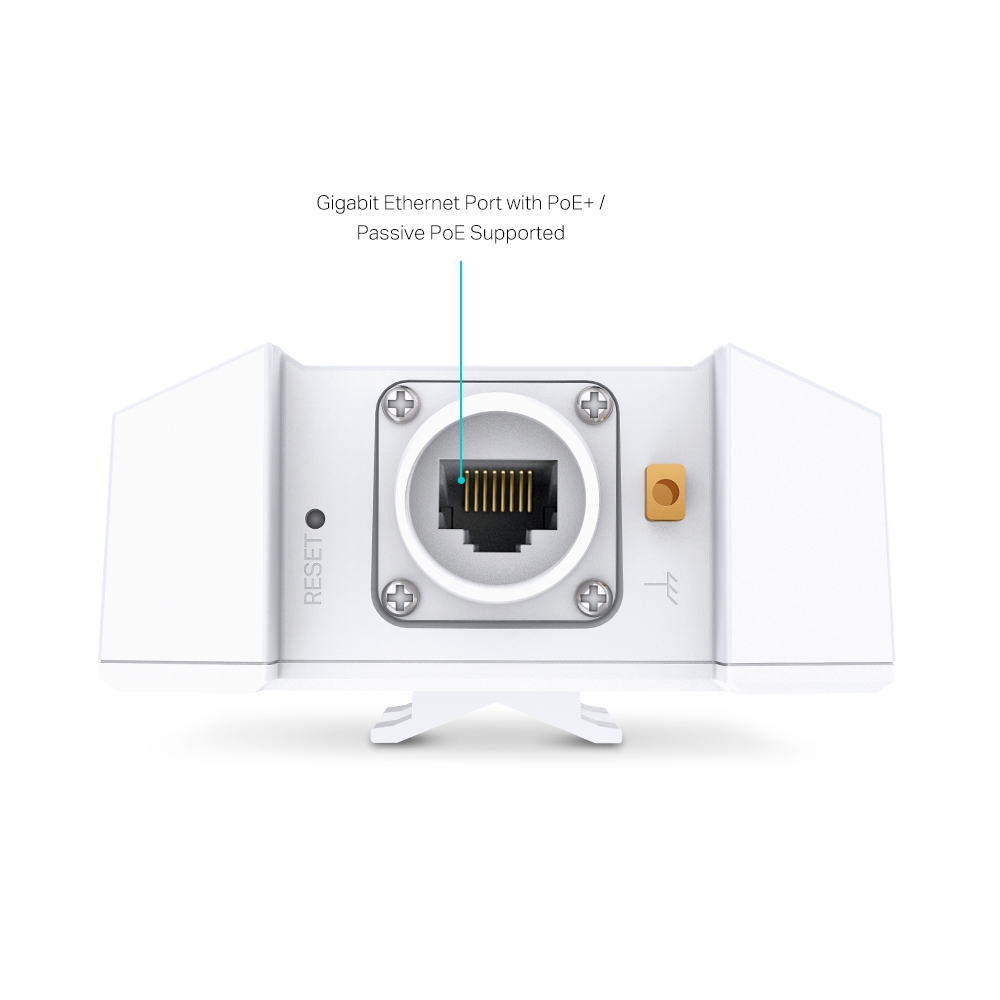

PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation

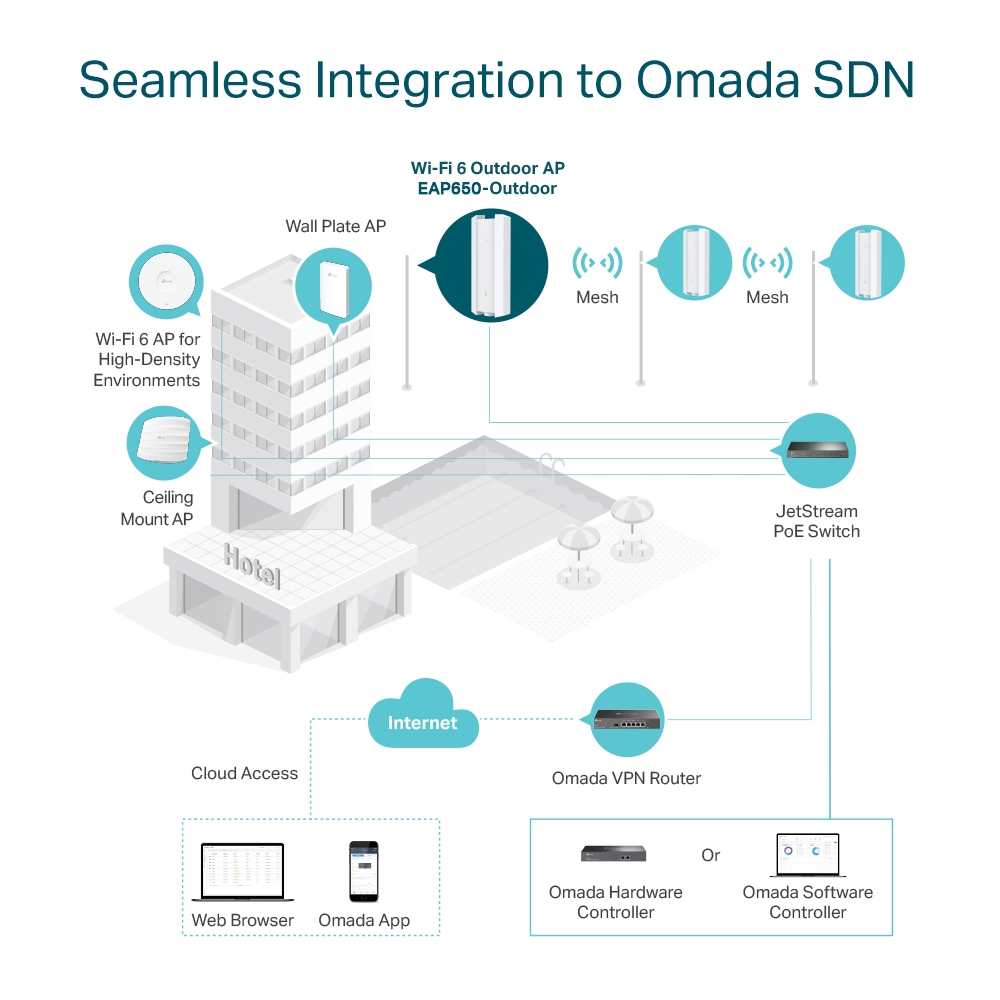

Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app

Product Properties

Manufacturer
TP-LINK

Model
EAP650-OUTDOOR

EAN
4897098682098

Antenna

Antenna direction type
Omni-directional

Antenna type
Internal

Bullet points

Point
160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160

Centralized Cloud Management

Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO

Long-Range Coverage

Omada Mesh Technology

PoE Powered

Stay Smooth with Seamless Roaming

Superior WiFi 6 Speeds

Certificates

Certification
CE, FCC, RoHS

Design

International Protection (IP) code
IP67

LED indicators
Yes

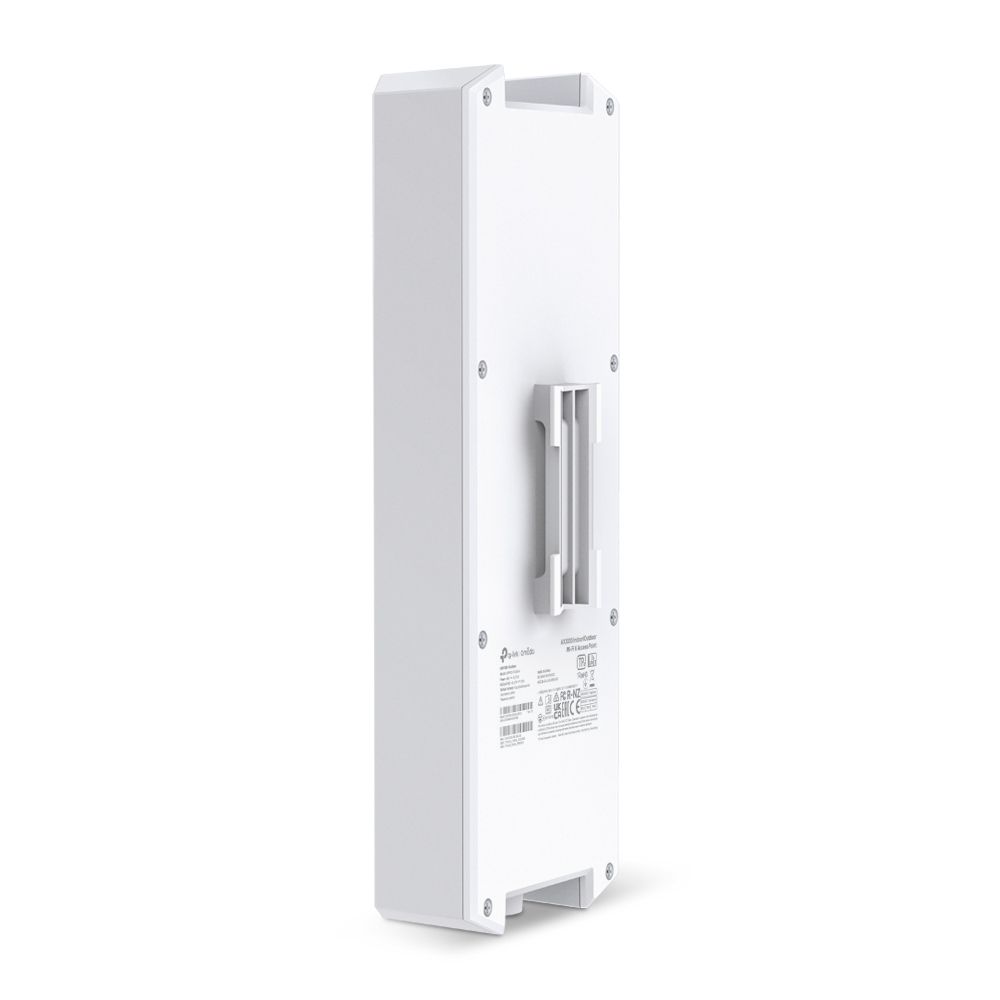

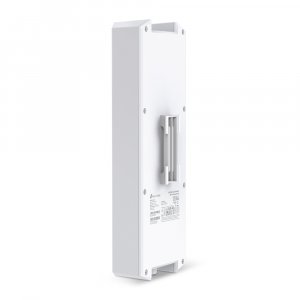

Placement
Pole, Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Airtime Fairness (ATF)
Yes

Automatic channel scanning
Yes

Automatic channel selection
Yes

Band steering
Yes

BeamForming
Yes

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN data rates
10,100,1000 Mbit/s

Fit AP mode features
Mesh networking

Maximum data transfer rate
3000 Mbit/s

Maximum data transfer rate (2.4 GHz)
574 Mbit/s

Maximum data transfer rate (5 GHz)
2402 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at

Number of users
250 user(s)

Quality of Service (QoS) support
Yes

Rate limiting
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-30 - 70 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Mounting kit
Yes

Quantity per pack
1 pc(s)

Quick start guide
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

USB 2.0 ports quantity
0

Power

Power over Ethernet (PoE)
Yes

Security

MAC address filtering
Yes

Security algorithms
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise

Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast on/off

Weight & dimensions

Depth
106.5 mm

Height
56.8 mm

Width
280.4 mm
