Description

TP-Link Omada EAP610GP-DESKTOP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal. Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
1× GPON Port for High-Speed and Ultra-Range Access
Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
Easy Use: One-Click Pairing and Automatic Adoption
Smart O&M: PPSK△ and Multiple Portals§
High Flexibility: Support both desktop and wall mounting setups
Centralized Management: Integrates with the Unified Optical Solution

Product Properties

Manufacturer
TP-LINK

Model
EAP610GP-DESKTOP

EAN
1210002606974

Antenna

Antenna direction type
Omni-directional

Antenna gain level (max)
5 dBi

Antenna type
Internal

Antennas quantity
2

Bullet points

Point
1× GPON Port for High-Speed and Ultra-Range Access

Centralized Management: Integrates with the Unified Optical Solution

Easy Use: One-Click Pairing and Automatic Adoption

High Flexibility: Support both desktop and wall mounting setups

One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services

Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz

Smart O&M: PPSK△ and Multiple Portals§

Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§

VoIP Calls

Certificates

Certification
CE, FCC, RoHS, IC

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Design

LED indicators
Power

Placement
Desk, Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Airtime Fairness (ATF)
Yes

Band steering
Yes

BeamForming
Yes

Channel bandwidth
80 MHz

Ethernet LAN data rates
1000 Mbit/s

Maximum data transfer rate
1201 Mbit/s

Maximum data transfer rate (2.4 GHz)
574 Mbit/s

Maximum data transfer rate (5 GHz)
1201 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of users
120 user(s)

Quality of Service (QoS) support
Yes

Rate limiting
Yes

Spread spectrum method
OFDMA

Transmitting power (CE)
20 dBm

Transmitting power (FCC)
25 dBm

VLAN support
Yes

Wi-Fi roaming
Yes

Wireless isolation
Yes

Management features

Syslog
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Mounting kit
Yes

Quantity per pack
1 pc(s)

Quick start guide
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

USB 2.0 ports quantity
0

Power

DC voltage range
53.5 V

Power consumption (typical)
17.3 W

Power over Ethernet (PoE)
Yes

Security

MAC address filtering
Yes

Number of SSID supported
16

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal

Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast on/off

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
140 mm

Height
33 mm

Weight
492 g

Width
175 mm

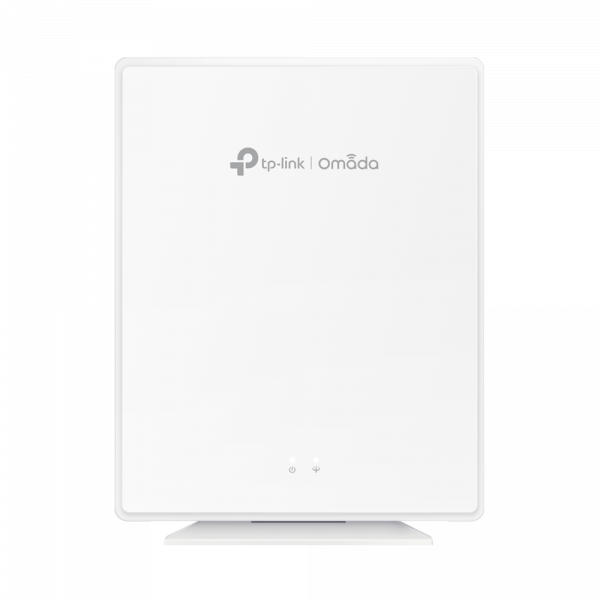

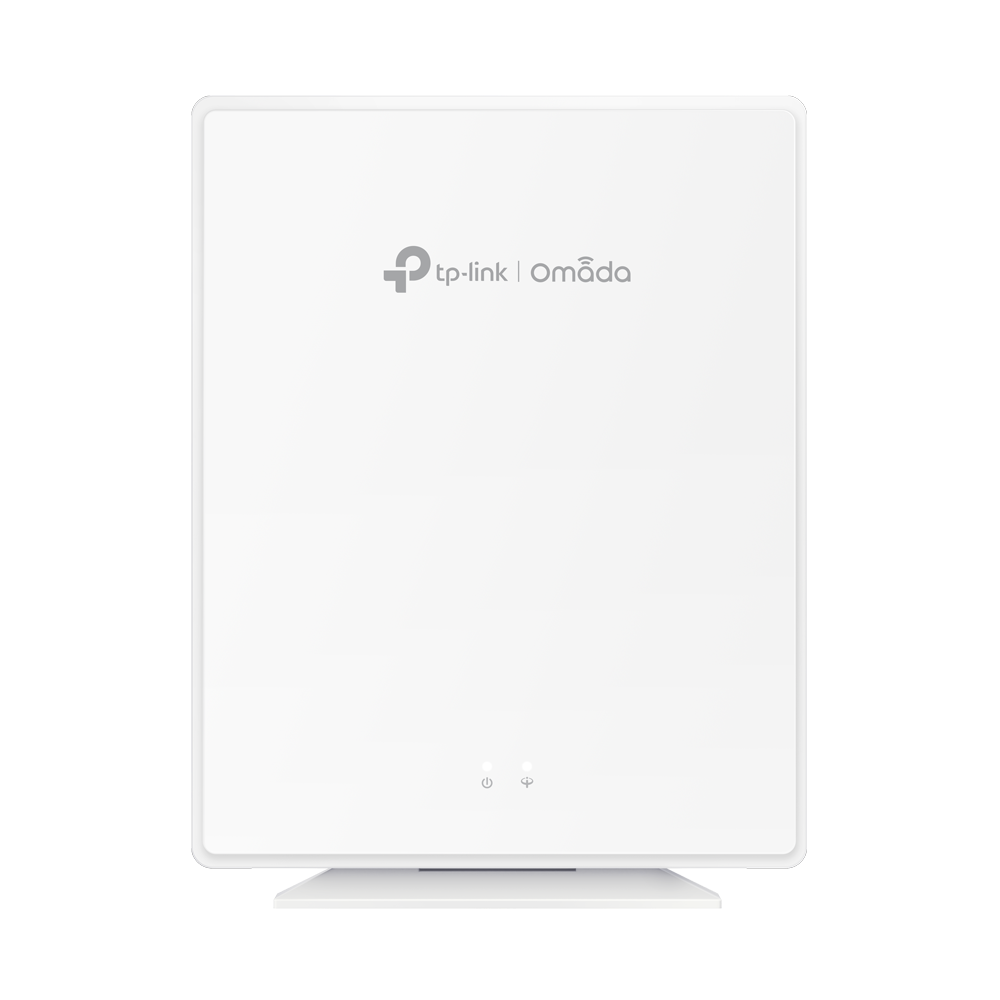

TP-Link Omada EAP610GP-DESKTOP wireless access point 1201 Mbit/s White Power over Ethernet (PoE)
