Description

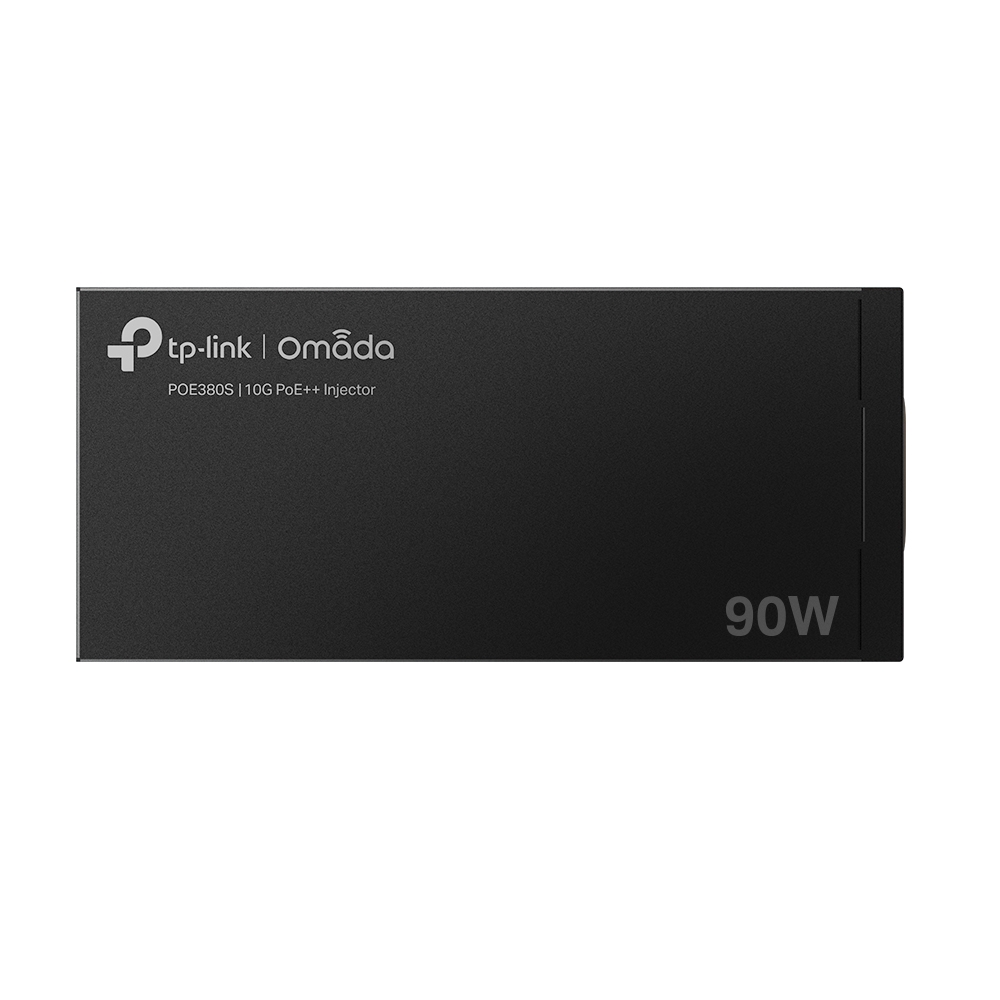

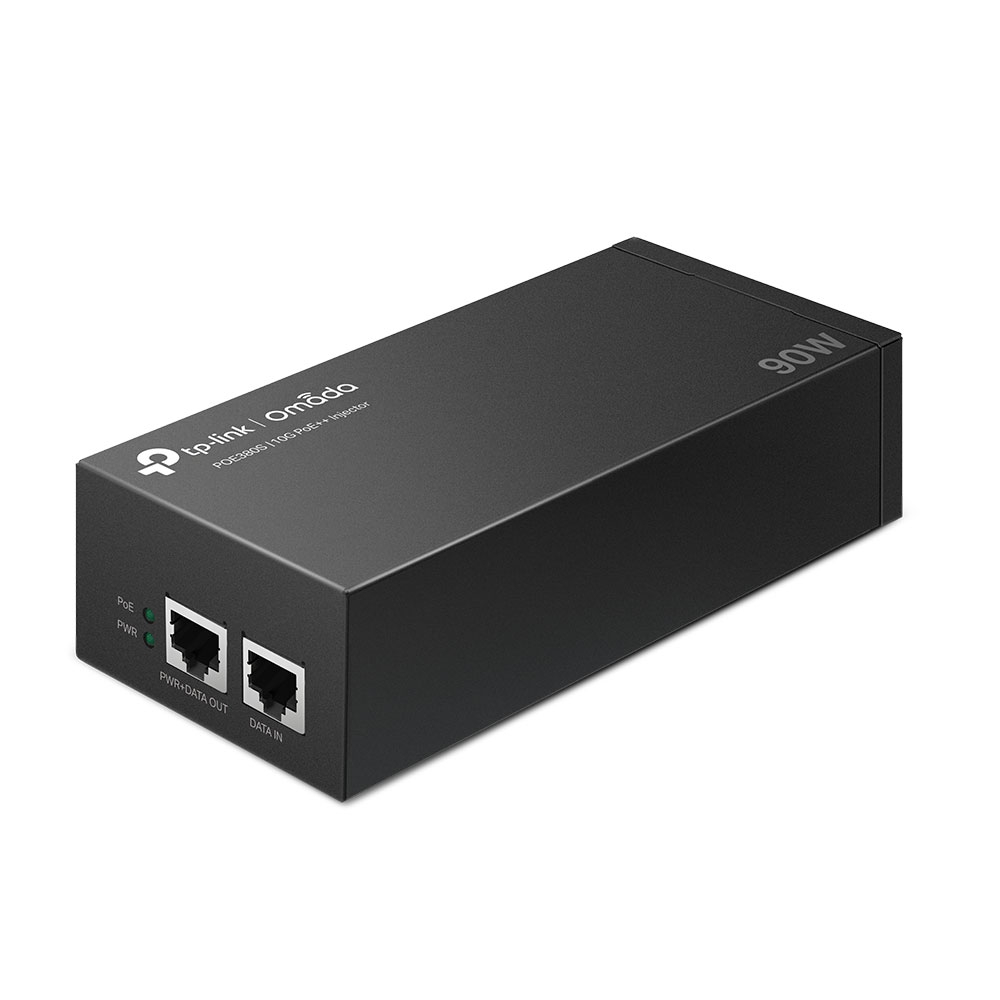

TP-Link Omada PoE++ Injector. Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,2500,10000 Mbit/s, Cabling technology: 1000/10000. Product colour: Black, LED indicators: PoE, Power. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50 - 60 Hz, Input current: 1.6 A. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Width: 155 mm, Depth: 70 mm, Height: 42 mm

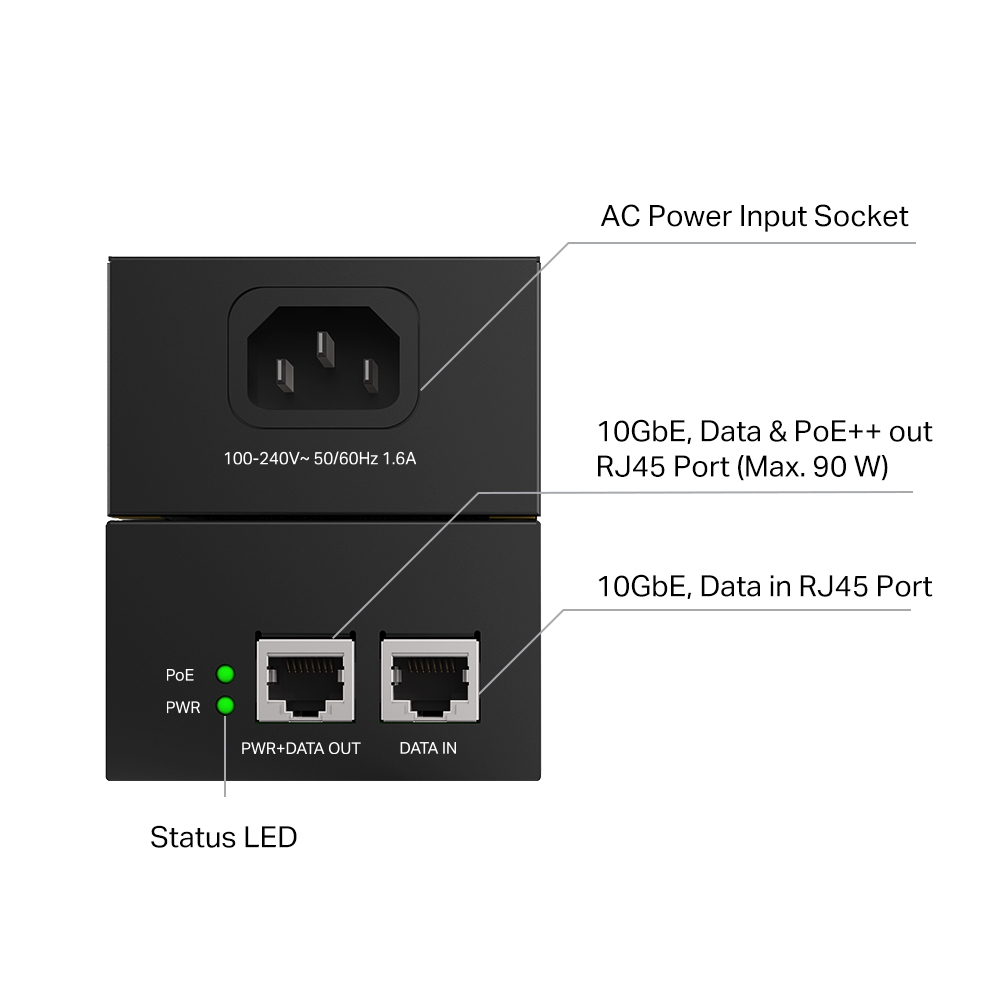

2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, no configuration required
Integrated power supply
Durable metal casing

Product Properties

Manufacturer
TP-LINK

Model
POE380S

EAN
4895252506358

Bullet points

Point
2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission

Automatically determines and supplies the exact power to meet the device's need

Complies with IEEE802.3af/at/bt standards, supplies up to 90 W

Durable metal casing

Integrated Power Supply

Plug & Play installation, no configuration required

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Wall-mounting and desktop design accommodates most installation scenarios

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Features

LED indicators
PoE, Power

Product colour
Black

Network

Cabling technology
1000/10000

Ethernet interface type
10 Gigabit Ethernet

Ethernet LAN data rates
10,100,2500,10000 Mbit/s

Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u

Power over Ethernet (PoE)
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Number of products included
1 pc(s)

Quick installation guide
Yes

Ports & interfaces

RJ-45 input ports
1

RJ-45 output ports
1

Power

AC adapter frequency
50 - 60 Hz

AC adapter input voltage
100 - 240 V

Input current
1.6 A

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
70 mm

Height
42 mm

Width
155 mm
