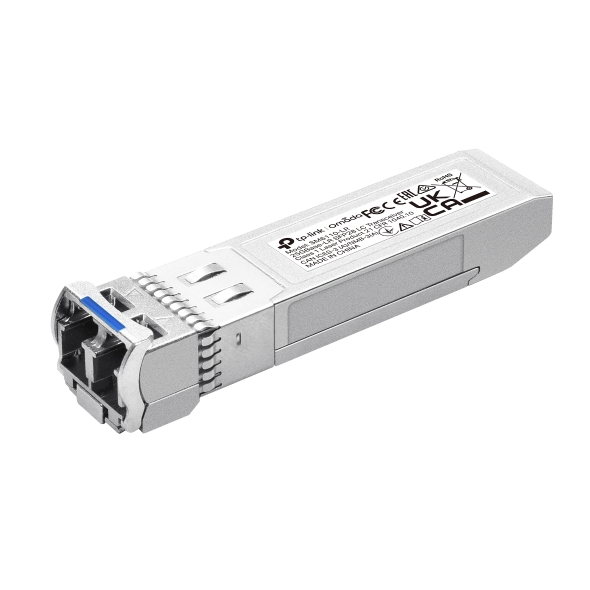

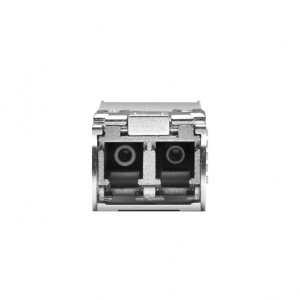

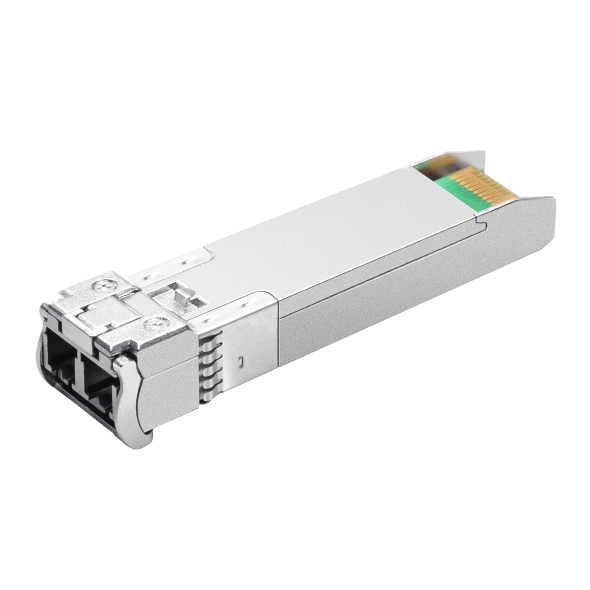

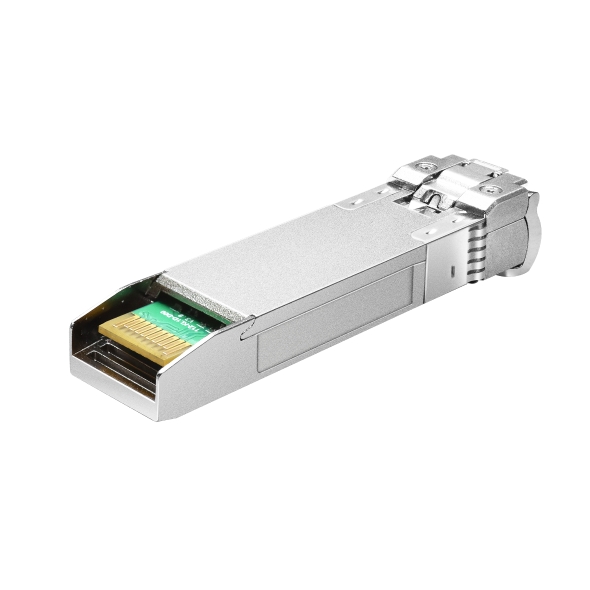

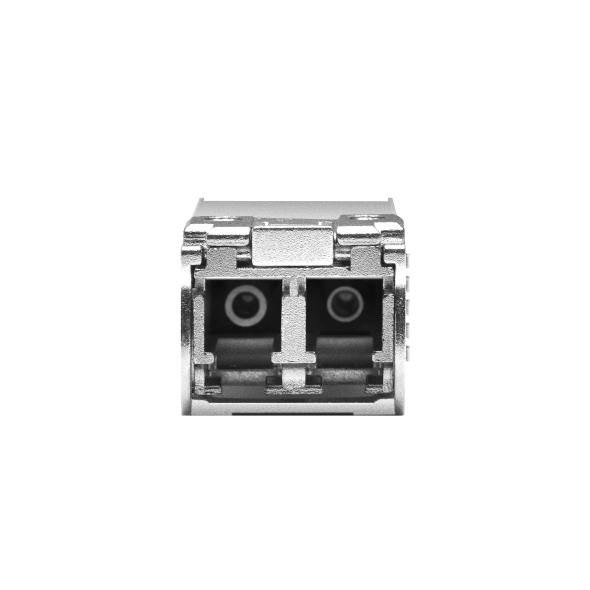

TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
Roll over image to zoom inClick to Open expanded view
TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
Print
Model: SM6110-LR
EAN: 8885020622362

TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm

Manufacturer:
TP-LINK
TP-Link SM6110-LR, Fiber optic, 25780 Mbit/s, SFP+, 9/125 µm, 10000 m, 1310 nm
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link SM6110-LR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 25780 Mbit/s, Interface type: SFP+. Product colour: Grey. Input voltage: 3.3 V. Width: 57 mm, Depth: 14 mm, Height: 12 mm. Quantity per pack: 1 pc(s)
  • Single-mode SFP+/SFP28 LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Low Power Consumption no more than 1.2 W
  • Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
  • Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X

Product Properties

  • Model
  • SM6110-LR
  • EAN
  • 8885020622362
  • Bullet points
  • Point
  • Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
    Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
    Hot-Pluggable with maximum flexibility
    Low Power Consumption no more than 1.2 W
    Single-mode SFP+/SFP28 LC Transceiver
    Supports Digital Diagnostic Monitoring (DDM)
  • Features
  • Hot-Plug support
  • Yes
  • Hot-swap
  • Yes
  • Product colour
  • Grey
  • Operational conditions
  • Maximum operating temperature
  • 70 °C
  • Minimum operating temperature
  • 0 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging content
  • Quantity per pack
  • 1 pc(s)
  • Performance
  • Fiber cable diameters supported (core/cladding)
  • 9/125 µm
  • Interface type
  • SFP+
  • Maximum data transfer rate
  • 25780 Mbit/s
  • Maximum transfer distance
  • 10000 m
  • SFP transceiver type
  • Fiber optic
  • Wavelength
  • 1310 nm
  • Power
  • Input voltage
  • 3.3 V
  • Weight & dimensions
  • Depth
  • 14 mm
  • Height
  • 12 mm
  • Width
  • 57 mm
