Description

TP-Link TL-WPA7817 KIT. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,..., Power plug: Type E. Product colour: White, Antenna type: Internal. Windows operating systems supported: Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP. Width: 78 mm, Depth: 33.9 mm, Height: 149 mm. Compliance certificates: CE, RoHS

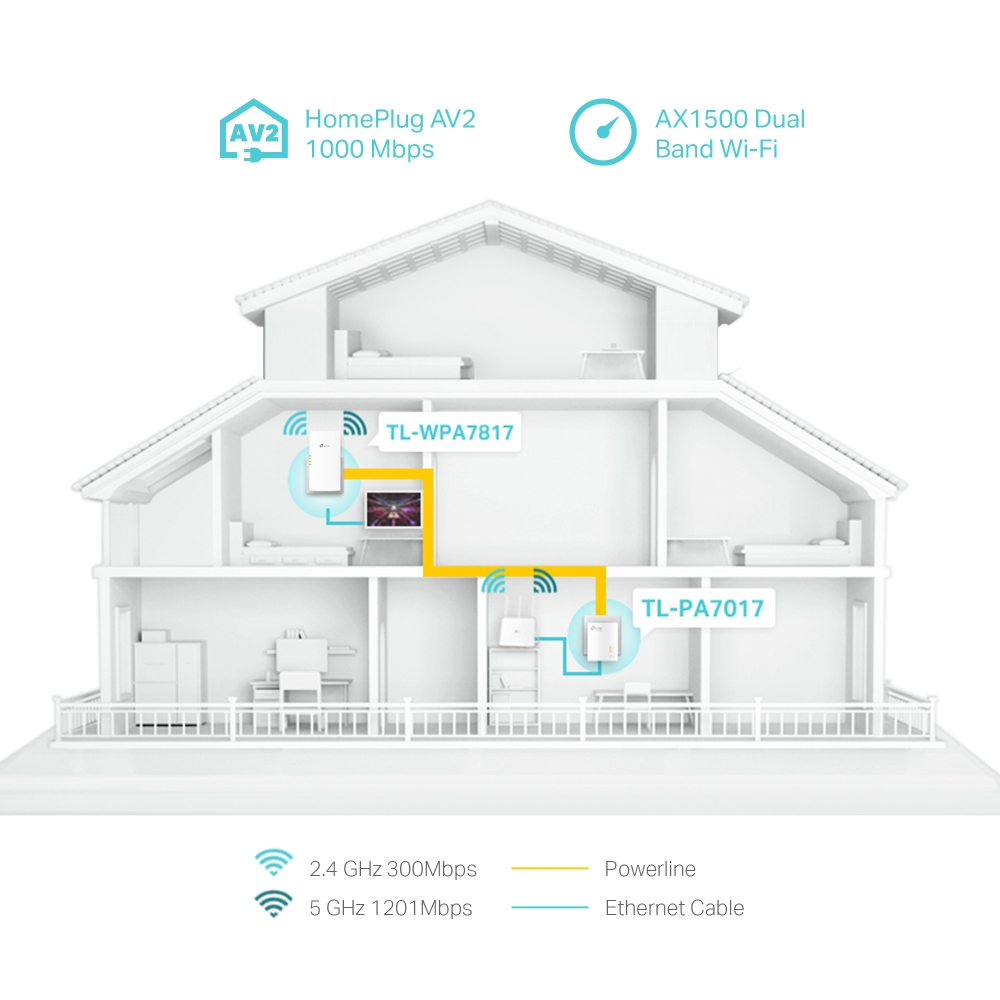

Homeplug AV2 Standard Compliant: Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters‡
Blazing Fast WiFi 6: AX1500 dual band WiFi (1201 Mbps on 5GHz & 300 Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home†

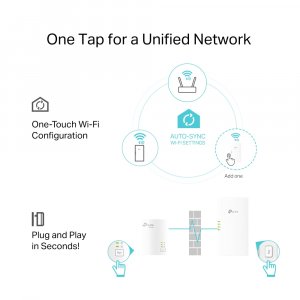

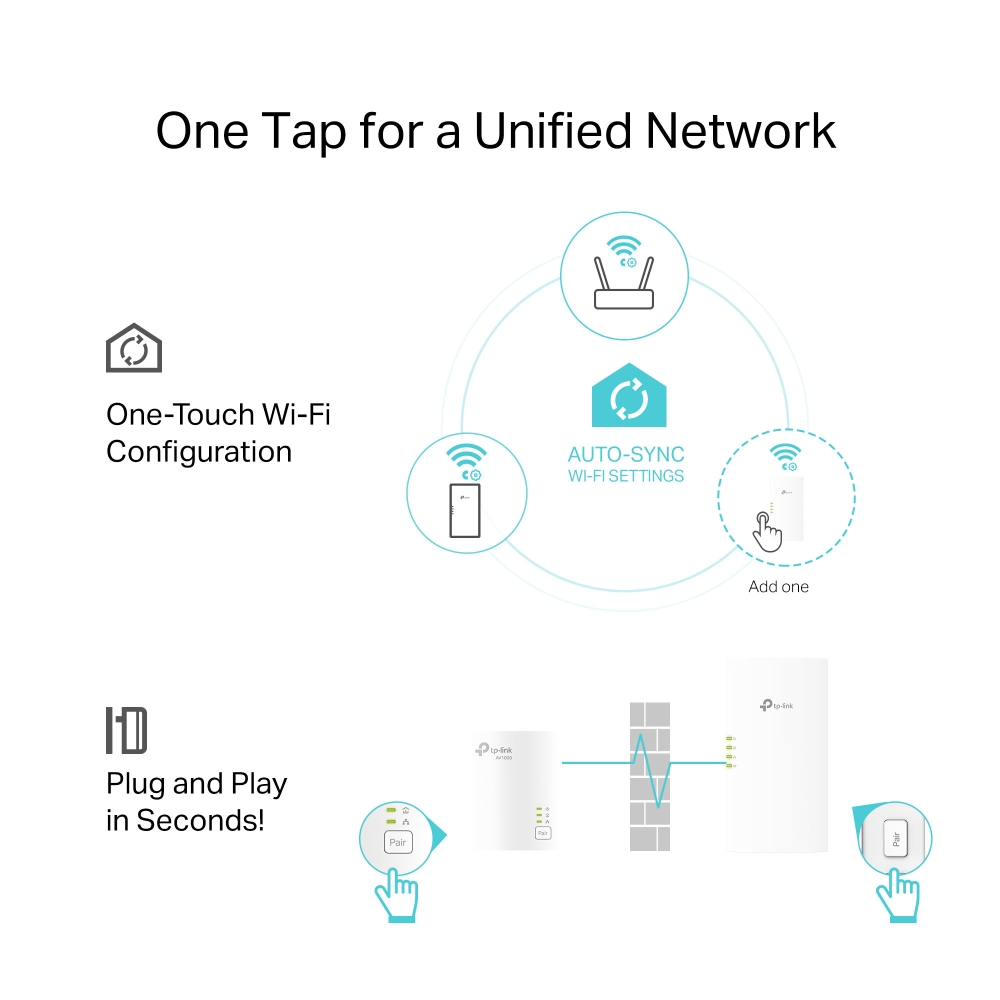

Plug, Pair and Play: Quickly set up a secured Powerline network
Wi-Fi Auto-Sync: Simply copy your router's Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

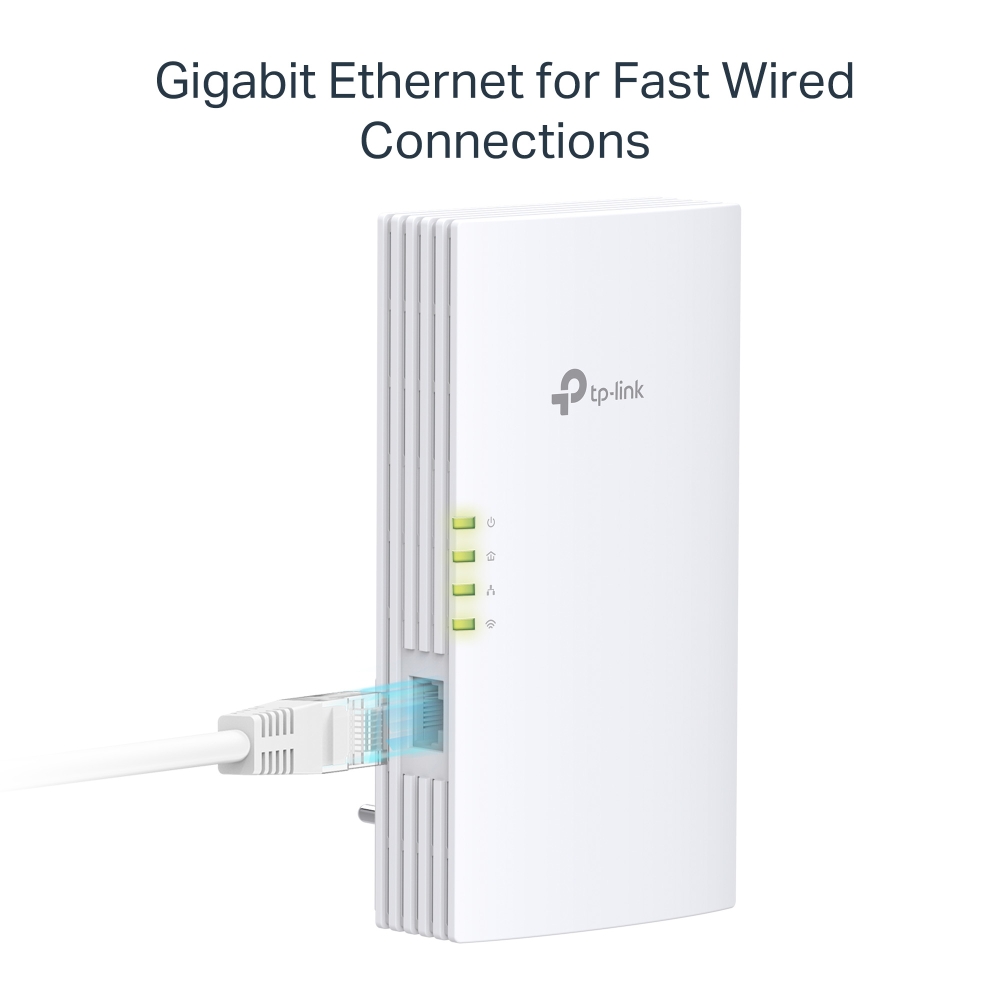

Gigabit Ethernet Port: Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage

Product Properties

Manufacturer
TP-LINK

Model
TL-WPA7817 KIT

EAN
4895252507409

Bullet points

Point
Blazing Fast WiFi 6

EasyMesh-Compatible

Gigabit Ethernet Port

Homeplug AV2 Standard Compliant

Plug, Pair and Play: Quickly set up a secured Powerline network

Wi-Fi Auto-Sync

Certificates

Compliance certificates
CE, RoHS

Design

Antenna type
Internal

LED indicators
Yes

Product colour
White

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Packaging content

Cables included
LAN (RJ-45)

Quantity per pack
2 pc(s)

Quick installation guide
Yes

Packaging data

Package type
Box

Performance

Built-in power socket
Yes

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Maximum data transfer rate
1000 Mbit/s

Maximum operating distance
300 m

Modulation
OFDM

Networking standards
IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Plug and Play
Yes

Power plug
Type E

PowerLine standard
HomePlug AV2

Security algorithms
128-bit AES, WEP, WPA-PSK, WPA2-PSK

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

WLAN data transfer rate (first band)
300 Mbit/s

WLAN data transfer rate (second band)
1201 Mbit/s

System requirements

Linux operating systems supported
Yes

Mac compatibility
Yes

Mac operating systems supported
Yes

Windows operating systems supported
Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP

Weight & dimensions

Depth
33.9 mm

Height
149 mm

Width
78 mm

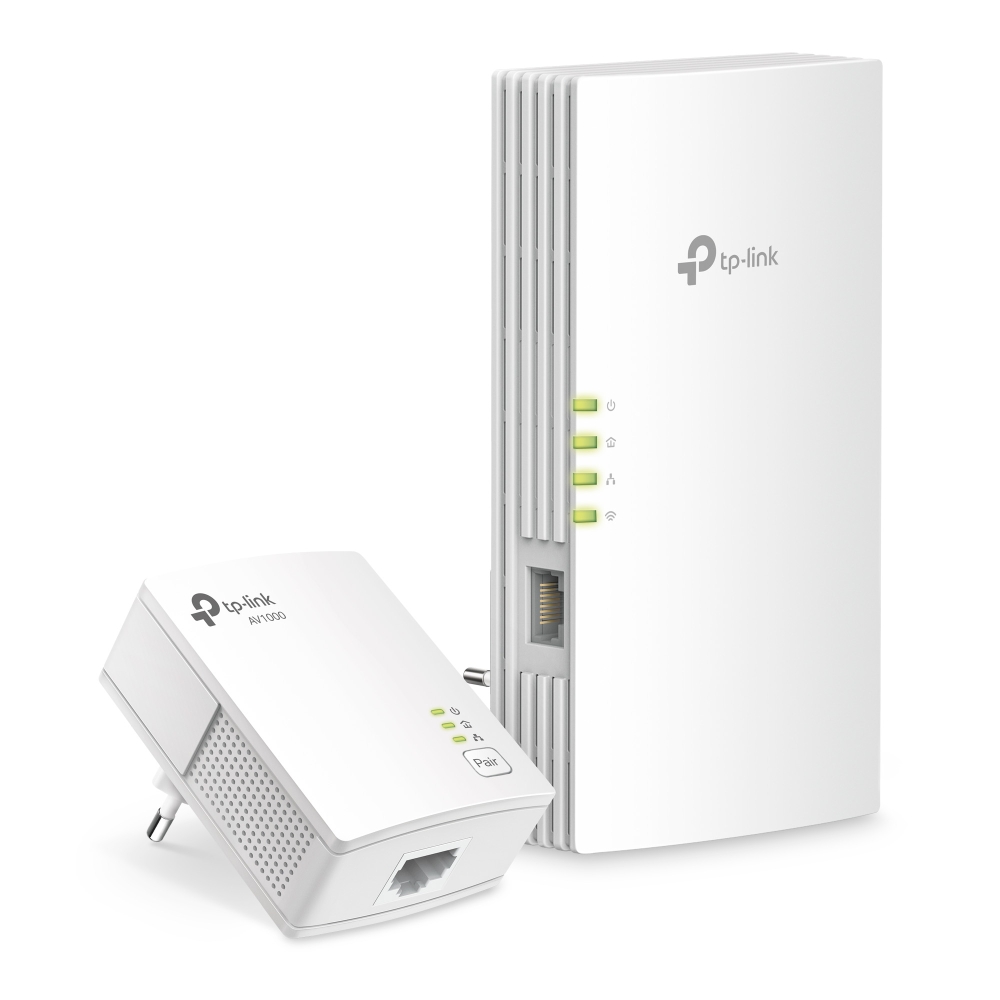

TP-Link TL-WPA7817 KIT PowerLine network adapter 1000 Mbit/s Ethernet LAN Wi-Fi White 2 pc(s)
