Description

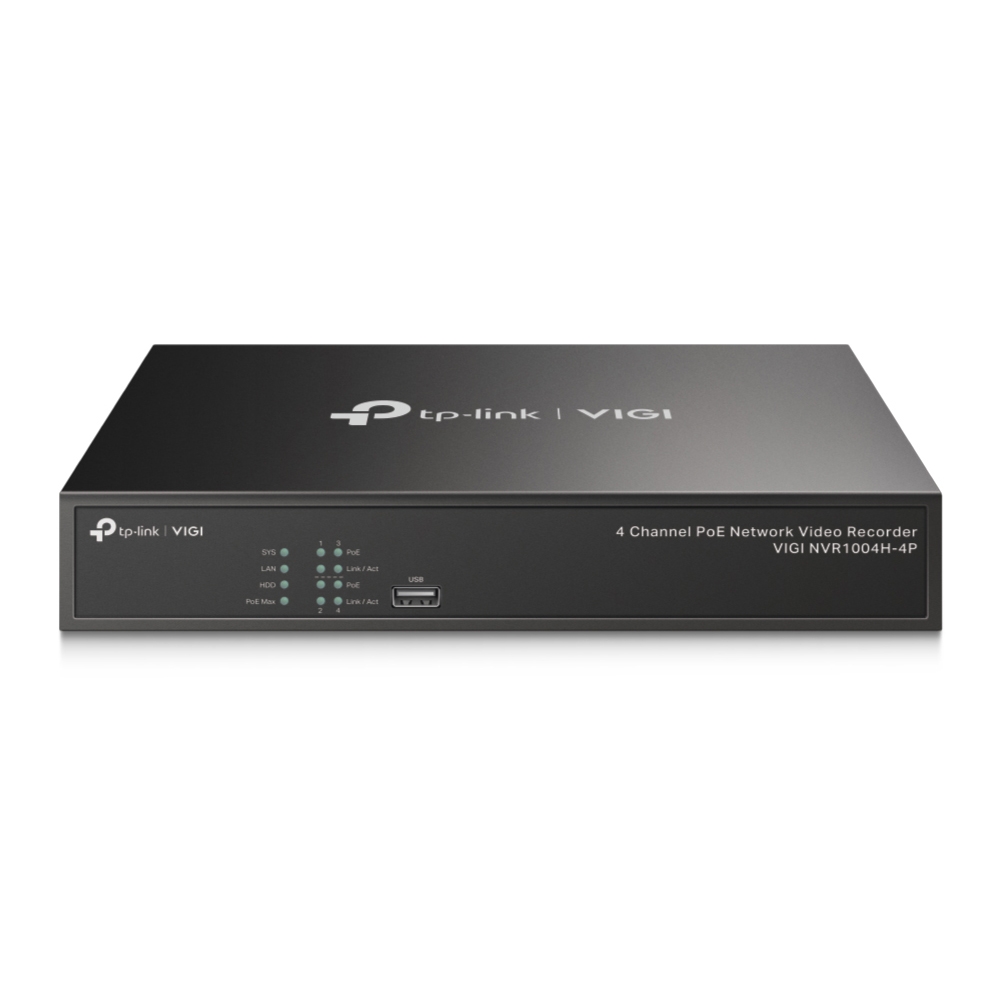

TP-Link VIGI 4 Channel PoE+ Network Video Recorder. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 10 TB, HDD interface: SATA. Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. Product colour: Black. Power consumption (typical): 4.25 W, Output current: 1.31 A, Output voltage: 53.5 V

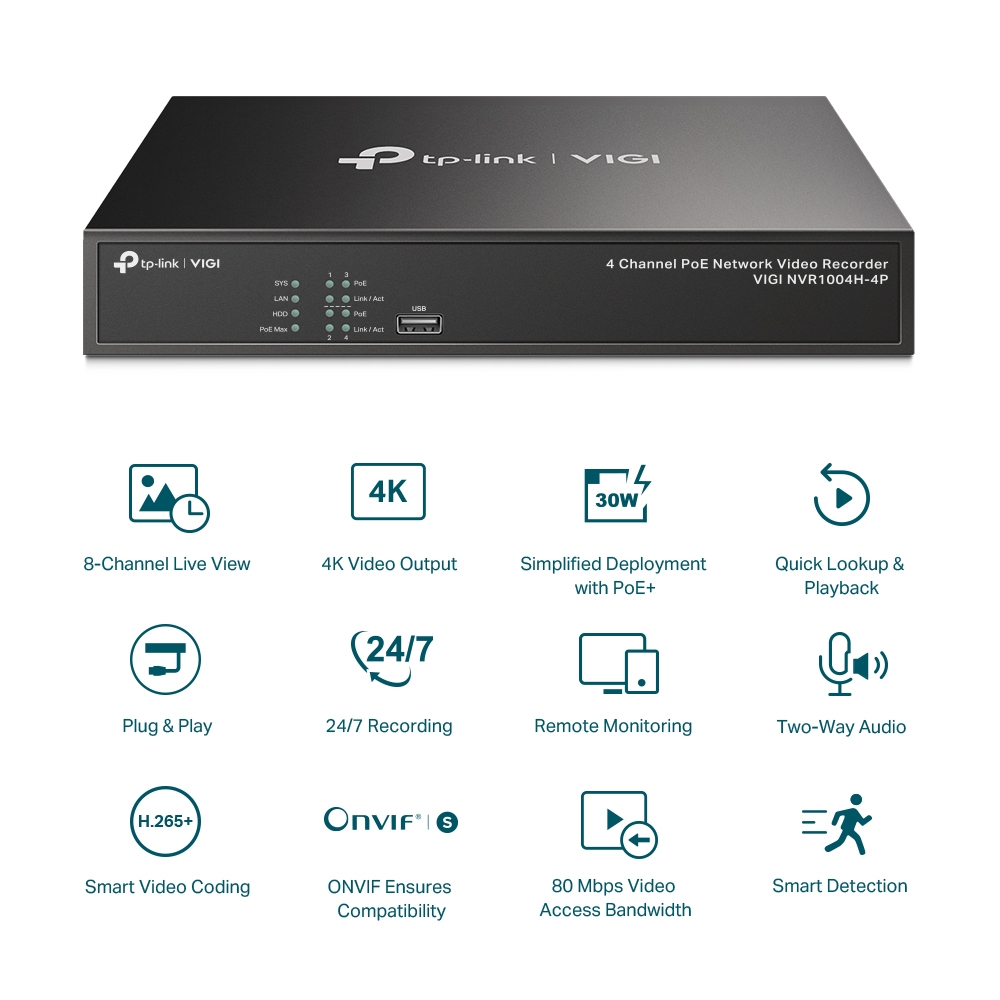

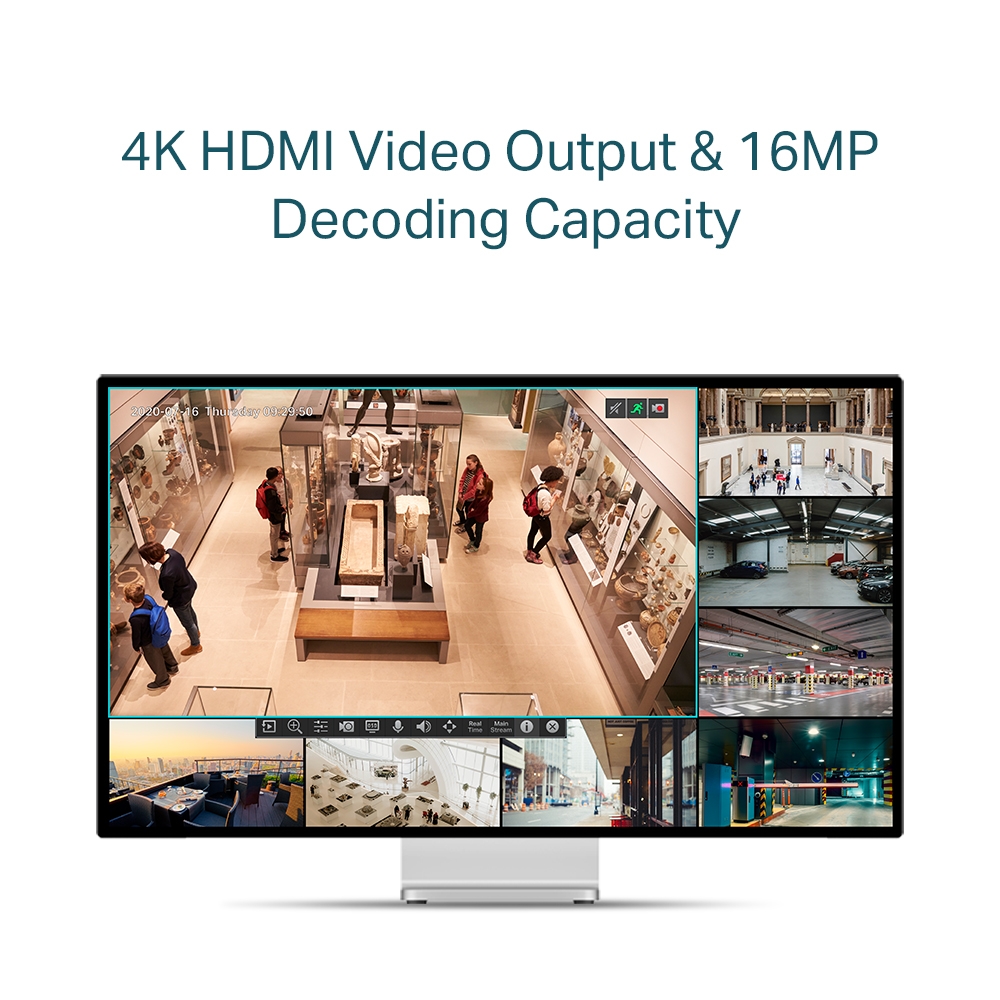

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†

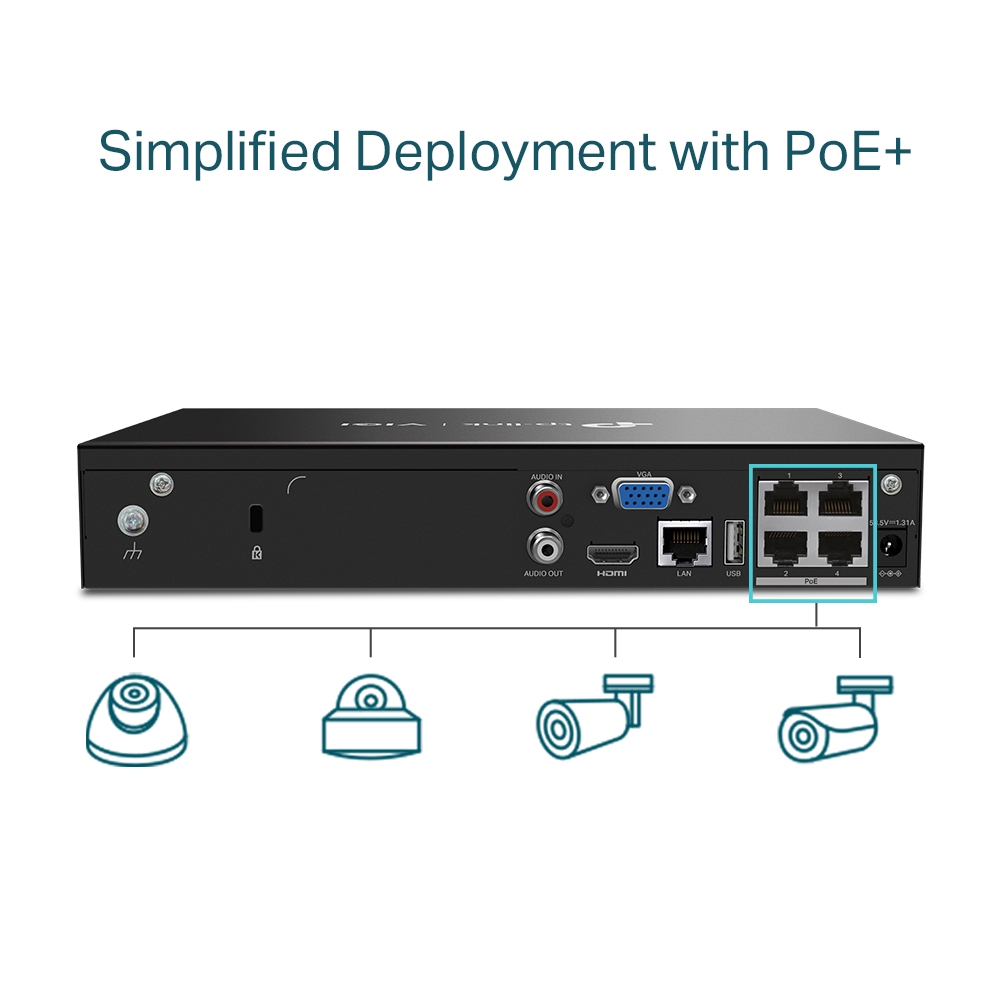

Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed

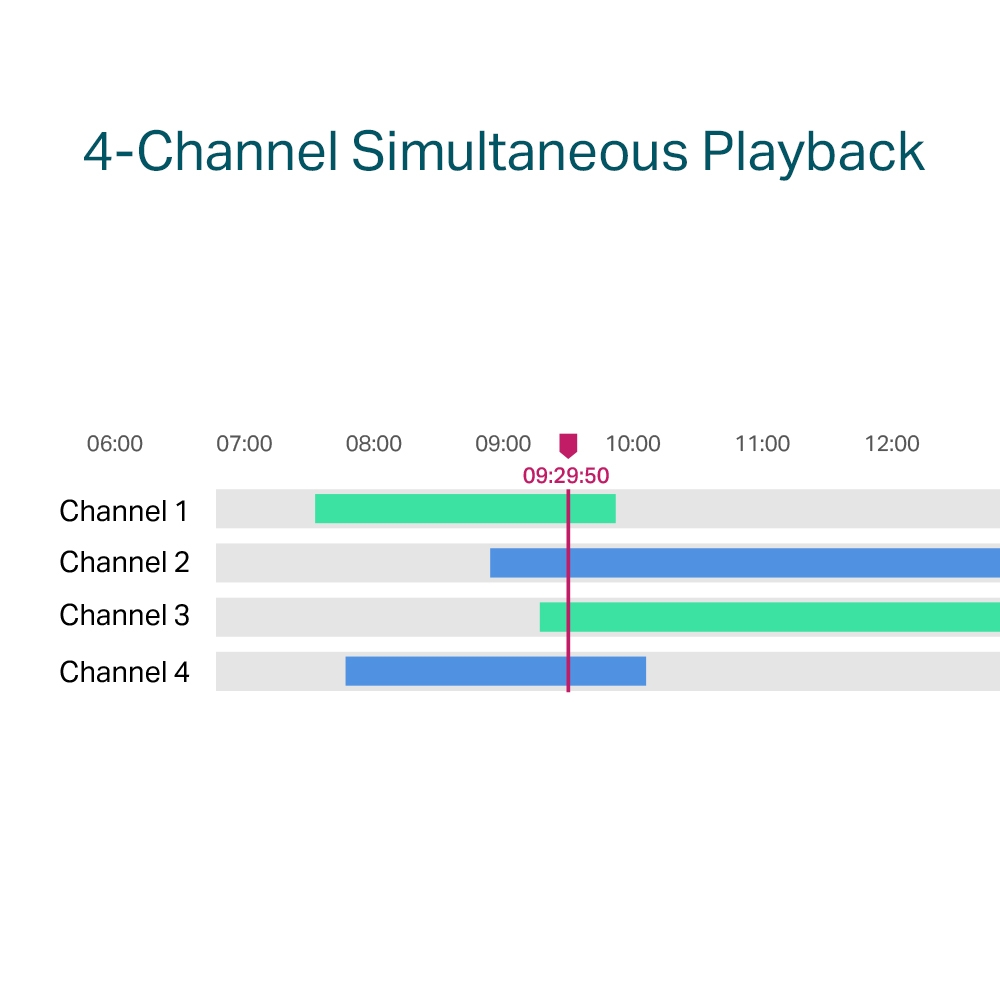

4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage

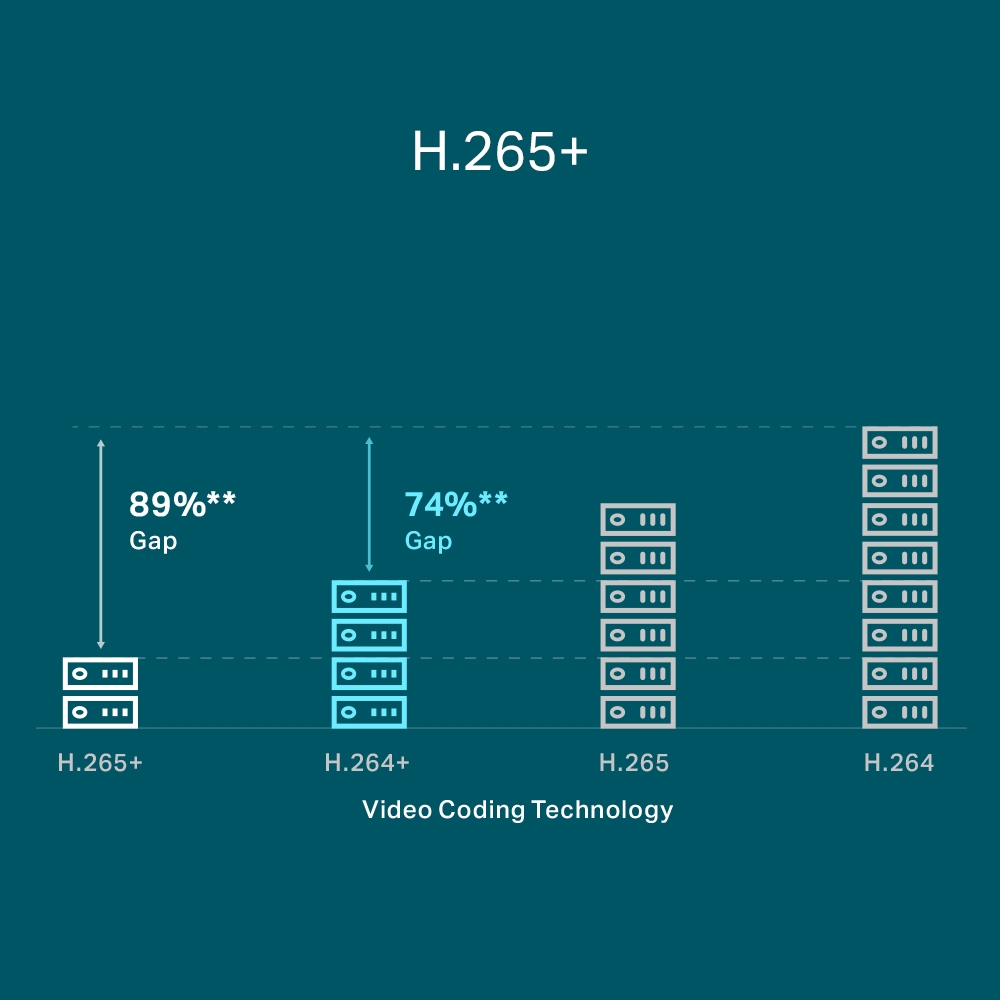

H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality

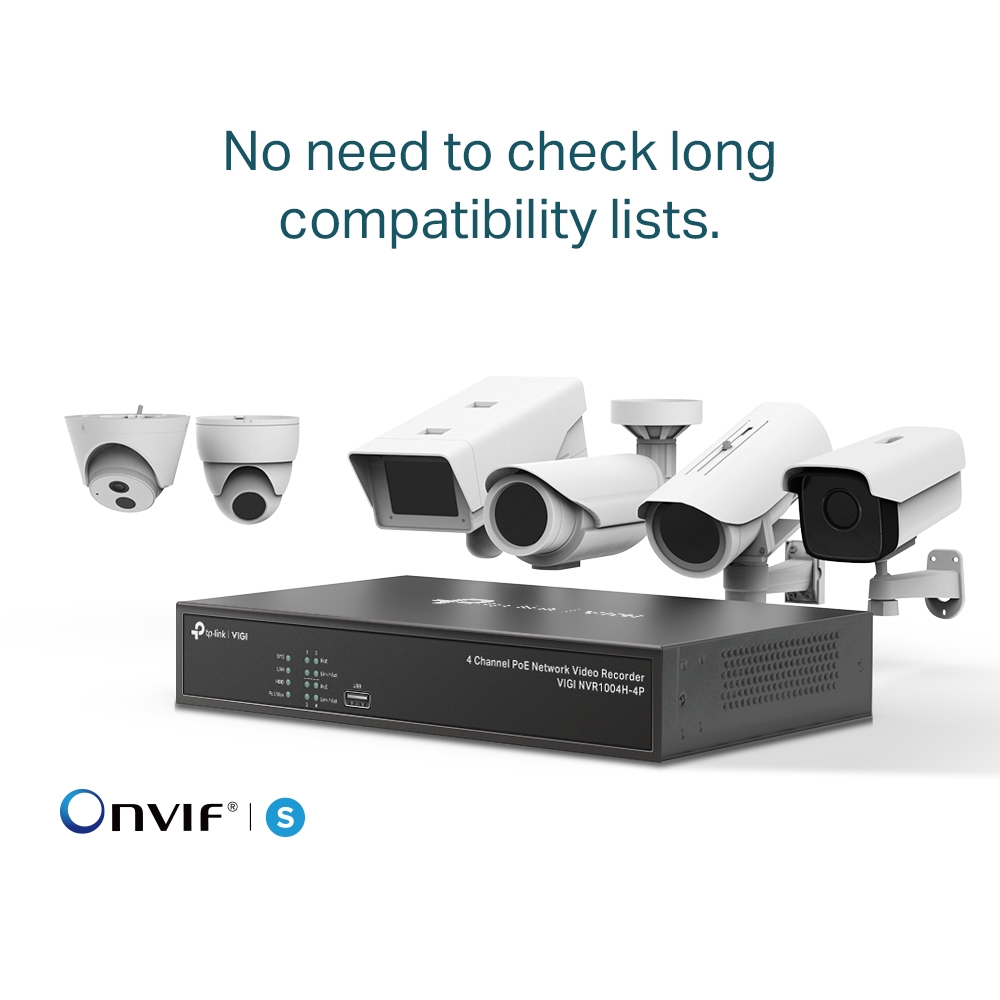

ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility

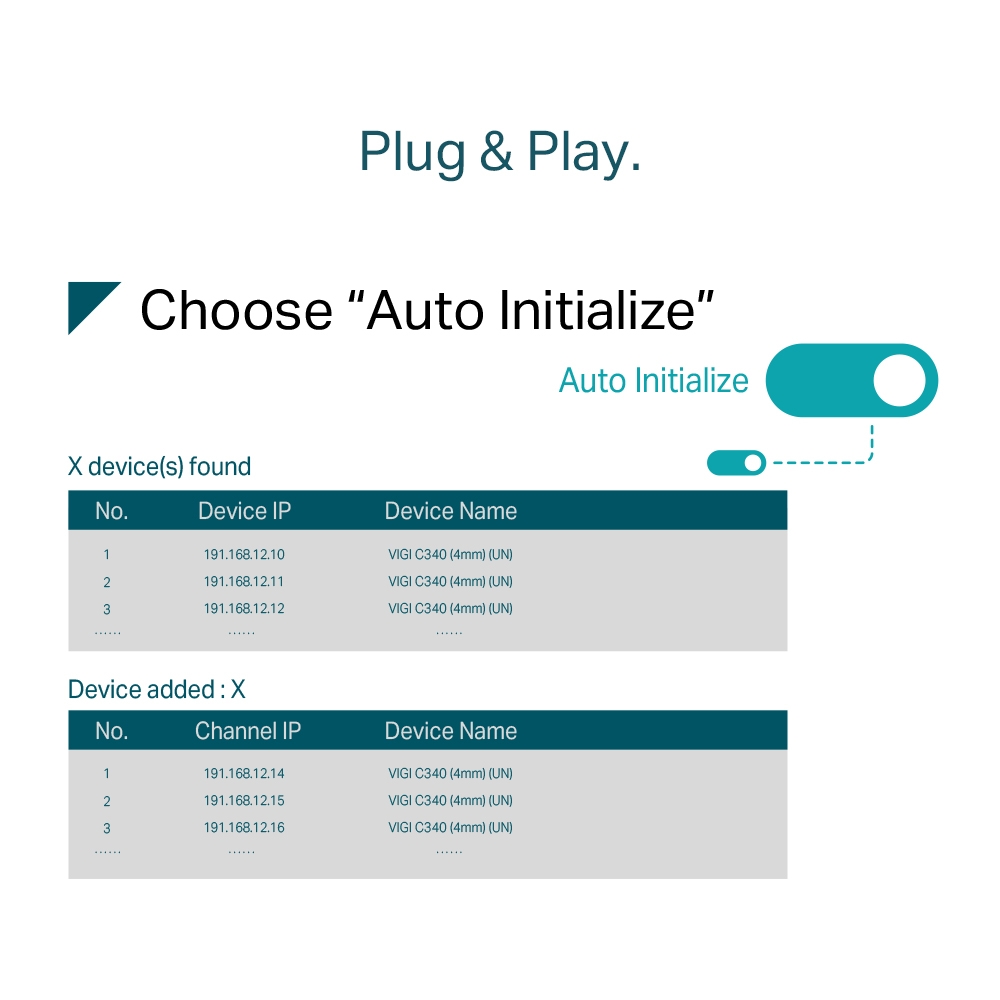

Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before
24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management
80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras

Product Properties

Manufacturer
TP-LINK

Model
VIGINVR1004H-4P

EAN
4897098688755

Bullet points

Point
24/7 Continuous Recording

4-Channel Simultaneous Playback

4K HDMI Video Output & 16MP Decoding Capacity

80 Mbps Video Access Bandwidth

H.265+

ONVIF Ensures Compatibility

Plug & play

Remote Monitoring

Simplified Deployment with PoE+

Two-way Audio

Features

LED indicators
Yes

Product colour
Black

Hard drive

HDD capacity
0 GB

HDD interface
SATA

Maximum storage capacity
10 TB

Number of HDDs installed
0

Operational conditions

Operating temperature (T-T)
-10 - 55 °C

Performance

Alarm input channels
4

Alarm output channels
1

Input bandwidth
80 Mbit/s

Maximum resolution
3840 x 2160 pixels

Output bandwidth
60 Mbit/s

Resolution at capture speed
1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps

Supported resolutions
3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720

Video formats supported
H.264, H.264+, H.265, H.265+

Video input channels
4 channels

Video recording modes
720p, 1080p, 2160p

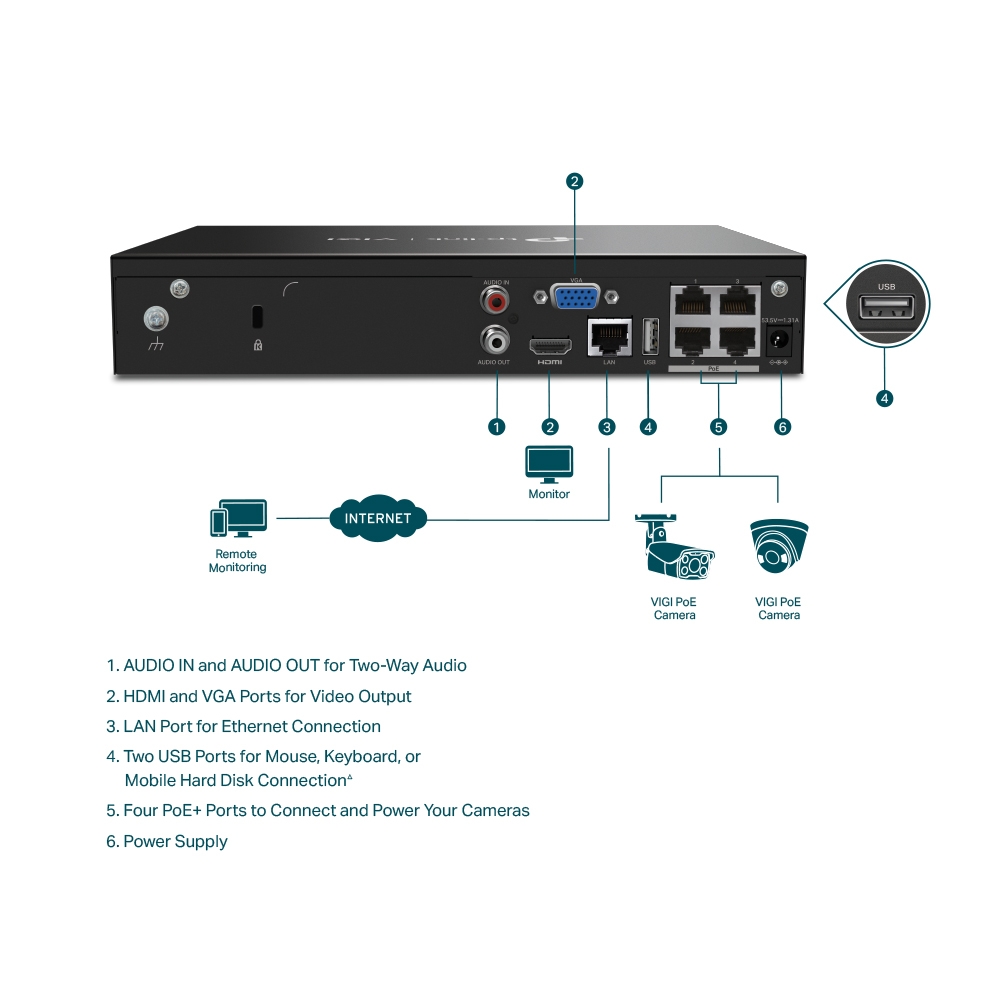

Ports & interfaces

Audio RCA inputs
1

Audio RCA outputs
1

Ethernet LAN (RJ-45) ports
1

HDMI output
Yes

HDMI ports
1

Supported network protocols
TCP/IP, DHCP, DNS, NTP, UPnP

USB 2.0 ports quantity
2

VGA (D-Sub) output ports
1

Power

Output current
1.31 A

Output voltage
53.5 V

Power consumption (typical)
4.25 W

Total Power over Ethernet (PoE) budget
53 W

Weight & dimensions

Depth
148.2 mm

Height
45 mm

Width
246.2 mm

Wireless LAN features

Wi-Fi
No
