Description

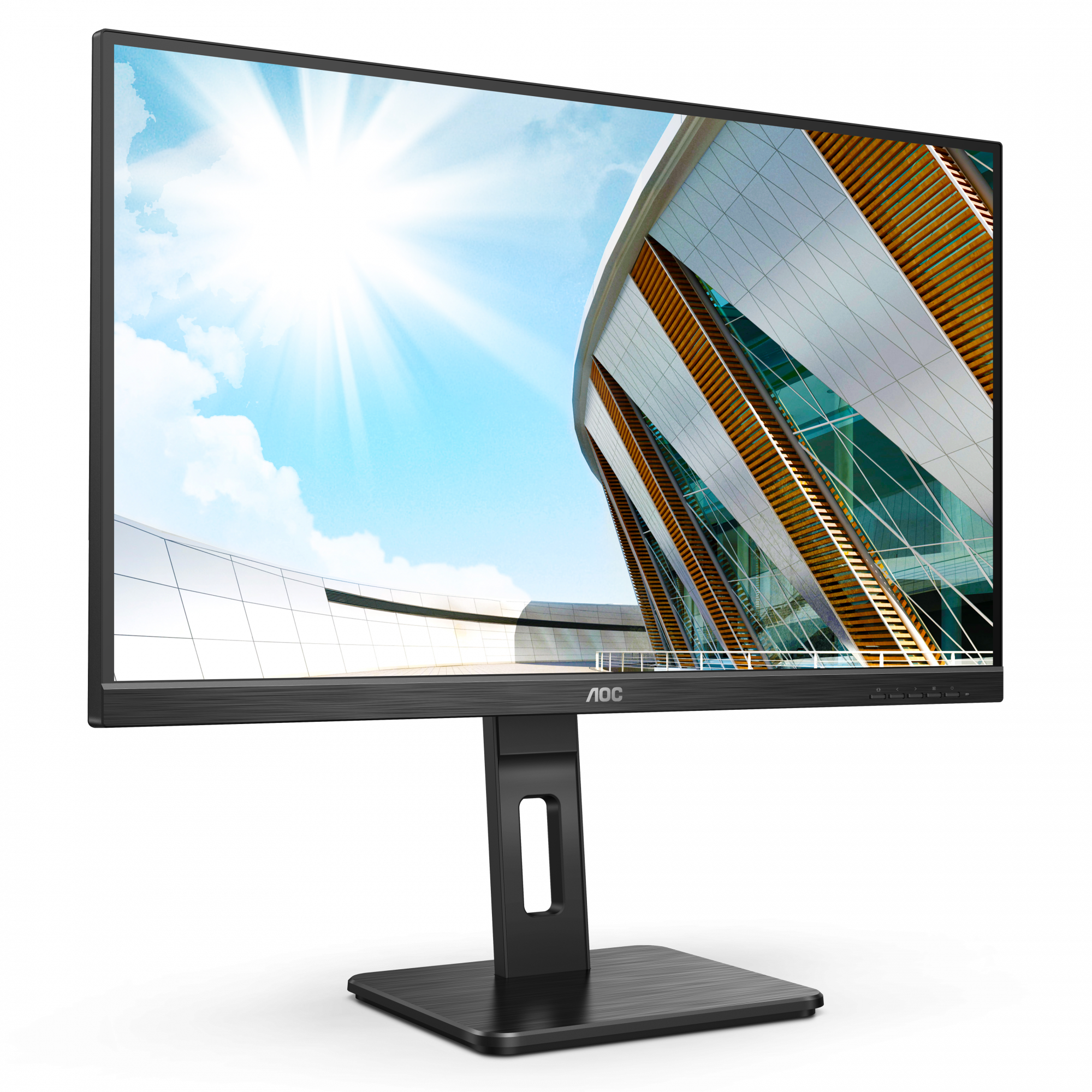

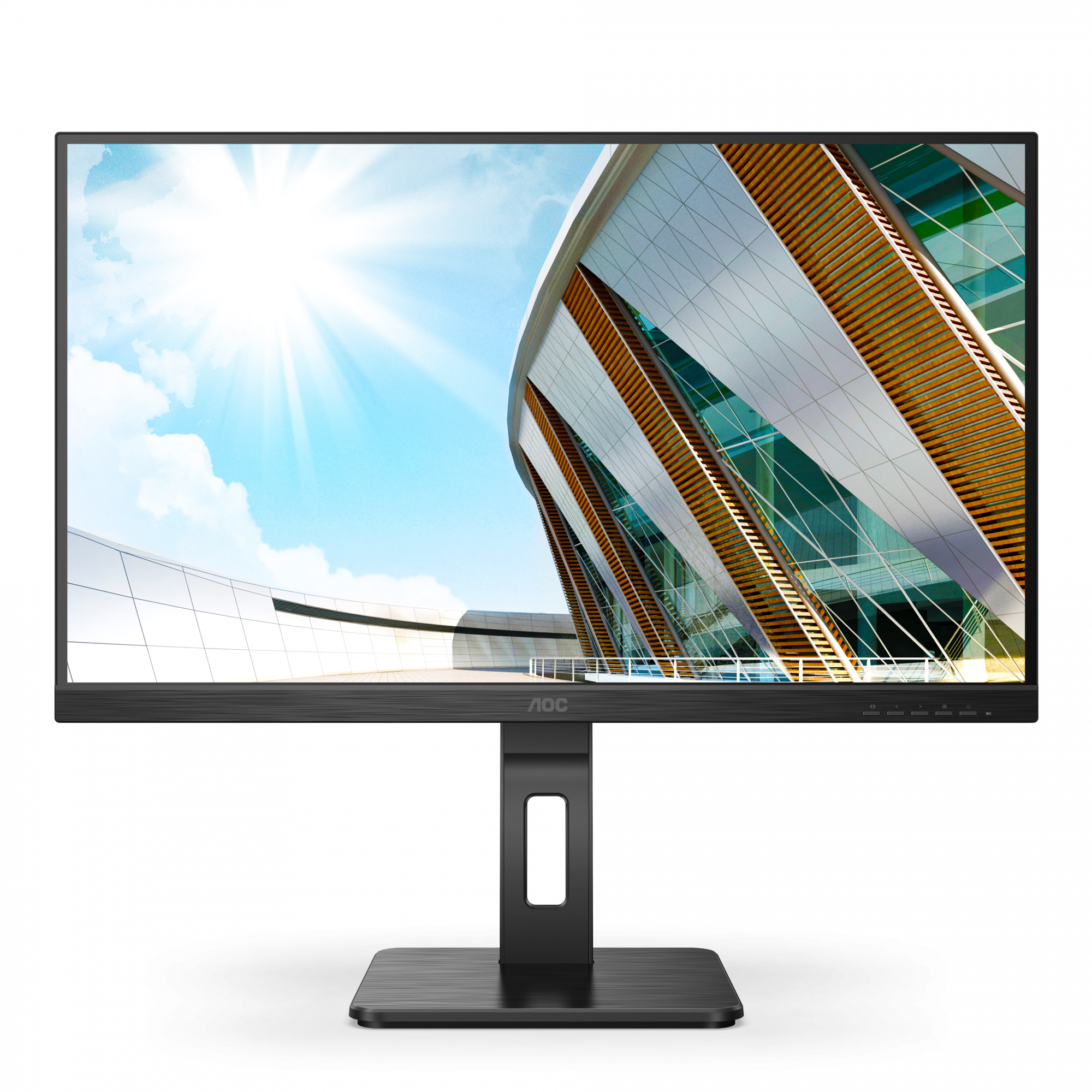

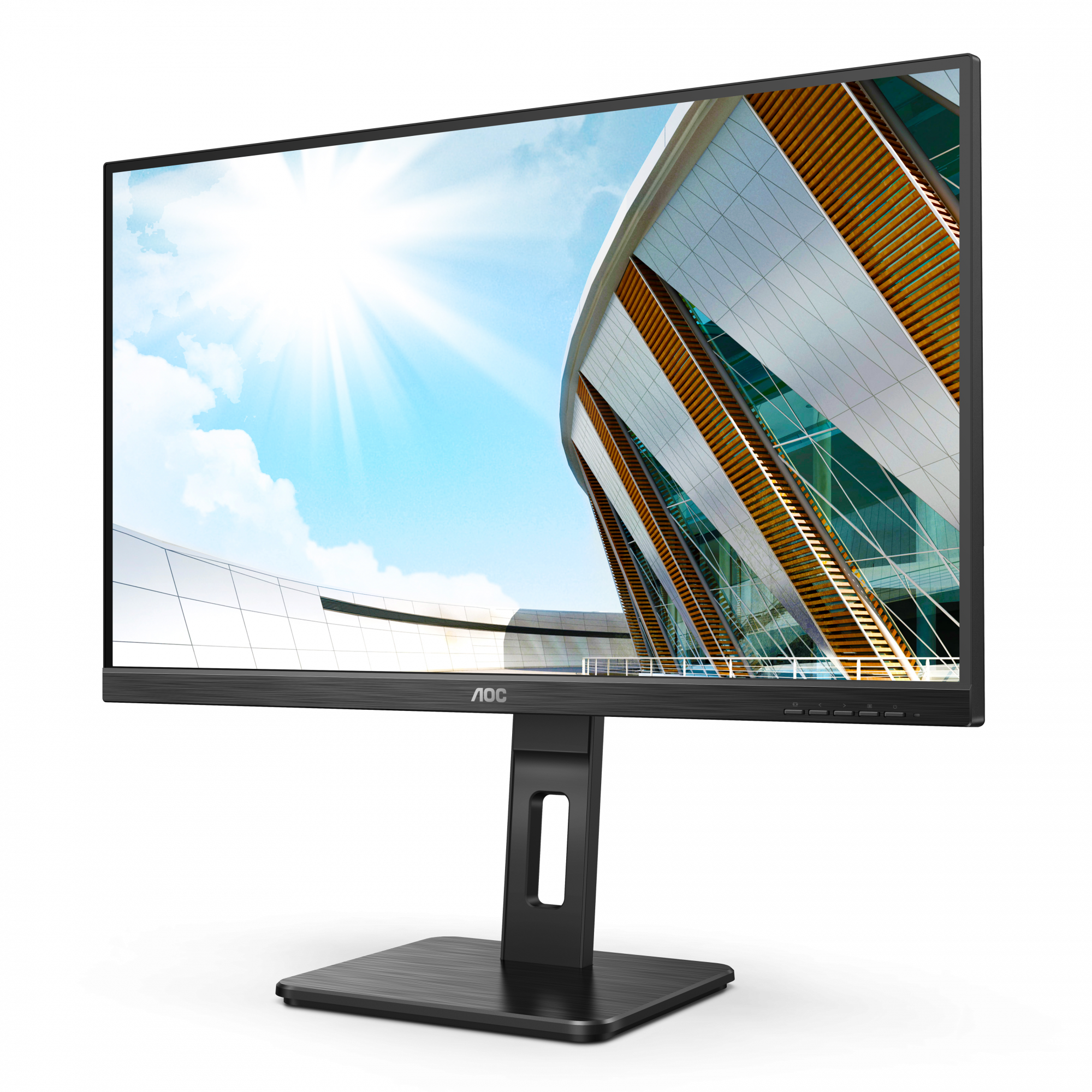

AOC P2 24P2QM. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

75Hz Refresh Rate

Get the upper edge! With a 75 Hz refresh rate, the display panel draws 75 frames each second. 75 Hz refresh rate is 25% faster than what is offered on most entry level displays at 60 Hz, while still being affordable and delivering those extra frames gamers need to beat their opponents.

Adaptive sync

Adaptive Sync aligns your monitor’s vertical refresh rate with the frame rate delivered by your GPU, making your gameplay and casual gaming experience even more fluid by eliminating stuttering, tearing and judder. This feature is also useful when enjoying videos and other visual media, for a smoother entertainment.

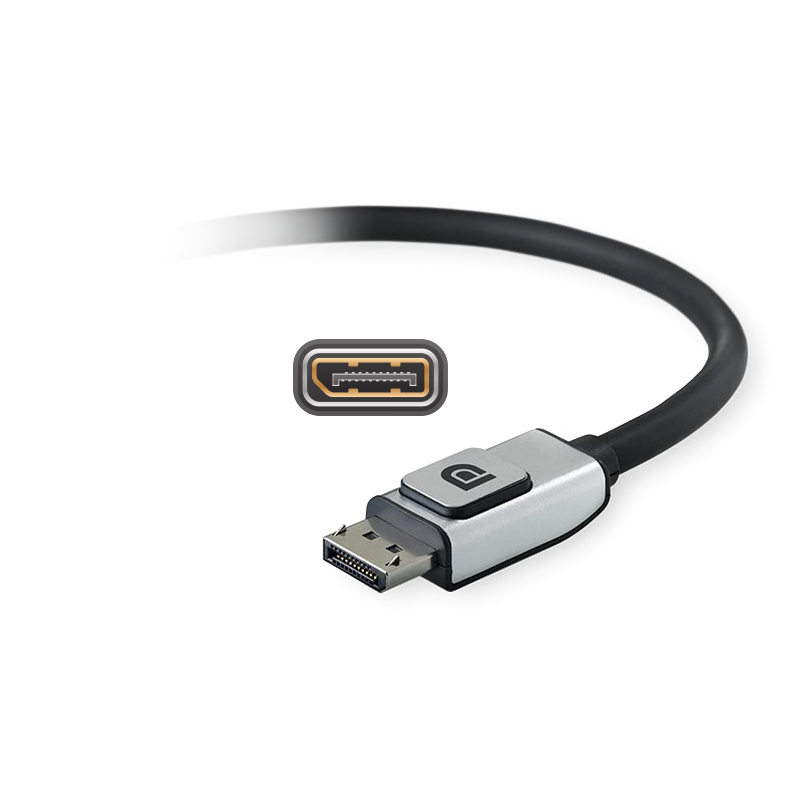

Display Port

DisplayPort offers ultra-fast digital audio and video transmission without quality loss or input lag. Quickly and easily connect a range of devices to your screen, including your computer, laptop, media player, game console and more. It’s perfect for professionals as well as the most demanding home users.

HDMI

HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).

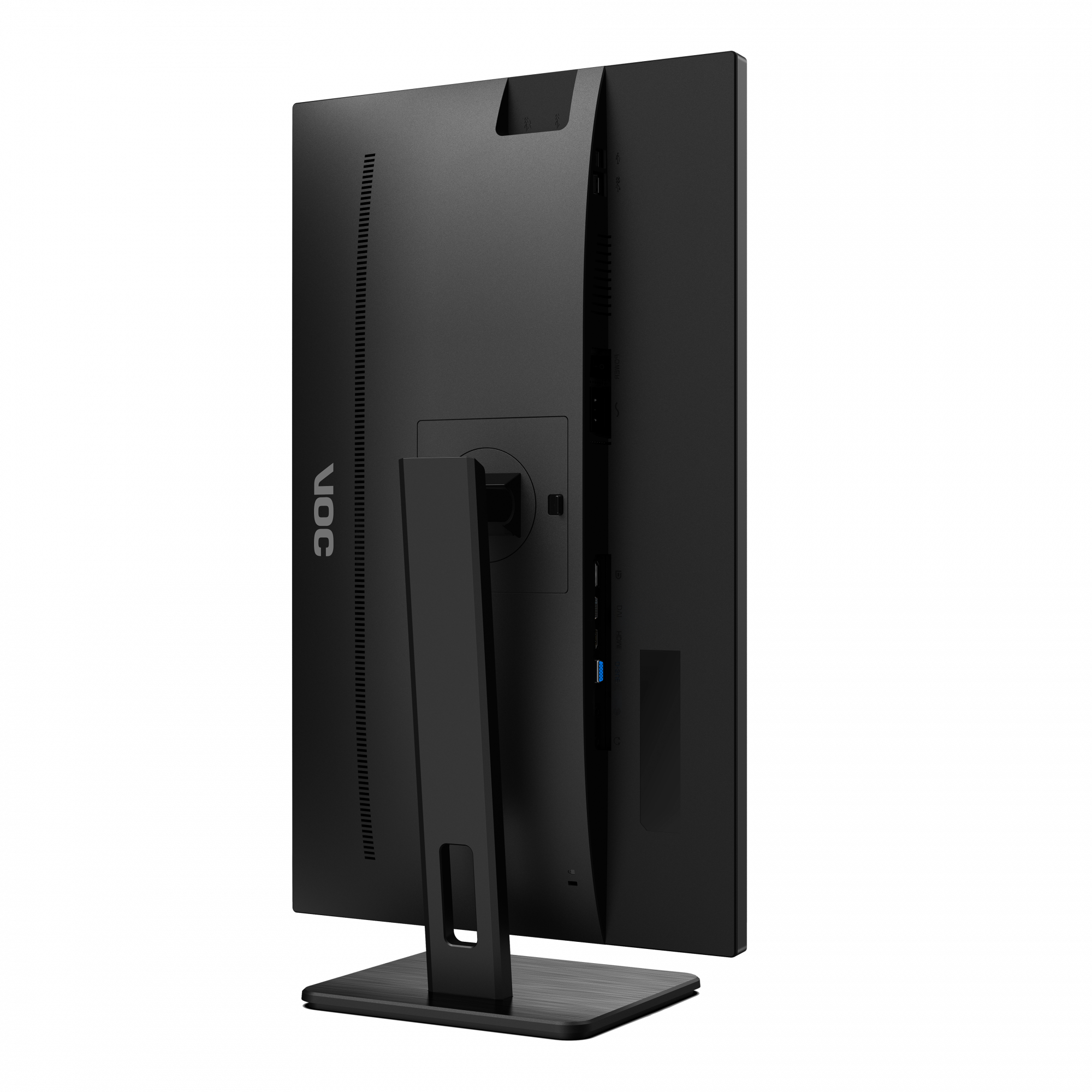

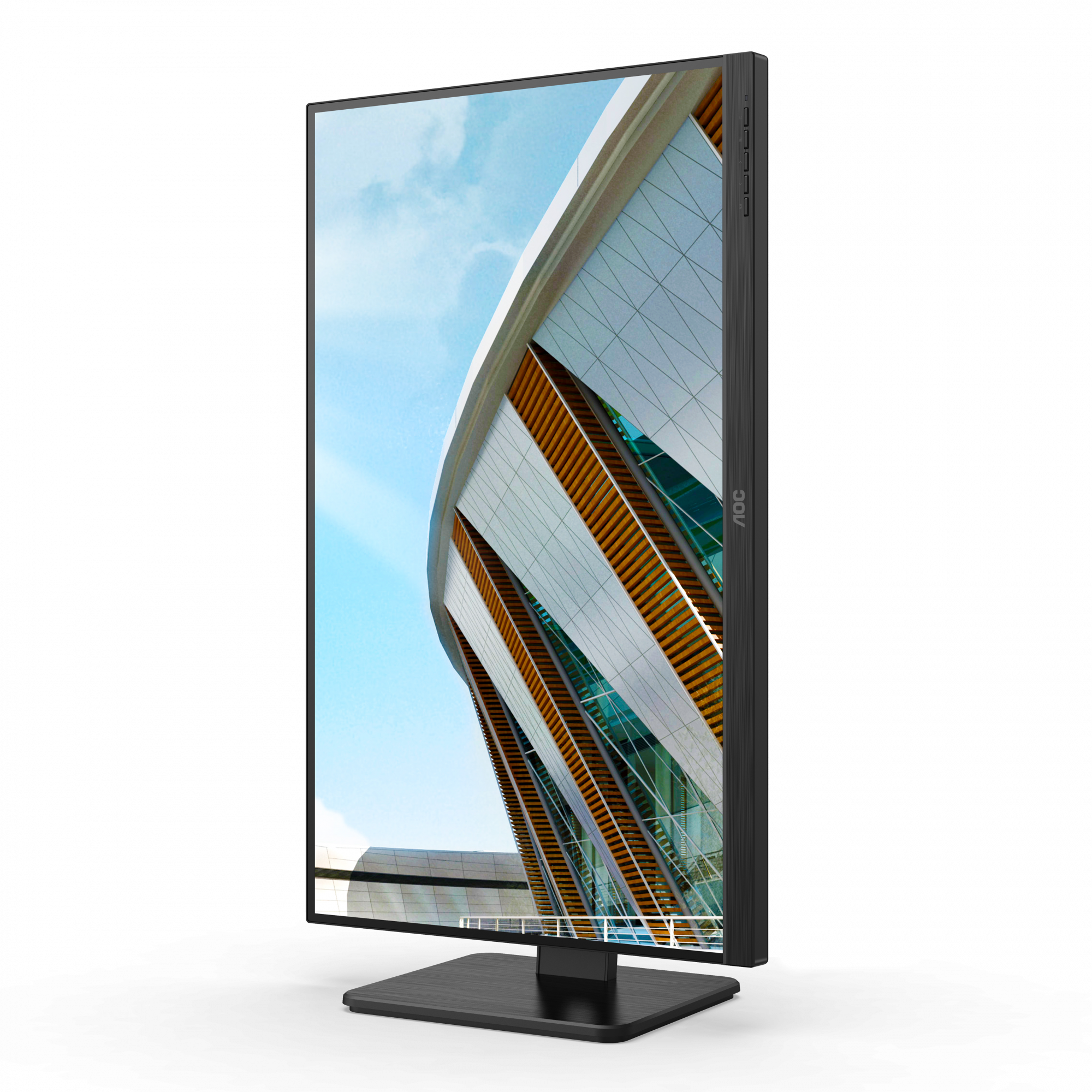

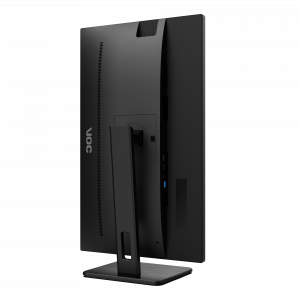

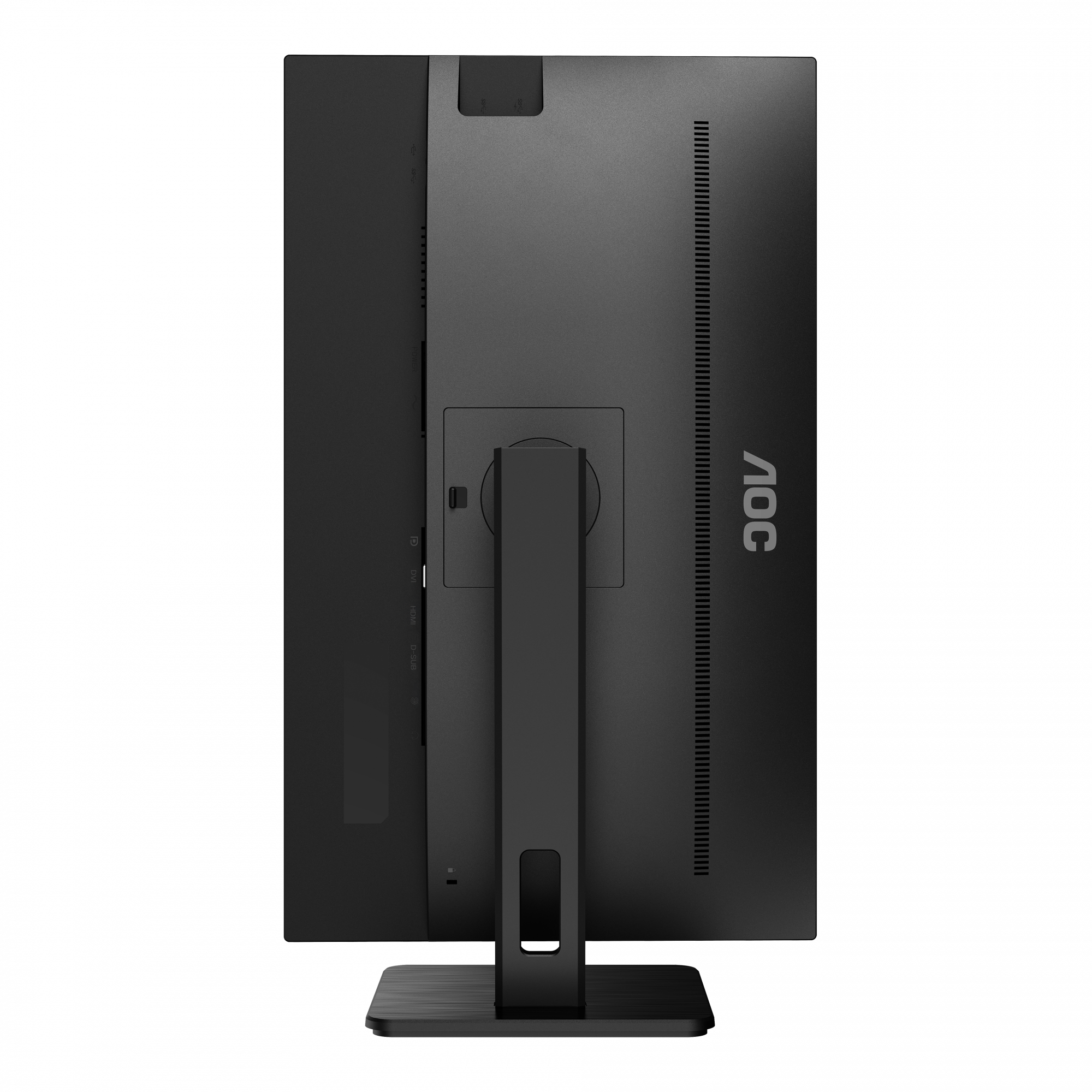

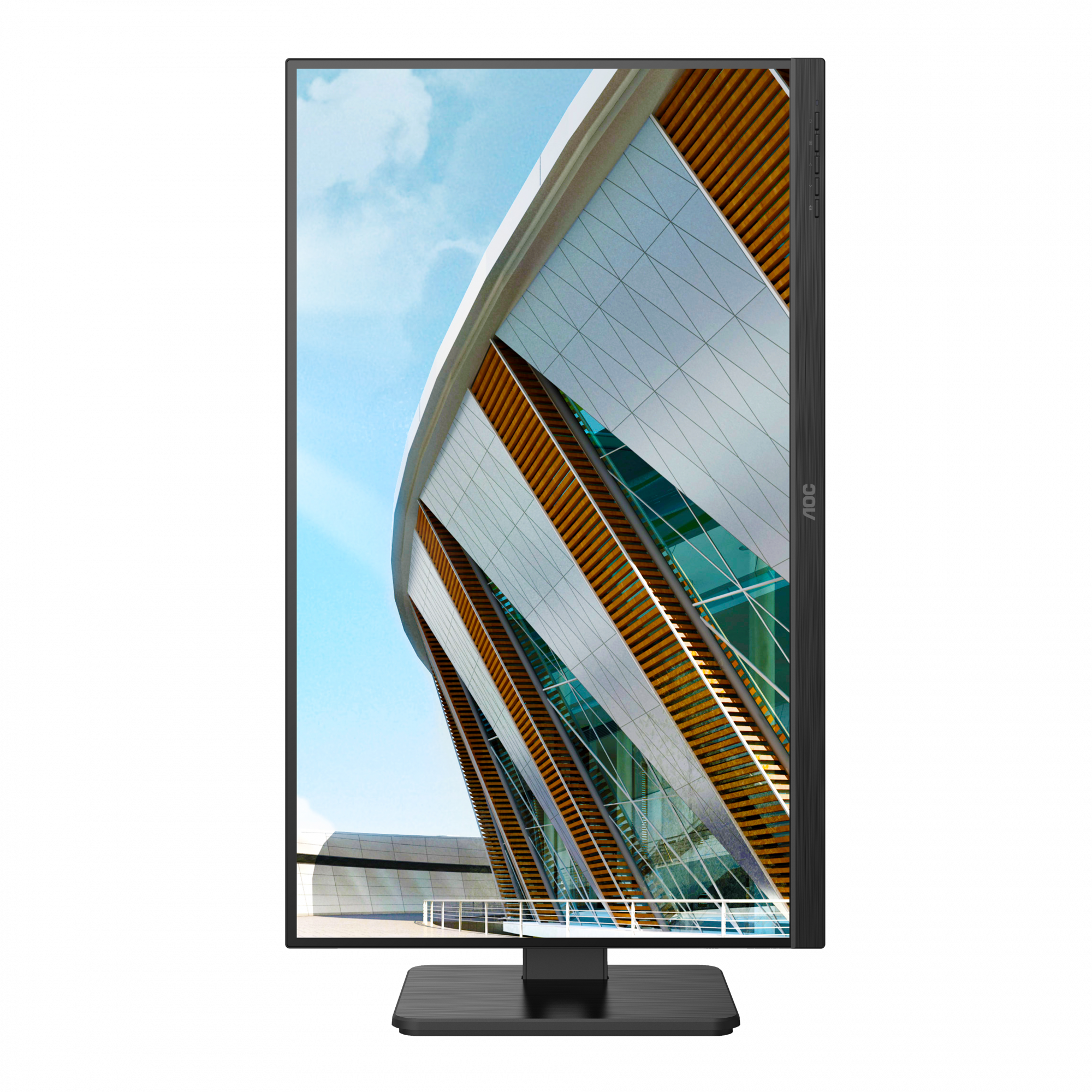

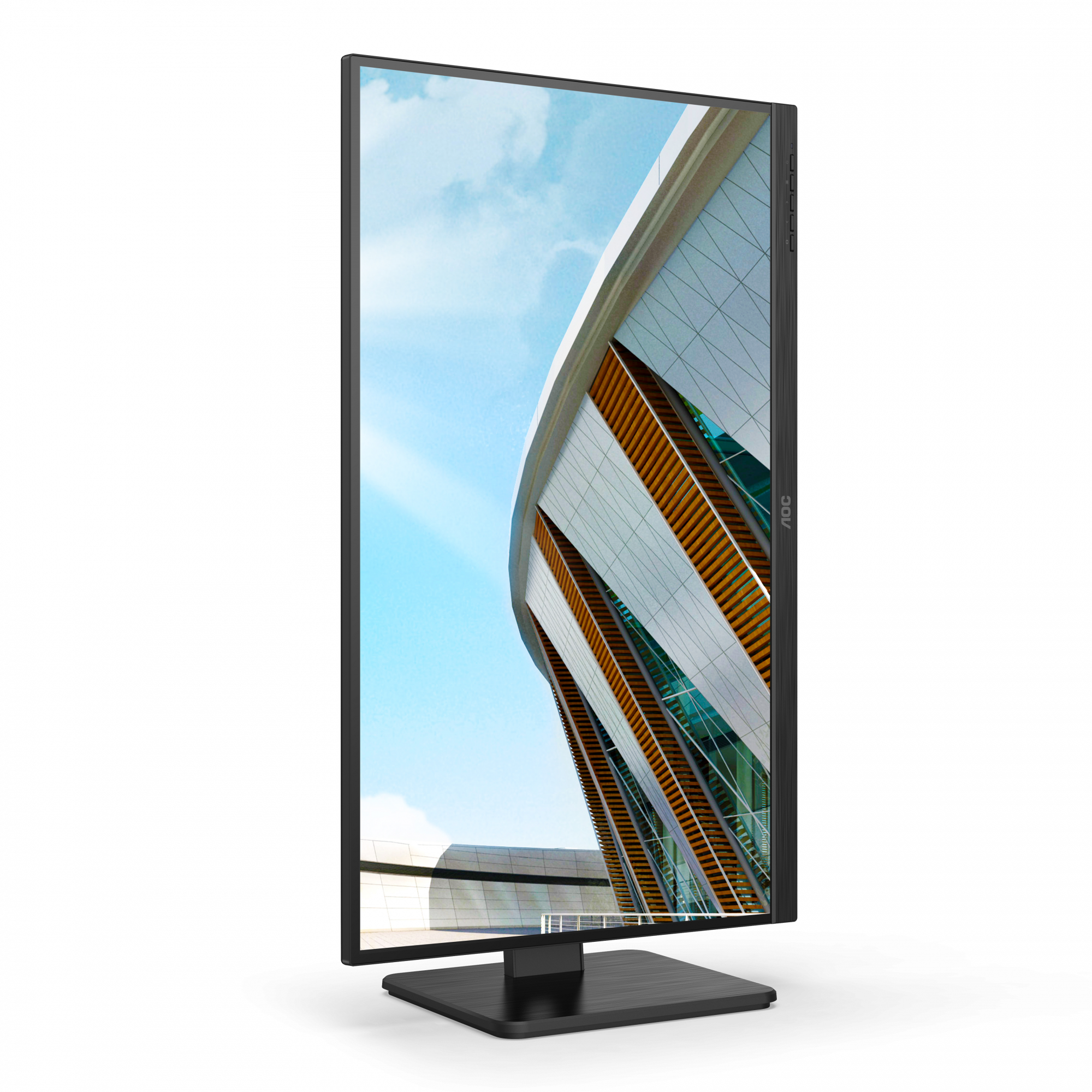

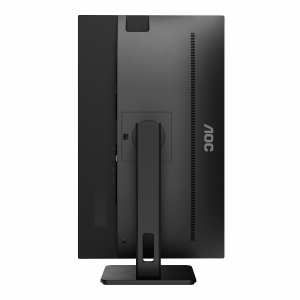

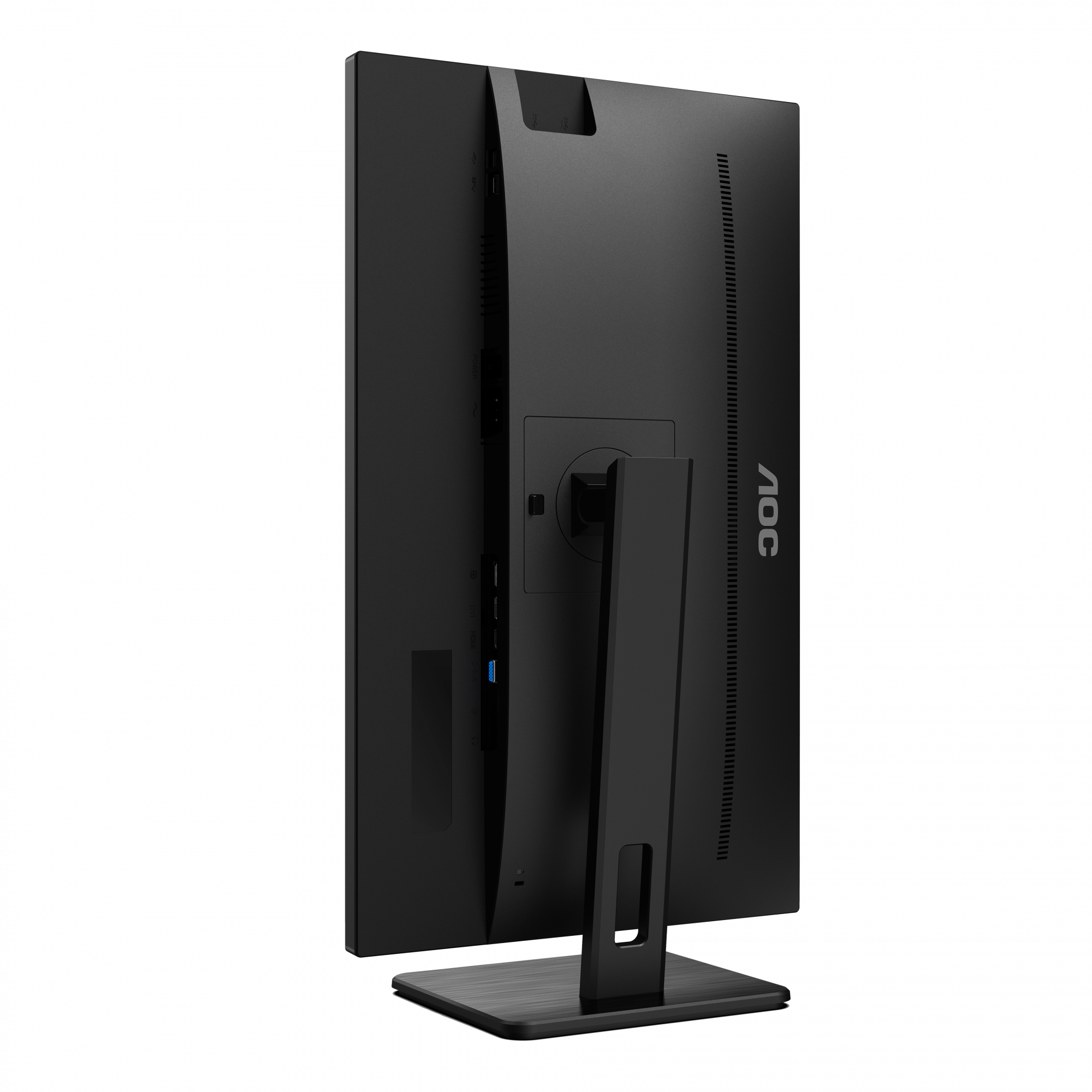

Pivot function

Thanks to its pivot function, your monitor can be rotated by 180° from landscape into portrait mode, especially useful for desktop publishing.

Full Ergonomics

Feel the comfort! AOC’s height, tilt and swivel-adjustable stands help you find the most comfortable and healthy position.

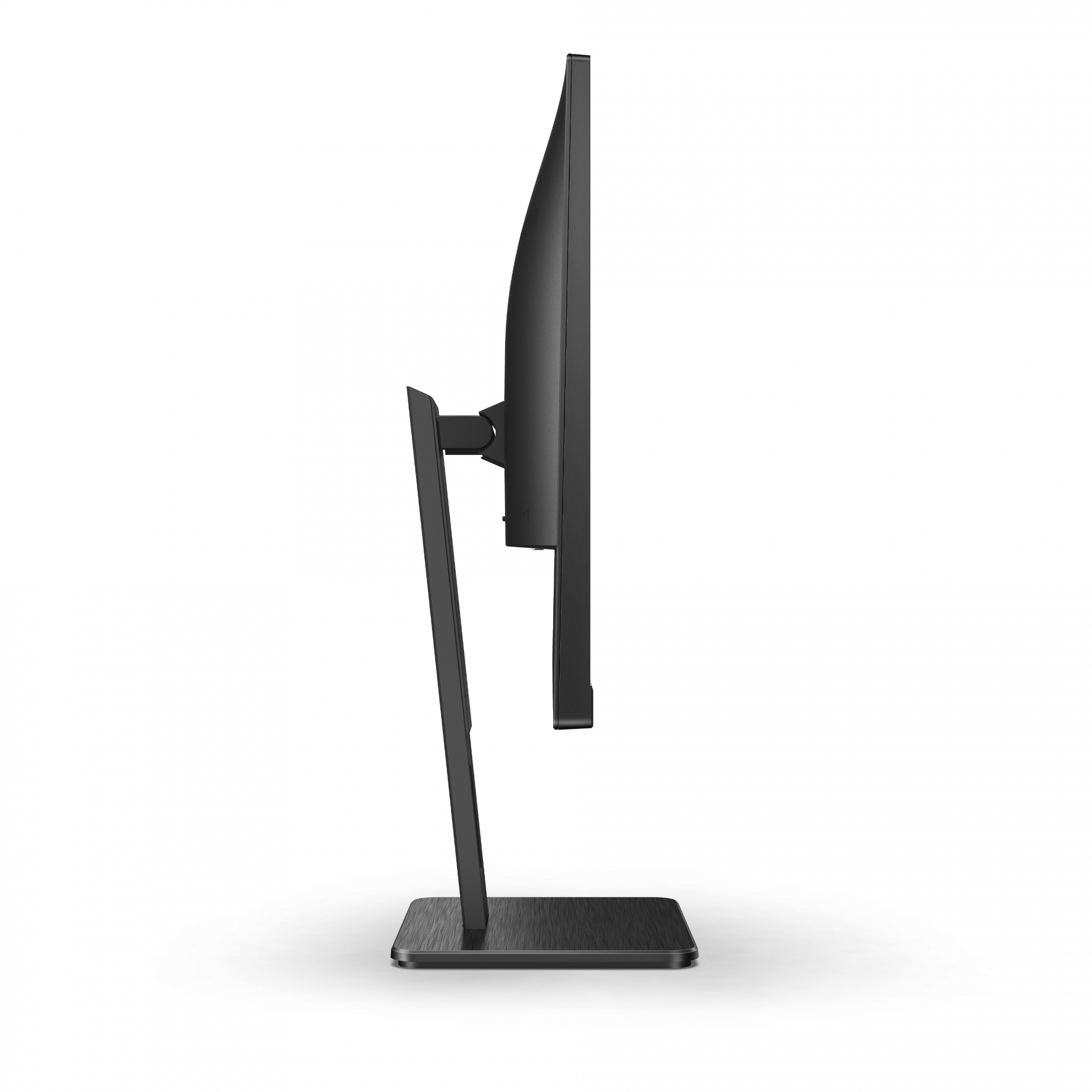

Height adjustable Stand

Raise or lower the screen to suit each individual’s height and seating preferences. The easy-to-adjust stand ensures hours of comfort.

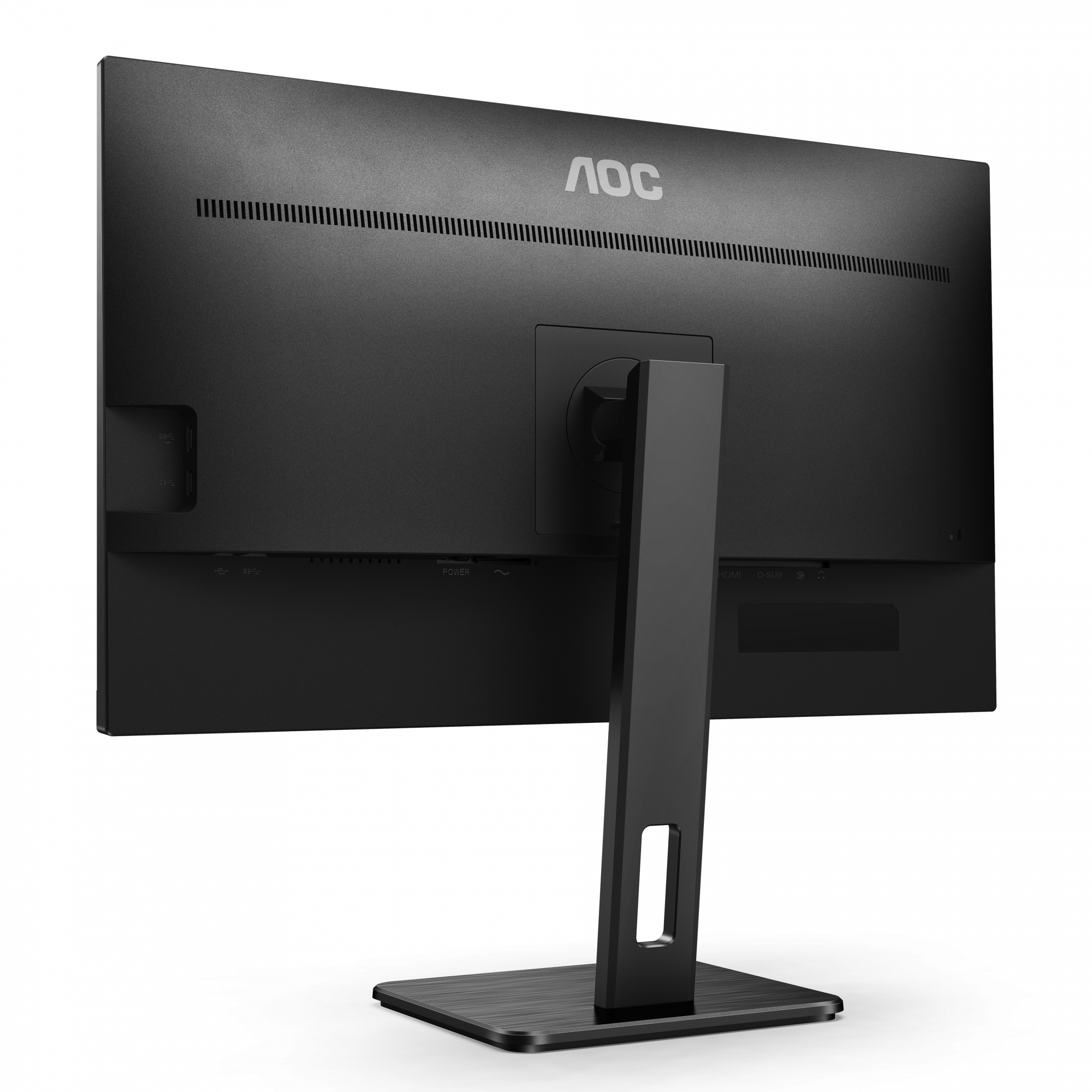

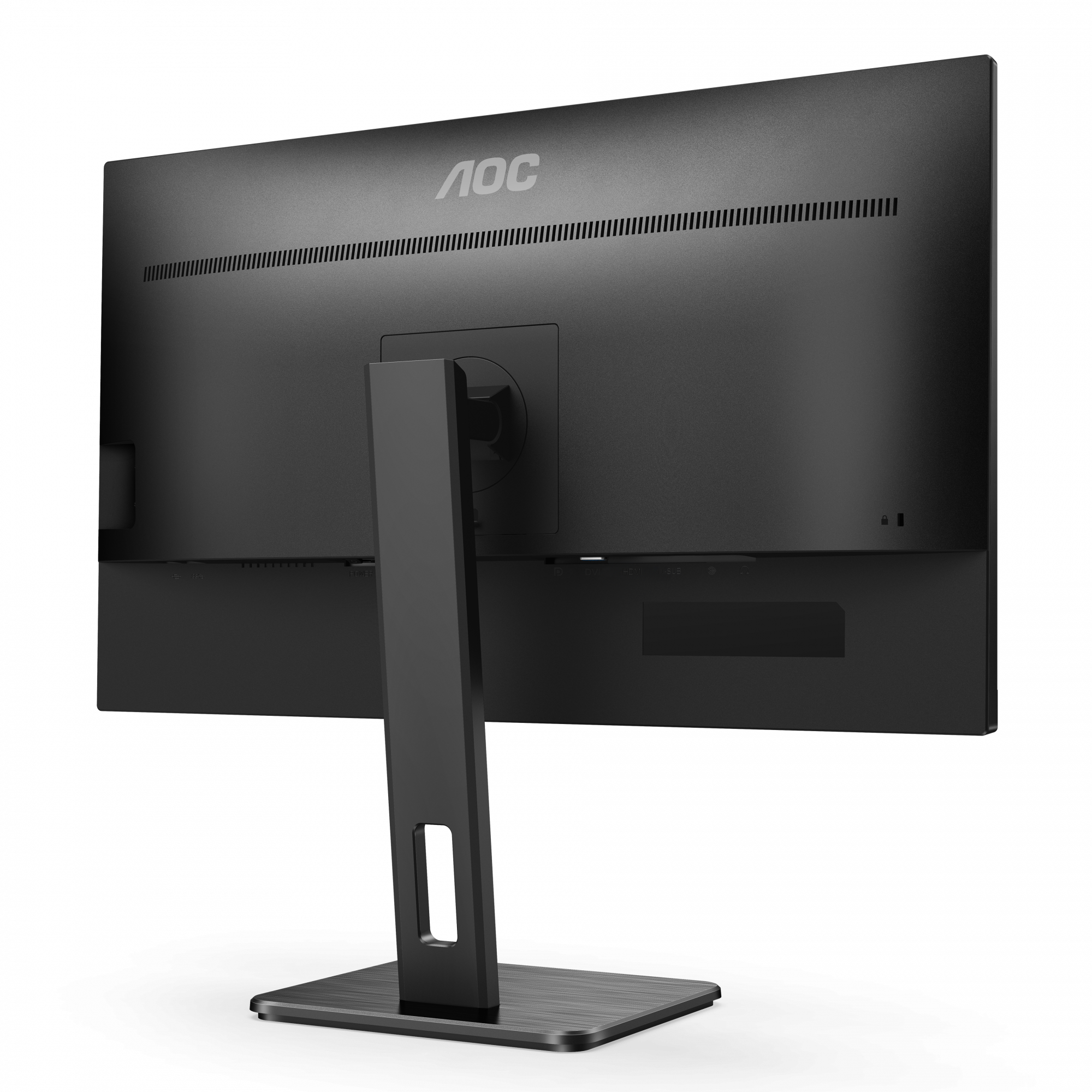

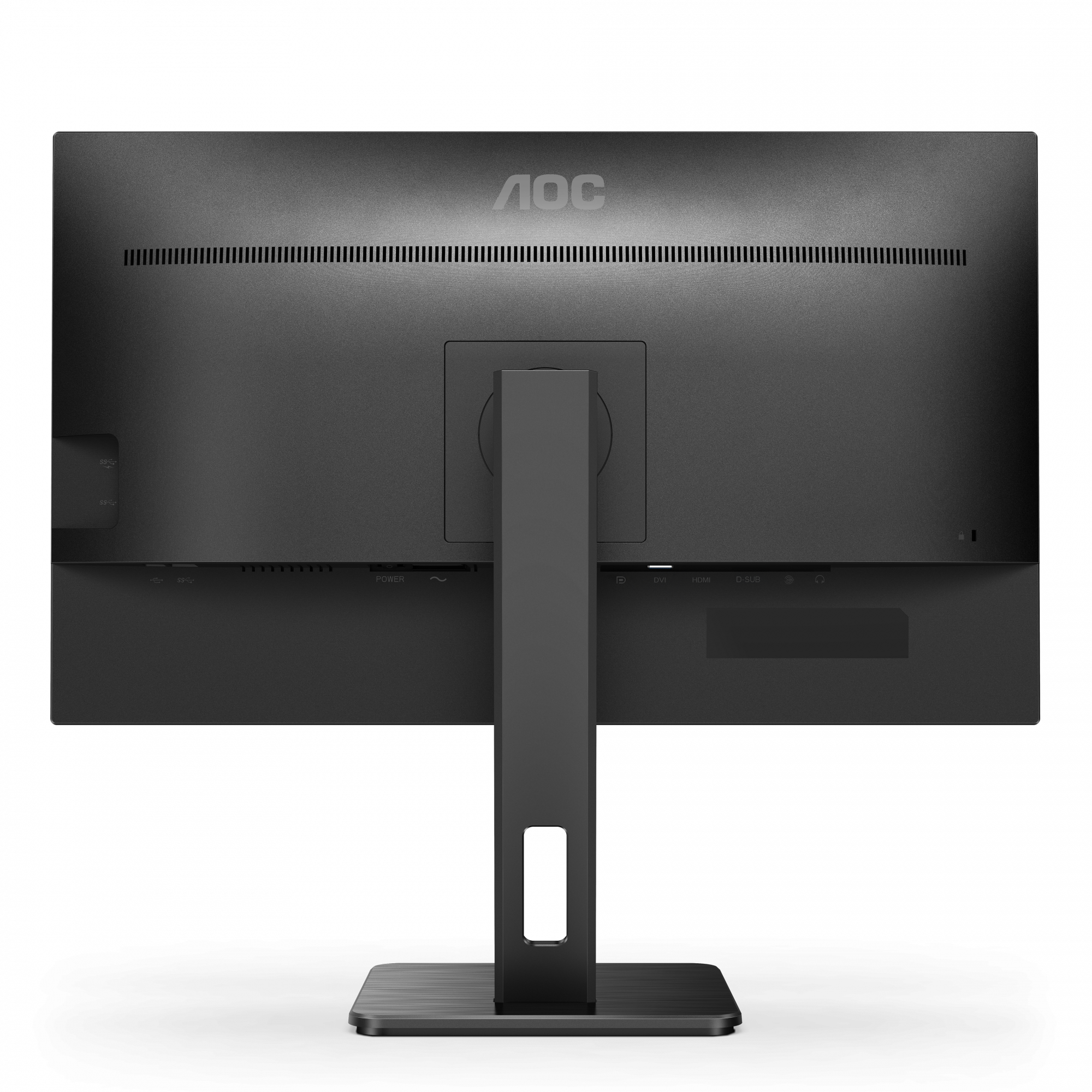

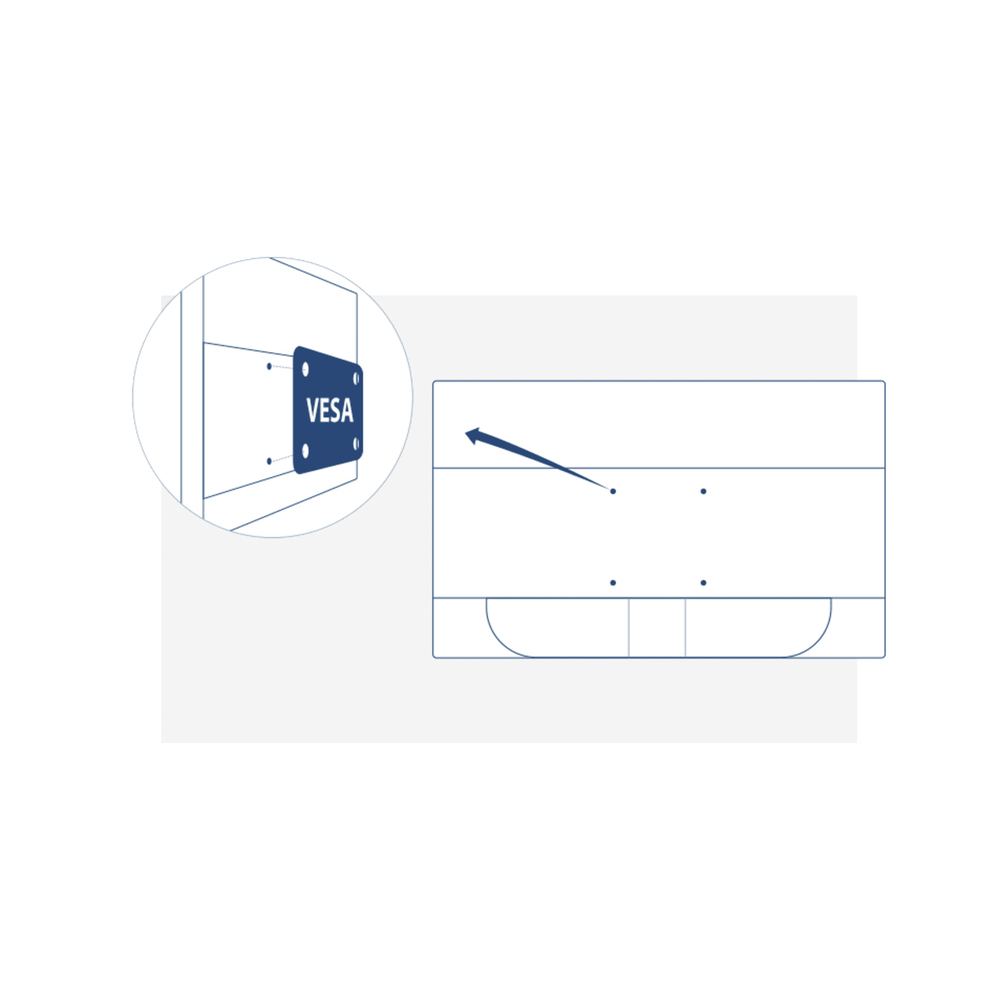

Vesa Mount

AOC’s Ergo Base stands bring versatility, sturdiness and ease of use in one package. But do you still want to use your wall mount or multi-monitor setup using desk mounts? VESA mounts bring you the uppermost flexibility. Upside-down, in pivot mode, on top of each other, attach your monitor wherever you want using 3rd party mounts and stands thanks to the VESA mount option.

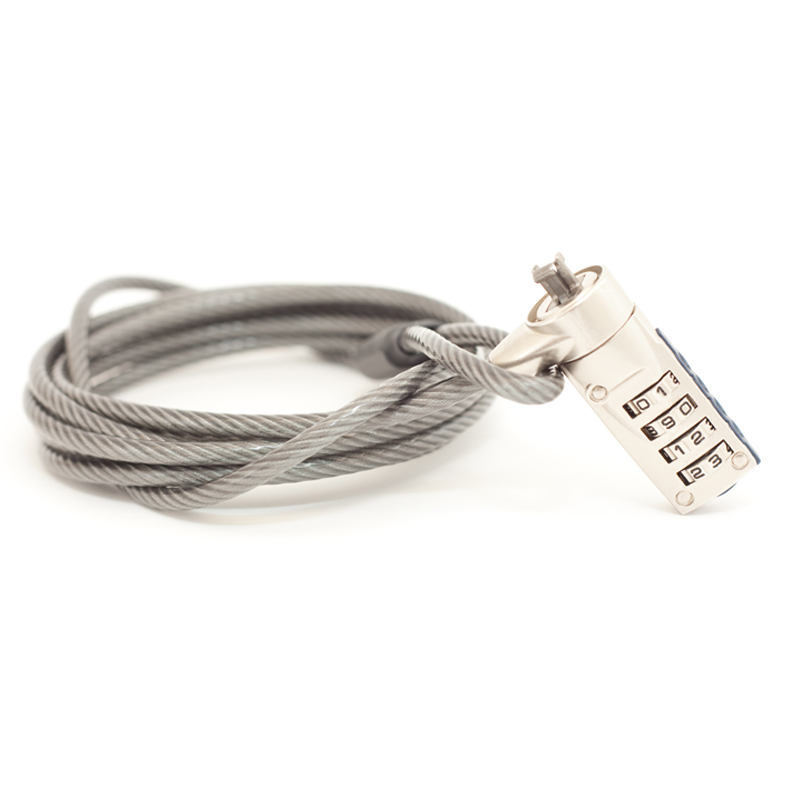

Kensington Lock

Kensington Lock is an anti-theft system, comprising a metal-reinforced hole in the body of the respective device, to use with a metal cable secured with a key/lock system. Kensington locks enable you to secure your AOC monitor during a LAN event, an organisation, or wherever you carry it.

Product Properties

Manufacturer
AOC

Model
24P2QM

EAN
4038986140713

Design

Detachable stand
Yes

Feet colour
Black

Frameless design
Yes

Front bezel colour
Black

Market positioning
Home

Product colour
Black

Display

Adobe RGB coverage
111%

Anti-glare screen
Yes

Backlight type
W-LED

Contrast ratio (dynamic)
50000000:1

Contrast ratio (typical)
3000:1

DCI-P3 coverage
103%

Display brightness (typical)
300 cd/m²

Display number of colours
16.7 million colours

HD type
Full HD

Max Refresh Rate
75 Hz

Native aspect ratio
16:9

NTSC coverage (typical)
113%

Panel type
VA

Pixel density
93 ppi

Pixel pitch
0.2745 x 0.2745 mm

Response time
4 ms

Screen Resolution
1920 x 1080 pixels

Screen shape
Flat

Screen Size
60.5 cm (23.8")

Screen Type
60.4 cm

Screen Type
LED

sRGB coverage (typical)
129%

Surface hardness
6H

Touchscreen
No

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Adjustable height (max)
15 cm

Cable lock slot
Yes

Cable lock slot type
Kensington

Height adjustment
Yes

Number of OSD languages
19

On Screen Display (OSD)
Yes

On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Ukrainian

Panel mounting interface
100 x 100 mm

Pivot
Yes

Swivel angle range
0 - 180°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-5 - 35°

VESA mounting
Yes

Wall mountable
Yes

Multimedia

Built-in camera
No

Built-in microphone
No

Built-in speaker(s)
Yes

Number of speakers
2

RMS rated power
4 W

Other features

Compatibility
VESA-P2

Dial point
No

Ethernet LAN (RJ-45) ports
0

Exterior finish type
Matt

Light effects
No

Mean time between failures (MTBF)
50000 h

Recyclable packaging material
100%

Packaging content

Cables included
AC

HDMI cable length
1.8 m

Power cable length
1.8 m

Stand included
Yes

Packaging data

Package depth
160 mm

Package height
513 mm

Package type
Box

Package weight
7.24 kg

Package width
634 mm

Performance

Brand-specific features
False

Fast charging
Yes

Flicker-free technology
Yes

Low Blue Light technology
Yes

NVIDIA G-SYNC
No

VESA Adaptive Sync support
Yes

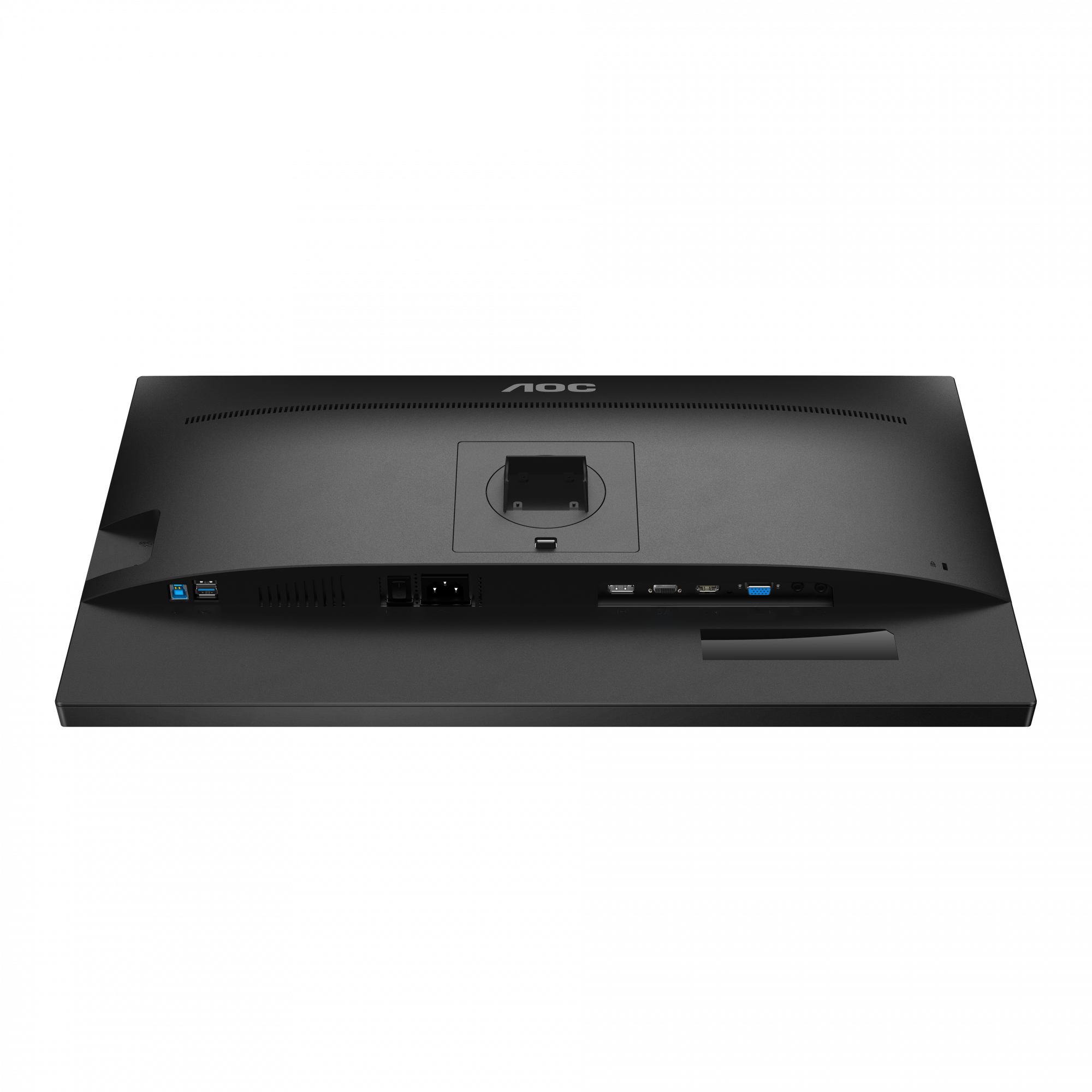

Ports & interfaces

AC (power) in
Yes

Built-in USB hub
Yes

DisplayPort version
1.2

DisplayPorts quantity
1

DVI port
Yes

DVI-D ports quantity
1

HDCP
Yes

HDCP version
1.4

HDMI
Yes

HDMI ports
1

HDMI version
1.4

Headphone connectivity
3.5 mm

Headphone out
Yes

Headphone outputs
1

Mobile High-Definition Link (MHL)
No

Number of upstream ports
1

Number of USB Type-B upstream ports quantity
1

USB hub version
3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity
4

USB upstream port type
USB Type-B

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

European Product Registry for Energy Labelling (EPREL) code
1310939

Power consumption (off)
0.5 W

Power consumption (standby)
0.5 W

Power consumption (typical)
14.58 W

Power supply type
Internal

Weight & dimensions

Depth (with stand)
200.1 mm

Depth (without stand)
50.7 mm

Height (with stand)
540.2 mm

Height (without stand)
326.4 mm

Weight (with stand)
4.75 kg

Width (with stand)
384.4 mm

Width (without stand)
540.2 mm

AOC P2 24P2QM LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD Black
