Description

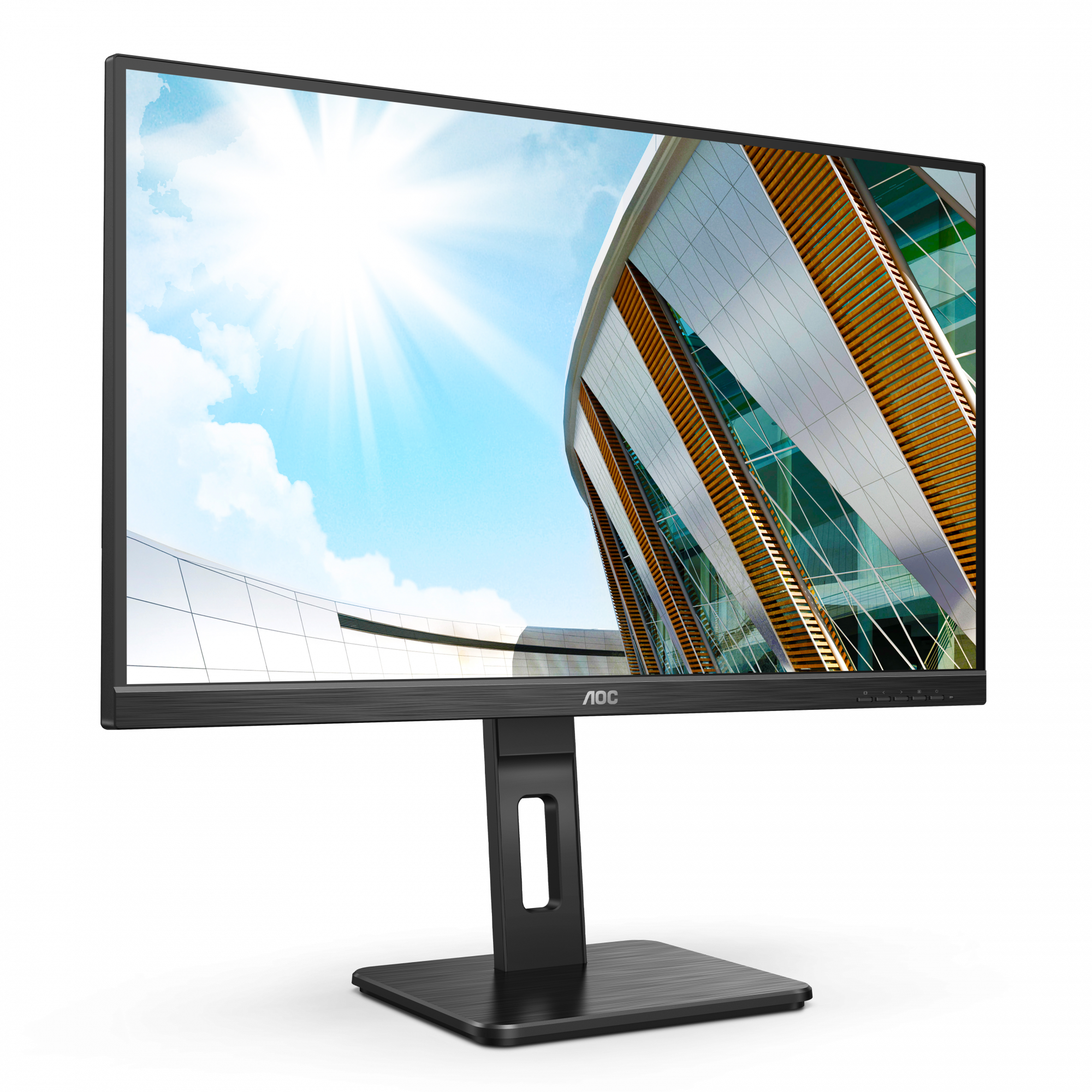

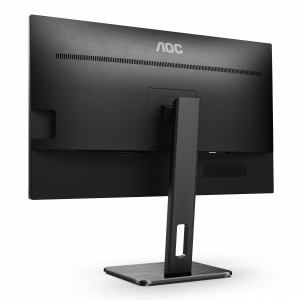

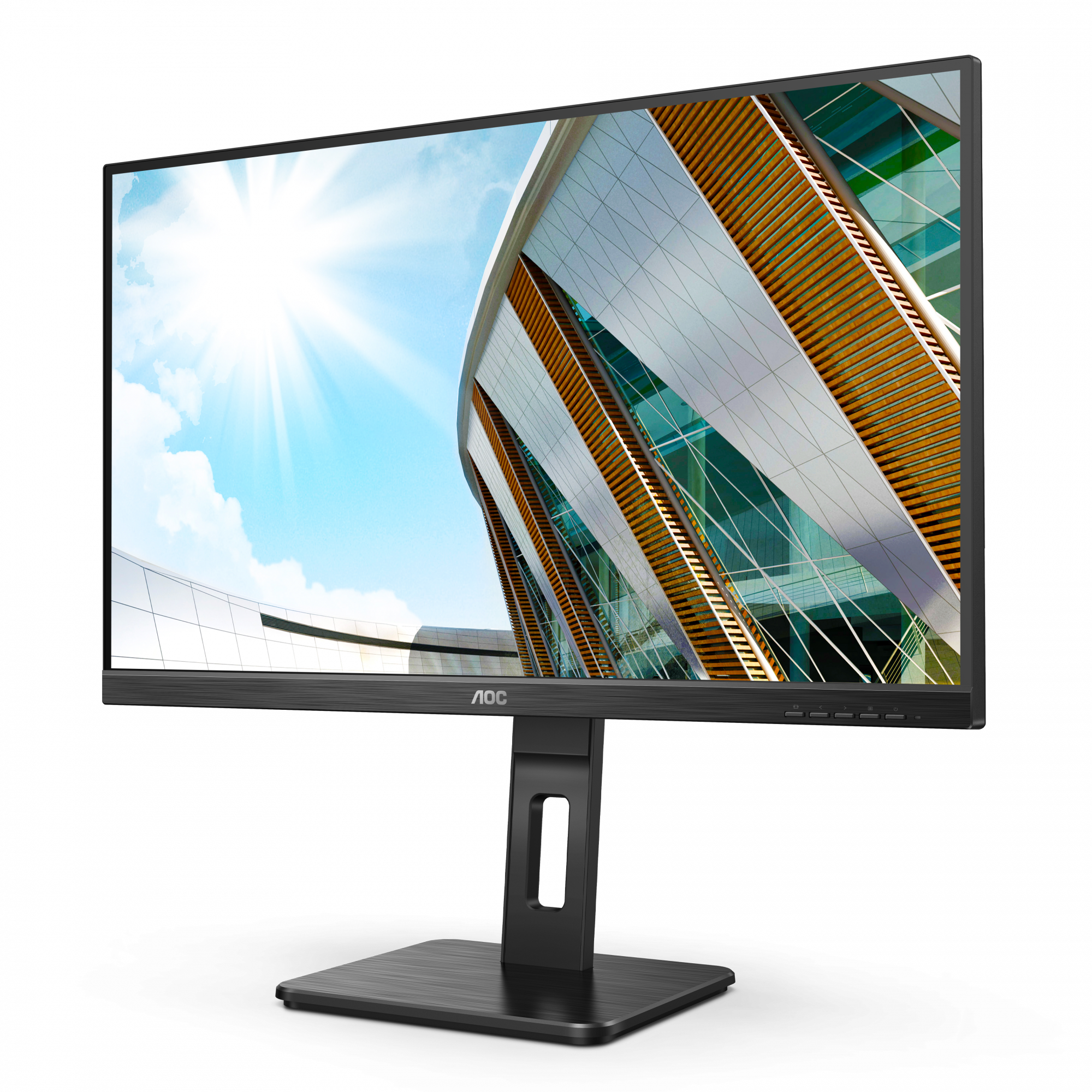

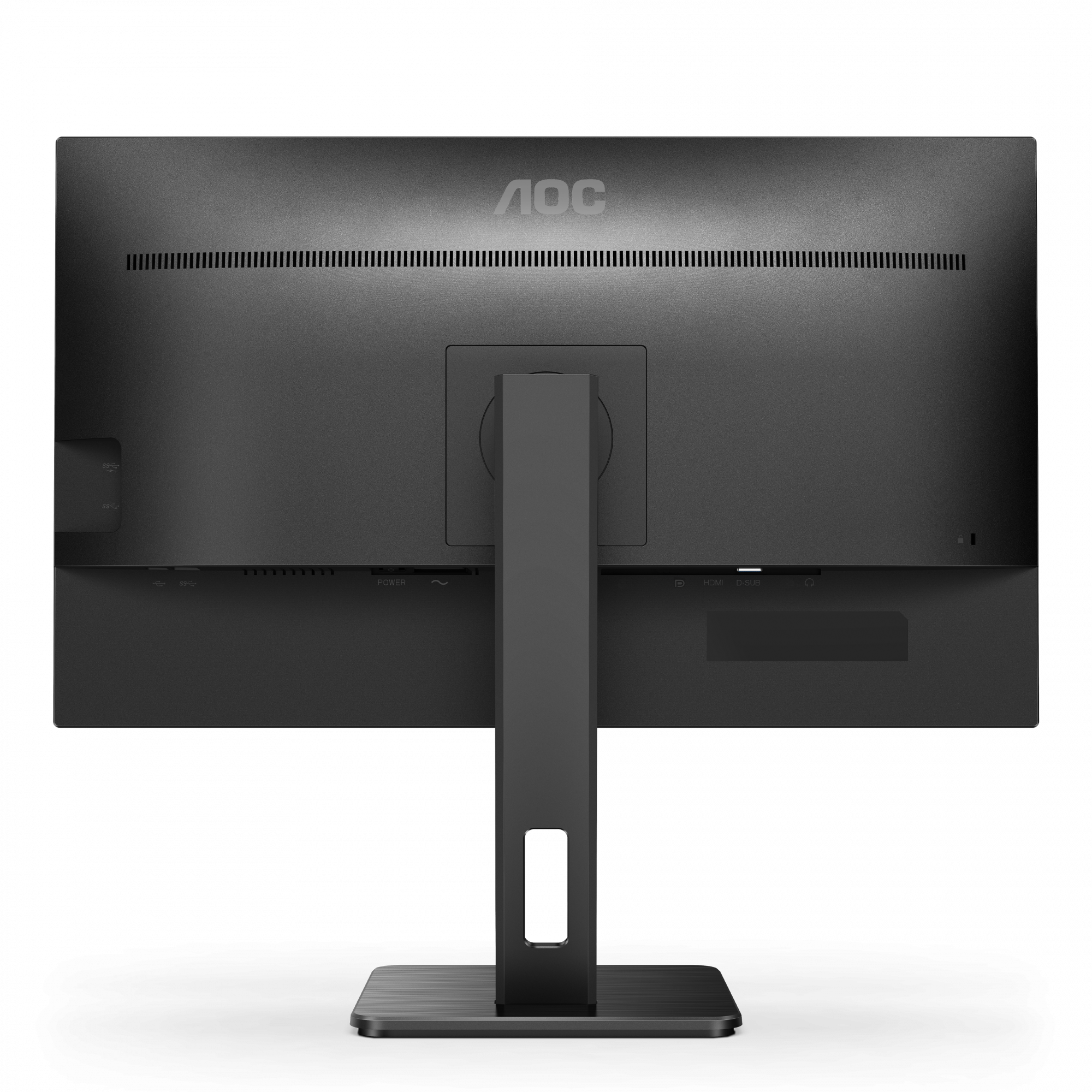

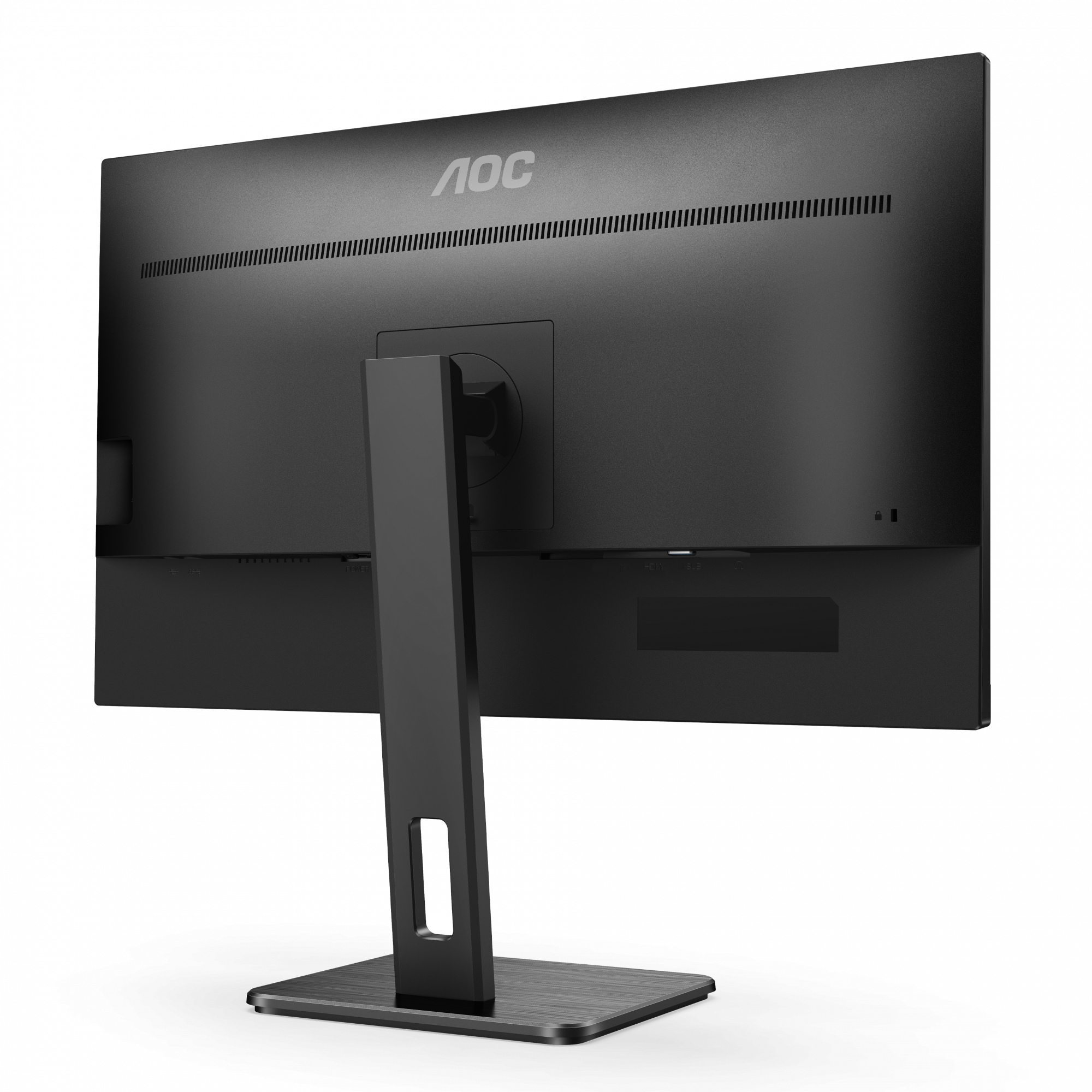

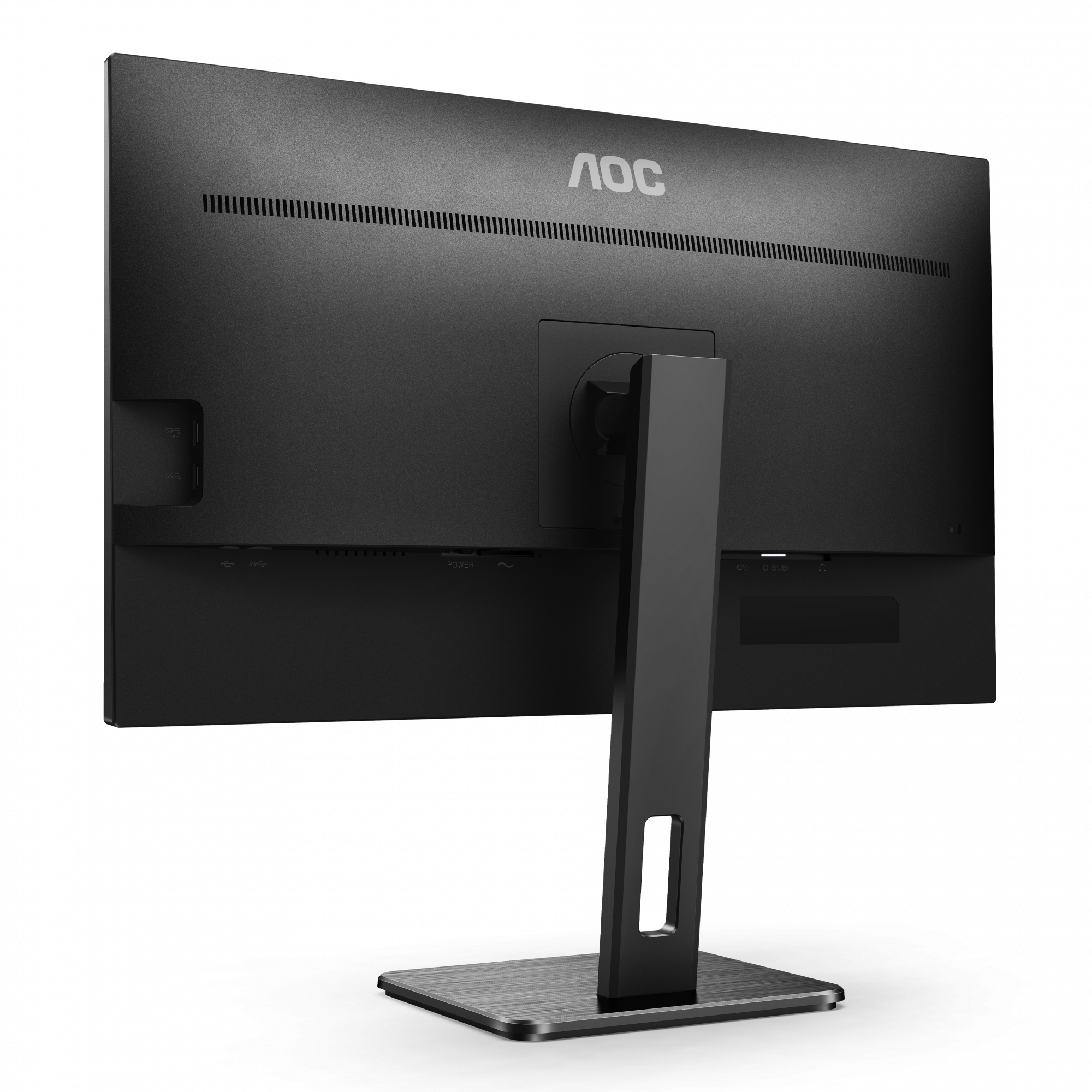

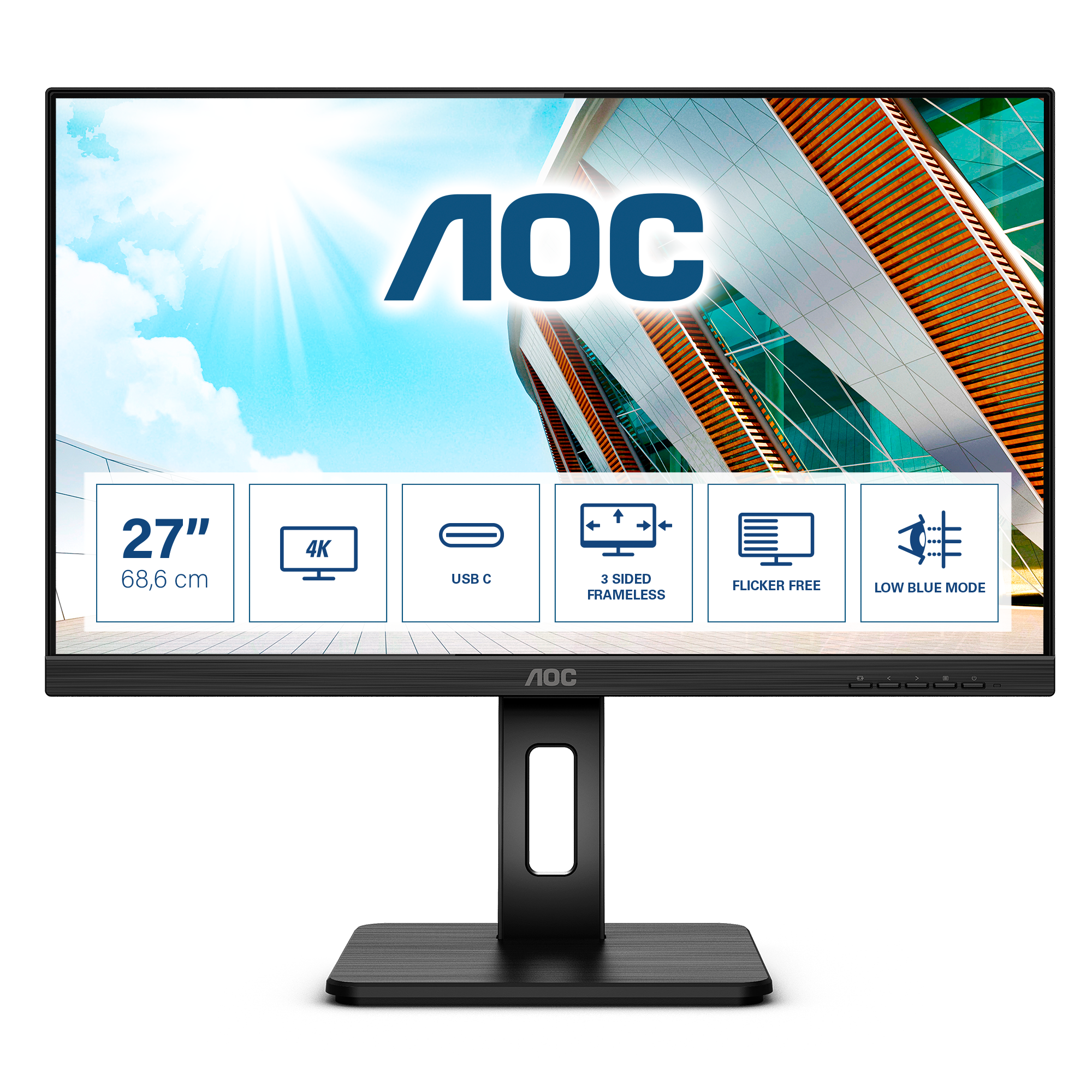

AOC U27P2CA. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

USB-C Docking

Simplify the connections with one cable only. The USB-C connection provides DisplayPort Alternate Mode for transferring high-resolution video signals from a notebook to the monitor while simultaneously charging the notebook’s battery from the monitor with USB power delivery.

Power Delivery 65W

USB-C is a rising technology that allows fast data transfer, display signal and power delivery to recharge your devices while working. Through a single slim cable, AOC USB-C technology powers up to 65W, charging conventional low/high power devices (such as your mouse or keyboard), smartphones and laptops.

UHD (4K) Resolution

4K Ultra High-Definition (3840 x 2160) resolution delivers ultra-crisp picture quality and allows users to see more on the screen at one time. This provides more screen 'real estate' and shows more detail for sharper and more brilliant images. Whether working on the next beautiful photo, or design, or even just used for productivity, users will marvel at the true, crisp image that only a UHD display can provide.

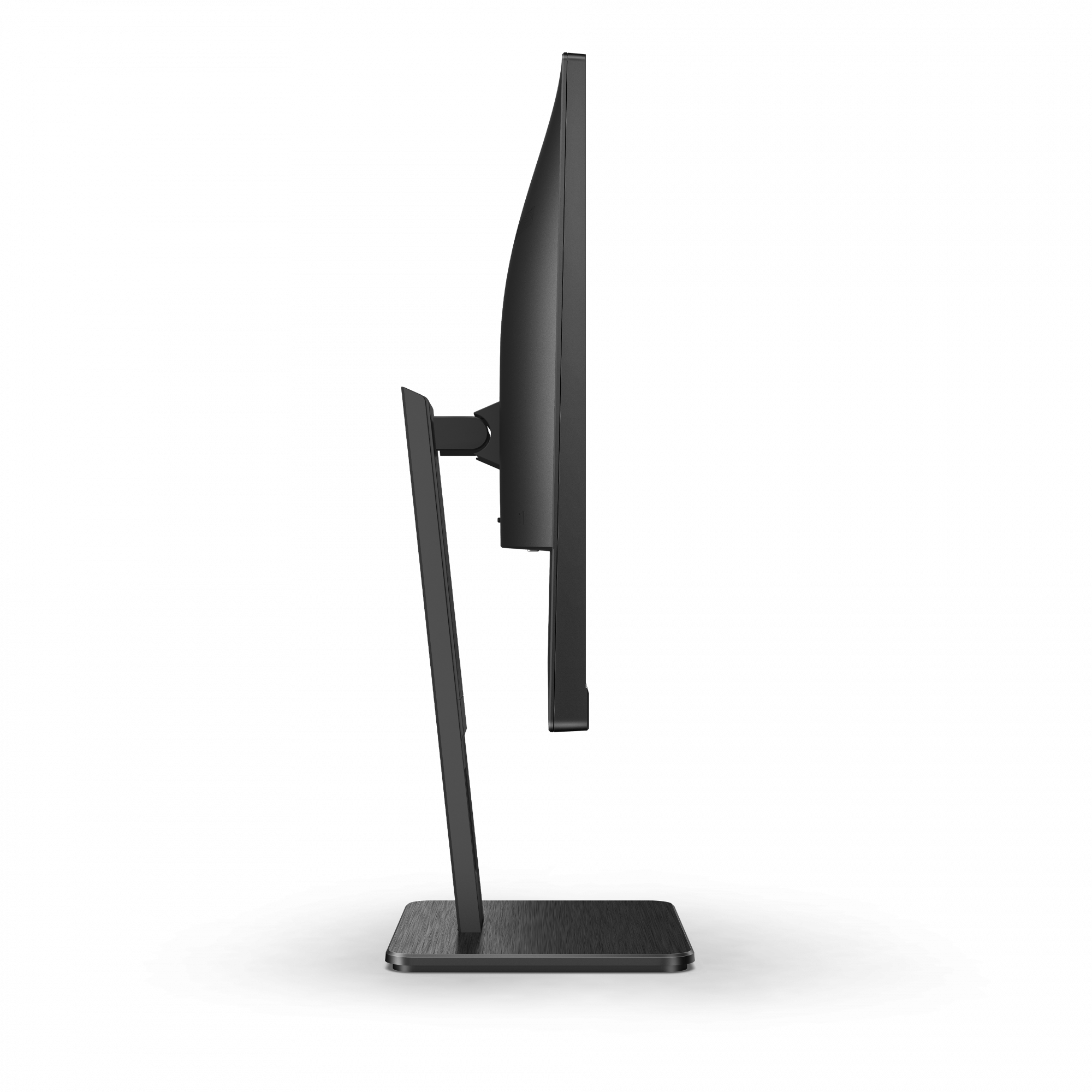

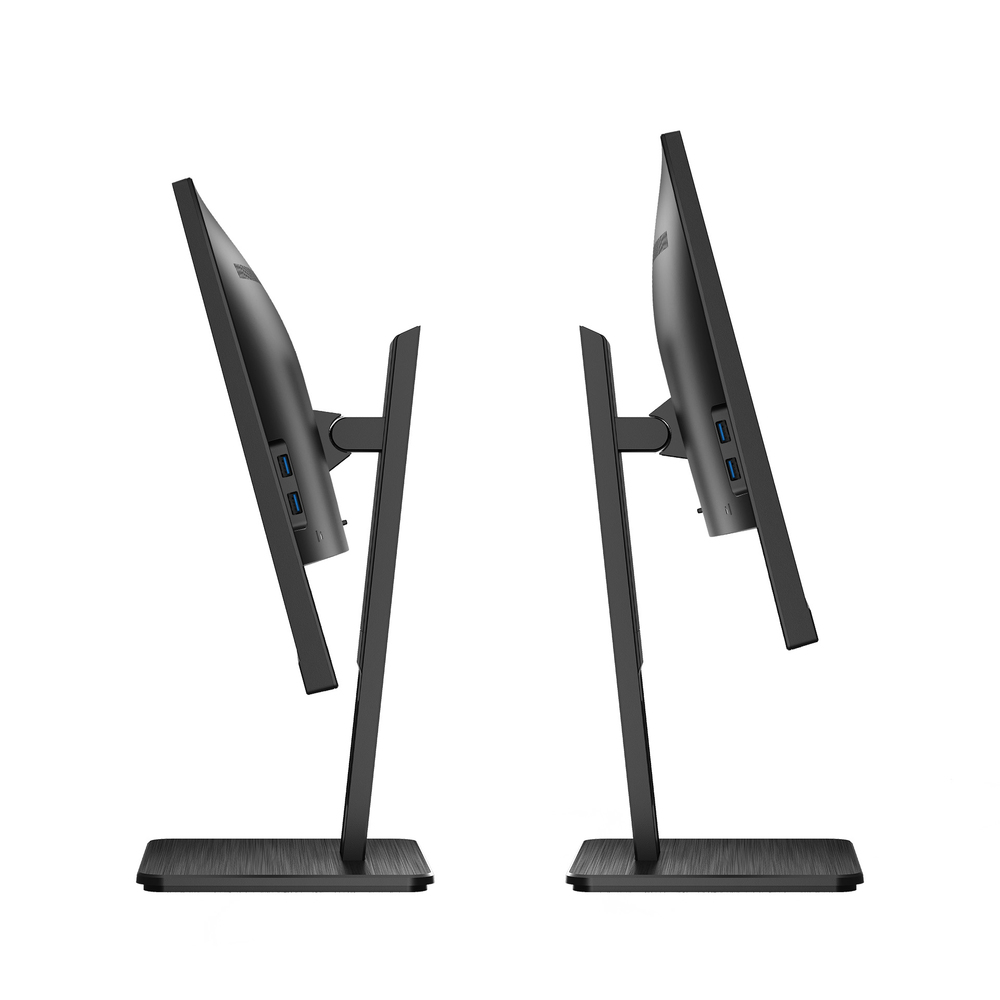

Full Ergonomics

Feel the comfort! AOC’s height, tilt and swivel-adjustable stands help you find the most comfortable and healthy position.

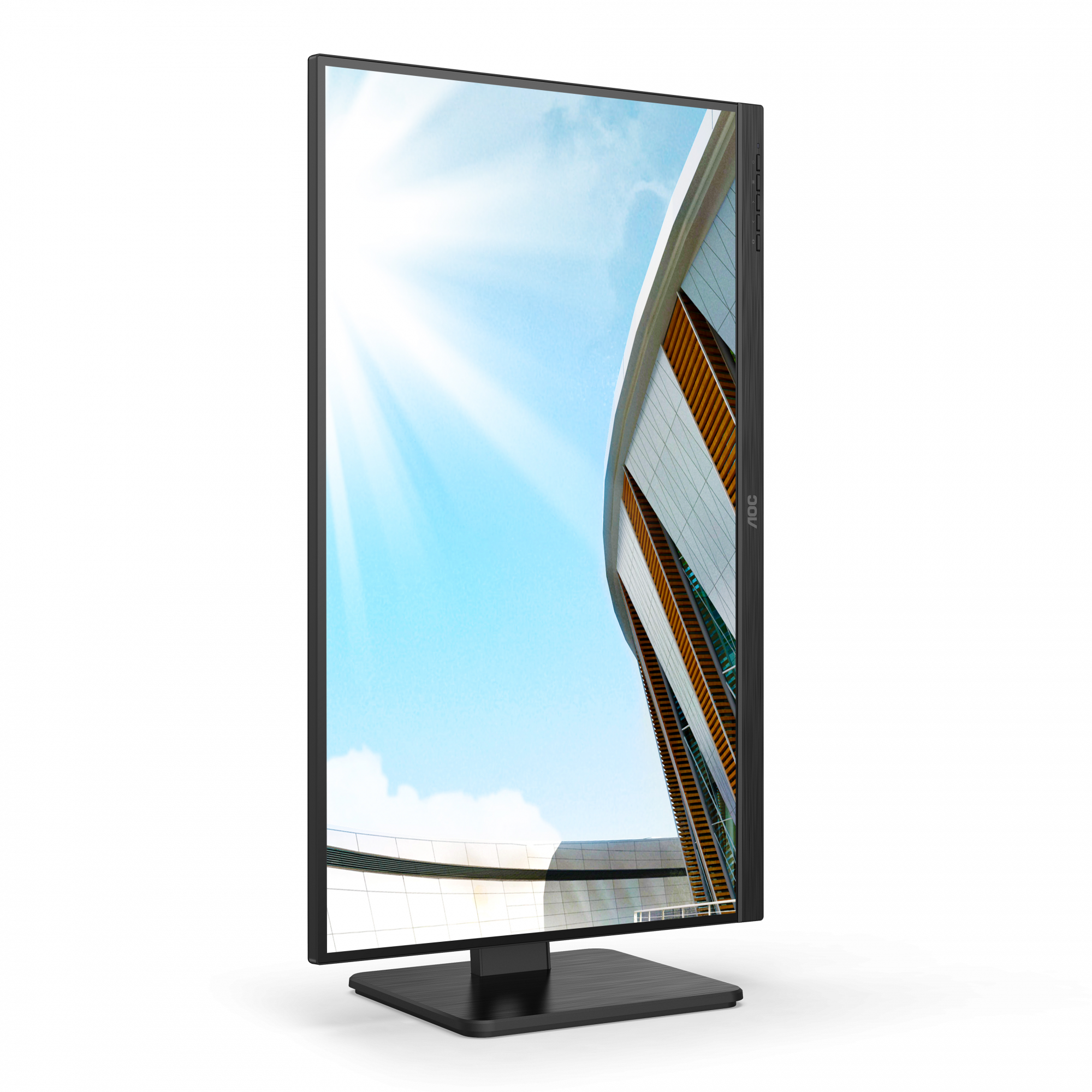

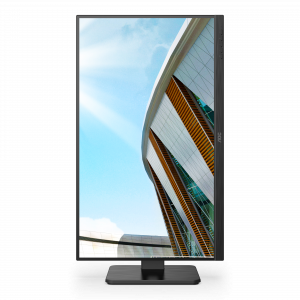

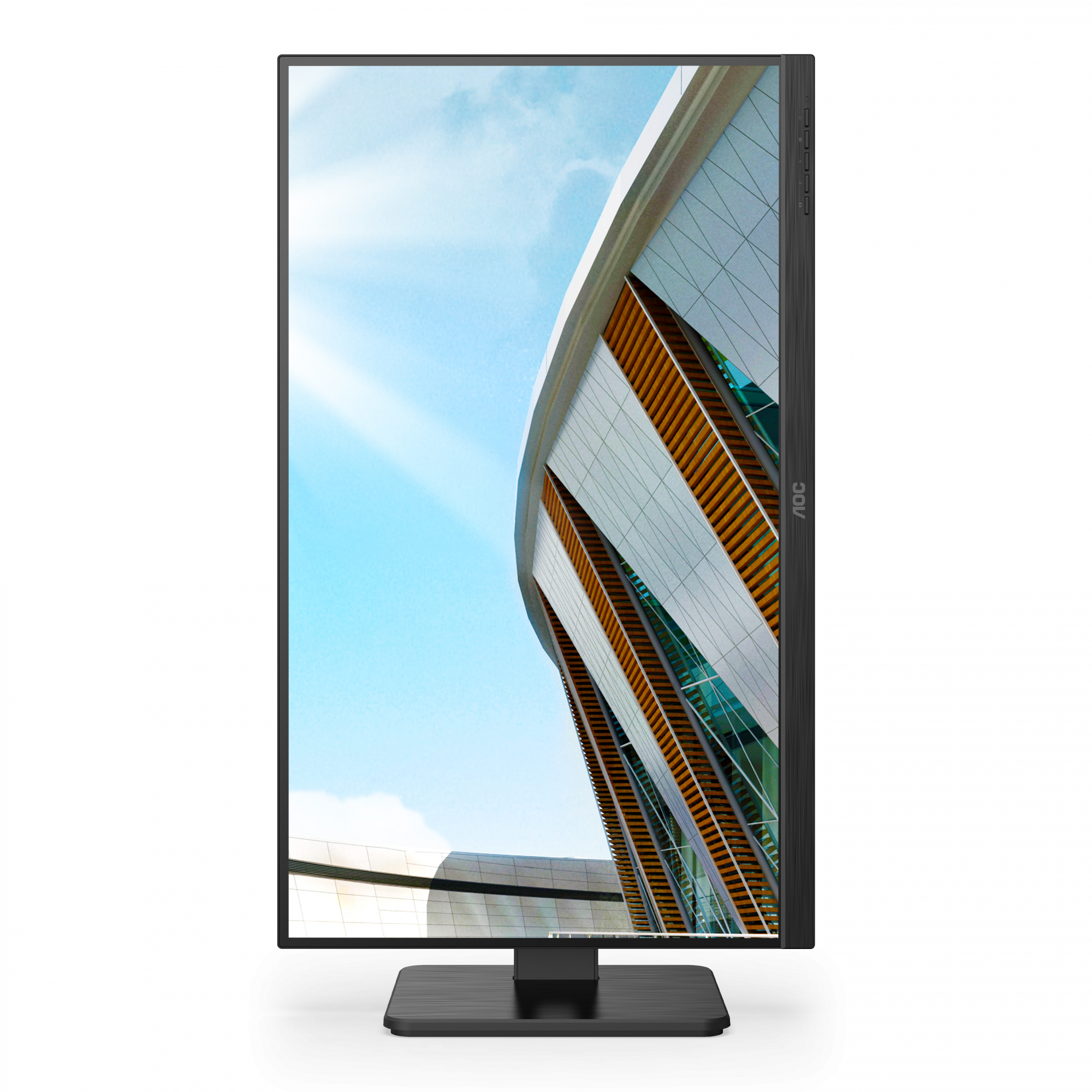

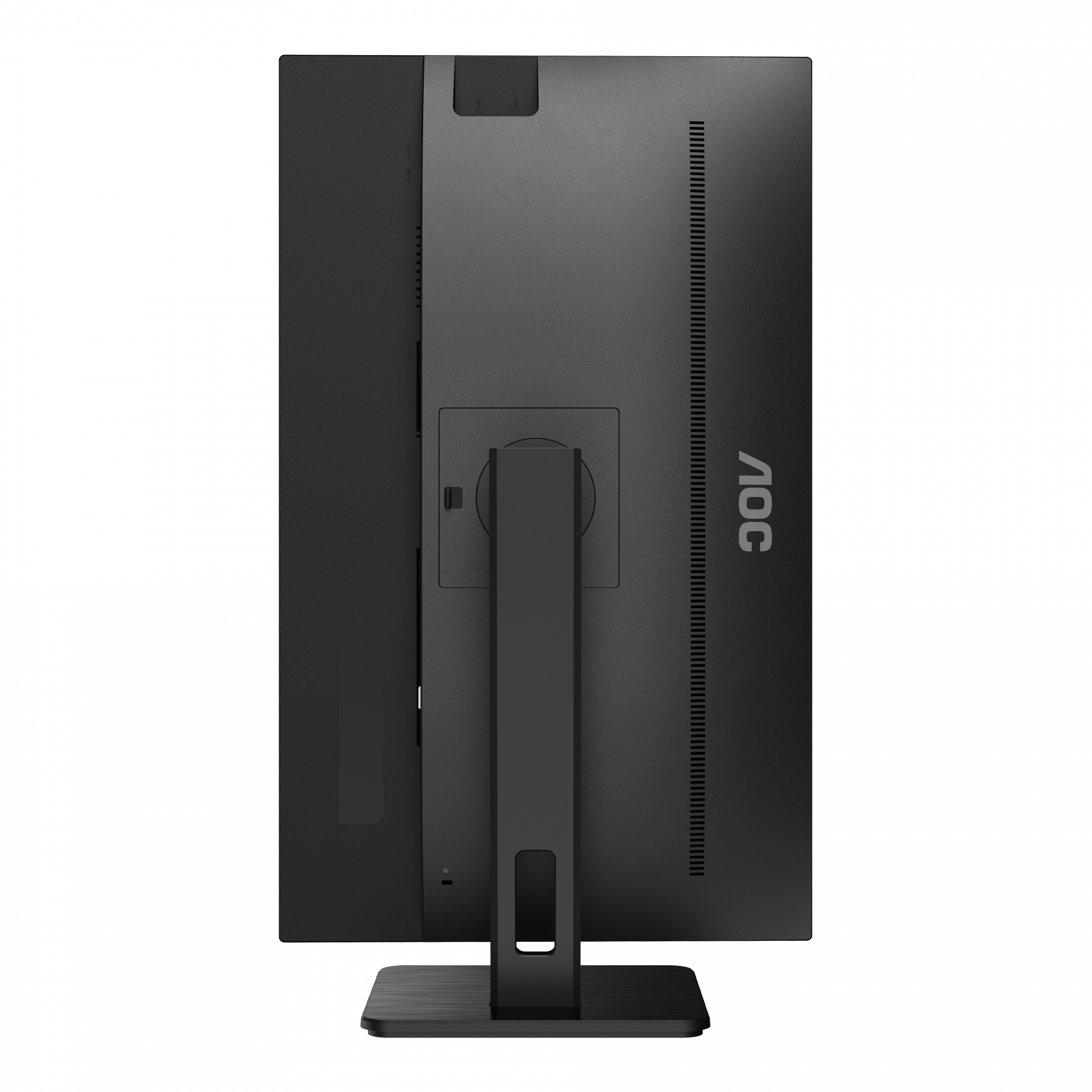

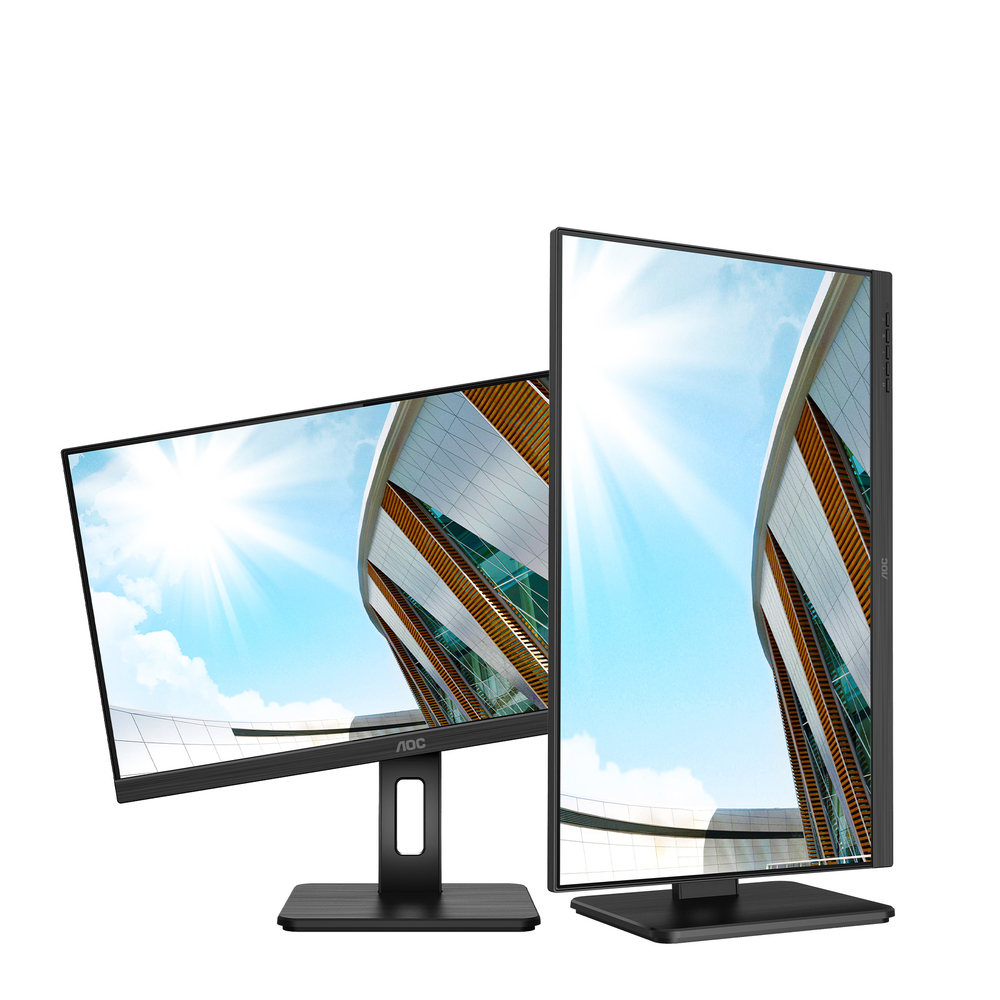

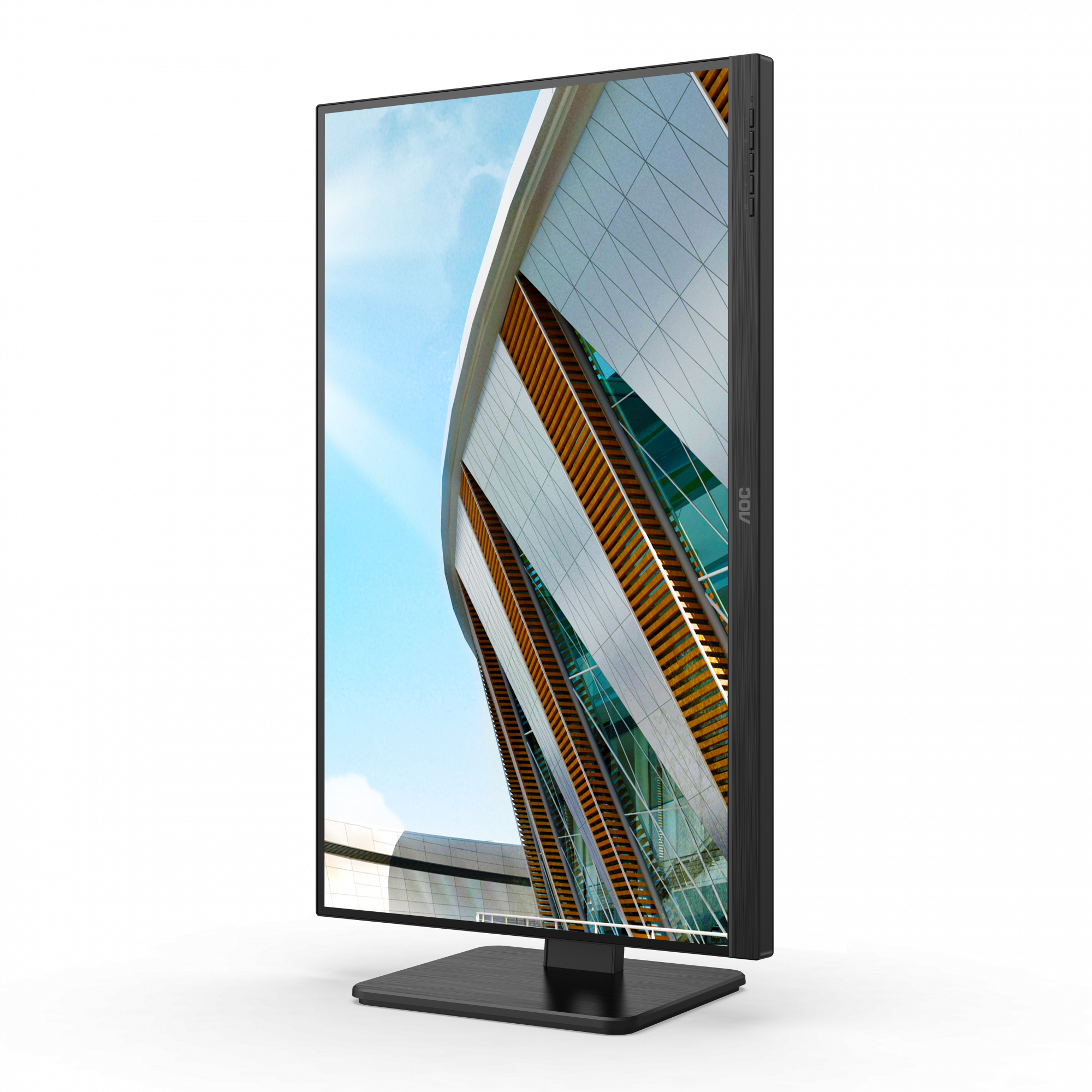

Pivot function

Thanks to its pivot function, your monitor can be rotated by 180° from landscape into portrait mode, especially useful for desktop publishing.

USB Hub

Built-in USB hubs in AOC’s monitors bring ease of use and practicality to your desk. Side mounted ports are easily reachable without even looking at them; negating time wasted searching the backside of a PC case to find a free USB port.

Sustainability

At AOC we aim at minimizing the environmental impact of our products and comply with latest environmental and regulatory standards. Our business monitors meet the EPEAT, TCO or Energy Star requirements and are made from 85% recycled plastics. They are also packed in fully recyclable brown cardboard with less oil-based ink and made of at least 80% recycled paper. These actions are just the beginning and we continuously improve the product development stages in order to reduce the energy consumption, minimize the level of waste coming from product packaging and introduce the circularity models even further. To know more about our current sustainability strategy, visit the Corporate Social Responsibility page.

Product Properties

Manufacturer
AOC

Model
U27P2CA

EAN
4038986189859

Design

Detachable stand
Yes

Feet colour
Black

Frameless design
Yes

Front bezel colour
Black

Market positioning
Business

Product colour
Black

Display

Adobe RGB coverage
81%

Anti-glare screen
Yes

Backlight type
W-LED

Colour depth
10 bit

Colour gamut standard
sRGB

Contrast ratio (dynamic)
50000000:1

Contrast ratio (typical)
1000:1

Display brightness (typical)
350 cd/m²

Display number of colours
1.07 billion colours

Display scanning frequency
HDMI 2.0/DP 1.2: 30-140 KHz (H), HDMI 2.0/DP 1.2: 23 - 75 Hz (V)

Display surface
Matt

HD type
4K Ultra HD

Horizontal scan range
30 - 140 kHz

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Panel type
IPS

Pixel density
1638 ppi

Pixel pitch
0.1554 x 0.1554 mm

Response time
4 ms

Screen Resolution
3840 x 2160 pixels

Screen shape
Flat

Screen Size
68.6 cm (27")

Screen Type
LED

Screen Type
68.6 cm

sRGB coverage (typical)
112%

Supported graphics resolutions
3840 x 2160

Supported video modes
2160p

Surface hardness
3H

Touchscreen
No

Viewable size, horizontal
59.7 cm

Viewable size, vertical
33.6 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Adjustable height (max)
15 cm

Cable lock slot
Yes

Cable lock slot type
Kensington

Height adjustment
Yes

Number of OSD languages
16

On Screen Display (OSD)
Yes

On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Portuguese, Russian, Swedish

Panel mounting interface
100 x 100 mm

Pivot
Yes

Swivel angle range
-180 - 180°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-5 - 35°

VESA mounting
Yes

Logistics data

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
No

Built-in microphone
No

Built-in speaker(s)
Yes

Number of speakers
2

RMS rated power
2 W

Operational conditions

Non-operating altitude
0 - 12192 m

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 93%

Storage temperature (T-T)
-25 - 55 °C

Other features

Certification
ISO

Compatibility
VESA-P2

Compliance certificates
WEEE

Ethernet LAN (RJ-45) ports
0

Exterior finish type
Textured

Heavy metals free
Hg (mercury)

Light effects
No

Packaging content

Audio cable length
1.8 m

Cables included
Audio (3.5mm), DisplayPort, HDMI

DisplayPort cable length
1.8 m

HDMI cable length
1.8 m

Stand included
Yes

Packaging data

Package depth
160 mm

Package height
595 mm

Package type
Box

Package weight
9.6 kg

Package width
690 mm

Performance

AMD FreeSync
No

Fast charging
Yes

Flicker-free technology
Yes

Low Blue Light technology
Yes

NVIDIA G-SYNC
No

VESA Adaptive Sync support
Yes

Ports & interfaces

Built-in KVM switch
Yes

Built-in USB hub
Yes

DisplayPort version
1.2

DisplayPorts quantity
1

DVI port
No

HDMI
Yes

HDMI ports
2

HDMI version
2.0

Headphone connectivity
3.5 mm

Headphone out
Yes

Headphone outputs
1

Mobile High-Definition Link (MHL)
No

Number of USB Type-C upstream ports quantity
1

USB hub version
3.2 Gen 1 (3.1 Gen 1)

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
65 W

USB Type-A downstream ports quantity
4

USB Type-C DisplayPort Alternate Mode
Yes

VGA (D-Sub) ports quantity
0

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (HDR) per 1000 hours
32 kWh

Energy consumption (SDR) per 1000 hours
32 kWh

Energy efficiency class (HDR)
Not available

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

European Product Registry for Energy Labelling (EPREL) code
709703

Power consumption (max)
75 W

Power consumption (off)
0.3 W

Power consumption (standby)
0.5 W

Power consumption (typical)
37 W

Weight & dimensions

Depth (with stand)
200.1 mm

Depth (without stand)
51.1 mm

Height (with stand)
544.5 mm

Height (without stand)
369.5 mm

Weight (with stand)
7.1 kg

Weight (without stand)
5.1 kg

Width (with stand)
613.6 mm

Width (without stand)
613.6 mm

AOC U27P2CA computer monitor 68.6 cm (27") 3840 x 2160 pixels 4K Ultra HD LED Black
