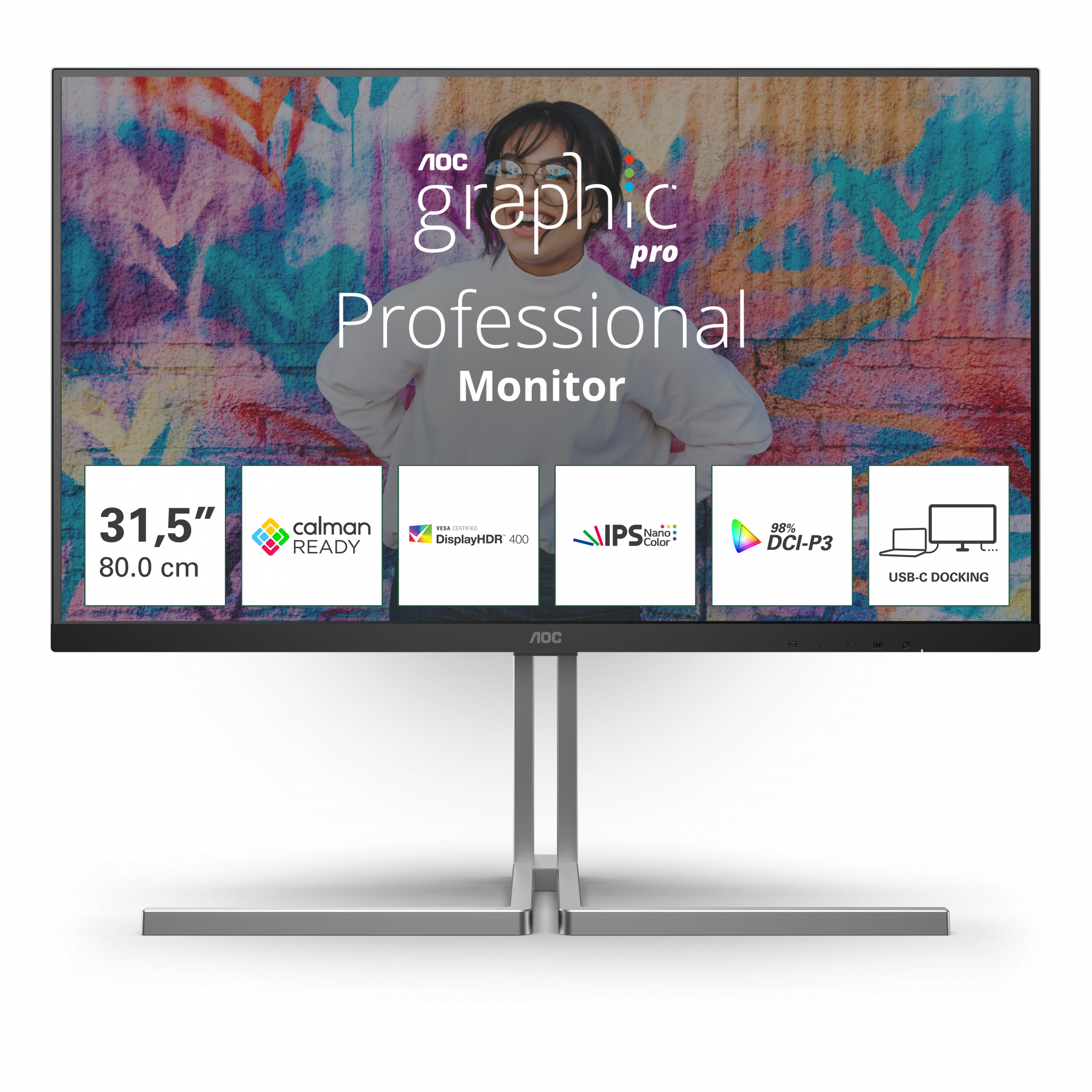

Description

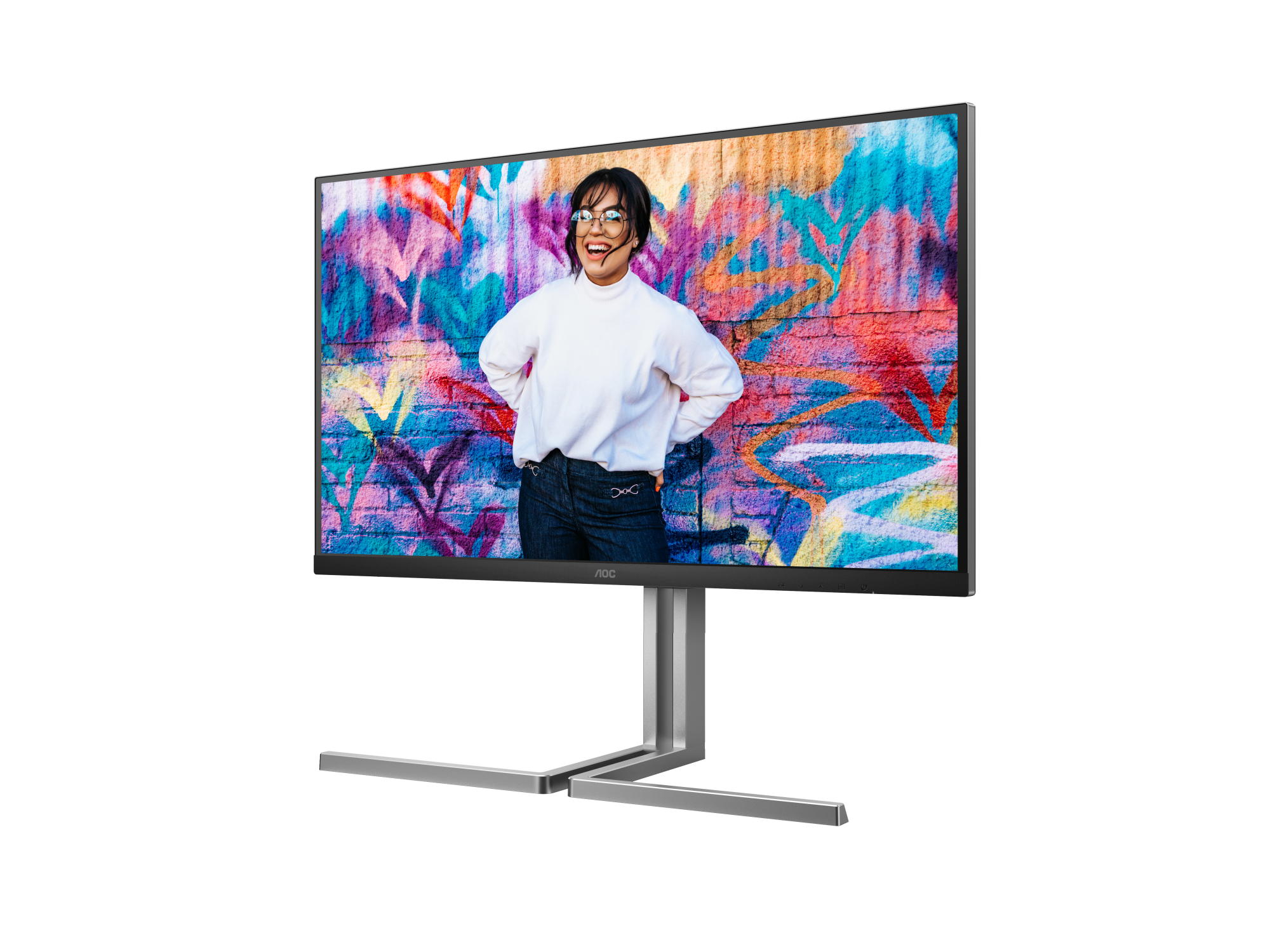

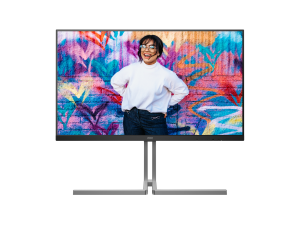

AOC U32U3CV. Display diagonal: 80 cm (31.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black

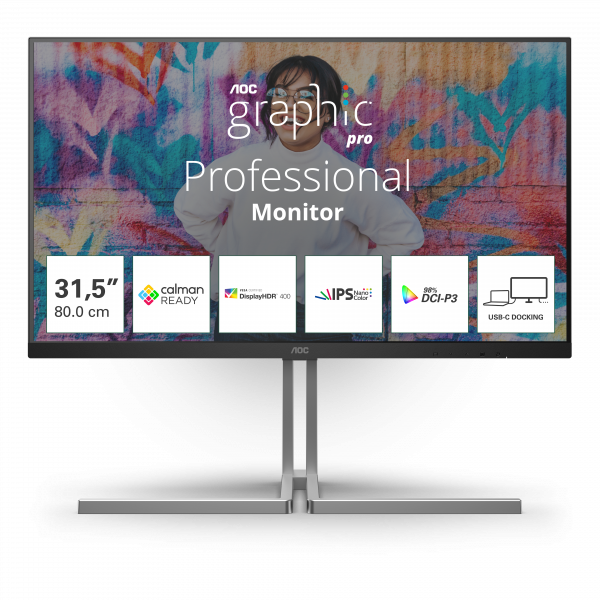

Graphic Pro

Bigger, brighter, and better monitor to unleash creativity.The AOC U3 Graphic Pro monitors convey stunning and accurate colors, sharp details, and smooth motion to meet the needs of creative professionals who work with high-quality visuals. Setting up, adjusting, and connecting with your devices is also easy.

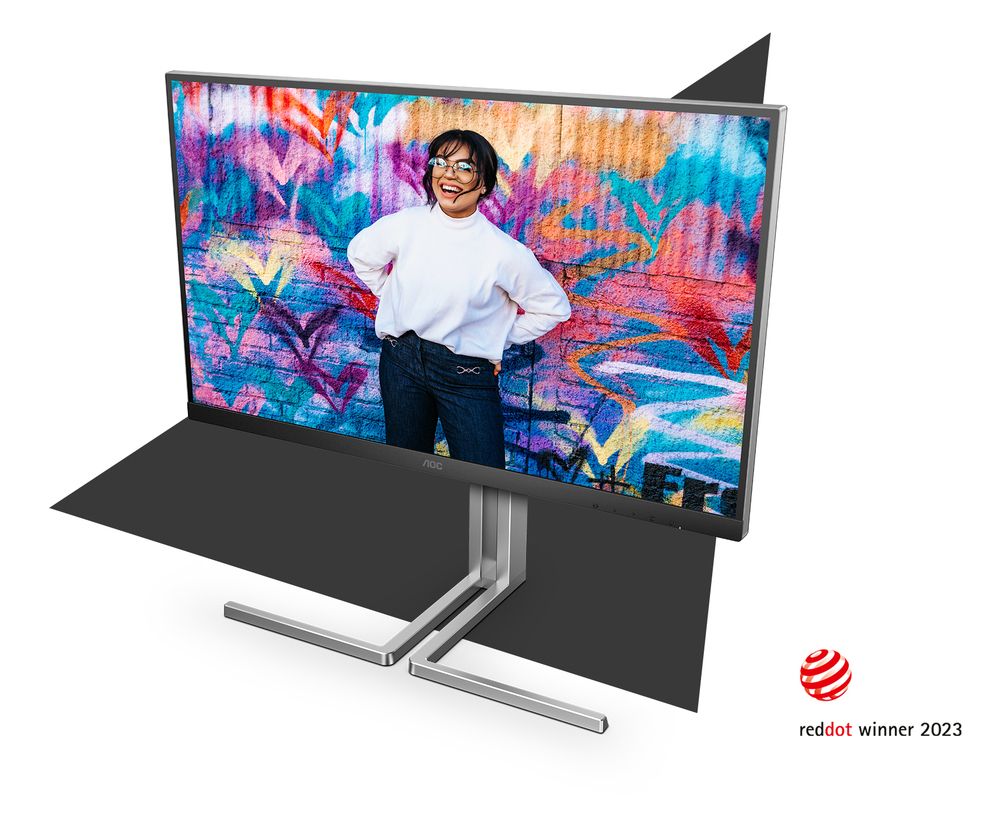

Red Dot Winner 2023

The AOC U3 Graphic Pro Monitorwon the category of product design. The Red Dot Award is among the most valued international competitions for product design, communication design, and design concepts.

Vesa Certified DisplayHDR™ 400

Even the lowest level of High Dynamic Range (HDR) feature poses a significant upgrade to common monitors. The peak luminance of 400 cd/m² enables your display to hone the picture quality with a manifold colour spectrum and more diverse contrast. The VESA-certificate ensures richness of detail and realistic portrayals of game and film worlds.

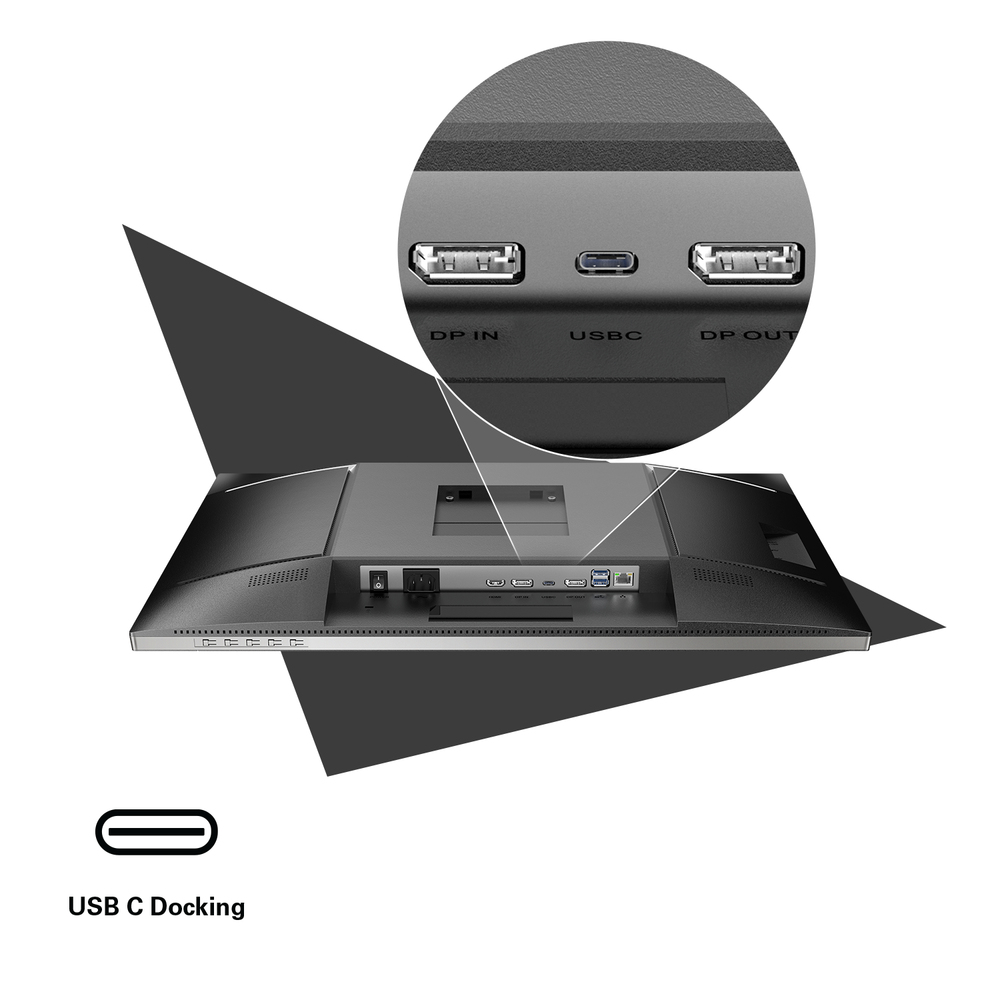

USB-C Docking

Simplify the connections with one cable only. The USB-C connection provides DisplayPort Alternate Mode for transferring high-resolution video signals from a notebook to the monitor while simultaneously charging the notebook’s battery from the monitor with USB power delivery.

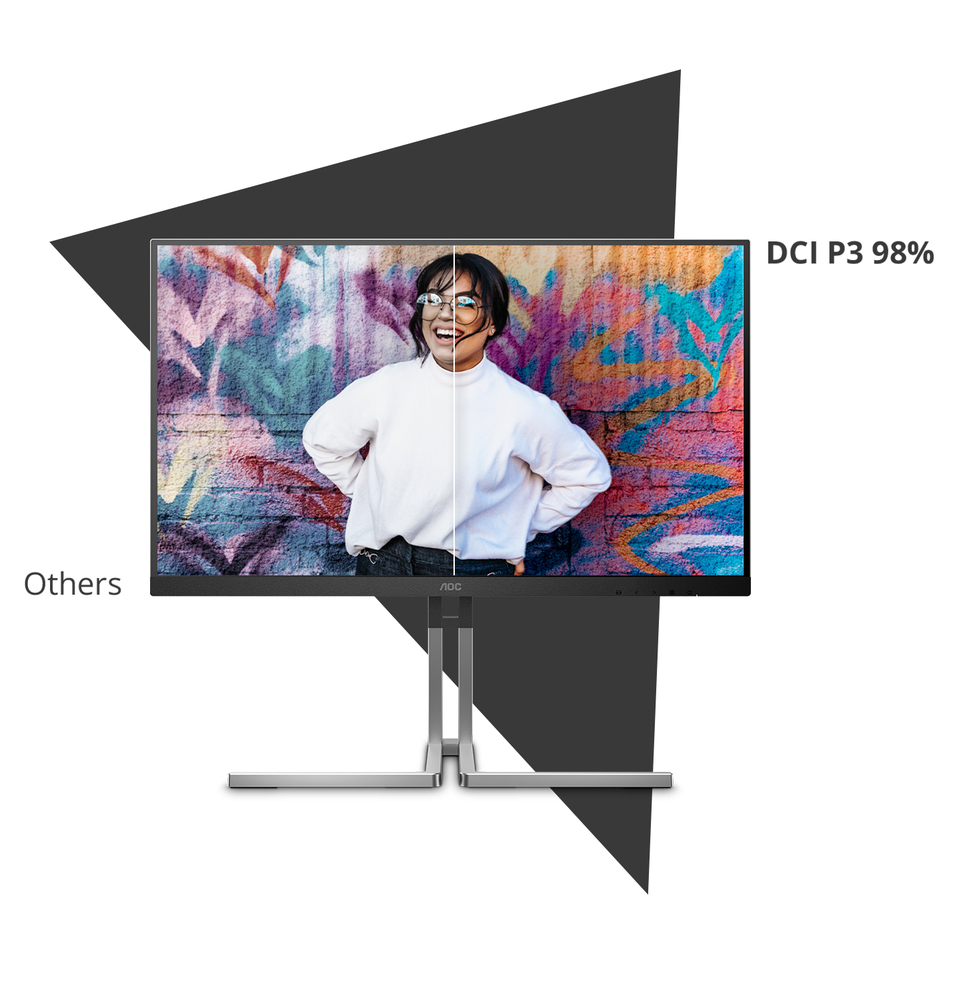

98% DCI-P3

The AOC Graphic Pro line offers 98% DCI-P3, 100% sRGB, and 100% Rec. 709 coverage—perfect for creators demanding true-to-life colors and exceptional accuracy in every project.

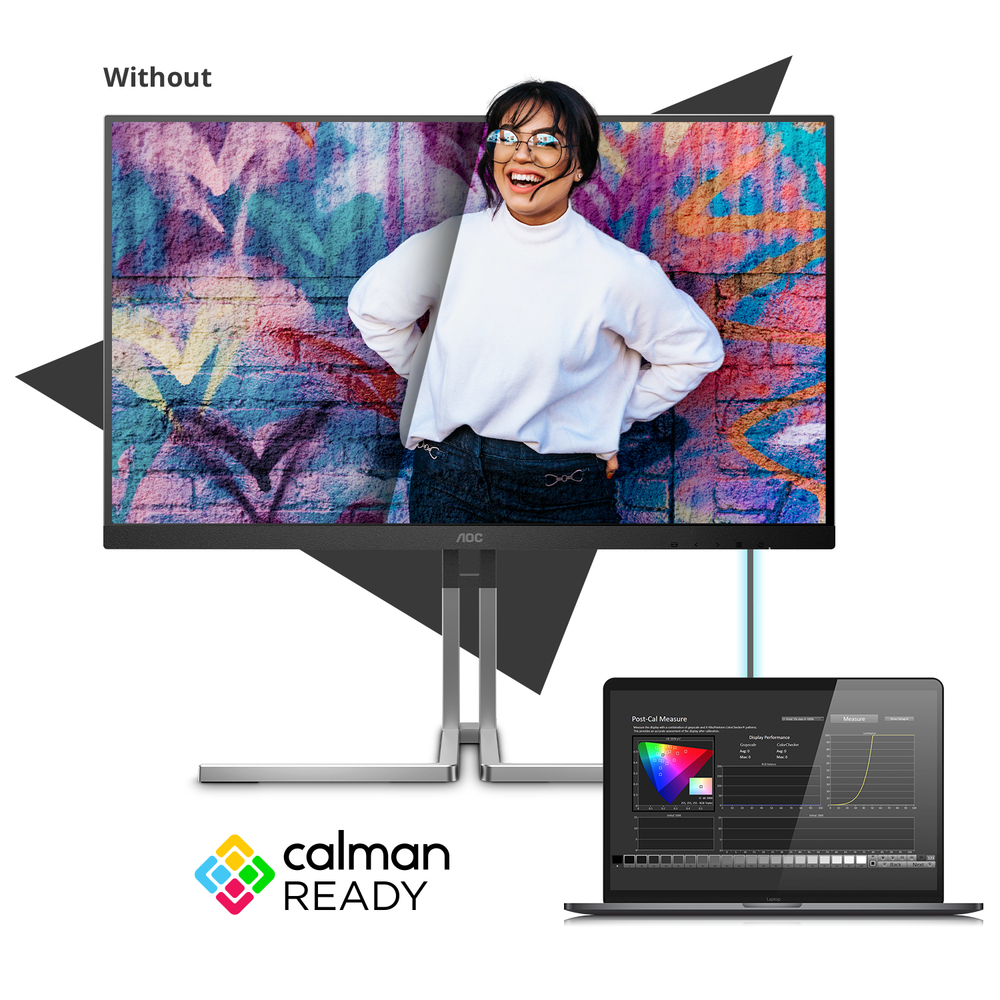

Calman Ready

Calman Ready displays and devices are equipped with the ability to communicate directly with Portrait Displays’ Calman® color calibration software. Devices that are Calman Ready can quickly connect with the software and leverage its precise and automated calibration capabilities (AutoCal™). Calman Ready allows for easy, precise and quick calibrations with your brand-new AOC display.

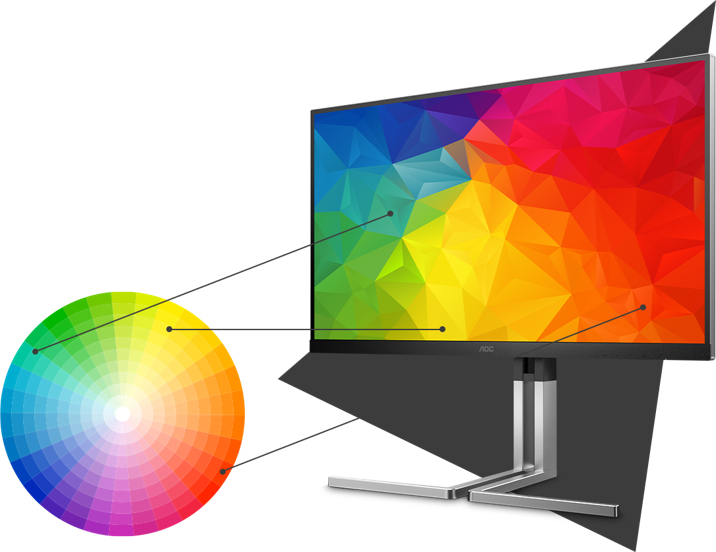

Delta E<2

Delta E <2 color accuracy means superior, accurate color reproduction, achieving better than the eye can see color difference.

Nano IPS

Nano IPS technology involves nanoparticles which are applied to a LED backlight of an IPS-panel display. These particles absorb excessive light wavelenghts in order to increase color gamut of a display.

Power Delivery 90W

USB-C is a rising technology that allows fast data transfer, display signal and power delivery to recharge your devices while working. Through a single slim cable, AOC USB-C technology powers up to 90W, charging conventional low/high power devices (such as your mouse or keyboard), smartphones and laptops.

Product Properties

Manufacturer
AOC

Model
U32U3CV

EAN
4038986112086

Design

Detachable stand
Yes

Feet colour
Grey

Frameless design
Yes

Market positioning
Graphics design

Product colour
Black

Display

Anti-glare screen
Yes

Backlight type
W-LED

Colour gamut
98%

Colour gamut standard
DCI-P3

Contrast ratio (typical)
1000:1

DDC/CI
Yes

Display brightness (typical)
400 cd/m²

Display number of colours
1.073 billion colours

Haze rate
25%

HD type
4K Ultra HD

High Dynamic Range (HDR) supported
Yes

High Dynamic Range (HDR) technology
DisplayHDR 400

Horizontal scan range
30 - 140 kHz

LED backlight
Yes

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Panel type
Nano IPS

Pixel pitch
0.18159 x 0.18159 mm

Response time
4 ms

Screen Resolution
3840 x 2160 pixels

Screen shape
Flat

Screen Size
80 cm (31.5")

Screen Type
LCD

Screen Type
80 cm

Surface hardness
3H

Touchscreen
No

Vertical scan range
23 - 75 Hz

Viewable size, horizontal
69.7 cm

Viewable size, vertical
39.2 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Adjustable height (max)
15 cm

Height adjustment
Yes

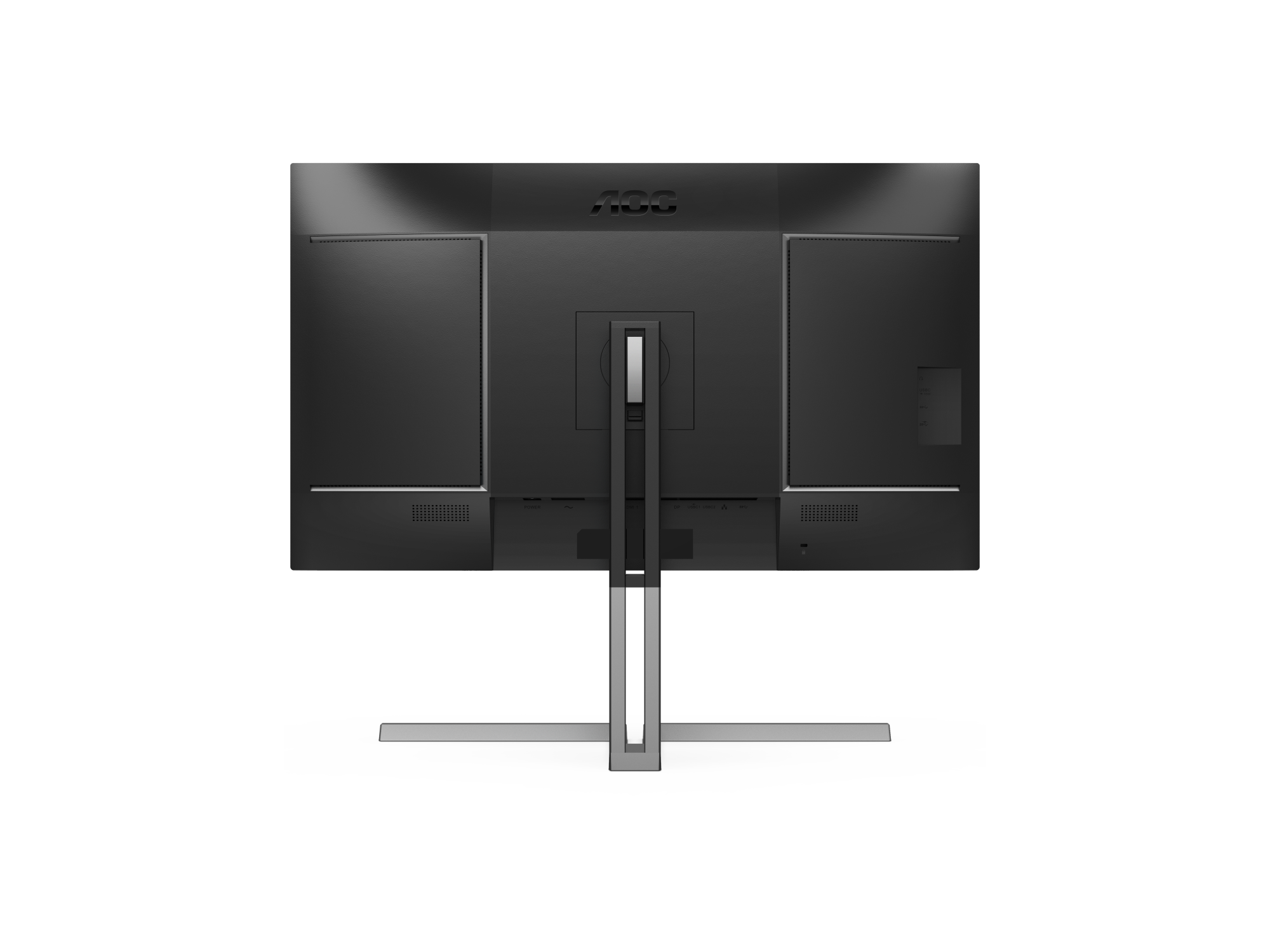

Panel mounting interface
100 x 100 mm

Picture-in-Picture
Yes

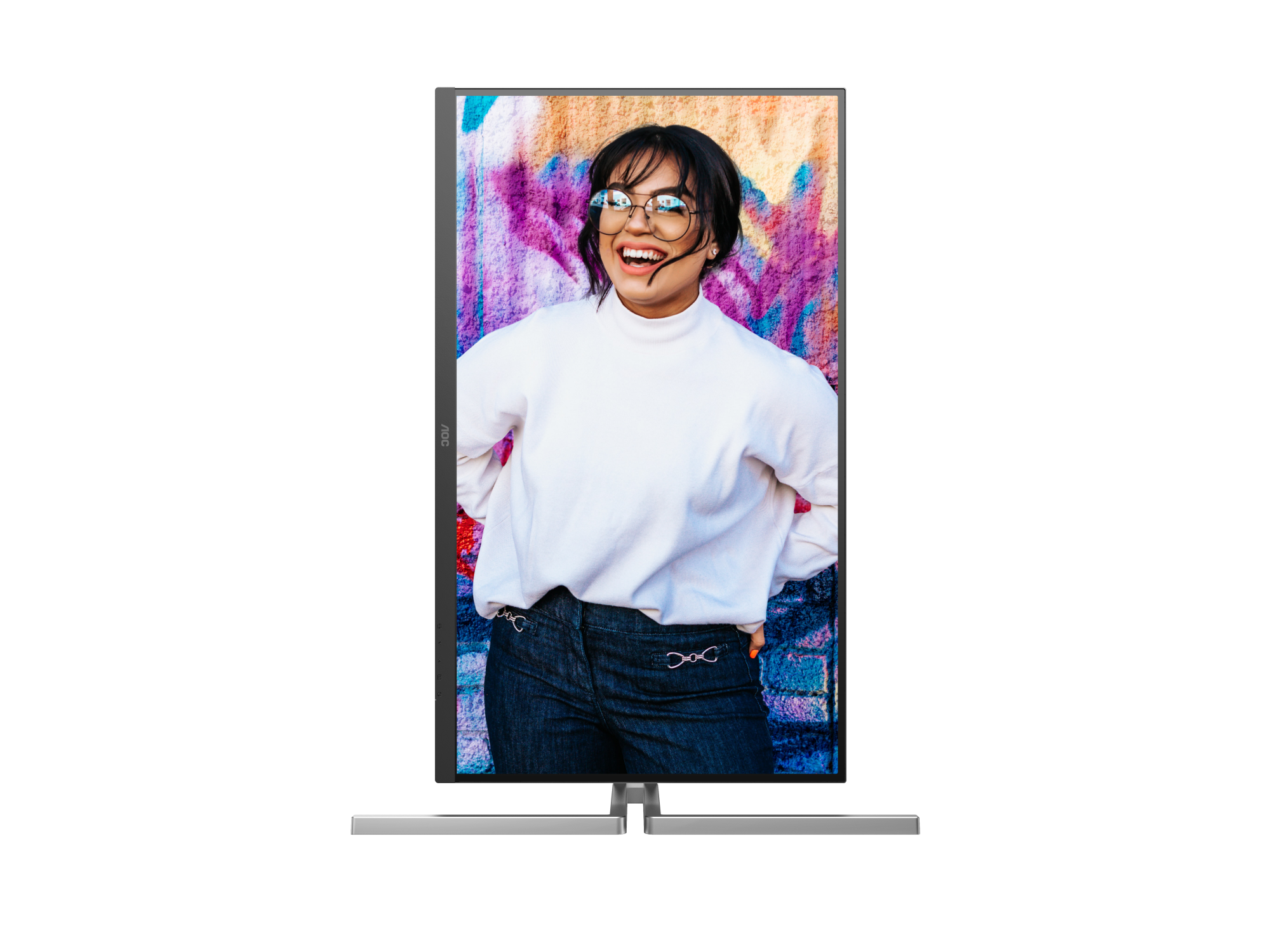

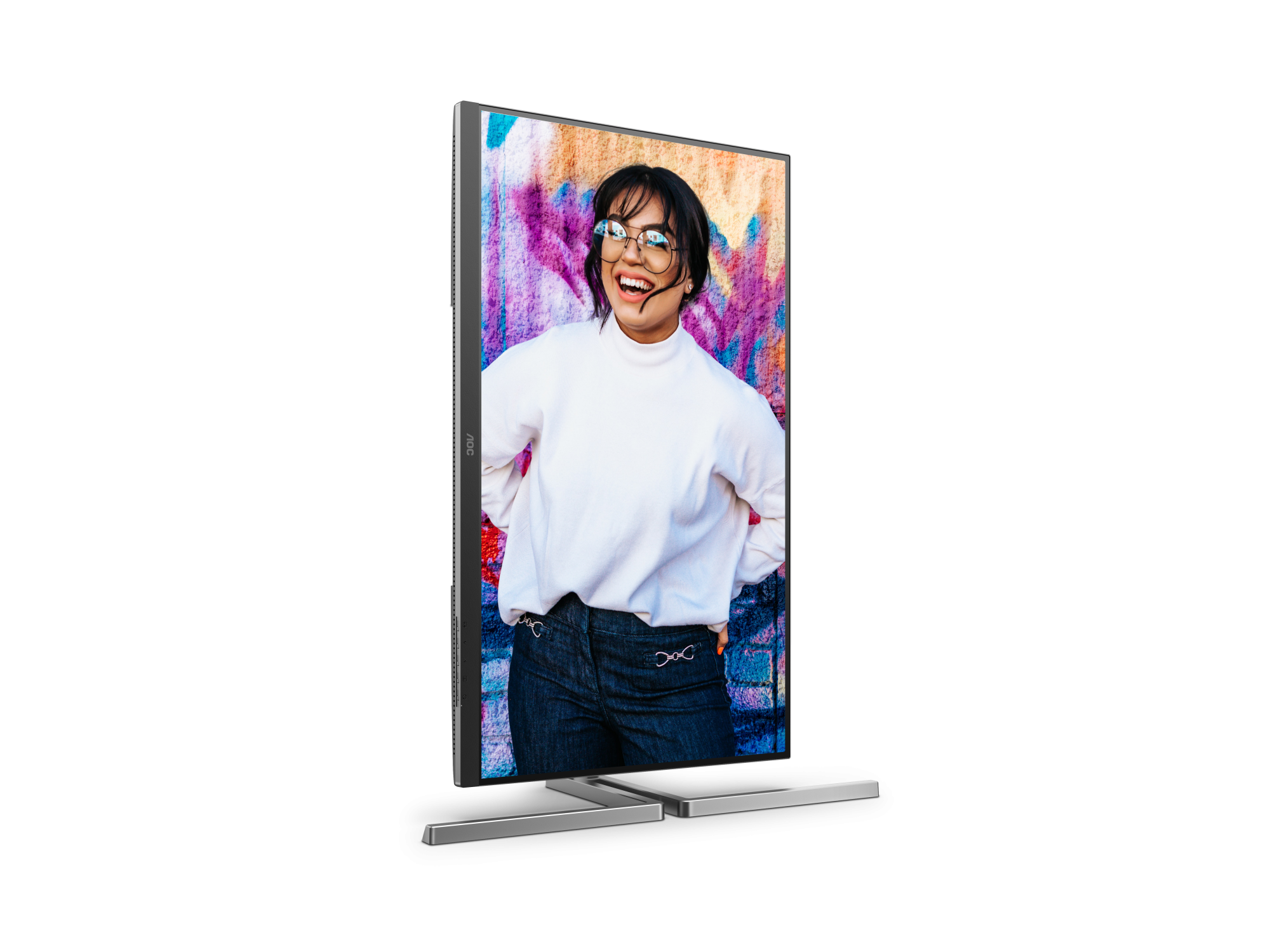

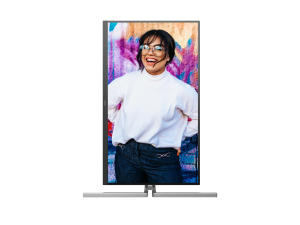

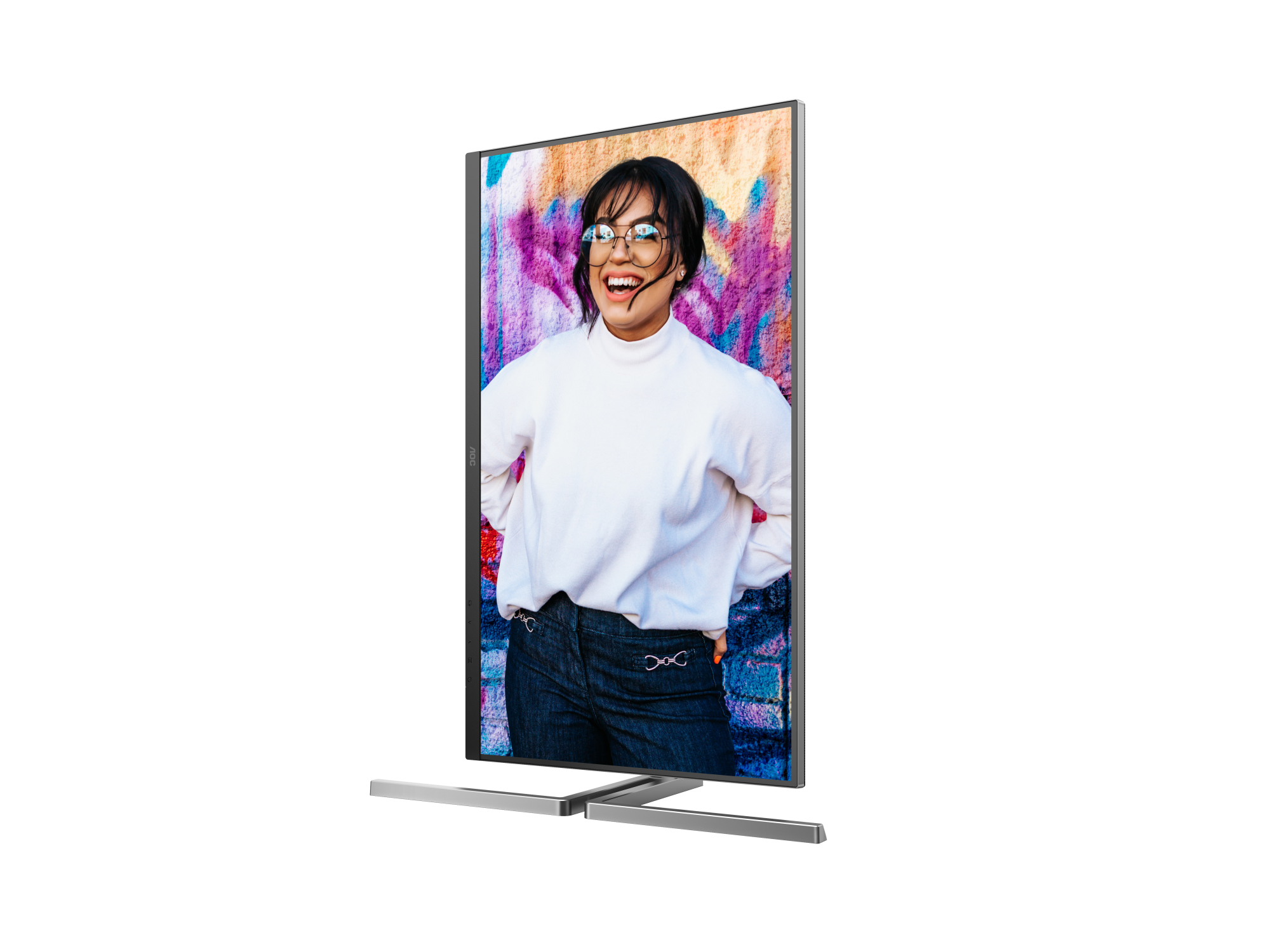

Pivot
Yes

Pivot angle
-90 - 90°

Plug and Play
Yes

Swivel angle range
-15 - 15°

Swivelling
Yes

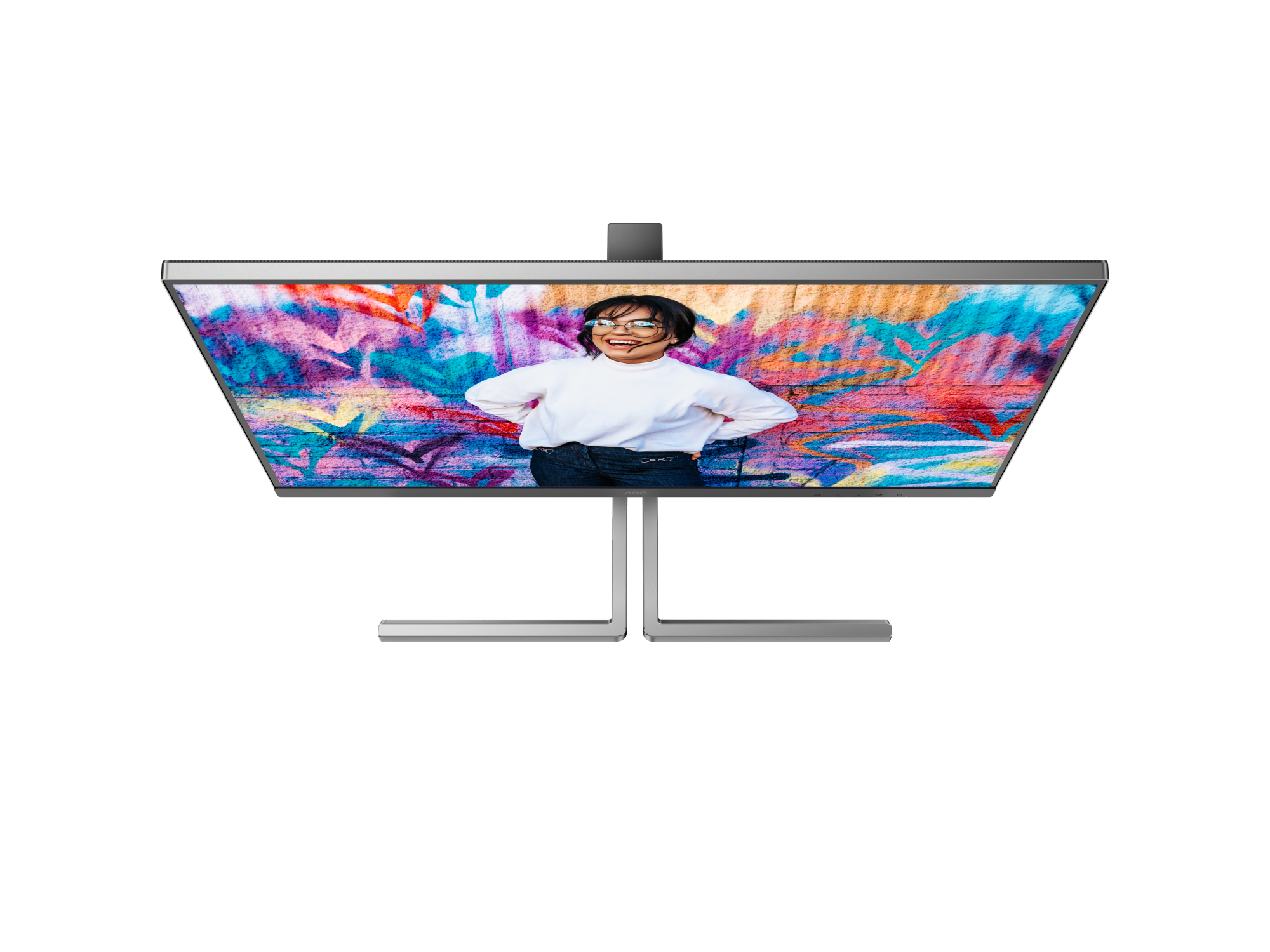

Tilt adjustment
Yes

Tilt angle range
-6.5 - 23°

VESA mounting
Yes

Multimedia

Built-in camera
No

Built-in speaker(s)
Yes

Number of speakers
2

RMS rated power
6 W

Network

Ethernet LAN
Yes

Operational conditions

Non-operating altitude
0 - 12192 m

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 93%

Storage temperature (T-T)
-25 - 55 °C

Packaging content

Cables included
AC

Quick start guide
Yes

Stand included
Yes

Packaging data

Package type
Box

Performance

Fast charging
Yes

Flicker-free technology
Yes

VESA Adaptive Sync support
Yes

Ports & interfaces

AC (power) in
Yes

Built-in USB hub
Yes

DisplayPort version
1.4

DisplayPorts quantity
1

HDMI
Yes

HDMI ports
2

HDMI version
2.0

Headphone out
Yes

Headphone outputs
1

Number of upstream ports
2

USB hub version
3.2 Gen 2 (3.1 Gen 2)

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
96 W

USB Type-A downstream ports quantity
4

USB Type-C DisplayPort Alternate Mode
Yes

USB Type-C downstream ports quantity
1

USB upstream port type
USB Type-C

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Energy consumption (HDR) per 1000 hours
56 kWh

Energy consumption (SDR) per 1000 hours
32 kWh

Energy efficiency class (HDR)
G

Energy efficiency class (SDR)
F

Energy efficiency scale
A to G

Input current
3 A

Power consumption (max)
215 W

Power consumption (standby)
0.3 W

Power consumption (typical)
46 W

Weight & dimensions

Depth (with stand)
258.6 mm

Height (with stand)
609.3 mm

Weight (with stand)
8.46 kg

Width (with stand)
714.4 mm

AOC U32U3CV computer monitor 80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD LCD Black
