Description

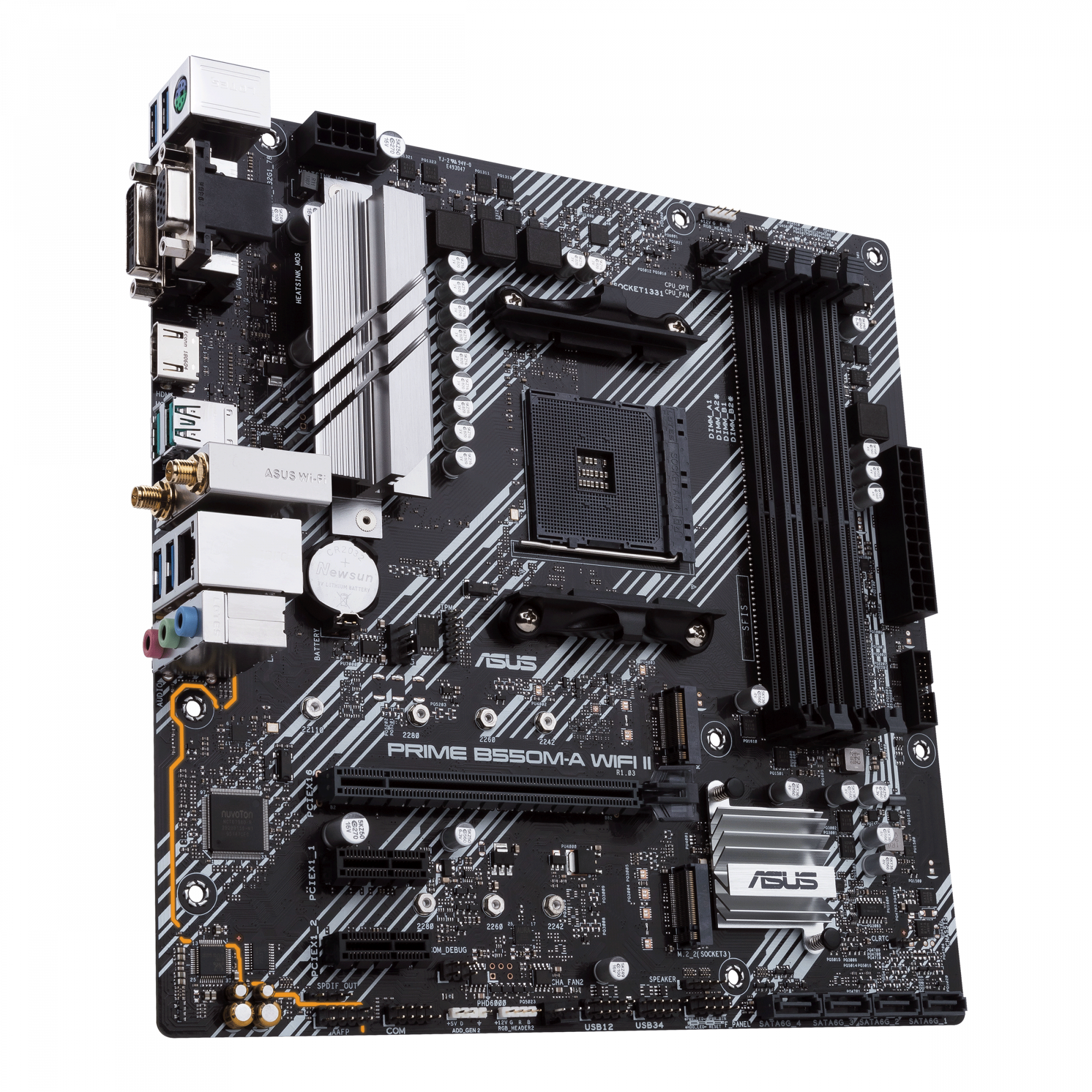

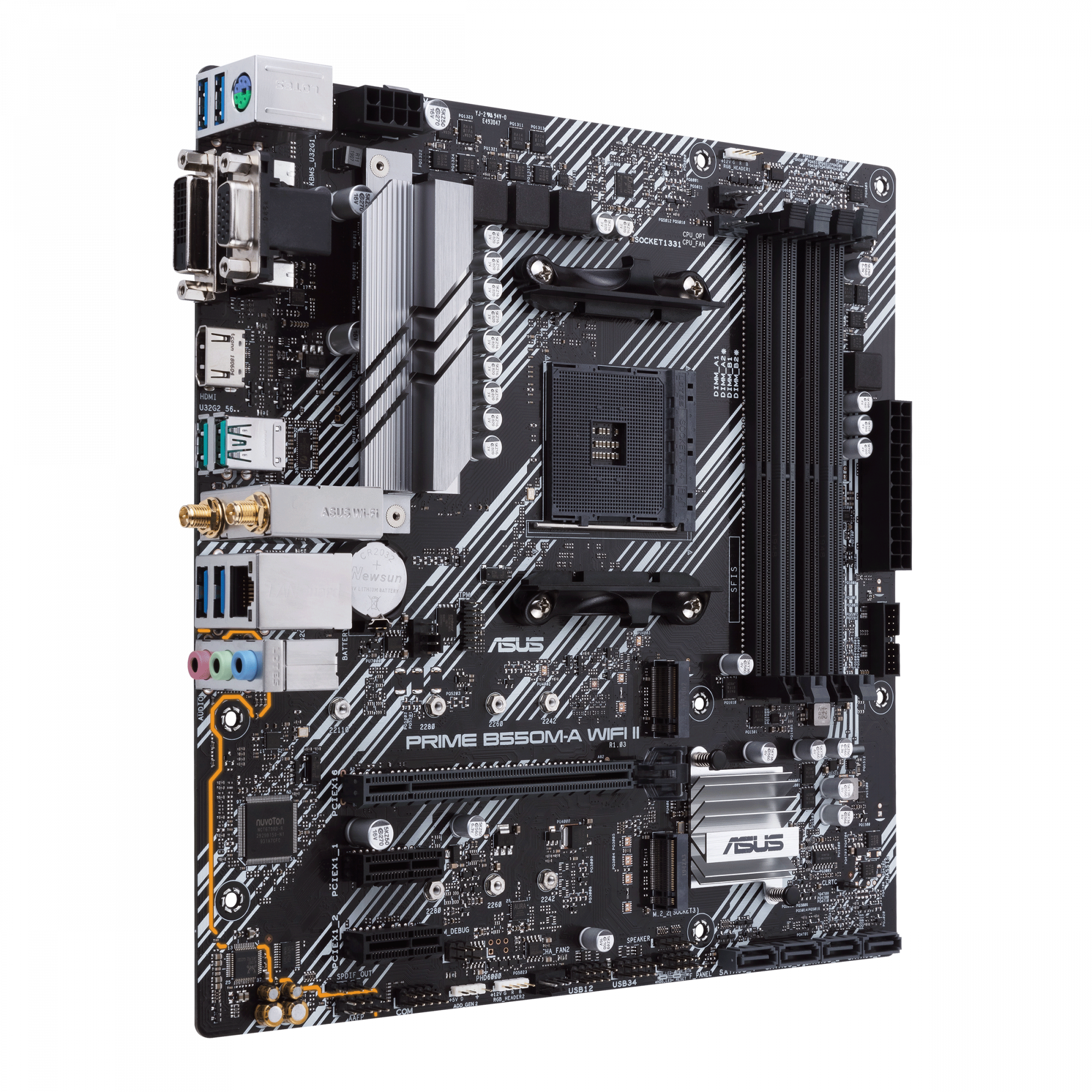

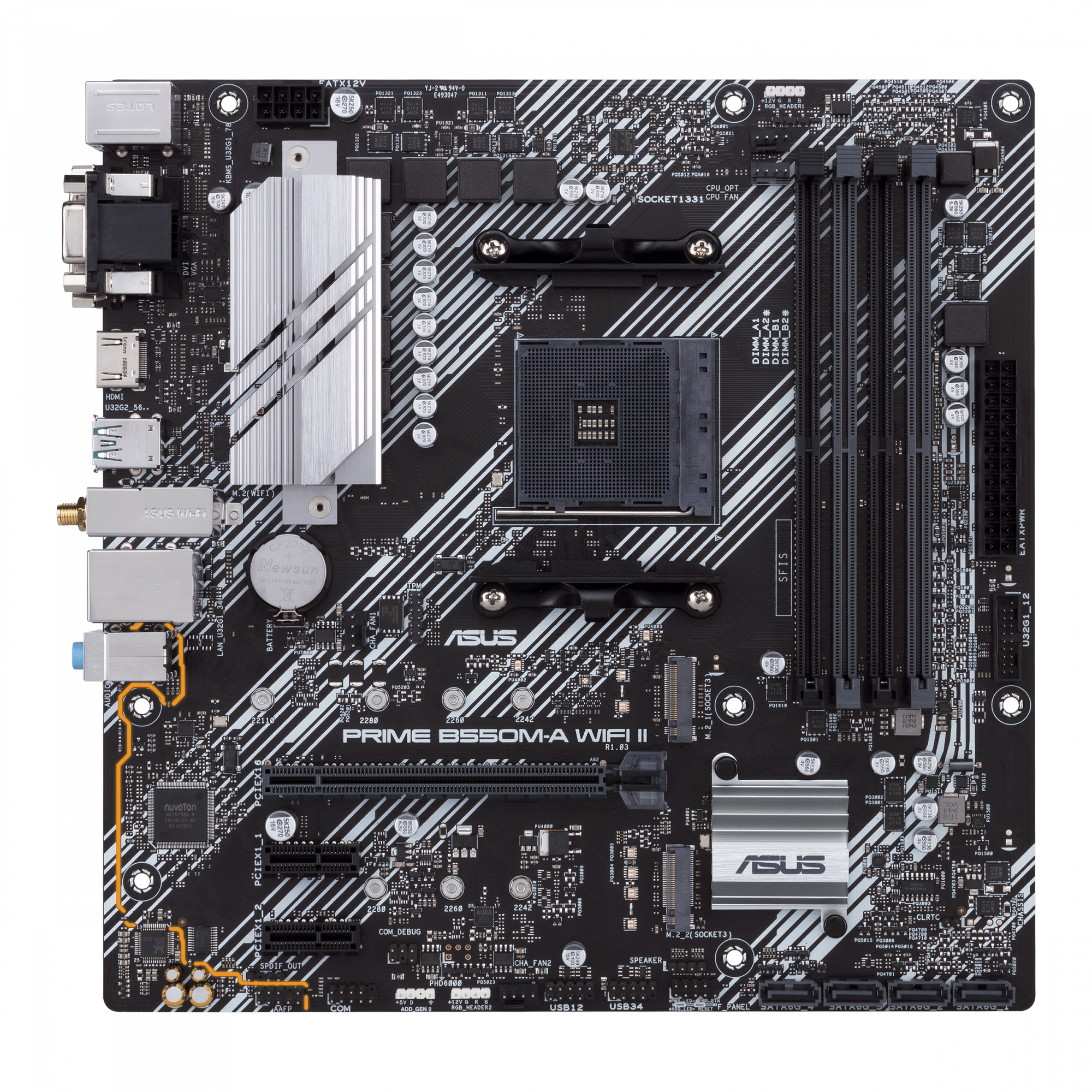

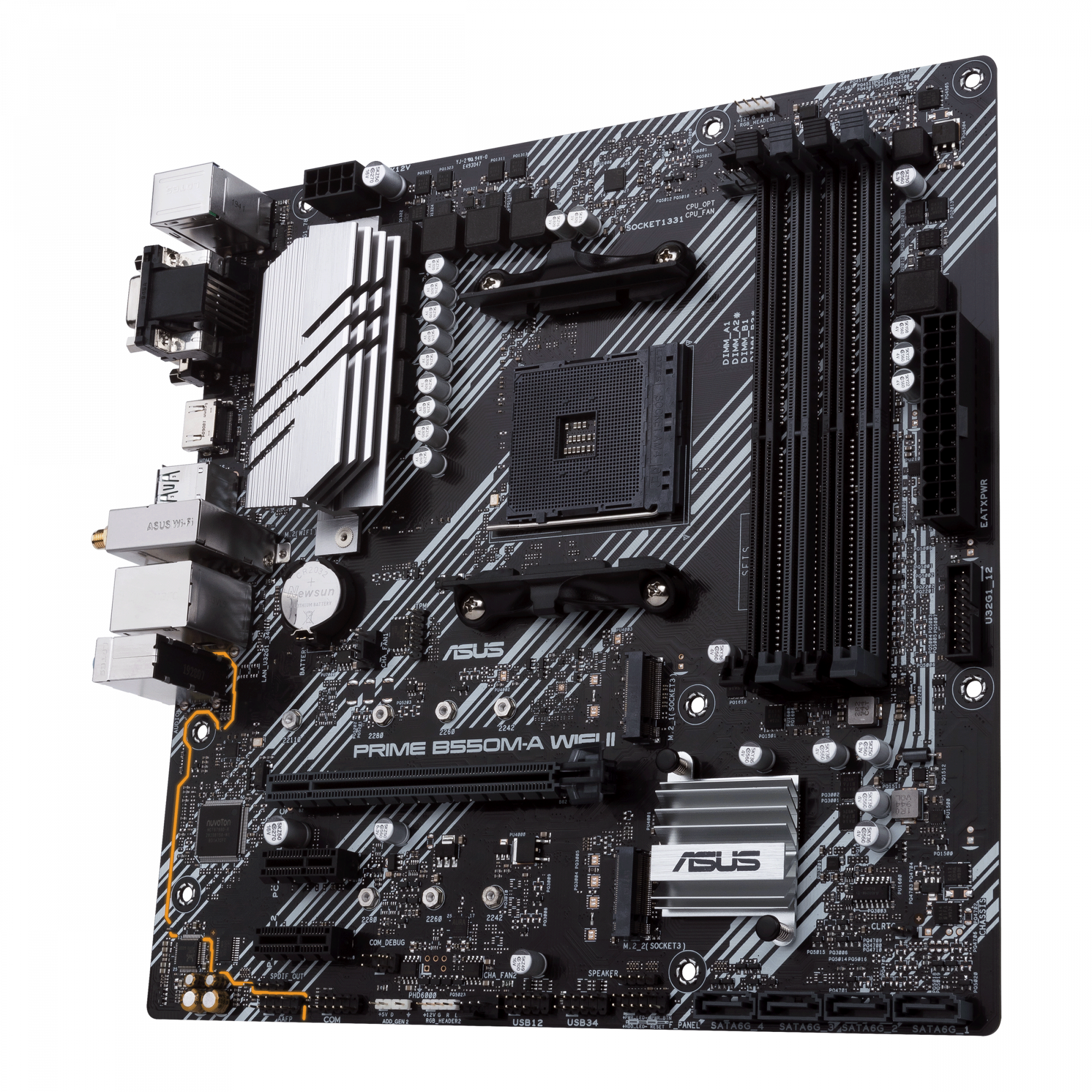

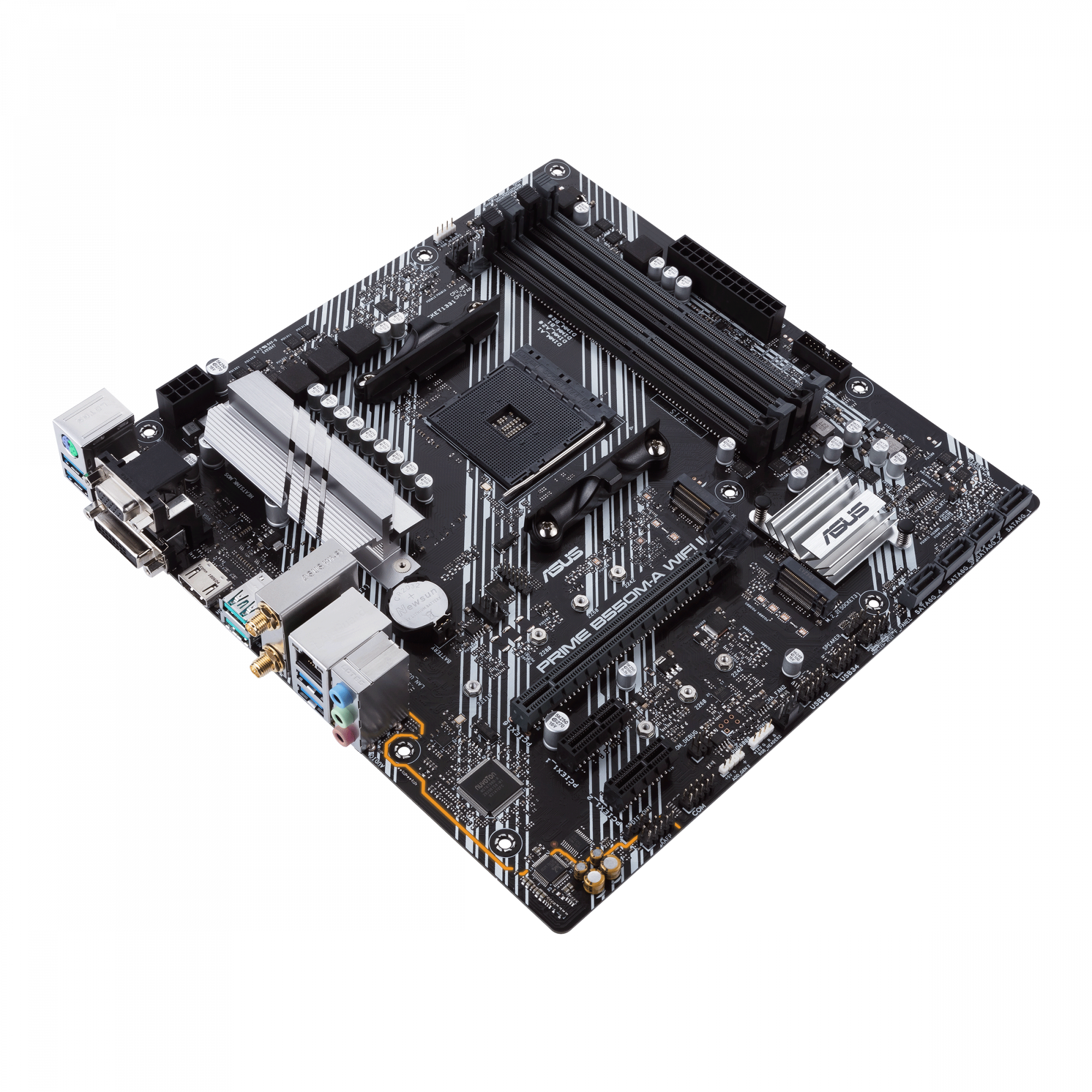

ASUS PRIME B550M-A WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility
Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

All-around Energy Efficiency

With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

Flexible Cooling Controls

Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Product Properties

Manufacturer
Asus

Model
PRIME B550M-A WIFI

EAN
4711081309741

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Clear CMOS jumper
Yes

Bullet points

Point
AMD AM4 socket

Aura Sync RGB Lighting

Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility

Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 (Gen 3.x) slots
1

PCI Express x16 (Gen 4.x) slots
1

PCI slots
0

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD B550

Motherboard form factor
micro ATX

Product colour
Multicolour

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

On-board graphics card
No

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
2

Number of COM connectors
1

Number of EATX power connectors
1

Number of SATA connectors
0

Number of SATA II connectors
0

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0

Logistics data

Harmonized System (HS) code
84733020

Memory

ECC сompatibility
ECC

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.2

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Realtek RTL8111H

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wake-on-LAN ready
Yes

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

mSATA ports quantity
0

Packaging content

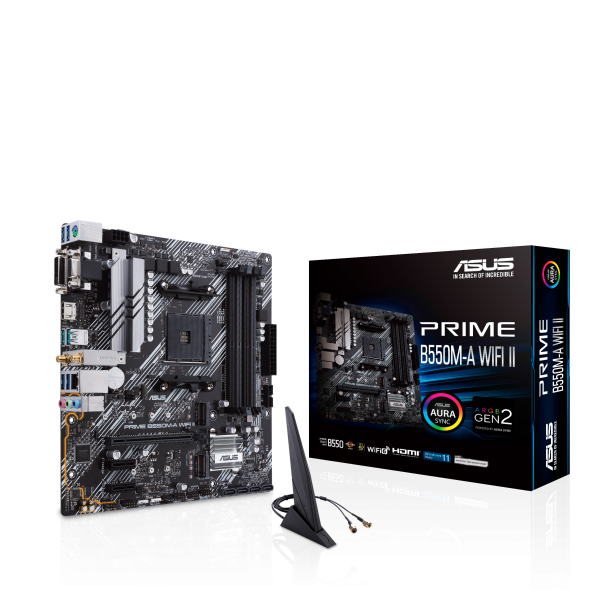

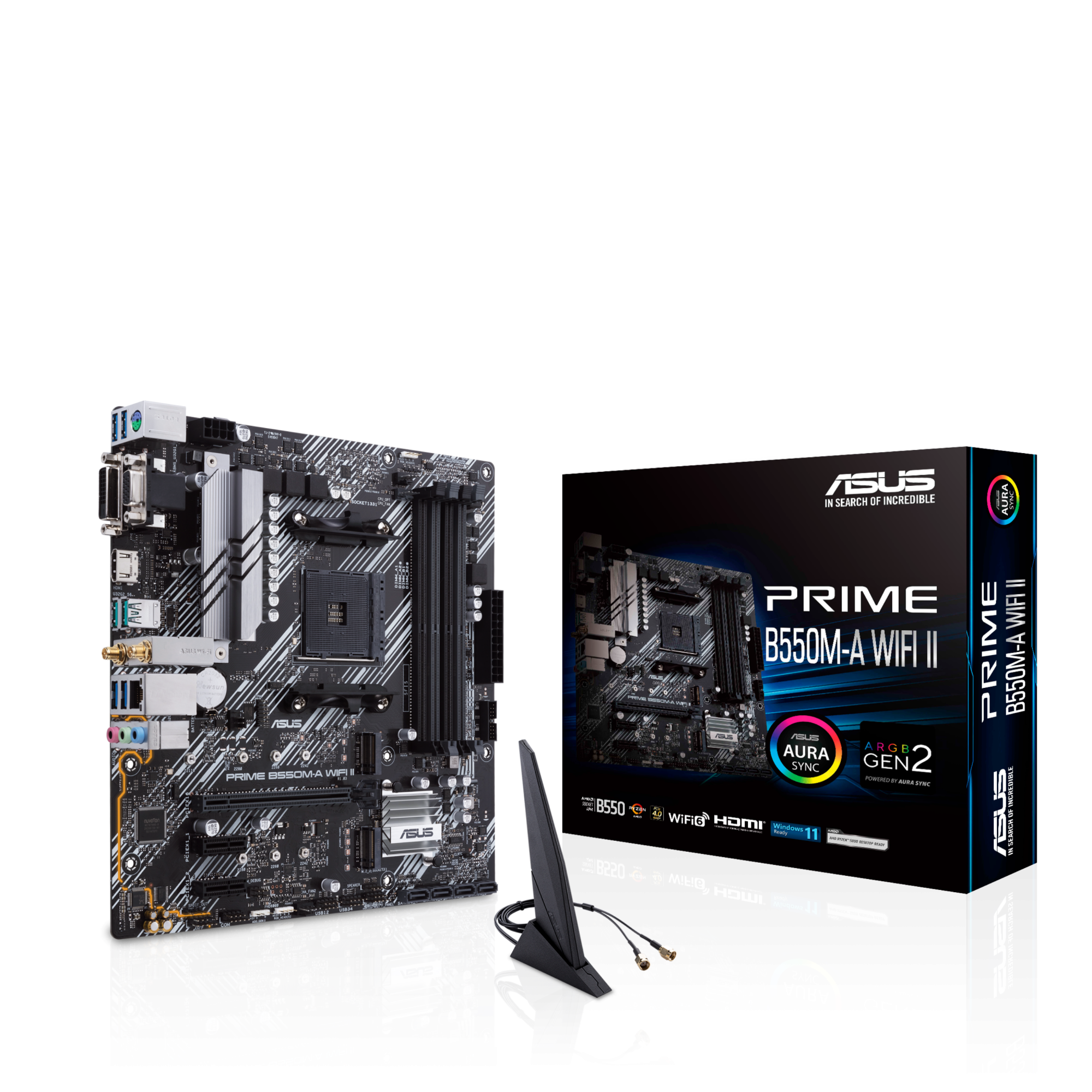

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual

Weight
845 g

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Processor manufacturer
AMD

Processor socket
Socket AM4

Supported processor sockets
Socket AM4

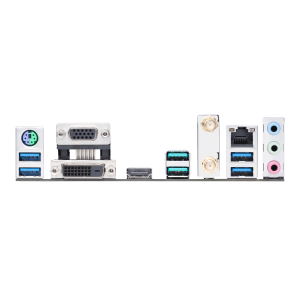

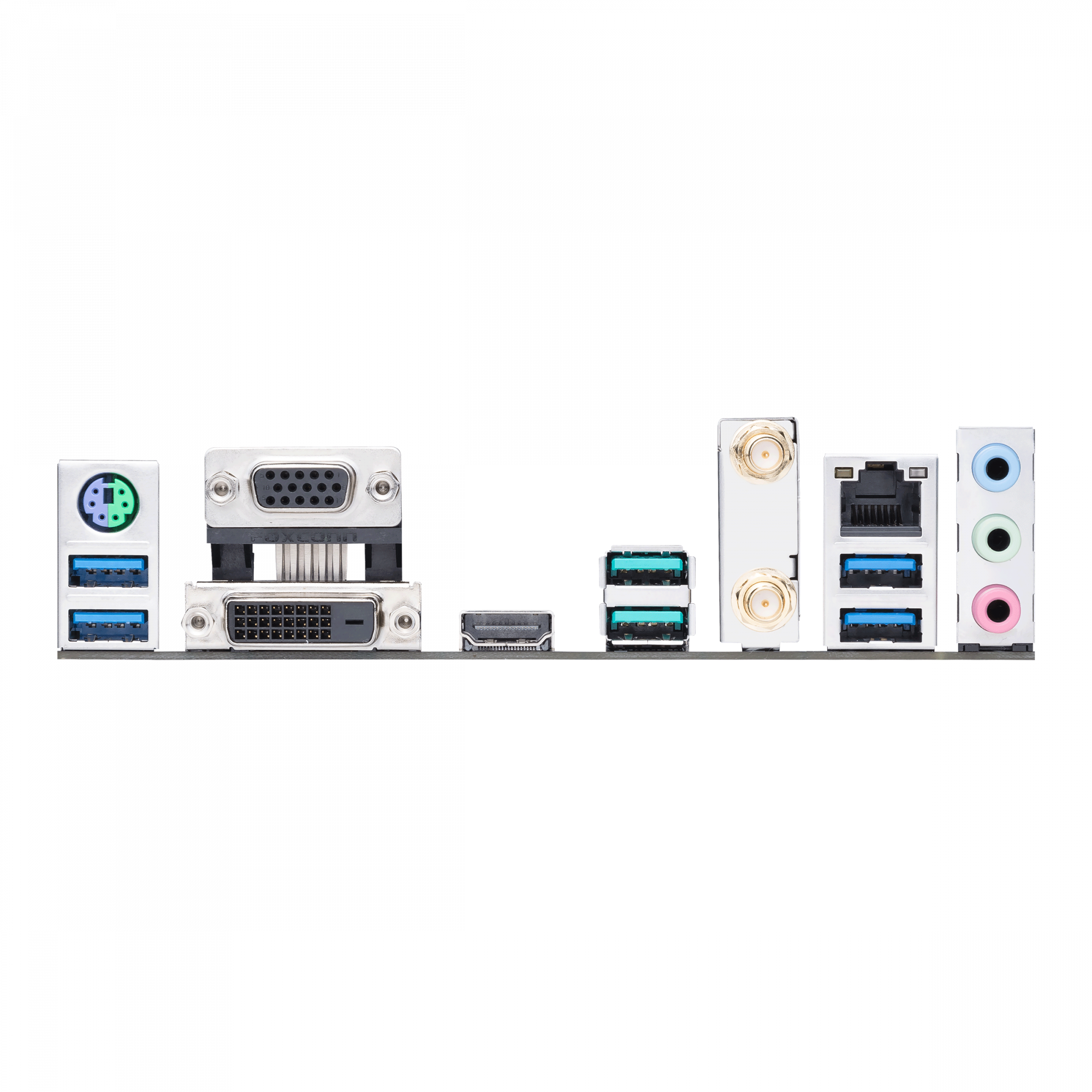

Rear panel I/O ports

DVI-D ports quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Microphone in
Yes

PS/2 ports quantity
1

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

USB connector type
USB Type-A

VGA (D-Sub) ports quantity
1

WiFi-AP antenna jack
1

Storage controllers

Number of storage drives supported
6

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
67 mm

Width
244 mm

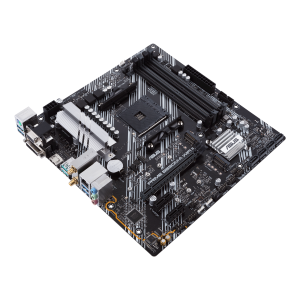

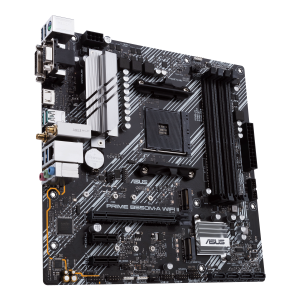

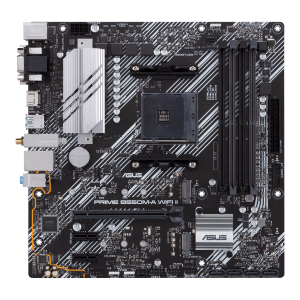

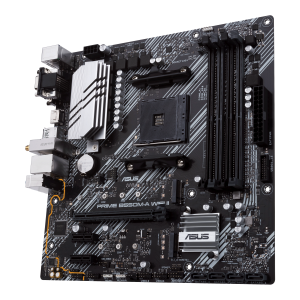

ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX
