ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
Print
Model: PRIME B760-PLUS
EAN: 4711387102985

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX

Manufacturer:
Asus
ASUS PRIME B760-PLUS, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
Please log in to see your price
Related products

Description

ASUS PRIME B760-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Product Properties

  • Model
  • PRIME B760-PLUS
  • EAN
  • 4711387102985
  • BIOS
  • BIOS memory size
  • 128 Mbit
  • BIOS type
  • UEFI AMI
  • Bullet points
  • Point
  • Aura Sync RGB Lighting
    Comprehensive cooling
    Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
    Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
    Ultrafast connectivity
  • Expansion slots
  • Number of M.2 (M) slots
  • 3
  • PCI Express x1 (Gen 3.x) slots
  • 2
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Cooling type
  • Passive
  • Motherboard chipset
  • Intel B760
  • Motherboard form factor
  • ATX
  • Power source type
  • ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Front panel connector
  • Yes
  • Number of chassis fan connectors
  • 3
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • Peripheral (Molex) power connectors (4-pin)
  • 1
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • Thunderbolt headers
  • 1
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 192 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No
  • Other features
  • Weight
  • 760 g
  • Packaging content
  • Cables included
  • SATA
  • Packaging data
  • Package depth
  • 266 mm
  • Package height
  • 53 mm
  • Package weight
  • 1.2 kg
  • Package width
  • 328 mm
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Maximum number of SMP processors
  • 1
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700
  • Supported processor sockets
  • LGA 1700

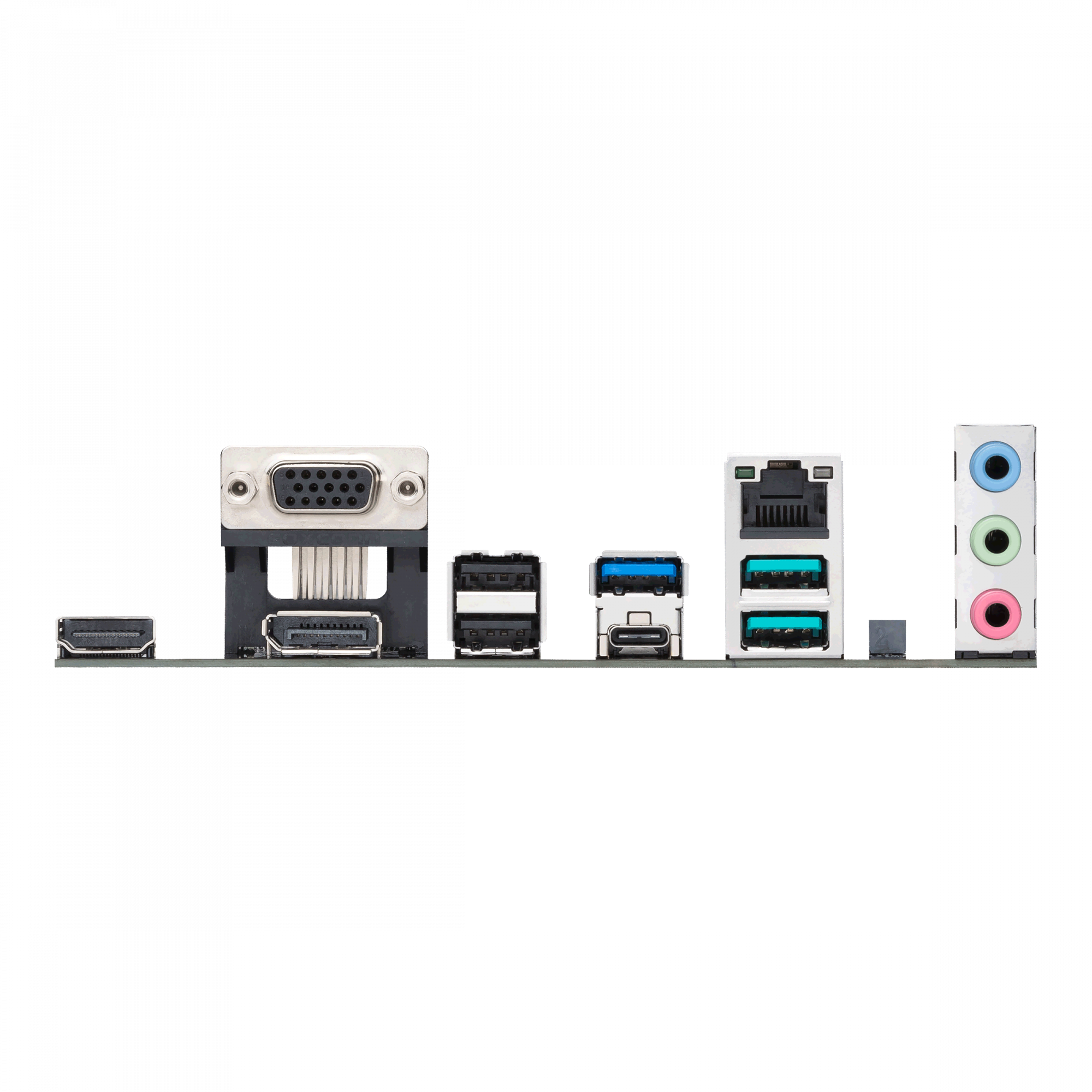

  • Rear panel I/O ports
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.1
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 1
  • Storage controllers
  • Number of HDDs supported
  • 4
  • Number of storage drives supported
  • 7
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 36 mm
  • Width
  • 305 mm
