Description

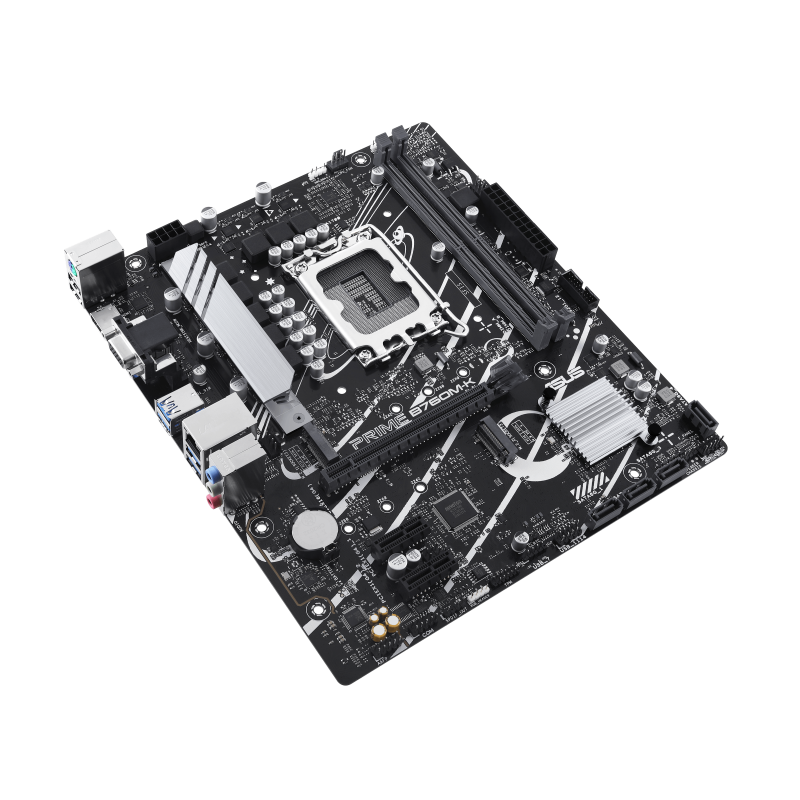

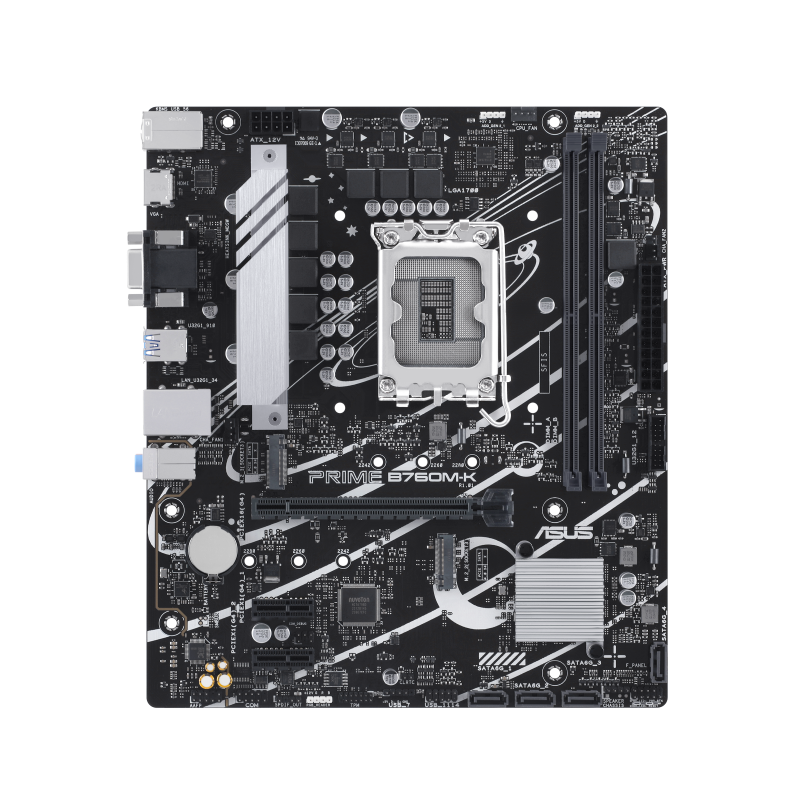

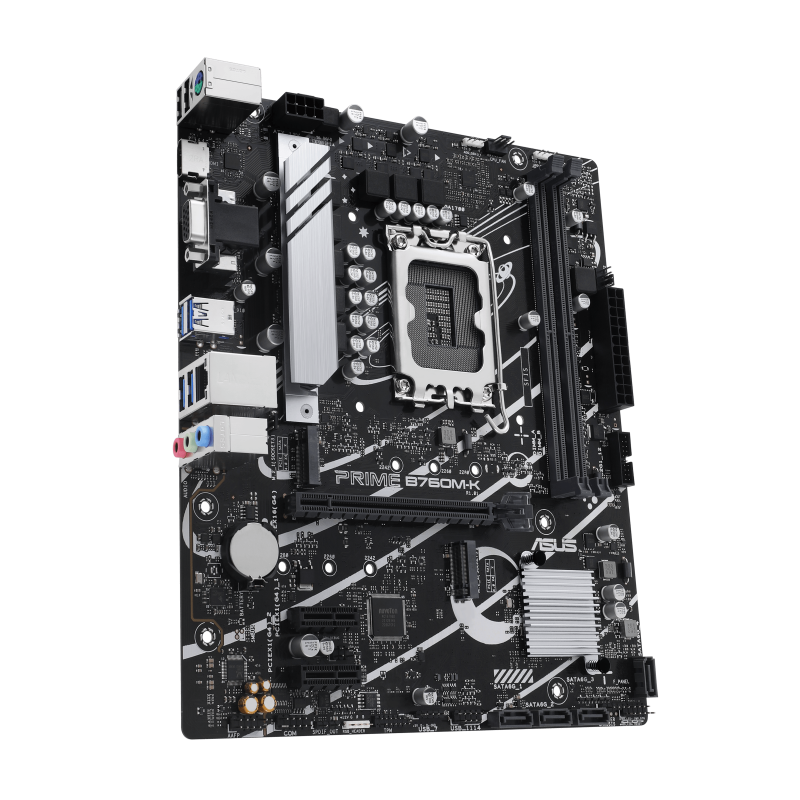

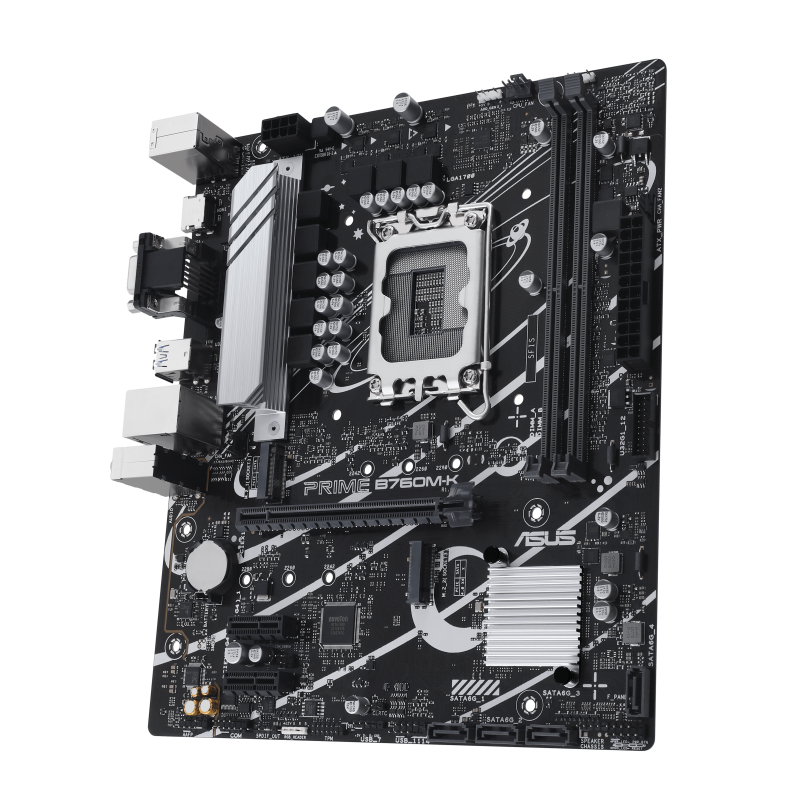

ASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Product Properties

Manufacturer
Asus

Model
PRIME B760M-K

EAN
4711387198506

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Bullet points

Point
Aura Sync RGB Lighting

Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors

Ultrafast connectivity

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 (Gen 4.x) slots
2

PCI Express x16 (Gen 4.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B760

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64, Windows 11

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
1

Number of COM connectors
1

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
96 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speed (max)
8000 MHz

Supported memory clock speeds
8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

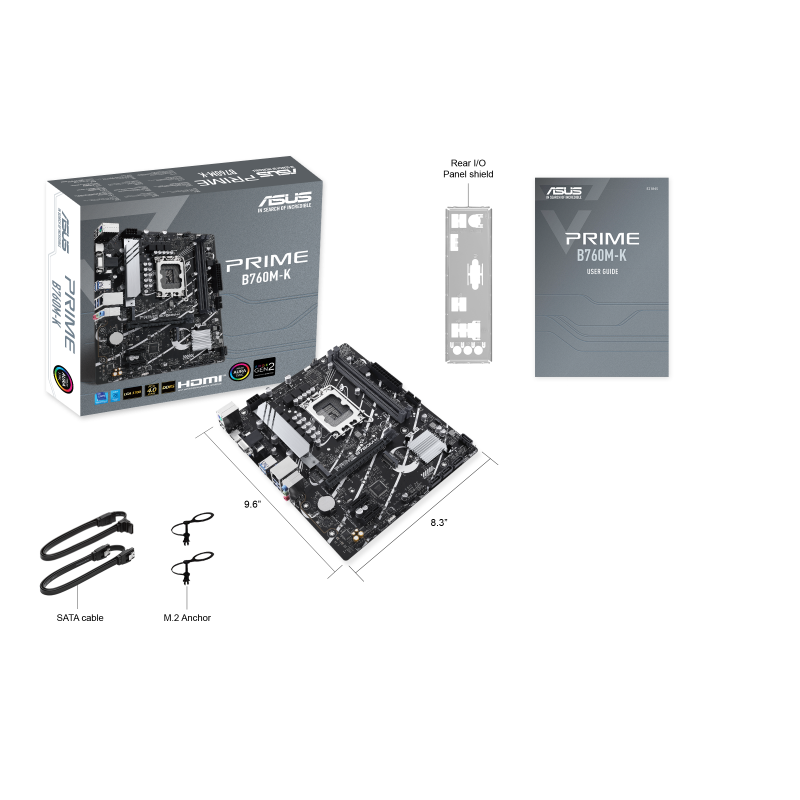

Packaging content

Cables included
SATA

Packaging data

Package depth
263 mm

Package height
51.5 mm

Package weight
1.01 kg

Package width
270 mm

Processor

Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

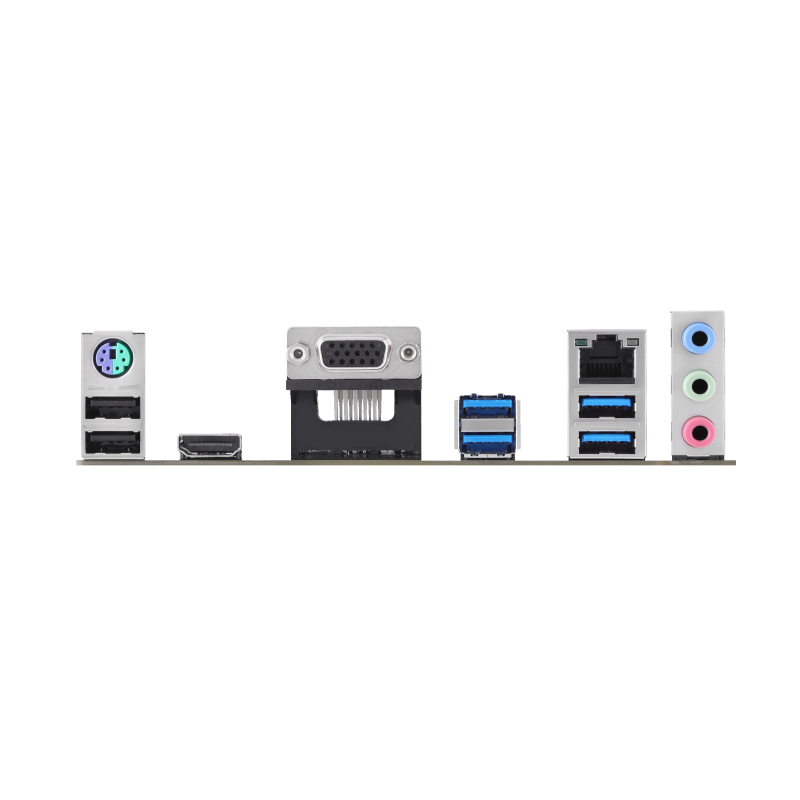

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

PS/2 ports quantity
1

S/PDIF out port
Yes

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

VGA (D-Sub) ports quantity
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
6

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
211 mm

Width
244 mm

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
