ASUS PRIME H610M-A D4 Intel H610 LGA 1700 micro ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME H610M-A D4 Intel H610 LGA 1700 micro ATX
ASUS PRIME H610M-A D4 Intel H610 LGA 1700 micro ATX
ASUS PRIME H610M-A D4 Intel H610 LGA 1700 micro ATX
ASUS PRIME H610M-A D4 Intel H610 LGA 1700 micro ATX
ASUS PRIME H610M-A D4 Intel H610 LGA 1700 micro ATX
Print
Model: PRIME H610M-A D4
EAN: 4711081514428

ASUS PRIME H610M-A D4 Intel H610 LGA 1700 micro ATX

Manufacturer:
Asus
ASUS PRIME H610M-A D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM
Please log in to see your price
Related products

Description

ASUS PRIME H610M-A D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
  • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
  • Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 2 ports
  • Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible cooling controls
Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Product Properties

  • Model
  • PRIME H610M-A D4
  • EAN
  • 4711081514428
  • BIOS
  • BIOS memory size
  • 128 Mbit
  • BIOS type
  • UEFI AMI
  • Bullet points
  • Point
  • Aura Sync RGB
    Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
    Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
    Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 2 ports
  • Expansion slots
  • Number of M.2 (M) slots
  • 2
  • PCI Express x1 (Gen 3.x) slots
  • 1
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel H610
  • Motherboard form factor
  • micro ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11 x64
  • Graphics
  • Number of displays supported
  • 3
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 2
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • Logistics data
  • Harmonized System (HS) code
  • 84733020
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 2
  • Supported memory clock speeds
  • 2133,2400,2666,2800,2933,3000,3200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No
  • Other features
  • Weight
  • 815 g
  • Packaging content
  • Cables included
  • SATA
  • Drivers included
  • Yes
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
  • Maximum number of SMP processors
  • 1
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700

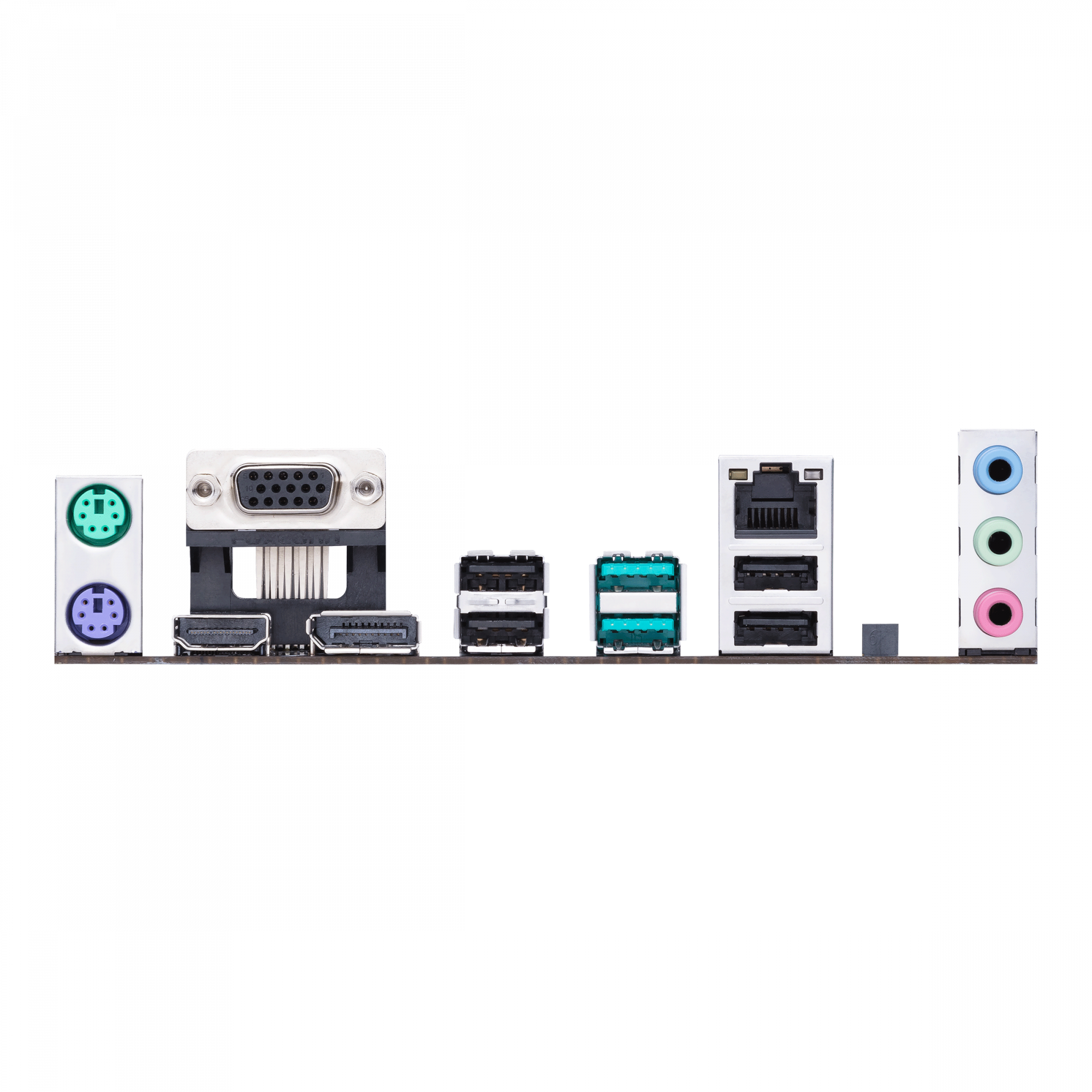

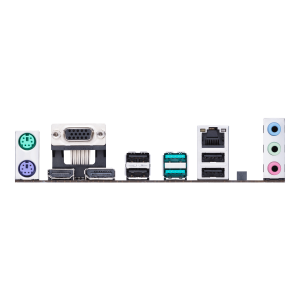

  • Rear panel I/O ports
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.1
  • Headphone outputs
  • 1
  • Microphone in
  • Yes
  • PS/2 ports quantity
  • 2
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • VGA (D-Sub) ports quantity
  • 1
  • Storage controllers
  • Supported storage drive interfaces
  • M.2, SATA
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 211 mm
  • Height
  • 51 mm
  • Width
  • 244 mm
