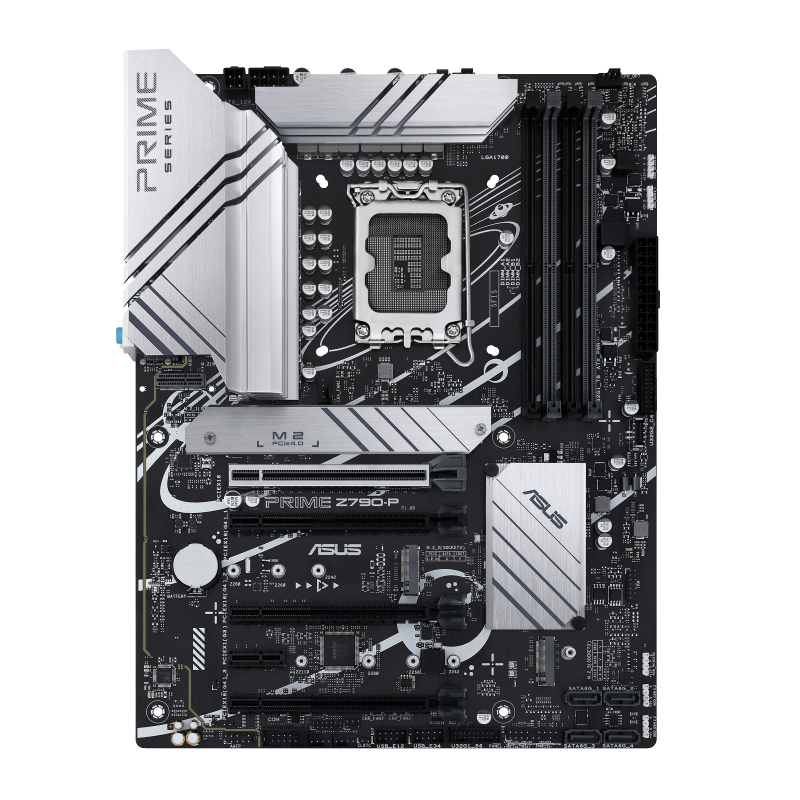

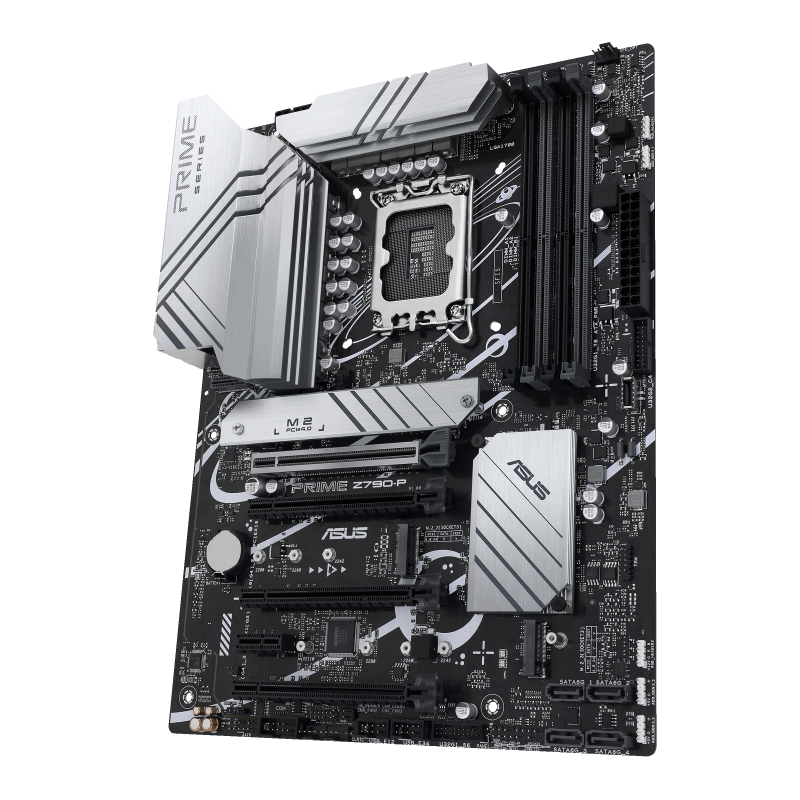

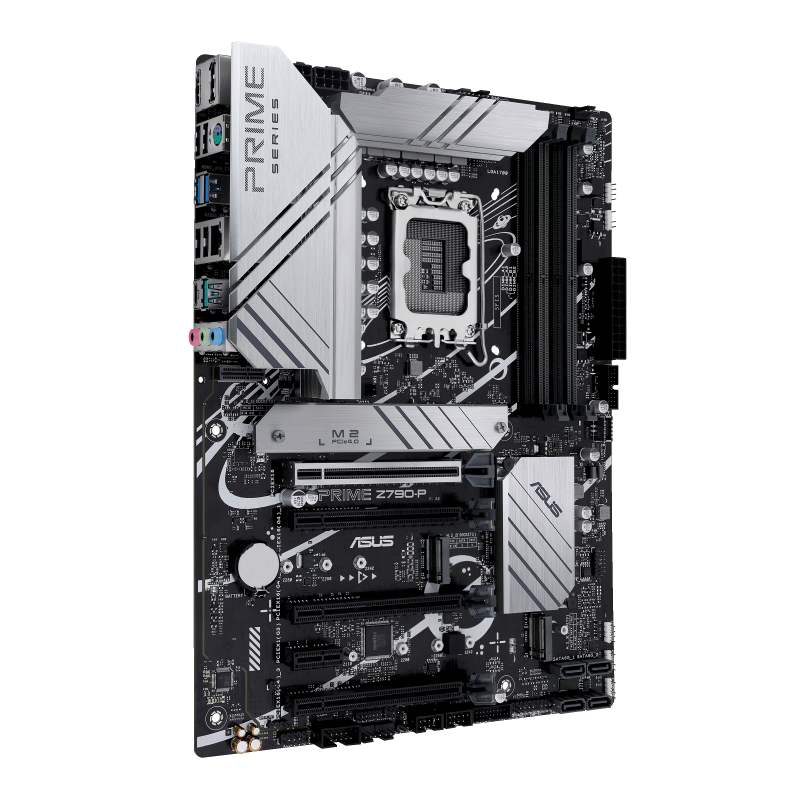

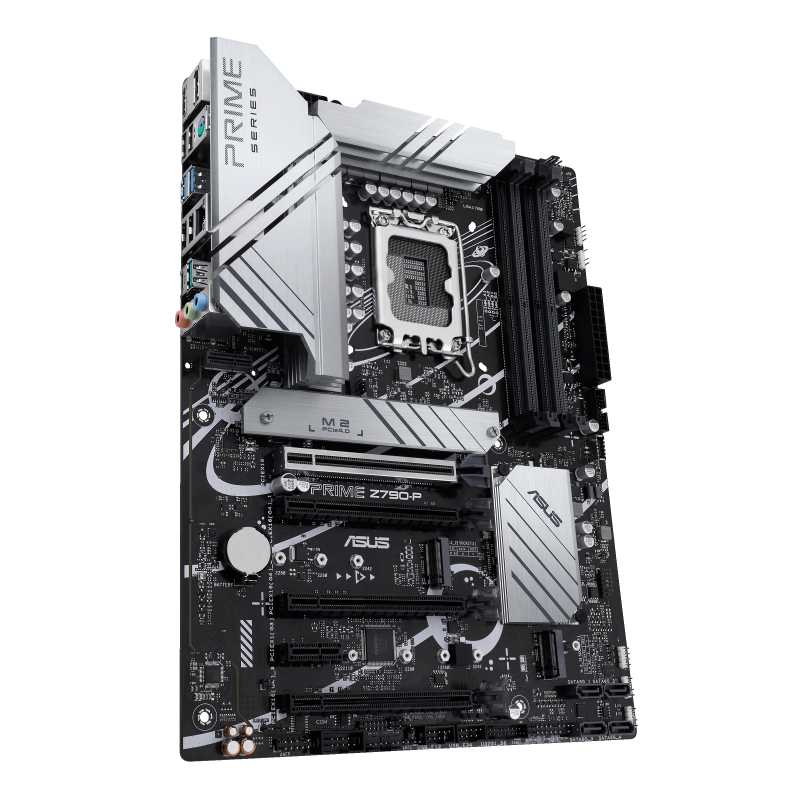

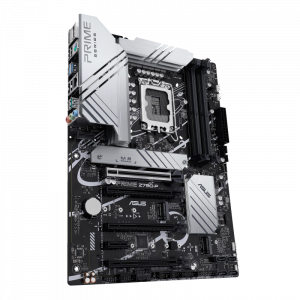

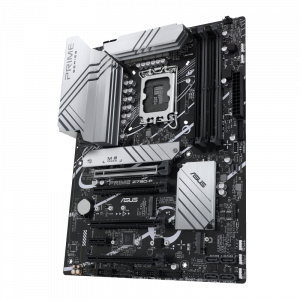

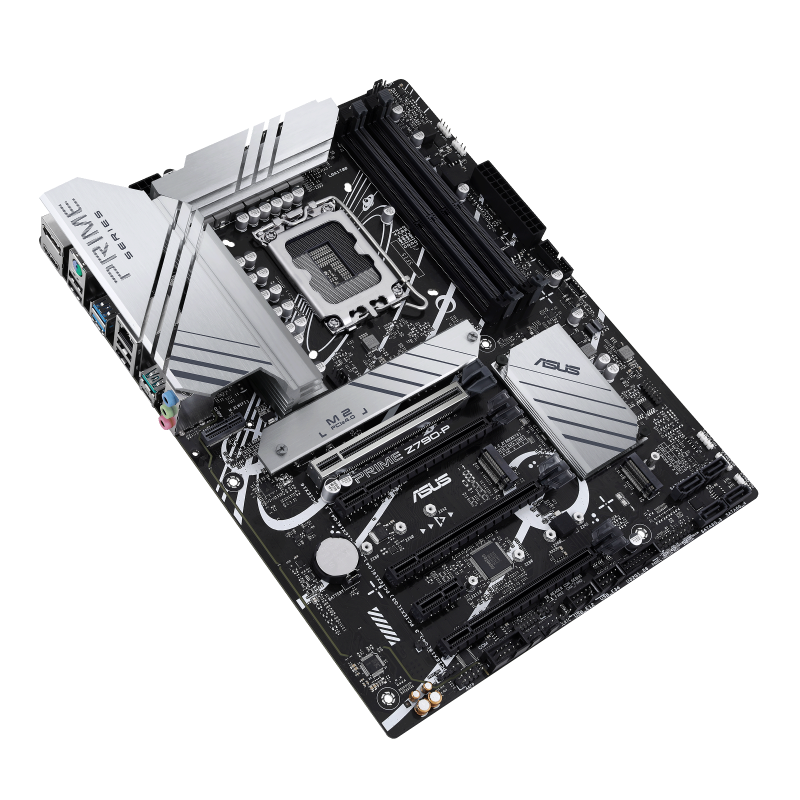

ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
Print
Model: PRIME Z790-P
EAN: 4711081937449

ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX

Manufacturer:
Asus
ASUS PRIME Z790-P, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
Please log in to see your price
Related products

Description

ASUS PRIME Z790-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Product Properties

  • Model
  • PRIME Z790-P
  • EAN
  • 4711081937449
  • BIOS
  • BIOS memory size
  • 192 Mbit
  • BIOS type
  • UEFI AMI
  • Clear CMOS button
  • Yes
  • Expansion slots
  • Number of M.2 (M) slots
  • 3
  • PCI Express x1 (Gen 3.x) slots
  • 1
  • PCI Express x16 (Gen 4.x) slots
  • 3
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel Z790
  • Motherboard form factor
  • ATX
  • Power source type
  • ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 3
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • Peripheral (Molex) power connectors (4-pin)
  • 1
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • Thunderbolt headers
  • 1
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speed (max)
  • 7200 MHz
  • Supported memory clock speeds
  • 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • Yes
  • Other features
  • Number of M.2 (E) slots
  • 1

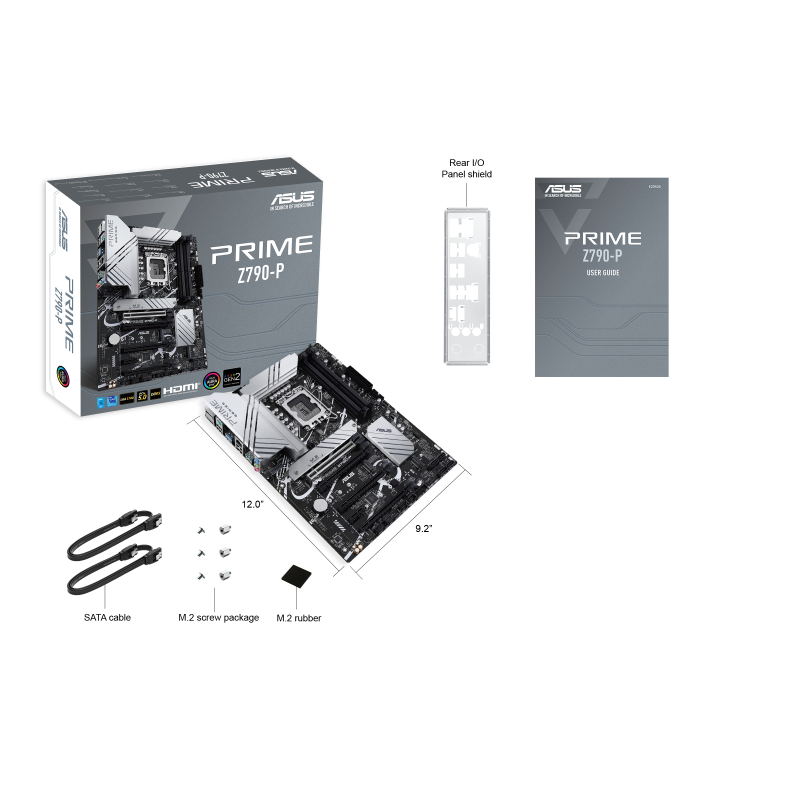

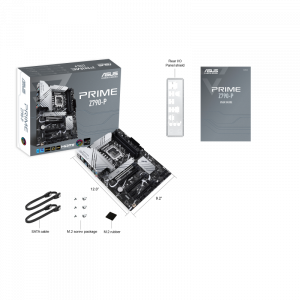

  • Packaging content
  • Cables included
  • SATA
  • Drivers included
  • Yes
  • Packaging data
  • Package depth
  • 273 mm
  • Package height
  • 68 mm
  • Package weight
  • 1.58 kg
  • Package width
  • 338 mm
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700
  • Supported processor sockets
  • LGA 1700

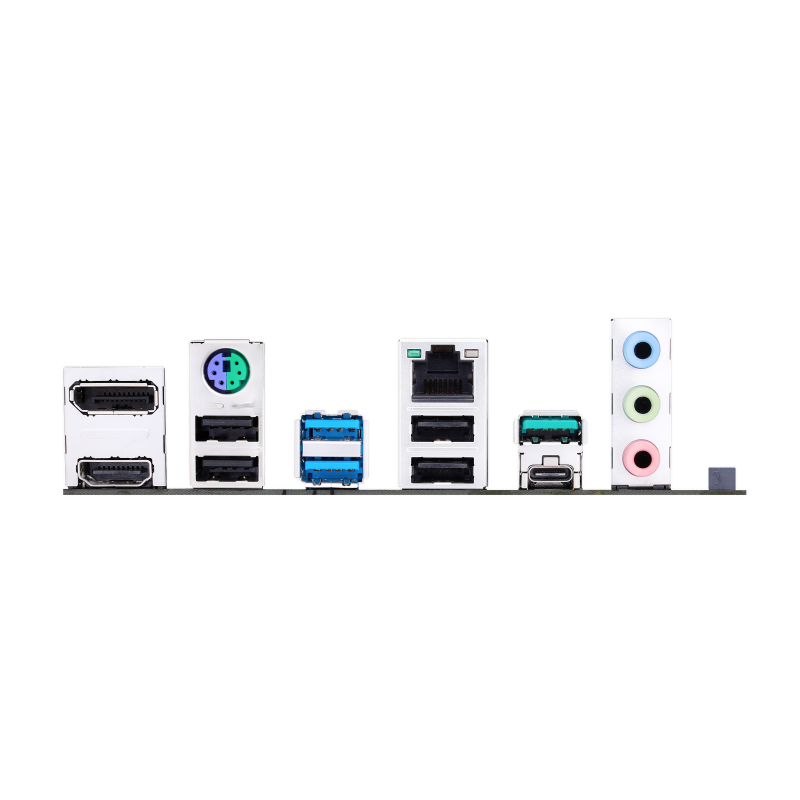

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • Microphone in
  • Yes
  • PS/2 ports quantity
  • 1
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • Storage controllers
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 234 mm
  • Width
  • 305 mm
