Description

ASUS ProArt X670E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Product Properties

Manufacturer
Asus

Model
PROART X670E-CREAT

EAN
4711081895893

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
4

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
2

Features

Audio chip
Realtek S1220A

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD X670

Motherboard form factor
ATX

Product colour
Black

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

On-board graphics card
No

Internal I/O

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
5

Number of COM connectors
1

Number of SATA connectors
0

Number of SATA II connectors
0

Number of SATA III connectors
4

USB 2.0 connectors
3

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

ECC сompatibility
ECC & Non-ECC

Memory Slot Support
128 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Other features

mSATA ports quantity
0

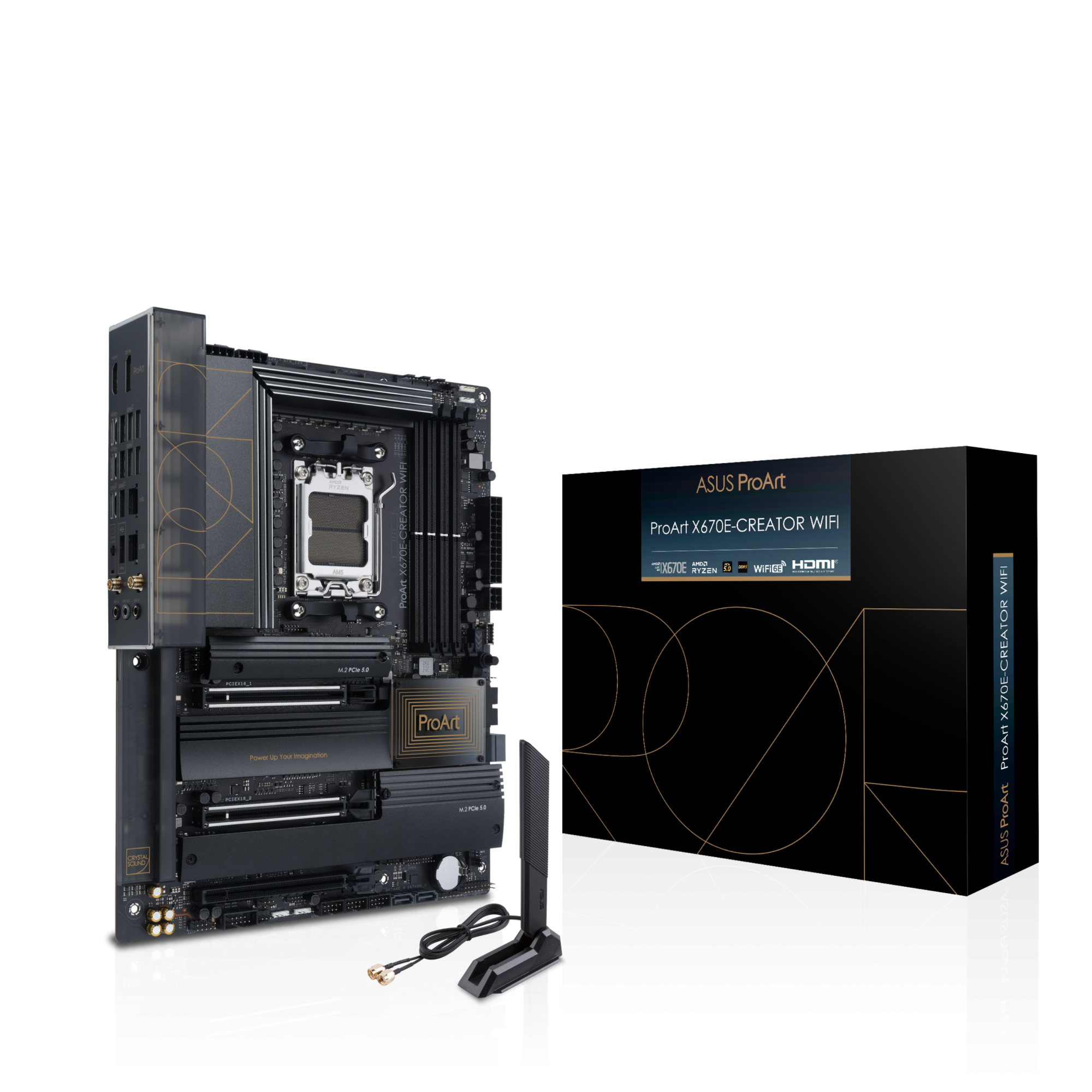

Packaging data

Package depth
77 mm

Package height
271 mm

Package width
343 mm

Processor

Processor manufacturer
AMD

Processor socket
Socket AM5

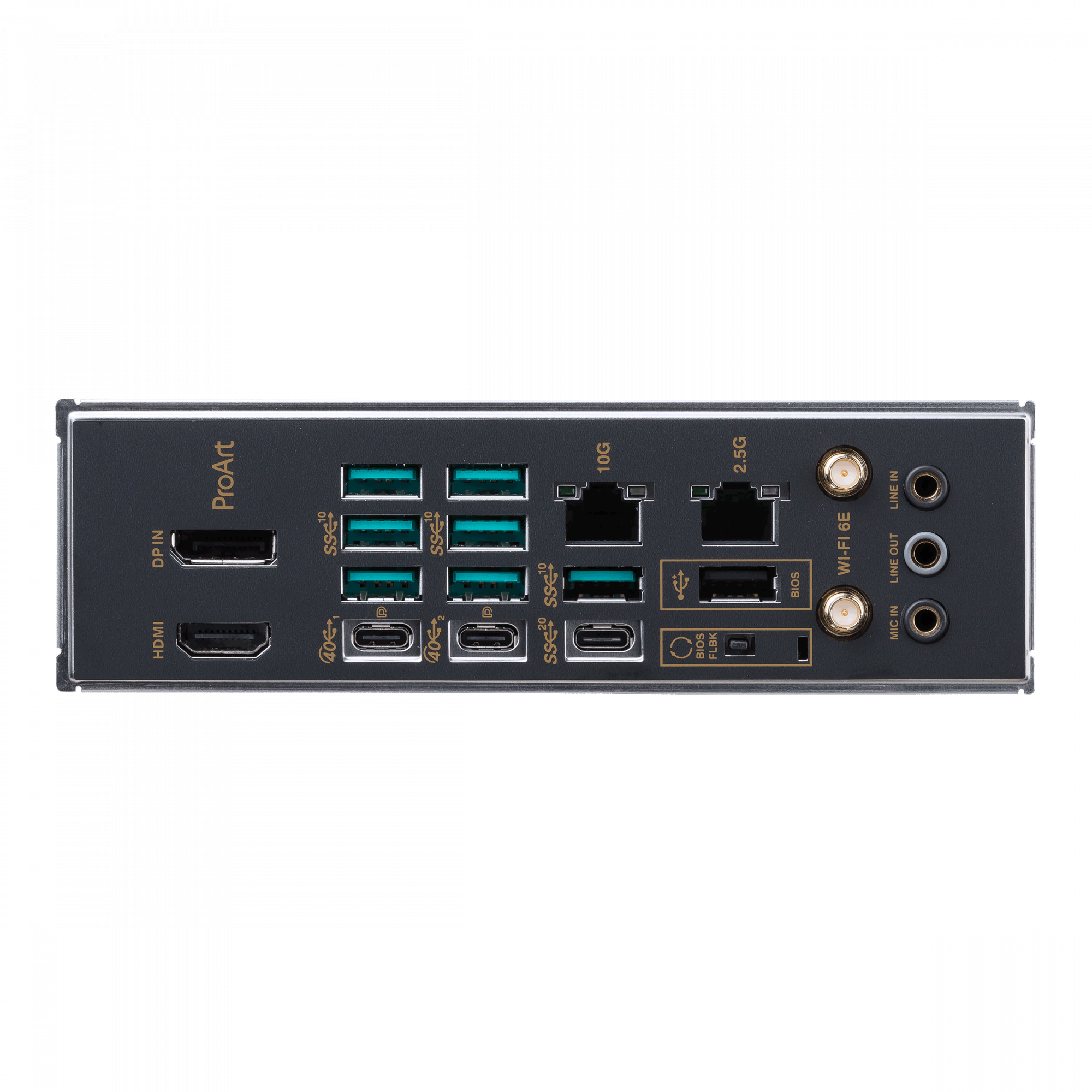

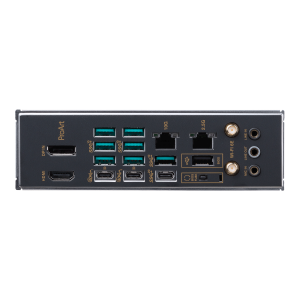

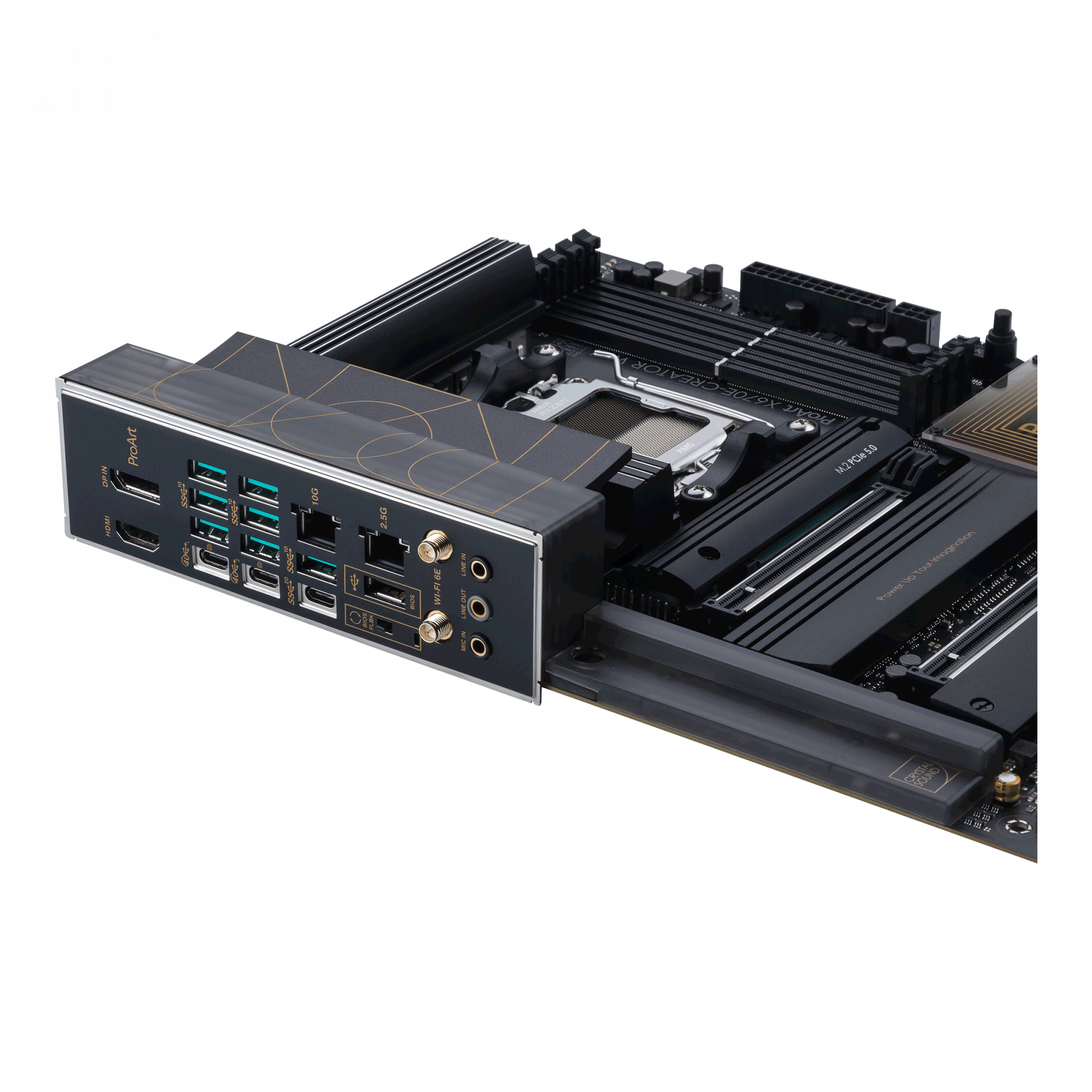

Rear panel I/O ports

DisplayPorts quantity
1

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
2

HDMI ports quantity
1

Line-in
Yes

Microphone in
Yes

USB 2.0 ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7

USB 3.2 Gen 2x2 Type-C ports quantity
1

USB4 Gen 3x2 ports quantity
2

VGA (D-Sub) ports quantity
0

Storage controllers

Number of storage drives supported
8

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

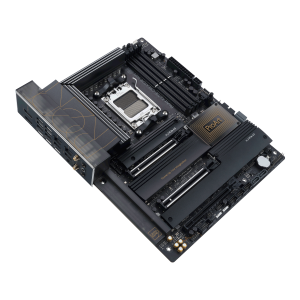

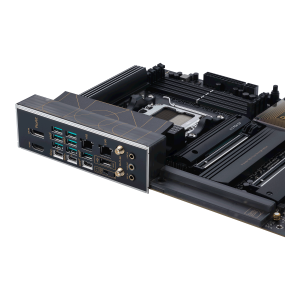

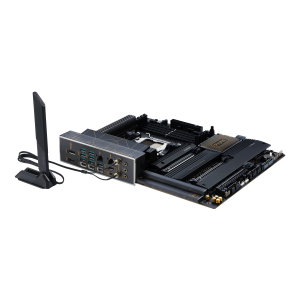

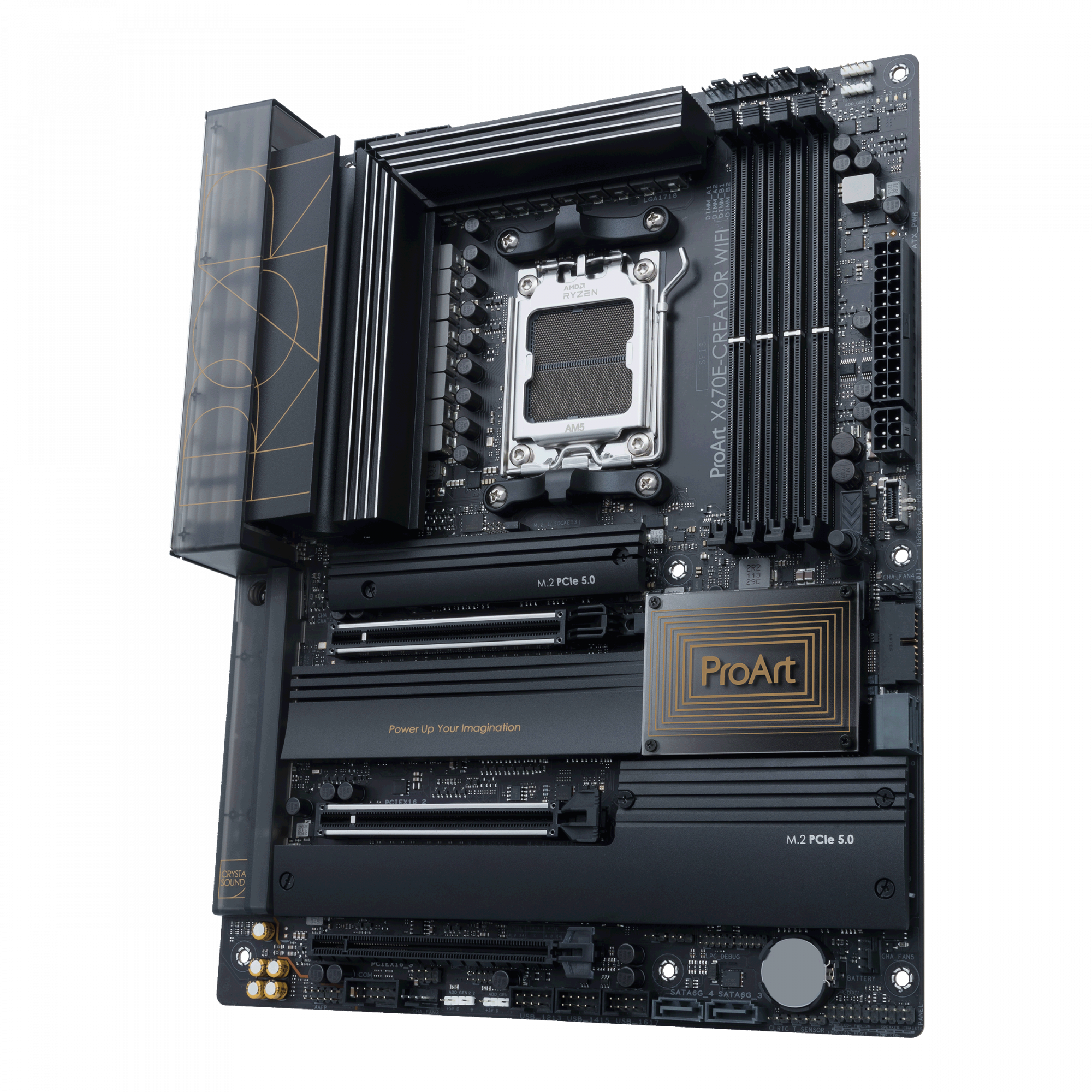

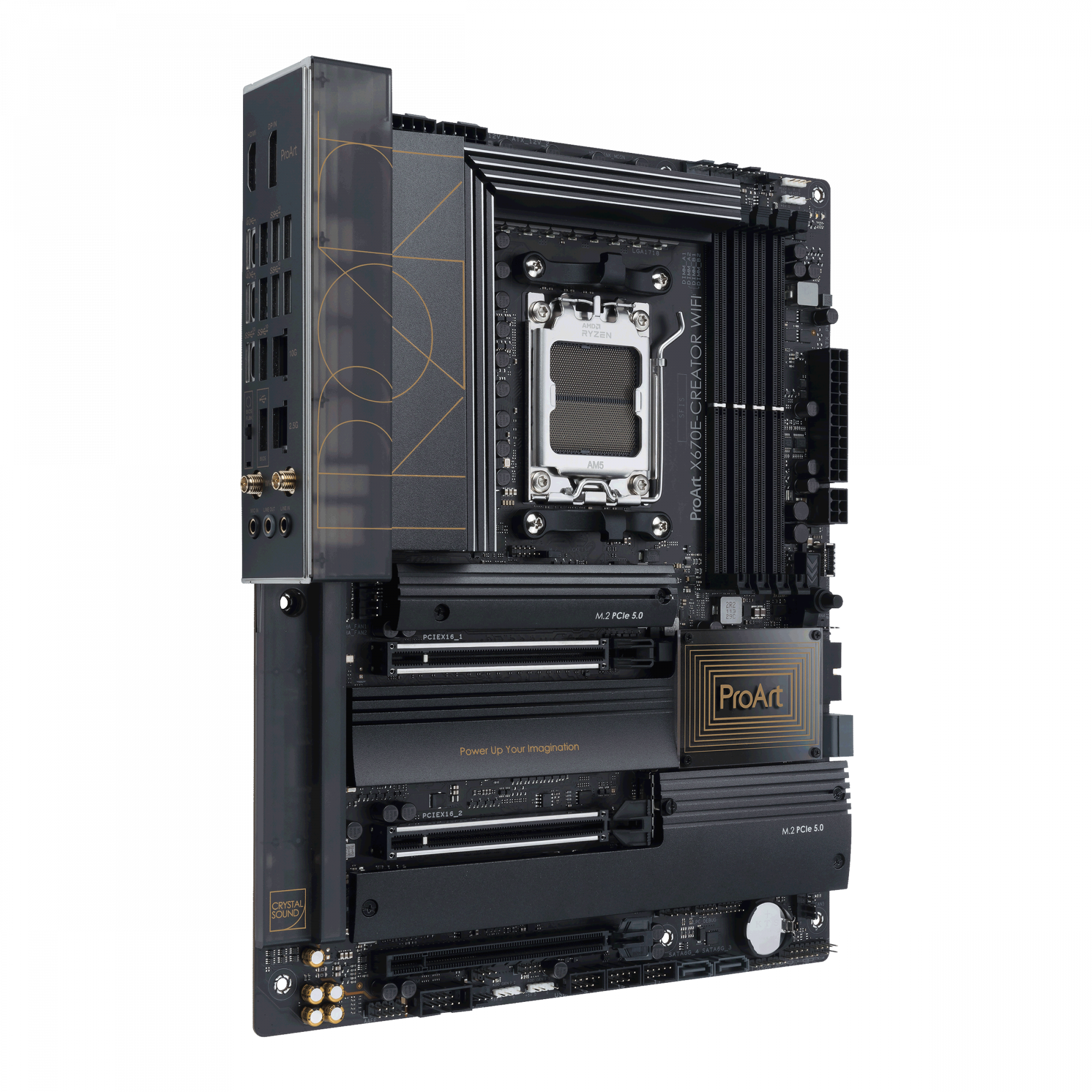

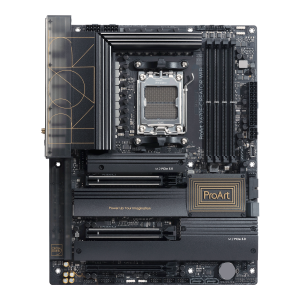

ASUS ProArt X670E-CREATOR WIFI AMD X670 Socket AM5 ATX
