Description

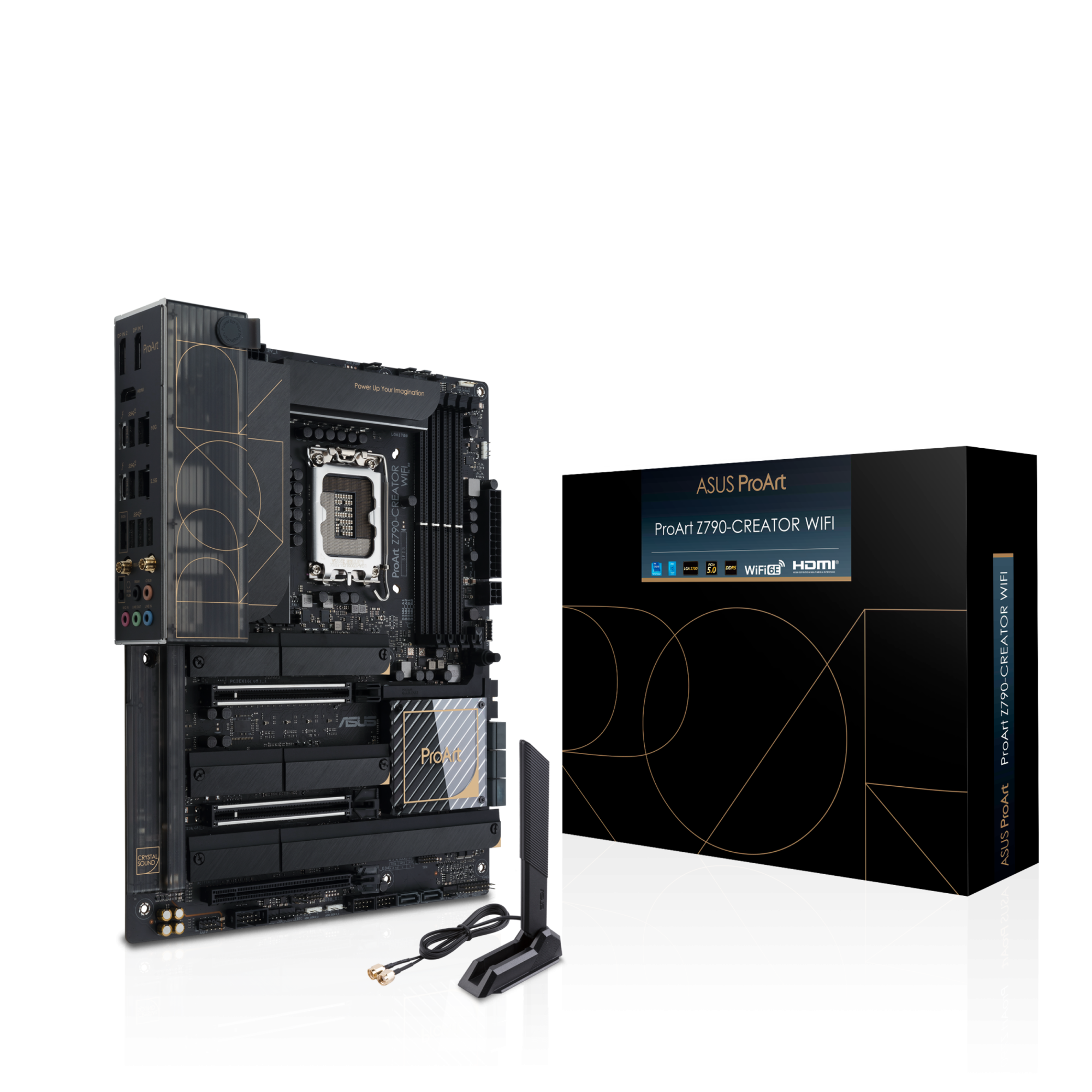

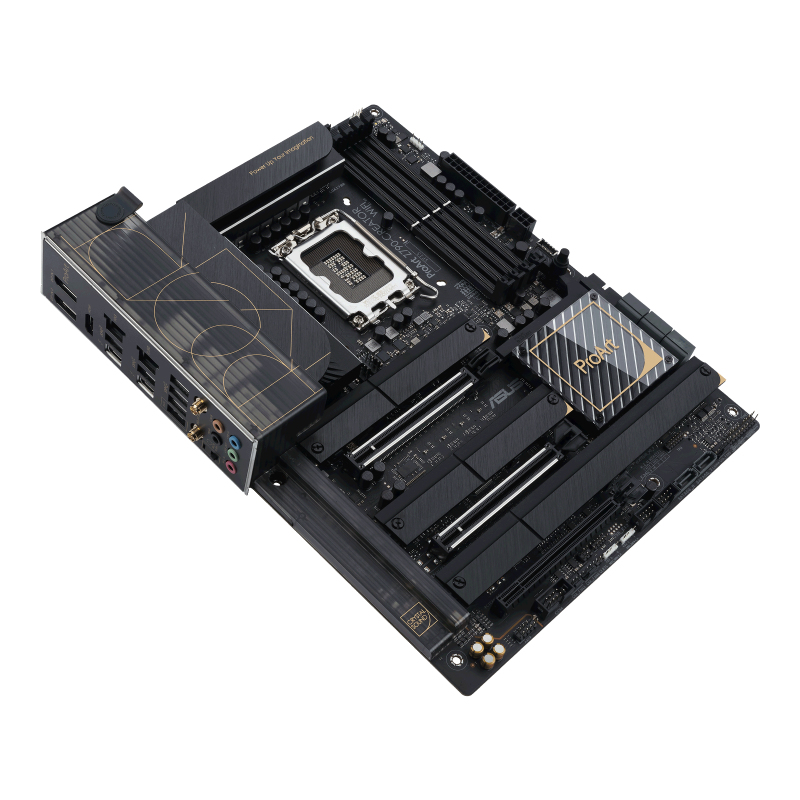

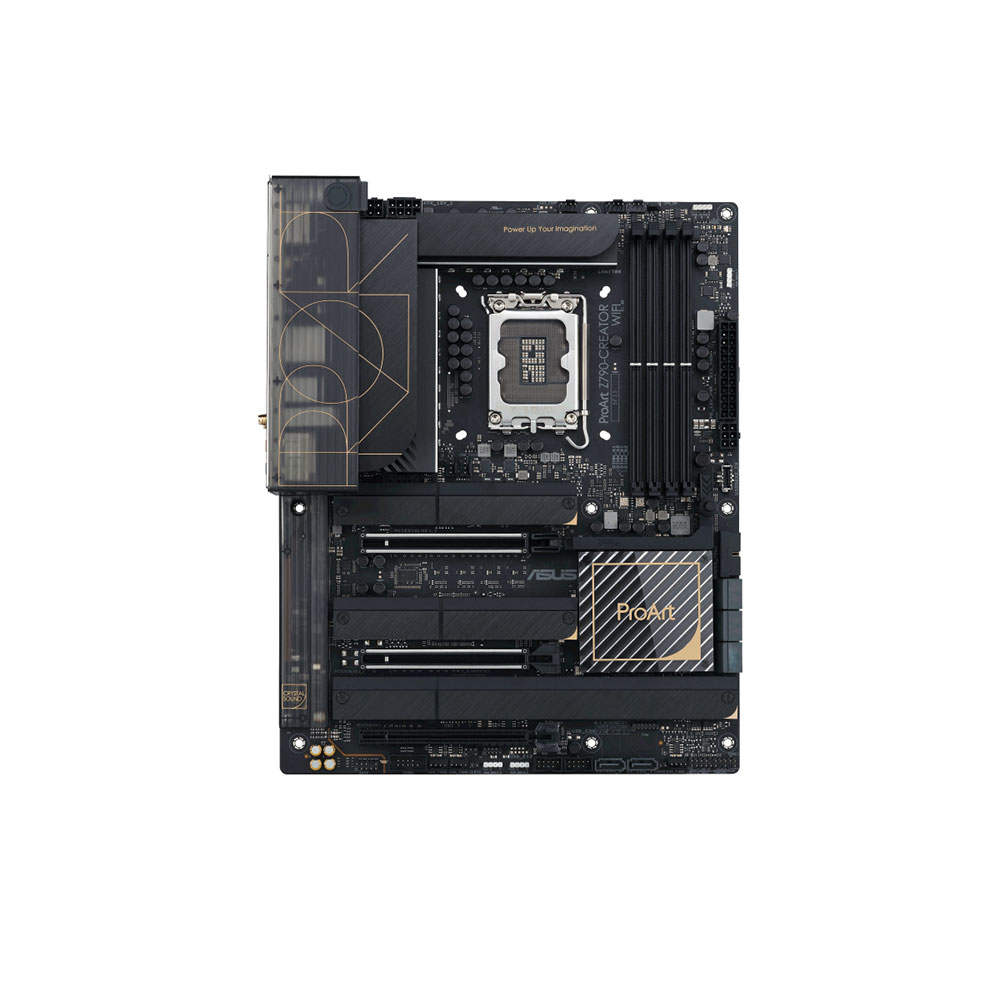

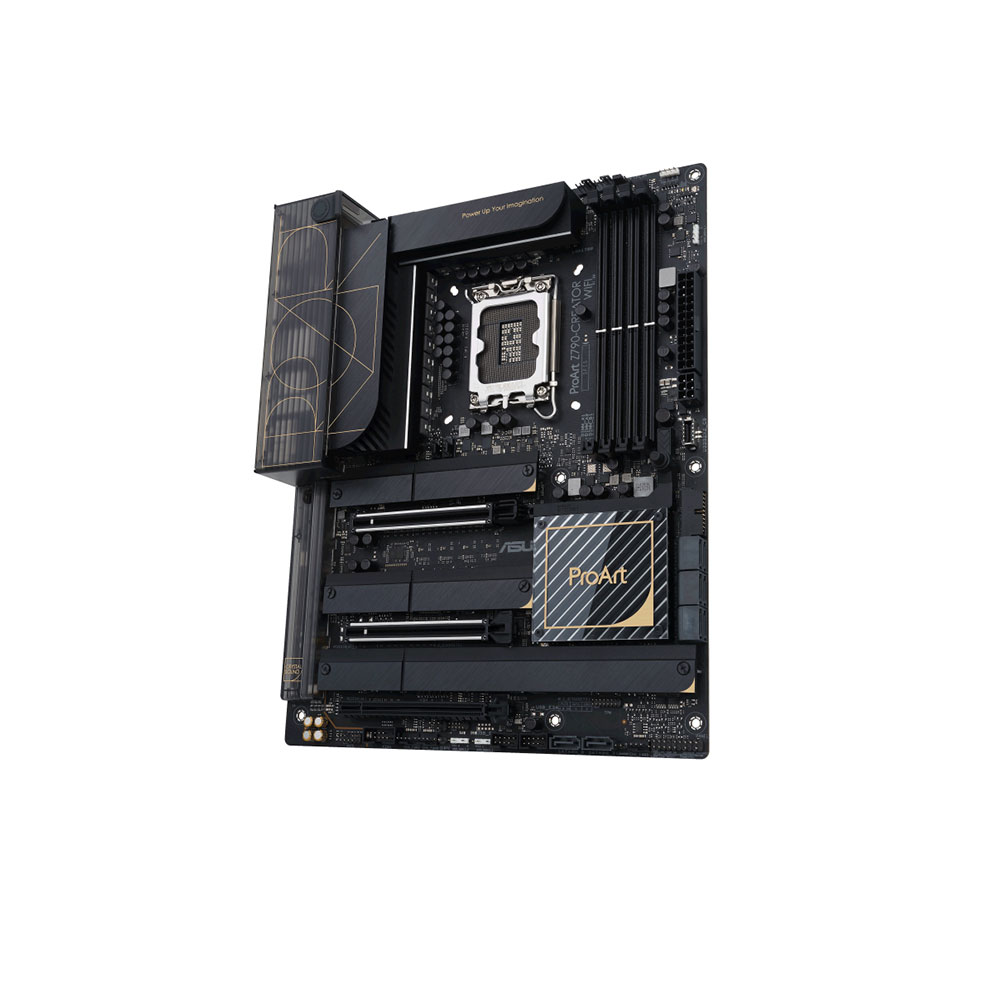

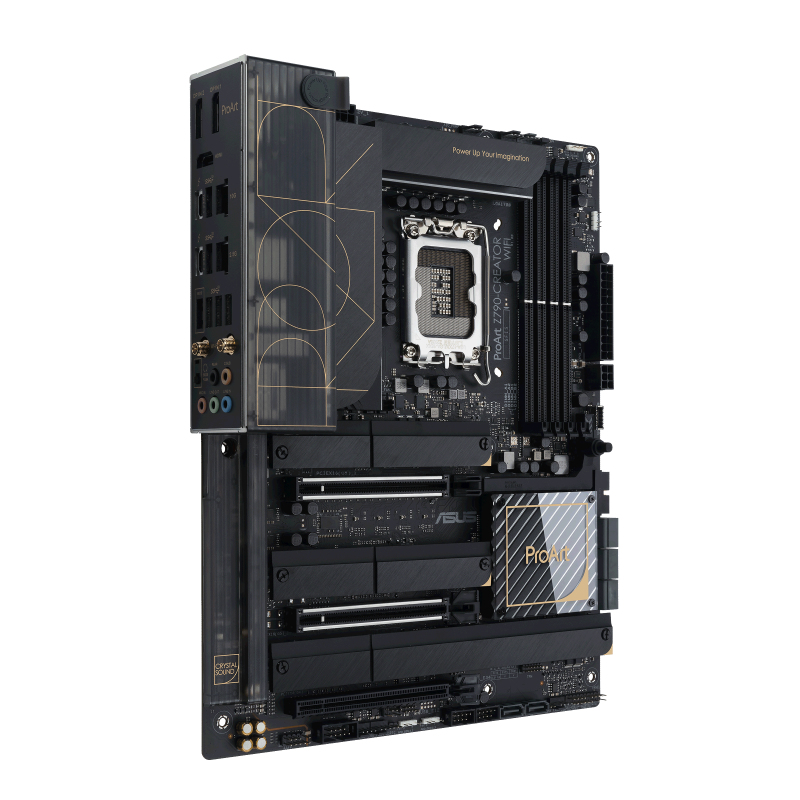

ASUS PROART Z790-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Product Properties

Manufacturer
Asus

Model
PROART Z790-CREATO

EAN
4711081988984

BIOS

BIOS memory size
256 Mbit

Expansion slots

Number of M.2 (M) slots
4

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
2

Features

Audio chip
Realtek S1220A

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Cooling type
Passive

Motherboard chipset
Intel Z790

Motherboard form factor
ATX

Power source type
ATX

Product colour
Black

Windows operating systems supported
Windows 10, Windows 11

Graphics

On-board graphics card
No

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
5

Number of COM connectors
1

Number of SATA connectors
0

Number of SATA II connectors
0

Number of SATA III connectors
8

Peripheral (Molex) power connectors (4-pin)
1

RGB
Yes

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

ECC сompatibility
Non-ECC

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speed (max)
7200 MHz

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Other features

Back-to-BIOS button
Yes

mSATA ports quantity
0

Number of M.2 (E) slots
1

Packaging data

Package depth
266 mm

Package height
76 mm

Package weight
2.43 kg

Package width
331 mm

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Maximum number of SMP processors
1

Processor manufacturer
AMD

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
2

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
2

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

Thunderbolt ports quantity
2

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

VGA (D-Sub) ports quantity
0

WiFi-AP antenna jack
2

Storage controllers

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

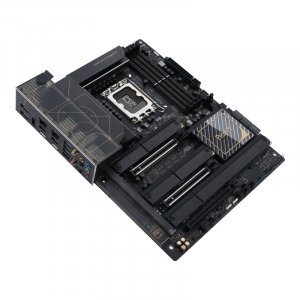

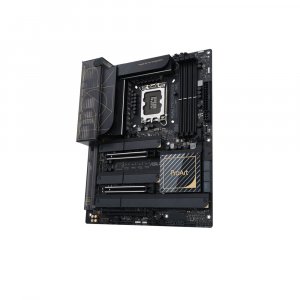

ASUS PROART Z790-CREATOR WIFI Intel Z790 LGA 1700 ATX
