Description

ASUS ROG -STRIX-RTX4070TI-O12G-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Blue, Green, Red

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
OC mode: 2790 MHz (OC mode)/ 2760 MHz (Default mode)

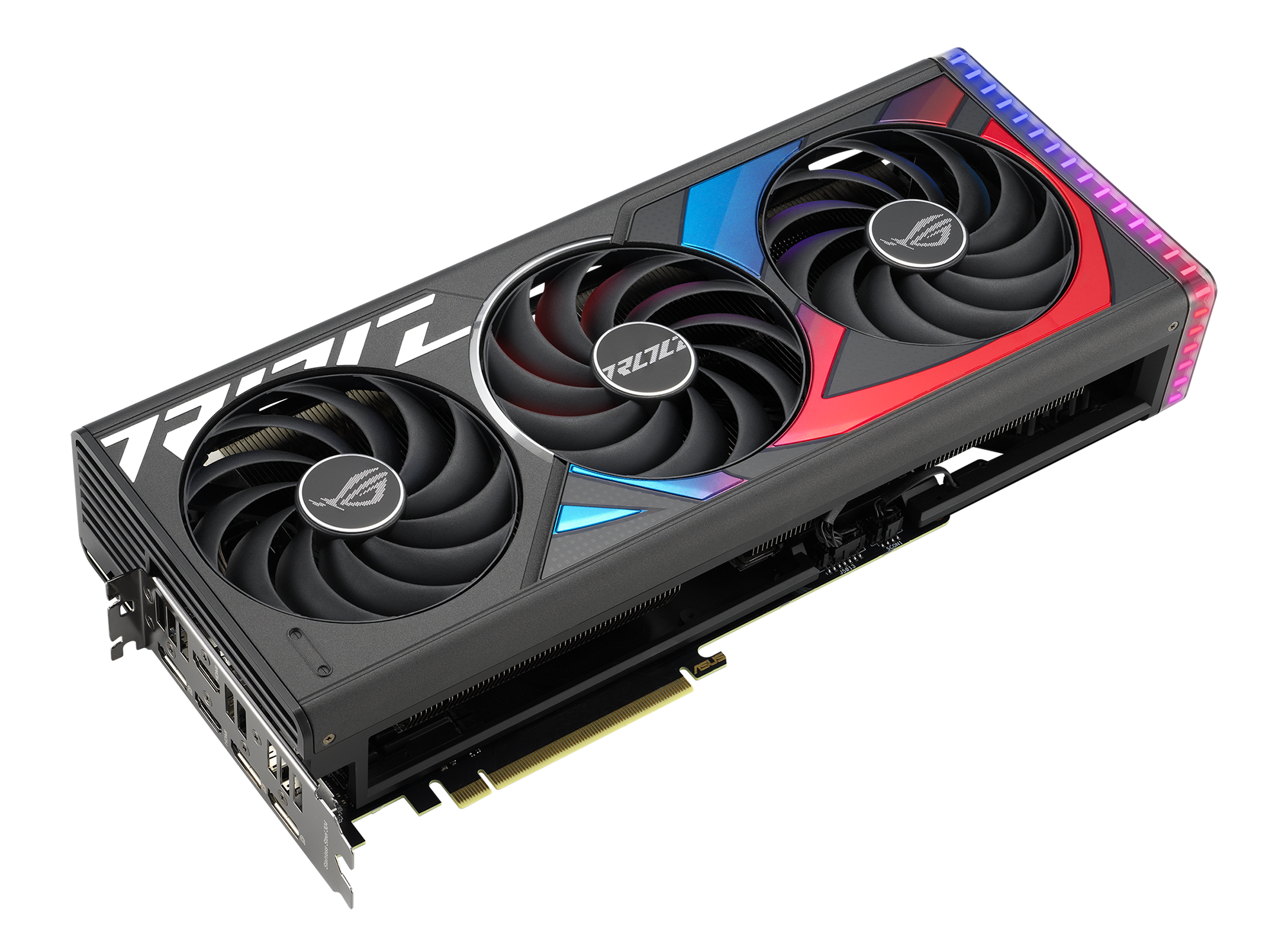

Axial-tech fans scaled up for 31% more airflow
3.15-slot design: massive fin array optimized for airflow from the three Axial-tech fans

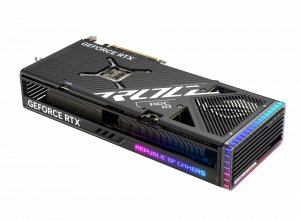

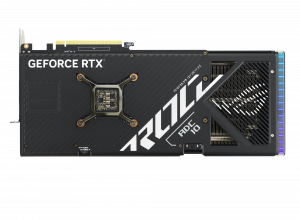

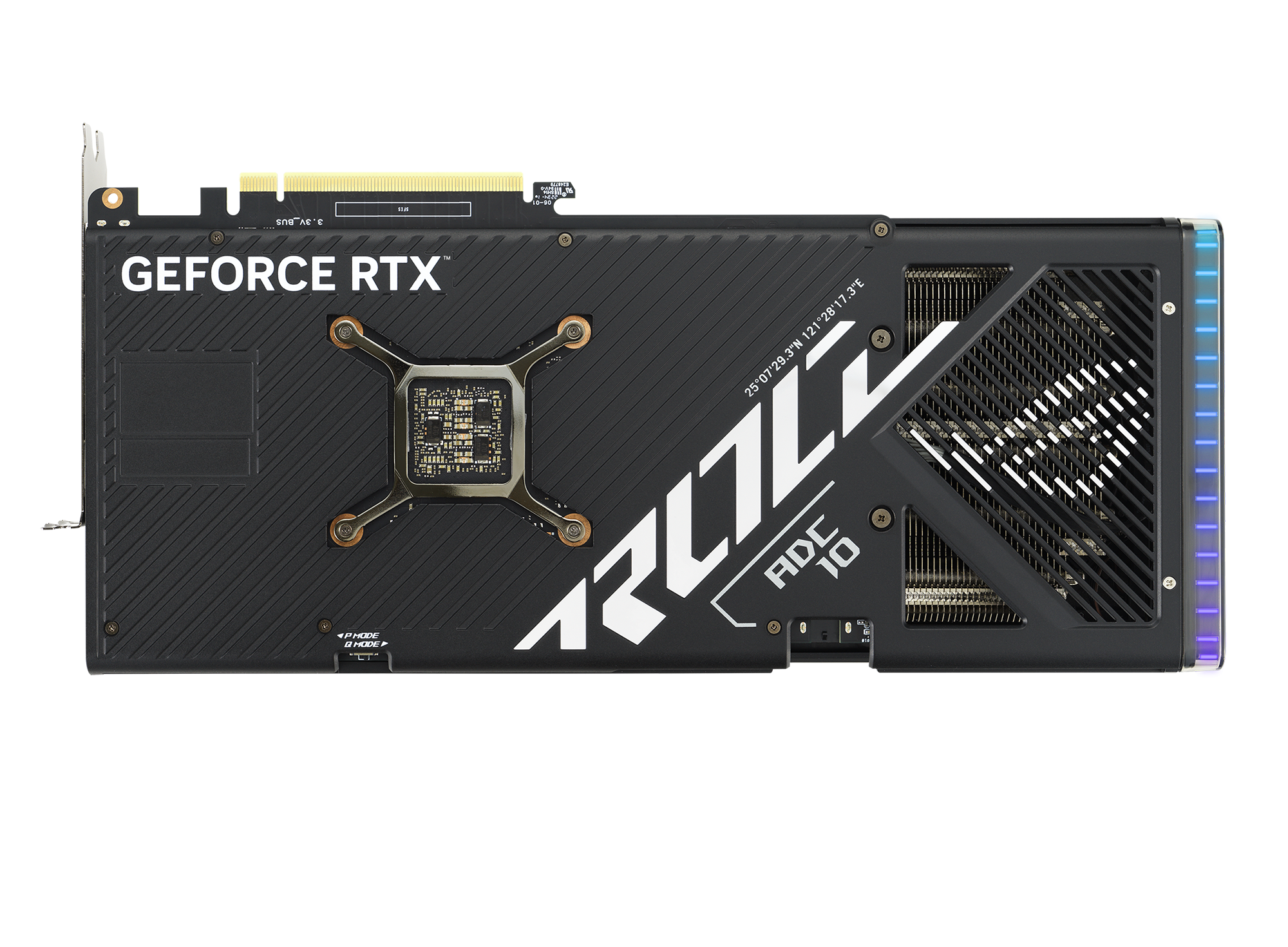

Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Product Properties

Manufacturer
Asus

Model
STRIX-RTX4070TI-O1

EAN
4711081958895

Bullet points

Point
3.15-slot design: massive fin array optimized for airflow from the three Axial-tech fans

3rd Generation RT Cores: Up to 2x ray tracing performance

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

Auto-Extreme precision automated manufacturing for higher reliability

Axial-tech fans scaled up for 31% more airflow

Digital power control with high-current power stages and 15K capacitors to fuel maximum performance

OC mode: 2790 MHz (OC mode)/ 2760 MHz (Default mode)

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Yes

Illumination colour
Blue, Green, Red

Number of fans
3 fan(s)

Number of slots
3.15

Product colour
Grey

Memory

Data transfer rate
21 Gbit/s

Discrete graphics card memory
12 GB

Graphics card memory type
GDDR6X

Memory bus
192 bit

Packaging data

Package depth
226 mm

Package height
87 mm

Package type
Box

Package weight
2.59 kg

Package width
420 mm

Performance

AMD FreeSync
No

DirectX version
12 Ultimate

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

NVIDIA G-SYNC
Yes

OpenGL version
4.6

TV tuner integrated
No

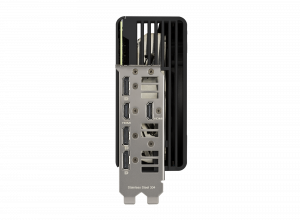

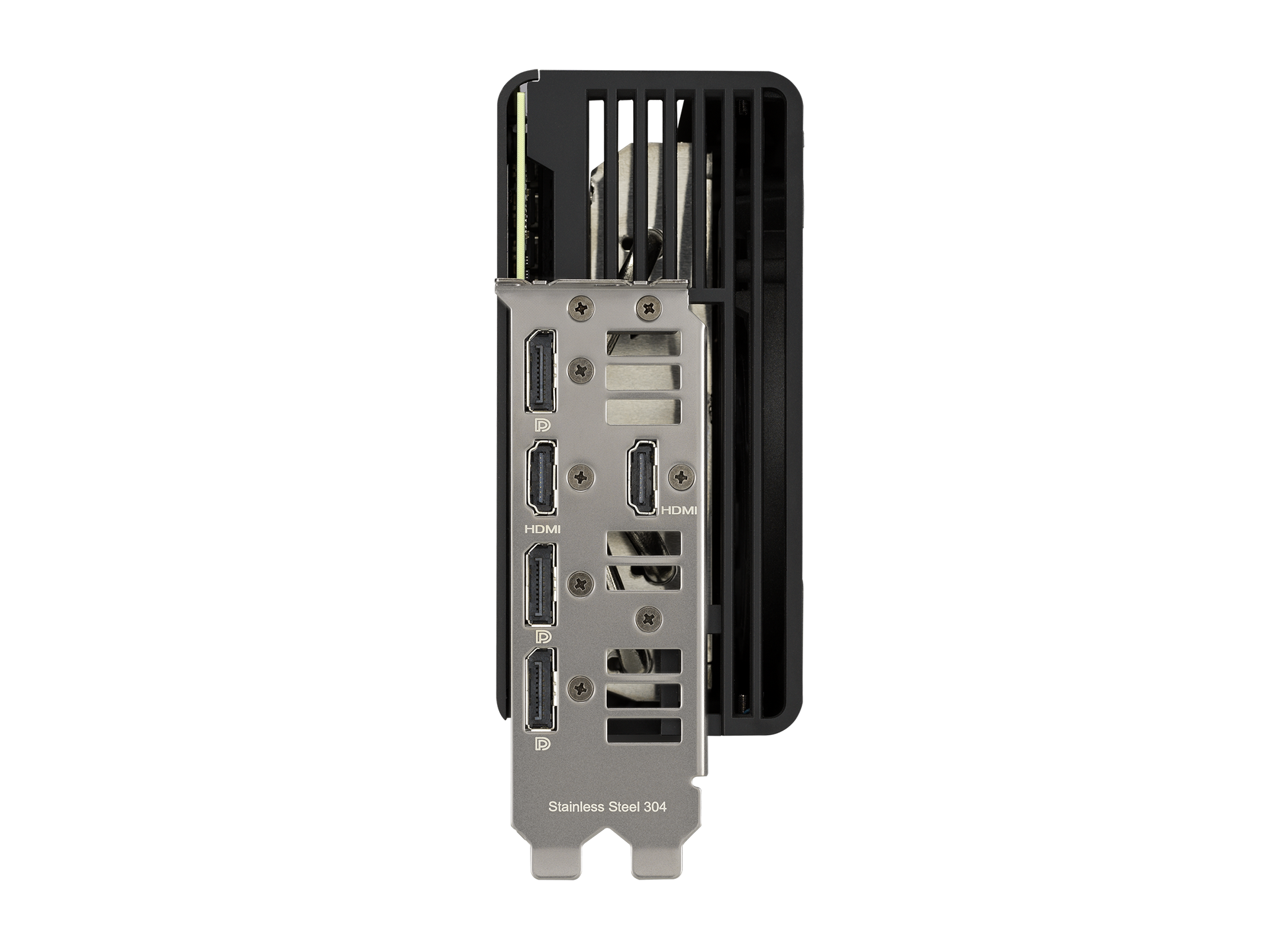

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

DVI-D ports quantity
0

DVI-I ports quantity
0

HDMI ports
2

HDMI version
2.1a

Interface type
PCI Express 4.0

Mini DisplayPorts quantity
0

Mini HDMI ports quantity
0

Thunderbolt 3 ports quantity
0

Power

Minimum system power supply
750 W

Supplementary power connectors
1x 16-pin

Processor

CUDA
Yes

CUDA cores
7680

Graphics processor
GeForce RTX 4070 Ti

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
2760 MHz

Processor frequency (OC mode)
2790 MHz

Weight & dimensions

Depth
63 mm

Height
150 mm

Length
336 mm

Weight
1.8 kg

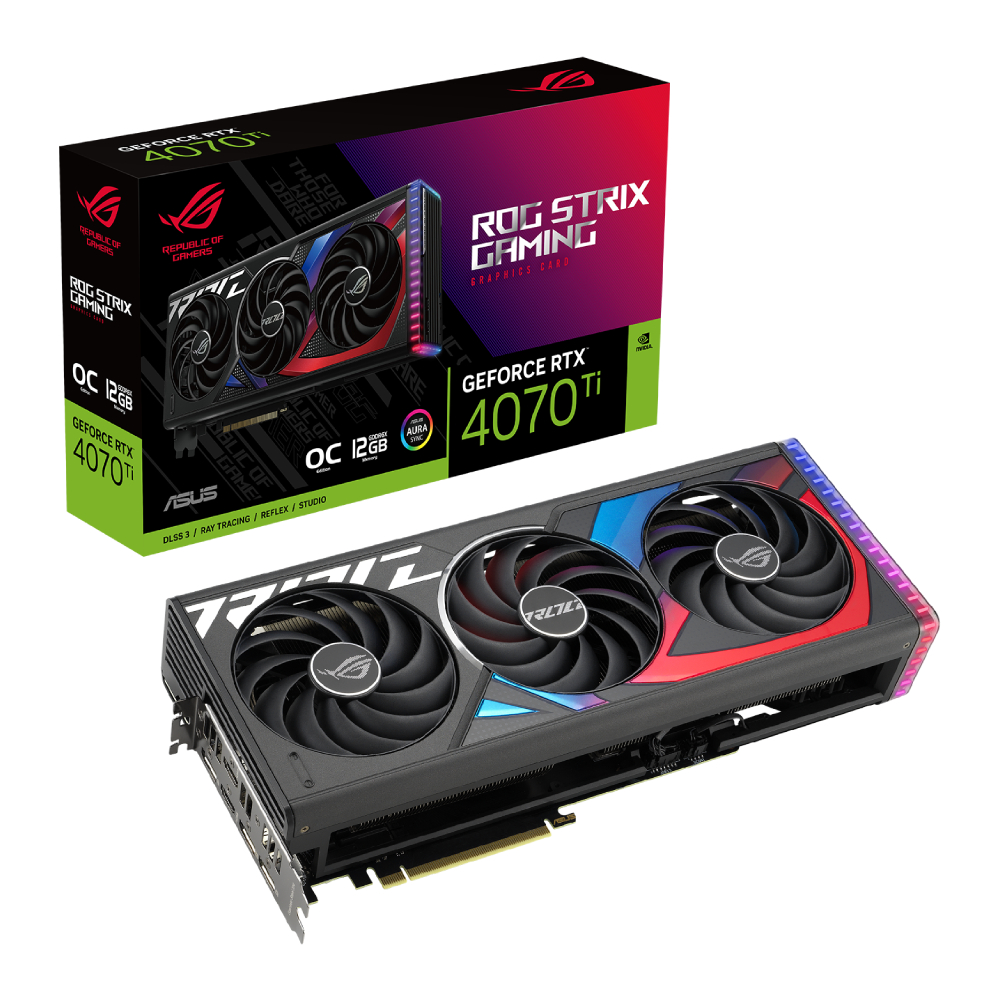

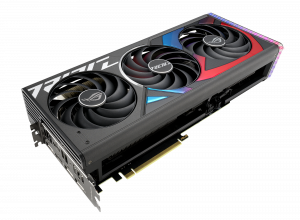

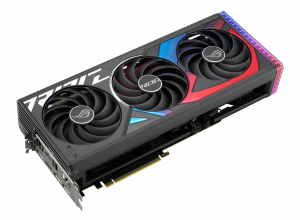

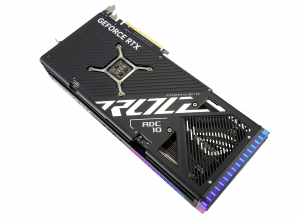

ASUS ROG -STRIX-RTX4070TI-O12G-GAMING NVIDIA GeForce RTX 4070 Ti 12 GB GDDR6X
