Description

ASUS TUF GAMING B550-PLUS WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
AI noise-canceling microphone: provides crystal-clear in-game voice communication

Product Properties

Manufacturer
Asus

Model
TUF GAM B550-PLUS

EAN
4711081338413

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Bullet points

Point
AI noise-canceling microphone: provides crystal-clear in-game voice communication

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Comprehensive cooling

Enhanced power solution

Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard

Next-gen connectivity

Expansion slots

Mini PCI Express (Gen 1.x) slots
0

Mini PCI Express (Gen 2.x) slots
0

Mini PCI Express slot (full length)
0

Mini PCI Express slot (half-length)
0

Mini PCI Express slots
0

Number of M.2 (M) slots
2

PCI Express OCuLink connectors (NVMe support)
0

PCI Express x1 (Gen 2.x) slots
0

PCI Express x1 (Gen 3.x) slots
3

PCI Express x1 (Gen 4.x) slots
0

PCI Express x1 slots
0

PCI Express x16 (Gen 2.x) slots
0

PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
0

PCI Express x16 (Gen 3.x) slots
1

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
0

PCI Express x16 slots
0

PCI Express x4 (Gen 1.x) slots
0

PCI Express x4 (Gen 2.x) slots
0

PCI Express x4 (Gen 4.x) slots
0

PCI Express x4 slots
0

PCI Express x8 (Gen 1.x) slots
0

PCI Express x8 slots
0

PCI slots
0

PCI-X slots
0

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD B550

Motherboard form factor
ATX

Product colour
Black

Windows operating systems supported
Windows 10, Windows 11

Graphics

Number of displays supported
2

On-board graphics card
No

Parallel processing technology support
Not supported

Internal I/O

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
3

Number of COM connectors
1

Number of SATA connectors
0

Number of SATA II connectors
0

Number of SATA III connectors
6

RGB
Yes

Thunderbolt headers
1

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0

USB 3.2 Gen 2x2 connectors
0

Logistics data

Harmonized System (HS) code
84733020

Memory

ECC сompatibility
ECC

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

mSATA ports quantity
0

Packaging content
2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide

Weight
945 g

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
AMD Ryzen 3000 Series

Processor manufacturer
AMD

Processor socket
Socket AM4

Supported processor sockets
Socket AM4

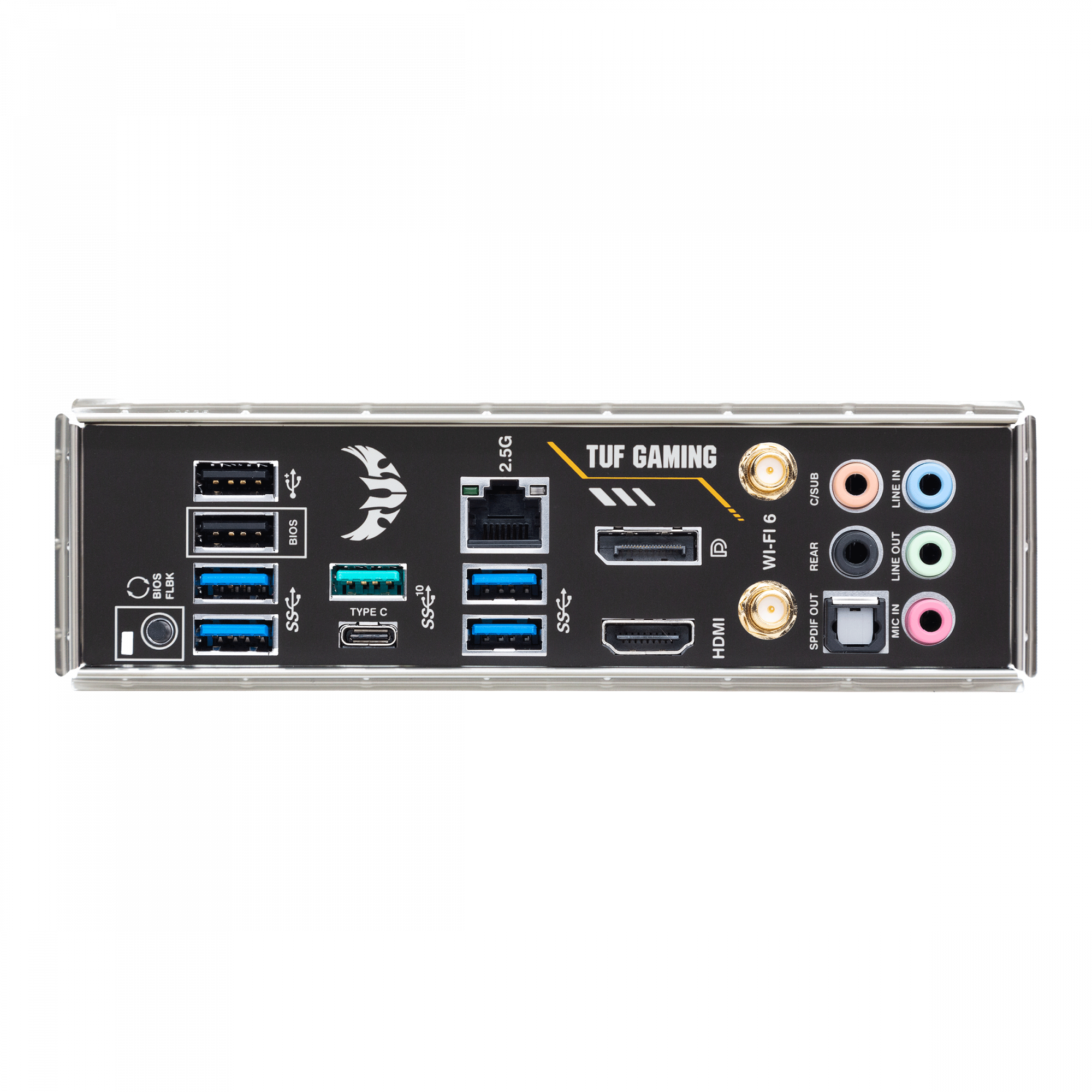

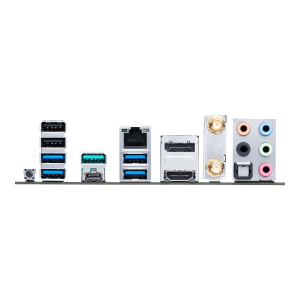

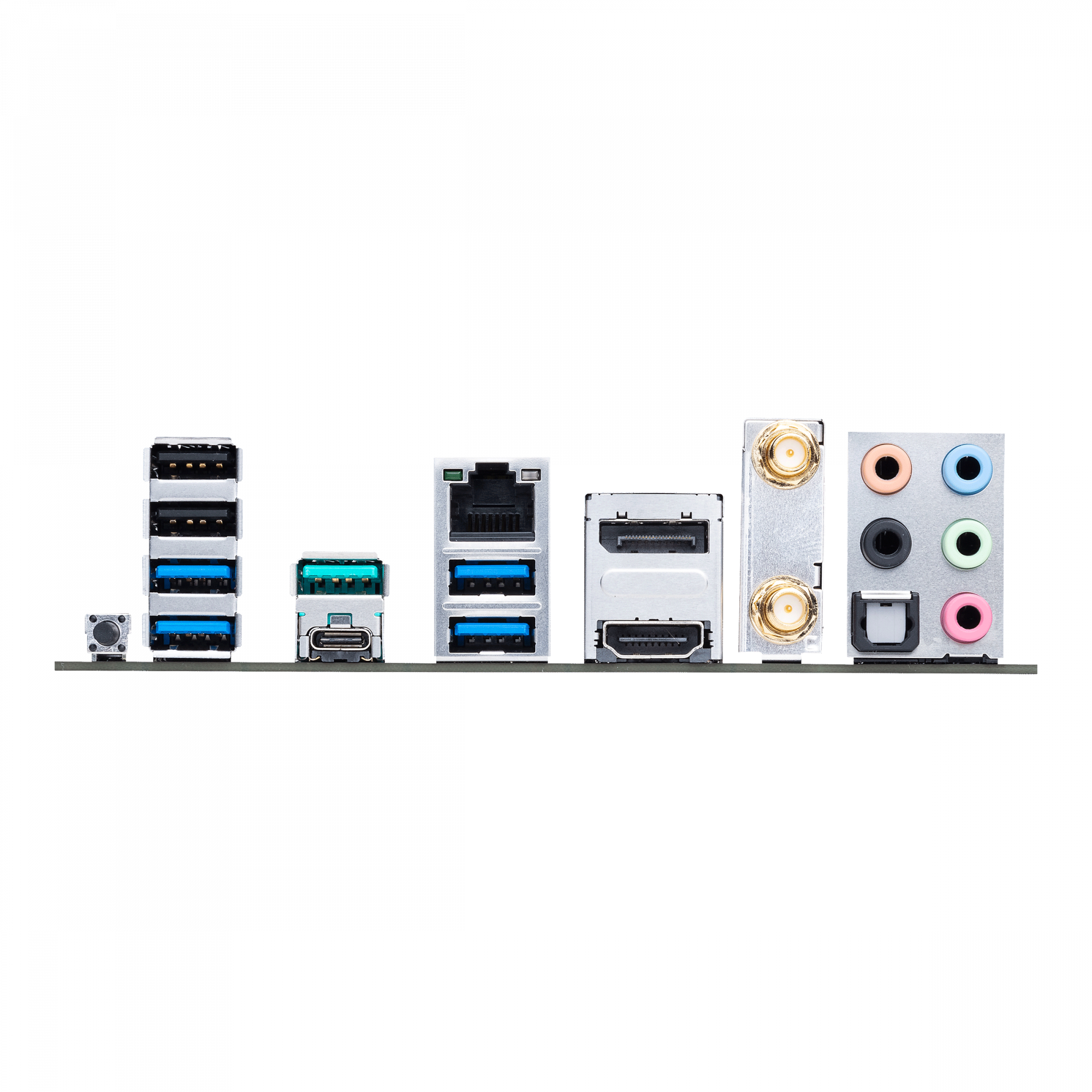

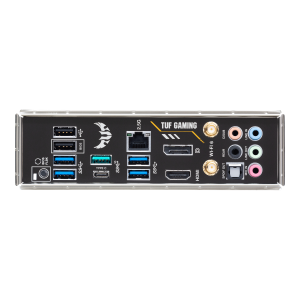

Rear panel I/O ports

DisplayPorts quantity
1

DVI-D ports quantity
0

DVI-I ports quantity
0

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

PS/2 ports quantity
0

S/PDIF out port
Yes

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
0

USB connector type
USB Type-A, USB Type-C

USB4 Gen 2x2 ports quantity
0

USB4 Gen 3x2 ports quantity
0

VGA (D-Sub) ports quantity
0

Storage controllers

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
75 mm

Width
305 mm

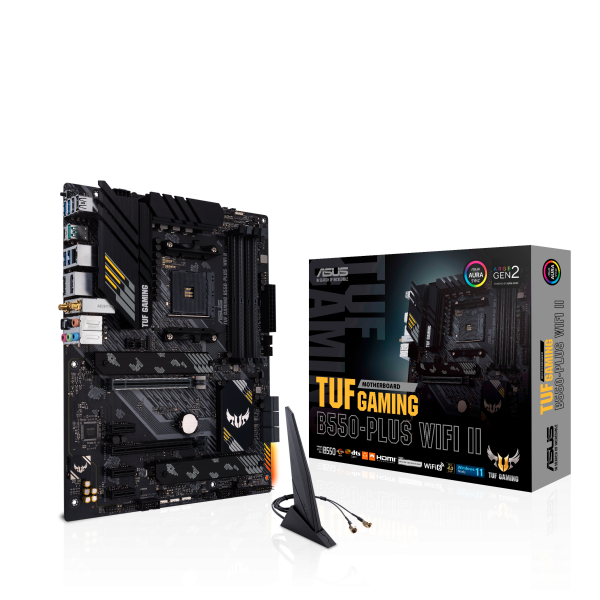

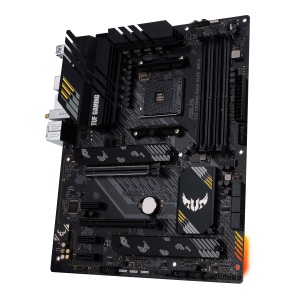

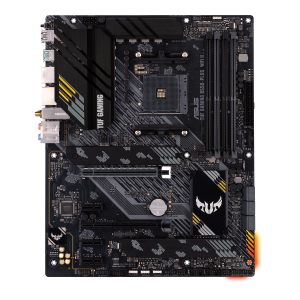

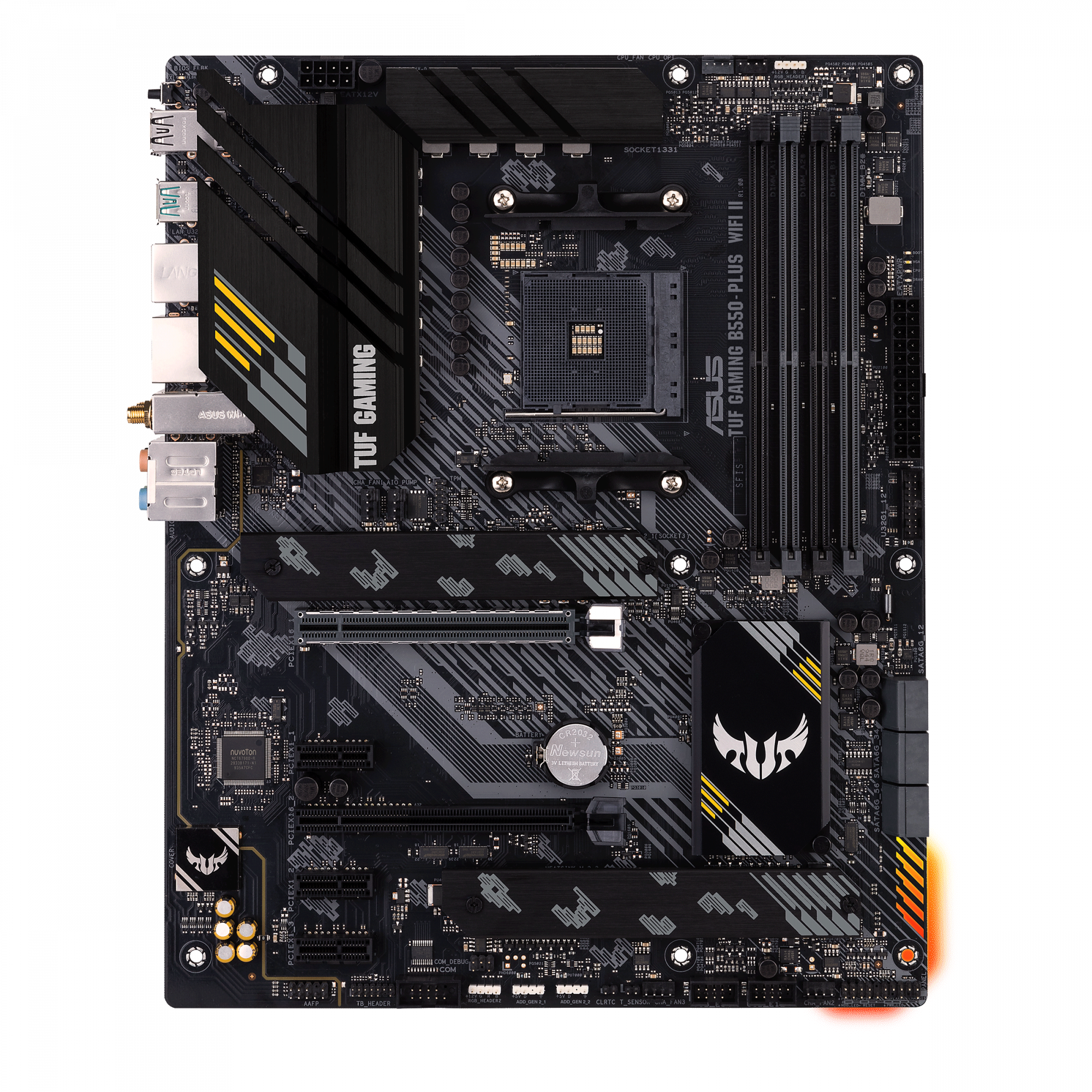

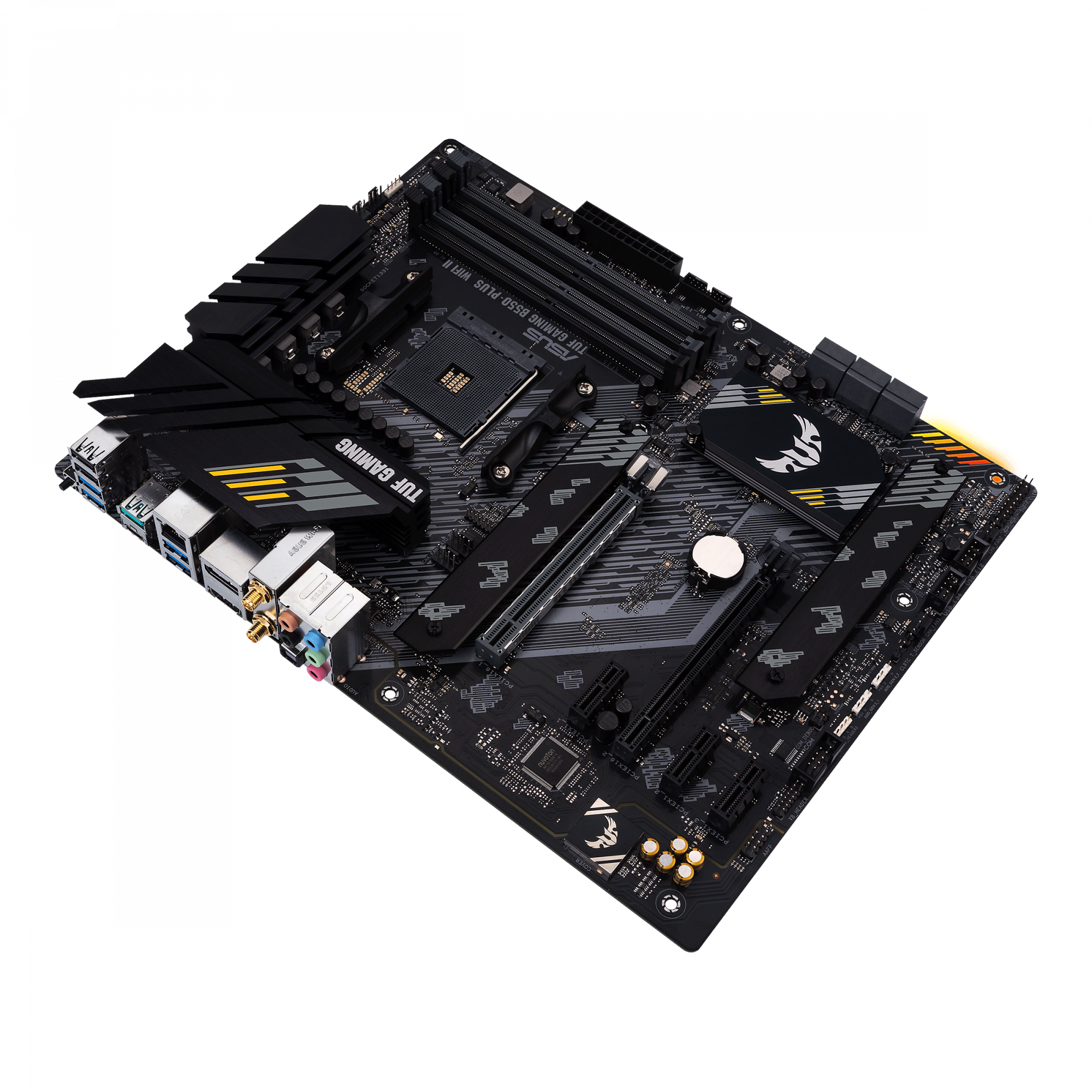

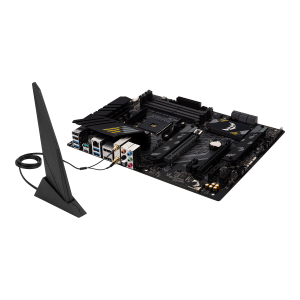

ASUS TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX
