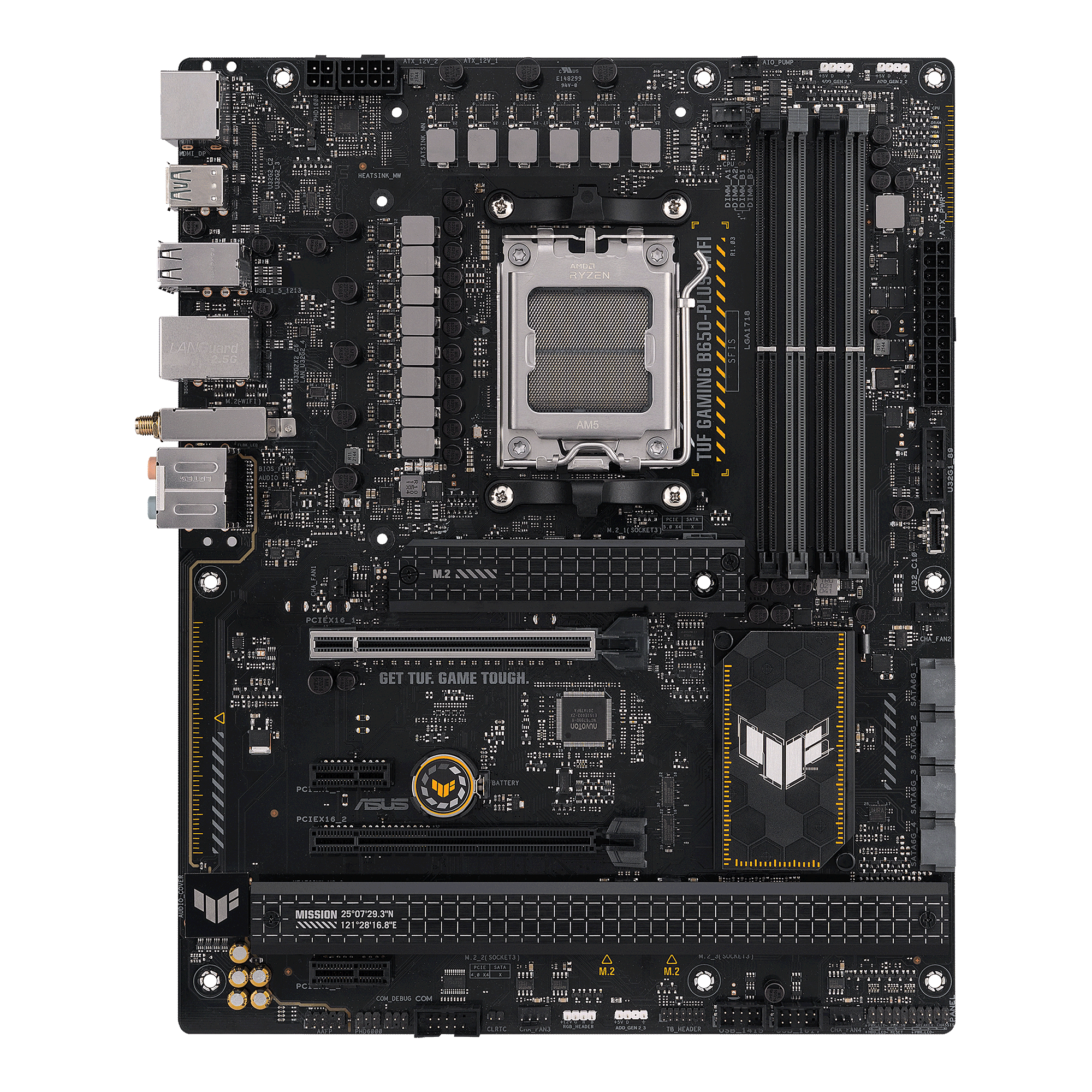

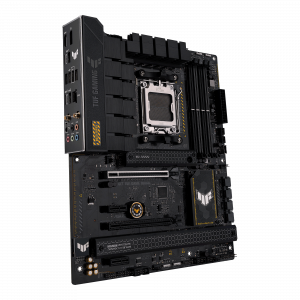

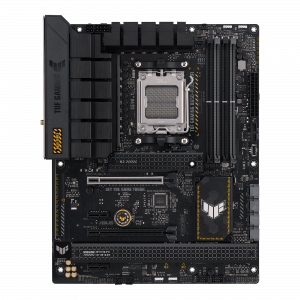

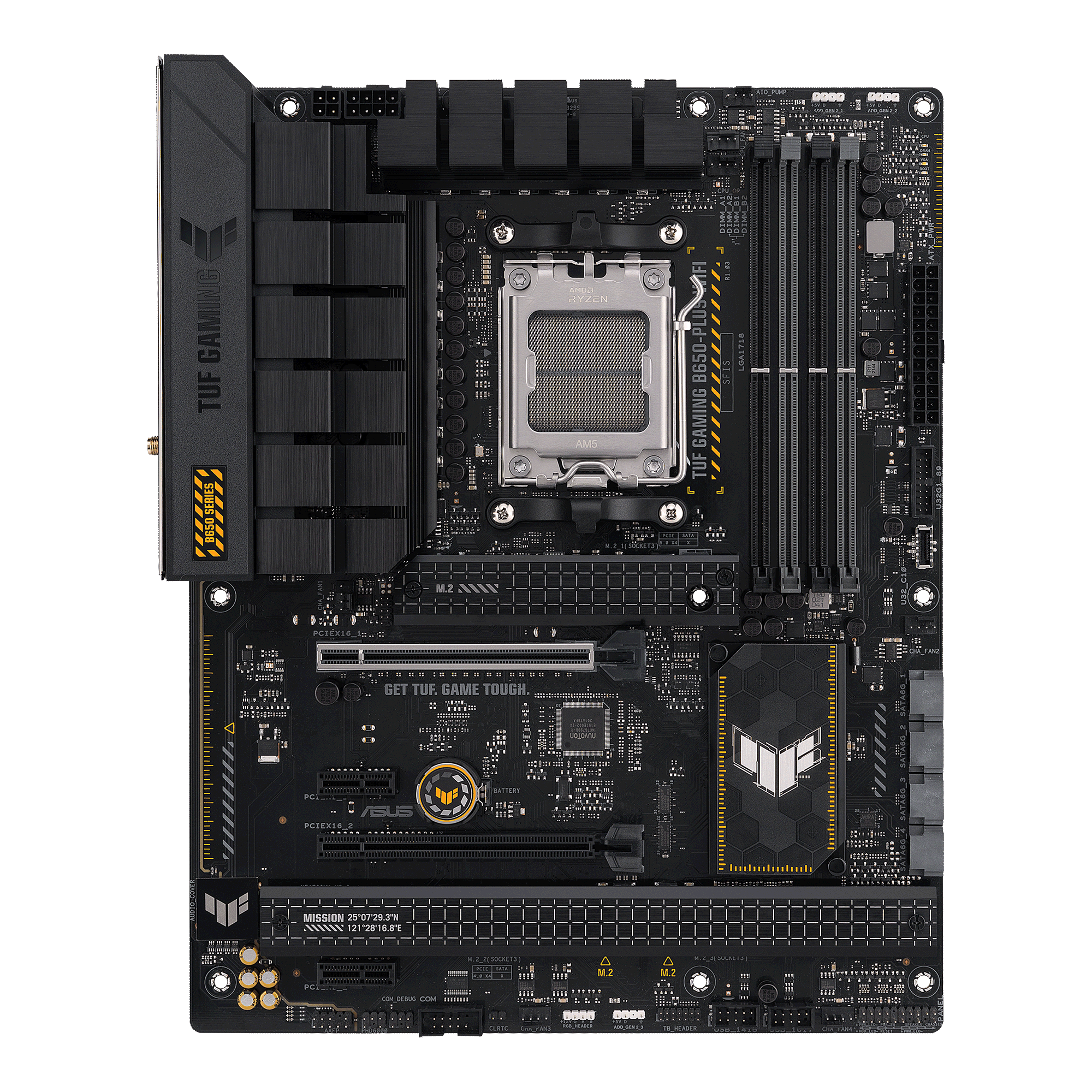

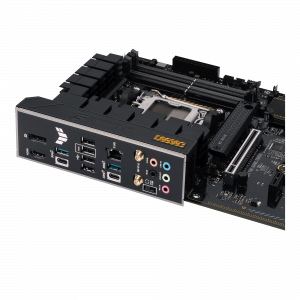

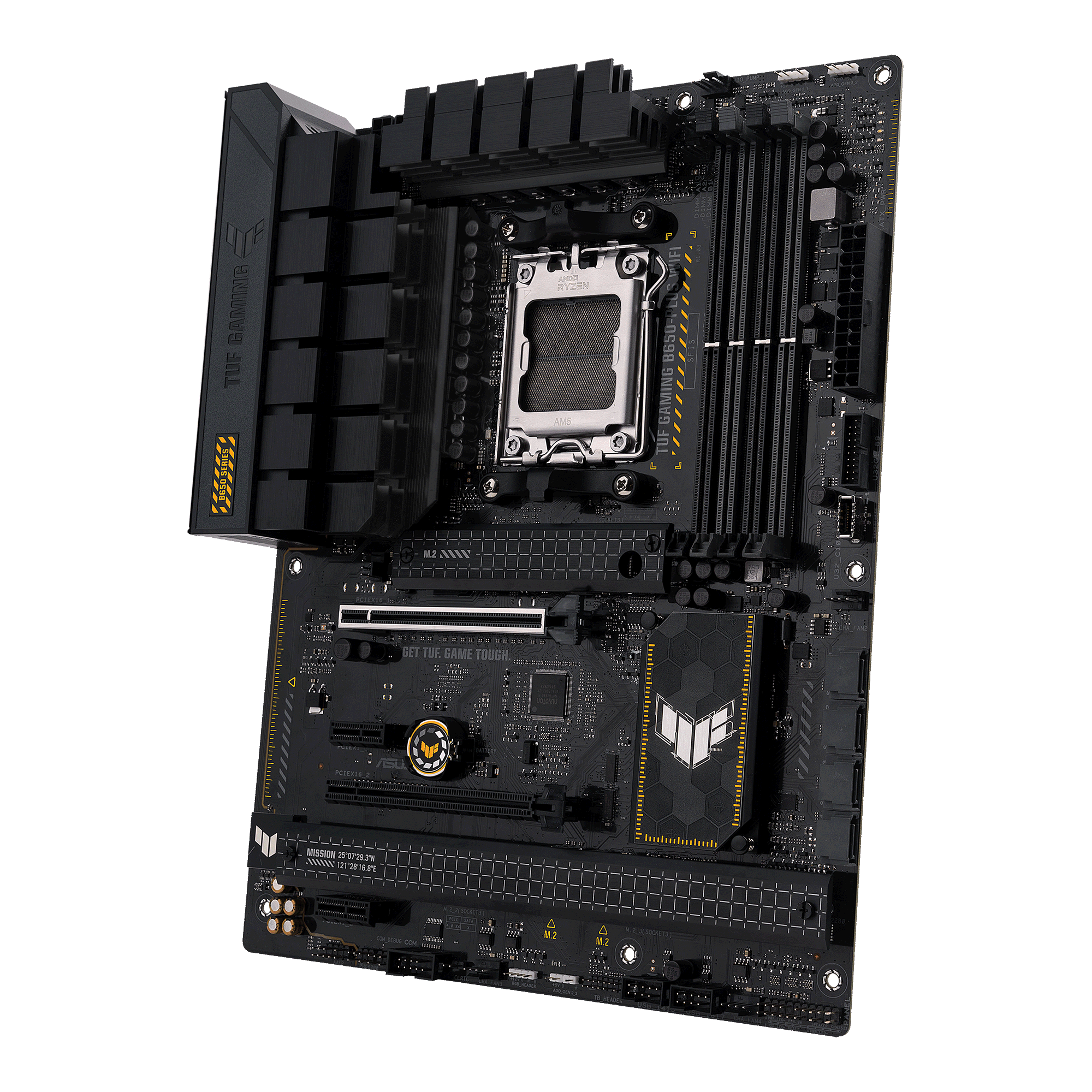

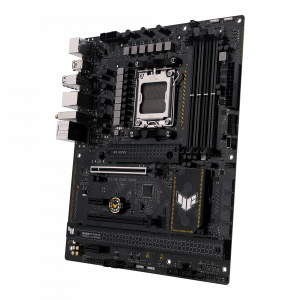

ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
Roll over image to zoom inClick to Open expanded view
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
Print
Model: TUF GAMING B650-PL
EAN: 4711081912651

ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX

Manufacturer:
Asus
ASUS TUF GAMING B650-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, DDR5-SDRAM, 128 GB
Please log in to see your price
Related products

Description

ASUS TUF GAMING B650-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Product Properties

  • Model
  • TUF GAMING B650-PL
  • EAN
  • 4711081912651
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Mini PCI Express (Gen 1.x) slots
  • 0
  • Mini PCI Express (Gen 2.x) slots
  • 0
  • Mini PCI Express slot (full length)
  • 0
  • Mini PCI Express slot (half-length)
  • 0
  • Mini PCI Express slots
  • 0
  • Number of M.2 (M) slots
  • 3
  • PCI Express OCuLink connectors (NVMe support)
  • 0
  • PCI Express x1 (Gen 2.x) slots
  • 0
  • PCI Express x1 (Gen 3.x) slots
  • 0
  • PCI Express x1 (Gen 4.x) slots
  • 2
  • PCI Express x1 slots
  • 0
  • PCI Express x16 (Gen 2.x) slots
  • 0
  • PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
  • 0
  • PCI Express x16 (Gen 3.x) slots
  • 0
  • PCI Express x16 (Gen 4.x) slots
  • 2
  • PCI Express x16 (Gen 5.x) slots
  • 0
  • PCI Express x16 slots
  • 0
  • PCI Express x4 (Gen 1.x) slots
  • 0
  • PCI Express x4 (Gen 2.x) slots
  • 0
  • PCI Express x4 (Gen 4.x) slots
  • 0
  • PCI Express x4 slots
  • 0
  • PCI Express x8 (Gen 1.x) slots
  • 0
  • PCI Express x8 slots
  • 0
  • PCI slots
  • 0
  • PCI-X slots
  • 0
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • AMD
  • Component for
  • PC
  • Motherboard chipset
  • AMD B650
  • Motherboard form factor
  • ATX
  • Product colour
  • Black
  • Graphics
  • On-board graphics card
  • No
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 4
  • Number of COM connectors
  • 1
  • Number of SATA connectors
  • 0
  • Number of SATA II connectors
  • 0
  • Number of SATA III connectors
  • 4
  • RGB
  • Yes
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • USB 3.2 Gen 2x2 connectors
  • 0
  • Memory
  • ECC сompatibility
  • ECC & Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.2
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Top Wi-Fi standard
  • Wi-Fi 6 (802.11ax)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Other features
  • mSATA ports quantity
  • 0
  • Weight
  • 1.2 kg
  • Packaging data
  • Package depth
  • 273 mm
  • Package height
  • 68 mm
  • Package weight
  • 1.36 kg
  • Package width
  • 338 mm
  • Processor
  • Compatible processor series
  • AMD Ryzen 7000 Series
  • Processor manufacturer
  • AMD
  • Processor socket
  • Socket AM5
  • Supported processor sockets
  • Socket AM5

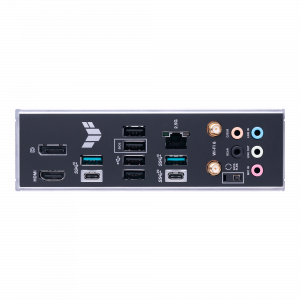

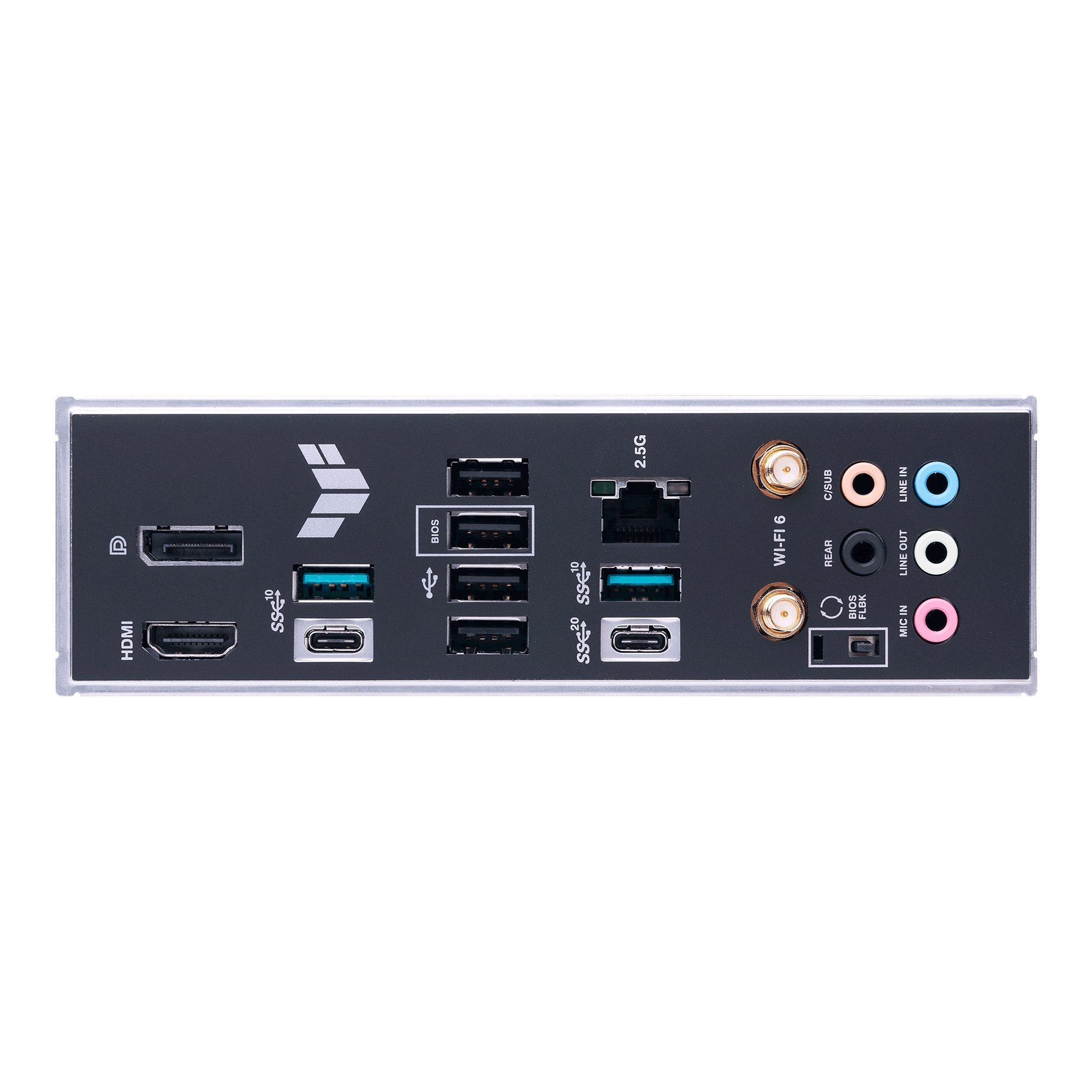

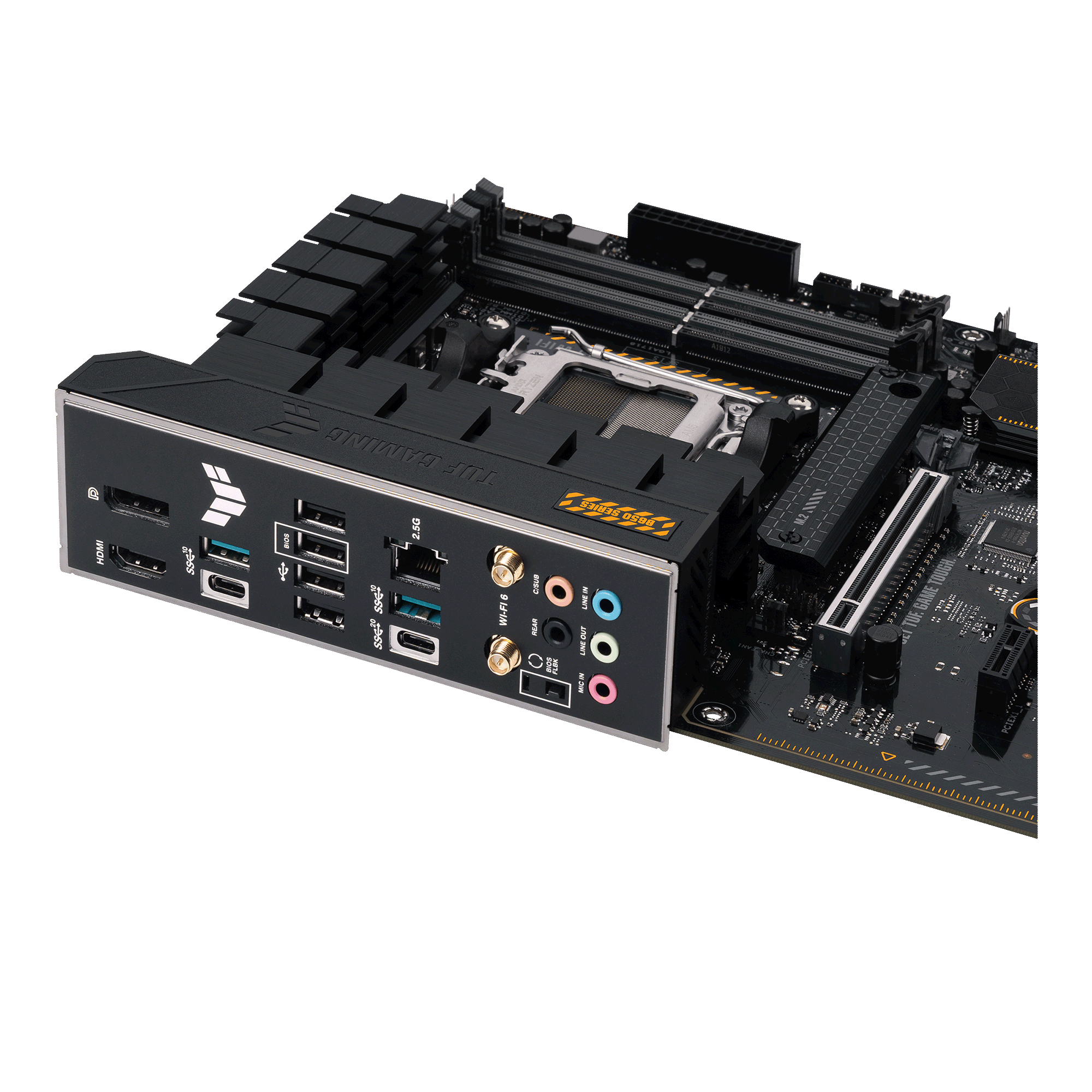

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • DVI-I ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • Microphone in
  • Yes
  • PS/2 ports quantity
  • 0
  • S/PDIF out port
  • No
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • USB4 Gen 2x2 ports quantity
  • 0
  • USB4 Gen 3x2 ports quantity
  • 0
  • VGA (D-Sub) ports quantity
  • 0
  • Storage controllers
  • Number of storage drives supported
  • 7
  • RAID levels
  • 0, 1, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 50 mm
  • Width
  • 305 mm
