Description

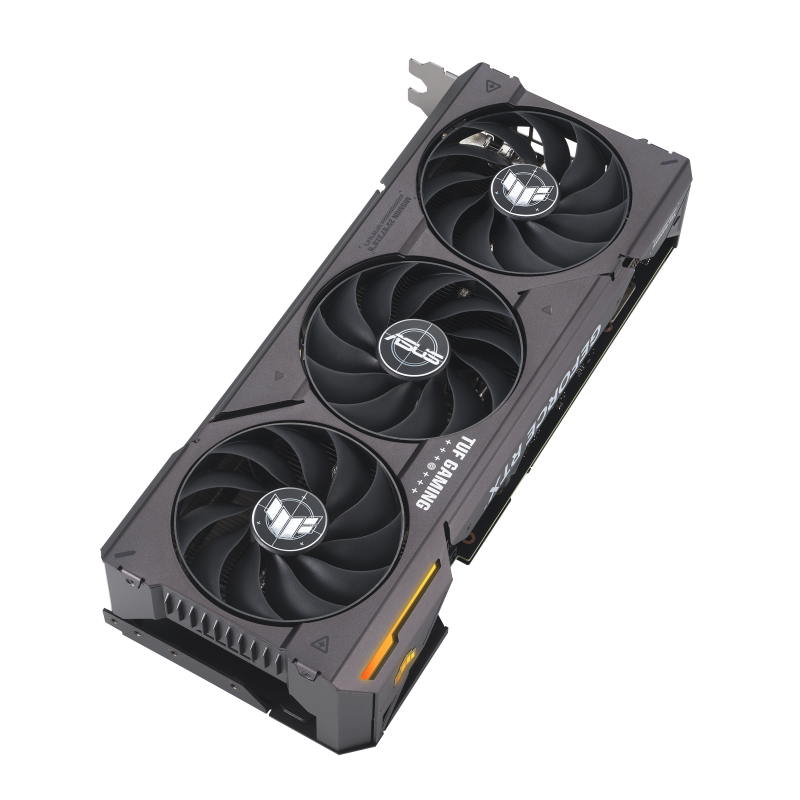

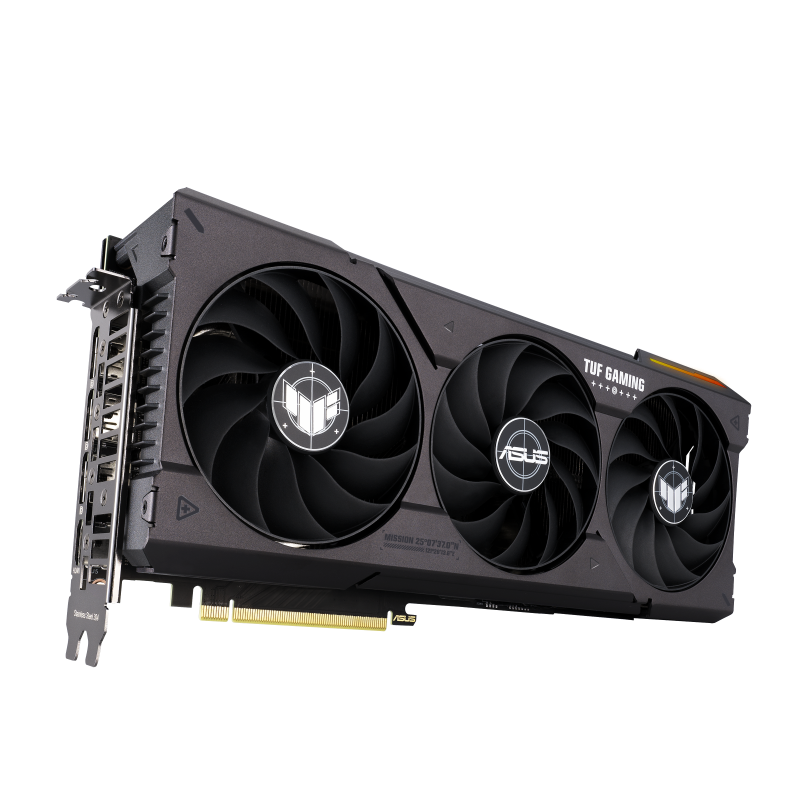

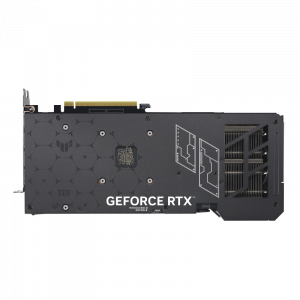

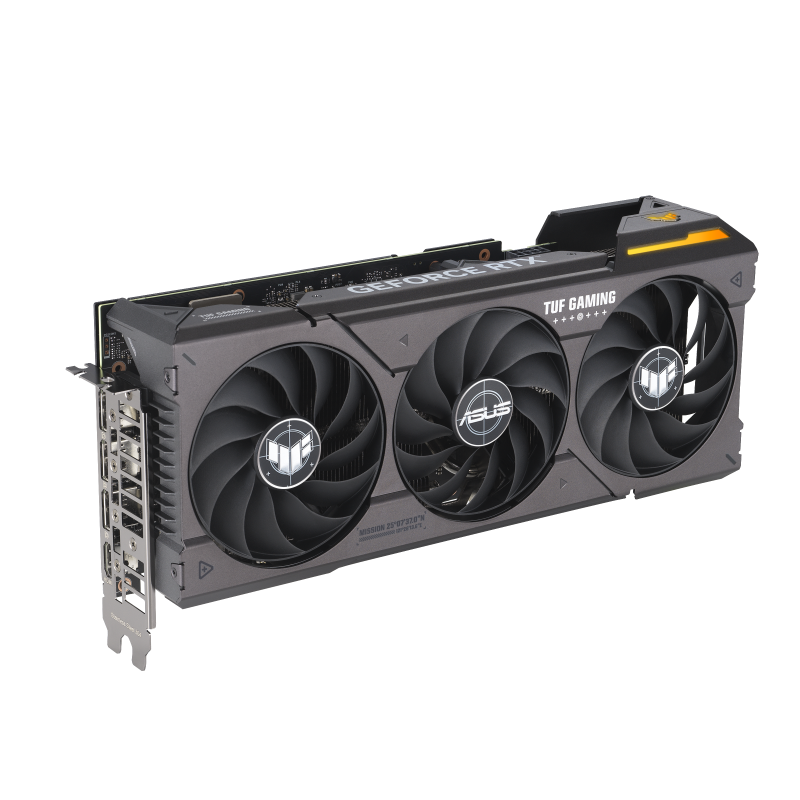

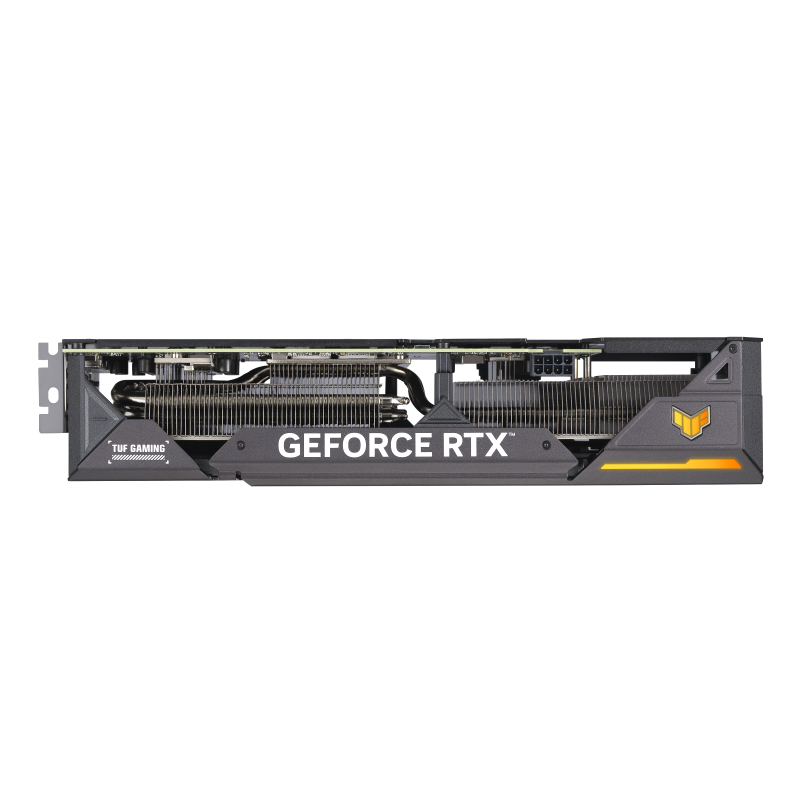

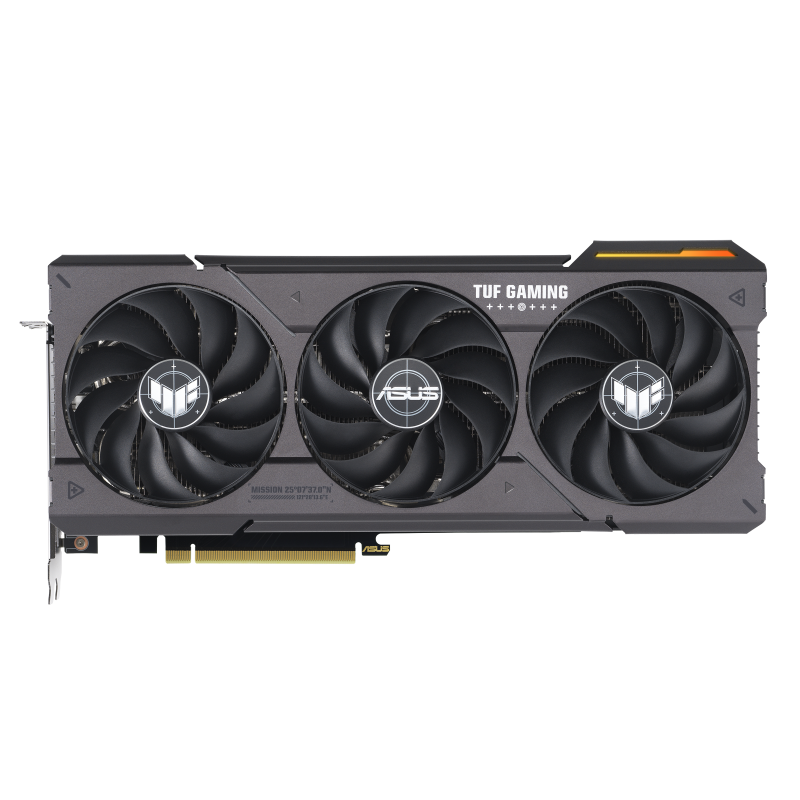

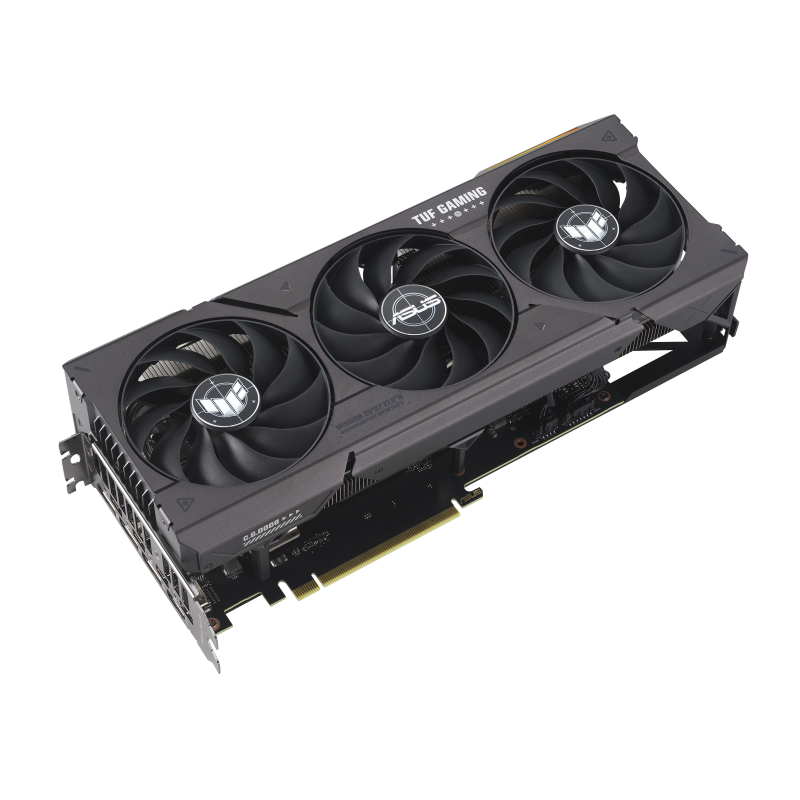

ASUS TUF Gaming TUF-RTX4060TI-O8G-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Blue, Green, Red

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
OC edition: 2655 MHz (OC mode)/ 2625 MHz (Default mode)
Axial-tech fans scaled up for 21% more airflow
Dual ball fan bearings last up to twice as long as conventional designs
Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable

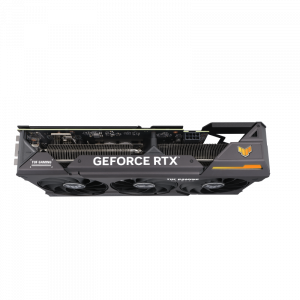

Vented exoskeleton adds structural rigidity and vents to increase heat reliability
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Product Properties

Manufacturer
Asus

Model
TUF-RTX4060TI-O8G-

EAN
4711387183120

Bullet points

Point
3rd Generation RT Cores: Up to 2x ray tracing performance

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

Auto-Extreme precision automated manufacturing for higher reliability

Axial-tech fans scaled up for 21% more airflow

Dual Ball Fan Bearings last up to twice as long as conventional designs

Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency

OC edition: 2655 MHz (OC mode)/ 2625 MHz (Default mode)

Vented exoskeleton adds structural rigidity and vents to increase heat reliability

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Yes

Illumination colour
Blue, Green, Red

Number of fans
3 fan(s)

Number of slots
3.12

Product colour
Black

Memory

Data transfer rate
18 Gbit/s

Discrete graphics card memory
8 GB

Graphics card memory type
GDDR6

Memory bus
128 bit

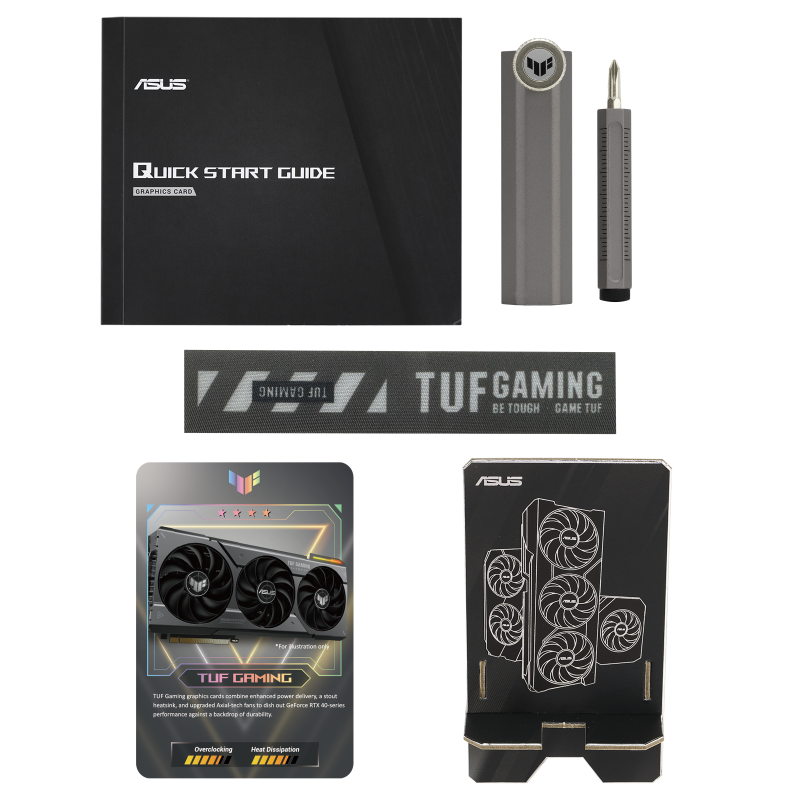

Packaging content

Manual
Yes

Packaging data

Package depth
227 mm

Package height
88 mm

Package type
Box

Package weight
1.84 kg

Package width
427 mm

Performance

AMD FreeSync
No

DirectX version
12 Ultimate

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

NVIDIA G-SYNC
Yes

OpenGL version
4.6

TV tuner integrated
No

Ports & interfaces

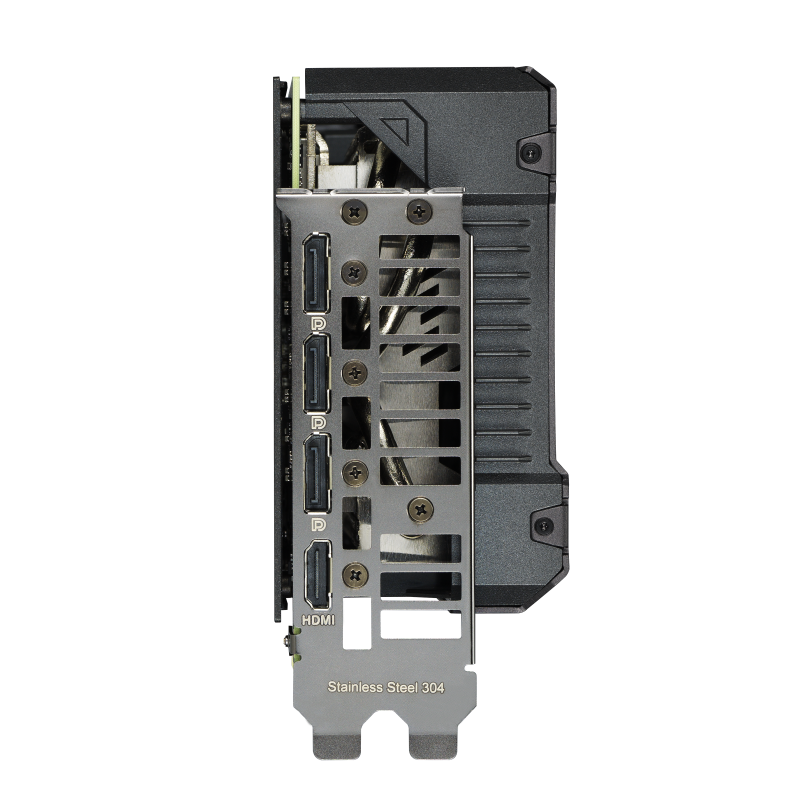

DisplayPort version
1.4a

DisplayPorts quantity
3

DVI-D ports quantity
0

DVI-I ports quantity
0

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Mini DisplayPorts quantity
0

Mini HDMI ports quantity
0

Thunderbolt 3 ports quantity
0

Power

Minimum system power supply
650 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Yes

CUDA cores
4352

Graphics processor
GeForce RTX 4060 Ti

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
2625 MHz

Processor frequency (OC mode)
2655 MHz

Weight & dimensions

Depth
62.4 mm

Height
139 mm

Length
300 mm

Weight
1.08 kg

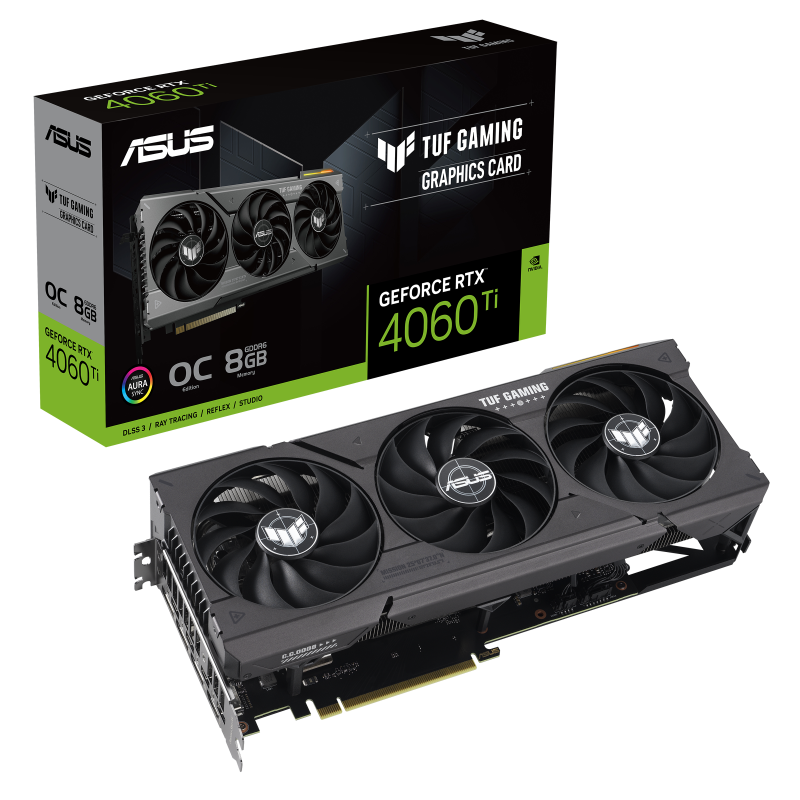

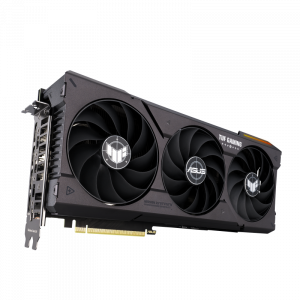

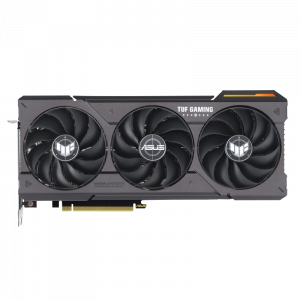

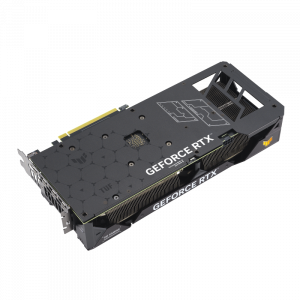

ASUS TUF Gaming TUF-RTX4060TI-O8G-GAMING NVIDIA GeForce RTX 4060 Ti 8 GB GDDR6
