Description

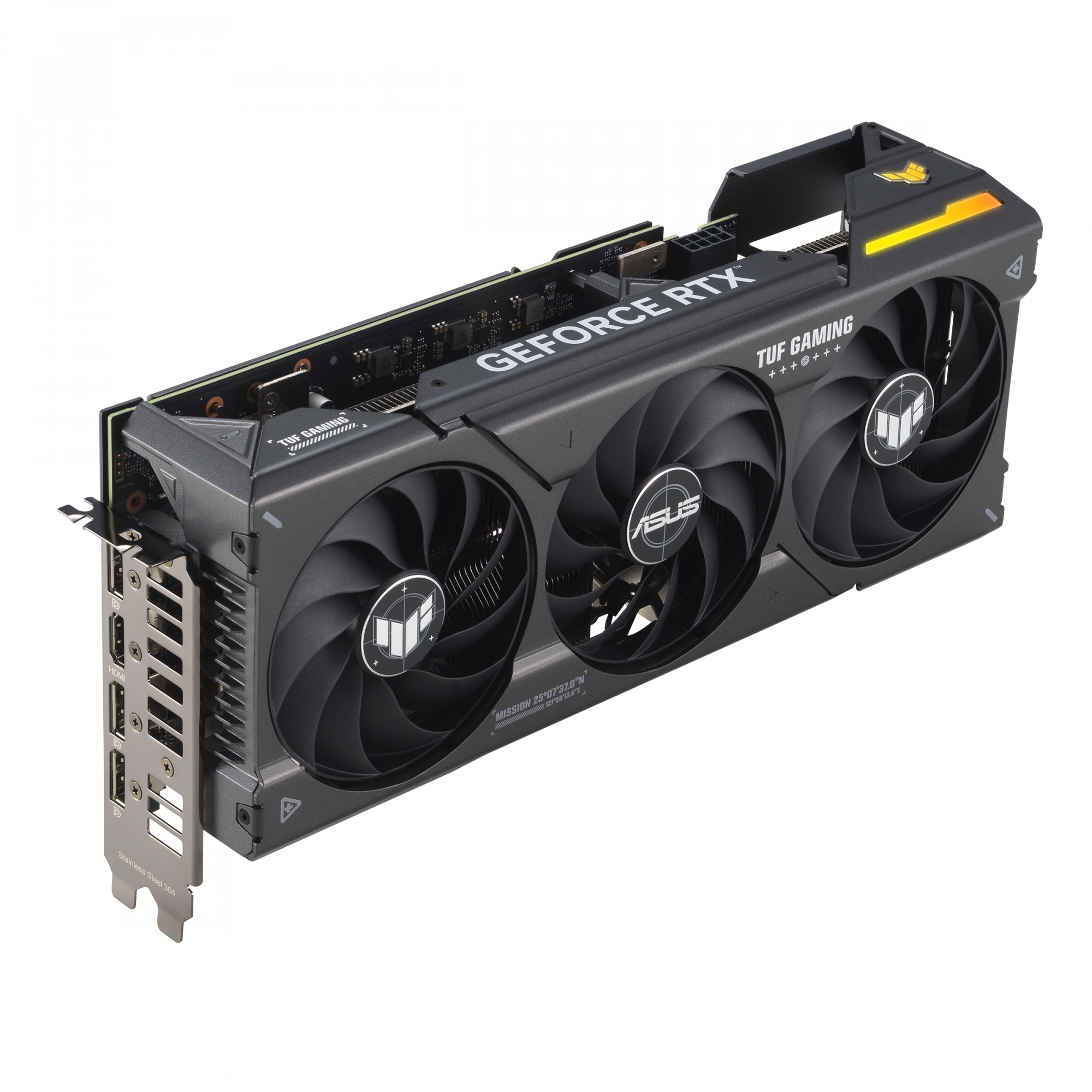

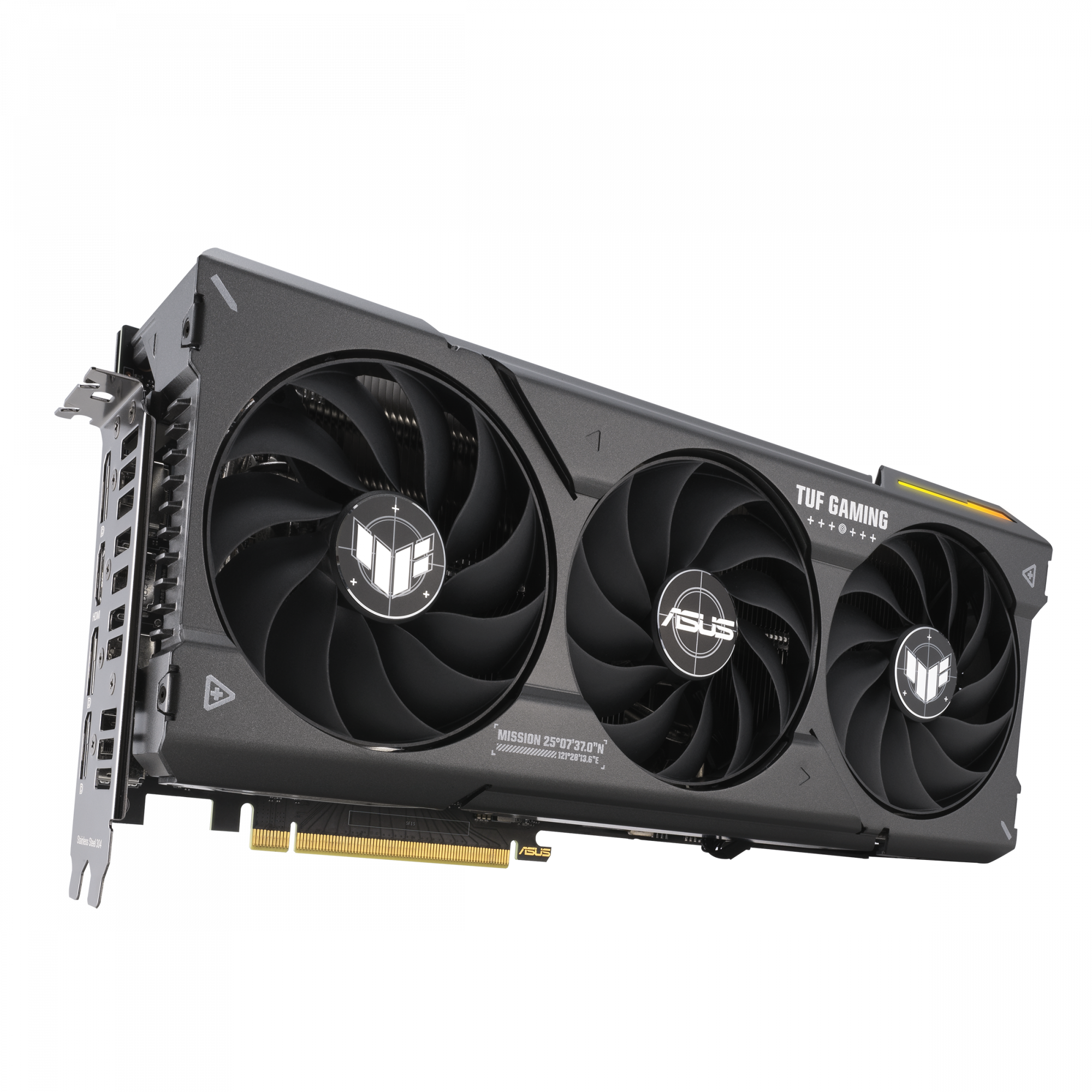

ASUS TUF Gaming TUF-RTX4070-O12G-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Blue, Green, Red

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC mode: 2580 MHz (OC mode)/ 2550 MHz (Default mode)

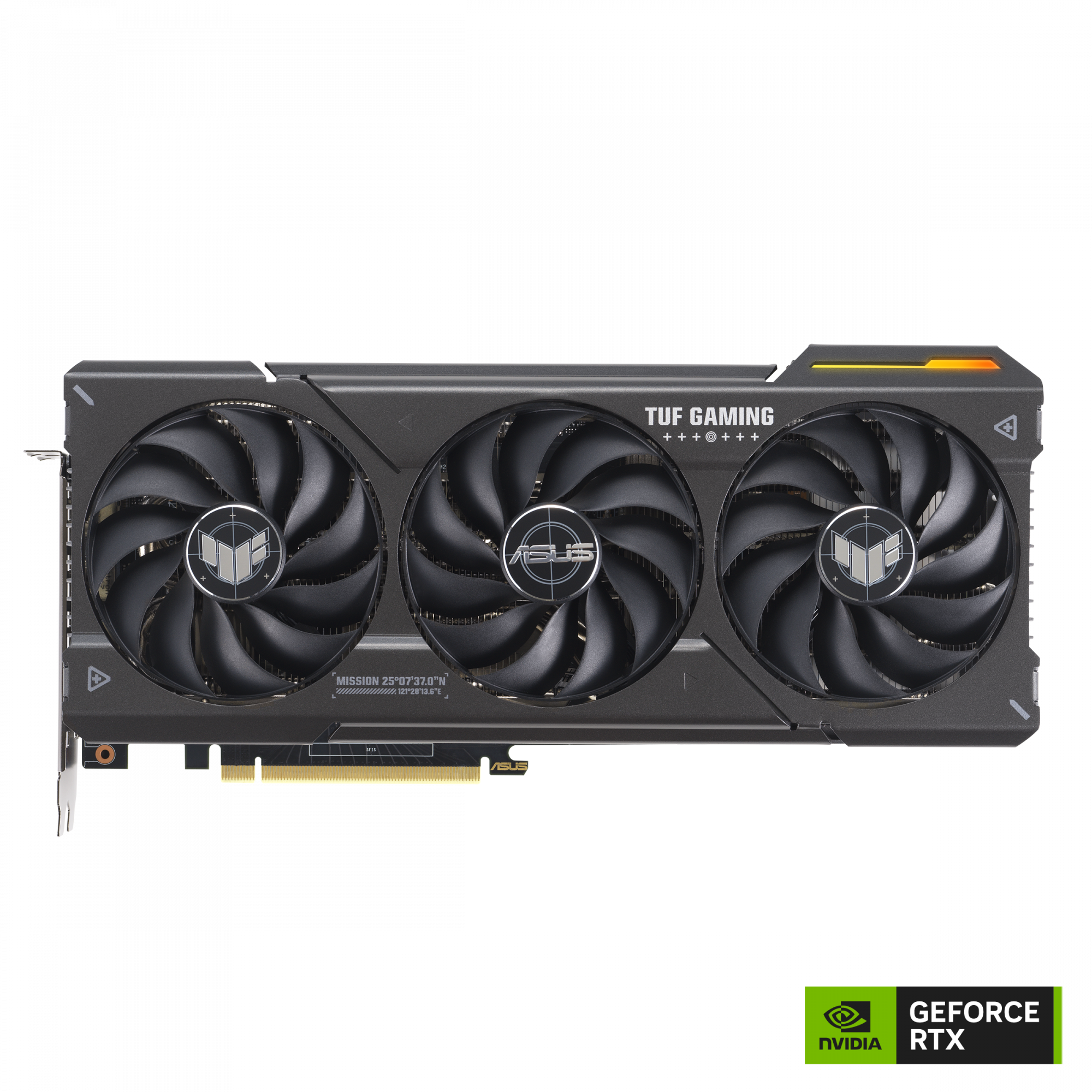

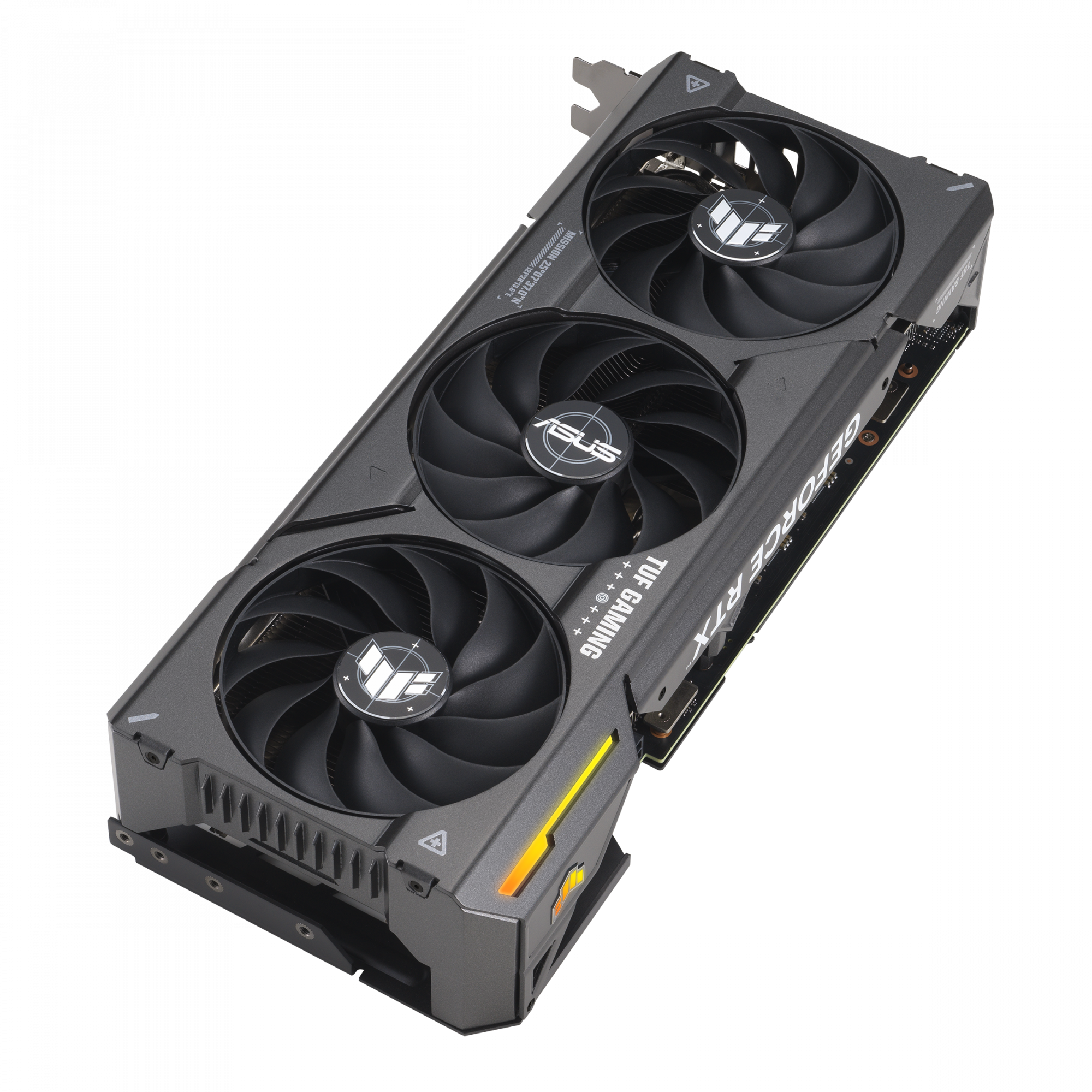

Axial-tech fans scaled up for 21% more airflow
Dual ball fan bearings last up to twice as long as conventional designs
Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable

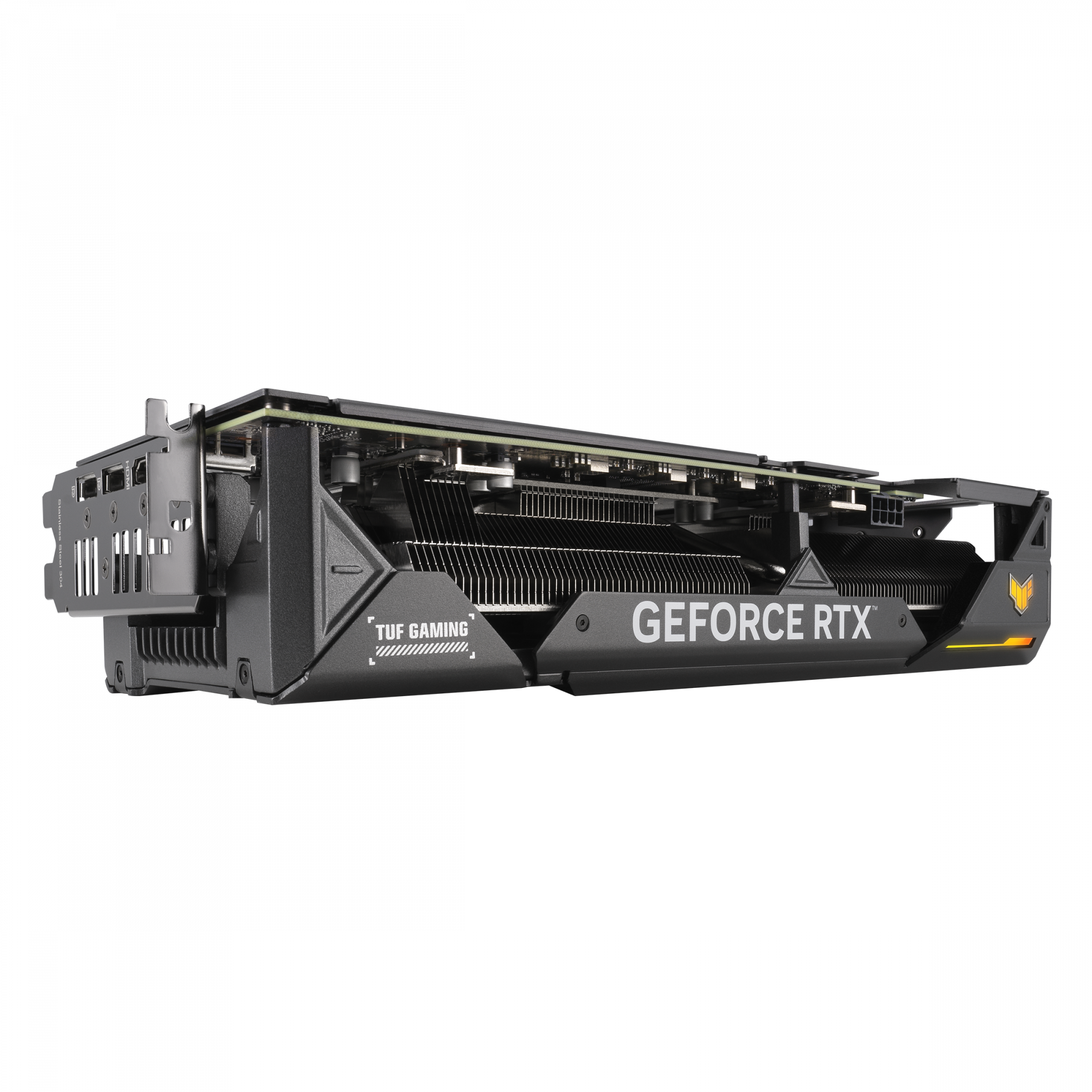

Vented exoskeleton adds structural rigidity and vents to increase heat reliability
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Product Properties

Manufacturer
Asus

Model
TUF-RTX4070-O12G-G

EAN
4711387128176

Bullet points

Point
3rd Generation RT Cores: Up to 2x ray tracing performance

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

Auto-Extreme precision automated manufacturing for higher reliability

Axial-tech fans scaled up for 21% more airflow

Dual Ball Fan Bearings last up to twice as long as conventional designs

Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable

OC mode: 2580 MHz (OC mode)/ 2550 MHz (Default mode)

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing

Vented exoskeleton adds structural rigidity and vents to increase heat reliability

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Half-Length (FH/HL)

Illumination
Yes

Illumination colour
Blue, Green, Red

Number of fans
3 fan(s)

Number of slots
3.15

Product colour
Grey

Memory

Data transfer rate
21 Gbit/s

Discrete graphics card memory
12 GB

Graphics card memory type
GDDR6X

Memory bus
192 bit

Packaging data

Package depth
226 mm

Package height
87 mm

Package type
Box

Package weight
1.73 kg

Package width
420 mm

Performance

AMD FreeSync
No

DirectX version
12 Ultimate

HDCP
Yes

HDCP version
2.3

NVIDIA G-SYNC
Yes

OpenGL version
4.6

Ports & interfaces

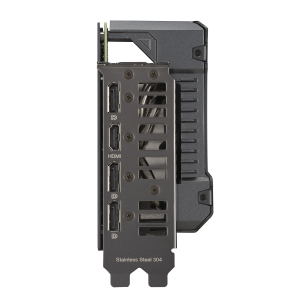

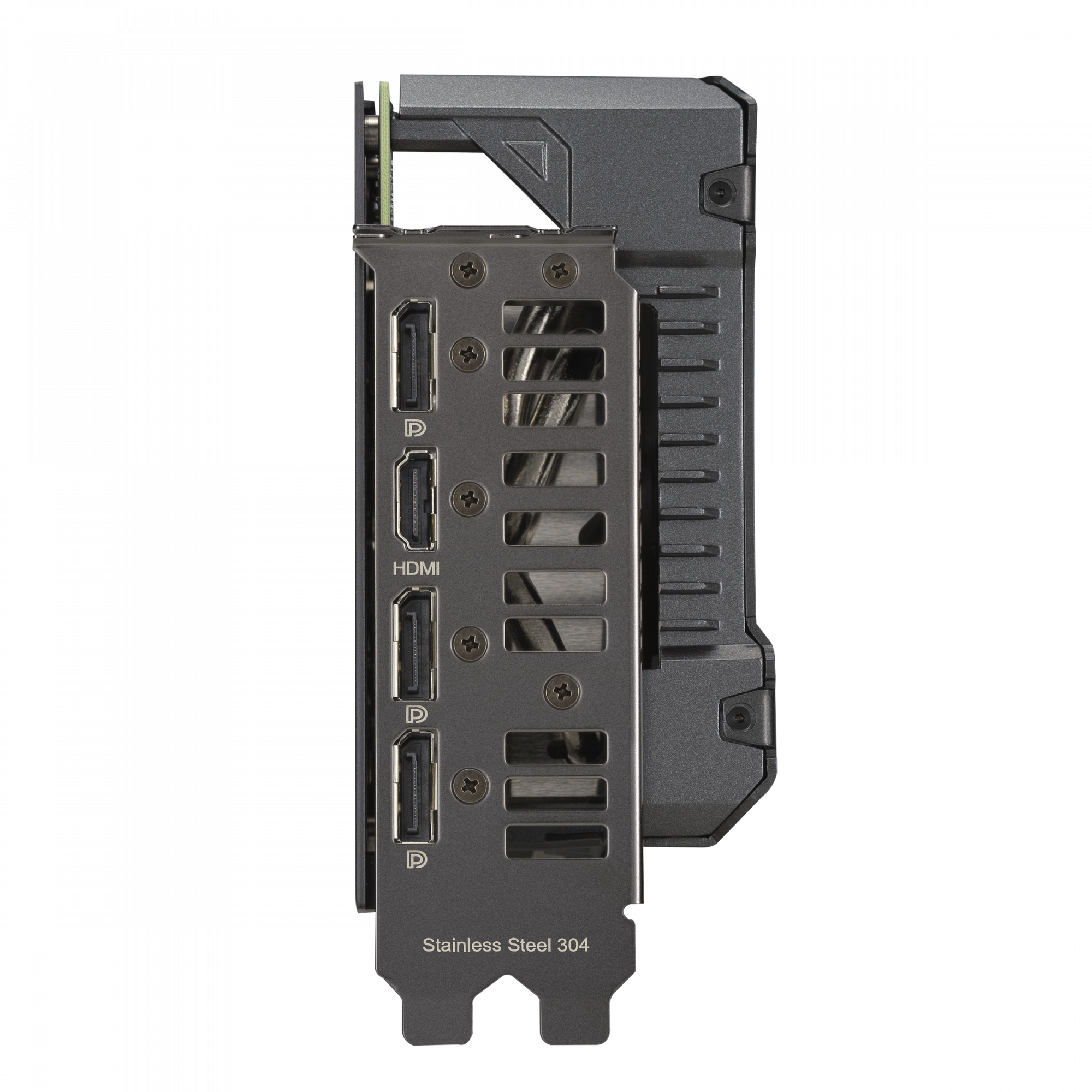

DisplayPort version
1.4a

DisplayPorts quantity
3

DVI-D ports quantity
0

DVI-I ports quantity
0

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Mini DisplayPorts quantity
0

Mini HDMI ports quantity
0

Thunderbolt 3 ports quantity
0

Power

Minimum system power supply
650 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Yes

CUDA cores
5888

Graphics processor
GeForce RTX 4070

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
2550 MHz

Processor frequency (OC mode)
2580 MHz

Weight & dimensions

Depth
63 mm

Height
139 mm

Length
301 mm

Weight
968 g

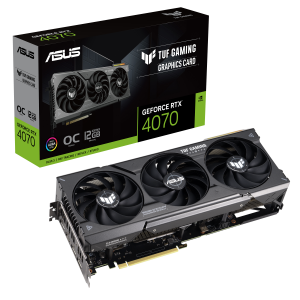

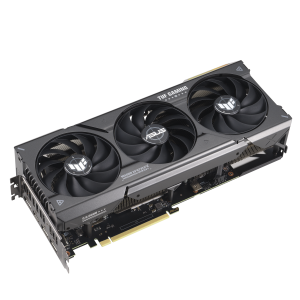

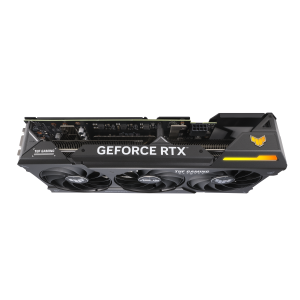

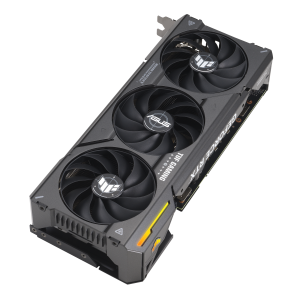

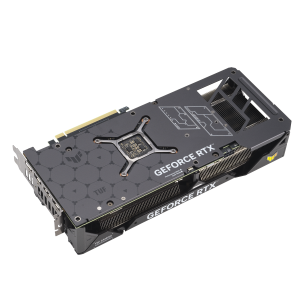

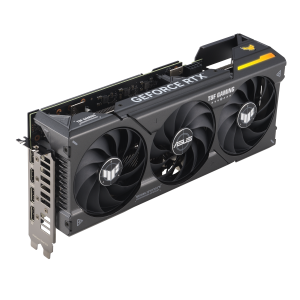

ASUS TUF Gaming TUF-RTX4070-O12G-GAMING NVIDIA GeForce RTX 4070 12 GB GDDR6X
